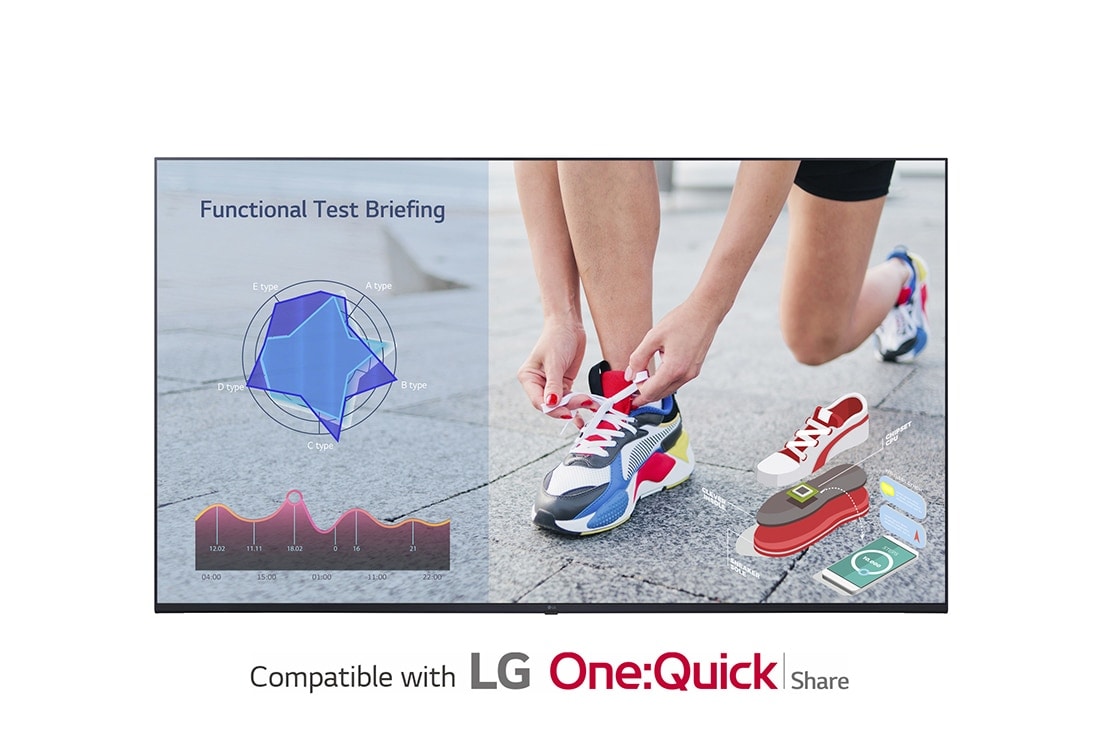

UHD Standard Signage

55UL3J-N

Key Features

Brightness(Typ.) : 400 nits
Resolution : ULTRA HD (3,840 x 2,160)
webOS-based High Performance
Built-in Speaker
Compatible with LG's One:Quick Share
Compatible with AV Control Systems

All Spec

ACCESSORY

Basic: Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder

CERTIFICATION

Safety: CB

EMC: FCC Class "A" / CE

ErP / Energy Star: Yes (OldErP for Jordan) / Yes

CONNECTIVITY

Input: HDMI (3, HDCP 2.2/1.4), RS-232C In (4 Pin Phone-jack), RJ45 (LAN), USB 2.0 (2, Type A)

Output: Audio Out, RS-232C Out (4 Pin Phone-jack)

ENVIRONMENT CONDITIONS

Operation Temperature: 0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)

Operation Humidity: 10 % to 80 %

KEY FEATURE

HW: Internal Memory (eMMC) 16 GB, Built-in Wi-Fi, Sensor (Temperature Sensor, Auto Brightness Sensor), Local Key Operation (Power On/Off Only)

SW: webOS 6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Screen Share, Video Tag (4, Max One HDMI Input), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Cisco Certi. (TBD, ~`23.7)), Crestron Inside, Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC1), SI Sever Setting, webRTC, Pro:Idiom

LANGUAGE

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, polski

MECHANICAL SPECIFICATION

Bezel Color: Ashed Blue

Bezel Width: Off : 6.9/6.9/6.9/18.4 mmOn : 12.8/12.8/12.8/19.9 mm

Weight(Head): 14.0 kg

Packed Weight: 18.8 kg

Monitor Dimension(W x H x D): 1235 x 715 x 57.5 mm

Carton Dimensions(W x H x D) (Box outer size): 1360 x 810 x 162 mm

VESA™ Standard Mount Interface: 300 x 300 mm

PANEL

Screen Size: 55"

Panel Technology: ADS

Back Light Type: Direct

Aspect Ratio: 16:9

Native Resolution: 3840x2160 (UHD)

Refresh Rate: 60Hz

Brightness: 400nit (Typ.)

Contrast Ratio: 1200:1

Dynamic CR: 1,000,000:1

Color gamut: DCI 80%

Viewing Angle(H x V): 178x178

Color Depth: 1.07G (8bits + FRC)

Response Time: 8ms (G to G)

Surface Treatment(Haze): 1%

Life time: 30,000Hrs (Min)

Operation Hours (Hours/Day): 16/7

Portrait / Landscape: Yes / Yes

POWER

Power Supply: AC 100-240V~, 50/60Hz

Power Type: Built-In Power

POWER CONSUMPTION

Typ.: 105 W

Max.: 160 W

BTU (British Thermal Unit): 358 BTU/Hr(Typ.), 546 BTU/Hr(Max.)

Smart Enegy Saving(70%): 73.5 W

DPM: 0.5W

Power off: 0.5W

SOFTWARE COMPATIBILITY

SuperSign CMS: Yes

SuperSign Control+: Yes

SuperSign WB: Yes

LG ConnectedCare: Yes

SOUND

Speaker: Yes (10W x 2)
