High-brightness IP-rated Outdoor Display
Display Anti-Discoloration Characterstics verified
There are four XE3P installed in the drive-thru zone at the burger place, and they vividly display the burger menus and images even in bright sunlight.
* All images are for illustrative purposes only.
LG offers advanced technical solutions equipped with various sensors, providing reliable and effective operations. In diverse spaces under sunlight, the XE3P highlights your content, reducing concerns about excessive operational burdens.

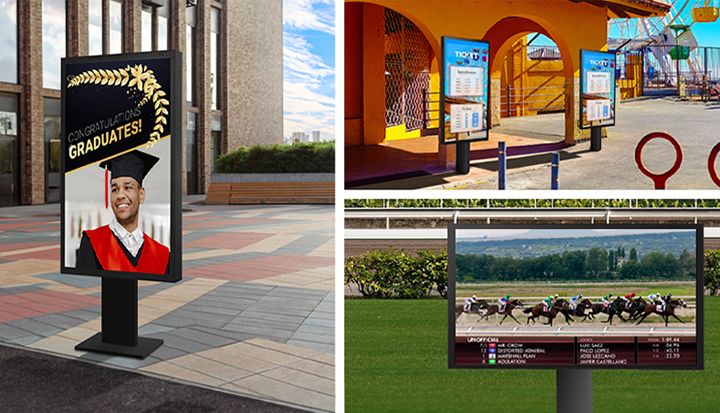

"An XE3P display is installed in the outdoor area next to the school building, clearly celebrating the graduation ceremony. Two XE3P displays are installed in front of the ticket booth at an amusement park, showing ticket purchase information clearly, even in strong sunlight. An XE3P display installed at the racetrack clearly shows the race and relevant information."
With outstanding high brightness of 3,500 nits (Typ.), the XE3P outdoor display delivers content clearly with captivating passersby. Through IPS technology, viewers can engage with the content at wide viewing angles.

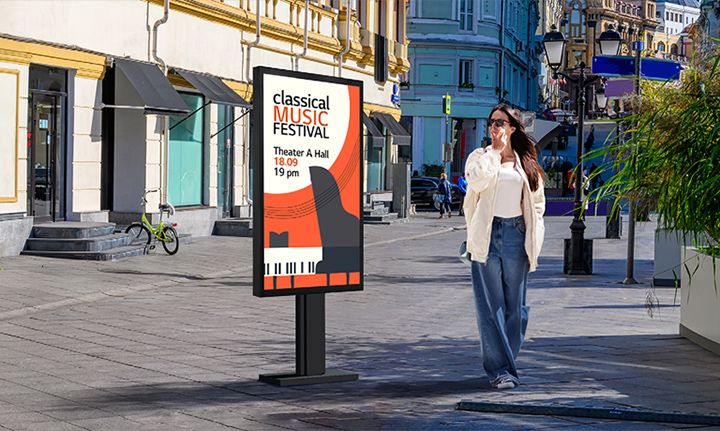

An XE3P is installed on the street, and a woman is looking at a vivid-quality advertisement on the screen.
By focusing on the key pain points, we developed our new "Anti-Discoloration" technology designed to deter both screen yellowing and black circles. With an enhanced thermal solution, the XE3P can deliver long-lasting and stable display quality.
The display on the left shows yellowing, degrading its quality, but with XE3P, which acquired the UL Verification for Display Anti-Discoloration Features, the screen, as shown on the right, remains clear, safeguarding display quality.

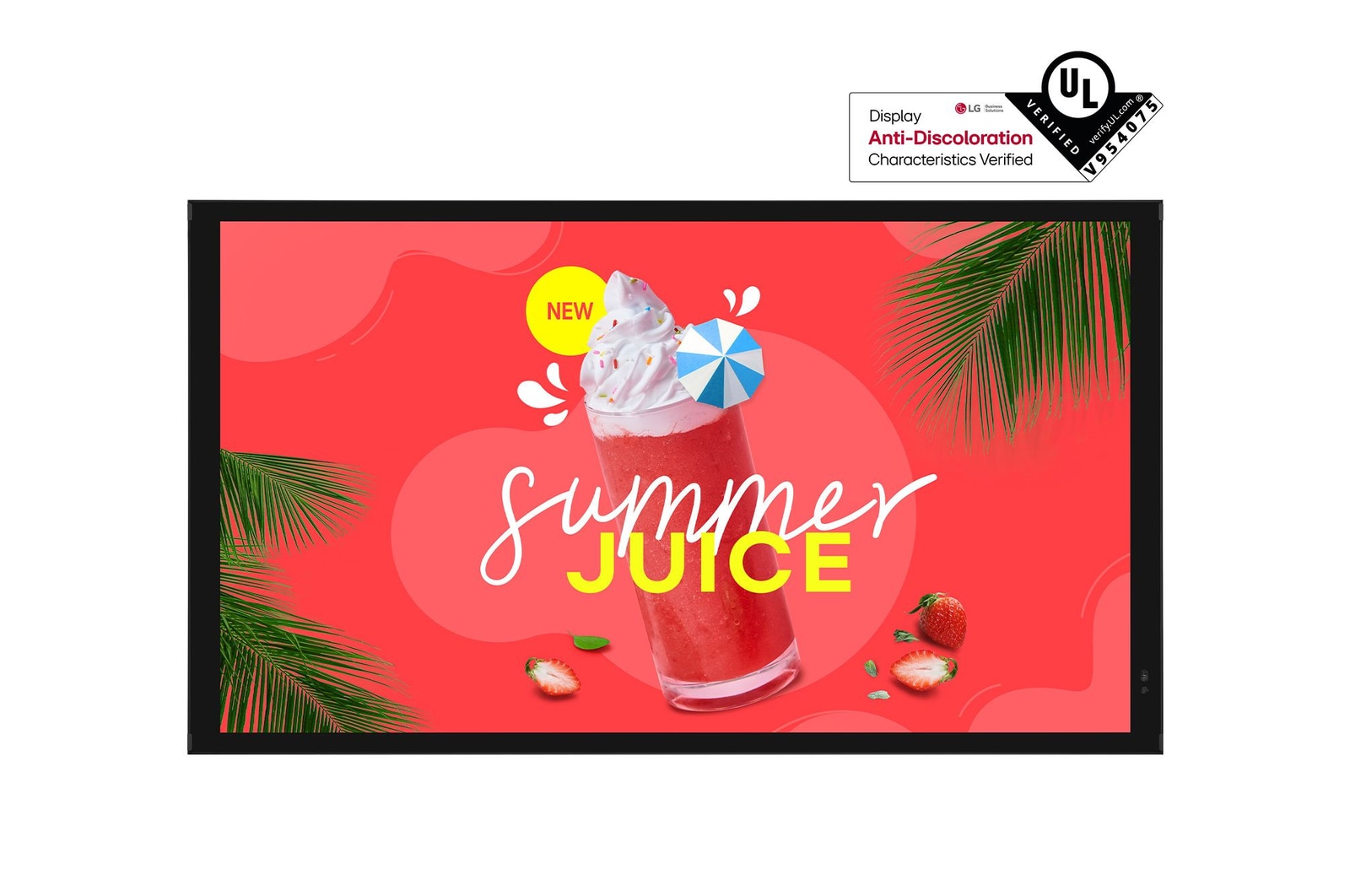

Especially for screen yellowing resistance, we obtained the world’s first UL Verification of Anti-Discoloration characteristics for displays. The UL Verified XE3P can alleviate concerns about screen yellowing, the most common but tricky issue for outdoor digital signage products.
Several outdoor displays are installed at a burger place’s drive-thru, brightly and clearly showcasing the menu and food images.
* For more details, please visit https://verify.ul.com/verifications/1382.
** World's first UL Verification in the manufacturing industry
The XE3P is sealed with IP56 design for reliable operation. It is designed to be protected not only from water but also from dust, which is an essential feature for outdoor applications.
The XE3P features IK10 rated protective glass, tempered and laminated for outdoor extremes, minimizing damage from external impacts. This can reduce unnecessary LCD module replacements and can lead to cost-effective maintenance.
The XE3P can be used under a wide range of operating temperature from -30℃ to 50℃.
* Conducted by LG internal test, Operating temperature : -30℃~50℃ (without direct sunlight; with direct sunlight in cooling system), -30℃~40℃ (with direct sunlight)
Conformal Coating* protects the circuit board and power board against dust, iron powder, humidity, etc.
* Thin protective films/breathing membranes that filter water vapor and solid debris
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management. Also, the XE3P uses M+ panel that can offer high energy efficiency and cost savings by decreasing power consumption.
* The cost-saving effect may vary depending on the actual power consumption, billing methods, and policies of the respective country and site.
** M+ IPS reduced approximately 35% BLU power consumption (IEC62087, 10 min) compared to RGB IPS, tested under same brightness (@full white, 400 nits).
The XE3P provides preset brightness settings suited to different locations and usage environments, enabling easy and effective power consumption management according to various scenarios.
* Manual mode : Max. 95%, Min. 5%
Highlight mode : Max. 100%, Min. 20%
Basic mode : Max. 70%, Min. 10%
Nearby mode : Max. 50%, Min. 10%
Built-in Wi-Fi and Bluetooth allow easy wireless transfer and distribution of content, help to prevent data hijacking, and ensure convenient and efficient device operation. Additionally, the XE3P is equipped with a beacon that delivers real-time information, using location data for display content.

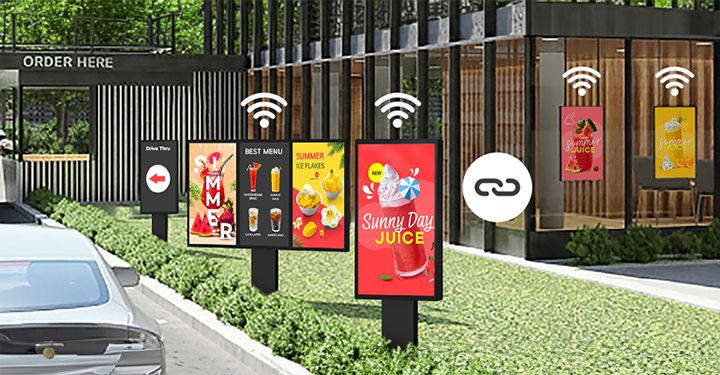

Displays installed inside and outside a café are connected via Wi-Fi and Bluetooth, making it easy to manage content seamlessly.
If the sensor detects the XE3P experiencing an impact above a certain threshold or deviating from its original installation angle, it sends an alert to the administrator, enabling a quick response to issues like vandalism.
If the device detects external impact surpassing a certain threshold, an alert is automatically sent to the administrator.

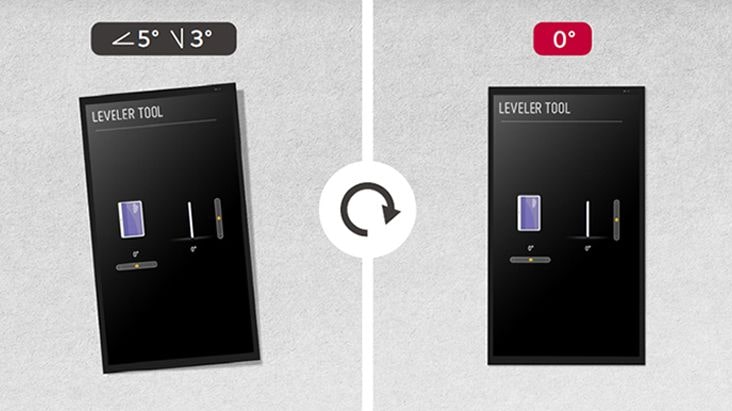

For easy installation, the XE3P is equipped with a self-leveler tool for checking horizontal and vertical levels during installation, reducing the burden of installation work.
* The availability of leveler tool feature may differ by model.

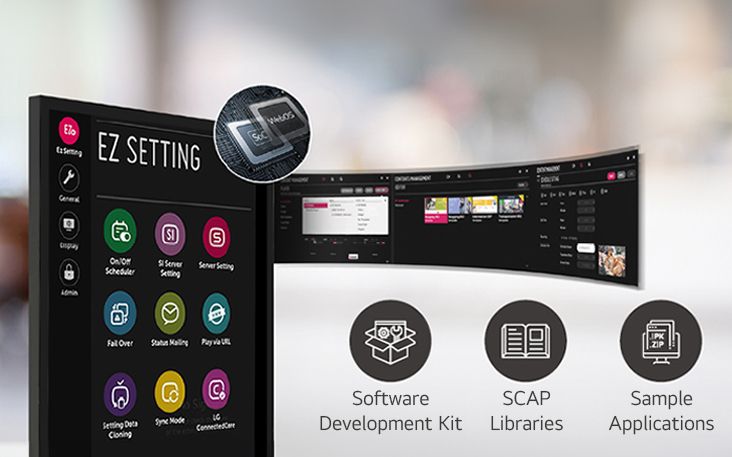

LG webOS 6.1, upgraded with SoC* and web engine, is available on the XE3P for smooth execution of several tasks. The XE3P enhances user convenience with its intuitive GUI**, and it also facilitates easy app development by being compatible with programming languages such as HTML, JavaScript, and CSS.
* SoC : System on Chip
** GUI : Graphical User Interface

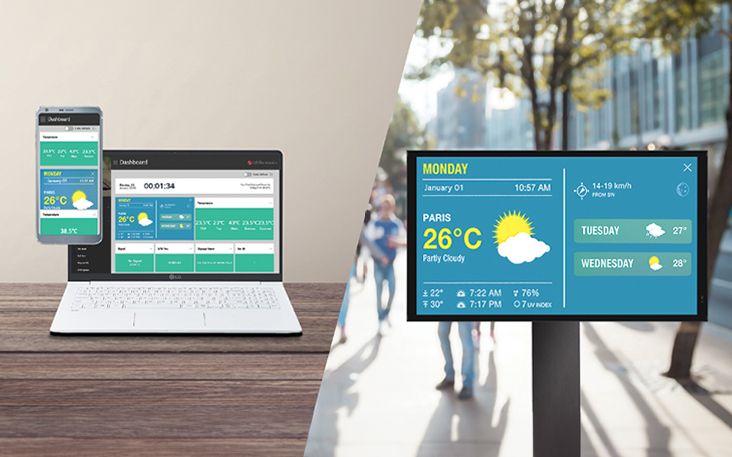

The LG Control Manager*, an embedded web monitoring program, is user-friendly and enables the user to have full access anywhere at anytime from their mobile phone or PC while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
* Enabled by wired LAN connection
Pairing the XE3P with LG SW solutions* would enhance its utilization.
* Sold separately
Screen Size (Inch)
49"
Panel Technology
IPS, M+
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
1920x1080 (FHD)
Refresh Rate
60Hz
Brightness
3,500 nit (Typ), 2,800 nit (Min)
Contrast Ratio
1,300:1
Dynamic CR
500,000:1
Color Gamut
67%
Viewing Angle (H x V)
178 x 178
Color Depth (Number of Colors)
10bit, 1.07Billion colors
Response Time
Typ. 8ms (G to G BW)
Surface Treatment (Haze)
3%
Life time
50,000 Hrs (Typ)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
Yes / Yes
QWP (Quarter Wave Plate)
Yes
HDMI In
Yes(2), HDCP2.2
DP In
Yes(1), HDCP2.2
RS232C In
Yes(1) (4pin phone jack)
RJ45(LAN) In
Yes(2) (Lan (1), HDbaseT(1))
USB In
USB2.0 Type A (2)
External Speaker Out
Yes(1, L/R, 10W+10W)
RS232C Out
Yes(1)
RJ45(LAN) Out
Yes(1)
Bezel Color
Black
Bezel Width
38.4/26/26/38.4mm
Weight (Head)
31.2kg
Packed Weight
36.2kg
Monitor Dimensions (W x H x D)
1153.0 x 656.2 x 88.0mm
Carton Dimensions (W x H x D)
1287 x 797 x 207mm
Thickness
5mm
Degree of Protection
Yes (IK10)
Tempered / Chemical strengthening
Tempered
Anti-Reflective
Yes
Infrared - Resistance (IR)
Yes
Shatter-Proof
Yes
Internal Memory (eMMC)
16GB
Wi-Fi/BT (Built-in)
Yes
Temperature Sensor
Yes
Auto Brightness Sensor
Yes
Pixel Sensor
Yes
Current Sensor
Yes
BLU Sensor
Yes
Humidity Sensor
Yes
Acceleration(Gyro) Sensor
Yes
Power Indicator
Yes
FAN (Built-in)
Yes
OS Ver. (webOS)
webOS6.1
Local Contents Scheduling
Yes
Group Manager
Yes
USB Plug & Play
Yes
Fail over
Yes
Booting Logo Image
Yes
No Signal Image
Yes
RS232C Sync
Yes
Local Network Sync
Yes
Backlight Sync
Yes
PIP
Yes
PBP
Yes(2)
Video Tag
Yes(4)
Play via URL
Yes
Screen Rotation
Yes
External Input Rotation
Yes
Gapless Playback
Yes
Tile Mode Setting
Yes(Max. 15x15)
Setting Data Cloning
Yes
SNMP
Yes
ISM Method
Yes
Auto Set ID
Yes
Status Mailing
Yes
Control Manager
Yes
Smart Energy Saving
Yes
PM mode
Yes
Wake on LAN
Yes (LAN in / HDbaseT port)
Network Ready
Yes
Beacon
Yes
HDMI-CEC
Yes
SI Server Setting
Yes
webRTC
Yes
Pro:Idiom
Yes
Operation Temperature
-30°C to 50 °C
Operation Humidity
5% to 100%
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
350W
Max.
380W
BTU (British Thermal Unit)
1024 BTU/Hr(Typ.), 1194 BTU/Hr(Max)
Smart Energy Saving (70%)
150W
DPM
0.5W↓
Power off
0.5W↓
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC / VCCI
ERP / Energy Star
Yes / No
SuperSign CMS
Yes
SuperSign Control+
Yes
SuperSign Cloud
Yes
Connected Care
Yes
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, polski (Polska), Arab
Basic
Remote Controller, Manual(EIG, IG), Regulation Book, Phone to RS232C Gender, HDMI Cable , POWER CABLE, Battery, Screws
IP Rating
IP56
Conformal Coating (Power Board)
Yes
Direct Sunlight
Yes
