LG UHD Large Sinage Display, 98inch

LG UHD Large Sinage Display, 98inch

LG UHD Large Sinage Display, 98inch

98UM5K-B

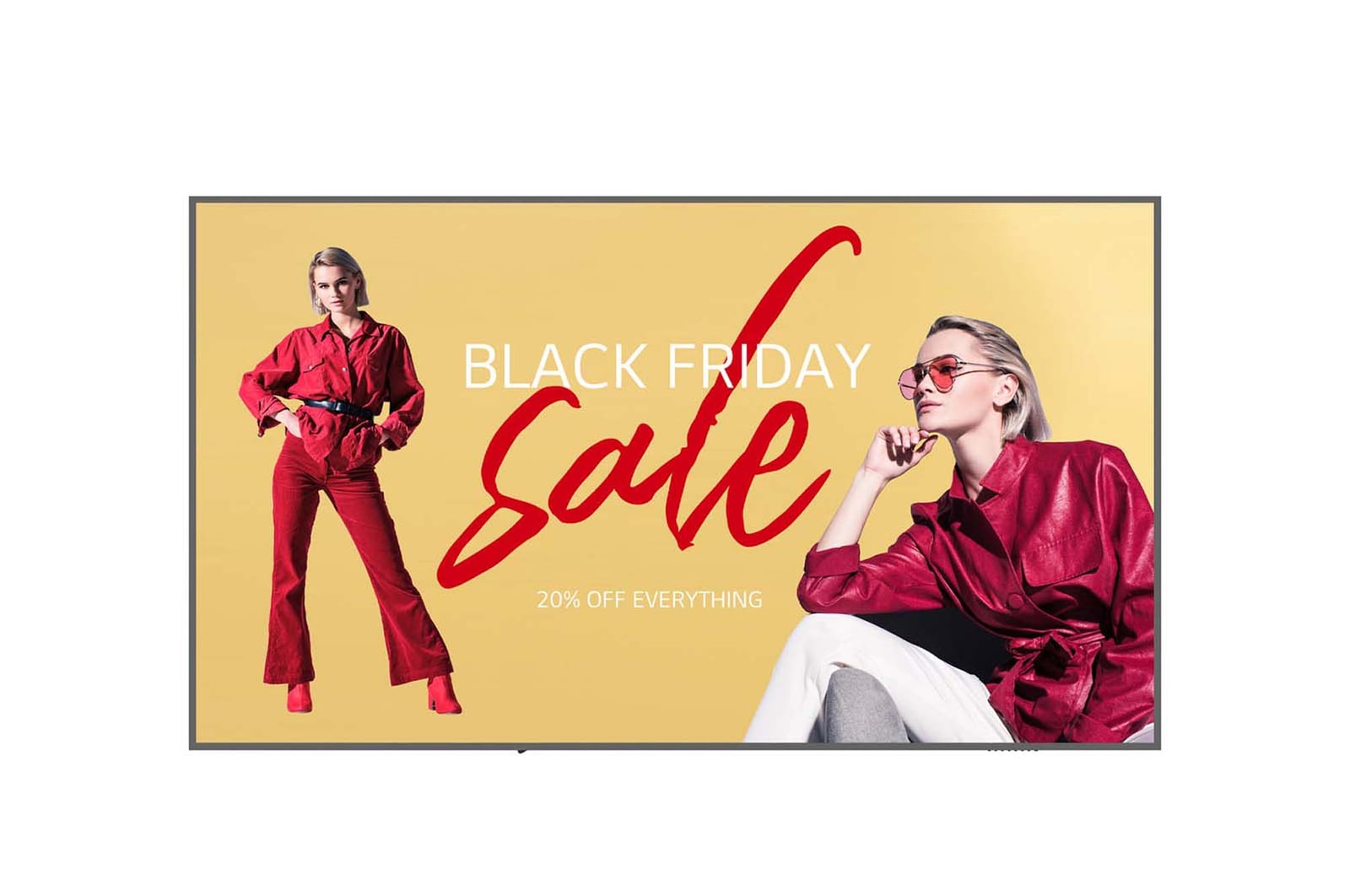

Front view with infill image

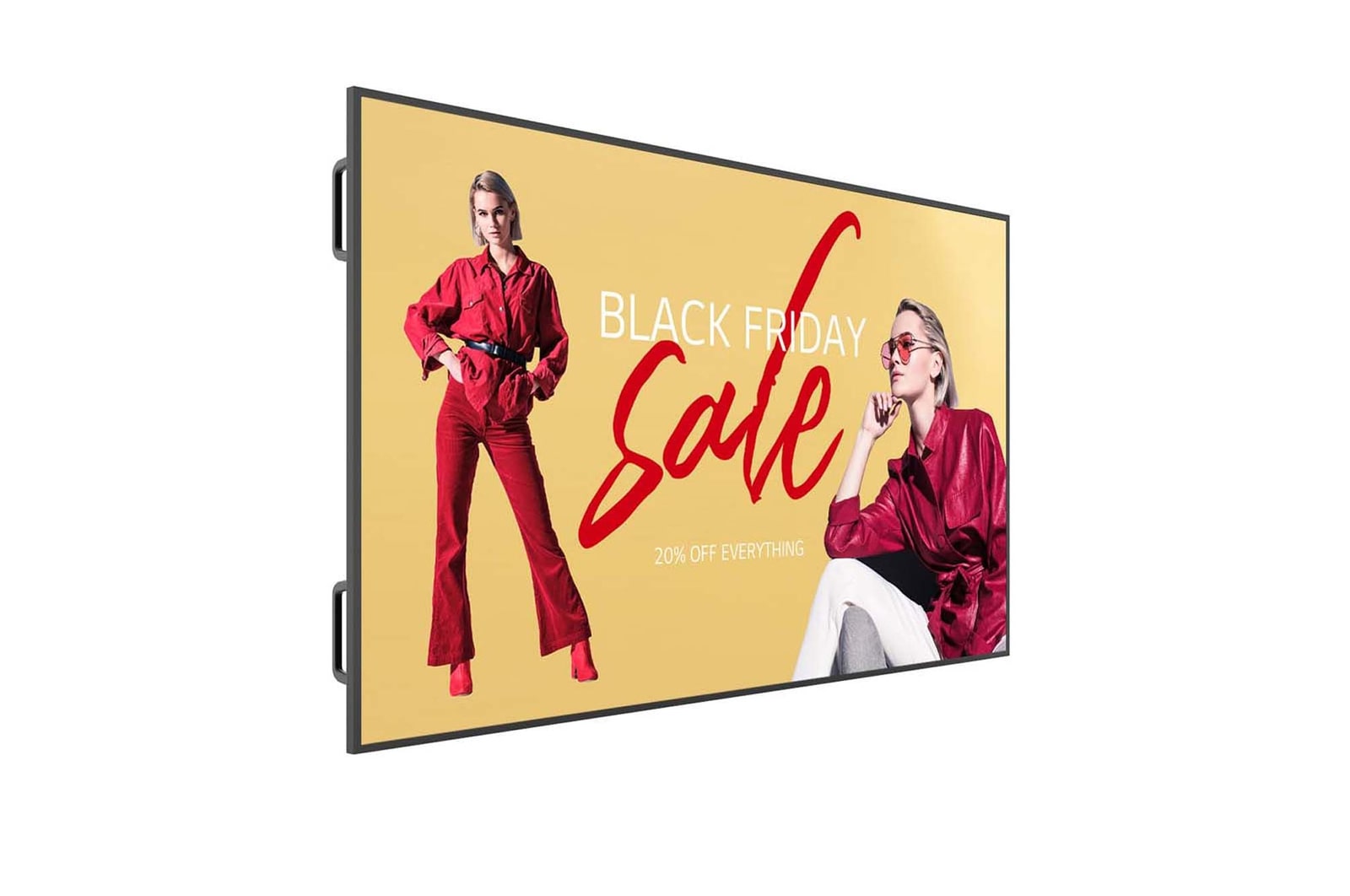

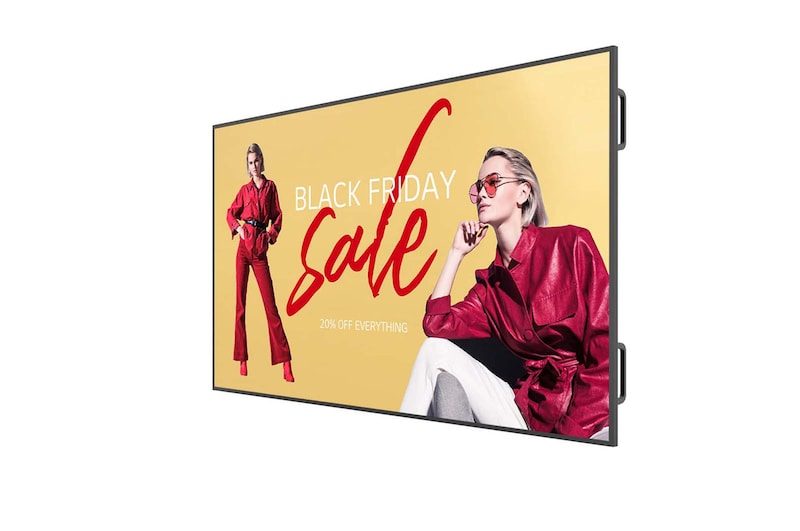

-45 degree side view with infill image

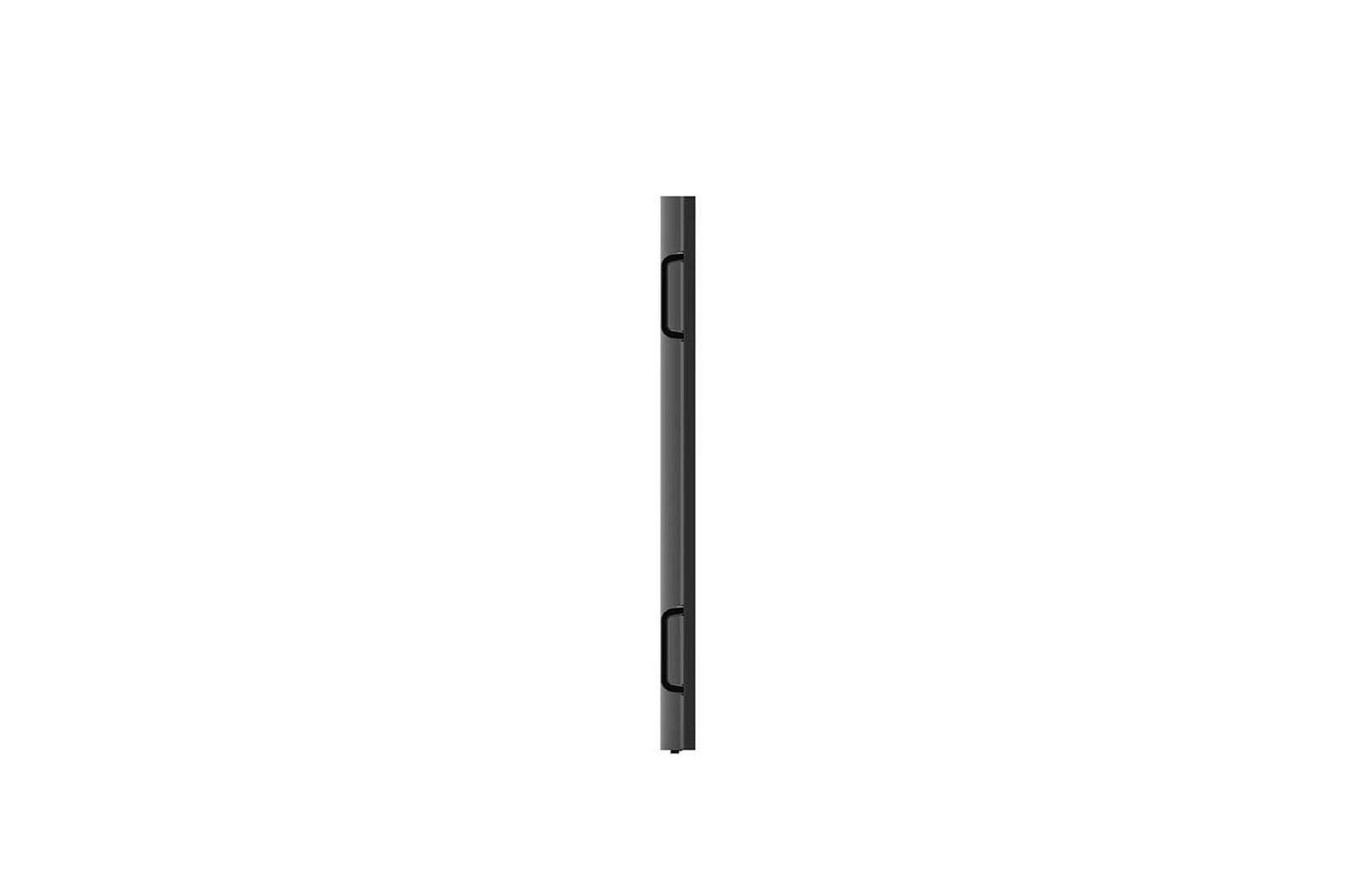

-90 degree side view

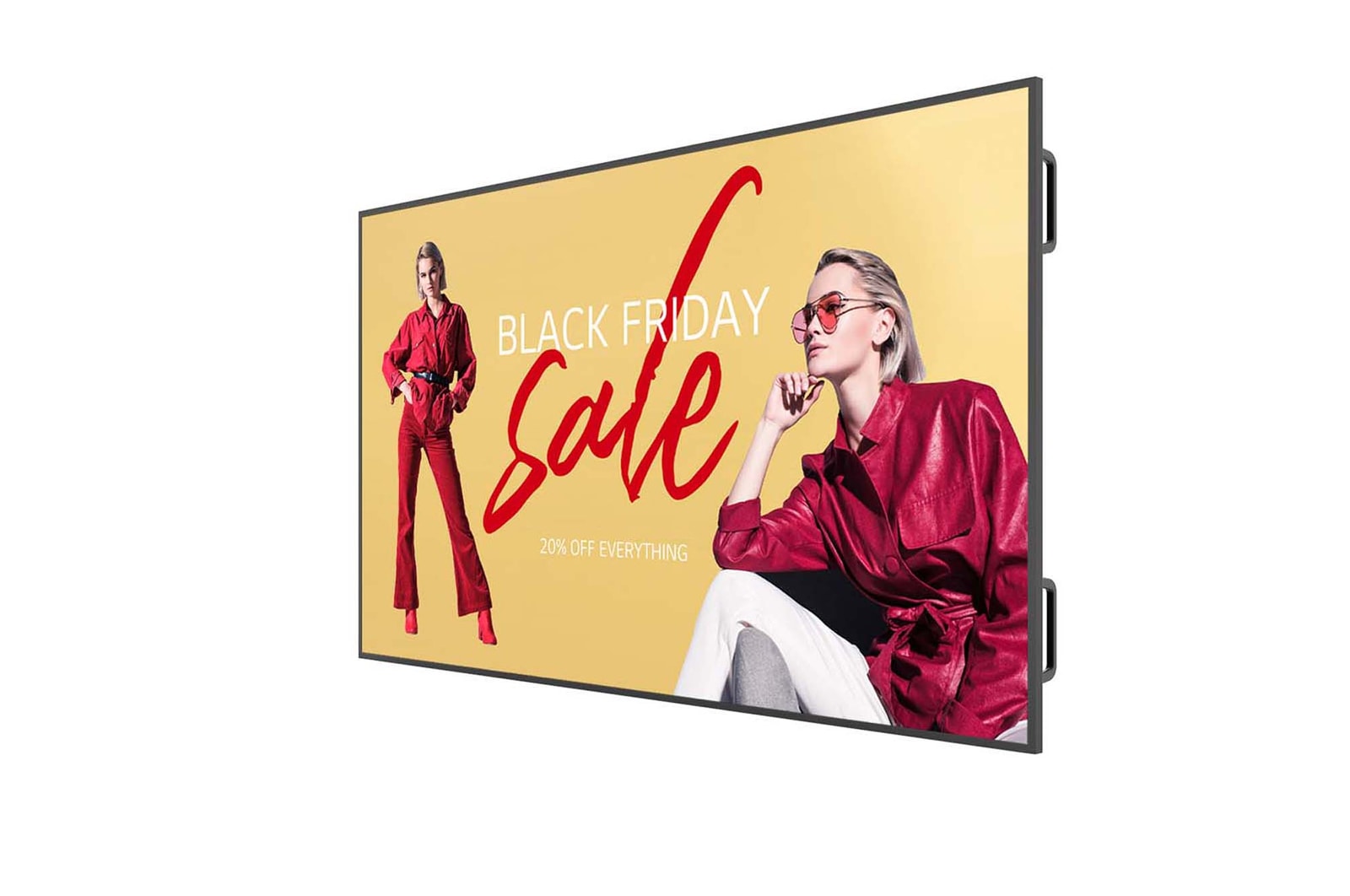

+45 degree side view with infill image

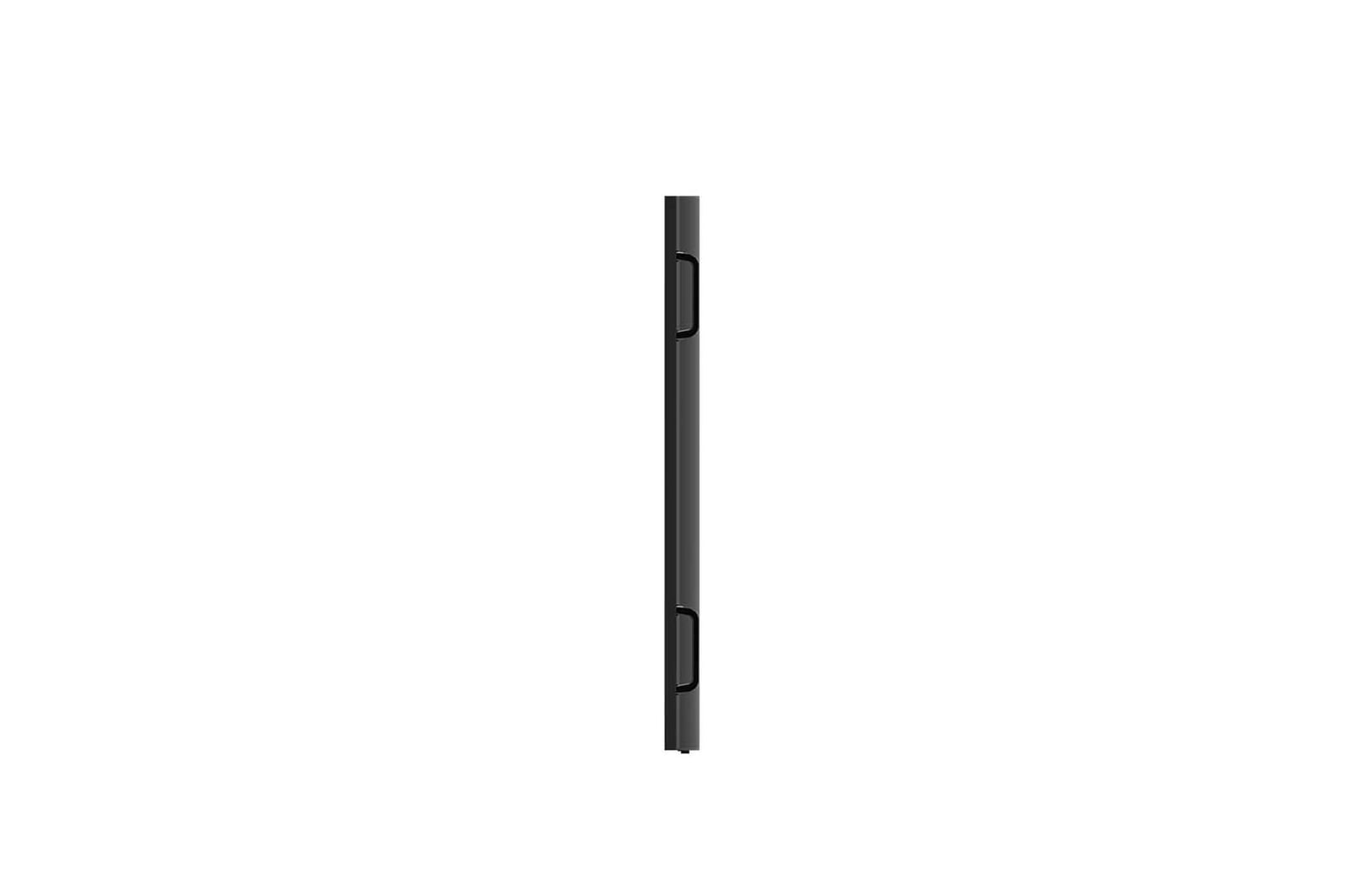

+90 degree side view

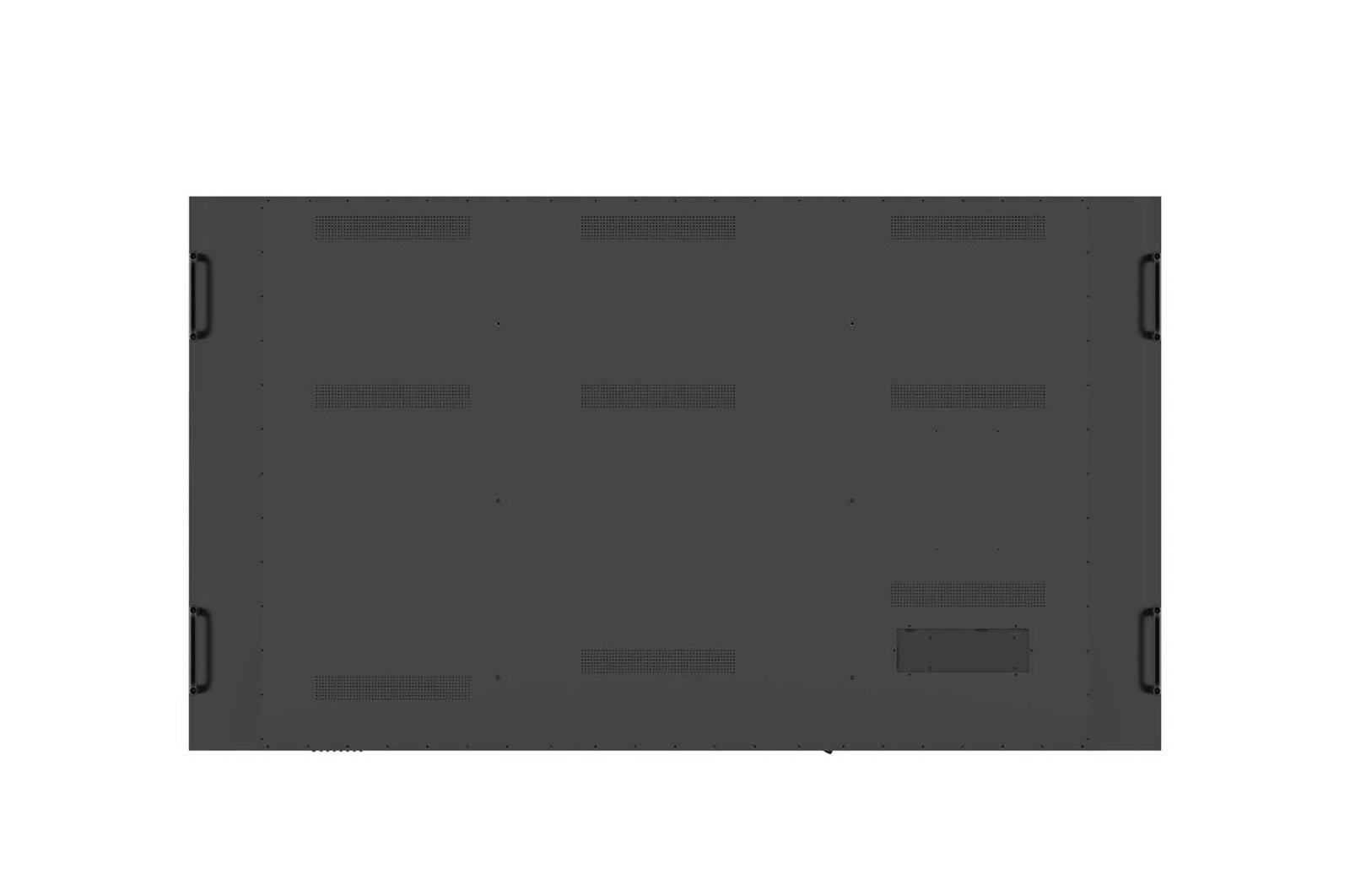

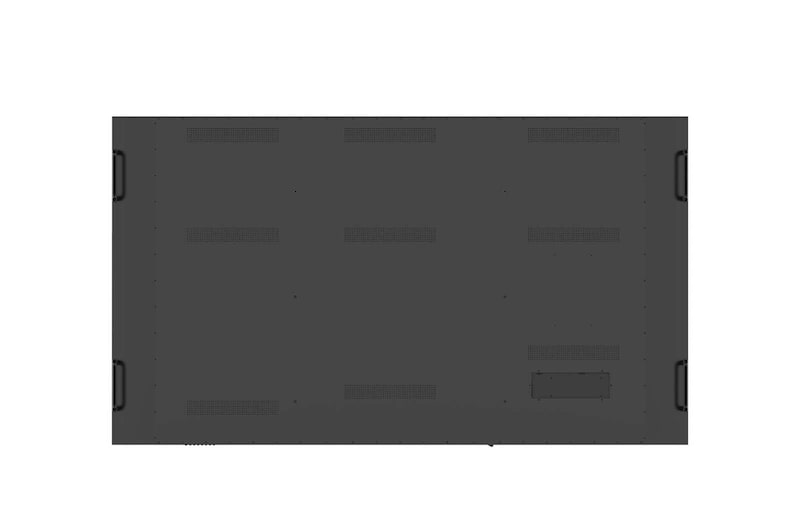

Rear view

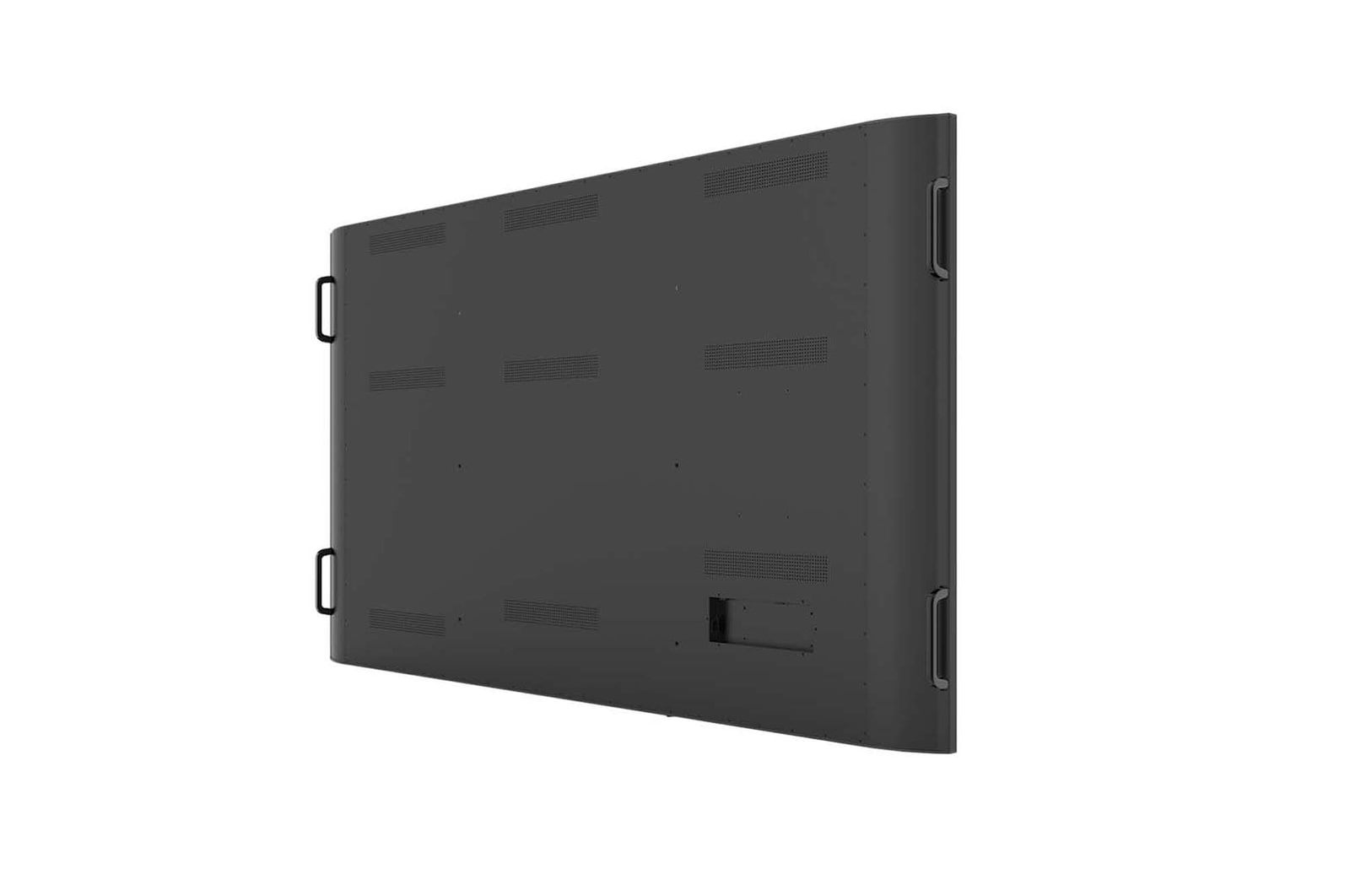

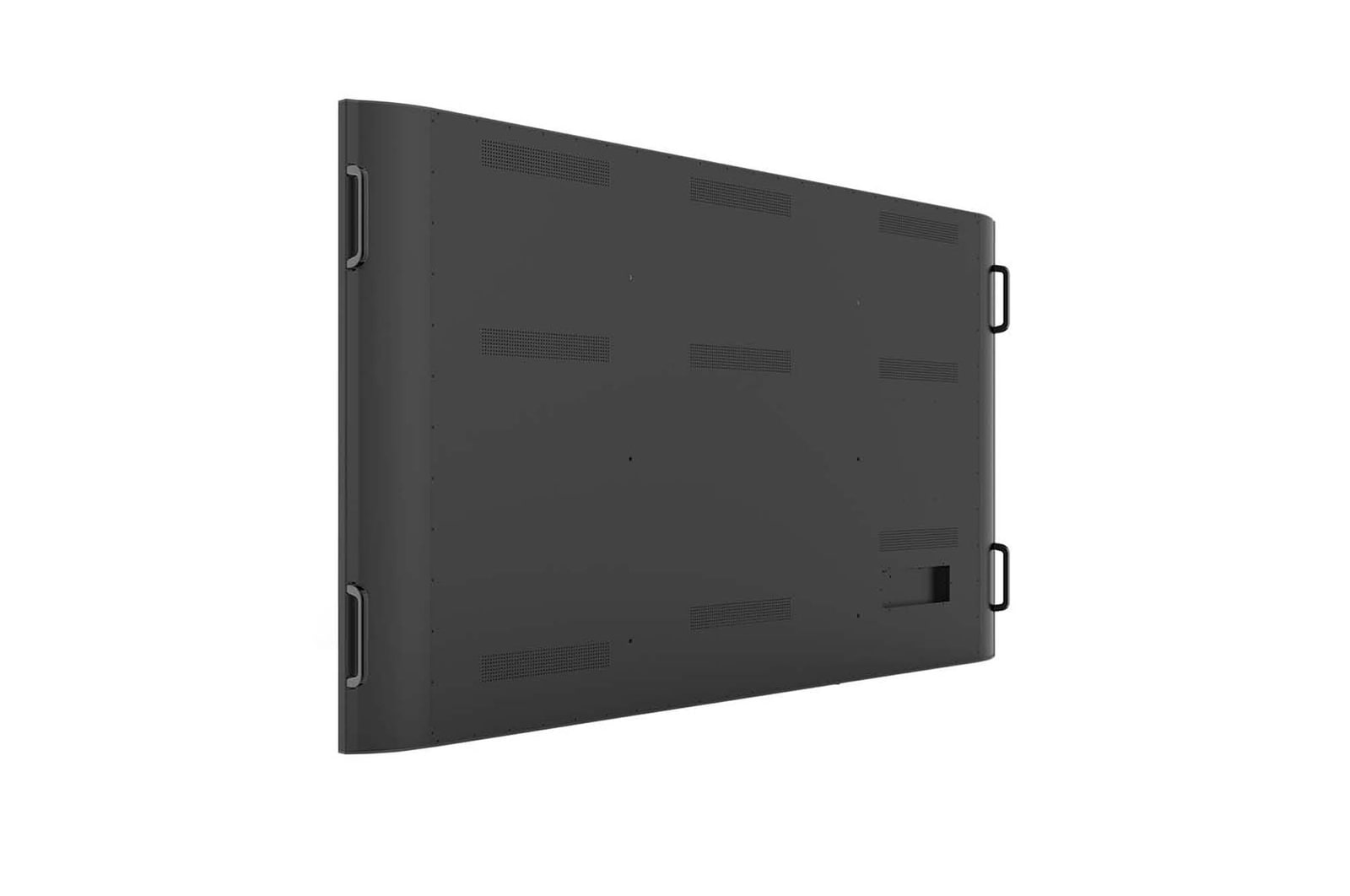

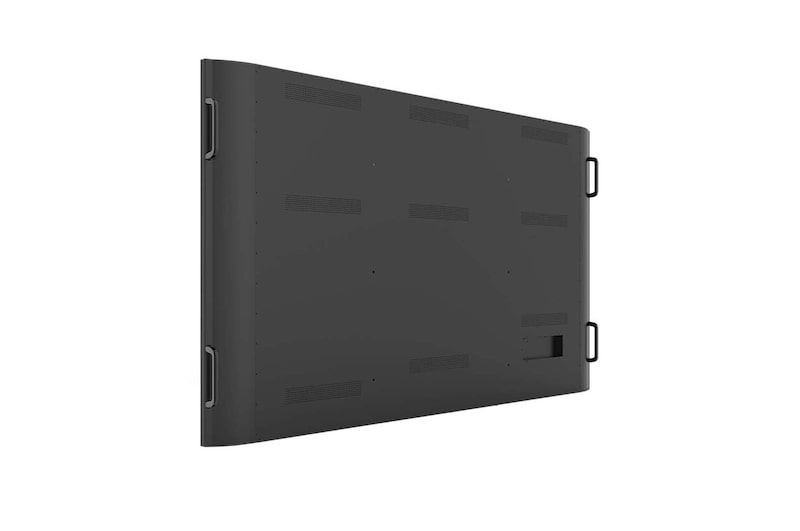

-45 degree rear view
+45 degree rear view

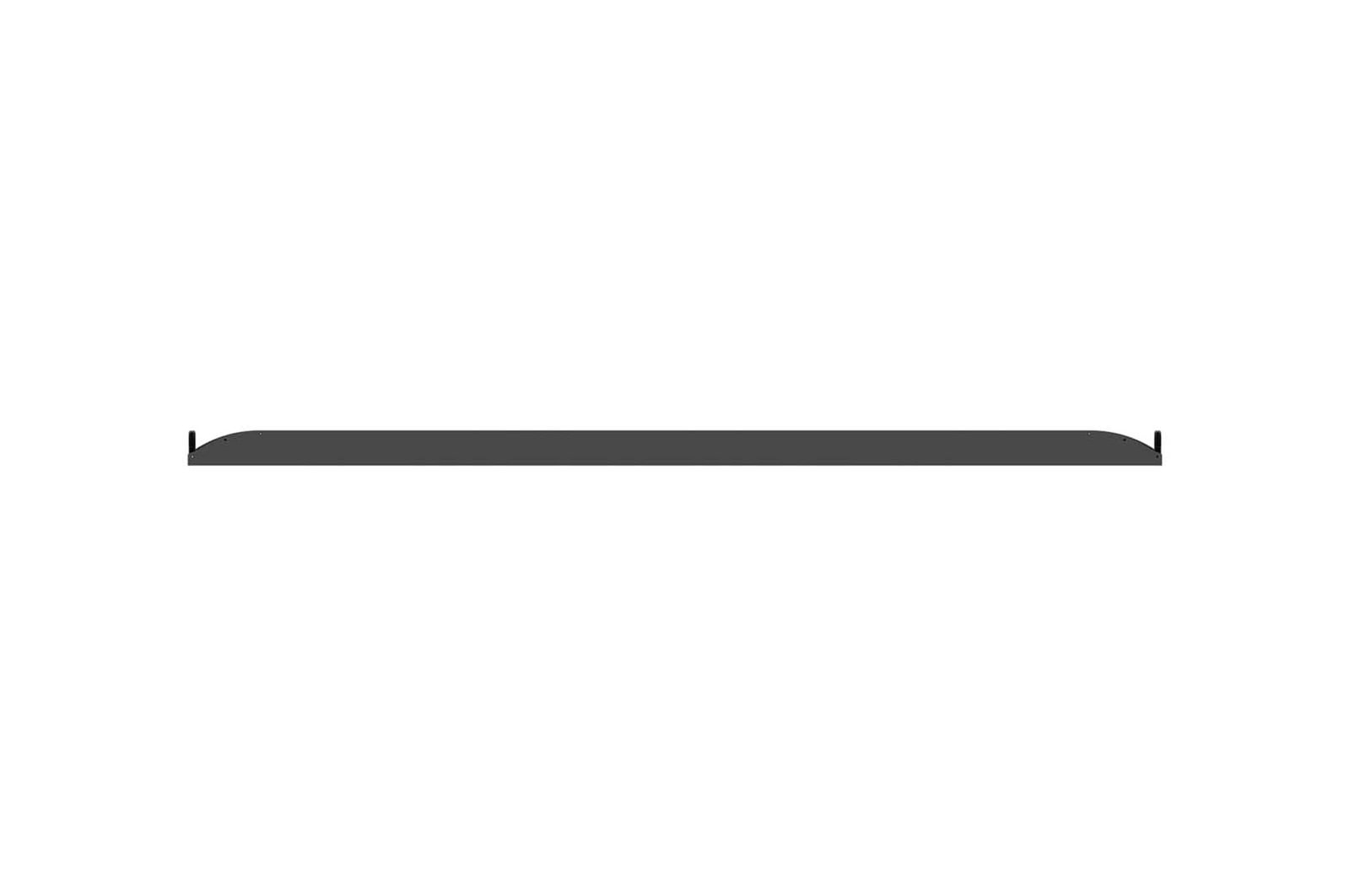

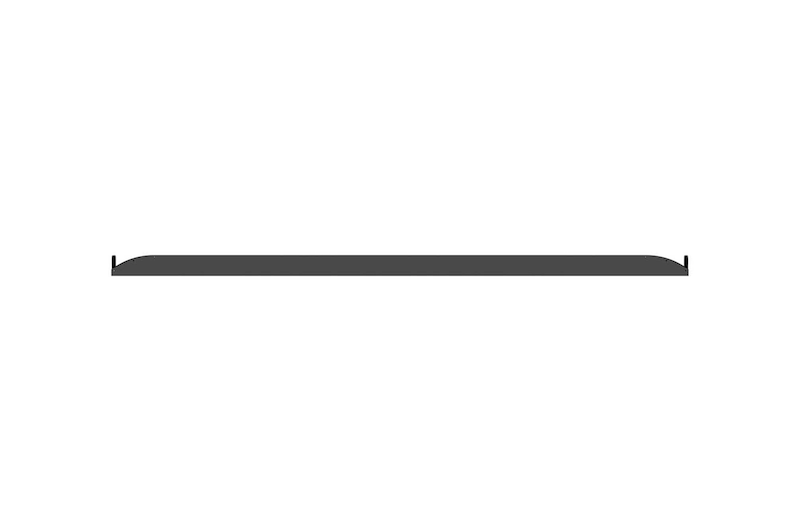

Top view
Bottom view
Front view with infill image
-45 degree side view with infill image
-90 degree side view
+45 degree side view with infill image
+90 degree side view
Rear view
-45 degree rear view
+45 degree rear view
Top view

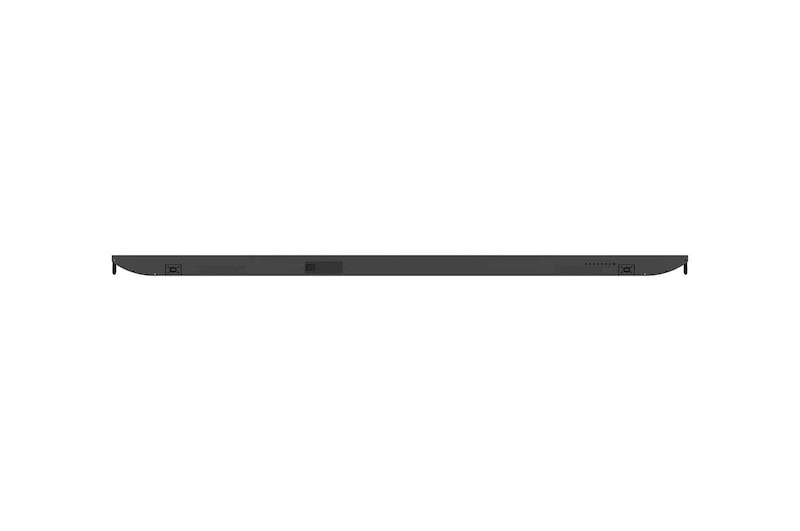

Bottom view

Key Features

  • Brightness : 500 nit (Typ.)
  • Resolution : ULTRA HD (3,840 x 2,160)
  • Bezel : 17 mm (Even bezel)
  • Built-in Speaker (10 W + 10 W)
  • Interface : HDMI(3) / DP / DVI-D / USB 2.0 / RS232C / RJ45 / Audio / IR & Light Sensor
More

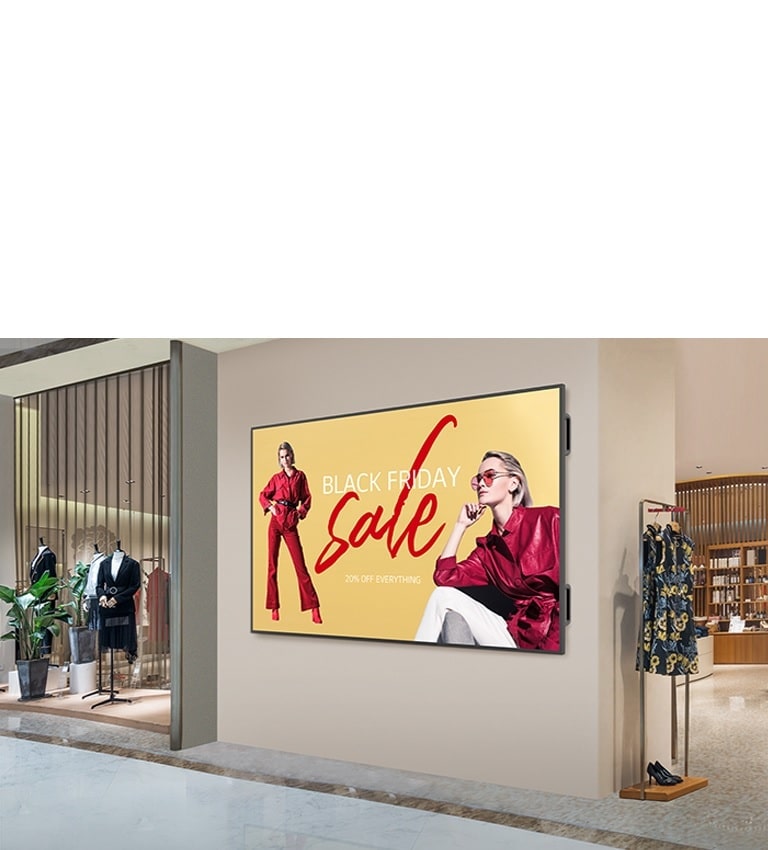

A large display is installed on a shopping mall’s interior wall, and the display’s screen is showing advertisements clearly and vibrantly.

UHD Large Screen Signage Display with LG webOS Platform

* All images in this page are for illustrative purposes only.

The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD.

Super High Resolution

Delivering immersive viewing experience by 4 times higher definition picture quality than FHD.

UM5K has a brightness of 500 nits, so it is clearly visible, even under strong light.

Adequate Brightness Level

The UM5K series boasts an adequate brightness level of 500 cd/m² for indoor displays, effectively showcasing content and capturing the public’s attention. This makes it an adequate display solution for marketing purposes in various settings, including meeting rooms, airports, retail outlets, and shopping malls.



* Actual images available may differ from the example images shown.



A number of tasks can be done at the same time with the intuitive GUI.

High-Performance with webOS

LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

One signage on the wall has a built-in speaker which renders rich audio.

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.



* Internal Built-in Speaker Support (L/R max 10 W)

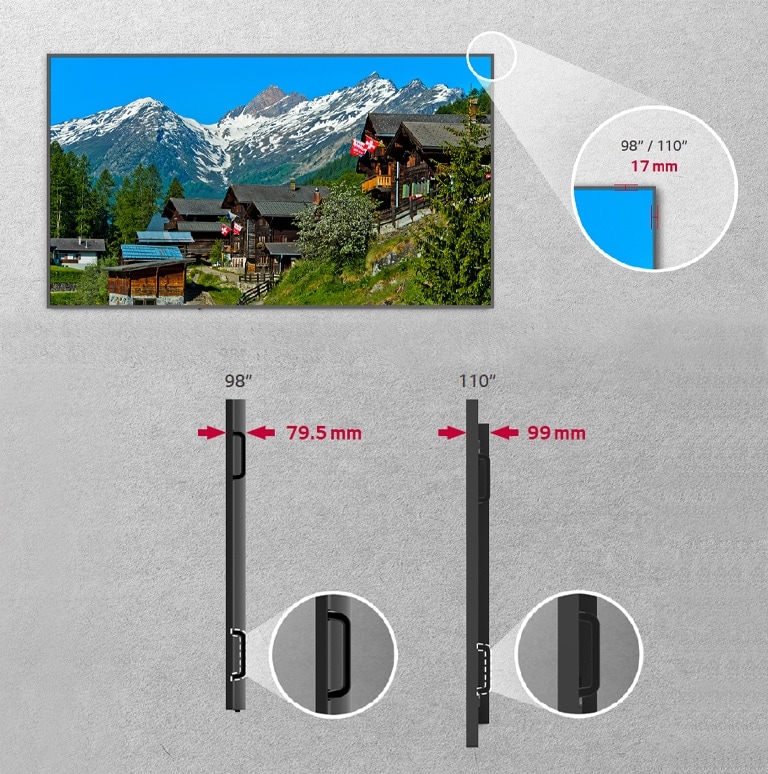

Slim Design

Being slim, a closer installation to the wall is advised. Additionally, this increases the screen’s immersive experience and provides a sophisticated design, improving the installed-space’s décor.

The bezel size of UM5K is 17mm. And the depth of the UM5K 98" is 79.5mm, and 110" is 99mm.

A number of tasks can be done at the same time with the intuitive GUI.

Mobile Content Management

You can create a store profile and get template recommendations using the Promota* app. Users can customize templates as needed and easily create and manage content not only on PCs but also on mobile devices.

* LG Promota is can be downloaded from the App Store and Google Play store. (Not available for Europe/CIS Region)
* In Korea, the name is not Promota, but Mustard.

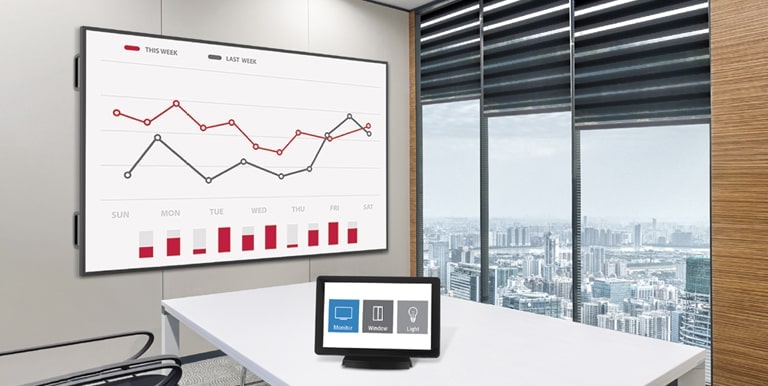

The AV control system helps users control the UM5K

Compatible with AV Control System

The UM5K series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.



* Network based control

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.

Print

All Spec

MECHANICAL SPECIFICATION

  • Weight (Head)

    78Kg

  • Bezel Color

    Black

  • Bezel Width

    Even bezel: 17mm

  • Carton Dimensions (W x H x D)

    2455 x 1458 x 288mm

  • Handle

    Yes

  • Monitor Dimensions (W x H x D)

    2198 x 1253 x 79.5mm

  • Packed Weight

    105Kg

  • VESA Standard Mount Interface

    800 x 400

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, IR/Light sensor receiver, Regulation Book, Phone to RS233C Gender

CERTIFICATION

  • EMC

    FCC Class "A" / CE / KC

  • ERP / Energy Star

    Yes (NewErP) / No

  • Safety

    CB/ NRTL

CONNECTIVITY

  • Audio In

    Yes (1)

  • Audio Out

    Yes (1)

  • Daisy Chain

    Yes (Input HDMI, DP, DVI / Output HDMI)

  • DP In

    Yes (1), HDCP2.2/1.3

  • DVI-D In

    Yes (1), HDCP1.4

  • HDMI In

    O(3) HDMI1/HDMI2 : HDCP 2.2/1.4 HDMI3 : HDCP 1.4

  • HDMI Out

    Yes (1)

  • IR In

    Yes (1)

  • RJ45(LAN) In

    Yes (1)

  • RS232C In

    Yes (1), 4pin Phone-jack

  • RS232C Out

    Yes (1), 4pin Phone-jack

  • USB In

    USB2.0 Type A(1)

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10% ~ 80%

  • Operation Temperature

    0 °C to 40 °C

FEATURE - HARDWARE

  • Acceleration(Gyro) Sensor

    Yes

  • Auto Brightness Sensor

    Yes

  • Internal Memory (eMMC)

    16GB

  • Local Key Operation

    Yes

  • Power Indicator

    Yes

  • Temperature Sensor

    Yes

  • Wi-Fi/BT (Built-in)

    Yes

FEATURE - SOFTWARE

  • Auto Set ID

    Yes

  • Beacon

    Yes

  • Booting Logo Image

    Yes

  • Cisco Certification

    Yes

  • Control Manager

    Yes

  • External Input Rotation

    No

  • Fail over

    Yes

  • Gapless Playback

    Yes

  • Group Manager

    Yes

  • HDMI-CEC

    Yes

  • ISM Method

    Yes

  • Local Contents Scheduling

    Yes

  • Local Network Sync

    Yes

  • Network Ready

    Yes

  • No Signal Image

    Yes

  • OS Ver. (webOS)

    webOS6.0

  • PBP

    Yes (4)

  • PIP

    Yes

  • Play via URL

    Yes

  • PM mode

    Yes

  • Pro:Idiom

    Yes

  • RS232C Sync

    Yes

  • Screen Rotation

    No

  • Screen Share

    Yes

  • Setting Data Cloning

    Yes

  • SI Server Setting

    Yes

  • Smart Energy Saving

    Yes

  • SNMP

    Yes

  • Status Mailing

    Yes

  • Tile Mode Setting

    Yes (Max. 15x15)

  • USB Plug & Play

    Yes

  • Video Tag

    Yes (4)

  • Wake on LAN

    Yes

  • webRTC

    Yes

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkiye, Arabic, Polski

PANEL

  • Aspect Ratio

    16 : 9

  • Back Light Type

    Direct

  • Brightness

    500nit (Typ.)

  • Color Depth (Number of Colors)

    8bit + FRC, 1.07Billion colors

  • Color Gamut

    DCI-P3 88%↑

  • Contrast Ratio

    1,200:1

  • Dynamic CR

    200,000:1

  • Life time

    30,000Hrs (Min)

  • Native Resolution

    3840 x 2160 (UHD)

  • Operation Hours (Hours/Day)

    16/7

  • Panel Technology

    ADS

  • Portait / Landscape

    Yes / Yes

  • Refresh Rate

    60Hz

  • Response Time

    8ms (G to G)

  • Screen Size (Inch)

    98"

  • Surface Treatment (Haze)

    25%

  • Viewing Angle (H x V)

    178 x 178

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    1467 BTU/Hr(Typ.), 1911 BTU/Hr(Max)

  • DPM

    0.5W

  • Max.

    560W

  • Power off

    0.5W

  • Smart Energy Saving (70%)

    301W

  • Typ.

    430W

SOFTWARE COMPATIBILITY

  • Connected Care

    Yes

  • Mobile CMS

    Yes

  • SuperSign Cloud

    Yes

  • SuperSign CMS

    Yes

  • SuperSign Control+

    Yes

  • SuperSign WB

    Yes

SOUND

  • Speaker (Built-in)

    Yes (10W X 2)
