LG Indoor LED

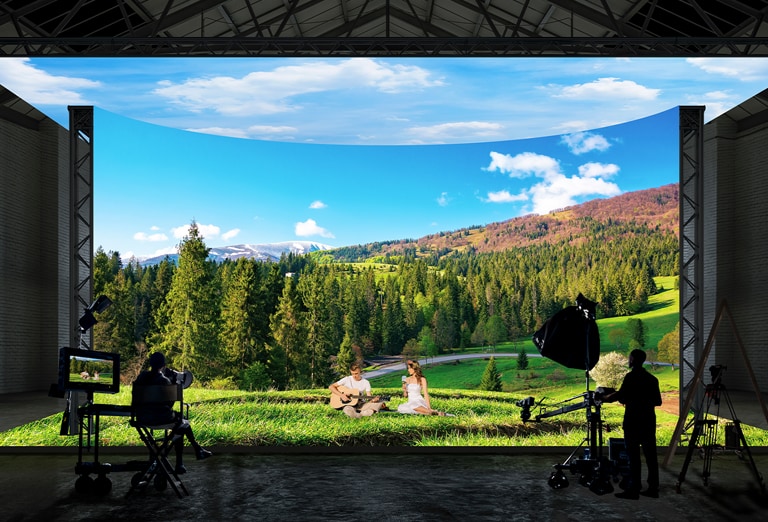

A virtual production studio with curved LED walls and ceiling and floor LEDs is filming images of a forest and field landscape.
* All images in this page are for illustrative purposes only.
Various factors including magnets on the top and bottom, positioning pins, handles and fast locks help installers easily set up and dismantle the LED screens without additional tools.
The 'Positioning Pins', 'Magnetic Assembly', 'Comfortable Handles', and 'Fast Lock & One-handed Control' parts in the cabinet are enlarged.

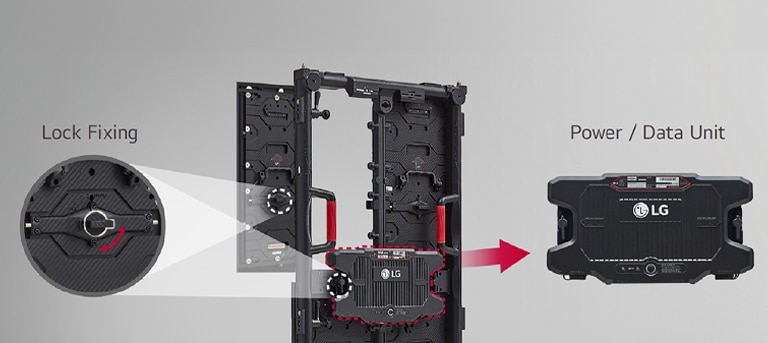

The GSCE series applied a simple Lock Fixing method which requires no additional tools, making it easier to replace LED modules or power/data units. It saves cost and time for maintenance.
It is demonstrating that a simple Lock Fixing method allows for convenient replacement of the cabinet's Power/Data Unit.

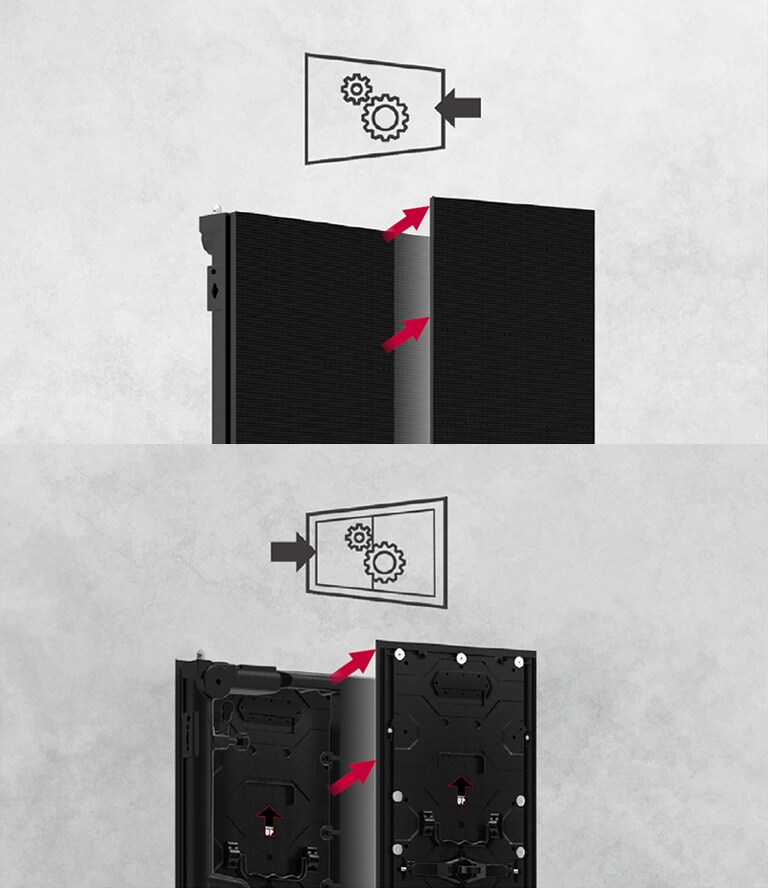

The product offers either front access or rear access, allowing customers to choose installation options according to their environment and minimizes limitations in installation and maintenance.
Capable of front or rear installation depending on the customers' needs.

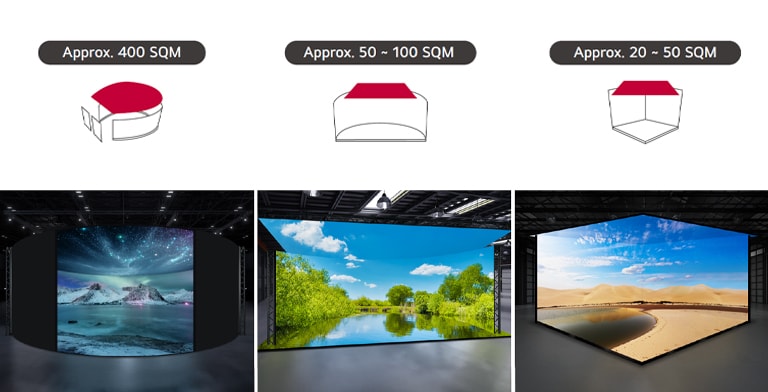

The ceiling LED with 5,000 nits enables GSCE series to be used for alternative lightings in XR and virtual production.
In a studio, ceiling LEDs are installed in sizes of approximately 400m2, 50-100m2, and 20-50m2, respectively. The scenery on the LED screens appears very bright.

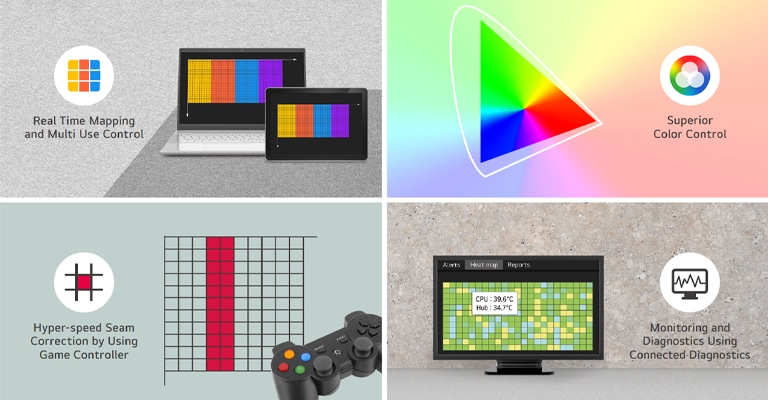

Thanks to the compatibility between GSCE and the Megapixel VR HELIOS LED processing platform, you can now utilize the powerful UX and UI functionalities offered by HELIOS. HELIOS processing platform includes Real-Time Mapping and Multi-User Control, Superior Color Control, Hyper-Speed Seam Correction using a game controller, and Monitoring and Diagnostics through connected diagnostics.
The 'Positioning Pins', 'Magnetic Assembly', 'Comfortable Handles', and 'Fast Lock & One-handed Control' parts in the cabinet are enlarged.
* Please note that Megapixel VR HELIOS LED processing platform needs to be purchased separately, and depending on the actual usage environment, there may be limitations in the implementation of certain features offered by HELIOS. A game controller needs to be purchased separately.
Environment
RoHS
Pixel Configuration
Single SMD
Pixel Pitch (mm)
3.91
Module Resolution (WxH)
64x128
Module Dimensions(WxH,mm)
250x500
Weight per Module (kg)
1.40
No. of Modules per Cabinet (WxH)
2x2
Cabinet Resolution (WxH)
128x256
Cabinet Dimensions (W x H x D, mm)
500x1000x66.05
Cabinet Surface Area (㎡)
0.500
Weight per Cabinet (kg/unit)
12.4
Weight per Square Meter (kg/㎡)
24.9
Physical Pixel Density (pixels/㎡)
65,536
Flatness of Cabinet (mm)
±0.3
Cabinet material
Die-casting Magnesium
Service access
Front or Rear (select one only)
Controller
(MVR HEIOS)
IP rating Front
IP30
IP rating Rear
IP30
LED Lifetime (Half brightness)
100,000
Operating Humidity
10~99%RH
Operating Temperature(℃)
-30℃ to +45℃
Frame Rate (Hz)
50 / 60
Heat Dissipation (BTU/h/Cabinet, Avg.)
341
Heat Dissipation (BTU/h/Cabinet, Max.)
1,024
Heat Dissipation (BTU/h/㎡, Max.)
2,047
Power Consumption (W/Cabinet, Avg.)
100
Power Consumption (W/Cabinet, Max.)
300
Power Consumption (W/㎡, Max.)
600
Power Supply (V)
100 to 240
Refresh Rate (Hz)
3,840
Max Brightness (After Calibration, nit)
5,000
Color Temperature (K)
2,000-11,000
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
155
Brightness Uniformity
0.97
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
6,000:1
Processing Depth (bit)
16 (PQ, HLG)
Certification
CE, FCC, ETL
