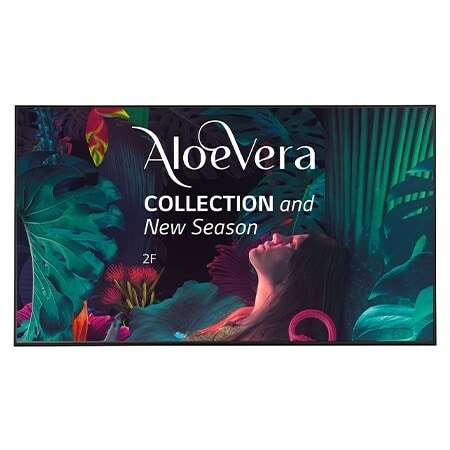

UHD Standard Signage

UHD Signage Display with
LG webOS Platform and Advanced Security

Signage installed on the interior walls of the shopping mall displays advertisements vividly. Signage installed on the interior walls of the shopping mall displays advertisements vividly.
* 75 inch
* All images in this page are for illustrative purposes only.

Durability that Provides Reliability

Optimized for business environments, the UH5N-E is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.
The UH5N-E has Conformal Coating on the power board to protect display even in a salty or humid environment. The UH5N-E has Conformal Coating on the power board to protect display even in a salty or humid environment.

Design for Space Utilization

Designed with thin bezels and simple cable management, the UH5N-E saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket. Bezels accessories can also be used to convert it into an art frame, making it a stylish interior element that matches customers' interior spaces.
The UH5N-E with slim bezels is mounted close to the wall, showcasing a rear design that is optimized for space-saving with a simple cable management system. The UH5N-E with slim bezels is mounted close to the wall, showcasing a rear design that is optimized for space-saving with a simple cable management system.
* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.
* Bezel accessories are sold separately at an additional cost.

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software. Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.
INFO
  • Product
    Standard (UHD)
    Year
    Y23
  • Month
    M06(TBD)
PANEL
  • Screen Size (Inch)
    65"
    Panel Technology
    IPS
  • Back Light Type
    Edge
    Aspect Ratio
    16:9
  • Native Resolution
    3840 x 2160 (UHD)
    Refresh Rate
    60Hz
  • Brightness (Typ.)
    500nit(typ.)
    Contrast Ratio
    1,100:1
  • Dynamic CR
    1,000,000:1
    Color gamut
    BT709 95%
  • Viewing Angle (H x V)
    178 x 178
    Color Depth
    10bit(D), 1.07Billion colors
  • Response Time
    Tr : 8ms / Tf :10ms
    Surface Treatment (Haze)
    28%
  • Life time
    50,000Hrs (Min.)
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes / Yes
CONNECTIVITY
(JACK INTERFACE)
  • HDMI IN
    Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4
    DP IN
    Yes(1), 3840x2160@60Hz, HDCP2.2/1.3
  • RS232C IN
    Yes (1), 4pin Phone-jack
    RJ45(LAN) IN
    Yes (1)
  • IR IN
    Yes (1)
    USB IN
    USB2.0 Type A(1)
  • HDMI Out
    Yes(1), 3840x2160@30Hz, Input : HDMI1/2/3/DP
    Audio Out
    Yes (1)
  • RS232C Out
    Yes (1), 4pin Phone-jack
    IR Out
    No (Support IR daisy chain via RS232C IN/OUT)
  • Daisy Chain
    Yes(Input HDMI, DP / Output HDMI)
MECHANICAL
  • Bezel Color
    Black
    Bezel Width
    T/R/L: 8.9mm, B: 12.9mm
  • Weight (Head)
    24.2 kg
    Packed Weight
    30.4 kg
  • Monitor Dimensions (W x H x D)
    1450.3 x 830.3 x 29.7mm (Without IR)
    Carton Dimensions (W x H x D)
    1600.0 x 970.0 x 172.0mm
  • VESA™ Standard Mount Interface
    300 x 300
HW FEATURE
  • Internal Memory
    16GB
    Wi-Fi (Built-in)
    Yes
  • Temperature Sensor
    Yes
    Auto Brightness sensor
    Yes(IR)
  • Acceleration(Gyro) Sensor
    Yes
    Local Key Operation
    Yes
  • Speaker (Built-in)
    Yes
SW FEATURE
  • OS ver.
    webOS6.0
    Local Contents Scheduling
    Yes
  • Group Manager
    Yes
    USB Plug & Play
    Yes
  • Fail over
    Yes
    Booting Logo Image
    Yes
  • No Signal Image
    Yes
    RS232C Sync
    Yes
  • Local Network Sync
    Yes
    PIP
    Yes
  • PBP
    Yes (4)
    Screen Share
    Yes
  • Video Tag
    Yes (4)
    Play via URL
    Yes
  • Screen Rotation
    Yes
    External Input Rotation
    Yes
  • Gapless Playback
    Yes
    Tile Mode Setting
    Yes (Max. 15x15)
  • Setting Data Cloning
    Yes
    SNMP
    Yes
  • ISM Method
    Yes
    Auto Set ID
    Yes
  • Status Mailing
    Yes
    Control Manager
    Yes
  • Cisco Certi.
    Yes
    Crestron Inside
    Yes
  • Smart Energy Saving
    Yes
    PM mode
    Yes
  • Wake on LAN
    Yes
    Beacon
    Yes
  • Network Ready
    Yes
    HDMI-CEC
    Yes
  • SI Server Setting
    Yes
    webRTC
    Yes
  • Pro:Idiom
    Yes
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Consumption (Typ.)
    145W
    Power Consumption (Max.)
    200W
  • Power Consumption (British Thermal Unit)
    495 BTU/Hr(Typ.), 682 BTU/Hr(Max)
    Power Consumption (Smart Energy Saving, ~70%)
    101.5W
  • Power Consumption (DPM)
    0.5W
    Power Consumption (Power Off)
    0.5W
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "B" / CE / KC
  • ErP / Energy Star
    Yes (NewErP) / Yes
    ePEAT(US only)
    Yes
  • ISTA6
    Yes(~'23.9, US Suffix Only)
    Carbon Trust
    Yes(TBD, Reducing CO2)
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes / Yes
  • SuperSign WB
    Yes
    SuperSign Cloud
    Yes
  • Mobile CMS
    Yes
    Connected Care
    Yes
LANGUAGE
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish→Türkiye, Arabic
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(2EA), AC Cord Holder (1EA)
    Optional
    Slim Wall Mount (WB21LMA/B),
    Wall Mount (OLW480A/B)
    Wall Mount Adapter (AM-B330S)
SPECIAL FEATURE
  • Tilt (Face Down)
    Yes(Max 30º degree, 40ºC temperature)
    IP Rating
    IP5X
  • Conformal Coating (Power Board)
    Yes
