webOS Box

()

The User-Friendly Smart Signage Platform

The WP600 webOS box operates webOS 6.0, the user-friendly LG smart signage platform, and is attached to existing LG digital signages and upgrades them regardless of their original platform. It can execute several tasks at once while providing smooth content playback, and provides an excellent user experience with an intuitive menu and convenient features.

* All images in this page are for illustrative purposes only and may differ from the actual product.

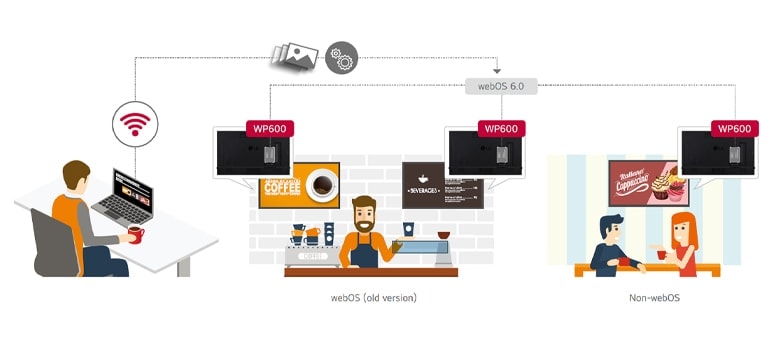

webOS 6.0 Smart Signage Platform

The WP600 may be applied towards any type of LG digital signages. The webOS box provides user-friendly functions with dedicated menus essential for business use. This way, users are able to easily manage and distribute content or develop web-based applications for multiple signages simultaneously. Moreover, the WP600 has expanded its versatile ability to control displays.

Upgrade to the webOS 4.0 Smart Signage Platform

UHD Video Playback Supported

The WP600 supports Ultra HD high-quality video playback which delivers color and details of content vividly, with four times higher definition than FHD. Only a single webOS box is required for this superior picture quality.

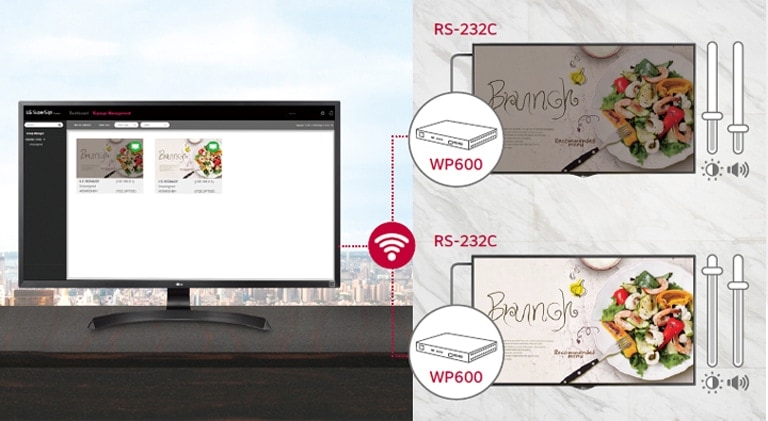

Display Control Capability

Beyond content management, control commands from the WP600 can be sent to LG digital signages through the RS-232C cable connection. It allows users to flexibly set up display values such as power, brightness or volume for optimal operation.

All-in-One Home Menu

The WP600 offers a signage-dedicated home menu that shows key information related to signage operation at a glance. A dashboard showing the status of devices, a content management menu, and shortcuts leading to quick settings greatly enhance user convenience.

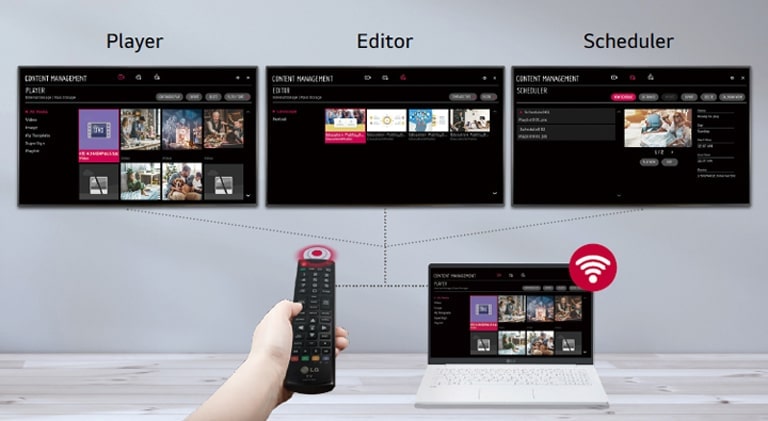

Embedded Content Management

The embedded CMS^{(Content Management System)} allows users to edit content using internal/external sources and set playlists to play at the desired schedule. Users can easily explore and manage content through the intuitive GUI, using various input devices, from a remote control to a laptop.

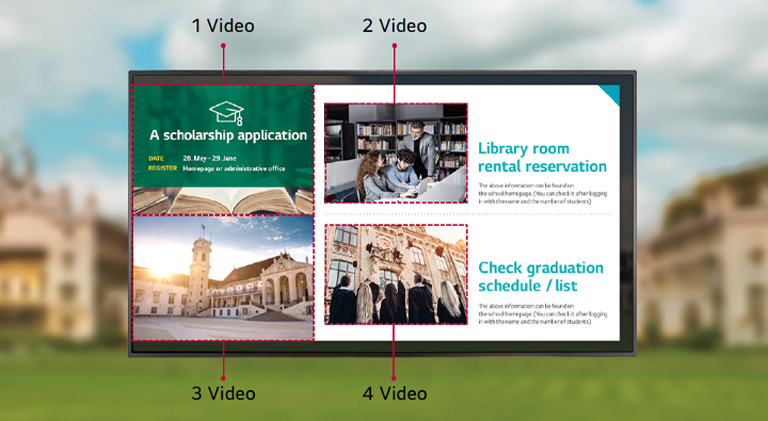

Multi Video Tags

Several different videos can be played at the same time using the multi video tags feature. This gives you great flexibility to organize and deploy content when various content items need to be delivered simultaneously via web apps.

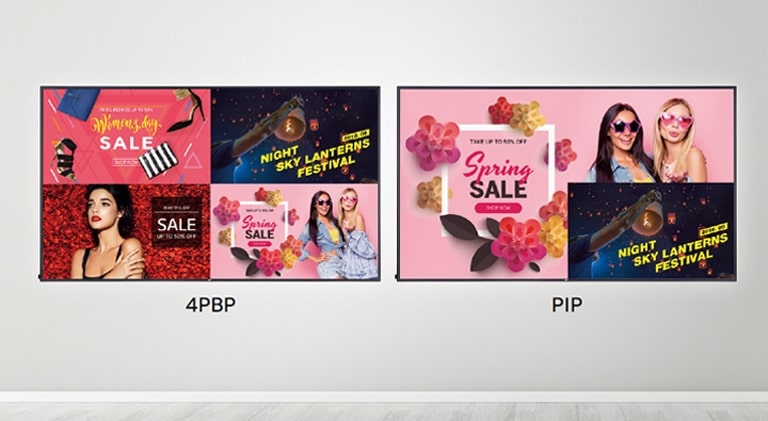

Multi Screen with PBP/PIP

PBP^{(Picture-By-Picture)} features multi screen in a single display with up to 4 input sources while PIP^{(Picture-In-Picture)} supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content source.

Compatibility with LG SuperSign Solutions

LG SuperSign is a comprehensive and indispensable software solution for the integrated management of LG digital signages. With SuperSign, content creation and distribution gets intuitive and centralized monitoring and control becomes simple, helping your business save time and operate effectively across different locations.

09_Real-Time-Remote-Care-Service_1541136056539

Real-time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

* The availability differs by regions.

All Spec

INFO

Year

Y24
Month

M02

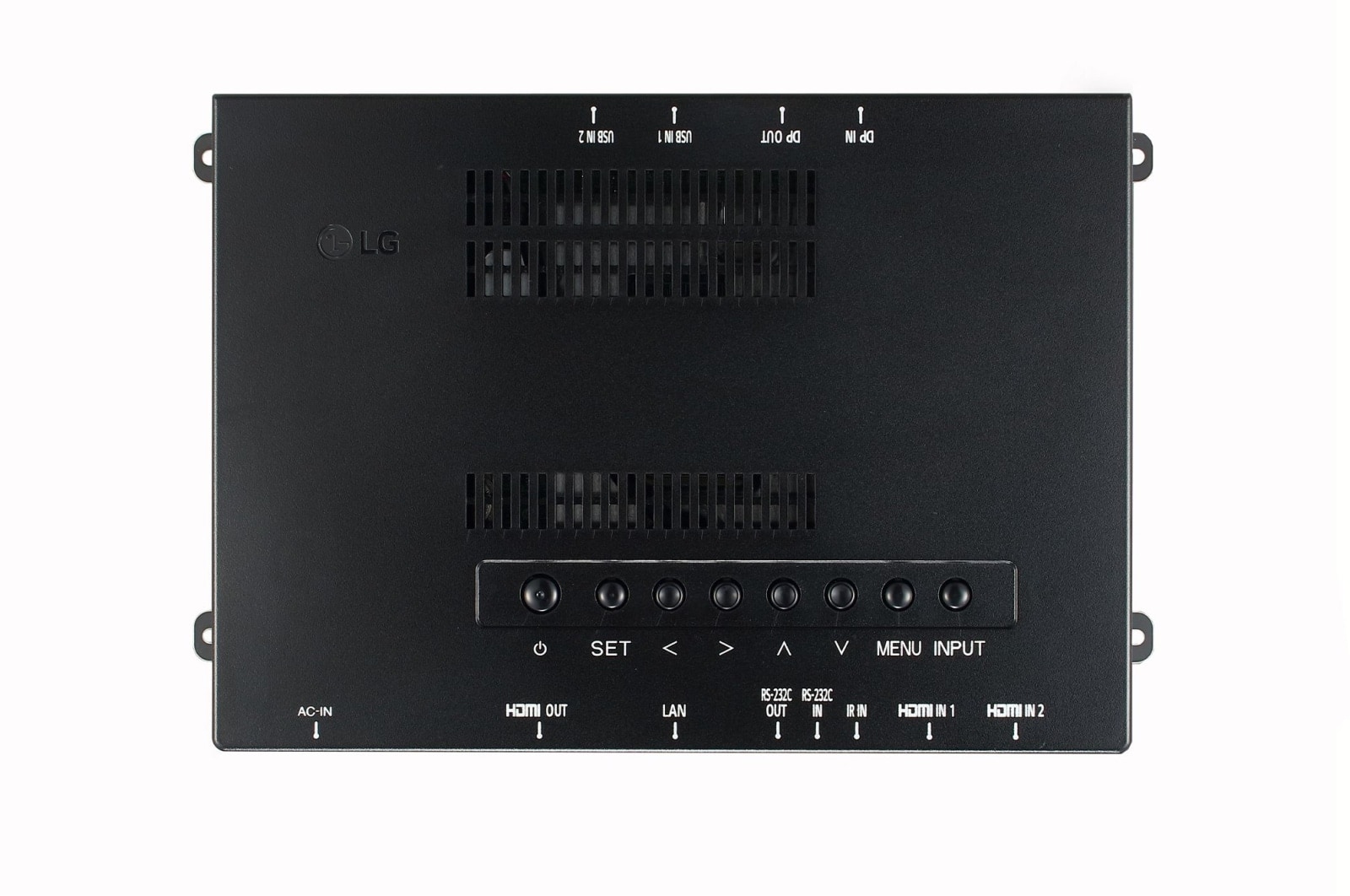

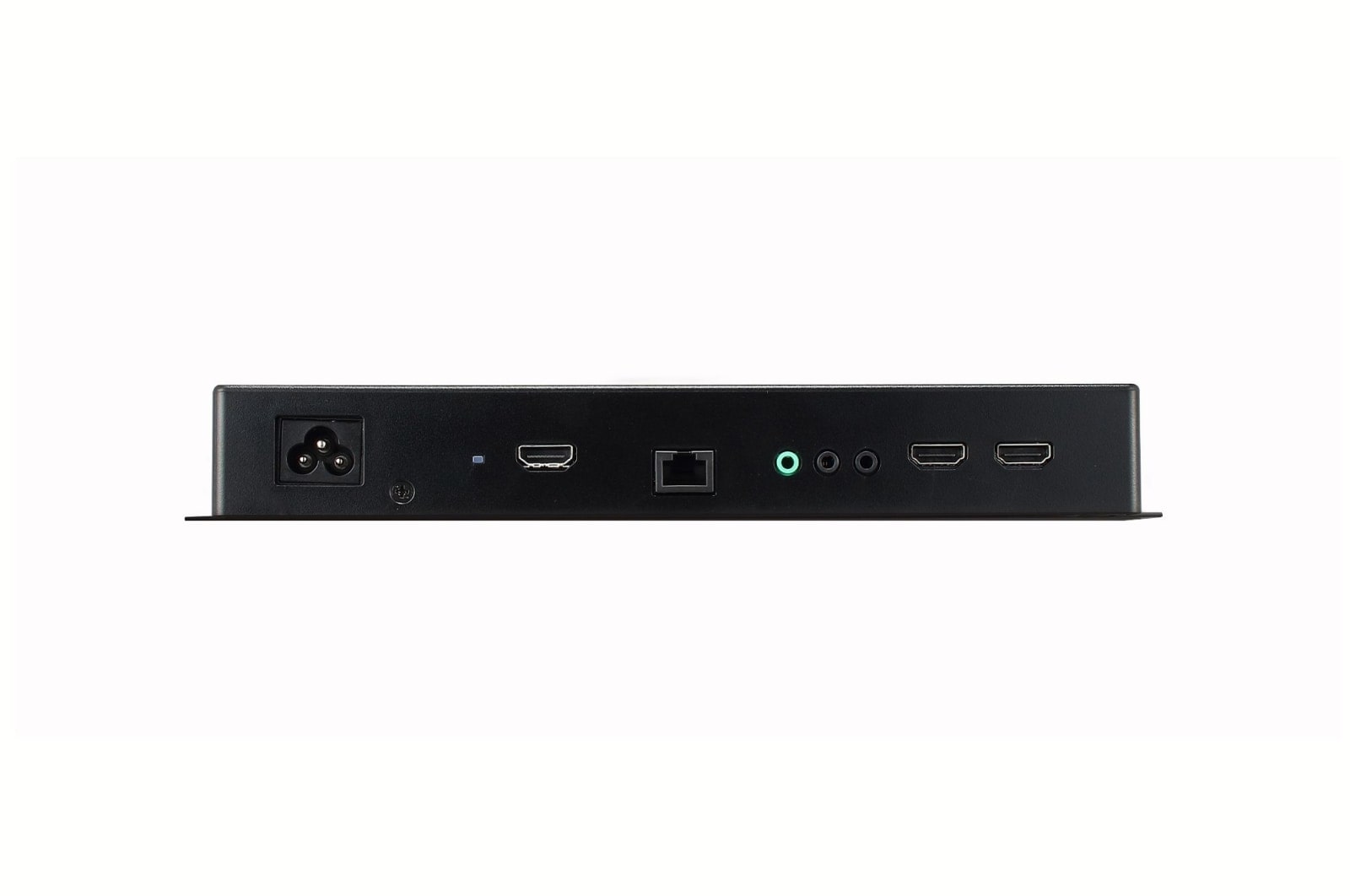

CONNECTIVITY(JACK INTERFACE)

HDMI IN

Yes(2), HDCP2.2
DP IN

Yes(1), HDCP1.3
RS232C IN

Yes(1), Phone-jack
RJ45(LAN) IN

Yes(1)
IR IN

Yes(1), Phone-jack
USB IN

USB2.0 Type A(2)
HDMI Out

Yes(1), FHD or UHD(4k,60)
DP Out

Yes(1), SST, DaisyChain Only (input : DP)
RS232C Out

Yes(1, phone jack)

MECHANICAL

Bezel Color

Black
Weight (Head)

0.87Kg
Packed Weight

1.77Kg
Monitor Dimensions (W x H x D)

258 x 36.5 x 186mm
Carton Dimensions (W x H x D)

339 x 124 x 314mm

HW FEATURE

Internal Memory

8GB
Wi-Fi (Built-in)

Yes
Temperature Sensor

Yes
Local Key Operation

Yes

SW FEATURE

OS ver.

webOS6.0
Local Contents Scheduling

Yes
Group Manager

Yes
USB Plug & Play

Yes
Fail over

Yes
No Signal Image

Yes
Local Network Sync

Yes
PIP

Yes
PBP

Yes (4)
Screen Share

Yes
Video Tag

Yes (4)
Play via URL

Yes
Screen Rotation

Yes
External Input Rotation

Yes
Gapless Playback

Yes
Tile Mode Setting

Yes (Max. 15x15)
Setting Data Cloning

Yes (RS-232C, Network, USB)
SNMP

Yes
ISM Method

Yes
Status Mailing

Yes
Control Manager

Yes
Wake on LAN

Yes
Network Ready

Yes
Beacon

Yes
HDMI-CEC

Yes (HDMI Out)
SI Server Setting

Yes
webRTC

Yes
Pro:Idiom

Yes

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C
Operation Humidity

10% to 80%

POWER

Power Supply

AC 100-240V~, 50/60Hz
Power Type

Built-In Power
Power Consumption (Typ.)

23W
Power Consumption (Max.)

27W
Power Consumption (British Thermal Unit)

78.48 BTU/Hr(Typ.), 92.13 BTU/Hr(Max)
Power Consumption (DPM)

0.5W@WOL Off
Power Consumption (Power Off)

0.5W

CERTIFICATION

Safety

CB / NRTL
EMC

FCC Class "A" / CE Class "A"
ErP / Energy Star

Yes / No

SOFTWARE COMPATIBILITY

SuperSign CMS

Yes
SuperSign Control / Control+

Yes / Yes
SuperSign WB

Yes
SuperSign Cloud

Yes
Promota

Yes
Mobile CMS

Yes
Connected Care

Yes

LANGUAGE

OSD

English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic
