Model name

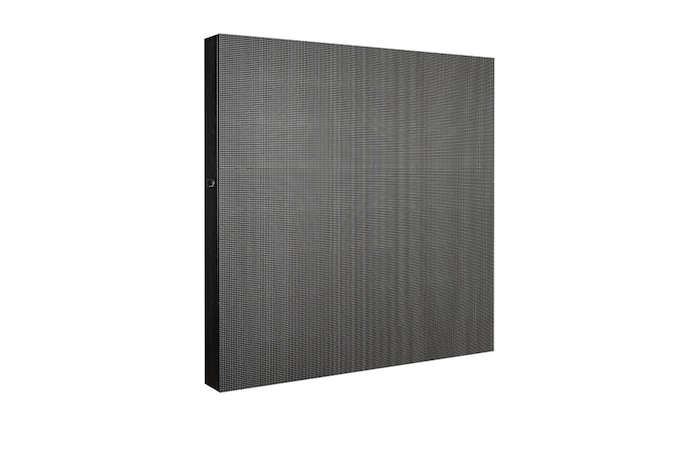

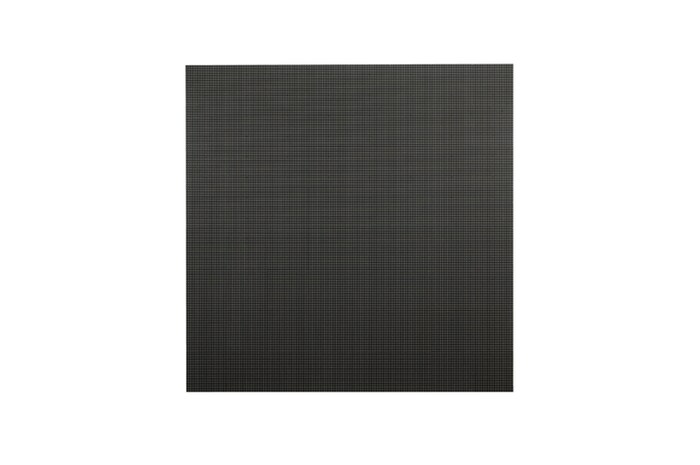

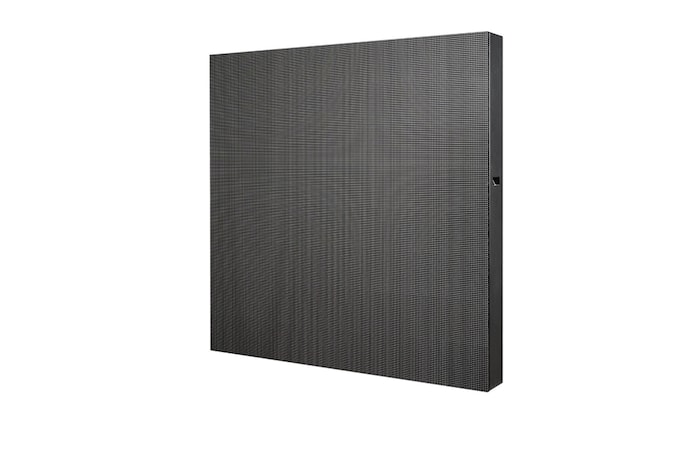

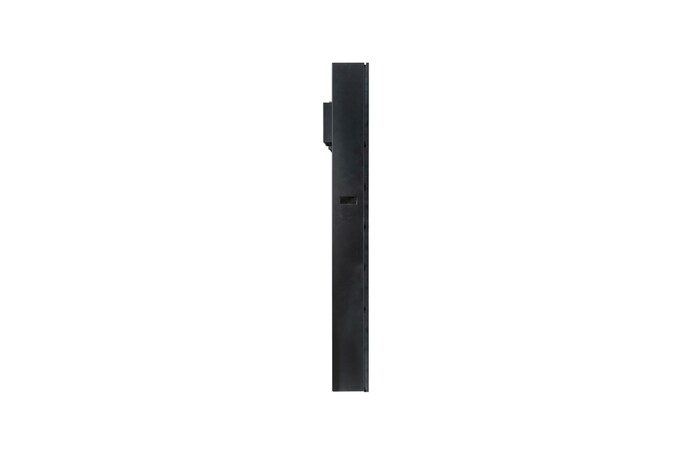

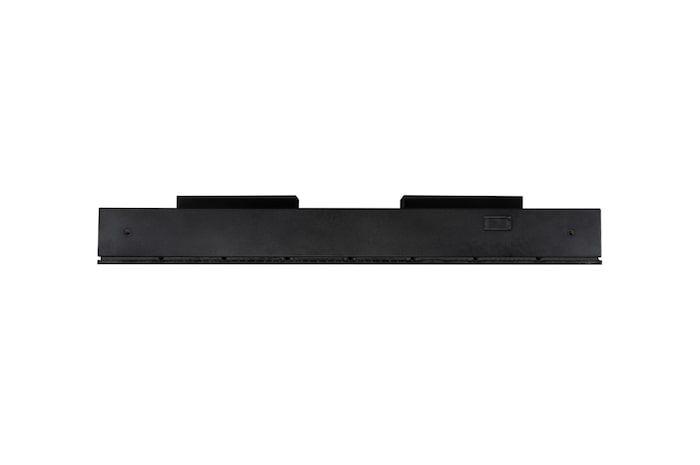

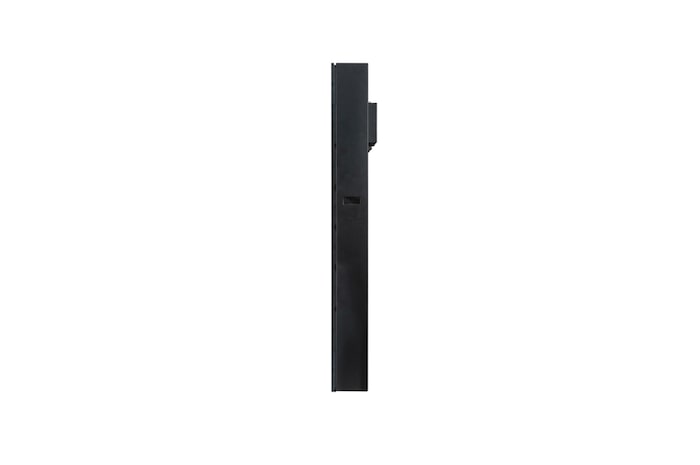

GSEH080-GR
Pixel Configuration
Single SMD
Pixel Pitch (mm)
8
Module Resolution (WxH)
24x24
Module Dimensions(WxH,mm)
192x192
Weight per Module (kg)
0.57
No. of Modules per Cabinet (WxH)
8x8
Cabinet Resolution (WxH)
192x192
Cabinet Dimensions (W x H x D, mm)
1,536x1,536x222
Cabinet Surface Area (㎡)
2.36
Weight per Cabinet (kg/unit)
104
Weight per Square Meter (kg/㎡)
44.07
Physical Pixel Density (pixels/㎡)
15,625
Flatness of Cabinet (mm)
±1.0
Cabinet material
Aluminum
Service access
Front and Rear
Max Brightness (After Calibration, nit)
8,500
Color Temperature (K)
3,200~9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
130
Brightness Uniformity
0.97
Color Uniformity
±0.05Cx,Cy
Contrast Ratio
5,000:1
Processing Depth (bit)
16 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
1,770
Power Consumption (W/Cabinet, Avg.)
708
Power Consumption (W/㎡, Max.)
750
Heat Dissipation (BTU/h/Cabinet, Max.)
6,040
Heat Dissipation (BTU/h/Cabinet, Avg.)
2,416
Heat Dissipation (BTU/h/㎡, Max.)
2,560
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
5,040
Operating Temperature(℃)
-30℃ to +50℃
Operating Humidity
0~90%RH
IP rating Front
IP65
IP rating Rear
IP54
LED Lifetime (Half brightness)
100,000
Certification
CE, FCC, ETL
Environment
RoHS, REACH
Controller
CVEA
90 degree corner cut
O
