Size (W x H x D) mm - Main (w/o foot ) mm
1060 x 57 x 85
Size (W x H x D) mm - Main (w/ foot ) mm (Matching TV size ('19 New Designed LG TV))
49 inch ↑
Size (W x H x D) mm - Main (w/o foot ) mm (Addtional Foot (H) mm)
14mm

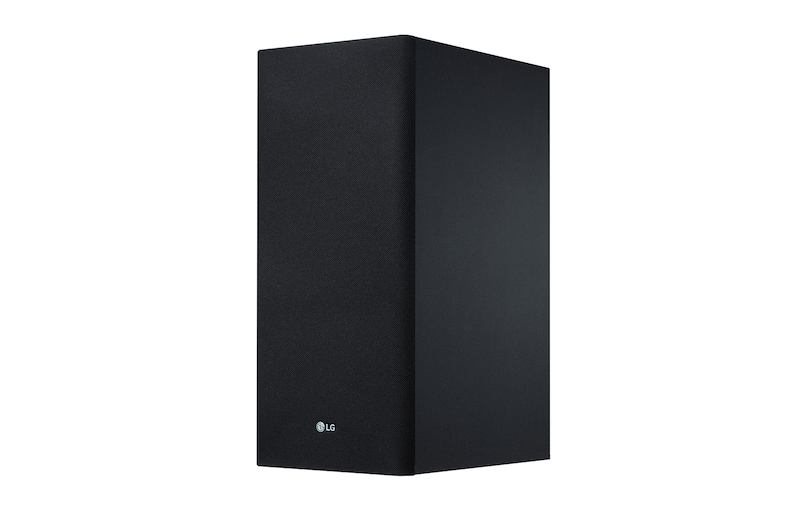

Size (W x H x D) mm - Subwoofer
171.0 x 393.0 x 248.5
Material - Mainset (Front)
Metal Grille
Material - Mainset (Top / Bottom)
Mold/Mold
Material - Subwoofer (Front)
Jersey
Material - Subwoofer (Body)
Wood
Net Weight (Kg) - Main
3.45Kg
Net Weight (Kg) - Subwoofer
5.3Kg
Carton Size (W x H x D) mm
1159 x 217 x 547
Carton Type
Offset (L)
Gross Weight (Kg)
11.3Kg
Container Q'ty - 20ft
400
Container Q'ty - 40ft
800
Container Q'ty - 40ft (HC)
800
Channel
3.1ch
Output Power (THD 10%) - Total
420W
Output Power (THD 10%) - Front
80W (45W+35W) x 2
Output Power (THD 10%) - Center
40W
Output Power (THD 10%) - Subwoofer
200W (Wireless)
Audio DAC - 24bit/96kHz
Yes
Main - SPL
82dB
Main - System
Closed
Main - Tweeter Unit - Front Only
20mm Silk Dome
Main - Woofer Unit
40 x 100 mm
Main - Impedance
4ohm
Main - Magnetic Shielding
non-shield
Subwoofer - SPL
85dB
Subwoofer - System
Bass Reflex
Subwoofer - Woofer Unit
6 inch
Subwoofer - Impedance
3ohm
Subwoofer - Magnetic Shielding
non-Shield
WiFi Band Width - 2,4G / 5G
Yes

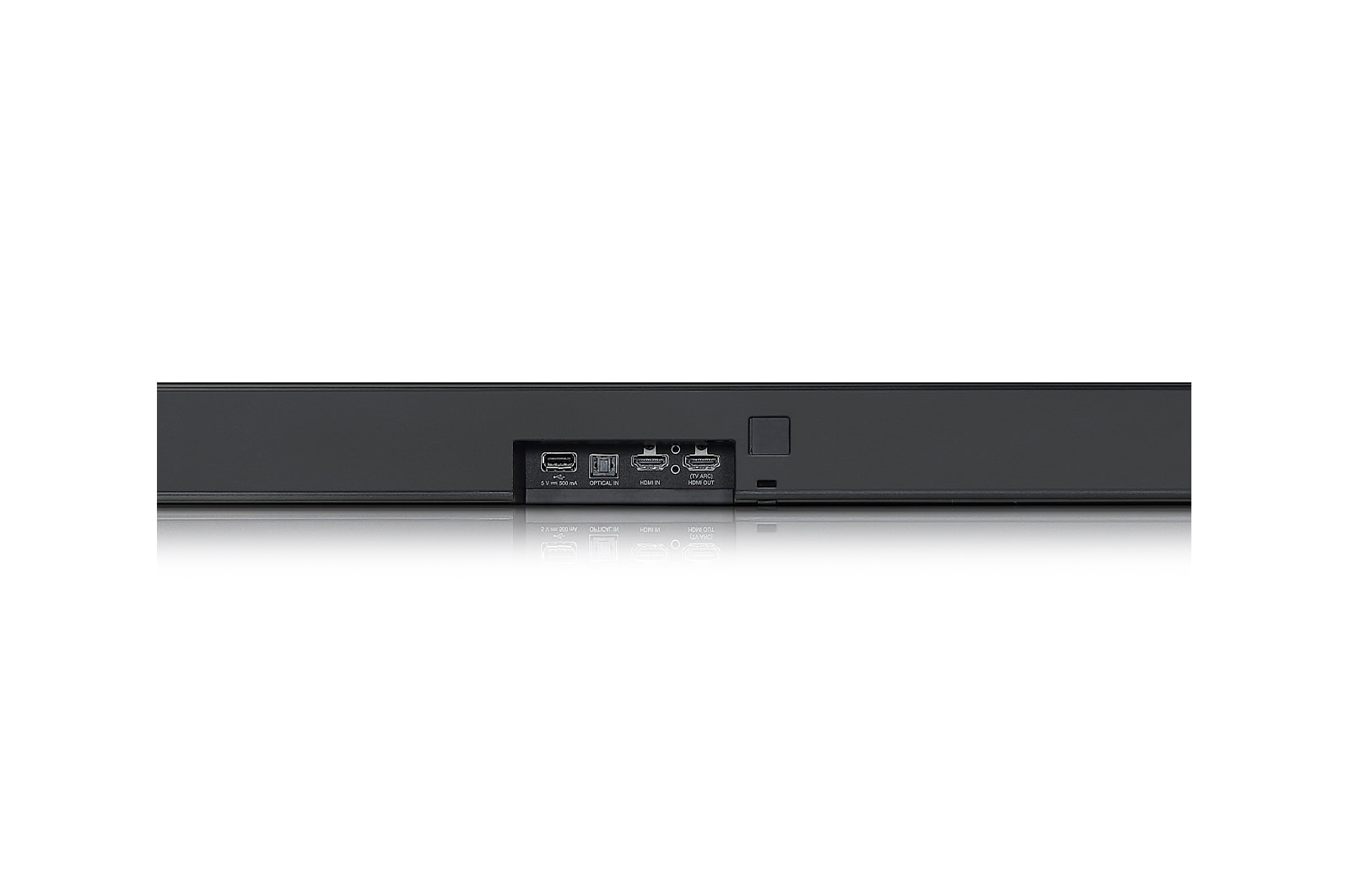

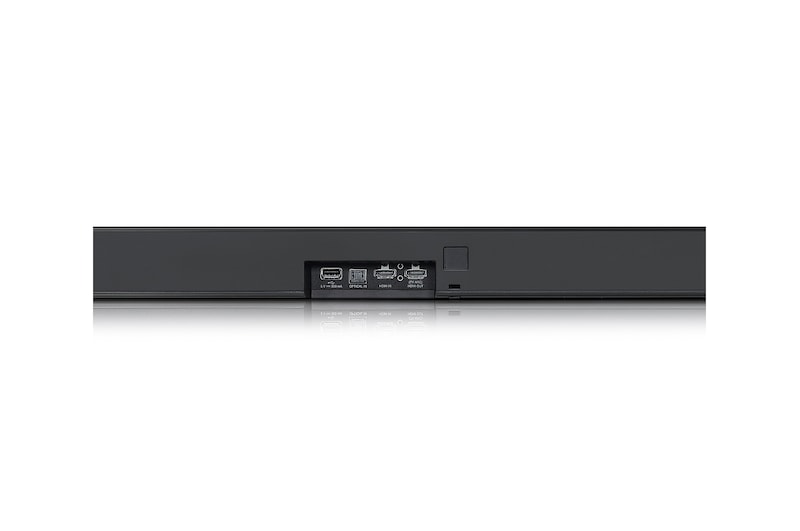

General - Optical
Yes (1)
General - HDMI 1.4 (HDCP 1.4) (In / Out)
Yes (1)/Yes (1)
General - USB
Yes
Wireless - Bluetooth (ver.)
4.0
Wireless - Bluetooth (ver.) (Bluetooth Codec(SBC / AAC))
Yes/Yes
Wireless - WiFi
Yes
Display Type
LCD (5 Char.)
Hi-Res Audio - Sampling (24bit/96kHz)
Yes
Google Multi Zone - Group Play Mode (one source --> multi speaker)
Yes
Sound Effect - ASC (Adaptvie Sound Control : Default)
Yes
Sound Effect - Standard (Meridian : TBD)
Yes
Sound Effect - Bass Blast / Bass Blast +
Yes
Sound Effect - DTS Virtual X
Yes
Tone control - User EQ (RCU / App)
Yes/Yes
Night Time - On/Off (RCU / App)
No/Yes
Dynamic Range Control - On/Off (RCU / App)
No/Yes
Auto Volume Leveler - On/Off (RCU / App)
No/Yes
Smart Phone & Tablet Remote App - iOS / Android OS
Yes/Yes
Smart Phone File Playback
Yes
EZ setup (BLE)
Yes
Works with the Google Assistant - Controllee
Yes
NSU(Network Software Update)
Yes
Control with your TV Remote - Vol + , - , Mute
Yes
Sound Sync - Bluetooth (LG TV)
Yes
Sound Sync - Optical
Yes
Automatic Power on/off - Bluetooth (LG TV)
Yes
Automatic Power on/off - Optical
Yes
A/V Sync - 0~300ms (RCU / App)
No/Yes
SIMPLINK
Yes
Audio Return Channel (ARC)
Yes
Woofer Level - -15~+6 (Step)
Yes
Channel Level - -6~+6 (Step) (Top / Center / Side / Surround)
No/Yes/No/Yes
Mute
Yes
Auto Dimmer
Yes
Sleep Timer - (RCU / App)
No/Yes
USB Host
Yes
Bluetooth Stand-By
Yes
Wireless Rear Speaker Ready - 1:1 Rx module Type (Wireless Kit for rear)
Yes
LPCM
Yes
Dolby Digital
Yes
DTS Digital Surround
Yes
DTS Virtual X
Yes
AAC / AAC+
Yes
FLAC - Up to 192kHz (C4A / USB)
Yes/Yes
OGG - Up to 48kHz (C4A / USB)
Yes/Yes
WAV (C4A / USB)
Yes/Yes
MP3 (C4A / USB)
Yes/Yes
WMA (C4A / USB)
No/Yes
AAC (C4A / USB)
Yes/Yes
Chromecast
Yes
Main - Type (Adaptor)
25V, 2A
Main - Power Off Consumption
0.5W ↓
Main - Power Consumption
38W
Subwoofer - Type (SMPS)
100~240V, 50/60Hz
Subwoofer - Power Off Consumption
0.5W ↓
Subwoofer - Power Consumption
33W
Subwoofer - Wireless Frequency
5.8GHz
Owners Manual - Web (w/ Simple Manual)
Yes (Full)
Owners Manual - Book
Simple/Yes
Owners Manual - Wall Mount Guide
Yes
Owners Manual - Open Source : X / Yes (Full / Simple)
Yes (Full)
Remote Control Unit - Model Name
MA7
Remote Control Unit - Battery(Size)
AAA x 2
Batteries
Yes
Warranty Card
Yes
Optical Cable
Yes
Wall Mount Bracket
Yes
Additioanl Foot
Yes
Box Type
Offset (L)
