UH5F-H Series

UH5F-H Series

UH5F-H Series

55UH5F-H

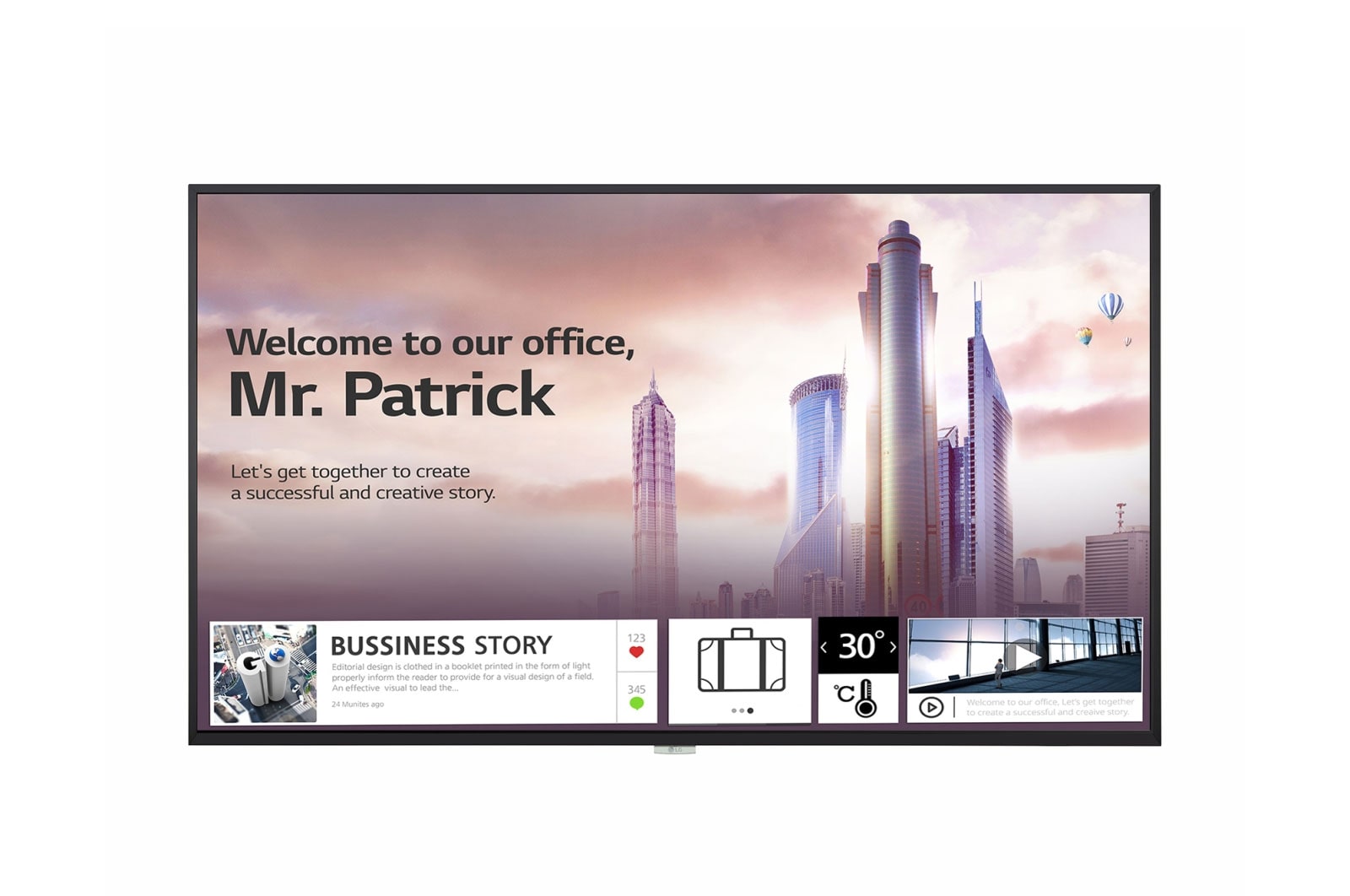

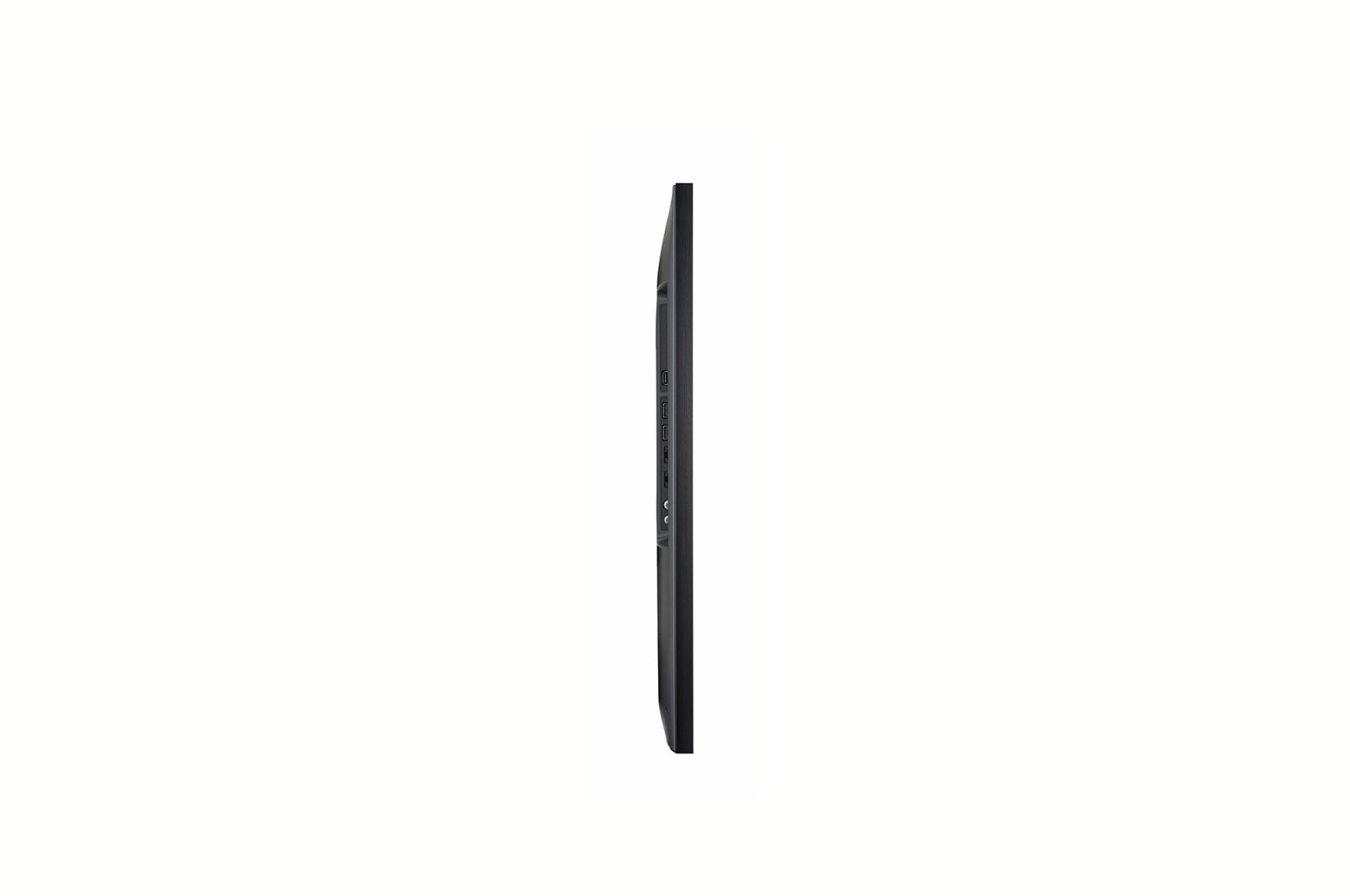

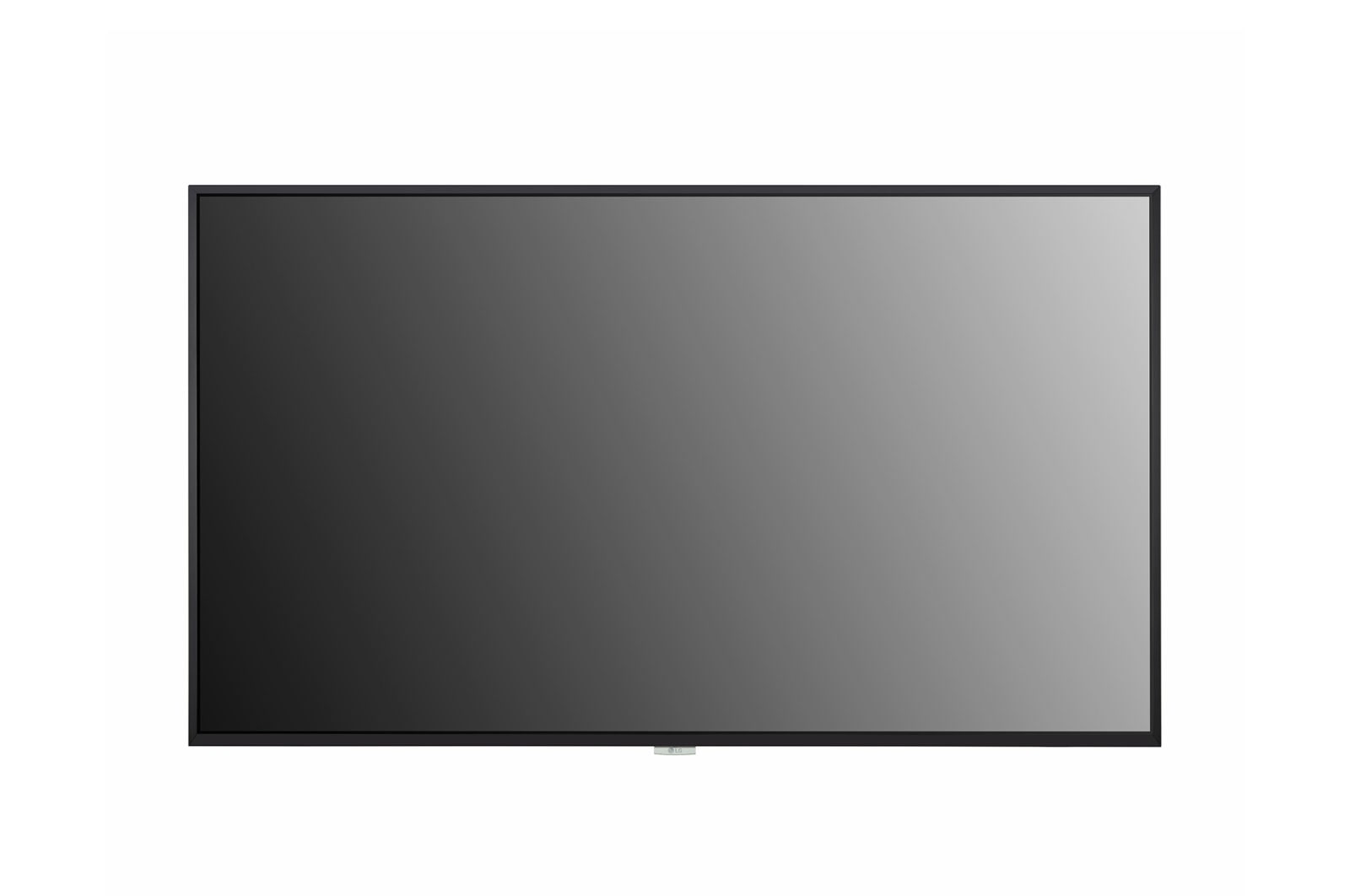

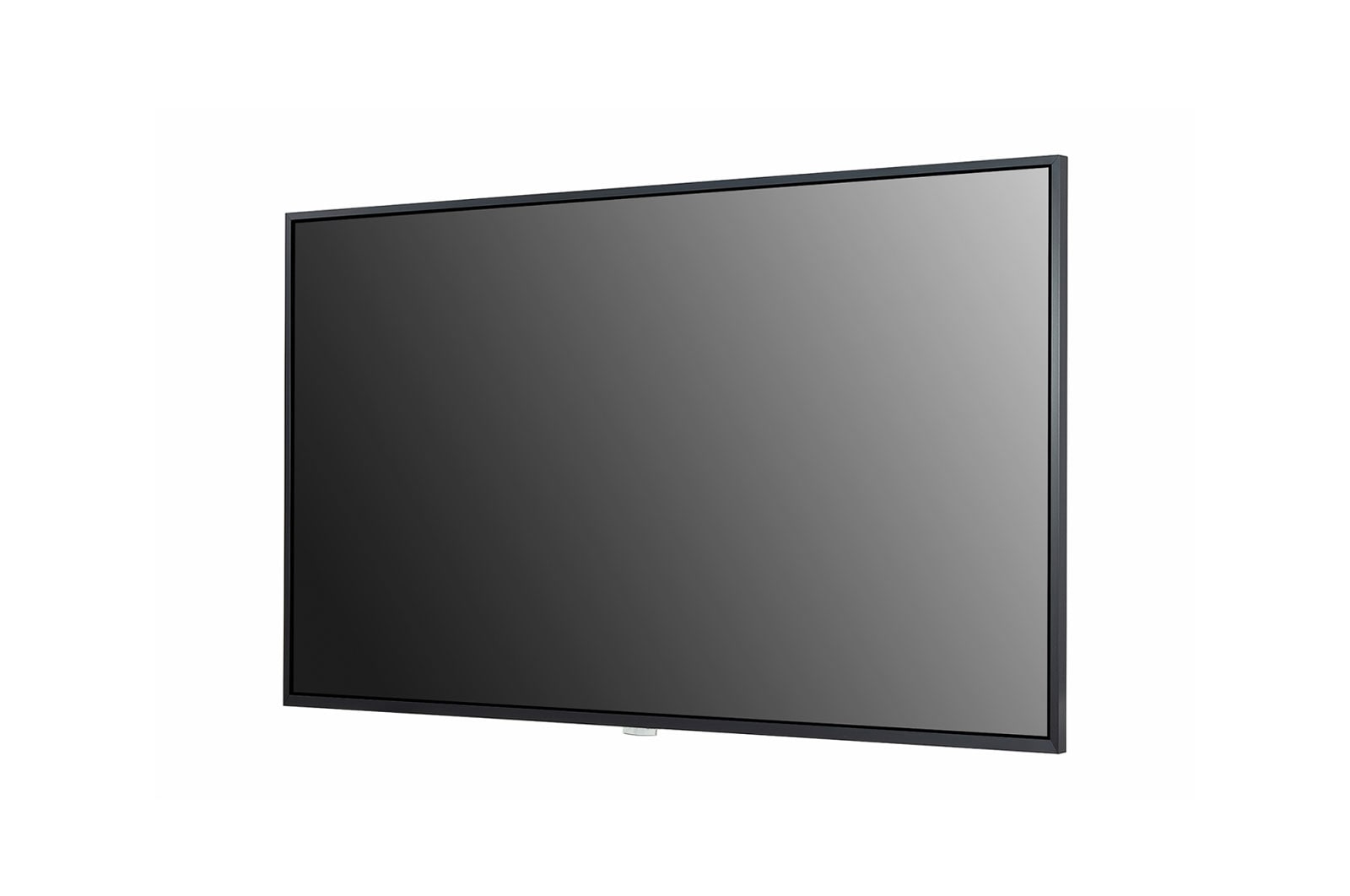

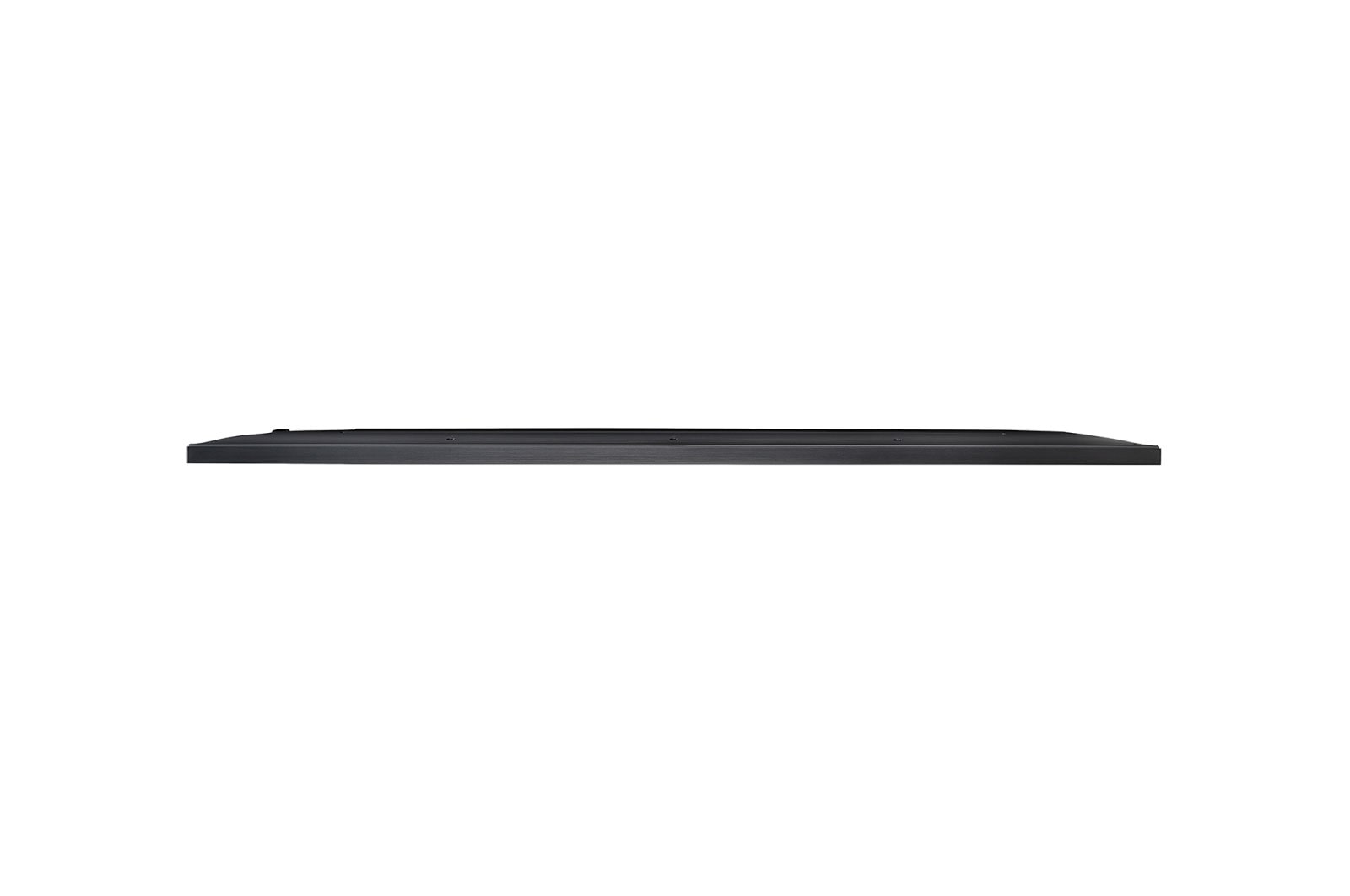

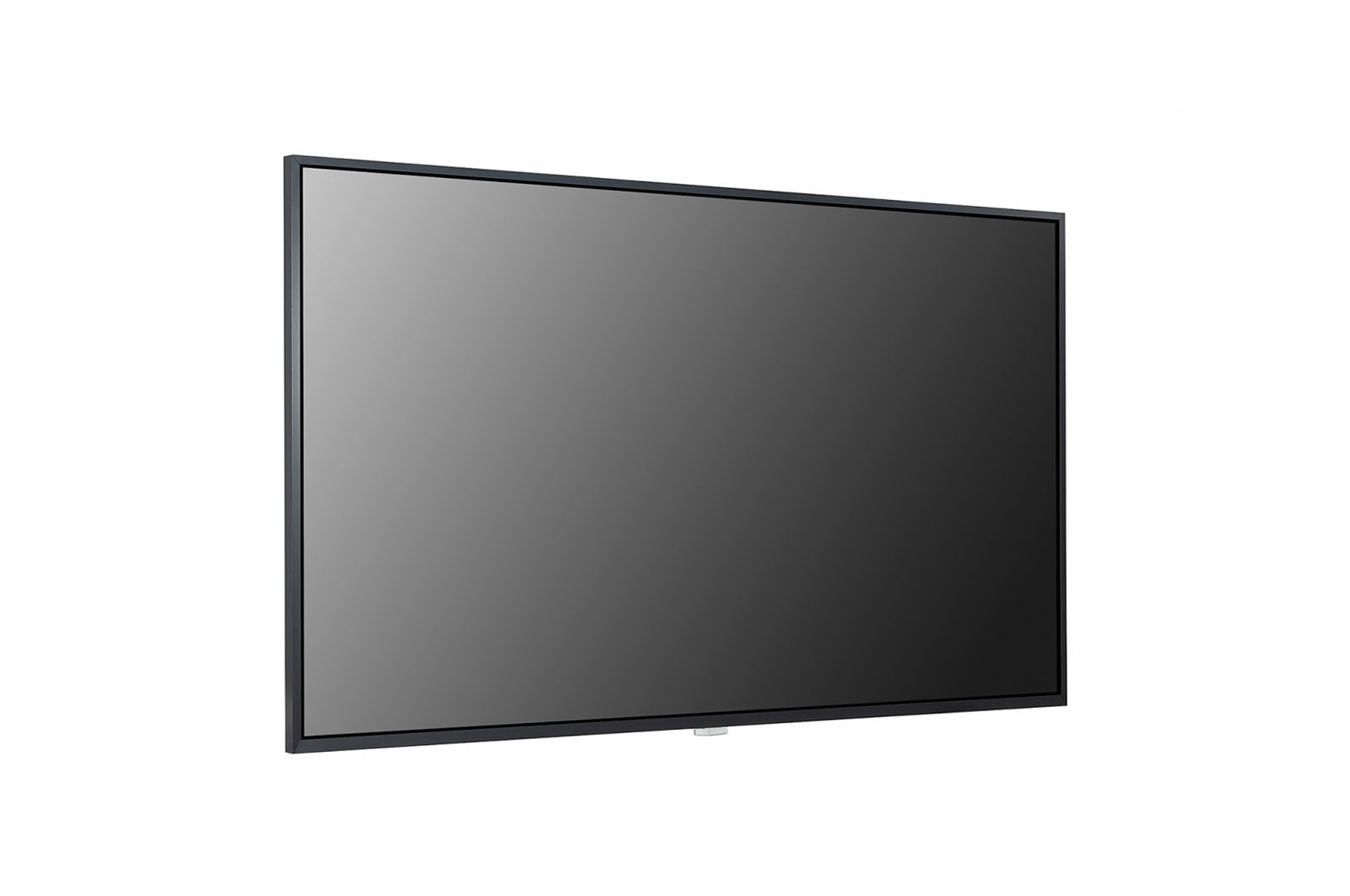

LG UH5F-H Series, 55UH5F-H
LG UH5F-H Series, 55UH5F-H
LG UH5F-H Series, 55UH5F-H
LG UH5F-H Series, 55UH5F-H
LG UH5F-H Series, 55UH5F-H
LG UH5F-H Series, 55UH5F-H
LG UH5F-H Series, 55UH5F-H
LG UH5F-H Series, 55UH5F-H
LG UH5F-H Series, 55UH5F-H
LG UH5F-H Series, 55UH5F-H
LG UH5F-H Series, 55UH5F-H
LG UH5F-H Series, 55UH5F-H
LG UH5F-H Series, 55UH5F-H
LG UH5F-H Series, 55UH5F-H

Key Features

  • Brightness(Typ.) : 500 cd/m²
  • Surface Treatment (Haze) : 28%
  • Bezel : 9.9 mm (T/R/L), 14.4 mm (B)

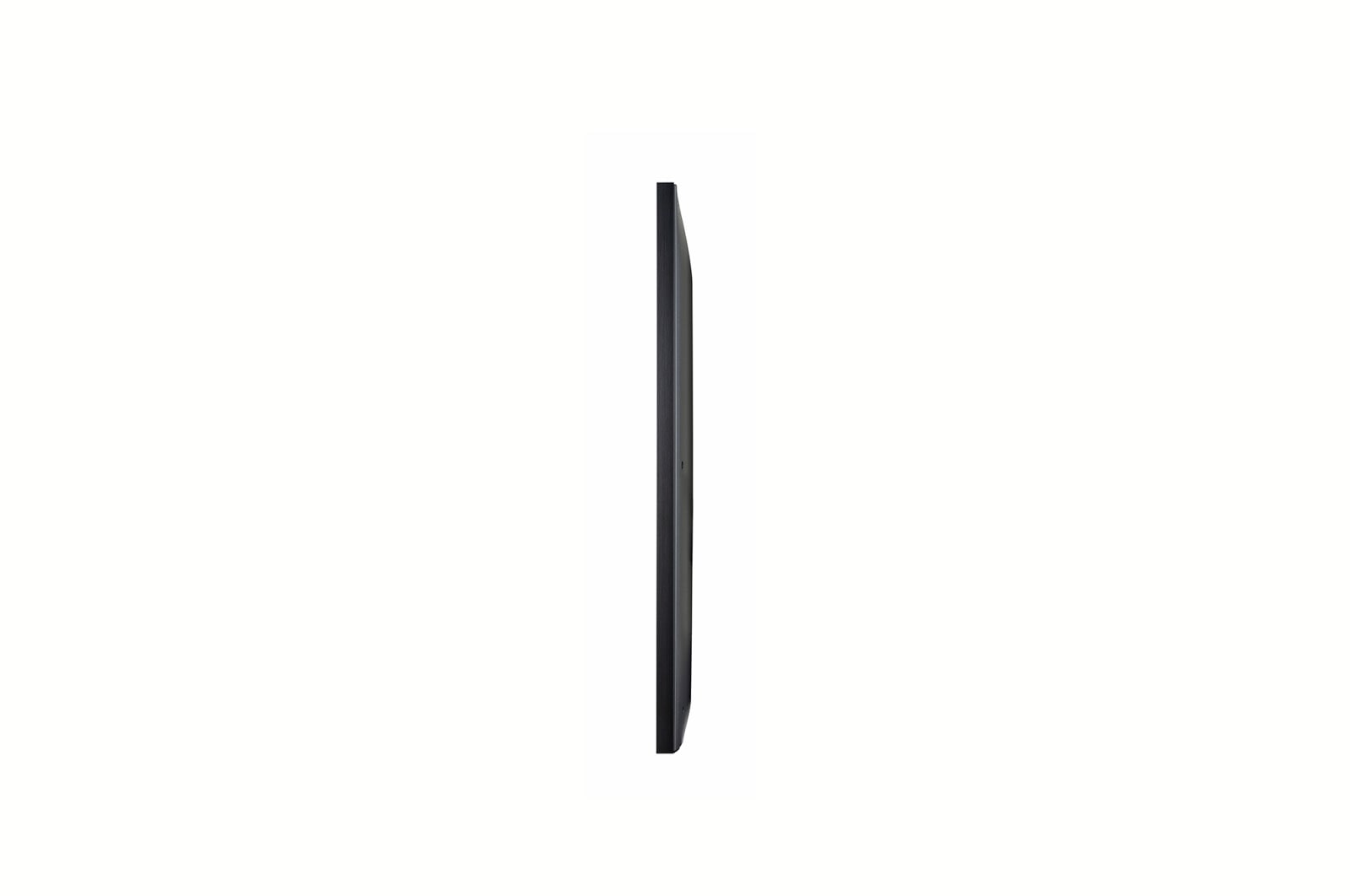

  • Depth : 39.9 mm
  • Interface : HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
  • 30º Tilting Installation
More
LG UHD Signage
SUPERB PICTURE QUALITY

Clear View with Non-glare Coating

Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.

Clear View with Non-glare Coating.

SUPERB PICTURE QUALITY

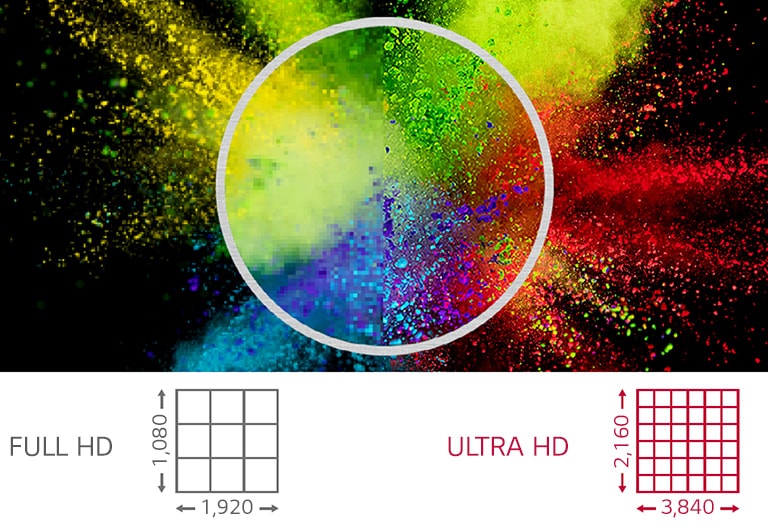

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion.

ULTRA HD Resolution

SLEEK AND PRACTICAL DESIGN

Narrow Bezel & Slim Depth

This series has a smaller bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

Narrow Bezel

SLEEK AND PRACTICAL DESIGN

Detachable Logo and Built-in Speaker

This series is equipped with a new transparent logo which is well organized with surroundings. Also, its removable feature gives users flexibility for installation. Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

Detachable Logo and Built-in Speaker.

PRODUCT RELIABILITY

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

IP5x Certified Design.

PRODUCT RELIABILITY

30° Tilting Installation

When a display is installed at high places, it is usually tilted for the user's comfort viewing. In consideration of this, the installation with 30 degrees of tilt* is supported.

30° Tilting Installation.

*Tilt installation of up to 30 degrees facedown is supported. (In conditions within 30ºC temperature, 50% humidity)
EASY INSTALLATION

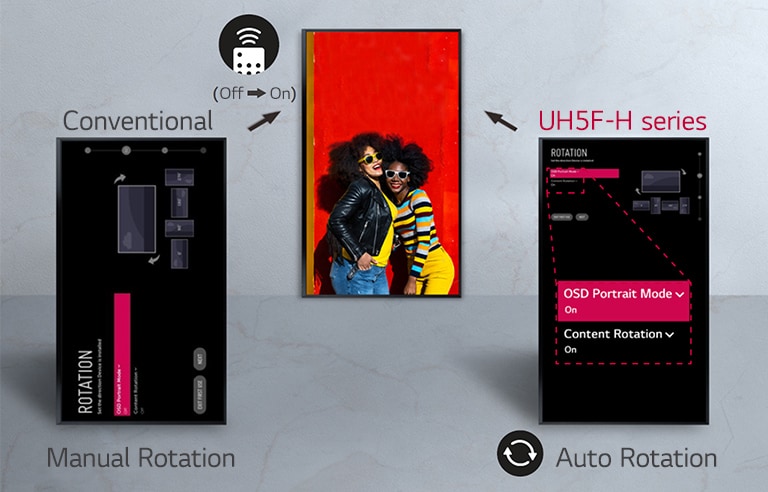

Auto Screen Rotatio

This series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so manual rotation set-up process isn't required. The direction of OSD and background contents will be already set when you turn on a display at first.

Auto Screen Rotatio.

EASY INSTALLATION

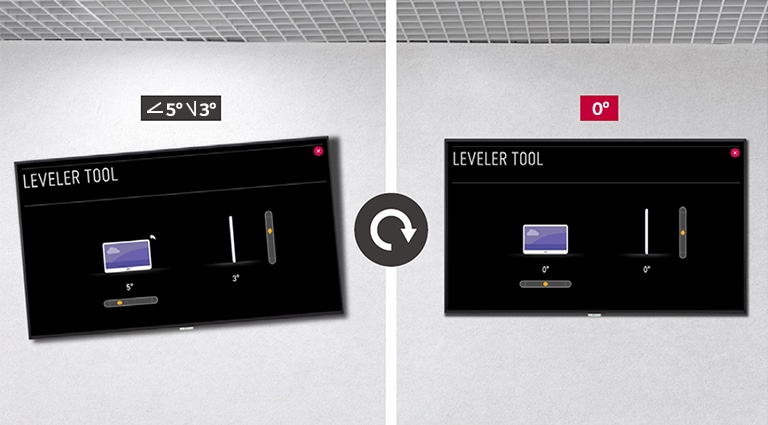

Fine Adjustment

This series is equipped with a "horizontal sensor" which shows users how the device is tilt, so that it can be precisely installed.

Fine Adjustment.

webOS SMART SIGNAGE PLATFORM

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

High-Performance with webOS.

webOS SMART SIGNAGE PLATFORM

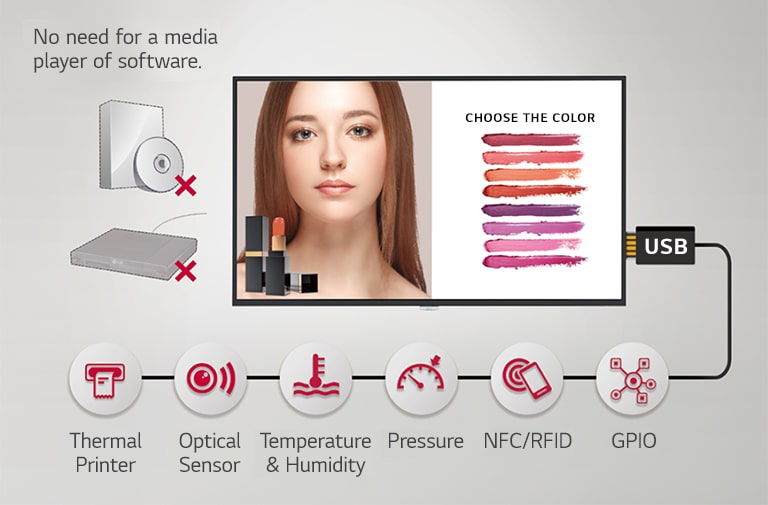

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

Various Sensor Applications.

MEETING ROOM SOLUTION COMPATIBILITY

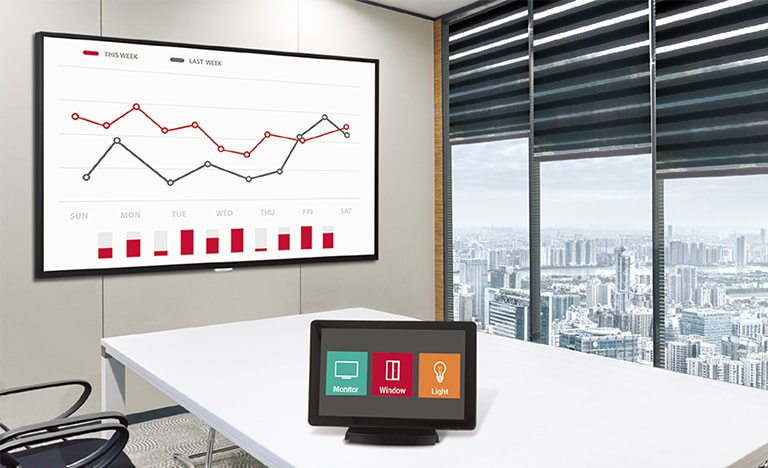

Compatible with AV Control System

The UH5F-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

Compatible with AV Control System.

*Network based control.
MEETING ROOM SOLUTION COMPATIBILITY

Compatible with Video Conference System

For the optimum visual meeting, the UH5F-H series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

Compatible with Video Conference System.

*Using an HDMI cable connection.

ENERGY STAR® Certified

Print

All Spec

SOUND

  • Speaker (Built-in)

    YES (10W x 2)

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender

  • Optional

    Stand(ST-653T), OPS Kit(KT-OPSF)

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

CERTIFICATION

  • EMC

    FCC Class "A" / CE / KC

  • ePEAT(US only)

    NO

  • ERP / Energy Star

    YES(NewErP) / YES

  • Safety

    CB / NRTL

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0 °C to 40 °C

OPS COMPATIBILITY

  • OPS Power Built-in

    NO

  • OPS Type compatible

    YES (Piggyback)

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    358 BTU/Hr(Typ.), 495 BTU/Hr(Max.)

  • DPM

    0.5W

  • Max.

    145W

  • Power off

    0.5W

  • Smart Energy Saving (70%)

    84W

  • Typ.

    105W

MECHANICAL SPECIFICATION

  • Weight (Head)

    19.0Kg

  • Bezel Color

    Black

  • Bezel Width

    T/R/L: 9.9mm, B: 14.4mm

  • Carton Dimensions (W x H x D)

    1360.0 x 835.0 x 175.0mm

  • Handle

    NO

  • Monitor Dimensions (W x H x D)

    1234.4 x 720.9 x 39.9mm (with LG Logo)

  • Monitor Dimension with Stand (W x H x D)

    1234.4 x 770.7 x 290.0mm

  • Packed Weight

    24.2Kg

  • VESA Standard Mount Interface

    300 x 300 mm

  • Weight (Head+Stand)

    19.6Kg

PANEL

  • Aspect Ratio

    16:9

  • Back Light Type

    Edge

  • Brightness

    500nit (Typ.)

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Color Gamut

    BT709 95%

  • Contrast Ratio

    1,100:1

  • Dynamic CR

    1,000,000:1

  • Life time

    50,000Hrs (Min.)

  • Native Resolution

    3840 x 2160 (UHD)

  • Operation Hours (Hours/Day)

    24/7

  • Panel Technology

    IPS

  • Portait / Landscape

    YES / YES

  • QWP (Quarter Wave Plate)

    N/A

  • Refresh Rate

    60Hz

  • Response Time

    8ms (G to G)

  • Screen Size (Inch)

    55

  • Surface Treatment (Haze)

    Haze 28%

  • Transparency

    N/A

  • Viewing Angle (H x V)

    178º x 178º

CONNECTIVITY

  • Audio In

    YES

  • Audio Out

    YES

  • Daisy Chain

    NO

  • DP In

    YES (HDCP 2.2/1.3)

  • DP Out

    YES

  • DVI-D In

    YES (HDCP 1.4)

  • External Speaker Out

    NO

  • HDMI In

    YES (3ea)

  • HDMI In (HDCP Ver.)

    2.2/1.4

  • HDMI Out

    NO

  • IR In

    YES

  • IR Out

    NO

  • RGB In

    NO

  • RJ45(LAN) In

    YES (1ea)

  • RJ45(LAN) Out

    NO

  • RS232C In

    YES

  • RS232C Out

    YES

  • Touch USB

    NO

  • USB In

    USB2.0 Type A (1ea)

SPECIAL FEATURE

  • Conformal Coating (Power Board)

    YES

  • Direct Sunlight

    N/A

  • IP Rating

    IP5X

  • Overlay Touch Compatibility

    N/A

  • Power Protection

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face down)

    Max. 30 degree

  • Tilt (Face up)

    N/A

SOFTWARE COMPATIBILITY

  • Connected Care

    YES

  • Mobile CMS

    YES

  • Promota

    YES

  • SuperSign Cloud

    NO

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    YES

FEATURE - HARDWARE

  • Acceleration(Gyro) Sensor

    YES

  • Auto Brightness Sensor

    YES

  • BLU Sensor

    NO

  • Current Sensor

    NO

  • FAN (Built-in)

    NO

  • Humidity Sensor

    NO

  • Internal Memory (eMMC)

    8GB

  • Local Key Operation

    YES

  • Pixel Sensor

    NO

  • Power Indicator

    NO

  • Proximity Sensor

    NO

  • Temperature Sensor

    YES

  • Wi-Fi/BT (Built-in)

    YES

FEATURE - SOFTWARE

  • Auto Set ID

    YES

  • Backlight Sync

    NO

  • Beacon

    YES

  • Booting Logo Image

    YES

  • Brightness Compensation

    NO

  • Cisco Certification

    YES

  • Control Manager

    YES

  • Crestron Connected

    YES

  • External Input Rotation

    YES

  • Fail over

    YES

  • Gapless Playback

    YES

  • Group Manager

    YES

  • HDMI-CEC

    YES

  • ISM Method

    YES

  • Local Contents Scheduling

    YES

  • Local Network Sync

    YES

  • Network Ready

    YES

  • No Signal Image

    YES

  • OS Ver. (webOS)

    webOS 4.1

  • PBP

    YES (4PBP)

  • PIP

    YES

  • Play via URL

    YES

  • PM mode

    YES

  • Pro:Idiom

    YES

  • RS232C Sync

    YES

  • Scan Inversion

    NO

  • Screen Rotation

    YES

  • Screen Share

    YES

  • Setting Data Cloning

    YES

  • SI Server Setting

    YES

  • Smart Energy Saving

    YES

  • SNMP

    YES

  • Status Mailing

    YES

  • Tile Mode Setting

    YES

  • USB Plug & Play

    YES

  • Video Tag

    YES (4 Video Tag)

  • Wake on LAN

    YES

  • webRTC

    YES

  • W/B Setting by Grey scale

    NO
