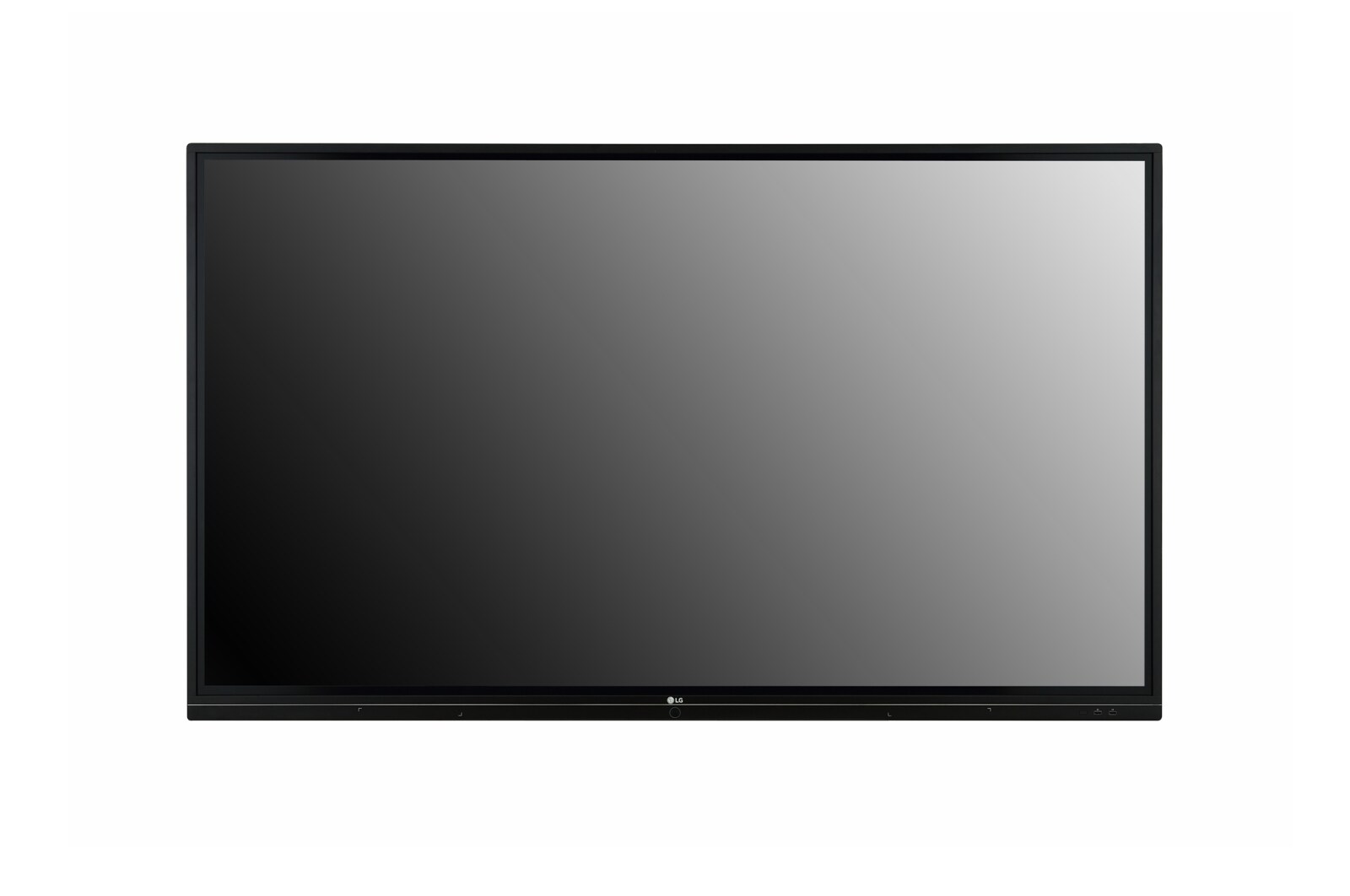

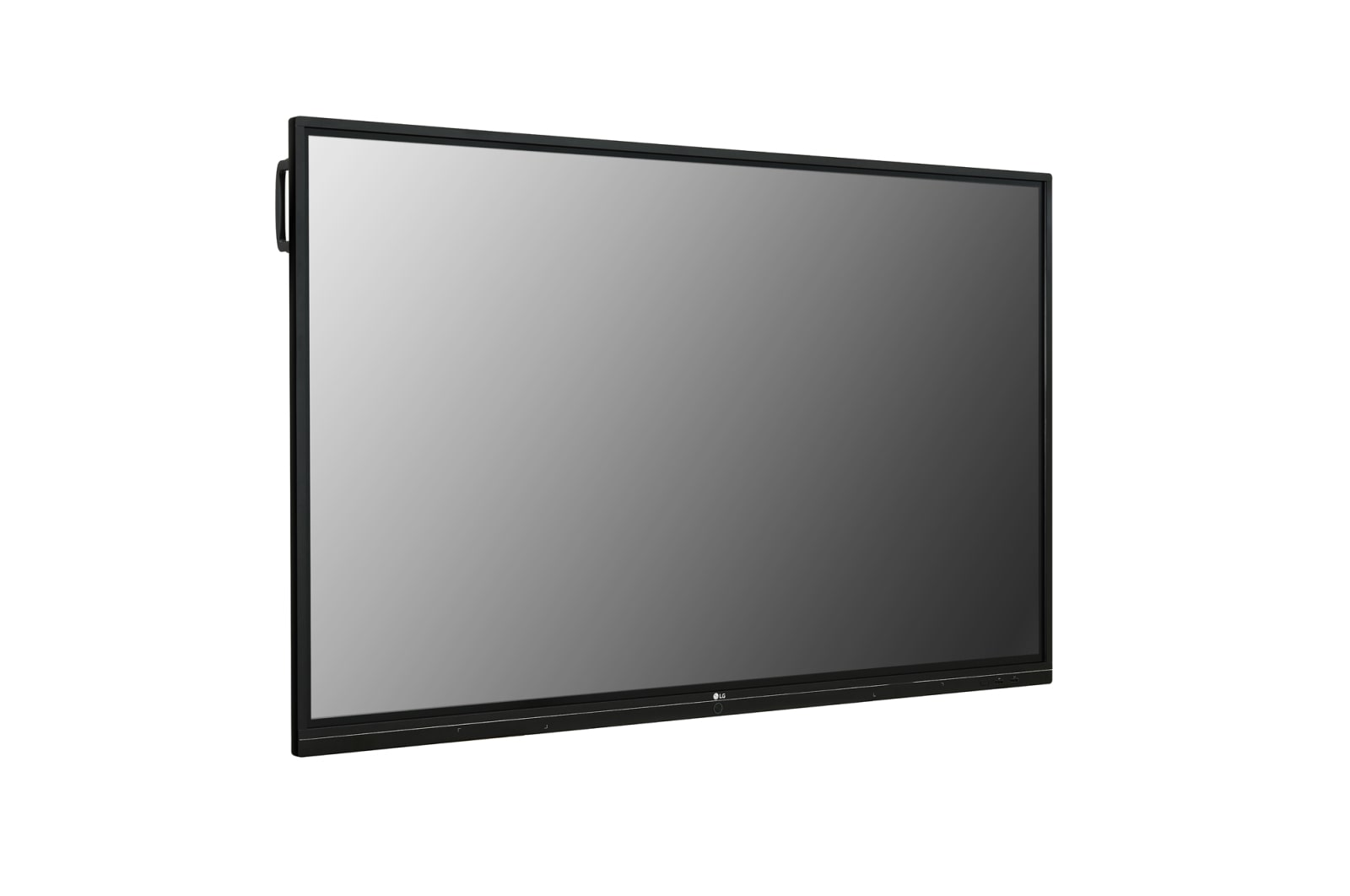

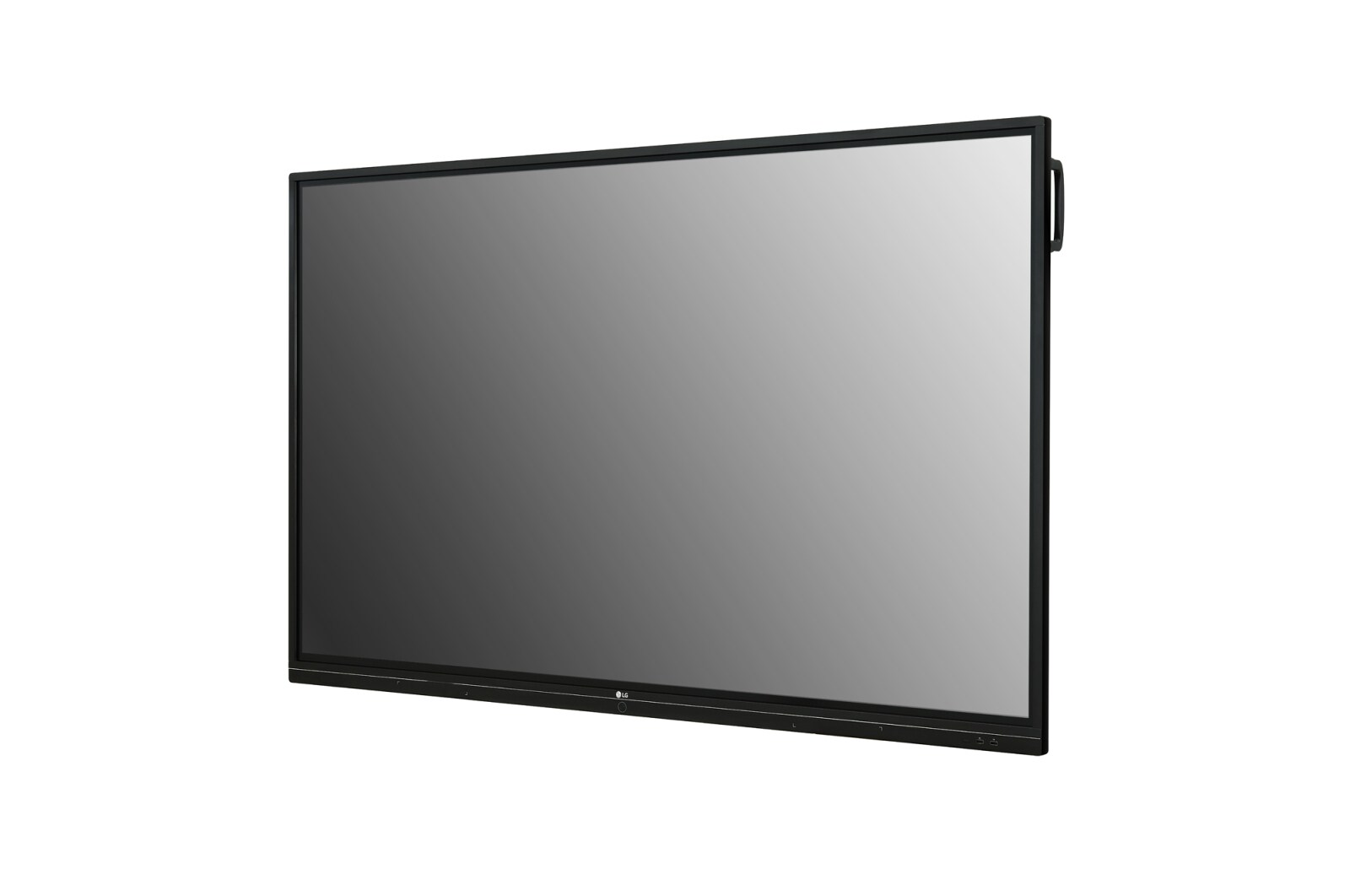

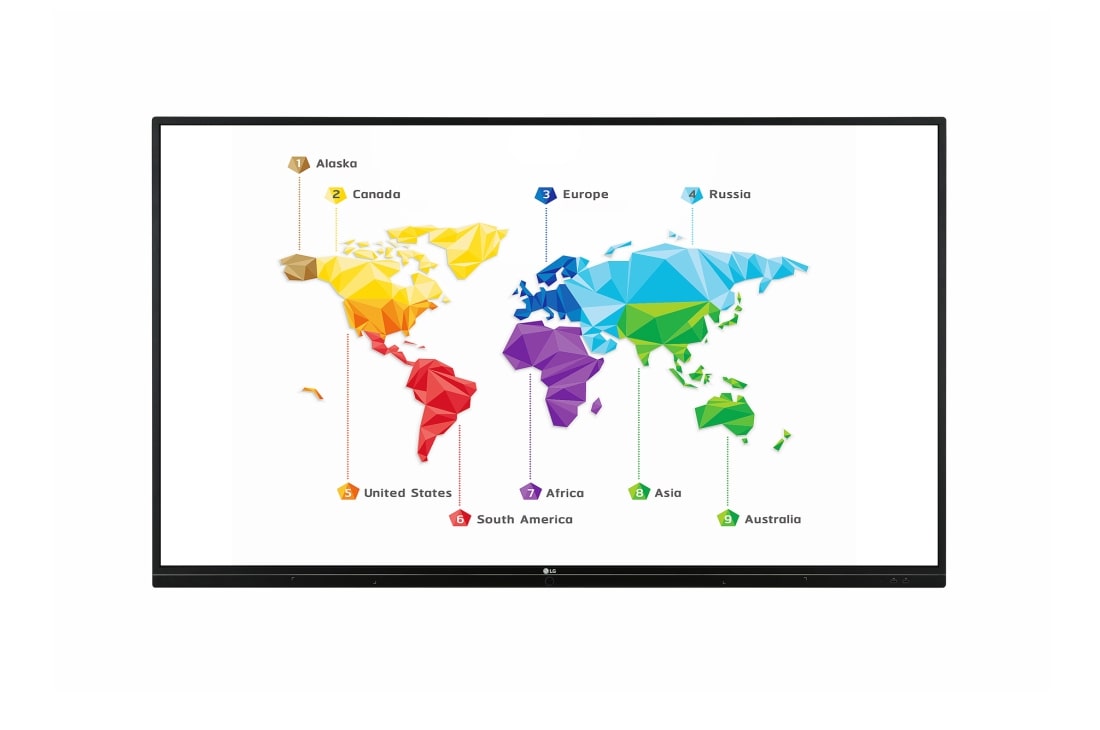

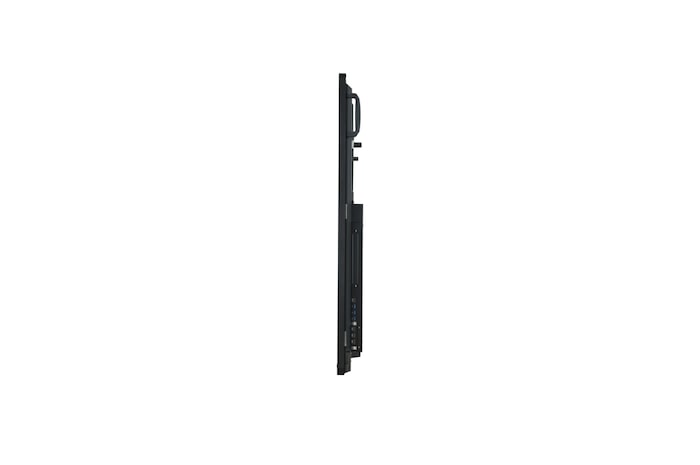

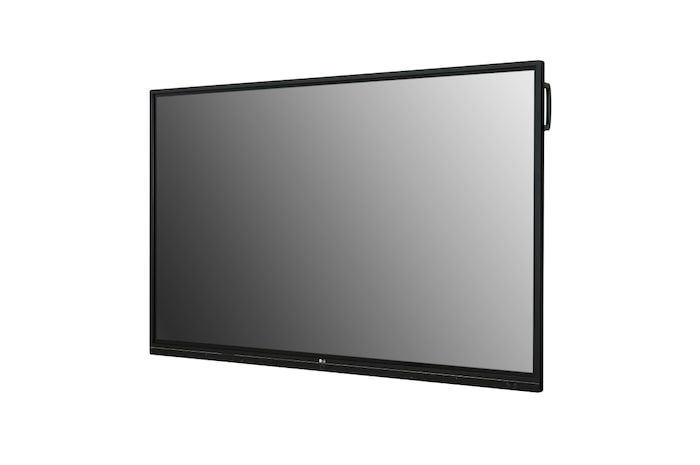

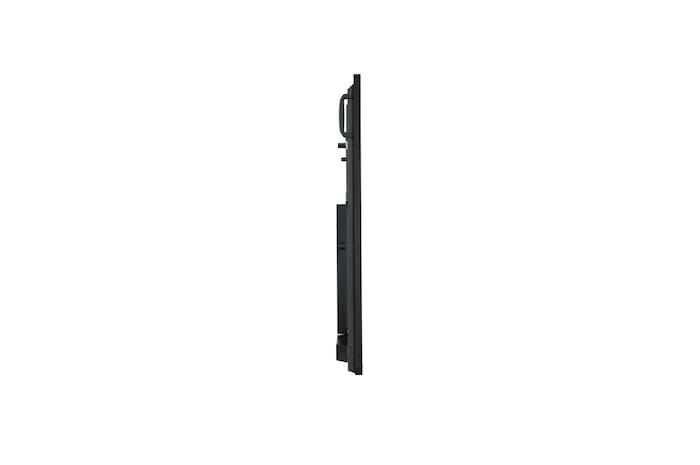

86" Ultra HD TR3BF Series

86TR3BF-B

Key Features

Brightness(w/Protection Glass) : 330 cd/m²
Touch Type : IR
Multi Touch Point : Max 20 points / Max 10 writing
Interface : HDMI (3), RGB / Audio In,RS232C In, RJ45,USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update), USB 3.0 (3), Touch Out(USB2.0,B Type) (2),HDMI (1), Optical Output / Audio Out

All Spec

PANEL

Screen Size (Inch): 86

Panel Technology: IPS

Back Light Type: Direct

Aspect Ratio: 16:9

Native Resolution: 3840 x 2160 (UHD)

Refresh Rate: 60Hz

Brightness: 370nit (Typ., without Glass)

Contrast Ratio: 1,100:1

Dynamic CR: NO

Color Gamut: NTSC 65%

Viewing Angle (H x V): 178º x 178º

Color Depth (Number of Colors): 1.07 Billion colors

Response Time: 8ms (G to G)

Surface Treatment (Haze): Haze 25%

Life time: 30,000Hrs (Min.)

Operation Hours (Hours/Day): 16/7

Portait / Landscape: NO / YES

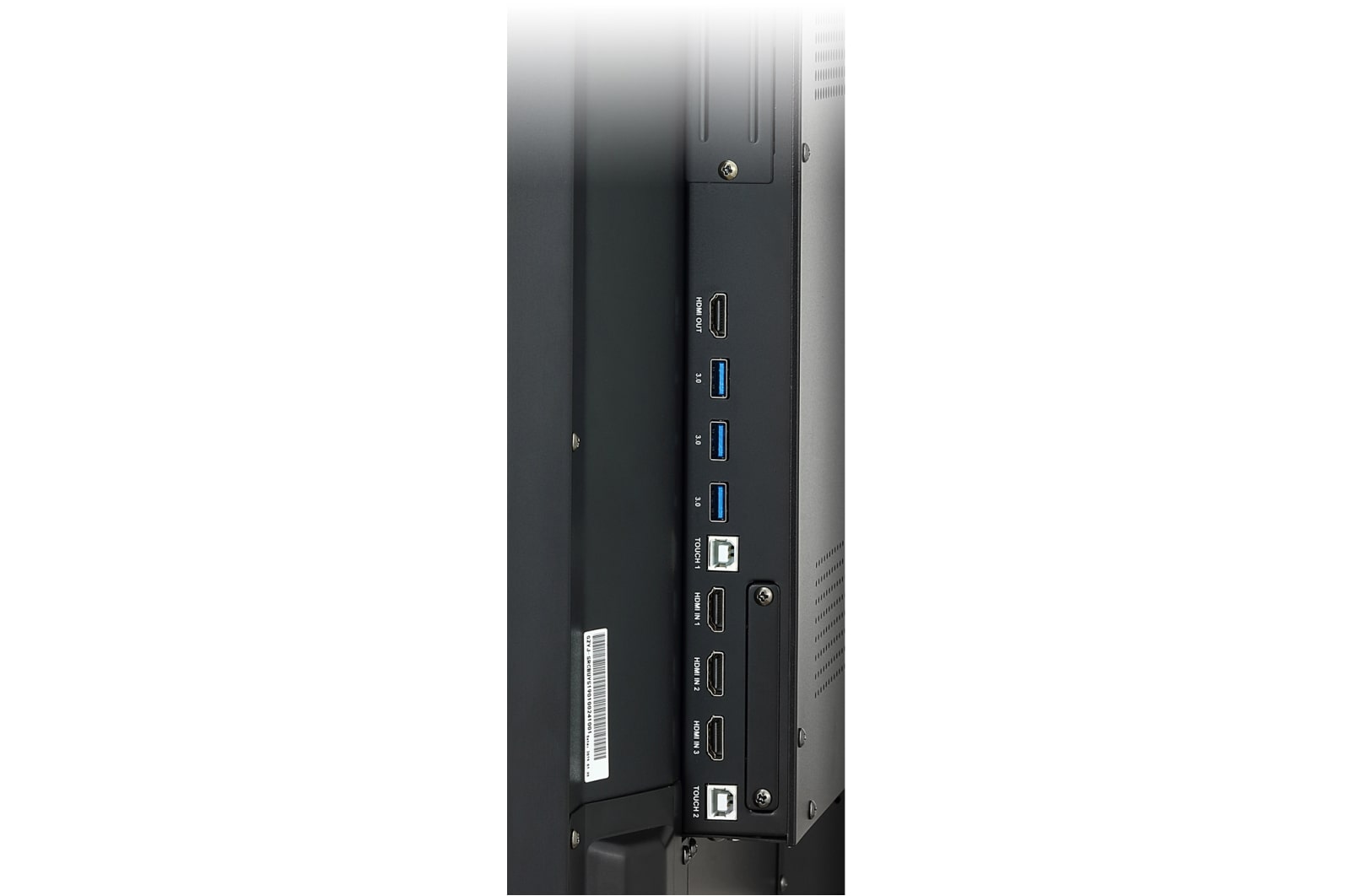

CONNECTIVITY

HDMI In: YES (3ea)

HDMI In (HDCP Ver.): 2.2/1.4

DP In: NO

DVI-D In: NO

RGB In: YES

Audio In: YES

RS232C In: YES

RJ45(LAN) In: YES (1ea)

IR In: NO

USB In: USB3.0 Type A (3ea), USB2.0 Type A (3ea)

HDMI Out: YES

DP Out: NO

Audio Out: YES

Touch USB: USB2.0 Type B (2ea)

External Speaker Out: NO

RS232C Out: NO

RJ45(LAN) Out: NO

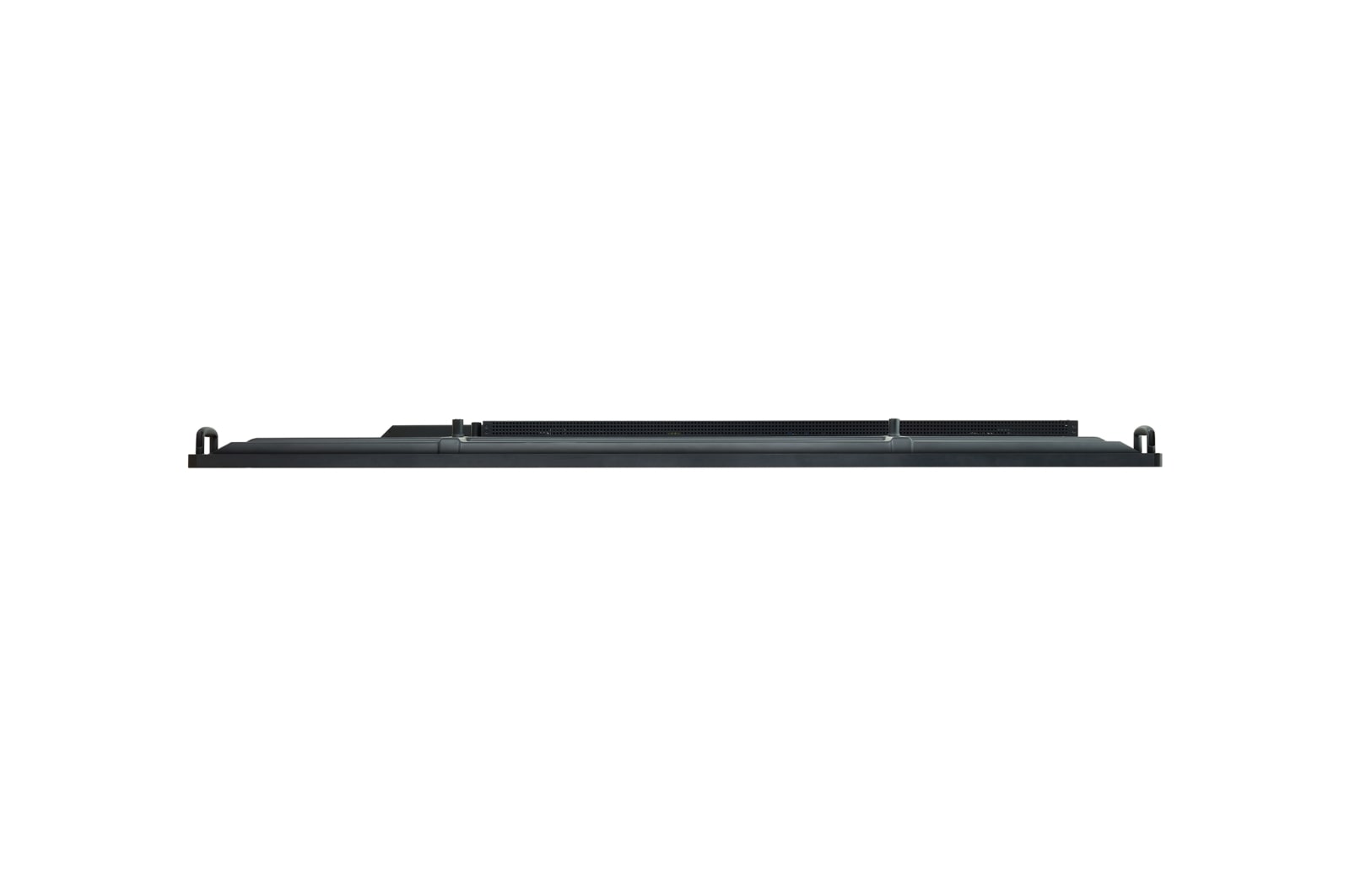

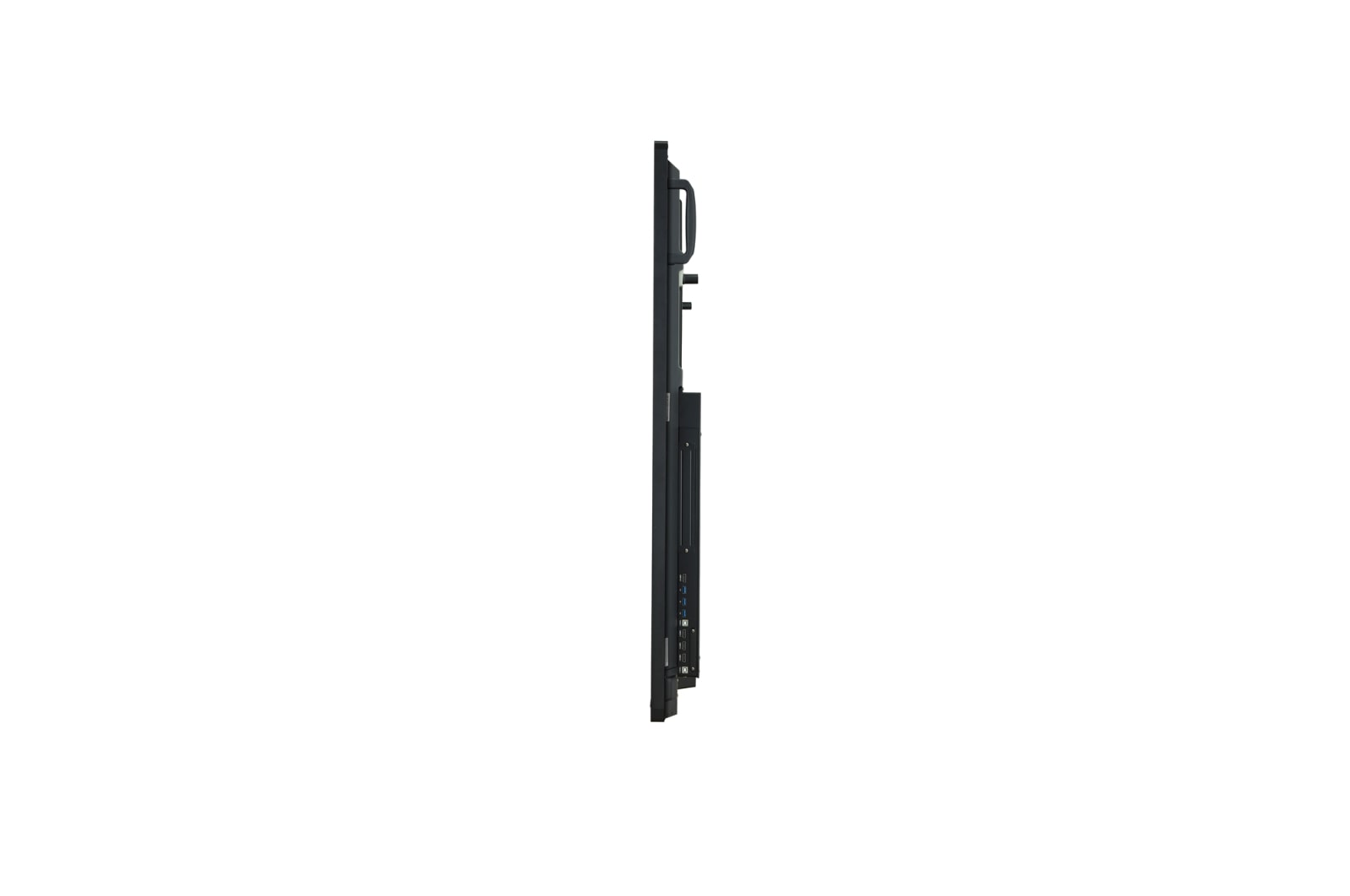

MECHANICAL SPECIFICATION

Bezel Color: Black

Bezel Width: T/R/L/B : 17.7/17.7/17.7/45.7mm

Weight (Head): 67Kg

Packed Weight: 109Kg

Monitor Dimensions (W x H x D): 1957 x 1160 x 86mm

Carton Dimensions (W x H x D): 2230 x 1499 x 285mm

Handle: YES

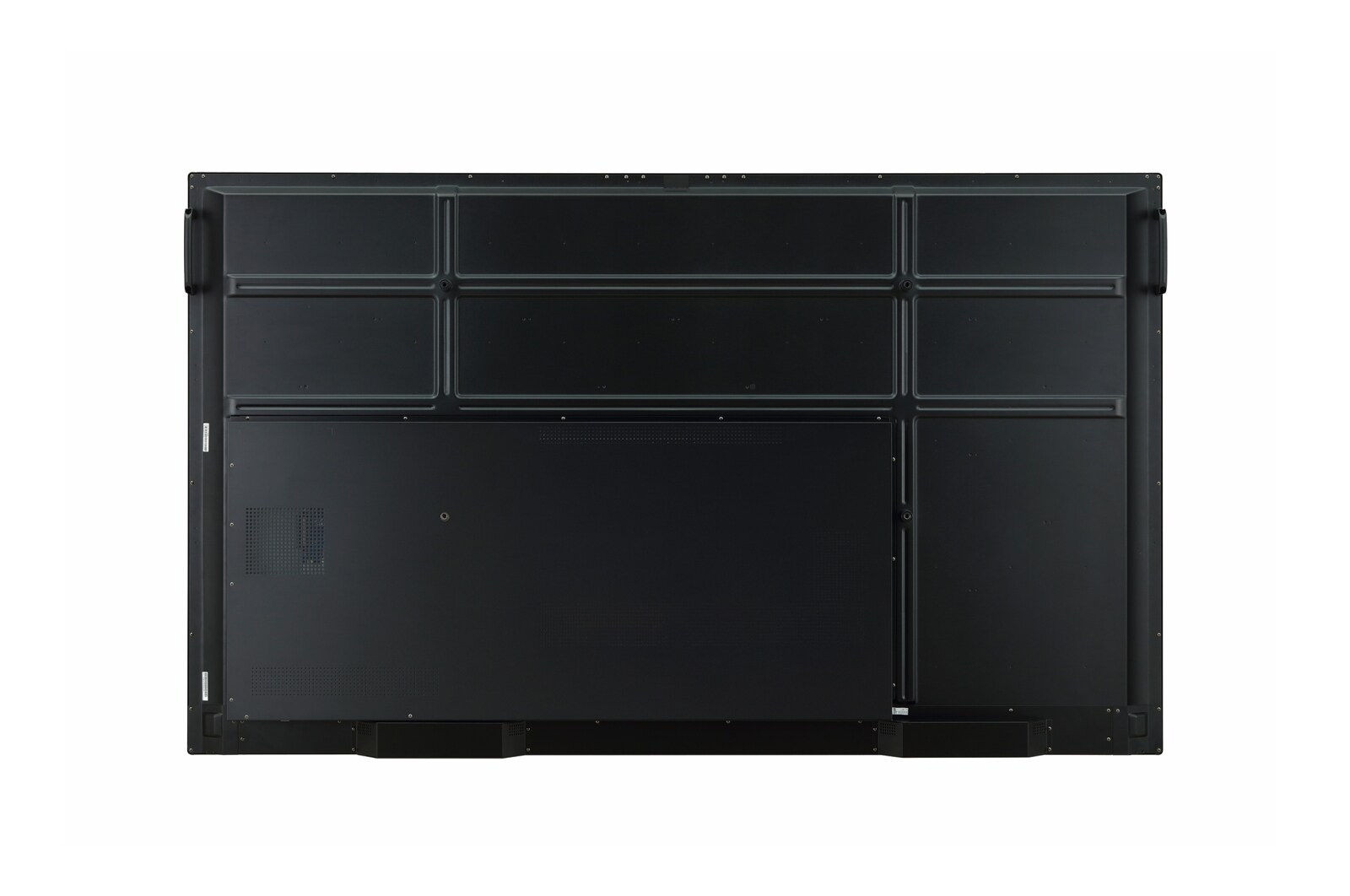

VESA Standard Mount Interface: 800 x 600 mm

FEATURE - HARDWARE

Internal Memory (eMMC): 16GB

Wi-Fi/BT (Built-in): YES

Temperature Sensor: NO

Auto Brightness Sensor: NO

Power Indicator: YES

Local Key Operation: YES

FEATURE - SOFTWARE

Booting Logo Image: NO

PIP: NO

PBP: NO

Screen Share: YES

Setting Data Cloning: NO

Crestron Connected: NO

Smart Energy Saving: NO

PM mode: NO

Wake on LAN: NO

Network Ready: NO

HDMI-CEC: NO

ENVIRONMENT CONDITIONS

Operation Temperature: 0 °C to 40 °C

Operation Humidity: 10 % to 80 %

POWER

Power Supply: AC 100-240V~, 50/60Hz

Power Type: Built-in Power

POWER CONSUMPTION

Typ.: 365W

Max.: 419W

BTU (British Thermal Unit): 1245 BTU/Hr(Typ.), 1430 BTU/Hr(Max.)

DPM: 0.5W

Power off: 0.5W

SOUND

Speaker (Built-in): YES (12W x 2)

CERTIFICATION

Safety: CB / NRTL

EMC: FCC Class "A" / CE

ERP / Energy Star: YES / NO

OPS COMPATIBILITY

OPS Type compatible: YES (Slot)

OPS Power Built-in: YES

SOFTWARE COMPATIBILITY

Connected Care: NO

LANGUAGE

OSD: English, Simplified Chineses, Catalan, Czech, Denmark, Arabic(Egypt), Finnish, French, German, Greek, Italian, Japanese, Korean, Netherlands(Dutch), Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Russian, Spanish, Swedish, Türkçe, Ukrainian, Traditional Chinese

ACCESSORY

Basic: Power Cord 3M*1, USB Cable (Type A-Type B) 5M*1, HDMI Cable 3M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module

Optional: NO

SPECIAL FEATURE

Conformal Coating (Power Board): YES

DEDICATED FEATURE - TOUCH

Available Object Size for Touch: Ø3 mm ↑

Response Time ('Paint' app on Windows 10 PC): 10ms ↓

Accuracy (Typ.): ±1.5mm

Interface: USB2.0

Protection Glass Thickness: 4mm (Anti-Glare)

Protection Glass Transmission: 0.87

Operating System Support: Windows 7/8/10/XP/Linux/Mac/Android (Windows XP/Linux/Mac Support one point touch)

Multi Touch Point: Max. 20 Points

DEDICATED FEATURE - CREATE BOARD

CPU: Dual core A73+Dual core A53

GPU: Dual Core Mail G51

Memory(RAM): 3GB

Storage: 16GB

Wi-Fi: 802.11a/b/g/n/ac

LAN: Gigabit LAN

Bluetooth: Bluetooth 4.0

OS ver. (Android): Android 8
