Non-Glare Ultra HD Series

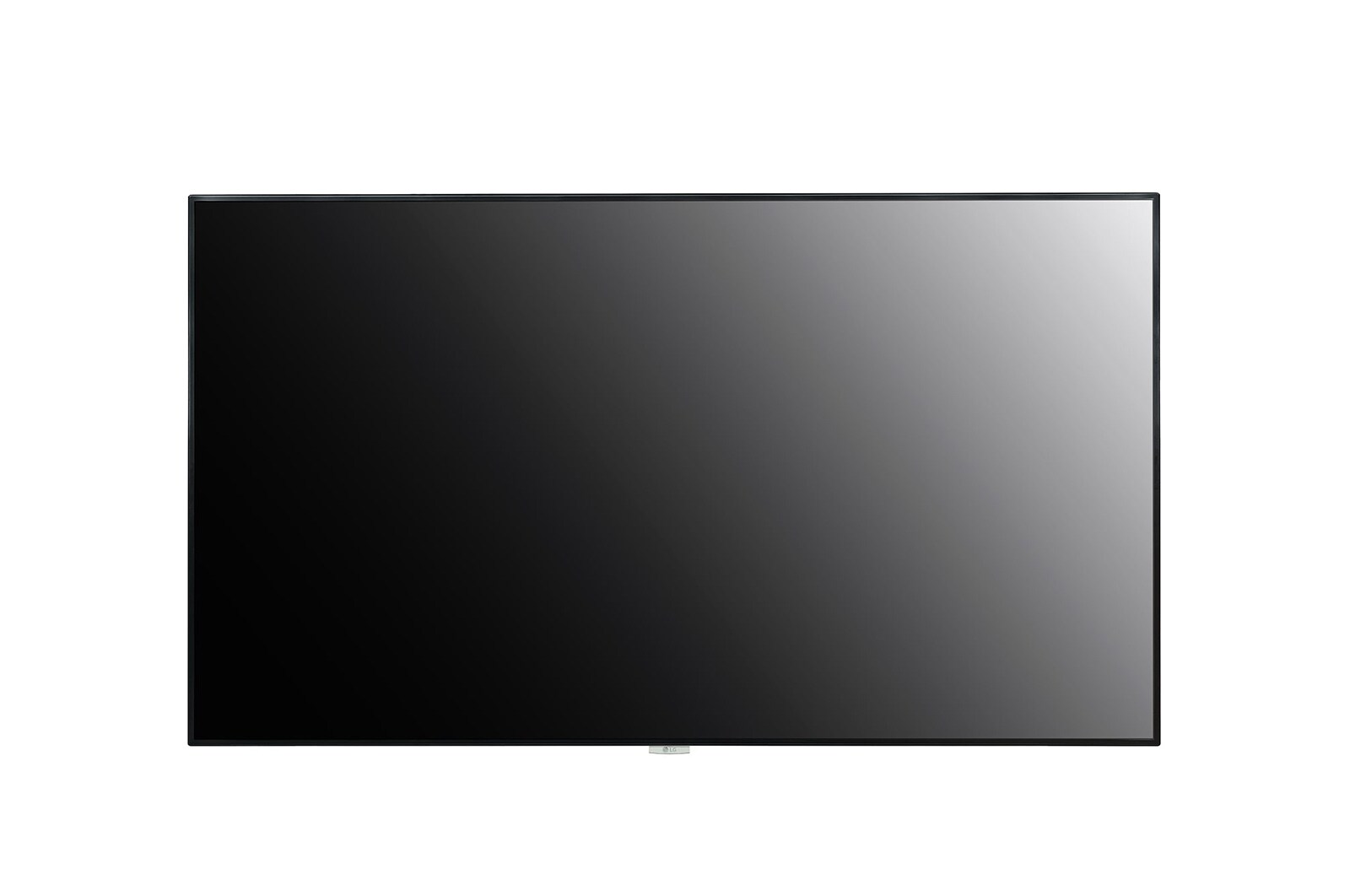

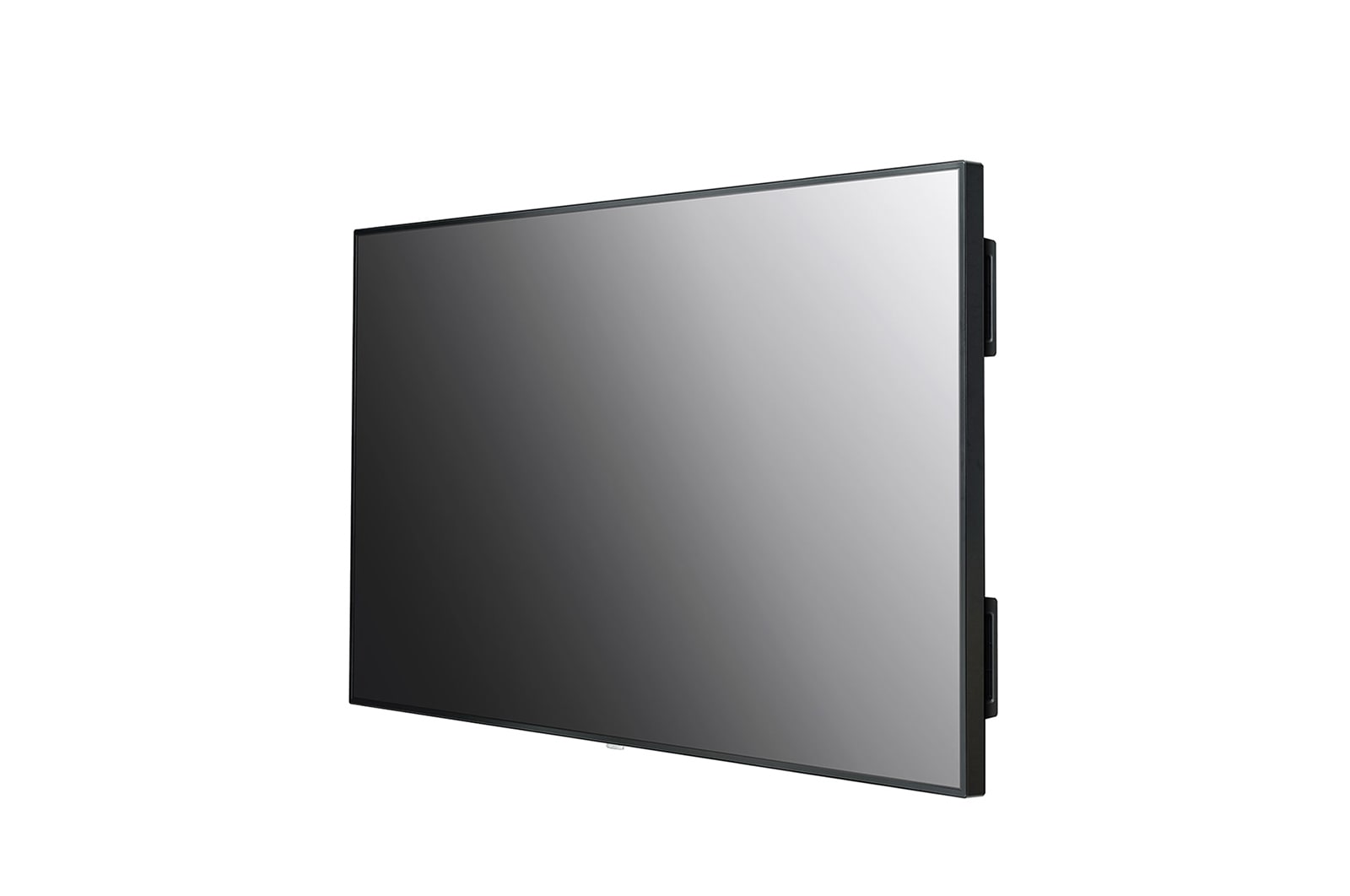

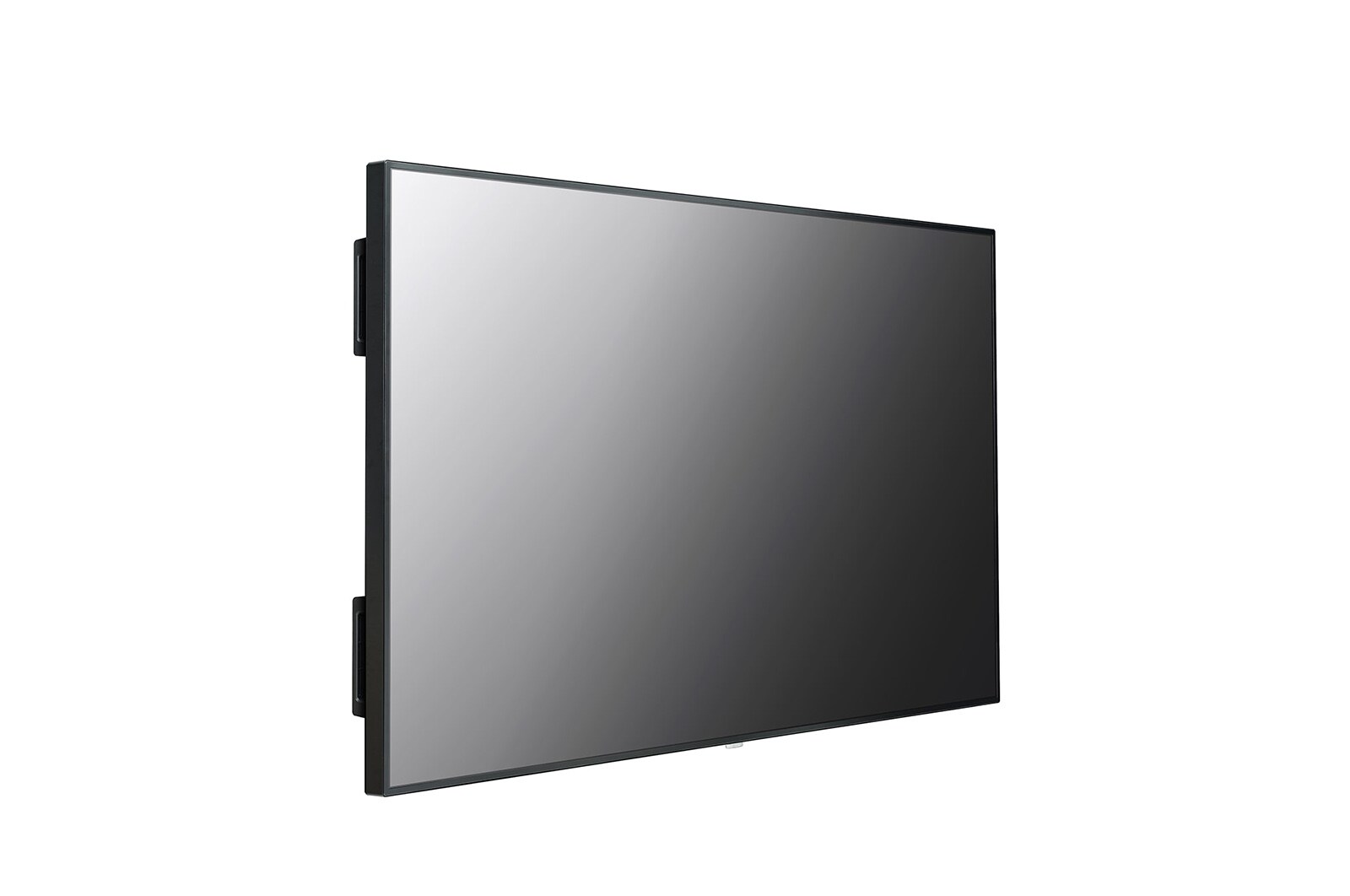

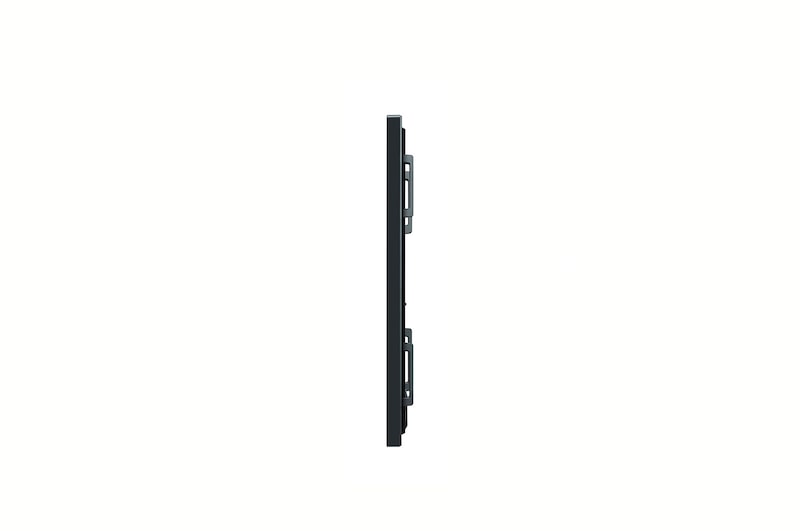

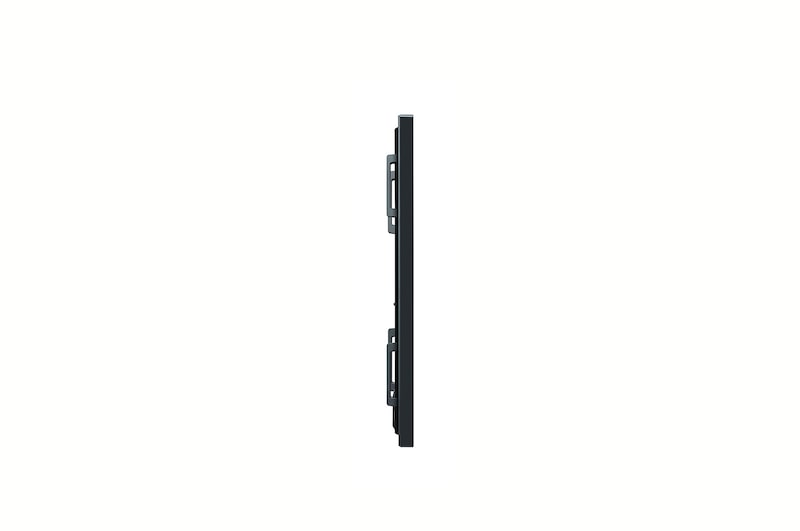

98UH5F-H

Key Features

Brightness(Typ.) : 500 cd/m²
Surface Treatment (Haze) : 28%
Bezel : 14.9 mm (Even)

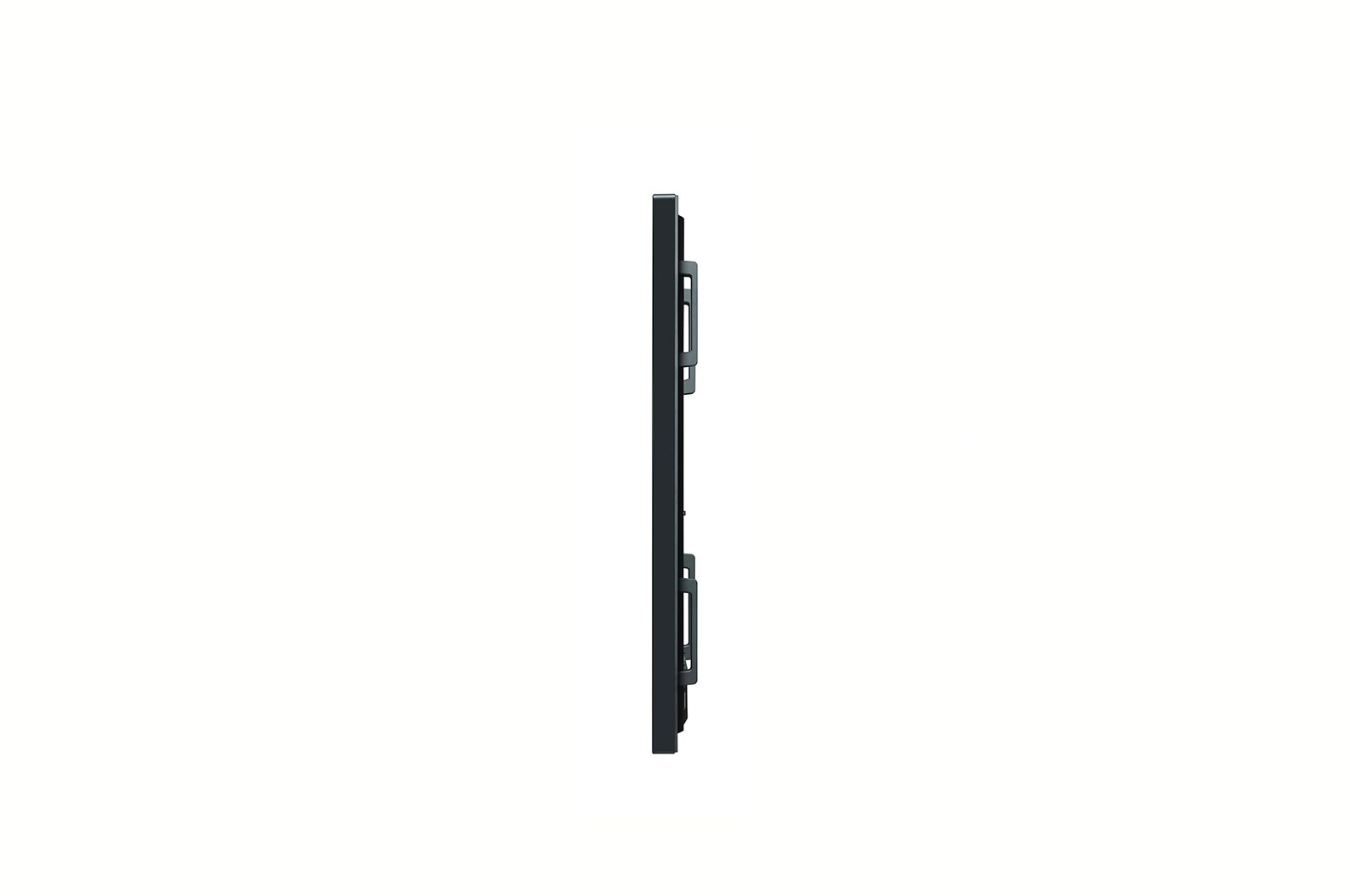

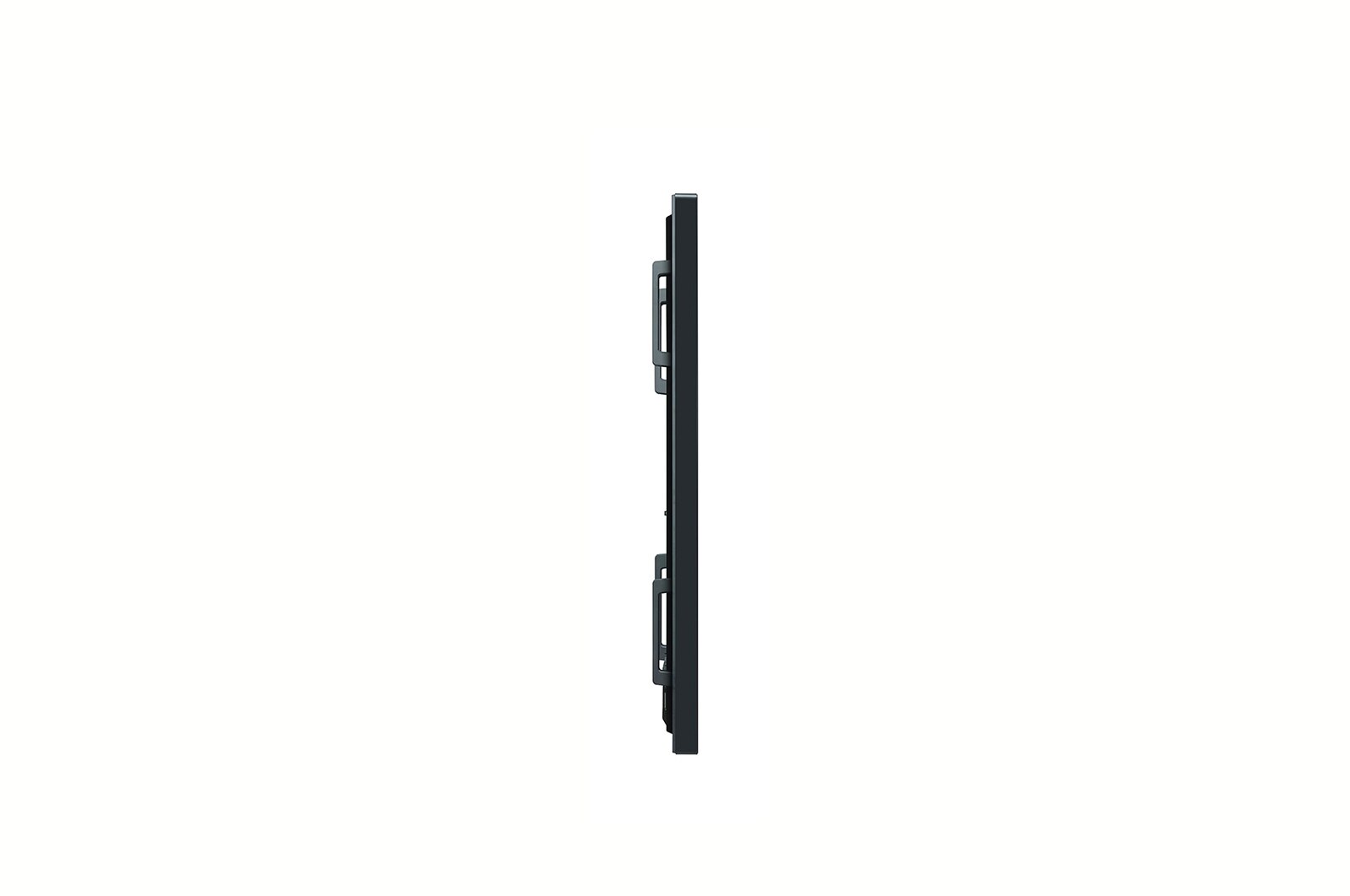

Depth : 83.8 mm (without Handle)
Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
Built-in Speaker and Detachable Logo

SUPERB PICTURE QUALITY

Clear View with Non-glare Coating

Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.

SUPERB PICTURE QUALITY

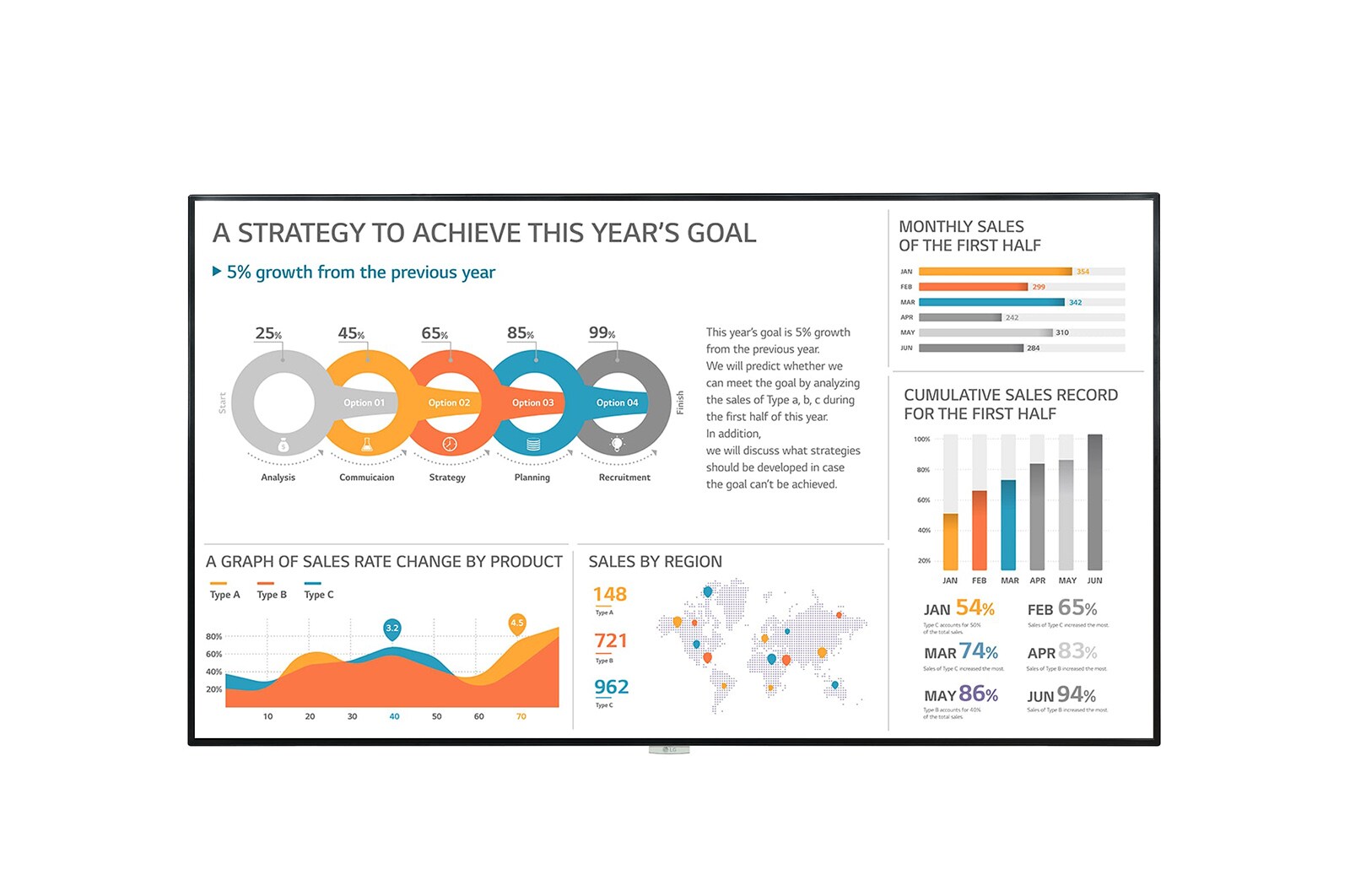

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion.

webOS SMART SIGNAGE PLATFORM

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

webOS SMART SIGNAGE PLATFORM

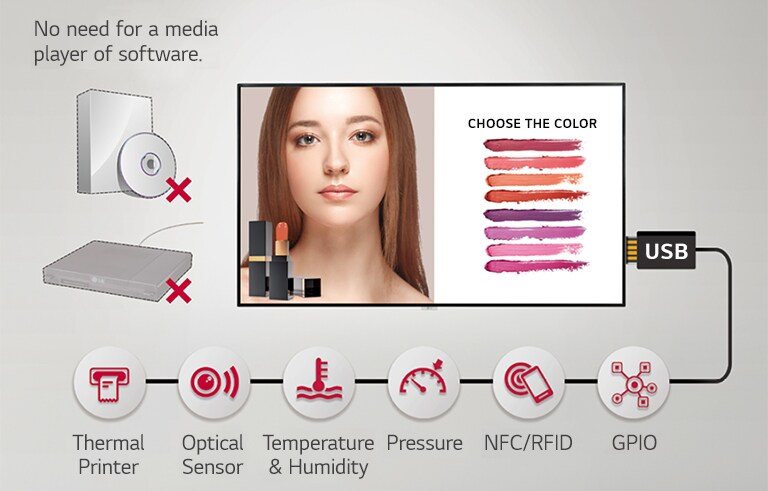

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

MEETING ROOM SOLUTION COMPATIBILITY

Compatible with AV Control System

The UH5F-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network based control

MEETING ROOM SOLUTION COMPATIBILITY

Compatible with Video Conference System

For the optimum visual meeting, the UH5F-H series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

*Using an HDMI cable connection.

EASY MANAGEMENT

Real-time Monitoring & Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UH5F-H series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

EASY MANAGEMENT

Real-time Cloud Care Service - Signage365care

The maintenance gets easier and faster with an optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.

*The availability of “Signage365Care” service can differ by region, so please contact the LG sales representative in your region for further details.

USER CONVENIENCE

Multiscreen Feature with PBP / PIP

PBP ^{(Picture-By-Picture)}features multiple screens in a single display with up to 4 input sources while PIP^{(Picture-In-Picture)} supports playing both a main screen and a subscreen at the same time with various layouts. This gives great flexibility to allocate space for each content source.

USER CONVENIENCE

Wireless Access Point

The UH5F-H series operates as a virtual router which can be an wireless access point for mobile devices.

All Spec

PANEL

Screen Size (Inch)
98
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
120Hz
Brightness
500nit (Typ.)
Contrast Ratio
1,200:1
Dynamic CR
1,000,000:1
Color Gamut
NTSC 72%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
8ms (G to G)
Surface Treatment (Haze)
Haze 28%
Life time
50,000Hrs (Typ.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
YES / YES
Transparency
N/A
QWP (Quarter Wave Plate)
N/A

CONNECTIVITY

HDMI In
YES (3ea)
HDMI In (HDCP Ver.)
2.2/1.4
DP In
YES (HDCP 2.2/1.3)
DVI-D In
YES (HDCP 1.4)
RGB In
NO
Audio In
YES
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
YES
USB In
USB2.0 Type A (2ea)
HDMI Out
NO
DP Out
YES
Audio Out
YES
Touch USB
NO
External Speaker Out
NO
RS232C Out
YES
RJ45(LAN) Out
NO
IR Out
NO
Daisy Chain
NO

MECHANICAL SPECIFICATION

Bezel Color
Black
Bezel Width
Even bezel : 14.9mm
Weight (Head)
81.1Kg
Weight (Head+Stand)
N/A
Packed Weight
119Kg
Monitor Dimensions (W x H x D)
2191.8 x 1246.8 x 83.8mm (without Handle and LG Logo)
Monitor Dimension with Stand (W x H x D)
N/A
Carton Dimensions (W x H x D)
2362 x 1386 x 420mm
Handle
YES
VESA Standard Mount Interface
800 x 400 mm

FEATURE - HARDWARE

Internal Memory (eMMC)
8GB
Wi-Fi/BT (Built-in)
YES
Temperature Sensor
YES
Auto Brightness Sensor
YES
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
NO
Power Indicator
NO
Local Key Operation
YES
FAN (Built-in)
NO

FEATURE - SOFTWARE

OS Ver. (webOS)
webOS 4.0
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
YES
No Signal Image
YES
RS232C Sync
YES
Local Network Sync
YES
Backlight Sync
NO
PIP
YES
PBP
YES (4PBP)
Screen Share
YES
Video Tag
YES (4 Video Tag)
Play via URL
YES
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
YES
Tile Mode Setting
YES
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
YES
Status Mailing
YES
Control Manager
YES
Cisco Certification
YES
Crestron Connected
YES
Smart Energy Saving
YES
PM mode
YES
Wake on LAN
YES
Network Ready
NO
Beacon
YES
HDMI-CEC
YES
SI Server Setting
YES
webRTC
YES
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO

ENVIRONMENT CONDITIONS

Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %

POWER

Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power

POWER CONSUMPTION

Typ.
420W
Max.
560W
BTU (British Thermal Unit)
1433.25 BTU/Hr(Typ.), 1911 BTU/Hr(Max.)
Smart Energy Saving (70%)
294W
DPM
0.5W
Power off
0.5W

SOUND

Speaker (Built-in)
YES (10W x 2)

CERTIFICATION

Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ERP / Energy Star
YES(Old ErP for Jordan) / NO
ePEAT(US only)
NO

OPS COMPATIBILITY

OPS Type compatible
NO
OPS Power Built-in
NO

SOFTWARE COMPATIBILITY

SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES
SuperSign Cloud
NO
Promota
YES
Mobile CMS
YES
Connected Care
YES

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

ACCESSORY

Basic
Remote Controller(include battery 2ea), Power Cord, QSG, IR/Light sensor receiver, DP Cable(1.8M), Regulation Book, Phone to RS232C Gender, EYE-BOLT
Optional
NO
