One:Quick Works

55CT5WJ-B

Key Features

Resolution : 4K Ultra HD (3,840 x 2,160)
Brightness : 450 nit
BuIlt-in 4K Camera & Microphone
Sound (10W + 10W)
In-Cell Touch (Max. 10 Points)
Windows 10 IoT Enterprise (Value)

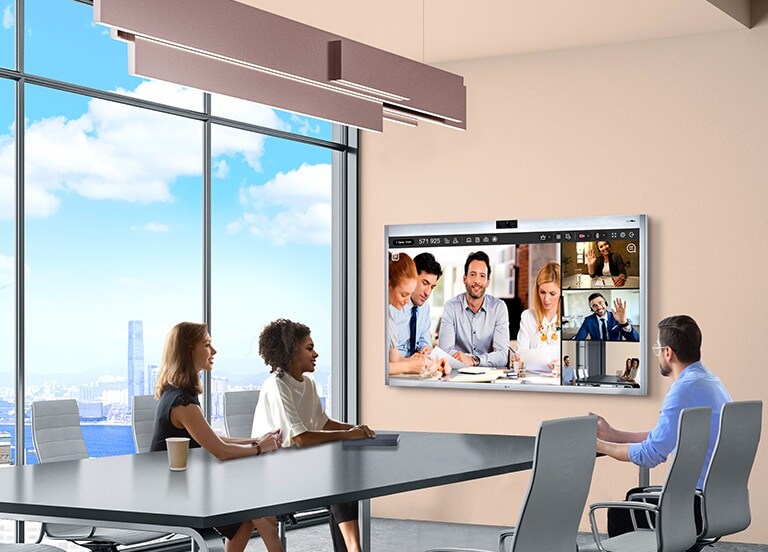

LG One:Quick Works,<br>All-in-One Video Conferencing Display3

LG One:Quick Works,
All-in-One Video Conferencing Display

Make your online meetings more productive and interactive with LG One:Quick Works.

All-in-One
Video Conferencing Display
for Maximum Productivity

* All images in this page are for illustrative purposes only.

All-in-One Video Conferencing Solution

Video conferencing setup doesn't need to be stressful. This all-in-one solution features a built-in Windows PC, crisp 4K UHD camera, microphone, speaker and a digital whiteboard. Experience clear video and sound qualities in your meetings.

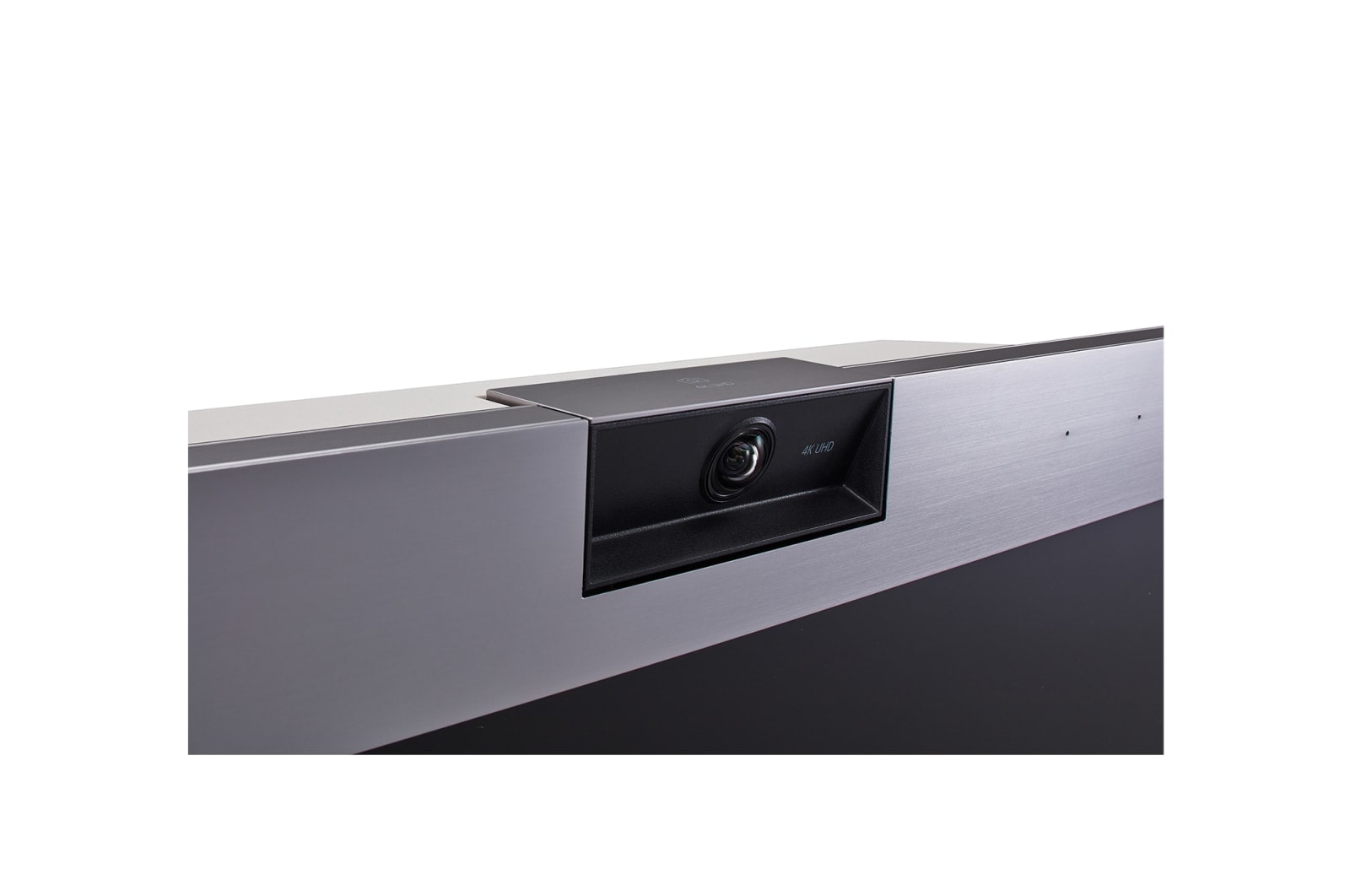

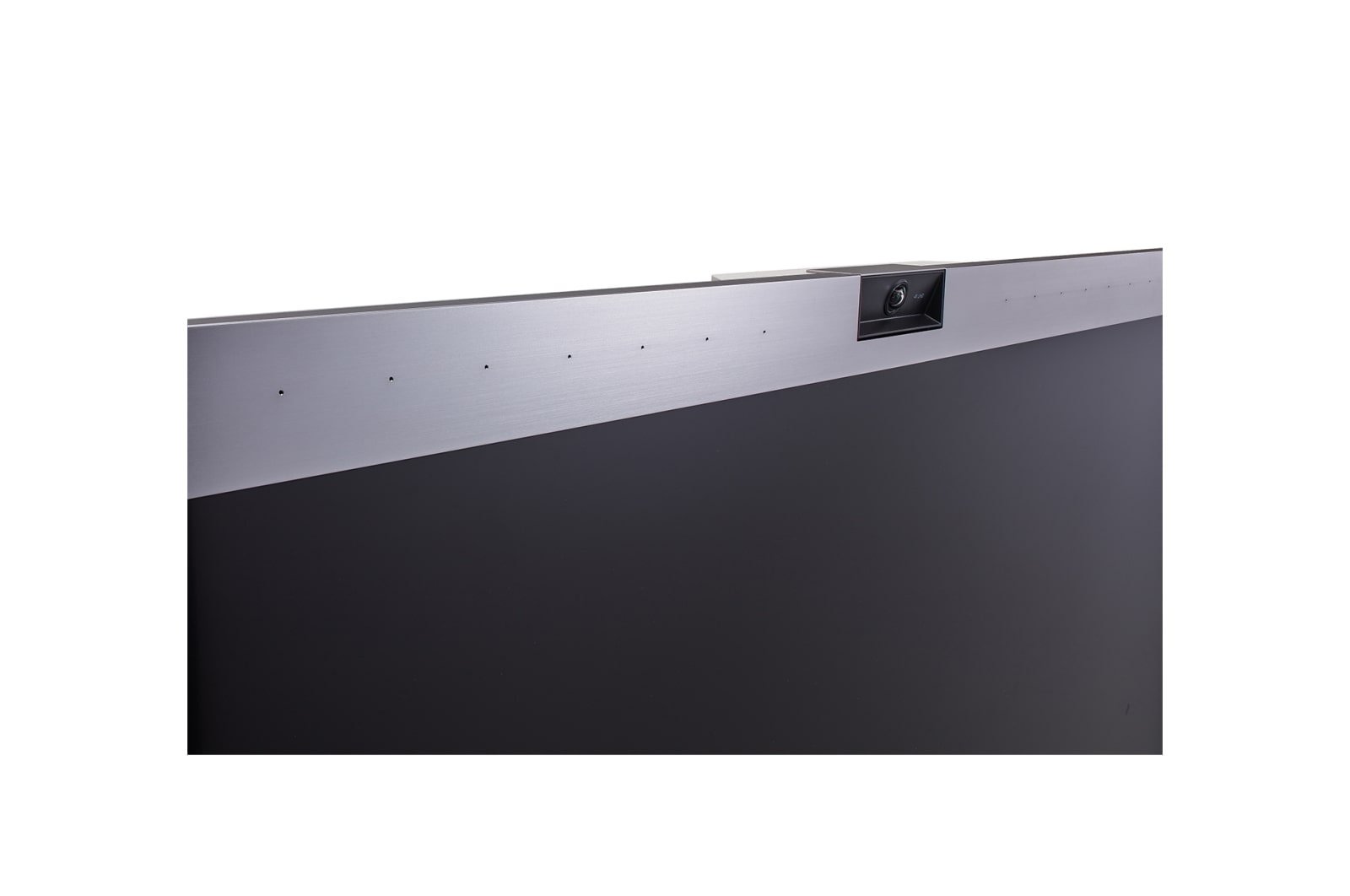

Smart Auto Focusing

Have the camera and mic move to you, not the other way around. One:Quick Works automatically focuses on the speaker and it is effective in clearly capturing voices up to six meters away with minimal background noise, while the 3,840 x 2,160 resolution camera automatically tracks and focuses on the individual speaker.

* Product performance may differ depending on the environment.

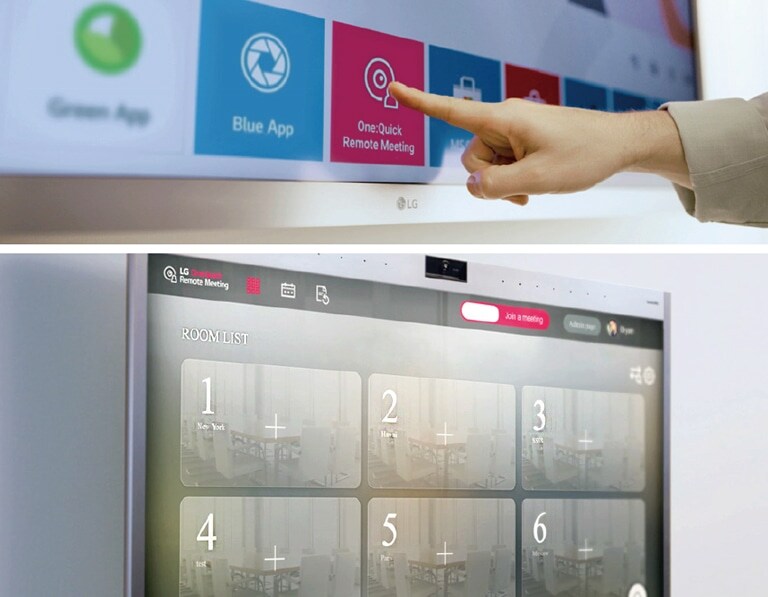

Pre-installed Video Conferencing Application,
LG One:Quick Remote Meeting

LG’s One:Quick Remote Meeting works seamlessly with One: Quick Works for users to share documents in various formats, perform real-time interactive drawings and detect who's speaking on the other end automatically.

Easy-To-Use
Conference App Store

Shortcuts for installing video conferencing and collaboration apps are included to help with user productivity. A true all-in-one video conferencing solution must be able to use a wide variety of video conferencing apps.

* Excellent expandability based on Windows 10 IoT

Multi-Touch and Annotation

Equipped with In-cell touch, One:Quick Works turns ideas into reality with 10 points of multi touch. And it conveniently sends files such as notes, writings, drawings and images created in meetings via e-mail.

* Touch pen provided (1 ea.)
** Dedicated apps required for making notes and drawings (MS Whiteboard app ready)

Voice Recording

Rather than keeping separate meeting minutes, simply record the meeting and share files with participants via e-mail.

* Voice Recording may not be allowed when using the video conferencing app.

Split View
for Multi-Tasking

Share files and organize ideas simultaneously with members in the meeting room.

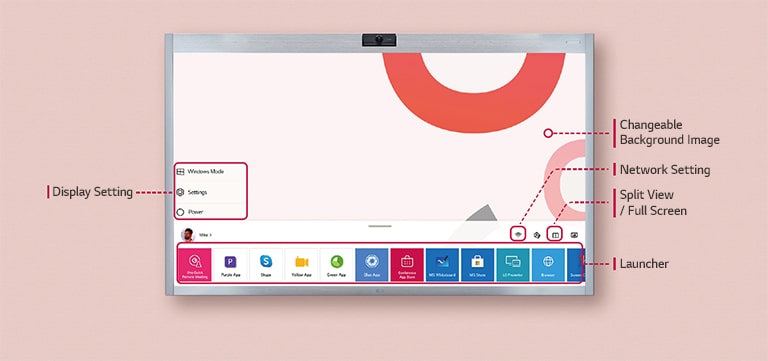

Optimized User Experience

Provides a user friendly interface, from adjusting network settings for meetings, screen division to display settings. Supports quick and easy access to video conferencing apps with the One:Quick Works launcher.

* The function to add and delete apps on the launcher will be available in the 1Q of 2022.

D13_55CT5WJ-09-Optimized-User-Experience-Digital-Signage-ID-D-2

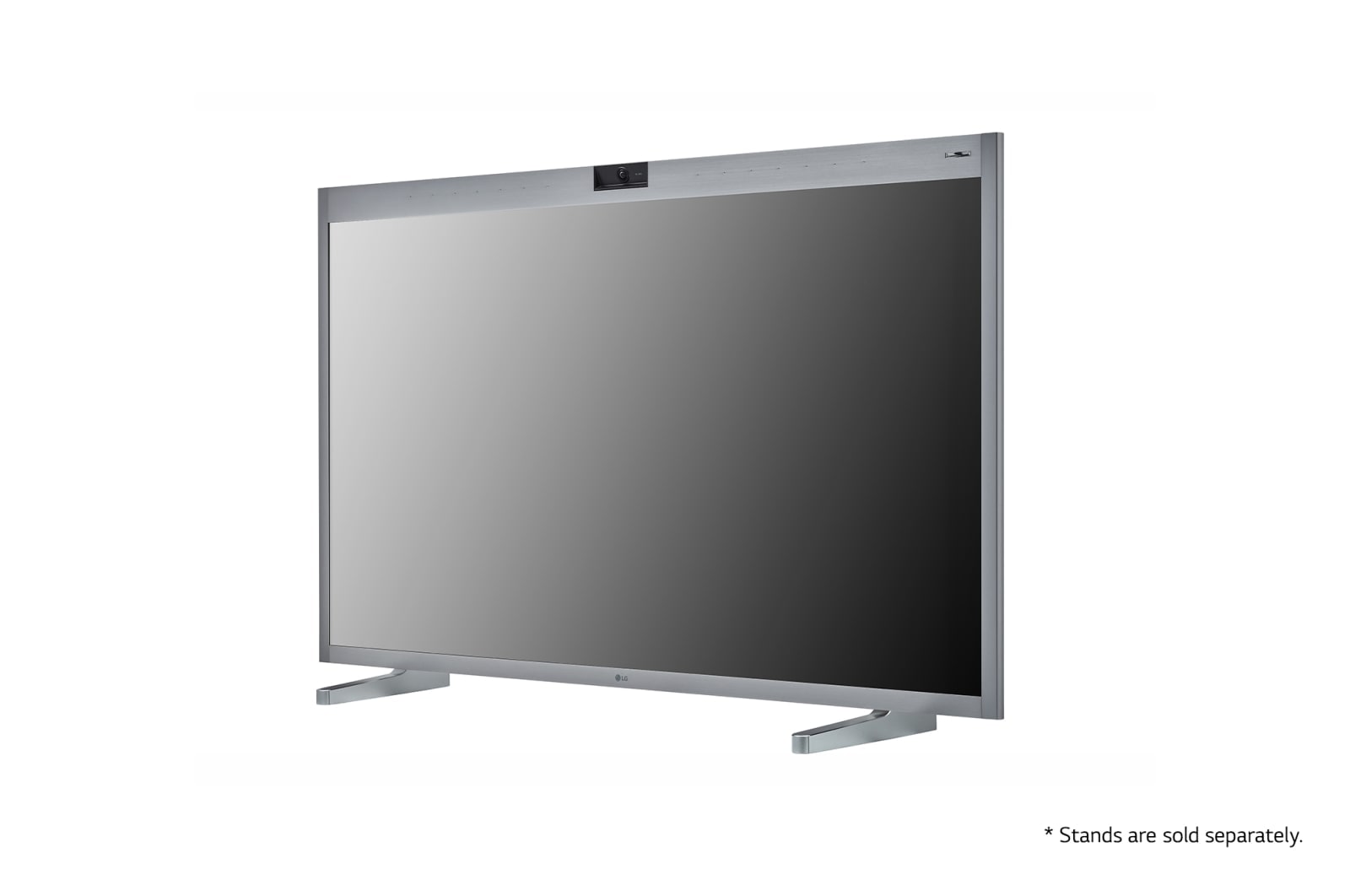

2-way Installation

The installation method can be adjusted depending on the surrounding environment and the user's specific needs. Able to choose between wall installation for maximum space utilization or desk installation using 2 pole stands.

* Stands are sold separately.

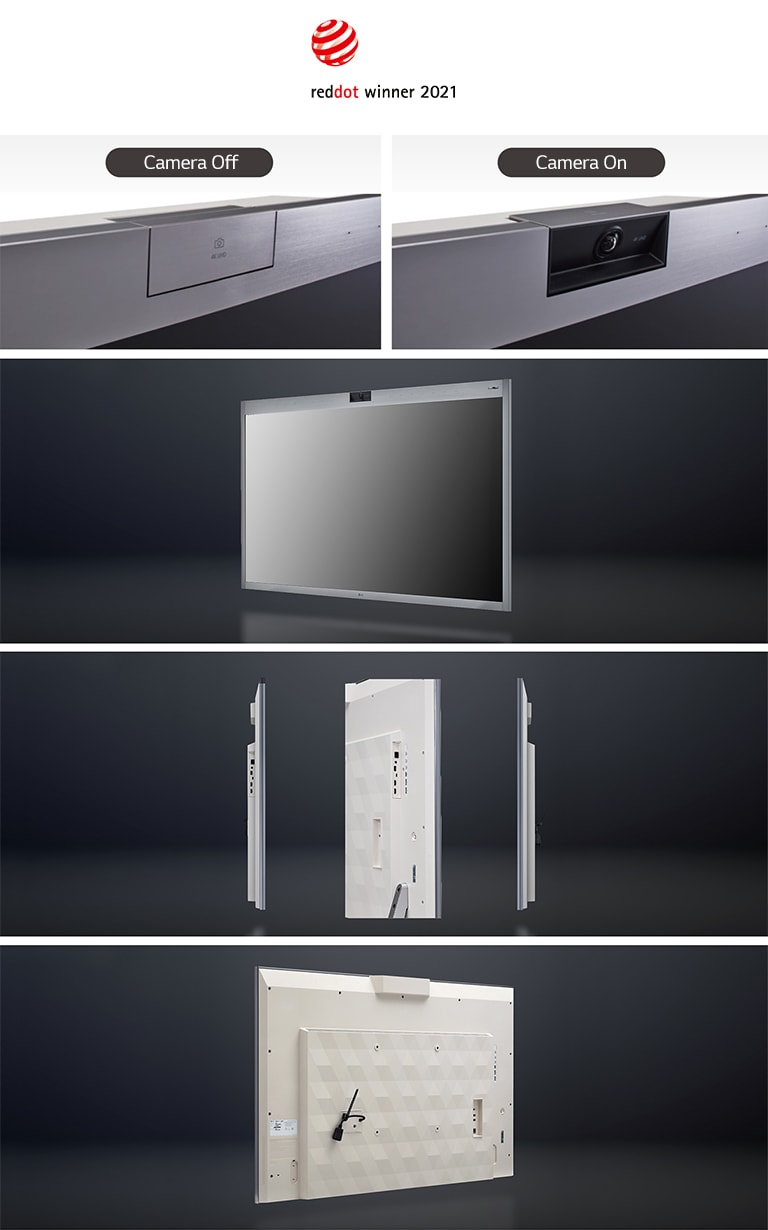

Awarded
the reddot Design Award

With an impressive award-winning design, the One:Quick Works blends seamlessly with the rest of the workspace. Also brings an elevated aesthetic while providing a practical workspace for all participant.

ENERGY STAR^® Certified

Explore more showroom at Digital Connect

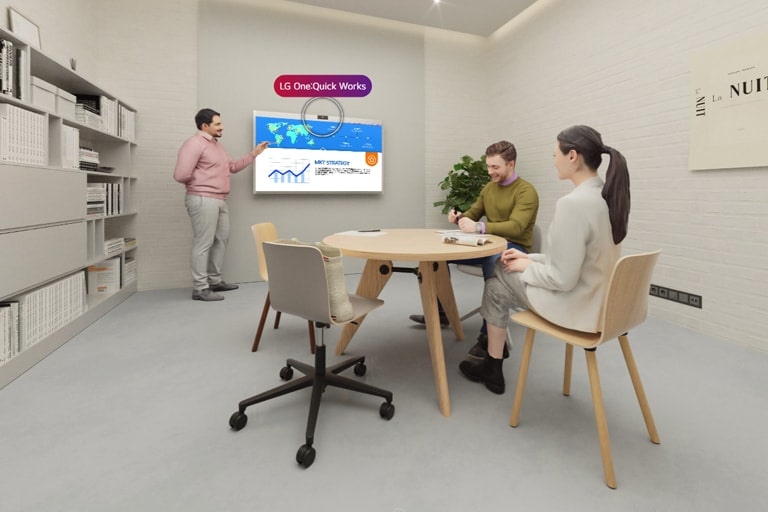

Corporate / Government Meeting Room

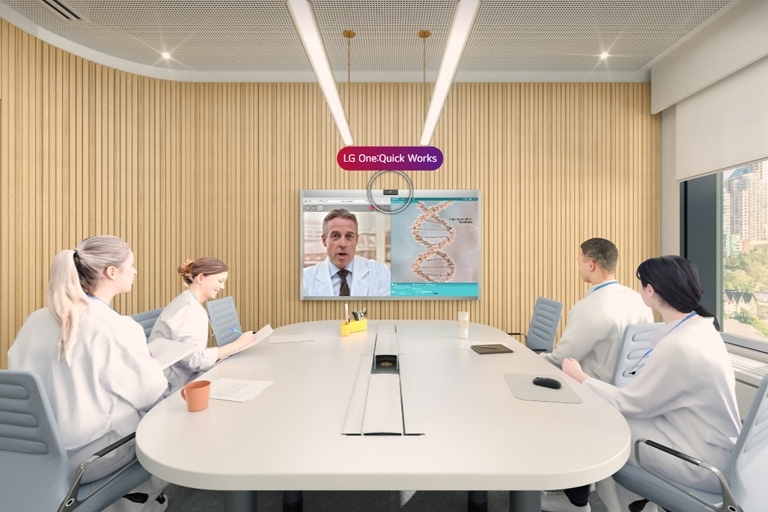

Hospital Meeting Room

All Spec

PANEL

Screen Size (Inch)
55
Panel Technology
IPS
Back Light Type
Edge
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60Hz
Brightness
450nit (Typ.)
Contrast Ratio
1,000:1
Dynamic CR
NO
Color Gamut
NTSC 72%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
9ms (G to G)
Surface Treatment (Haze)
Haze 12%
Life time
50,000Hrs (Min.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
NO / YES

CONNECTIVITY

HDMI In
YES (2ea)
HDMI In (HDCP Ver.)
2.2/1.4
DP In
YES (USB Type C)
DVI-D In
NO
RGB In
NO
Audio In
NO
RS232C In
NO
RJ45(LAN) In
YES (1ea)
IR In
NO
USB In
USB3.1 Type A (2ea), USB Type C (1ea)
HDMI Out
NO
DP Out
YES (USB Type C)
Audio Out
NO
Touch USB
NO
External Speaker Out
NO
RS232C Out
NO
RJ45(LAN) Out
NO

MECHANICAL SPECIFICATION

Bezel Color
Silver
Bezel Width
T/R/L/B : 57.2/26.2/26.2/28.9mm
Weight (Head)
26Kg
Weight (Head+Stand)
26.6Kg
Packed Weight
31Kg
Monitor Dimensions (W x H x D)
1265 x 769.5 x 61.8mm
Monitor Dimension with Stand (W x H x D)
1265 x 815 x 290mm
Carton Dimensions (W x H x D)
1372 x 903 x 168mm (without Stand)
Handle
NO
VESA Standard Mount Interface
300 x 300 mm

FEATURE - HARDWARE

Temperature Sensor
YES
Auto Brightness Sensor
YES
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
NO
Power Indicator
NO
Local Key Operation
YES

FEATURE - SOFTWARE

Smart Energy Saving
YES
Wake on LAN
YES
HDMI-CEC
YES

ENVIRONMENT CONDITIONS

Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %

POWER

Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power

POWER CONSUMPTION

Typ.
127W
Max.
245W
Smart Energy Saving (70%)
30±10% (for HDMI1/2)
DPM
0.5W
Power off
0.5W

SOUND

Speaker (Built-in)
YES (10W x 2)

CERTIFICATION

Safety
CB / NRTL
EMC
FCC Class "B" / CE
ERP / Energy Star
YES / Energy Star 8.0
ePEAT(US only)
NO

OPS COMPATIBILITY

OPS Type compatible
NO
OPS Power Built-in
NO

SOFTWARE COMPATIBILITY

Connected Care
NO

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

ACCESSORY

Basic
HDMI Cable, Remote Controller(include battery 2ea), Touch Pen, Pen tip, Manual, Regulation Book, Warranty Card, IG
Optional
2 pole Stand(ST-653TW)

SPECIAL FEATURE

Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face up)
N/A
Tilt (Face down)
N/A
IP Rating
N/A
Conformal Coating (Power Board)
N/A
Power Protection
N/A
Direct Sunlight
N/A

DEDICATED FEATURE - TOUCH

Available Object Size for Touch
Ø8 mm
Response Time ('Paint' app on Windows 10 PC)
35ms ↓
Accuracy (Typ.)
3.5mm
Interface
USB1.1
Protection Glass Thickness
N/A
Protection Glass Transmission
N/A
Operating System Support
Windows 10 or higher
Multi Touch Point
Max. 10 Points

DEDICATED FEATURE - ONE:QUICK

CPU
AMD Ryzen Embedded V1605B
Memory(RAM)
8GB
Storage
128GB
OS ver.
Windows 10 IOT Enterprise (Value)
Graphic
AMD Radeon Vega
Wi-Fi
802.11ac
Bluetooth
Bluetooth 5.0
Launcher Bar
YES
Home Dashboard
NO
SplitView_Full / Half
YES
SplitView_Customized Template
NO
Cloning
NO
Screen Capture
YES
Meeting(Voice) Record
YES
File Sharing
YES
Compatibility One:Quick Share
YES
One:Quick Remote Meeting
YES
Reader Mode (Bluelight)
YES
Built-in Apps
Chrome, Skype (Preloaded) MS Whiteboard (Download link)
Camera_Resolution
3840 x 2160 (UHD)
Camera_Field of View (FoV)
120°
Camera_Zoom (ePTZ)
4x Zoom
Camera_Video Framing
YES
MIC_Array
10ea
MIC_Beamforming
YES
MIC_Pickup Range
6m
Warranty
3 Years (Panel) 1 Year (PC Board)

To access more technical documentation and resources, please visit the LG B2B partner portal.
