Truly Breathtaking Audio Experience
Hear the Difference with Immersive 3D Sound

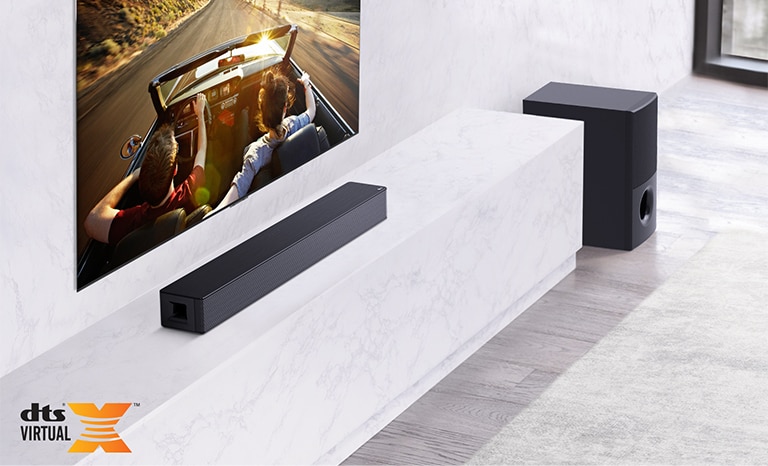

TV is on the wall, LG Soundbar is below on a white marble shelf with a sub-woofer to the right. TV shows a couple in a car.
For the Full Cinematic Experience
Adaptive Audio for Everything You Watch

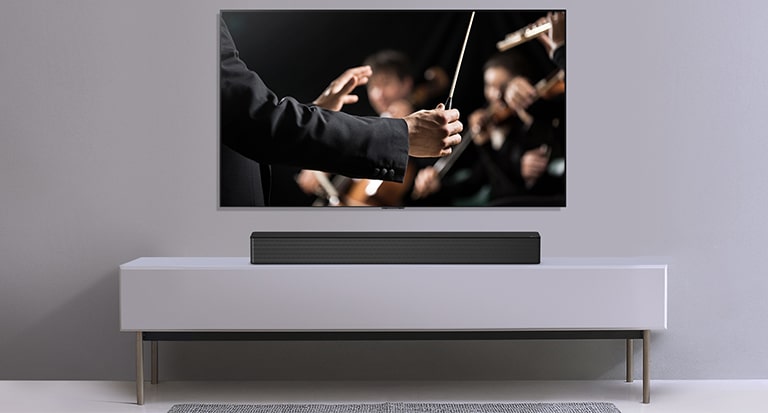

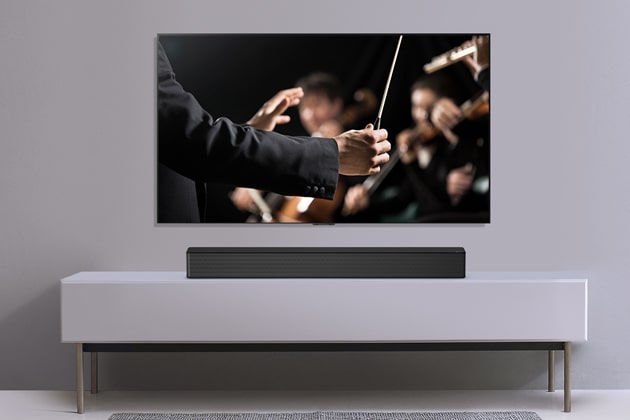

A TV is shown on a gray wall and LG Soundbar below it on a gray shelf. TV shows a conductor conducting an orchestra.
Quality Sound for Quality Entertainment

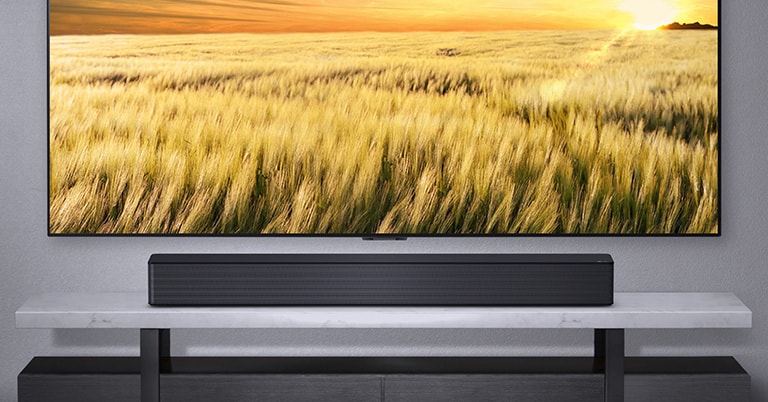

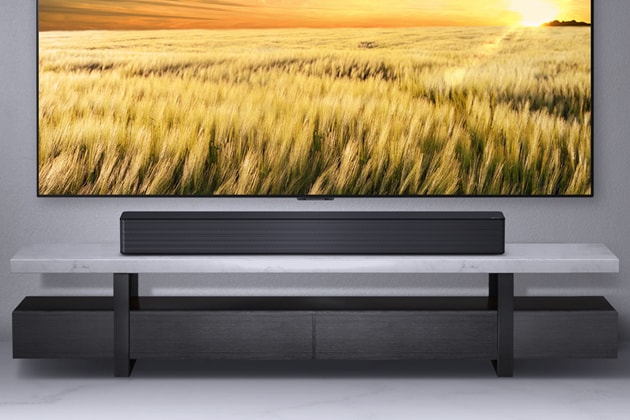

A TV is shown on a gray wall and LG Soundbar below it on a gray shelf. Blue-Ray disk below the shelf.
Connect More Conveniently

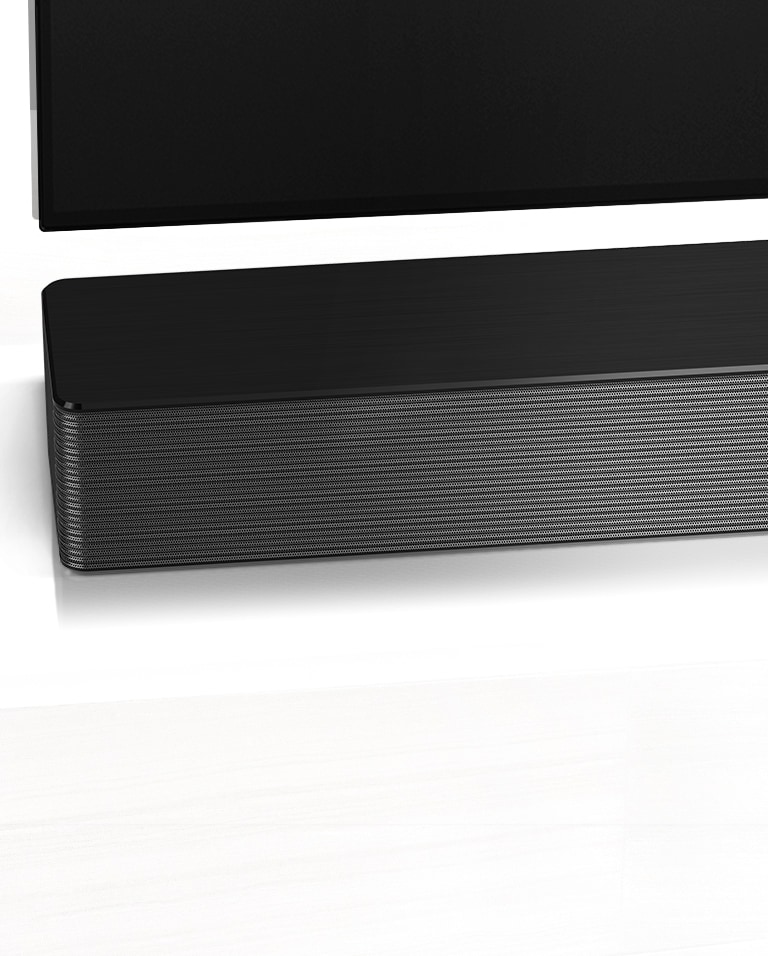

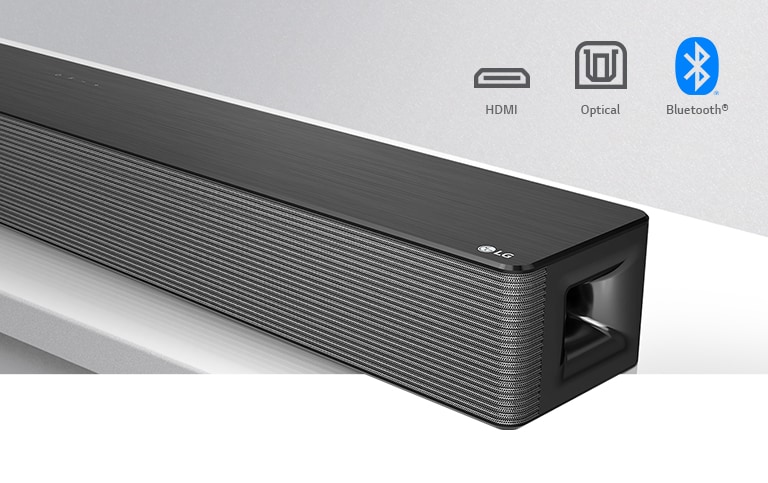

Close-up LG Soundbar right side with LG logo on the bottom right corner. Connectivity icons shown above the product.

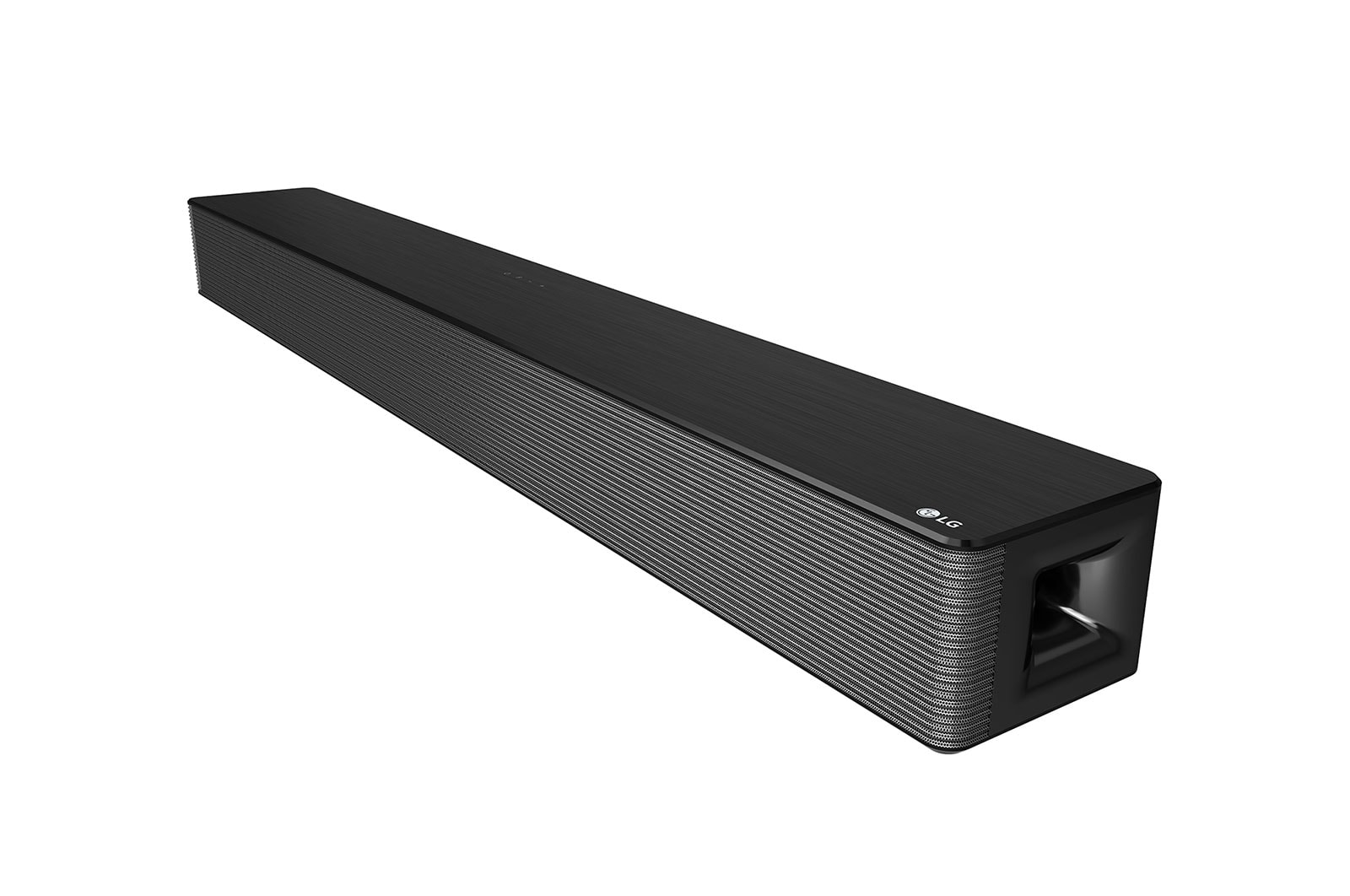

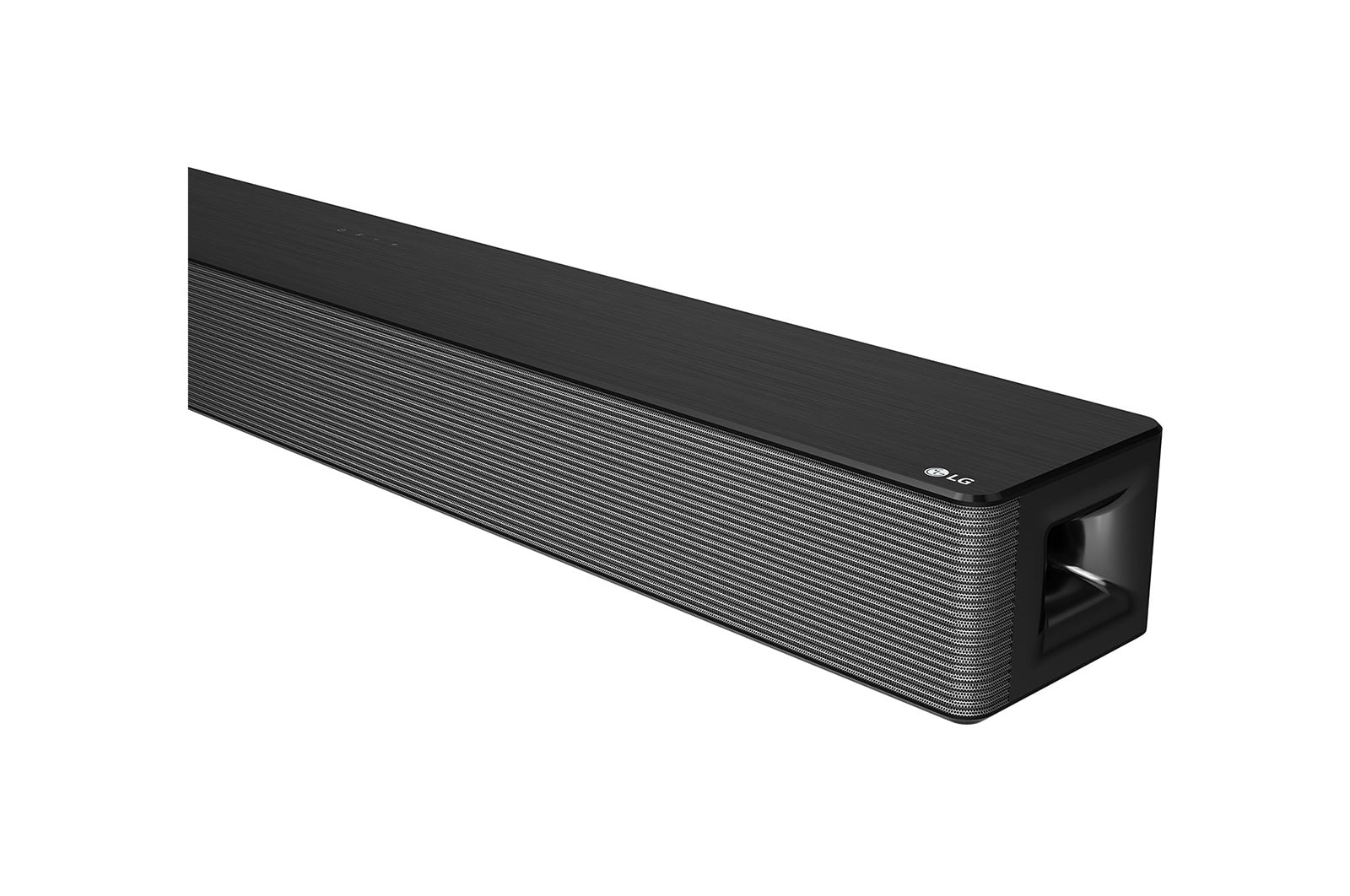

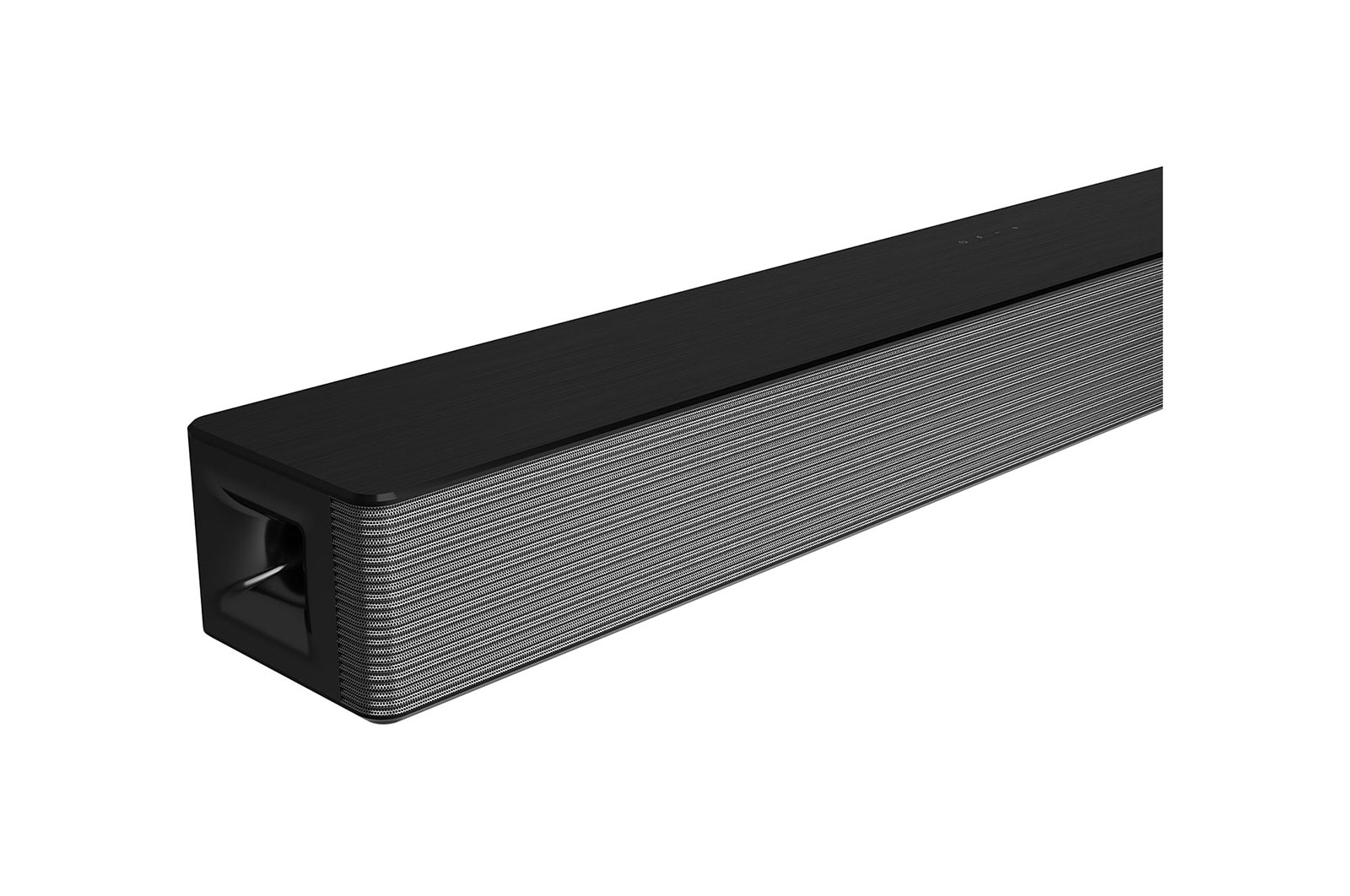

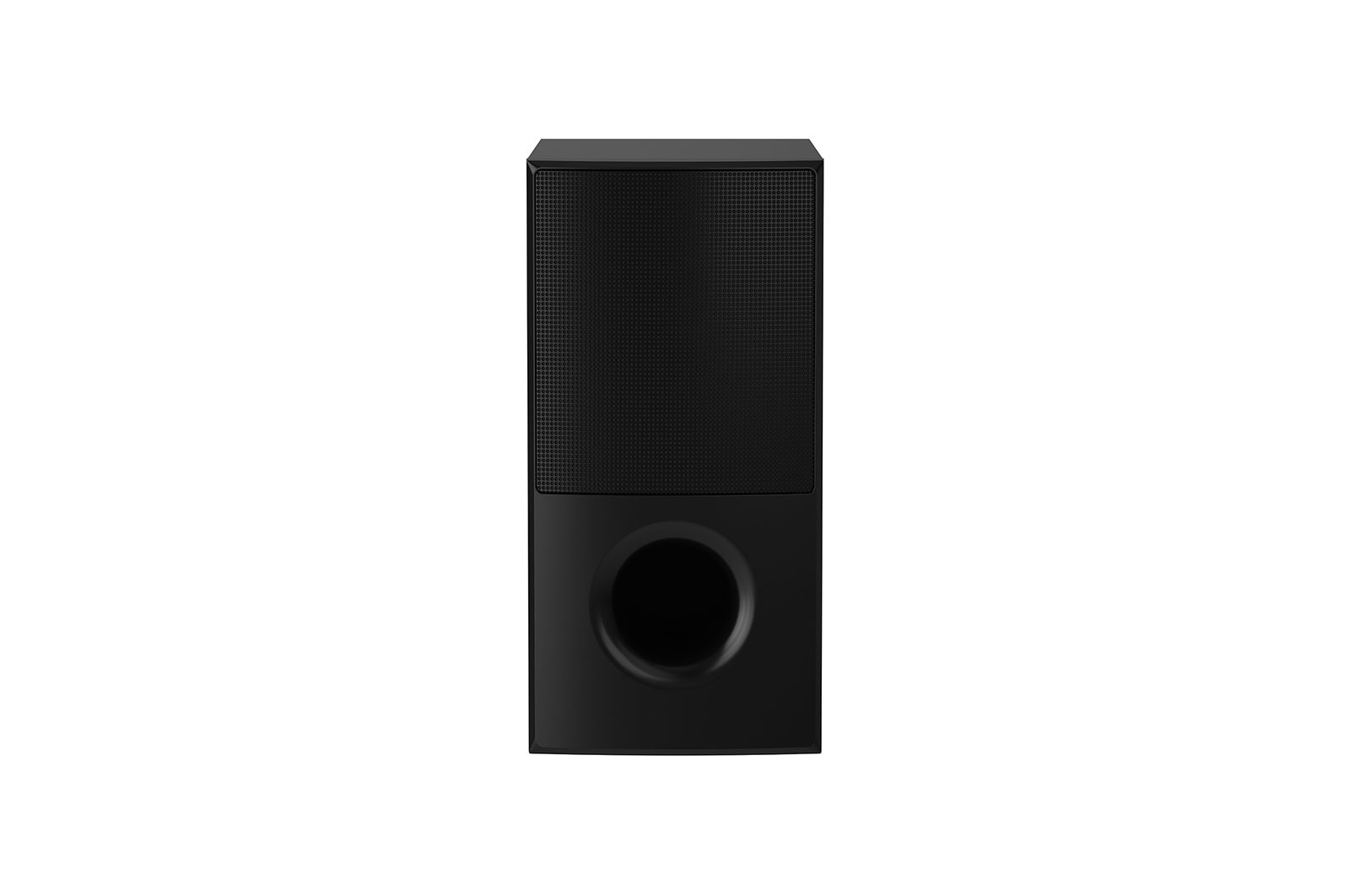

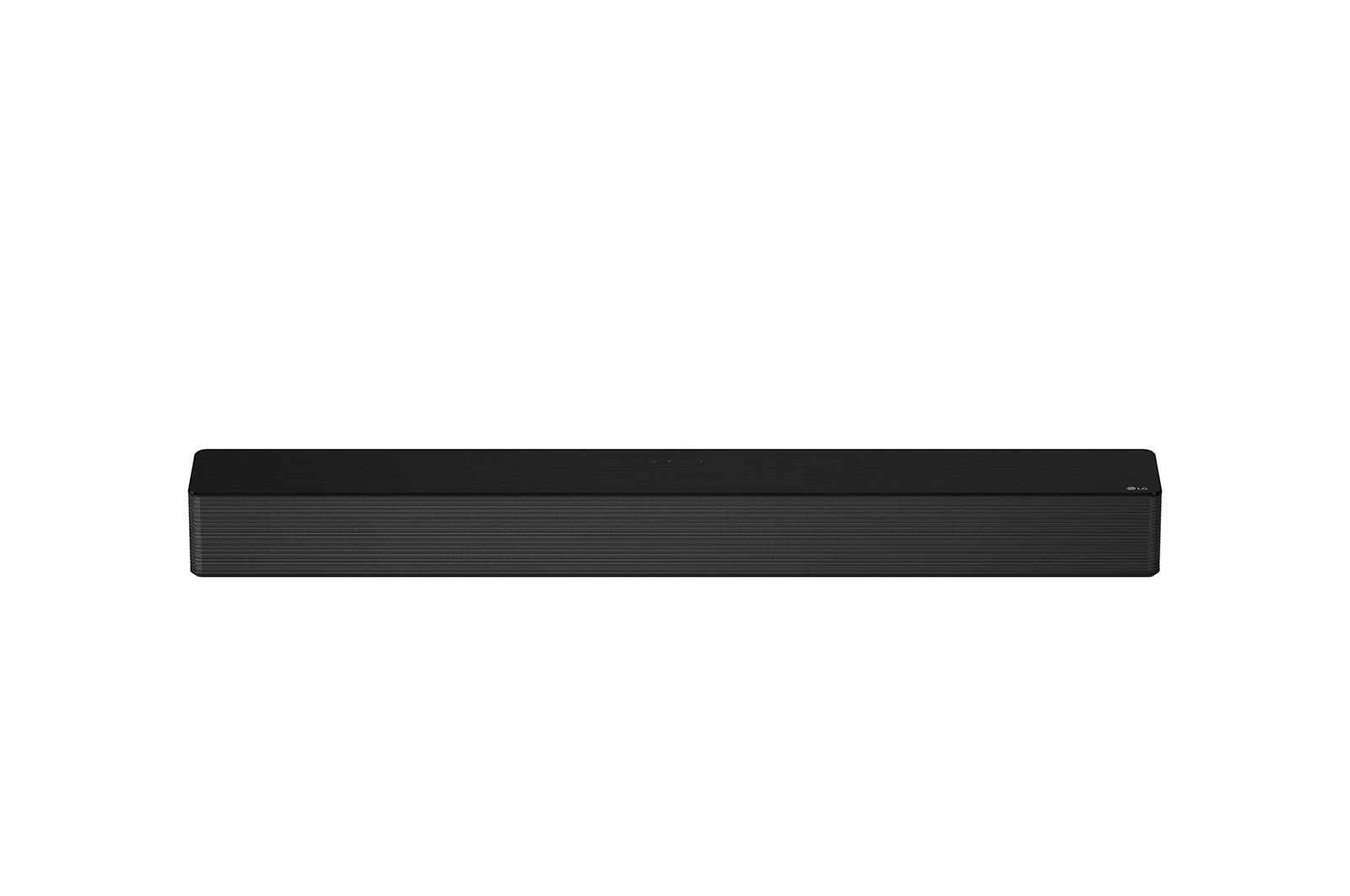

Gallery
All Spec
CONVENIENCE
Remote App - iOS / Adroid OS
No/Yes
Smart Phone File Playback
Yes
NSU / FOTA
No/Yes
Control with your TV Remote (Vol+/-, Mute)
Yes
Sound Sync - Bluetooth(LG TV) / Optical
Yes/Yes
Auto Power On/Off - Bluetooth (LGTV) / Optical
Yes/Yes
A/V Sunc (0~300ms) - RCU / APP
No/Yes
HDMI SIMPLINK
Yes
HDMI Audio Return Channel (ARC)
Yes
Woofer Level (-15 ~ 6dB, 1dB/Step)
Yes
Mute
Yes
Auto Dimmer
Yes
USB Host / Charge
Yes/No
Built-in Music
Yes (1 song)
Bluetooth Stand-By
Yes
WEIGHT(KG)
Main
6.6Kg
Subwoofer
5.3Kg
Gross Weight
14.6Kg
SIZE(W X H X D, MM)
Main (w/ Foot )
990 x 97 x 125
Subwoofer
191 x 386 x 318
MATERIAL
Main - Front / Top / Bottom
Mold Grille/Mold/Mold
Subwoofer - Front / Body
Jersey/Wood
CARTON BOX
Size (W x H x D) mm
1089 x 217 x 416
Type
TipOn (L shape)
Color
White(1 side)+Yellow
NUMBER OF CHANNELS
Number of channels
4.1ch
OUTPUT POWER(THD 10%)
Total
600W
Front
100W x 2
Surround
100W x 2
Subwoofer
200W (Wired)
SPEAKER UNIT_FRONT(L/R)
SPL
82dB
System
Closed
Woofer Unit
3 inch (Paper, Silver)
Impedance
4ohm
SPEAKER UNIT_SUBWOOFER
SPL
85dB
System
Bass Reflex
Woofer Unit
7 inch
Impedance
3ohm
NO. OF SPEAKER UNIT
Number of speakers
5EA
CONNECTIVITY_WIRELESS
Bluetooth Version
4.0
Bluetooth Codec - SBC / AAC
Yes/Yes
DISPLAY INFORMATION
Display Type
LCD (5 char.)
SOUND EFFECT
AI Sound Pro
Yes
Standard
Yes
Bass Blast / Bass Blast +
Yes
DTS Virtual:X
Yes
SOUND CONTROL
User EQ - RCU / App
Yes/Yes
Night Time On/Off - RCU / App
No/Yes
Dynamic Rage On/Off - RCU / App
No/Yes
Auto Volume Leveler On/Off - RCU / App
No/Yes
Auto Sound Engine (Default)
Yes
AUDIO FORMAT(BITSTREAM)
LPCM
Yes
Dolby Digital
Yes
DTS Digital Surround
Yes
FILE FORMAT
FLAC - C4A / USB
No/Yes
OGG - C4A / USB
No/Yes
WAV - C4A / USB
No/Yes
MP3 - C4A / USB
No/Yes
WMA - C4A / USB
No/Yes
ACCESSORY_MANUAL
Web Manual (File)
Yes (Full)
Built-in Manual (Book) (Simple or Full)
Yes (Simple)
Open Source - Yes (Full or Simple)
Yes (Full)
Warranty Card
Yes
ACCESSORY_REMOTE CONTROL
Model Name
MA7 (same as Y19)
Battery(Size)
AAA x 2
Battery Built-in
Yes
MODEL INFORMATION
Brand Information
Sound Bar
Model Name
SNH5
Subwoofer Model Name
S67T2-W
System (Main Chip)
MT8502
Mainset / Subwoofer Color
Black
SPEAKER UNIT_SURROUND(SIDE)(L/R)
SPL
82dB
System
Closed
Woofer Unit
3 inch (Paper, Silver)
Impedance
4ohm
POWER_MAIN
SMPS
200-240V, 50/60Hz
Power Off Consumption
0.5W ↓
Power Consumption
90W
CONNECTIVITY_GENERAL
Optical
Yes (1)
HDMI 1.4 (HDCP 1.4) - In / Out
Yes (1)/Yes (1)
USB
Yes
ACCESSORY_OTHERS
Optical Cable
Yes
CONTAINER Q
20ft
388
40ft
480
40ft (HC)
640
COMPLIANCE INFORMATION
