- Control de la presión estática externa (ESP)
- Control wifi con ThinQ
- Control de 11 niveles de presión estática
- Aire limpio (aislamiento Safe Plus)
Todas las especificaciones
FUENTE DE ALIMENTACIÓN
No. 1
50 Hz(Гц) 220-240 V(B)~
No. 2
60 Hz(Гц) 220 V(B)~
CAPACIDAD DE ENFRIAMIENTO
Nominal (kW)
12.30
CAPACIDAD DE CALEFACCIÓN
Nominal (kW)
13.8
VENTILADOR INTERIOR
Tasa de flujo de aire (enfriamiento [SH])/H/M/L) (m³/min)
-/38/33/28
Presión estática externa (ajuste de fábrica) (Pa)
59
DIMENSIONES
Neto (W x H x D) (mm)
1250 x 270 x 700
PESO
Neto (kg)
37.2
TUBERÍA DE CONEXIÓN
Líquido (mm [inch])
Φ9.52 (3/8)
Gas (mm [inch])
Φ15.88 (5/8)
NIVEL DE PRESIÓN DE SONIDO (UNIDAD INTERIOR)
Enfriamiento ((SH))/H/M/L) (dB(A))
-/42/41/39
Calefacción ((SH))/H/M/L) (dB(A))
-/42/41/39
NIVEL DE POTENCIA DE SONIDO (UNIDAD INTERIOR)
Enfriamiento ((SH))/H/M/L) (dB(A))
-/54/52/49
Calefacción ((SH))/H/M/L) (dB(A))
-/54/52/49
PRODUCTO
Tipo

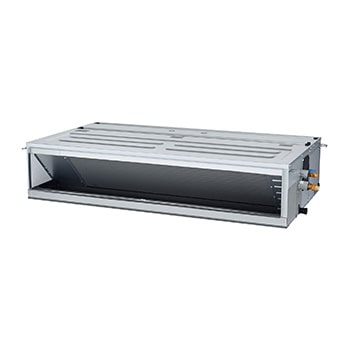

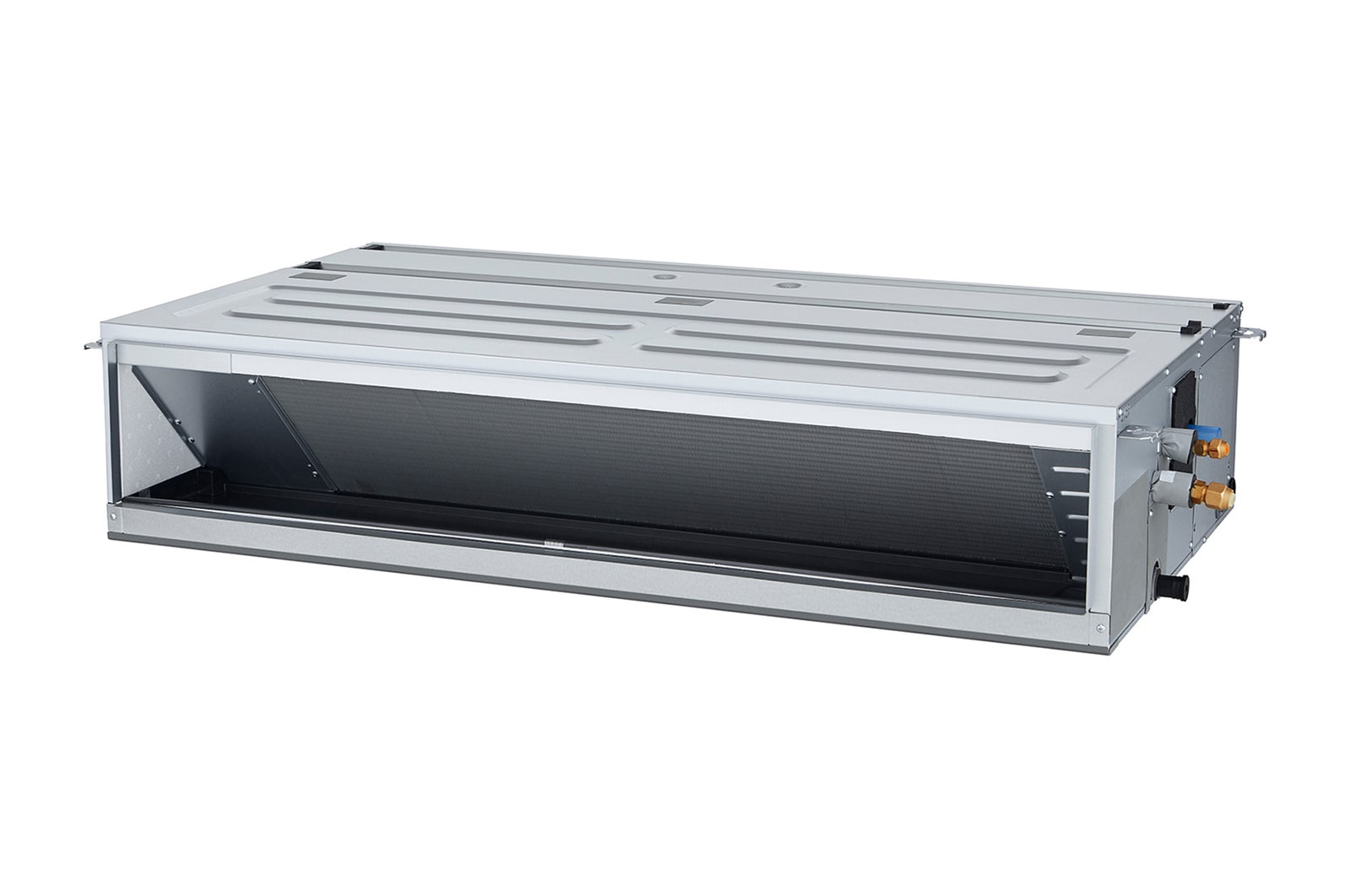

Concealed Duct
