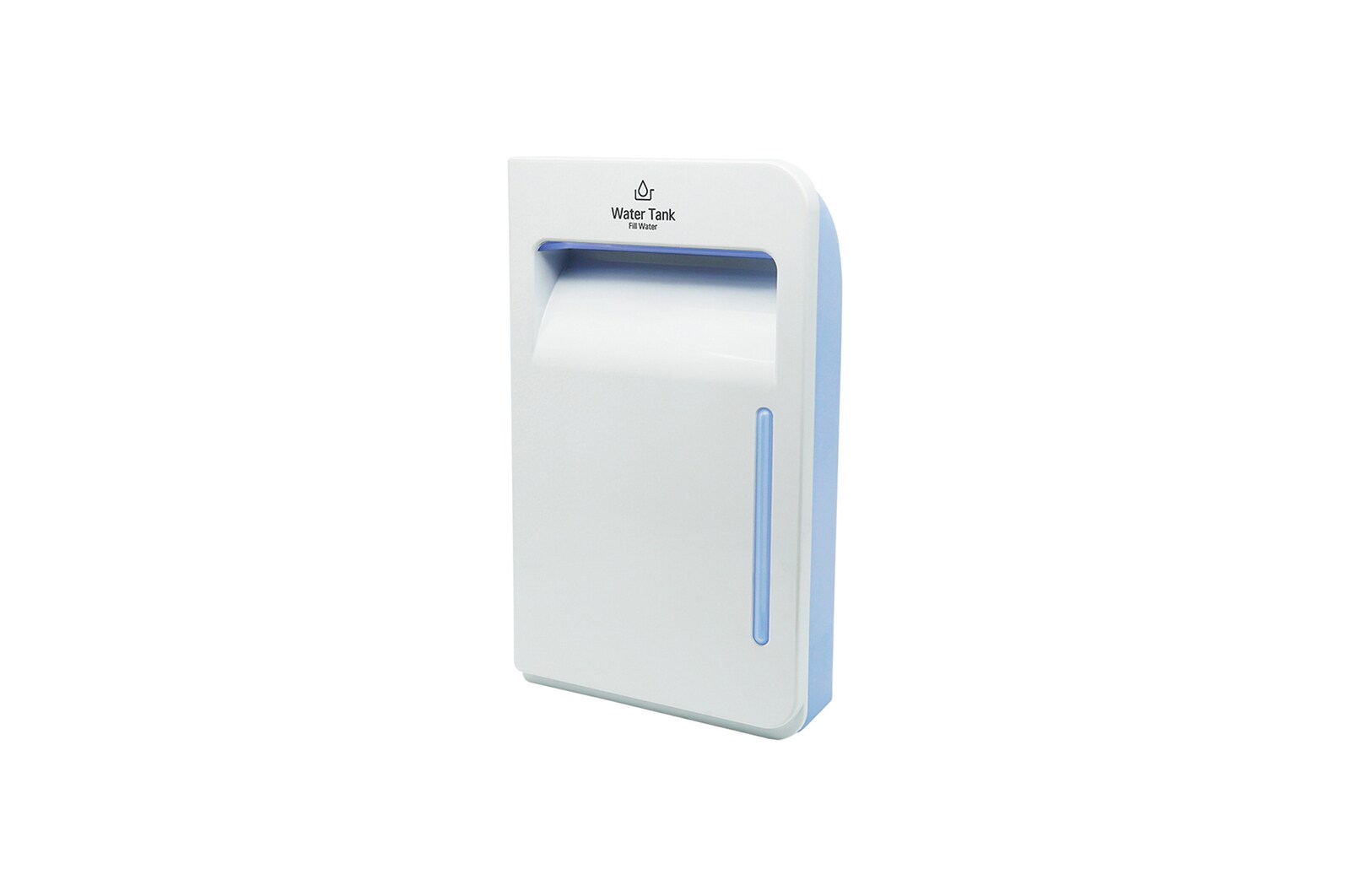

Water tank of LG Styler smart clothing care cabinet

AJL74011902

Key Features

LG Styler Genuine Others
RENO Water, Tank(Supply)
Water supply for steam sterilization.

S3GHM

S3MFC

S3WF

Mounting Location

The actual installation location of this item may vary depending on product model.

For more detailed information, please refer to the product manual for your model.

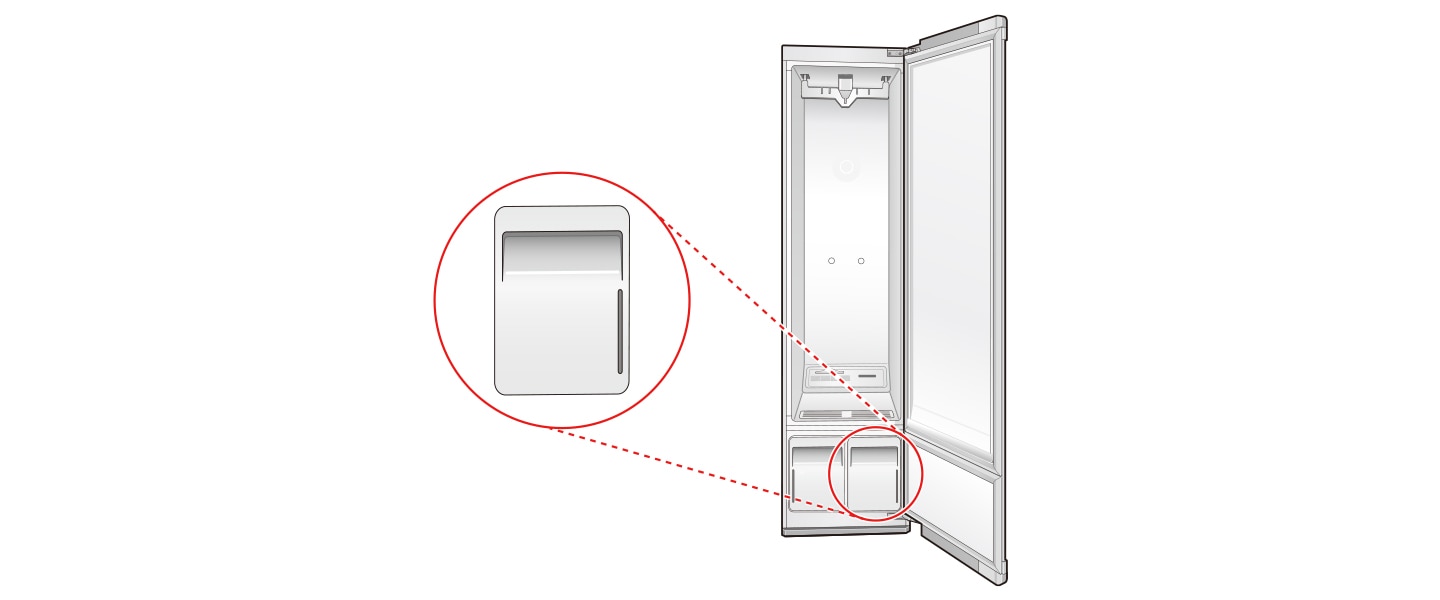

This is the drain tank mounting location

How to Replace

The replacement instruction for this item may differ slightly from the information below.

For more detailed information, please refer to the product manual for your model.

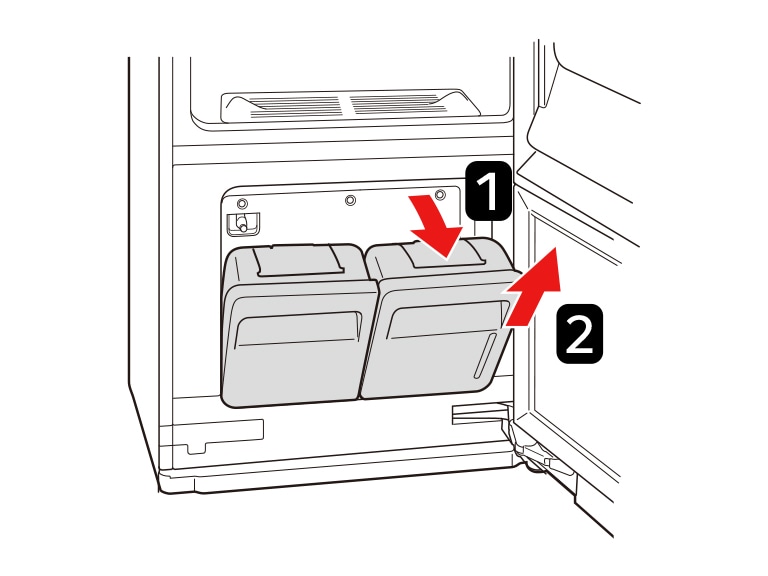

STEP 1

Pull the handle of the tank forward and remove the tanks from the appliance. Check the water level of the tanks.

Make sure the water supply tank is filled with water.

• The full water supply tank can be used approximately four times, depending on the cycles used.

• Use clean tap water or bottled water for best performance and longer product life. Do not use distilled water or reuse the water from the drain tank.

• The first time the appliance is used, 2/3 of the water in the fully filled water supply tank is used. Less water is used in following cycles.

STEP 2

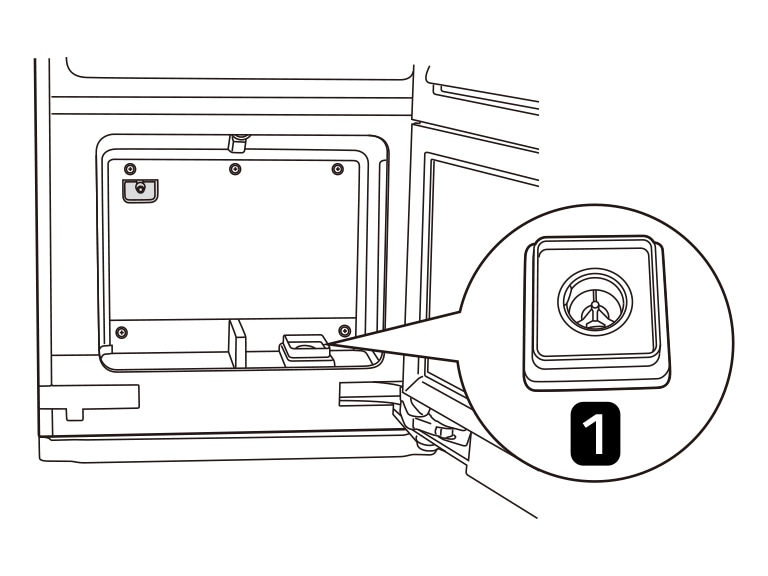

Make sure the water supply hole ① connected to the water supply tank is not clogged.

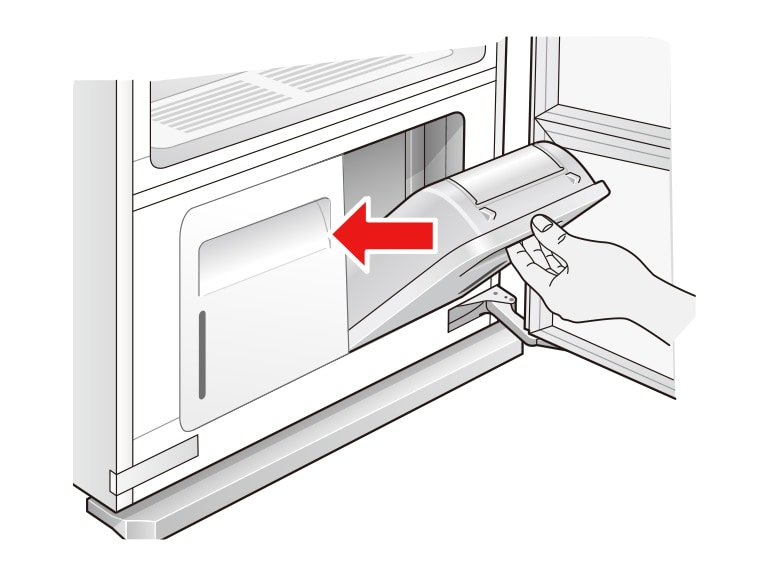

STEP 3

Allow the outsides of the tanks to dry completely before reinstalling the tanks.

* Product images and features may contain advertising expressions and may differ from the actual product. Product appearance, specifications, etc. may change without prior notice for product improvement.

* All product images are photo cuts and may differ from the actual product. Product color may vary depending on monitor resolution, brightness settings, and computer specifications.

* The performance of the product may vary depending on the usage environment, and availability may vary by store.

DIMENSIONS
