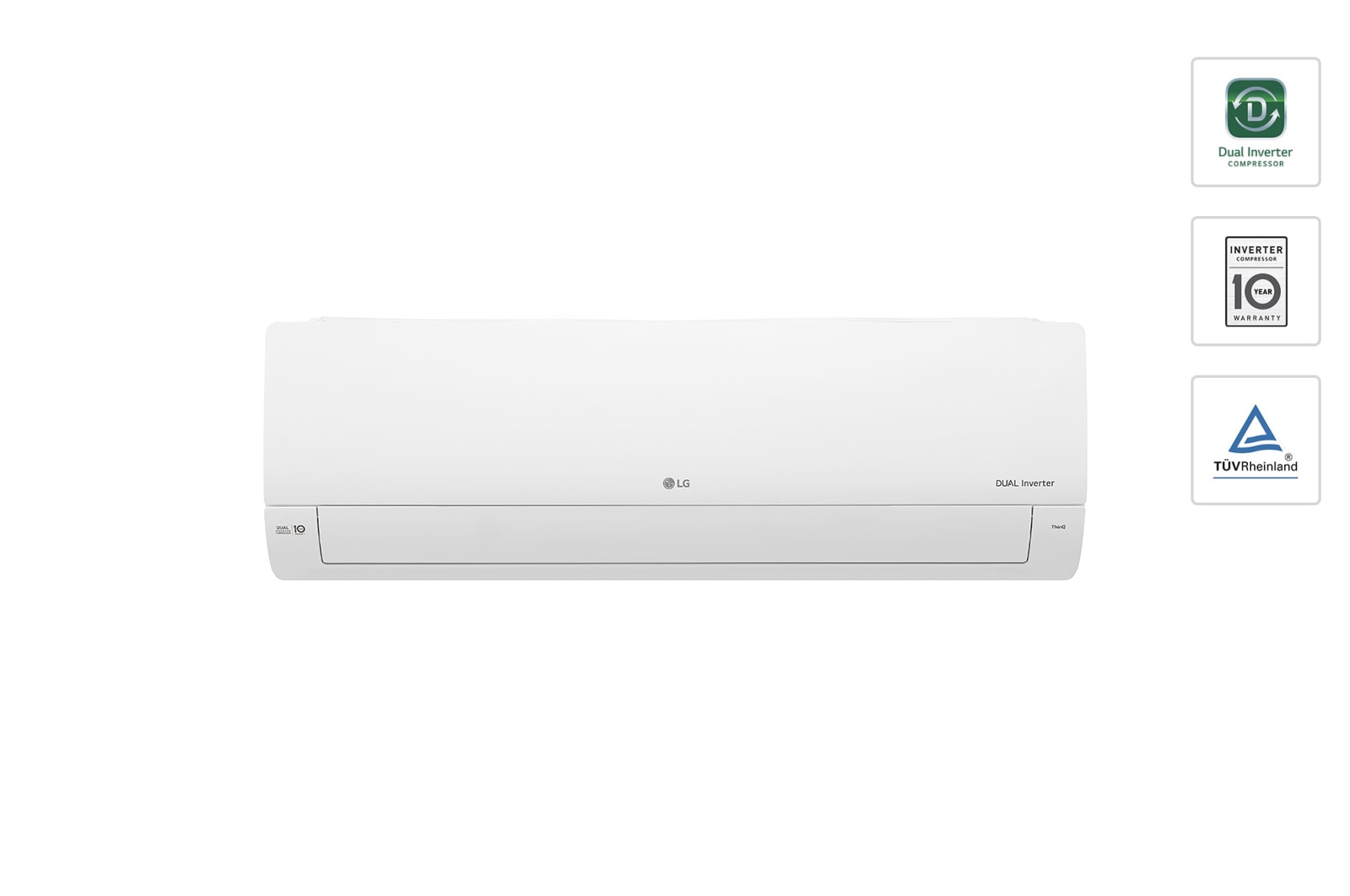

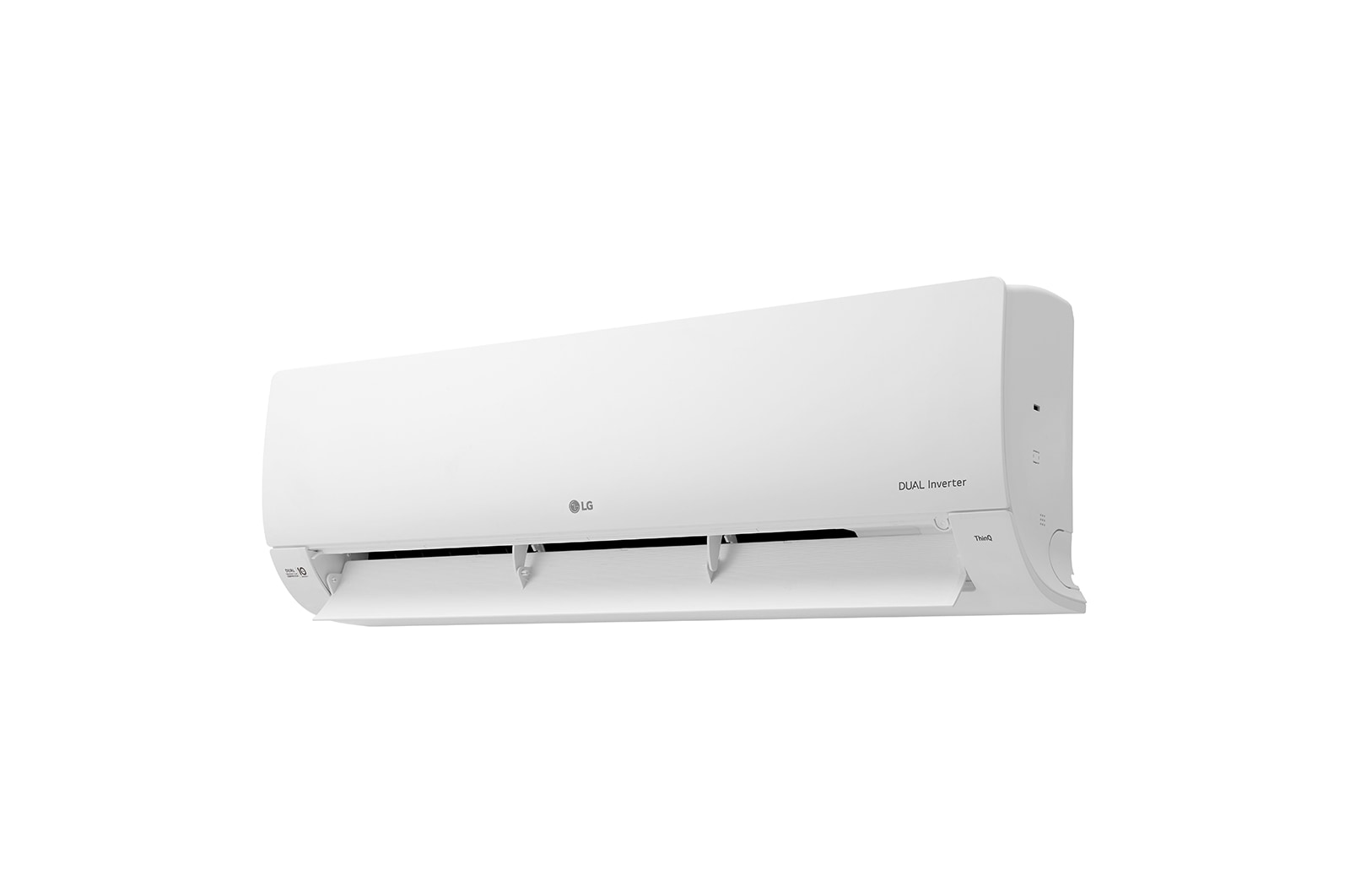

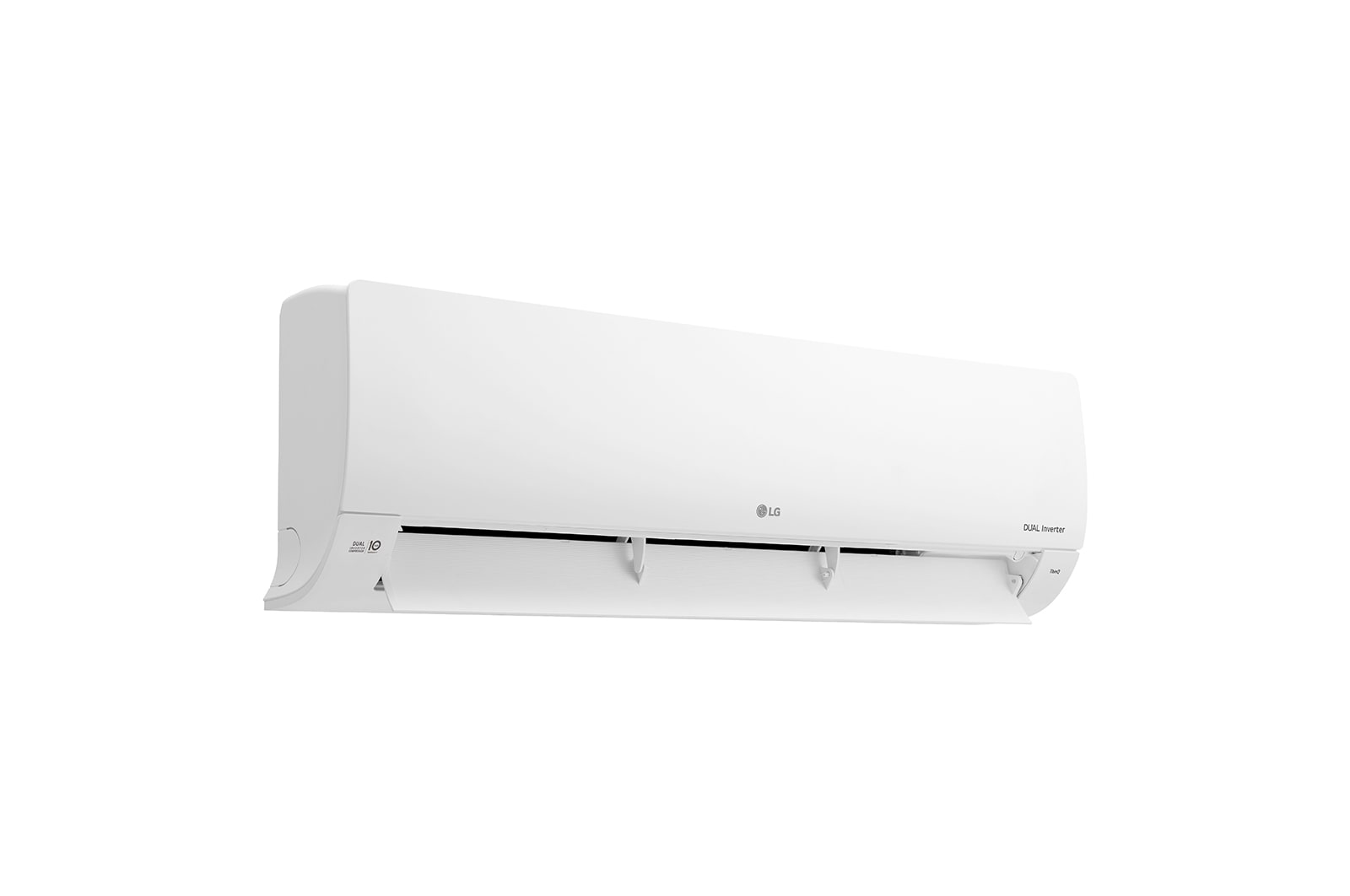

[2024] 1.0HP Dual Inverter Premium Air Conditioner with Ionizer and ThinQ™ Function

Support

[2024] 1.0HP Dual Inverter Premium Air Conditioner with Ionizer and ThinQ™ Function

S3-Q09JAPPA

Key Features

Plasmaster™ Ionizer++
Faster Cooling
Energy Saving
Less Noise
DUAL Inverter Compressor™

Plasmaster^TM Ionizer++

Leaves Your Space Clean from Bacteria

Removes 99.9% of adhering bacteria.

Verified by TUV

*The TÜV Rheinland has verified that the Plasmaster™Ionizer++ removes up to 99.9% of adhering bacteria (Staphylococcus aureus, Escherichia coli and Pseudomonas aeruginosa) in the test room of 30m³. The model tested was SW09BAJWAN. It is not about the efficiency in removal of bacteria in the air conditioner and the efficiency in removal of bacteria may differ from the actual use conditions.

Verified by Intertek

*Intertek has verified that the Plasmaster™Ionizer++ removes up to 99.9% of adhering bacteria (Staphylococcus aureus, Escherichia coli and Pseudomonas aeruginosa) in the test room of 30m³. The model tested was SW09BAJWAN. It is not about the efficiency in removal of bacteria in the air conditioner and the efficiency in removal of bacteria may differ from the actual use conditions.

Faster Cooling, Faster Comfort

Get comfortably cool faster with the LG DUAL Inverter Compressor™.

Verified by TUV

LG inverter air conditioners(US-Q242K*) cools up to 40% more faster than LG non-inverter air conditioners(TS-H2465DAO). *Initial Temperature(Outdoor 35℃, Indoor 33℃), Setting Temperature(26℃).

Save on Energy Bills and the Planet

Reduce your energy consumption and your electricity bill with more efficient cooling.

Verified by TUV

LG inverter air conditioners(US-Q242K*) saves up to 70% more energy than LG non-inverter air conditioners(TS-H2465DAO). *Initial Temperature(Outdoor 35℃, Indoor 33℃), Setting Temperature(26℃), Testing Time (8 Hours).

A woman lounges on a couch in a living room with the LG air conditioner installed above her on the wall. Blue streams of air are on the image to indicate it is on and cooling the room.

Good Work Goes Unnoticed

Don't get disturbed and sleep soundly with an air conditioner that makes less noise.

*According to LG internal test, LG DUAL Inverter air conditioner is less than 19dBA. (Model - V10API)

DUAL Inverter Compressor™

Efficient, Faster, Durable, Quieter

10-Year Warranty

With a 10-year warranty on the compressor, it will keep performing at its best for longer.

*Extended warranty for compressor and motor covers parts only. (excluding labour, gas, refilling & transportation costs after the expiry of the 1st year warranty period)

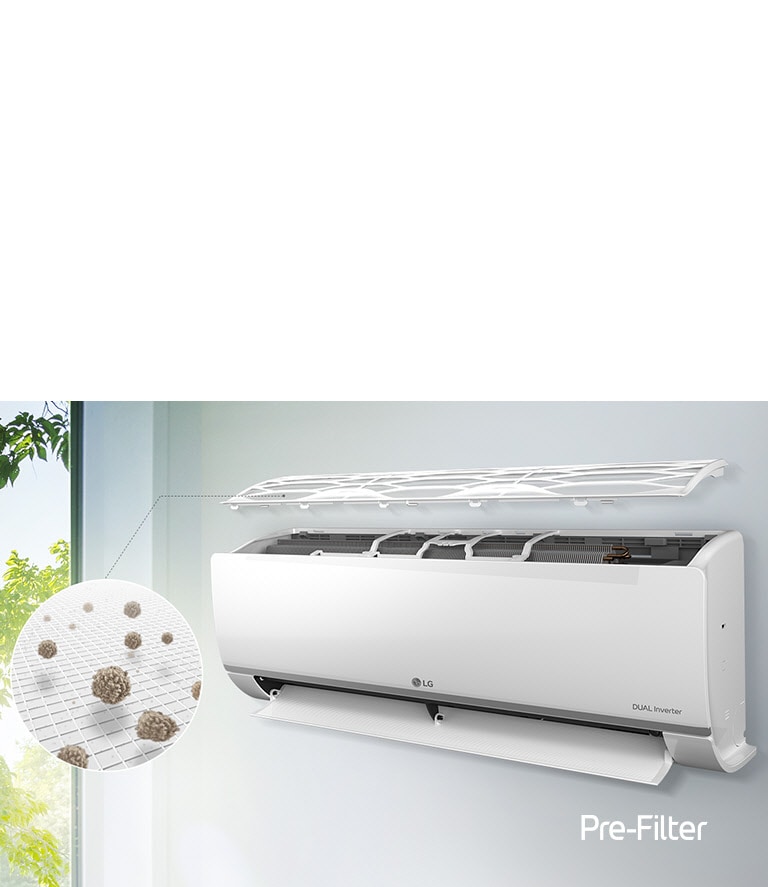

Pre-Filter

Traps Big Dust from the Start

Traps big dust particles as the first line of defense.

Allergy Filter

Reduce Allergens for Healthier Air

Remove allergy-causing substances, such as house dust mites, floating in the air.

Approved by BAF

*BAF has approved that the filter is coated to remove harmful substances - such as house dust mite, fungi, and mold floating in the air - that can cause allergies.

Auto Cleaning

An Internal Clean that's Automatic

Automatically dries any moisture inside the air conditioner to ensure it's always clean.

Smart Control, Smarter Life

Simple Control with Voice Assistant

Tell your air conditioner exactly what you need, when you need it. Say, “Turn on/off the air conditioner.” and the AI speaker will listen and turn on/off the air conditioner.

Three icons at the top indicate there are three images in a carousel. The first icon, labelled "Voice Control", is red. A man stands in a kitchen cooking. Sound wave lines appear next to him and then a line appears from him to the AI speaker on the counter and a microphone icon appears above the speaker. Sound wave lines then appear around the speaker and a line from the speaker to the oven. The Wifi icon appears above the oven.

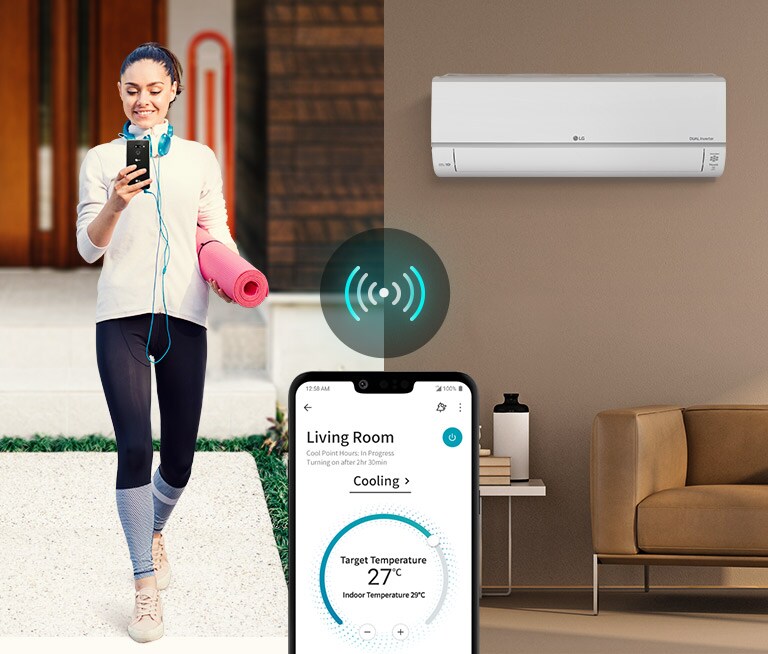

Connect and Control from Anywhere

The LG ThinQ™ app allows you to easily connect with your air conditioner in a way you never could before. Start your air conditioner with just the tap of a button.

Three icons at the top indicate there are three images in a carousel. The second icon, labelled "Smart Alert", is red. A man sits on the floor looking at his phone with the oven in the background. On the left side of the screen is an image of the ThinQ app on a phone screen with the Wifi icon above it.

Efficient Product Maintenance

The LG ThinQ™ app continuously monitors your air conditioner. Whether it’s everyday maintenance or something else, the app allows you to easily monitor energy usage.

Three icons at the top indicate there are three images in a carousel. The third icon, labelled "Monitoring", is red. There are two images: The left image shows a father and daughter eating in a kitchen. The right image shows a hand opening an oven with pans of muffins inside. In the center is the screen of a phone with the ThinQ app visible and the Wifi icon above it.

*Google and Google Home are trademarks of Google LLC.
*Amazon, Alexa, Echo and all related logos and motion marks are trademarks of Amazon.com, Inc or its affiliates.
*LG SmartThinQ is now renamed as LG ThinQ.
*Smart features and voice assistant product may vary by country and model. Check with your local retailer or LG for service availability.
*Voice-enabled smart speaker device is not included.

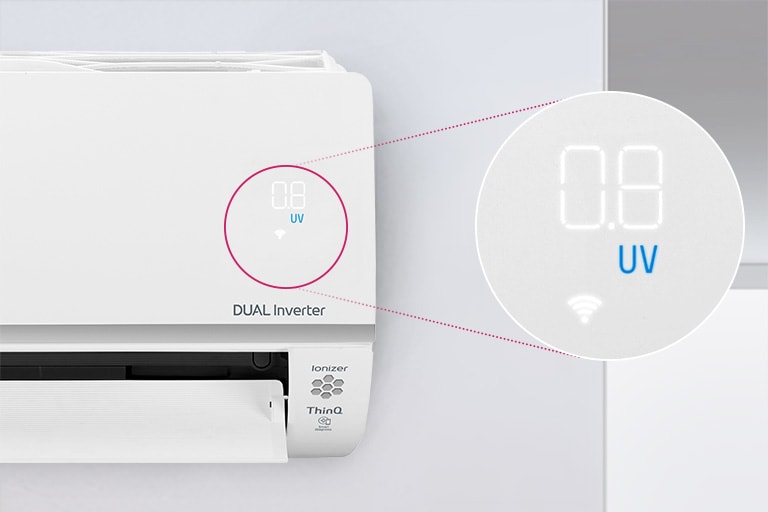

Easy-to-Monitor Energy Consumption

The display keeps you informed so you can easily monitor and reduce energy consumption*. *Energy consumption during A/C operation.

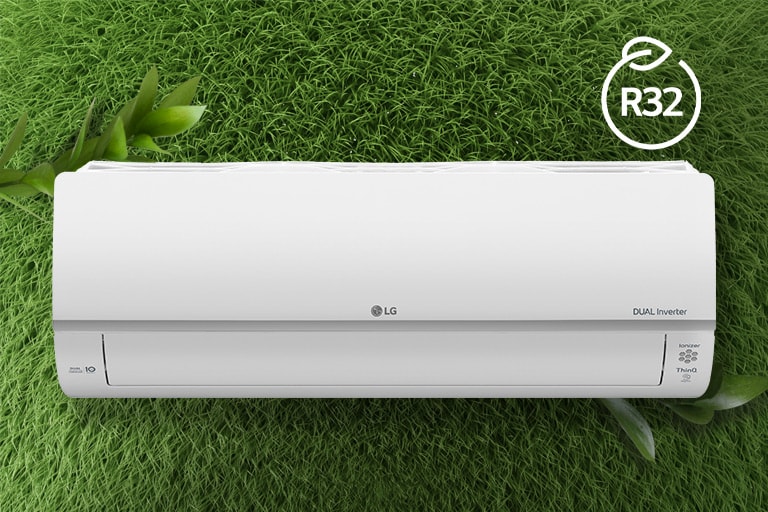

Environment-Friendly Refrigerant

Prevent environmental pollution with R32 refrigerant's improved energy efficiency.

A family sits on a couch in a living room with the LG air conditioner installed above them. Blue lines of air are coming out indicating the machine is on. In the foreground is the front of the remote control showing the buttons and temperature.

Control 4 Levels of Energy Consumption

Control energy consumption with 4 levels based on your needs, whether alone or with family.

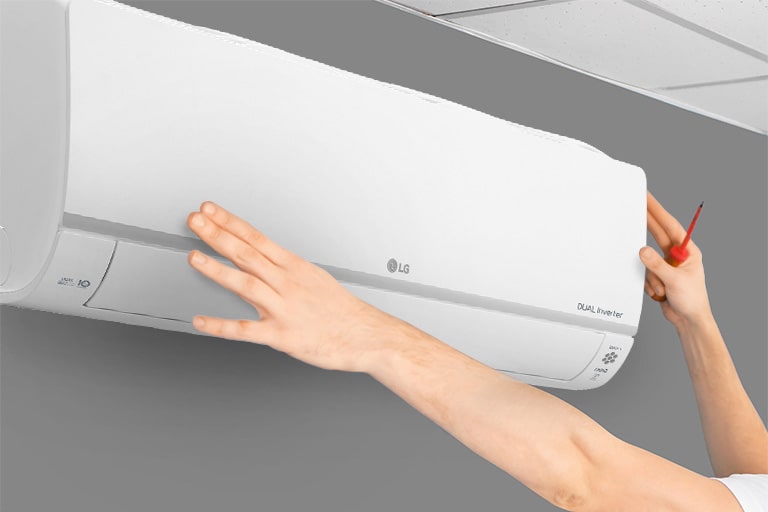

The side view of the air conditioner can be seen on the wall. Two hands are reaching up, one holding a tool, showing the ease of installation.

Quick and Easy Installation

Enjoy cool air sooner with air conditioning that takes less time and effort to install.

A father and daughter sleep on a couch beneath an air conditioner that is blowing air out over them.

A More Comfortable Sleeping Environment

Experience the most comfortable sleeping environment with automatically adjusting functions*. *When the comfort sleep function is activated.

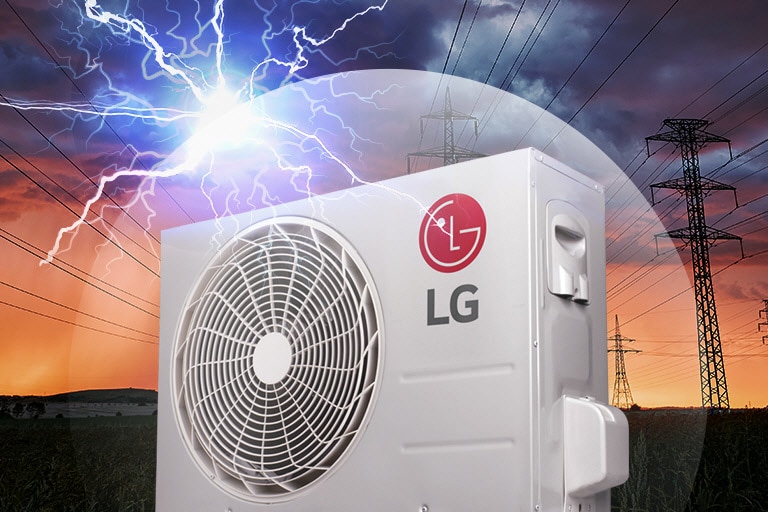

Safety Against Voltage Fluctuation

Enjoy a durable air conditioner with an ability to withstand voltage fluctuation*. *LG Internally tested "rated voltage ± 30%" fluctuation and it may vary depending by environment.

Key Specs

Product Type

Wall Mounted
HVAC Type

C/O
Cooling Capacity Max(W)

3490
Cooling Power Consumption Rated/Min(W)

770 / 150
Energy Grade

5 Star
ThinQ(Wi-Fi)

Yes
Ionizer

Yes

All Spec

BAR CODE

Bar Code

8851434637216

COOLING

4way

Up-Down/Left-Right
Airflow direction control (Left & Right)

Yes
Airflow direction control (Up & Down)

Yes(6 Steps)
Comfort Air

Yes
Fan Speed

6 Steps
Power Cooling

Yes

AIR PURIFYING

Ionizer

Yes

COMPLIANCE

Launching Month (YYYY-MM)

2023-11
Manufacturer (Importer)

LG Electronics
Product Model Name

S3-Q09JAPPA
Product Type & Model Name

냉방기 (S3-Q09JAPPA)

CONVENIENCE

Auto Restart

Yes
Fan Mode

Yes
Filter Alarm

N/A
Forced Switch Operation

Yes
Human Body Detecting

N/A
On/Off Reservation(24Hr)

Yes
Remote Controller

Yes
Reservation

N/A
Smart Diagnosis

Yes
Smart Guide

Yes
Stabilizer Free Operation

N/A
ThinQ(Wi-Fi)

Yes
Voice Control (3rd Part device)

N/A

ENERGY SAVING

Active Energy Control

Yes
Energy Display

Yes
Energy Monitoring

Yes
ICA(I control Ampere)

N/A
Energy Grade

5 Star

DESIGN

Color(Body)

White
Color(Discharge)

Black
Display

Number Display

FILTER

Allergy Filter

Yes
Dust Filter

N/A
Fine Dust Filter

N/A
Pre Filter

Yes

HYGIENE

Auto Cleaning

Yes

OUTDOOR UNIT

Outdoor Unit Model Name

S3UQ09JAPPA

GENERAL

Cooling Capacity Max(W)

3490
Cooling Capacity Rated/Min(W)

2700 / 530
Cooling Power Consumption Rated/Min(W)

770 / 150
HVAC Type

C/O
Indoor Unit Dimension_WxHxD(mm)

837x308x189
Indoor Unit Weight(kg)

8.7
Indoor Unit Weight(lb.)

19.2
Outdoor Unit Dimension_WxHxD(mm)

717x495x230
Outdoor Unit Weight(kg)

21.7
Outdoor Unit Weight(lb.)

47.8
Product Type

Wall Mounted
Product Type II

Inverter
Rated Input Voltage(V, Hz)

220 ~ 240, 50
Refrigerant Type

R32
Sound Power(Cooling) SH/H/M/L/SL(dB(A))

N/A
Sound Power(Heating) SH/H/M/L/SL(dB(A))

N/A

DEHUMIDIFICATION

Dehumidification

Yes
Humidity Sensor

N/A

GLOBAL_ETC.

Regulated model(Energy)

N/A

INDOOR UNIT

Wall Mounted Model Name

S3-Q09JAPPA
