Split Type Dual Inverter Deluxe Aircon

Specs

Reviews

Support

Split Type Dual Inverter Deluxe Aircon

Split Type Dual Inverter Deluxe Aircon

HSN18APX
()
  • Front View

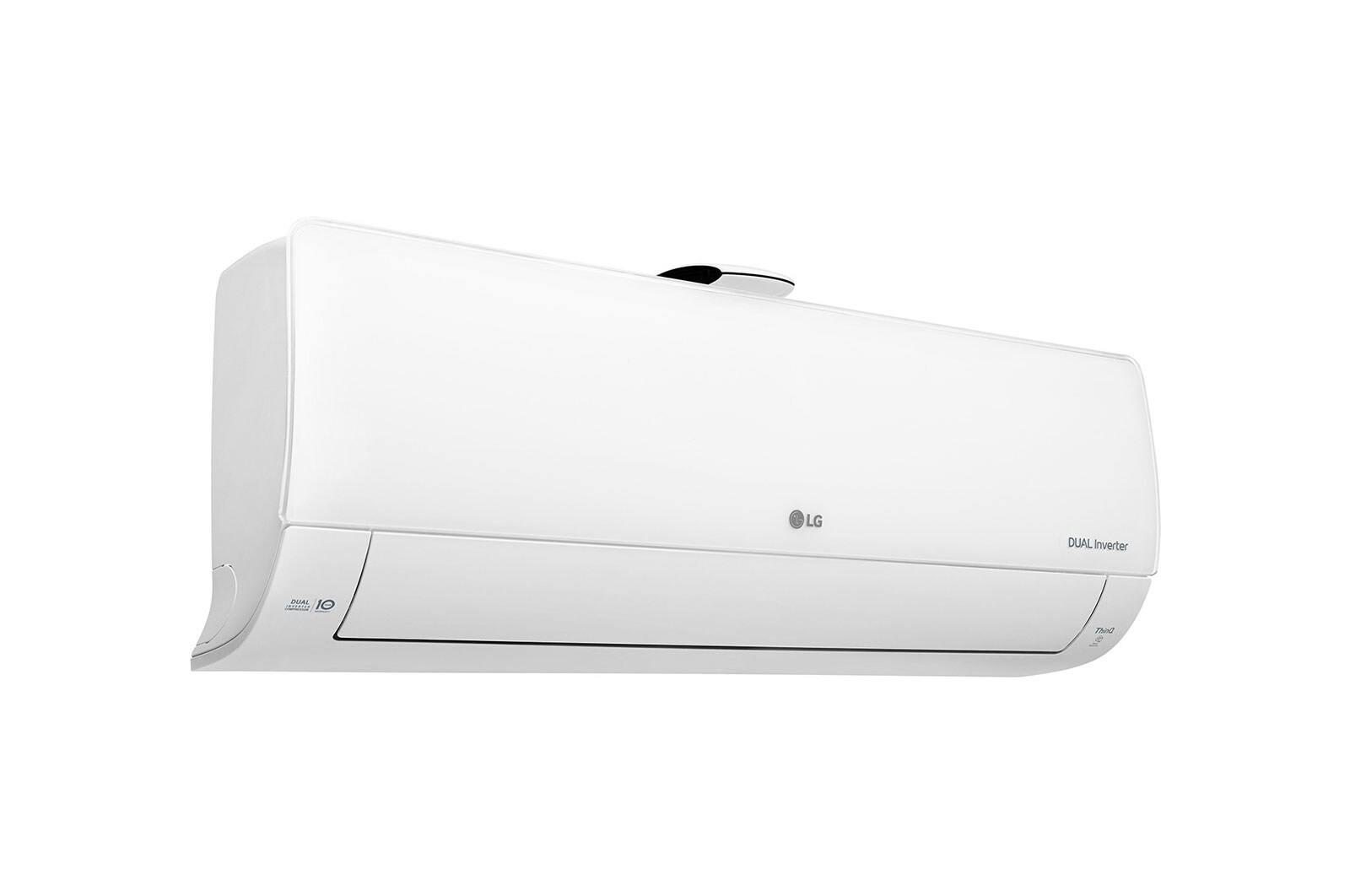

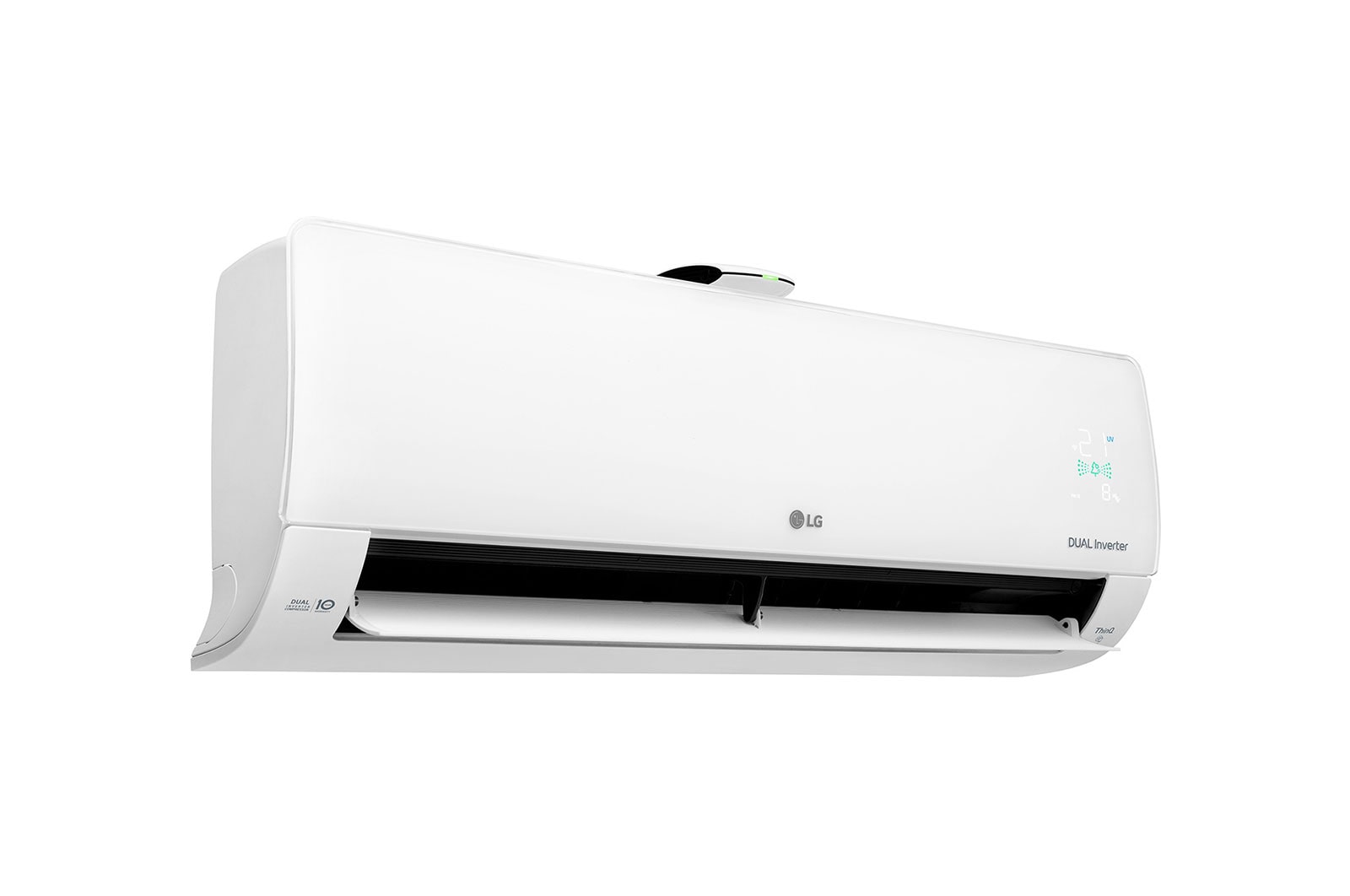

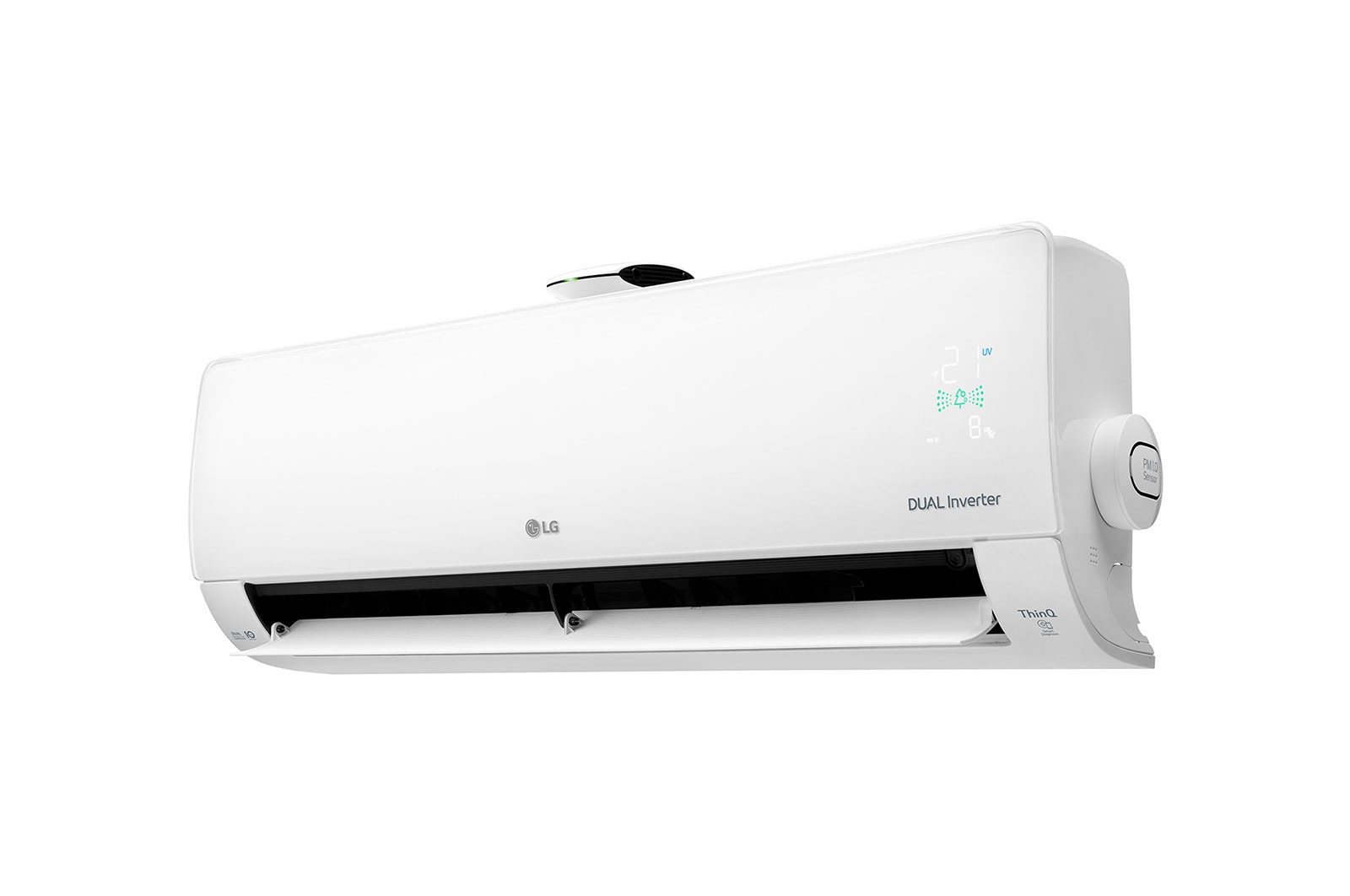

  • LG Split Type Dual Inverter Deluxe Aircon, HSN18APX
  • LG Split Type Dual Inverter Deluxe Aircon, HSN18APX
  • LG Split Type Dual Inverter Deluxe Aircon, HSN18APX
  • LG Split Type Dual Inverter Deluxe Aircon, HSN18APX
  • LG Split Type Dual Inverter Deluxe Aircon, HSN18APX
  • LG Split Type Dual Inverter Deluxe Aircon, HSN18APX
  • LG Split Type Dual Inverter Deluxe Aircon, HSN18APX
  • LG Split Type Dual Inverter Deluxe Aircon, HSN18APX
  • LG Split Type Dual Inverter Deluxe Aircon, HSN18APX
  • LG Split Type Dual Inverter Deluxe Aircon, HSN18APX
  • LG Split Type Dual Inverter Deluxe Aircon, HSN18APX
  • LG Split Type Dual Inverter Deluxe Aircon, HSN18APX

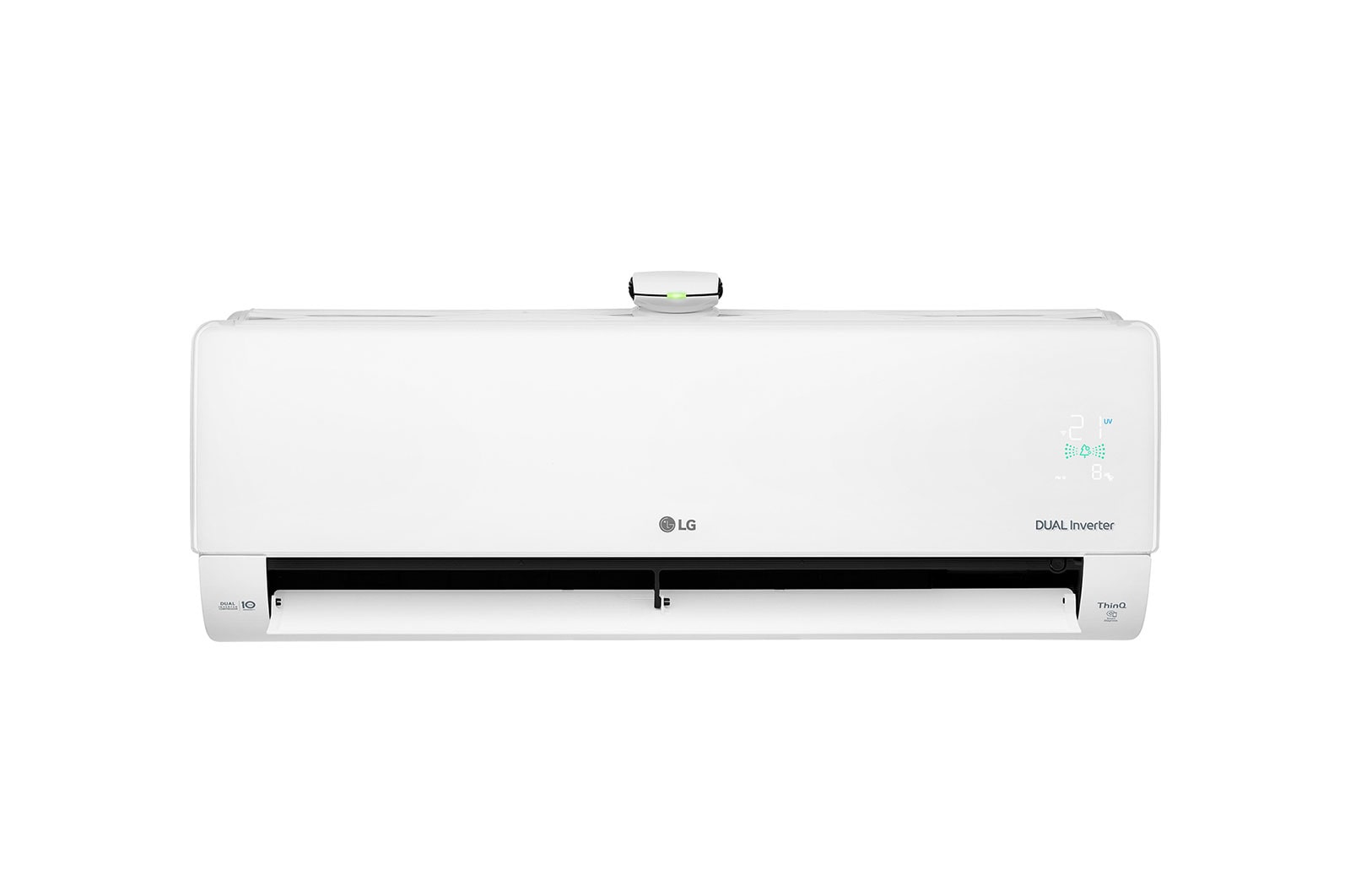

Front View
LG Split Type Dual Inverter Deluxe Aircon, HSN18APX
LG Split Type Dual Inverter Deluxe Aircon, HSN18APX
LG Split Type Dual Inverter Deluxe Aircon, HSN18APX
LG Split Type Dual Inverter Deluxe Aircon, HSN18APX
LG Split Type Dual Inverter Deluxe Aircon, HSN18APX
LG Split Type Dual Inverter Deluxe Aircon, HSN18APX
LG Split Type Dual Inverter Deluxe Aircon, HSN18APX
LG Split Type Dual Inverter Deluxe Aircon, HSN18APX
LG Split Type Dual Inverter Deluxe Aircon, HSN18APX
LG Split Type Dual Inverter Deluxe Aircon, HSN18APX
LG Split Type Dual Inverter Deluxe Aircon, HSN18APX
LG Split Type Dual Inverter Deluxe Aircon, HSN18APX

Key Features

  • Ultrafine Dust Remover
  • UVnano™
  • Faster Cooling
  • Energy Saving
  • Less Noise
  • DUAL Inverter Compressor™
More

Summary

Print

DIMENSIONS

Capacity
2HP

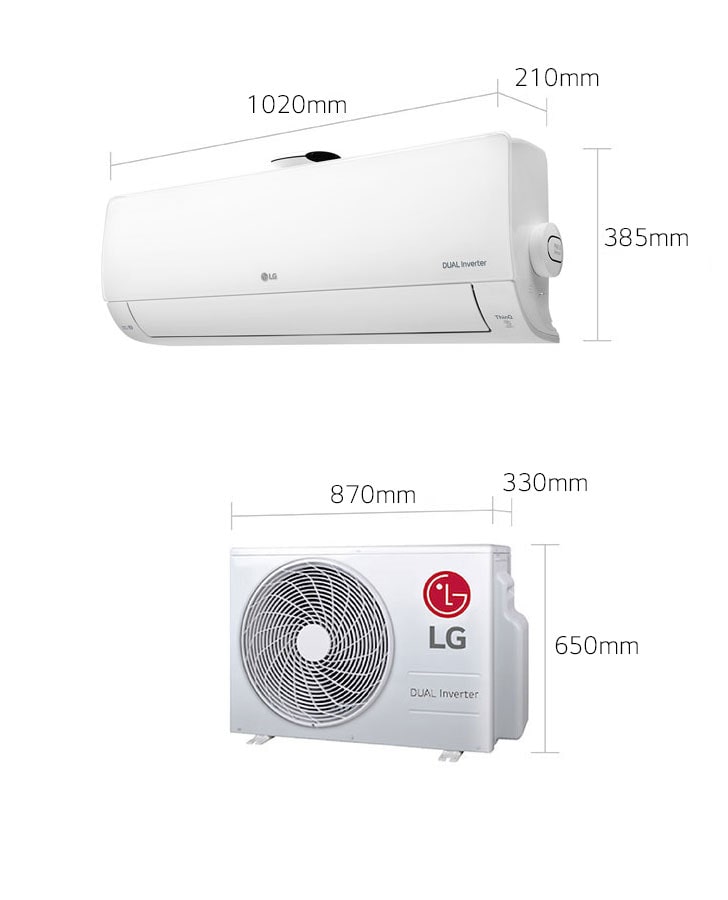

Dimensions Net W x H x D (mm) Indoor / Outdoor
1020 x 385 x 210 / 870 x 650 x 330
Main Technology
Dual Inverter
Additional Benefit
Air Purifier

All Spec

CAPACITY

  • Cooling (Min ~ Rated ~ Max)

    1.75 ~ 5.28 ~ 6.07 kW
    5,972 ~ 18,000 ~ 20,700 Btu/h
    6,300 ~ 18,990 ~ 21,839 Btu/h

  • Capacity

    2.0HP

POWER INPUT

  • Cooling (Min ~ Rated ~ Max)

    315 ~ 1,460 ~ 1,950 W

RUNNING CURRENT

  • Cooling (Min ~ Rated ~ Max)

    1.60 ~ 6.80 ~ 9.00 A

EER

  • EER

    3.61 W/W
    12.33 (Btu/h)/W13.01 (kJ/h)/W

POWER SUPPLY

  • Power Supply

    1, 230, 60 (Ø, V, Hz)

  • Available Voltage Range

    187 ~ 276 V

  • Power Factor - Cooling

    97.5%

  • Moisture Removal

    2.50 l/h

INDOOR

  • Air Flow Rate - Cooling, Max/H/M/L

    18.5/12.4/9.7/8.0 m³/min

  • Sound Pressure Level - Cooling, Max/H/M/L/SL

    -/46/42/38/32 dB(A)

  • Dimensions (W × H × D) - Net

    1020 × 385 × 210 mm

  • Dimensions (W × H × D) - Shipping

    1073 × 433 × 276 mm

  • Weight - Net

    12.0kg

  • Weight - Shipping

    13.8kg

  • Exterior Color Code

    Munsell 7.5BG 10/2 (RAL 9016)

OUTDOOR

  • Air Flow Rate - Max

    49.0 m³/min

  • Fan Motor Speed - Cooling, Min ~ Max

    380 ~ 650 rpm

  • Sound Pressure Level - Cooling, Rated

    53 dB

  • Dimensions (W × H × D) - Net

    870 × 650 × 330

  • Dimensions (W × H × D) - Shipping

    1040 × 710 × 455 mm

  • Weight - Net

    42.0kg

  • Weight - Shipping

    46.0kg

  • Max. Fuse Size

    20A

  • Exterior Color Code

    Munsell 9.54Y 8.34/1.31 (RAL 9001)

  • Operation Range - Cooling

    18 ~ 48 °C DB

CIRCUIT BREAKER

  • Circuit Breaker

    25A

  • Power Supply Cable

    3 x 1.5 No. x mm²

  • Power Supply to Unit

    Indoor

  • Power and Communication Cable

    4 x 1.5 No. x mm²

PIPING

  • Size - Liquid

    ø 6.35 mm

  • Size - Gas

    ø 12.7 mm

  • Connections Method - Indoor/Outdoor

    Flared/Flared

  • Drain Hose Size - O.D, I.D

    21.5, 16.0 mm

BETWEEN INDOOR & OUTDOOR

  • Piping Length - Min/Standard/Max

    3/7.5/30 m

  • Piping Length - No Change

    12.5 m

  • Max. Elevation Difference

    20m

  • Piping Connection Heat Insulation

    Both liquid and gas pipes

REFRIGERANT

  • Type

    R32

  • Pre Charge

    1050g

  • Additional Charge

    20g/m

  • Control

    Electronic Expansion Valve

  • Global Warning Potential

    675

  • t-CO₂ eq

    0.709

  • Tool Code (Chassis) - Indoor/Outdoor

    SK/U24A

COMPRESSOR

  • Type

    Twin Rotary

  • Model

    DAT156MAD

  • Motor Type

    BLDC

  • Oil Type / Maker

    PVE (FW68D)/IDEMITSU

  • Oil Charge

    400cc

  • Manufacturer / Country of Origin

    LG Electronics/China

FAN(INDOOR)

  • Type

    Cross Flow Fan

  • Motor Output

    30W

FAN(OUTDOOR)

  • Type

    Propeller, Fan

  • Motor Type

    BLDC

  • Motor Output

    85W

  • Motor Insulation

    Class E

  • Motor Enclosure / Ingress Protection

    TEAO/IPX4

HEAT EXCHANGER

  • Evaporator - Material, Tube / Fin

    Cu/Al

  • Evaporator - (ø x Row x Column x FPI x L) x Qty.

    (ø7 x 2 x 16 x 20 x 744) x 1

  • Evaporator - Corrosion Protection

    PCM

  • Evaporator - Fin Type

    Slit

  • Condenser - Material, Tube / Fin

    Cu/Al

  • Condenser - (ø x Row x Column x FPI x L) x Qty.

    (ø7 x 2 x 28 x 18 x 940) x 1

  • Condenser - Corrosion Protection

    Gold

  • Condenser - Fin Type

    Louver
