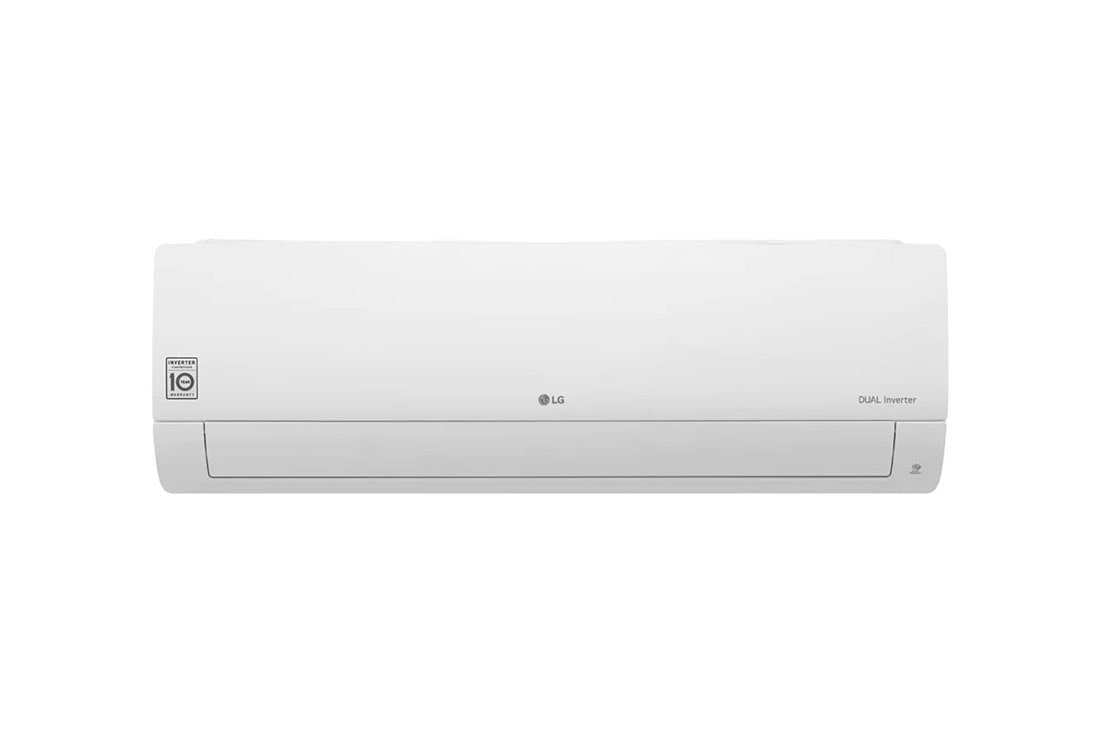

Split Type Dual Inverter Standard Aircon

HSN18ISY

Key Features

Dual Inverter
Energy Saving
Fast Cooling
Low noise
Gold Fin
ThinQ

DIMENSIONS

Capacity

2HP

Dimensions Net W x H x D (mm) Indoor / Outdoor

998 x 345 x 210 / 770 x 545 x 288

Main Technology

Dual Inverter

Additional Benefit

Active Energy Control

All Spec

INDOOR UNIT

Air Flow Rate - Cooling, Max/H/M/L: 18/12.7/10.2/8.4 m³/min635.7/448.5/360.2/296.6 CFM

Fan Motor Speed - Cooling, Max/H/HM/M/ML/L/SL: 1500/1150/1050/950/860/770/700 rpm

Sound Pressure Level - Cooling, Max/H/M/L/SL: -/45/40/37/32 dB(A)

Dimensions (W × H × D) - Net: 998 x 345 x 210 mm

Dimensions (W × H × D) - Shipping: 1068 x 425 x 279 mm

Weight - Net: 11.2kg

Weight - Shipping: 13.2kg

Disconnect Switch: 25 A

Exterior Color Code: Munsell 7.5BG 10/2 (RAL 9016)

Operation Range - Cooling: 16 ~ 32 °C DB61 ~ 90 °F DB 10 ~ 23 °C WB50 ~ 73.4 °F WB

OUTDOOR UNIT

Air Flow Rate - Max: 31.0 m³/min1095 CFM

Sound Pressure Level - Cooling, Rated: 53 dB(A)

Dimensions (W × H × D) - Net: 770 x 545 x 288 mm

Dimensions (W × H × D) - Shipping: 920 x 588 x 393 mm

Weight - Net: 32.5kg

Weight - Shipping: 34.8kg

Max. Fuse Size: 15 A

Exterior Color Code: Munsell 9.54Y 8.34/1.31 (RAL 9001)

Operation Range - Cooling: 18 ~ 48 °C DB

POWER INPUT

Cooling (Min ~ Rated ~ Max): 1,540 W

EER

EER: 3.43 W/W11.69 (Btu/h)/W12.33 (kJ/h)/W

HEAT EXCHANGER

Evaporator - Material, Tube / Fin: Cu/Al

Evaporator - (ø x Row x Column x FPI x L) x Qty.: (ø7 x 2 x 16 x 20 x 744) x 1

Evaporator - Corrosion Protection: PCM

Evaporator - Fin Type: Slit

Condenser - Material, Tube / Fin: Cu/Al

Condenser - (ø x Row x Column x FPI x L) x Qty.: (ø7 x 2 x 24 x 18 x 823) x 1

Condenser - Corrosion Protection: Gold

Condenser - Fin Type: Louver

COMPRESSOR

Type: Twin Rotary

Model: DAT156MAD

Motor Type: BLDC

Oil Type / Maker: PVE (FW68D) / IDEMITSU

Oil Charge: 400cc

Manufacturer / Country of Origin: LG Electronics / China

REFRIGERANT

Type: R32

Pre Charge: 950g

Additional Charge: 15g/m

Control: Capillary

Global Warning Potential: 675

t-CO₂ eq: 0.641

RUNNING CURRENT

Cooling (Min ~ Rated ~ Max): 7.10 A

POWER SUPPLY

Power Supply: 1, 230, 60 (Ø, V, Hz)

Available Voltage Range: 187 ~ 276 V

Power Factor - Cooling: 94%

Moisture Removal: 1.25 l/h2.64 pts/h

Circuit Breaker: 25 A

Power Supply Cable: 3 × 1.5 No. × mm²

Power Supply to Unit: Indoor

Power and Communication Cable: 4 × 1.5 No. × mm²

CAPACITY

Cooling (Min ~ Rated ~ Max): 5.28 kW 18,000 Btu/h 18,990 kJ/h

Capacity: 2.0HP

PIPING

Size - Liquid: ø 6.35 mm

Size - Gas: ø 12.7 mm

Connections Method - Indoor/Outdoor: Flared/Flared

Drain Hose Size - O.D, I.D: 21.5, 16.0 mm

Max Piping Length Capacity: 98.7%

BETWEEN INDOOR & OUTDOOR

Piping Length - Min/Standard/Max: 3/7.5/30 m

Piping Length - No Charge: 12.5 m

Max. Elevation Difference: 20m

Piping Connection Heat Insulation: Both liquid and gas pipes

FAN(INDOOR)

Type: Cross Flow Fan

Motor Output: 30W

FAN(OUTDOOR)

Type: Propeller Fan

Motor Type: BLDC

Motor Output: 43W

Motor Insulation: Class E

Motor Enclosure / Ingress Protection: TEAO/IPX4

TOOL CODE(CHASSIS)

Indoor / Outdoor: SK / UL2
