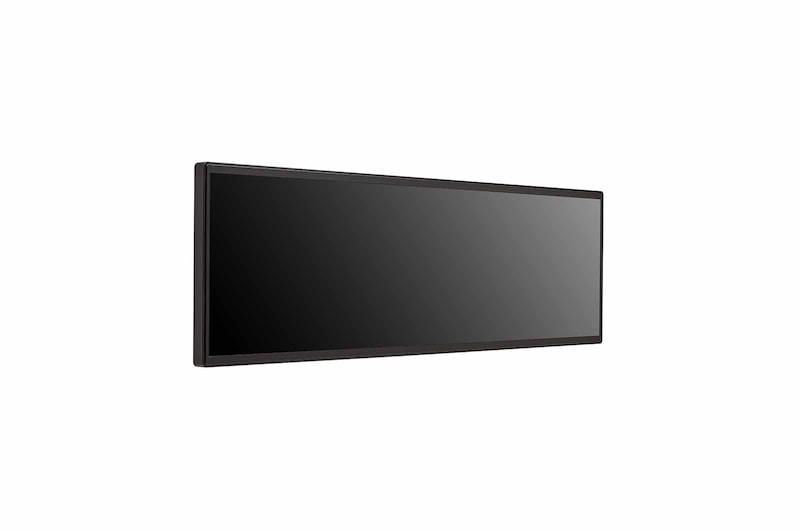

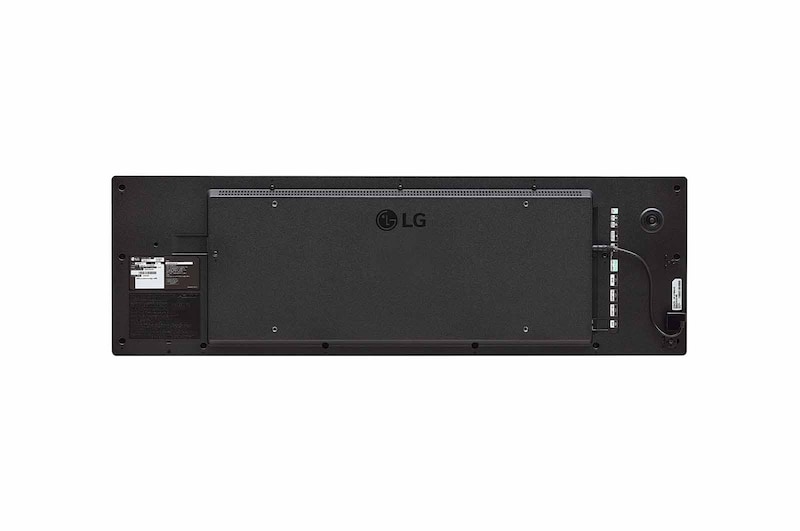

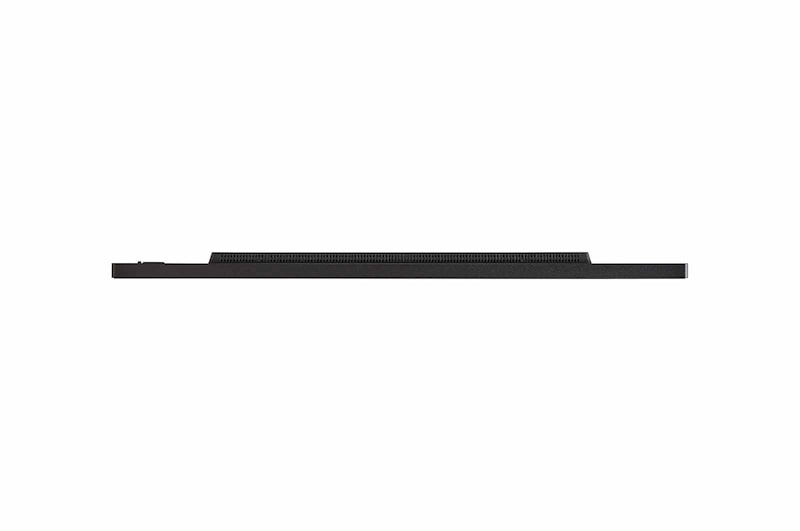

Stretch Signage

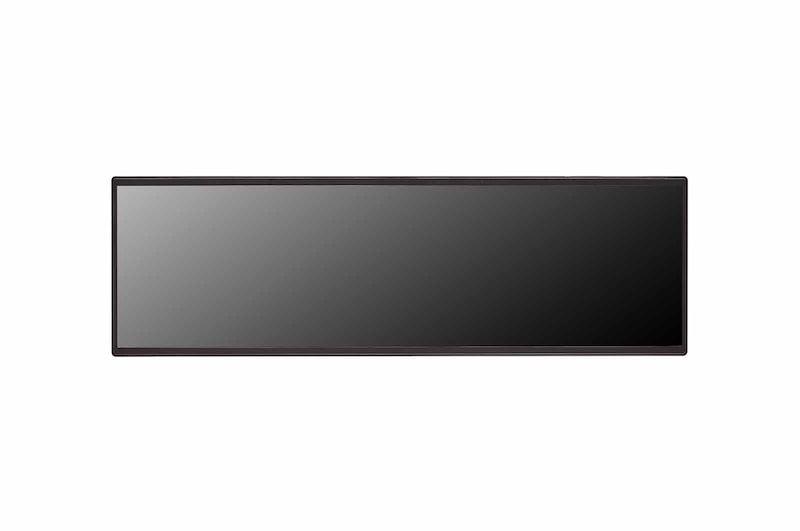

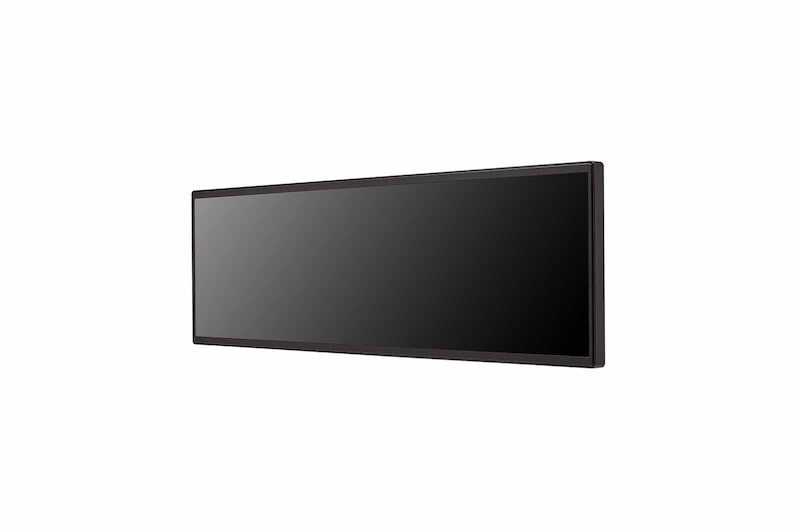

37BH7N-H

Key Features

Resolution : 1,920 × 540
Brightness : 700 nit
32:9 Wide Screen

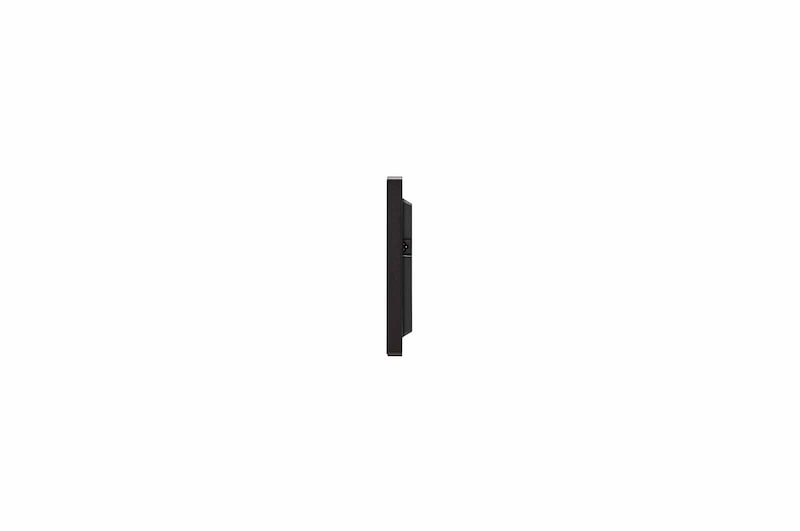

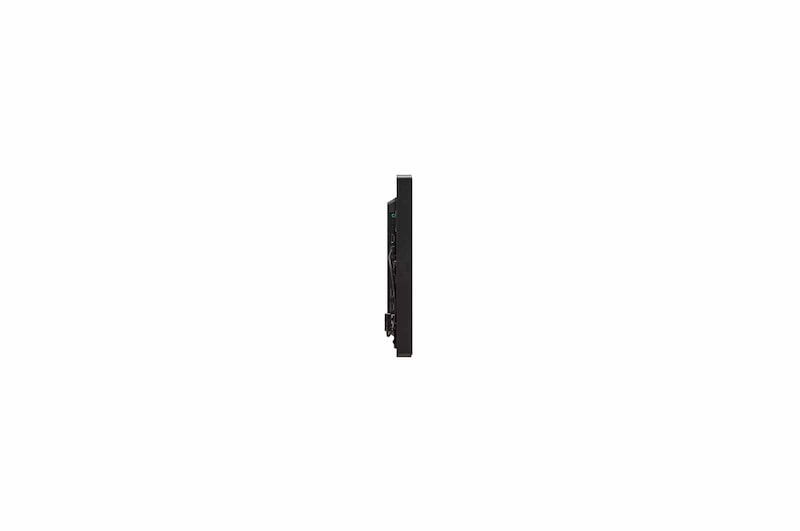

Slim Design
SuperSign CMS, SuperSign Control+, SuperSign WB, Mobile CMS, LG ConnectedCare
webOS Solution

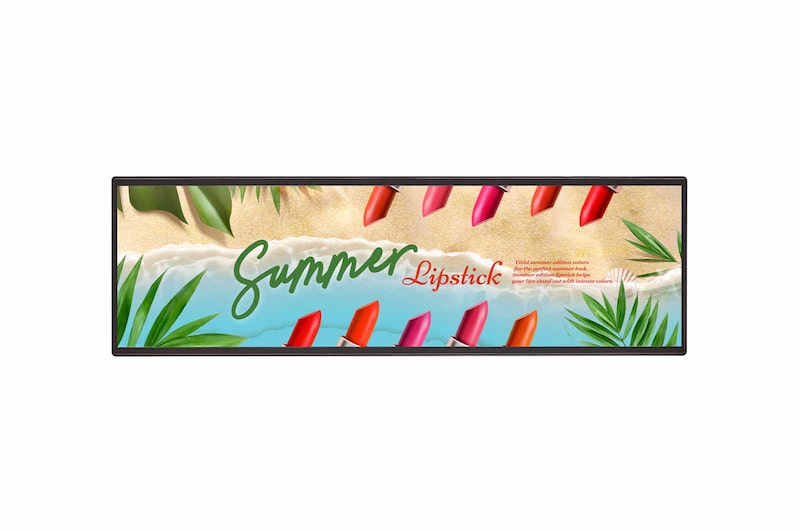

Inside a bright cosmetics store, there is a BH7N installed at the lipstick section. A woman is watching a vivid advertisement displayed on the wide screen of BH7N.

* All images in this page are for illustrative purposes only.

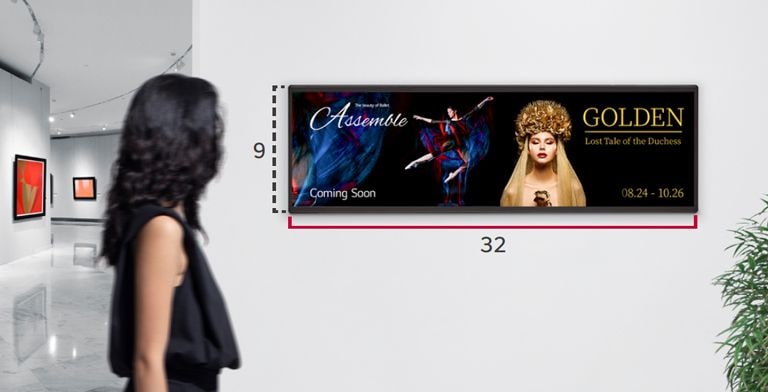

A woman is watching a performance advertisement on a wide screen with a 32:9 aspect ratio.

32:9 Extended Wide Format

It is a unique wide screen with 32:9 bar type which provides much more flexibility in content than the conventional display of 16:9 ratio.

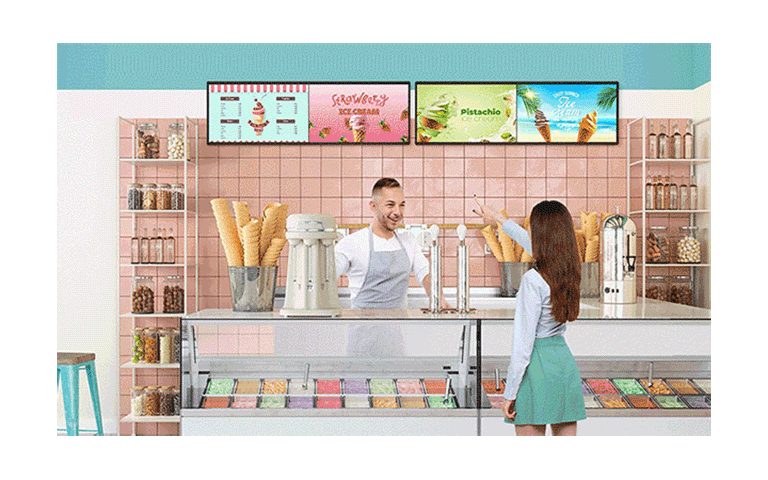

Inside an ice cream shop, there is a BH7N installed, and the screen is simultaneously showing the ice cream menu and advertisements.

Picture-by-Picture (PBP) Mode

The Picture-by-Picture (PBP) feature allows you to show multi content in one single display. It is very useful and convenient to deliver various advertisements or pieces of information at the same time.

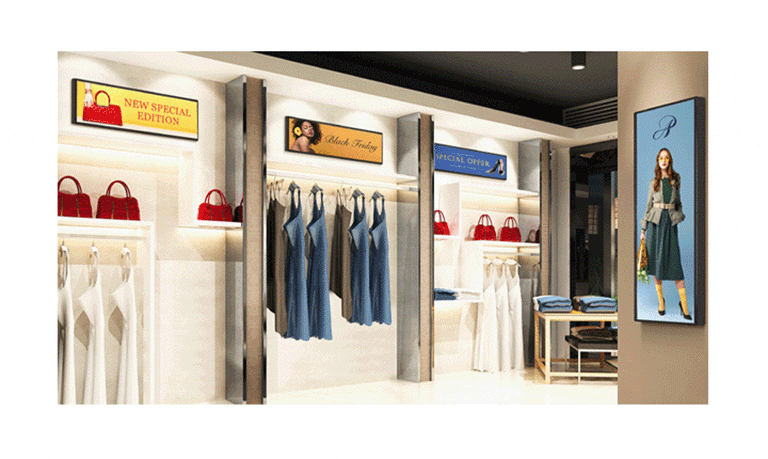

The BH7N is installed in the fashion mall, completely filling the unused space, both horizontally and vertically.

Portrait/Landscape Mode

BH7N can be used vertically as well, allowing for flexible utilization in various installation/usage scenes in both horizontal and vertical orientations. It can be utilized for displays according to the characteristics and size of unused and leftover spaces.

Customizable Angle to
Suit Customer's Eye Level

With a tilting capability of 30° when installed at a higher height, BH7N enhances customer perception and satisfaction.

The BH7N is installed higher than eye level but tilted at a 30° angle, ensuring that the screen content is well-visible.

Highly Reliable in High Humidity Environments

Optimized for business environments, the BH7N is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation.

The BH7N has conformal coating on the power board to protect display even in a salty or humid environment.

Indoor Display Offering a Vivid and Sharp Visual Experience

With a great brightness of 700 cd/m2, the BH7N series clearly deliver content and attract public attention, making it suitable display for marketing in airports, retail, shopping malls etc.

BH7N has a brightness of 700 nits, so it is clearly visible, even under strong light.

* The provided image is intended for comparison purposes only.

Daisy Chain Management

A daisy chain allows you to conveniently and efficiently play the same content on multiple displays using just one media player. This eliminates the need to install separate media boxes for each display, as the entire operation can be handled by a single media player, ultimately resulting in cost savings during installation.

Multiple displays in the market are being managed at once through Daisy Chain.

* You can play media by connecting an external HDMI.

High Performance with
LG webOS 6.0

LG webOS 6.0 is available on BH7N series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.*

Several tasks that can be done through the LG webOS smart platform are arranged in the BH7N screen.

* GUI : Graphical User Interface
* The provided image is solely for reference.

Real-Time Monitoring
with LG ConnectedCare

Easy and Fast maintenance are available with our optional cloud service solution LG ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.

The one of LG employee is remotely monitoring the BH7N screen installed in a client workplace by using cloud-based LG monitoring solution, called LG ConnectedCare.

* LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

SuperSign

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

The manager of a clothing store is creating advertisements that will be displayed on the BH7N screen installed on the store wall using content management software, SuperSign.

All Spec

PANEL

Screen Size (Inch)
37
Panel Technology
ADS
Back Light Type
Edge
Aspect Ratio
32:9
Native Resolution
1920 x 540 (FHD)
Refresh Rate
60Hz
Brightness
700nit (Typ.)
Contrast Ratio
1,000:1
Dynamic CR
1,000,000:1
Color Gamut
NTSC 72%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
16.7 Million colors
Response Time
14ms (G to G)
Surface Treatment (Haze)
Haze 25%
Life time
50,000Hrs (Min.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
YES / YES
Transparency
N/A
QWP (Quarter Wave Plate)
N/A

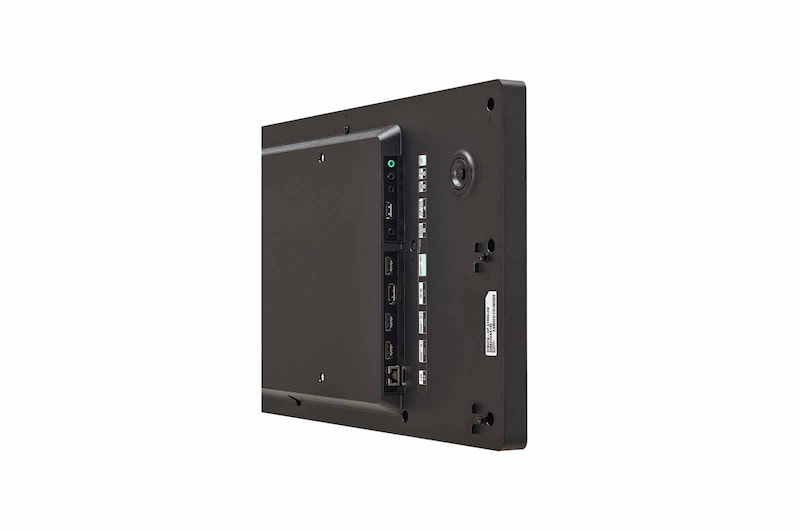

CONNECTIVITY

HDMI In
YES (2ea)
HDMI In (HDCP Ver.)
2.2/1.4
DP In
YES (HDCP 2.2/1.4)
DVI-D In
NO
RGB In
NO
Audio In
NO
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
YES
USB In
USB2.0 Type A (1ea)
HDMI Out
YES
DP Out
NO
Audio Out
YES
Touch USB
NO
External Speaker Out
NO
RS232C Out
YES
RJ45(LAN) Out
NO
IR Out
NO
Daisy Chain
Input : HDMI / Output : HDMI

MECHANICAL SPECIFICATION

Bezel Color
Black
Bezel Width
T/R/L/B : 15.6/9.3/9.3/15.6mm
Weight (Head)
7.0Kg
Weight (Head+Stand)
N/A
Packed Weight
9.0Kg
Monitor Dimensions (W x H x D)
922.3 x 288.3 x 43.5mm
Monitor Dimension with Stand (W x H x D)
N/A
Carton Dimensions (W x H x D)
1017 x 382 x 178mm
Handle
YES
VESA Standard Mount Interface
400 x 200 mm

FEATURE - HARDWARE

Internal Memory (eMMC)
16GB
Wi-Fi/BT (Built-in)
YES
Temperature Sensor
YES
Auto Brightness Sensor
YES
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
YES
Power Indicator
NO
Local Key Operation
YES
FAN (Built-in)
NO

FEATURE - SOFTWARE

OS Ver. (webOS)
webOS 6.0
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
YES
No Signal Image
YES
RS232C Sync
YES
Local Network Sync
YES
Backlight Sync
NO
PIP
NO
PBP
YES (2PBP)
Screen Share
NO
Video Tag
YES (4 Video Tag)
Play via URL
NO
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
YES
Tile Mode Setting
YES
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
YES
Status Mailing
YES
Control Manager
YES
Cisco Certification
NO
Crestron Connected
YES
Smart Energy Saving
YES
PM mode
YES
Wake on LAN
YES
Network Ready
YES
Beacon
YES
HDMI-CEC
YES
SI Server Setting
YES
webRTC
YES
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO

ENVIRONMENT CONDITIONS

Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %

POWER

Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power

POWER CONSUMPTION

Typ.
40W
Max.
50W
BTU (British Thermal Unit)
136.4 BTU/Hr(Typ.), 170.6 BTU/Hr(Max.)
Smart Energy Saving (70%)
30W±10%
DPM
0.5W
Power off
0.5W

SOUND

Speaker (Built-in)
NO

CERTIFICATION

Safety
CB / NRTL
EMC
FCC Class "B" / CE / KC
ERP / Energy Star
NO / NO
ePEAT(US only)
NO

OPS COMPATIBILITY

OPS Type compatible
NO
OPS Power Built-in
NO

SOFTWARE COMPATIBILITY

SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES
SuperSign Cloud
YES
Promota
NO
Mobile CMS
YES
Connected Care
YES

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, Polski
