1,300nits FHD Outdoor Touch Open-frame Display

22XF1TJ-B

1,300nits FHD Outdoor Touch Open-frame Display

()

Key Features

Brightness : 1,300 nits (Typ. w/Glass)
IP66 Rated Dust & Waterproof
21.5" of Versatile Display Size
Wide Operating Temperature Range
webOS Smart Platform
Built-in Touch Display

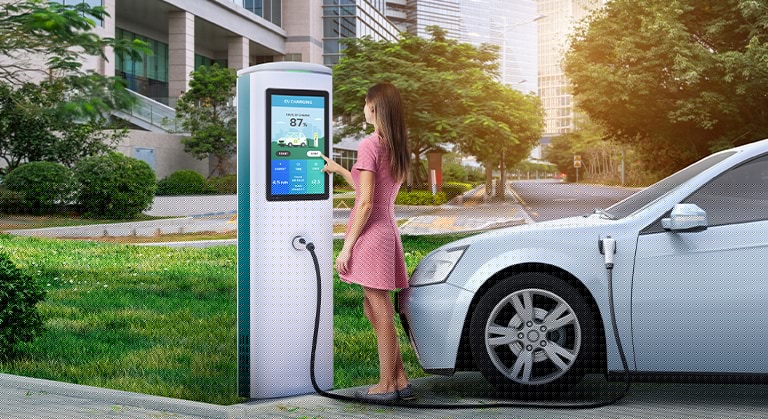

A woman is charging a car by touching the touchscreen installed on an electric car charger.

* All images in this web page are for illustrative purposes only.

A 22XF1TJ is installed on the wall at the entrance of the building with another 22XF1TJ stand below for reservation purposes. The lady with sunglasses is using the touchscreen to make a reservation. The screen remains visible even when under direct sunlight.

High Visibility Under Bright Environments

With a brightness of 1,300 nits, 22XF1TJ boasts high visibility in bright environments. In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.

The left one shows a 22XF1TJ installed on the wall showing its 21.5" in size. On the right, there are various screen types: A wall-mount type, hanging type, kiosk type.

21.5 inches of Versatile Screen Size

The small and light size of 21.5 inches allows for flexible use in various spaces. In particular, you can install the display in various way allowing for high utilization for small-medium businesses (SMB) to large businesses.

22XF1TJ is installed as a touch kiosk for drive-in ordering. A woman is touching a kiosk to select a food from the menu.

Built-in Touch Display

The 22XF1TJ has a P-cap Touch function, and the display accurately detects touch points even on the corners or edges of the display. The user is able to get the information they need by simply touching the screen.

The 22XF1TJ screen can adjust its brightness automatically according to the ambient light.

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

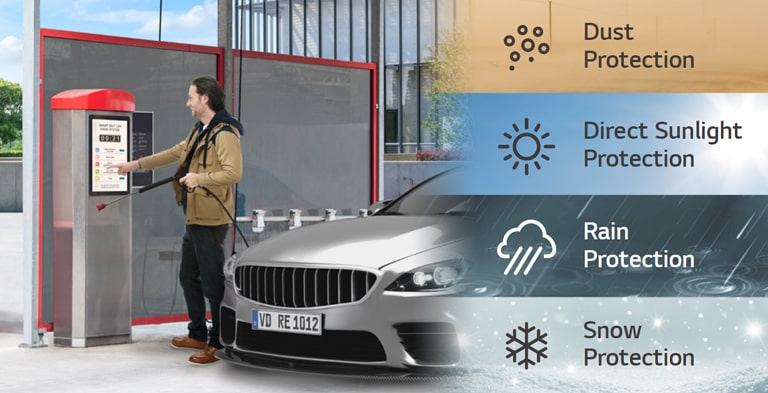

The 22XF1TJ is used as an touch kiosk display in a self-service car wash. The 22XF1TJ is protected against dust, direct sunlight, rain, and snow.

Secured Protection with IP66 Design

The front part of the display is sealed with IP66 design for reliable operation. It’s designed to be not only waterproof but also waterproof against the damaging effects of the sun, rain, snow, dust and wind, which is an essential feature for outdoor application.

* IP Code or Ingress Protection Code classifies the degree of protection provided by
mechanical casings and electrical enclosures against intrusion, dust, accidental contact, and water.
** IP66 means the product is protected from total dust ingress and resists highpressure, heavy sprays of water.
*** 22XF1TJ is certified as IP66 by CTK in November 2021.

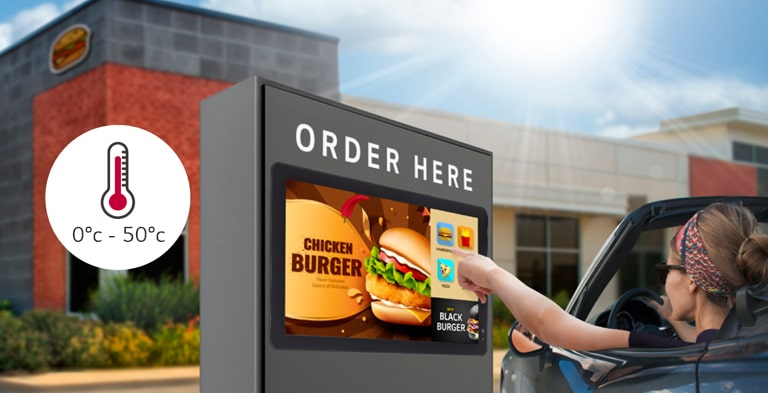

The 22XF1TJ is used as a drive-thru ordering touch kiosk. The display is working well in an environment of 0~50°C.

Wide Operating Temperature Range

22XF1TJ can be used under a wide range of operating temperatures from 0°C to 50°C* which results in fewer constraints for outdoor installation.

* 22XF1TJ is LG-internally tested under humidity of 30% (55°C ) and 99% (40°C).

When an external impact is applied to the display, the glass screen of non-shatterproof displays breaks and shatters, but the screen of 22XF1TJ only cracks and doesn't shatter.

Shatterproof Design with Boosted Safety

The 22XF1TJ applies a shatterproof film to the back of the front glass, preventing the risk of scattering debris even if the glass is damaged by a forceful impact.

Conformal Coating

Conformal Coating* improves reliability of the circuit board, power board by protecting it against humidity.

* Conformal Coating : Thin protective films/breathing membranes that filter water vapor and solid debris

Antibacterial Coating for
More Hygienic Touch Usage

The 22XF1TJ, equipped with a touch screen covered by Antimicrobial Coating glass, prevents microbial growth and allows users to confidently touch the screen. This coating is also effective in preventing contamination which can be caused by bacteria transmitted through touching the screen, reducing stains and screen discoloration.

A user is touching the 22XF1TJ screen with an antibacterial coating.

* Antimicrobial coating glass is on surface of screen only and the effect may vary depending on kind of bacteria or conditions of use.
** The antimicrobial coating glass is treated with the antibiotic substance AEM 5700.
*** The antibiotic substance AEM 5700 has the antibacterial effectiveness of more than 99% against Escherichia coli and Staphylococcus aureus. (The test (Test method : ISO 22196:2011) is conducted on a glass surface covered with AEM 5700.)
**** The antibiotic substance AEM 5700 has the antibacterial effectiveness of more than 99% against SARS-CoV-2. (The test (Test method : ISO 18184:2019) is conducted on fabric covered with AEM 5700.)
***** The antibiotic substance AEM 5700 is certified by U.S. Environment Protection Agency (EPA) and the Biocidal Products Regulation (BPR, Regulation (EU)).

Web Monitoring
(Control Manager)

This is a web-based monitoring solution, which provides a ease of control for the user. It enables users to have full access anywhere, anytime from their mobile phone & PC as long as they’re connected to a network while having access to both current and past data. It allows users to monitor the unit, make any adjustments and control it remotely in real-time.

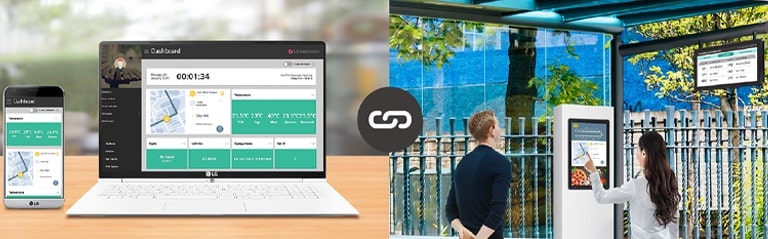

User can monitor and control their displays through mobile phone and laptop.

Real-time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

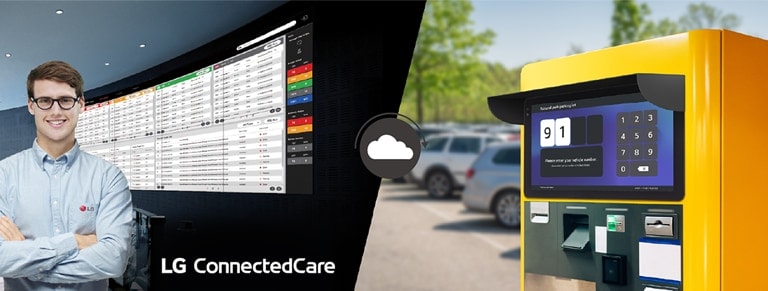

The LG employee is remotely monitoring the 22XF1TJ series installed in a different place by using cloud-based LG monitoring solution.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.

All Spec

PANEL

Screen Size (Inch)

21.5
Panel Technology

IPS (AHVA)
Back Light Type

Edge
Aspect Ratio

16:9
Native Resolution

1920 x 1080 (FHD)
Refresh Rate

60Hz
Brightness

1,500nit (Typ., with Glass)
Contrast Ratio

1,000:1 (Typ.)
Dynamic CR

800,000:1
Color Gamut

NTSC 72%
Viewing Angle (H x V)

178º x 178º
Color Depth (Number of Colors)

16.7 Million colors
Response Time

25ms (G to G)
Surface Treatment (Haze)

Haze 25%
Life time

70,000Hrs (Typ.)
Operation Hours (Hours/Day)

24/7
Portait / Landscape

YES / YES
Transparency

N/A
QWP (Quarter Wave Plate)

YES

CONNECTIVITY

HDMI In

YES (1ea)
HDMI In (HDCP Ver.)

1.4
DP In

NO
DVI-D In

NO
RGB In

NO
Audio In

NO
RS232C In

YES
RJ45(LAN) In

YES (1ea)
IR In

NO
USB In

USB2.0 Type A (1ea)
HDMI Out

NO
DP Out

NO
Audio Out

NO
Touch USB

YES
External Speaker Out

YES
RS232C Out

YES
RJ45(LAN) Out

NO
IR Out

NO
Daisy Chain

NO

MECHANICAL SPECIFICATION

Bezel Color

Black
Bezel Width

T/R/L/B : 25.5/30.5/30.5/25.5mm
Weight (Head)

7.0Kg
Weight (Head+Stand)

N/A
Packed Weight

8Kg
Monitor Dimensions (W x H x D)

557.3 x 322.8 x 60mm
Monitor Dimension with Stand (W x H x D)

N/A
Carton Dimensions (W x H x D)

644 x 406 x 207mm
Handle

NO
VESA Standard Mount Interface

100 x 100 mm

PROTECTION GLASS

Thickness

3mm
Degree of Protection

N/A
Tempered / Chemical strengthening

Tempered strengthening
Anti-Reflective

N/A
Infrared - Resistance (IR)

N/A
Shatter-Proof

YES

FEATURE - HARDWARE

Internal Memory (eMMC)

16GB
Wi-Fi/BT (Built-in)

NO
Temperature Sensor

YES
Auto Brightness Sensor

YES
Pixel Sensor

NO
Proximity Sensor

NO
Current Sensor

NO
BLU Sensor

NO
Humidity Sensor

YES
Acceleration(Gyro) Sensor

YES
Power Indicator

YES
Local Key Operation

NO
FAN (Built-in)

YES

FEATURE - SOFTWARE

OS Ver. (webOS)

webOS 4.1
Local Contents Scheduling

YES
Group Manager

YES
USB Plug & Play

YES
Fail over

YES
Booting Logo Image

YES
No Signal Image

YES
RS232C Sync

NO
Local Network Sync

YES
Backlight Sync

NO
PIP

NO
PBP

NO
Screen Share

NO
Video Tag

YES (4 Video Tag)
Play via URL

YES
Screen Rotation

YES
External Input Rotation

YES
Gapless Playback

YES
Tile Mode Setting

NO
Setting Data Cloning

YES
SNMP

YES
ISM Method

YES
Auto Set ID

NO
Status Mailing

YES
Control Manager

YES
Cisco Certification

NO
Crestron Connected

NO
Smart Energy Saving

YES
PM mode

YES
Wake on LAN

YES
Network Ready

YES
Beacon

NO
HDMI-CEC

YES
SI Server Setting

YES
webRTC

YES
Pro:Idiom

YES
Brightness Compensation

NO
W/B Setting by Grey scale

NO
Scan Inversion

NO

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 50 °C
Operation Humidity

10 % to 80 %

POWER

Power Supply

AC 100-240V~, 50/60Hz
Power Type

Built-in Power

POWER CONSUMPTION

Typ.

85W (Full White) 37W (IEC 62087)
Max.

115W
BTU (British Thermal Unit)

290 BTU/Hr(Typ.), 393 BTU/Hr(Max.)
DPM

0.5W
Power off

0.5W

SOUND

Speaker (Built-in)

NO

CERTIFICATION

Safety

CB / NRTL
EMC

FCC Class "A" / CE / KC / VCCI
ERP / Energy Star

YES / NO
ePEAT(US only)

NO

OPS COMPATIBILITY

OPS Type compatible

NO
OPS Power Built-in

NO

SOFTWARE COMPATIBILITY

SuperSign CMS

YES
SuperSign Control+

YES
SuperSign WB

NO
SuperSign Cloud

NO
Promota

YES
Mobile CMS

NO
Connected Care

YES

LANGUAGE

OSD

English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
