ADD TO WISHLIST

M11AJH
Dual Inverter 9,000 BTU Heating & Cooling Split Air Conditioner
  • Dual Inverter Compressor™
  • 70% Energy Saving
  • Faster Cooling and Heating
  • Low Noise
  • Active Energy Control
Dual Inverter 9,000 BTU Heating & Cooling Split Air Conditioner

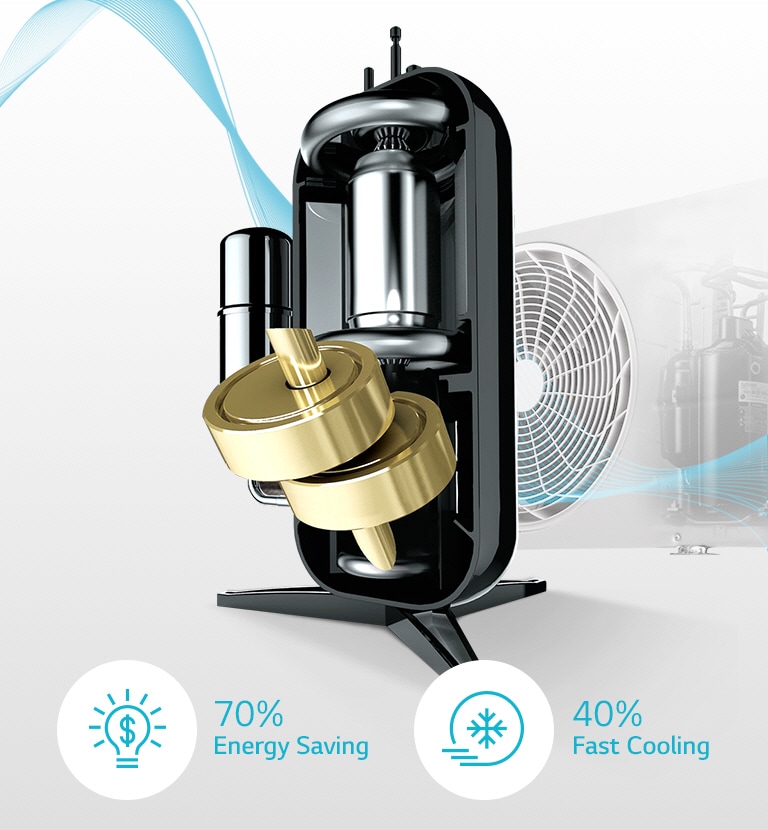

 Dual Inverter Compressor™1

Dual Inverter Compressor™

A compressor with wider rotational frequency saves more energy and has a higher speed cooling range
*The actual product image may differ from the image shown above.
Dual Protection Filter1

Dual Protection Filter

The Dual Protection Filter captures dust size over 10㎛ and bacteria.
Comfort Sleep1

Comfort Sleep

Comfort Sleep mode ensures the utmost comfort sleep environment by automatically adjusting 3 different functions(Indirect airflow/7hr off time set/Soft wind & sleep time logic) ,with the simple click of one button.
  • Auto Cleaning1

    Auto Cleaning

    The comprehensive auto cleaning function prevents the forming of bacteria and mold on the heat exchanger and thus provides a more pleasant and comfortable environment for the user.

  • Gold Fin™1

    Gold Fin™

    The Gold Fin™ ensures that the surface is more resistant to corrosion and enhances the durability of heat exchanger for a much longer period.

Fast Heating1

Fast Heating

4 Way Auto Swing adjusts airflow based on the surrounding environment, allowing for optimal distribution of warm air to living areas and enabling quick heating.

Dimensions

M11AJH
M11AJH

Summary

  • CAPACITY
    9,000 BTU
  • DIMENSION (W X H X D)
    837 x 308 x 189
  • COMPRESSOR
    Inverter Compressor With 10 Year Warranty
  • FEATURE
    Energy Saving & Fast Cooling

GENERAL SPECIFICATIONS

  • Cooling Capacity
    2,7 kW, 9,212 Btu/h
    Heating Capacity
    2,93 kW, 9,997 Btu/h
  • Compressor Type
    Twin Rotary
    Refrigerant
    R410A
  • EER
    3,70 W/W, 12,64 (Btu/h)/W
    COP
    3,80 W/W, 12,97 (Btu/h)/W
  • Type
    Wallmounted
    Colour
    White

INDOOR

  • Fan Type
    Cross Flow Fan
    Motor Output
    30W
  • Sound Pressure Level
    Cooling, Max: H: 42/M: 36/L: 28/SL: 21 dB(A)
    Heating, Max: H: 42/M: 36/L: 28 dB(A)
    Air Flow Rate
    Cooling, Max: 12.5/H: 9.3/M: 7.2/L: 2.7 m³/min
    Heating, Max: 13/H: 10/M: 7/L: 5.5 m³/min

OUTDOOR

  • Fan Type
    Propeller Fan
    Motor Type
    AC
  • Sound Pressure Level
    Cooling, Rated 51 dB(A)
    Heating, Rated 53 dB (A)
    Air Flow Rate
    Max 27,0 m³/min
  • Piping
    Ø 6.35, Ø 9.52
    Drain Hose Size
    O.D 21.5 mm, I.D 16.0 mm

POWER

  • Cooling
    729W
    Heating
    771W
  • Cooling Running Current
    3,50 A
    Heating Running Current
    3,60 A
  • Power Supply
    1Ø, 220 ~ 240V, 50 Hz
    Available Voltage Range
    187 ~ 276 V
  • Power Factor
    94%
    Circuit Breaker
    15 A

DIMENSIONS

  • Indoor Dimensions
    837 × 308 × 189 mm
    Indoor Weight
    8,4 kg
  • Outdoor Dimensions
    717 × 483 × 230 mm
    Outdoor Weight
    26,4 kg

BETWEEN INDOOR & OUTDOOR

  • Piping length
    Min: 3.6m/Standard: 7.5m/Max: 15 m
    Max Elevation Difference
    7m
  • Piping Connection Heat Insulation
    Both liquid and gas pipes
