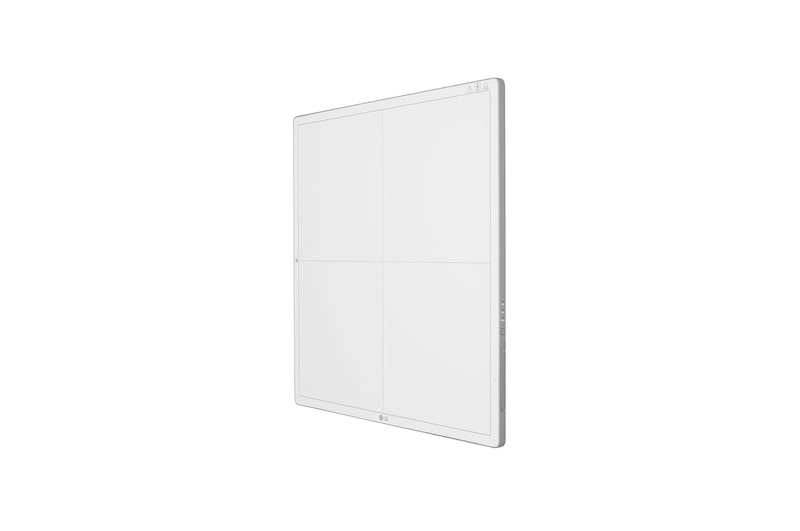

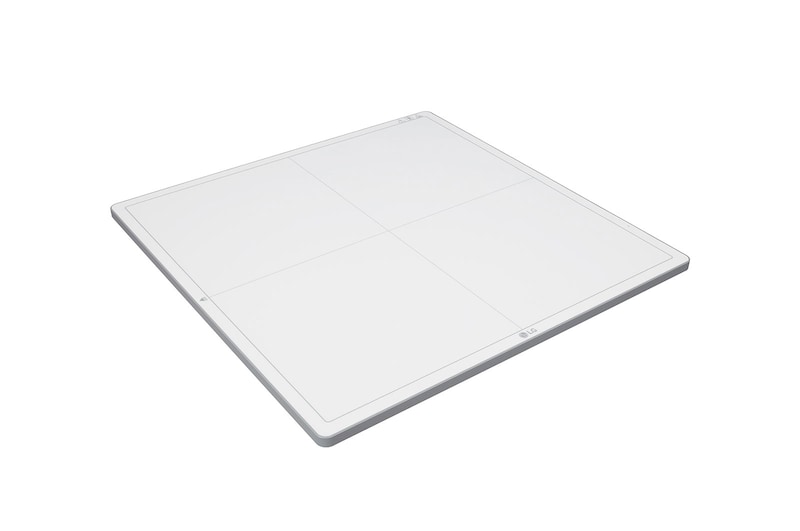

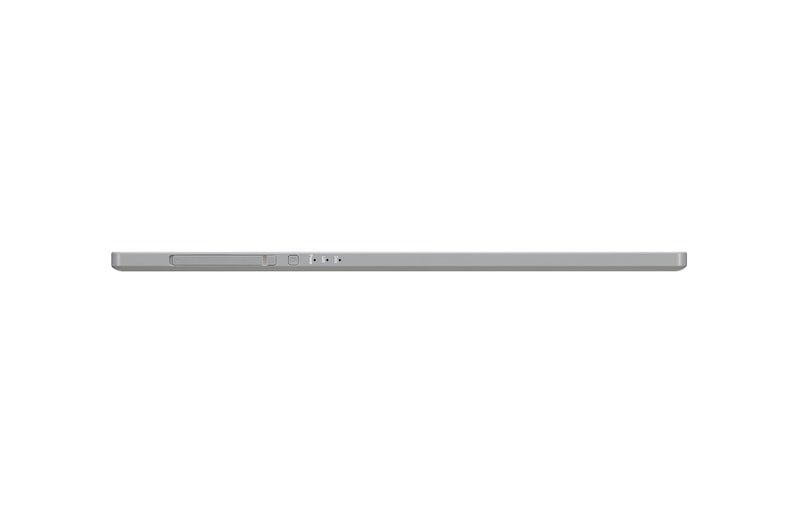

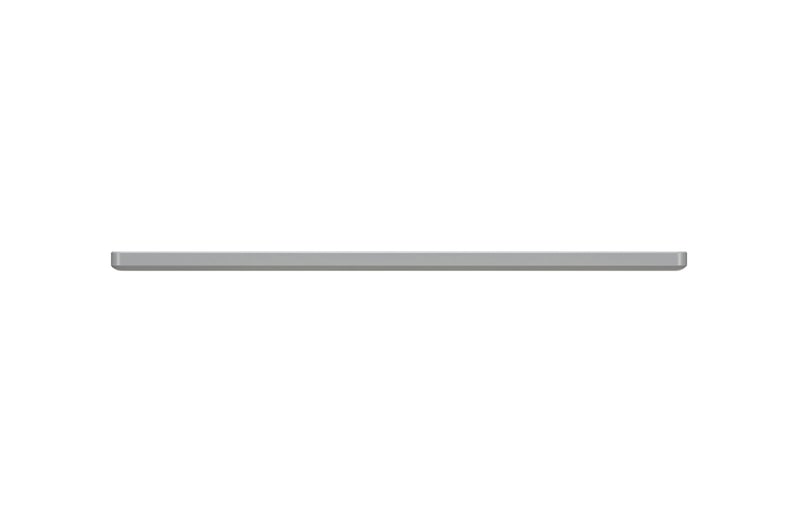

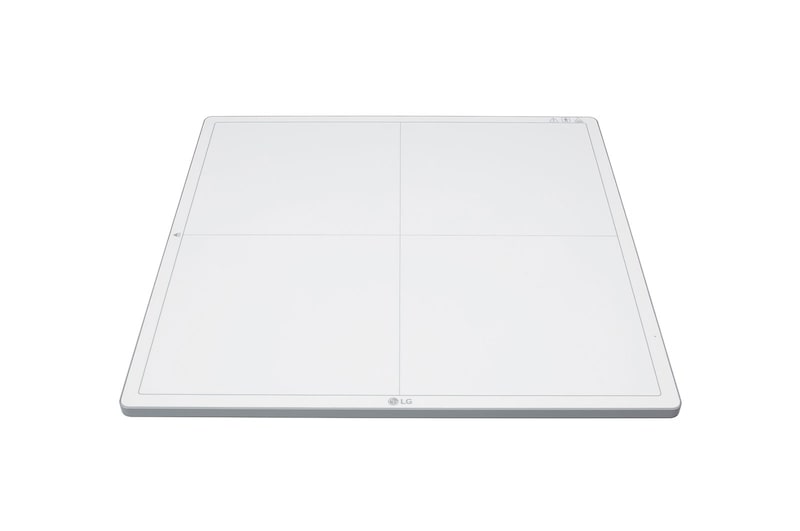

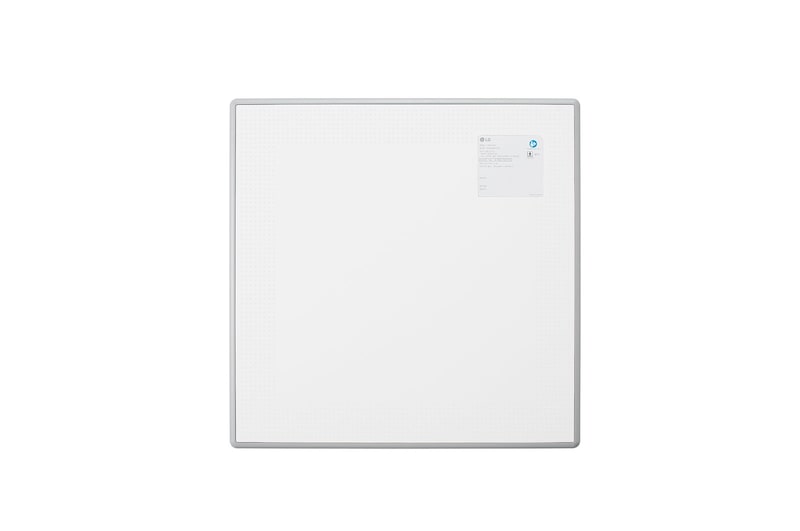

17HK701G-WP
17HK701G-WP
  • Kualitas Gambar Superior

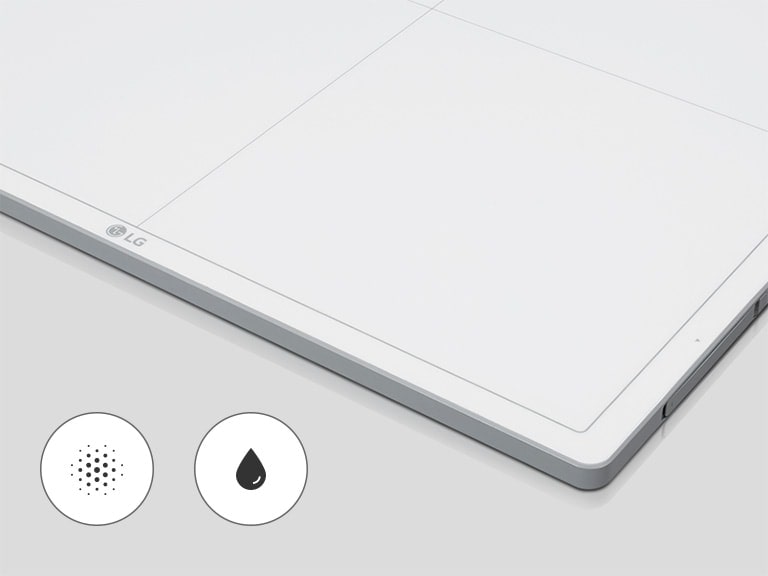

  • IP53 : Waterproof and Dustproof

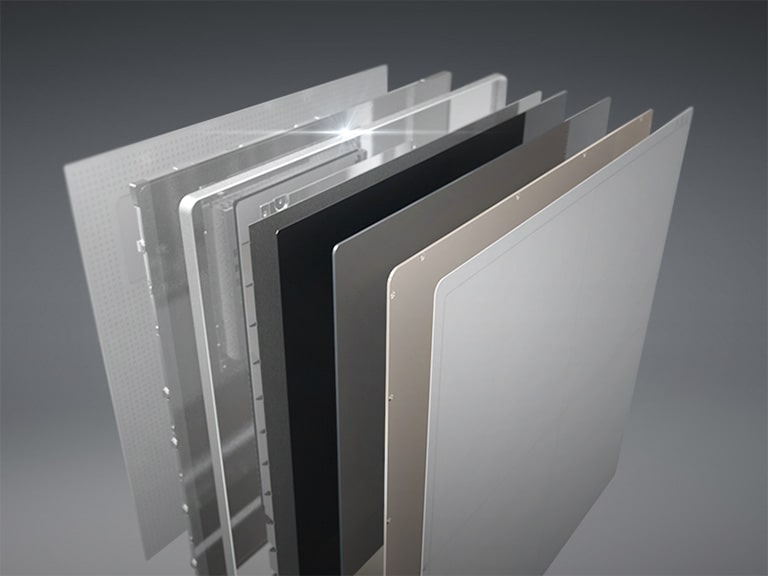

  • Magnesium & Carbon-fiber Body
  • Ketersediaan Gambar Yang Cepat
  • Magnesium & Carbon-fiber Body

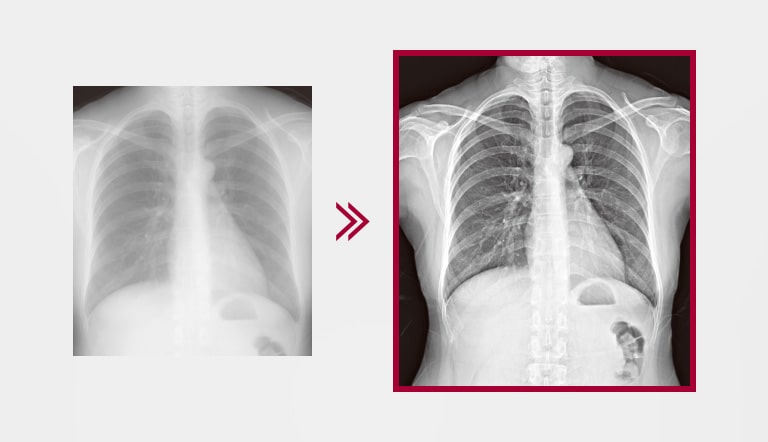

  • Peningkatan Detail Dengan MLP

component-OBScountrySelectDesc

17HK701G-WP

Daftar persediaan

*IP: Ingress protection (IP53 indicates Solids Level 5, and Liquids Level 3)
  • 3.4kg(7.5lb)

    Product Weight (Including Battery)

  • 300kg(661lb)

    Maximum Uniform Load

  • 100kg(220lb)

    Maximum Local Load

Meningkatkan Efisiensi Kerja

Ketersediaan Gambar Yang Cepat

LG DXD meningkatkan produktivitas dengan pemrosesan cepat. Hanya membutuhkan waktu 2 detik dengan terhubung atau 2.5 detik secara nirkabel untuk mendapatkan gambar mentah.
Ketersediaan Gambar Yang Cepat Ketersediaan Gambar Yang Cepat

SENSOR(PANEL)UNIT

  • TFT Type
    A-Si
    Scintillator
    Csi
  • Number of Pixels
    3072 x 3072
    Pixel Pitch
    140㎛
  • TFT Dimensions (WxDxH, mm)
    445 x 445 mm
    TFT Active Area (mm)
    430.08 × 430.08 mm
  • X-ray sensitive Pixel
    3072 x 3072
    X-ray sensitive Area (mm)
    430.08 x 430.08 mm
  • Sensor protection plate
    Carbon Fiber Plate
    Input
    DC24V/2.1A
  • Power consumption
    Typ. 19.0W (No Charging),
    30.5W (with Charging)
    Weight(kg) / Icld. Battery (Typ.)
    3.4kg
  • Maximum Load Weight
    Full (Uniform Load) : 150kg
    Local (Point Load) : 100kg
    Falling
    40cm
  • Cycle Time(Ethernet / WLAN)
    8sec/11 sec (Ethernet/WLAN)
    Full Image (Raw Image) (Typ.)
    Ethernet 3sec / WLAN 6 sec
  • Image-lag (Typ.)
    0.023%
    MTF @ 0.5lp/mm
    89%
  • MTF @ 1lp/mm
    74%
    MTF @ 2lp/mm
    47%
  • MTF @ 3lp/mm
    29%
    DQE @ 0.1lp/mm
    72%
  • DQE @ 0.5lp/mm
    67%
    DQE @ 1lp/mm
    61%
  • DQE @ 2lp/mm
    49%
    DQE @ 3lp/mm
    28%
  • Sensitivity ( lsb/uGy ) / Programmable
    Typ. 600/Yes
    Expected lifetime (Gy)
    100 Gy
  • Sensitivity degradation at the 'end of Life'
    20%
    Spatial Resolution (lp/mm)
    3.57 lp/mm
  • A/D Conversion
    16 bit
    Data Output
    16 bit
  • Auto Exposure Detection
    Yes
    X-ray generator voltage range
    40 to 150kVp
  • Unit Interface
    Connect to Control Box
    Power unit interface
    Connect to Control Box
  • WLAN
    IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz
    Wired Communication
    Yes
  • Detachable Wire (Easy to plug / unplug)
    Yes (Magnetic)
    X-ray period (ms) (=Window Time)
    Standard: 500 (~4000)
  • Sensor
    DXD Rotation & degree (0, 90, 180') to rotate image
    Drop count for SVC
    Shock monitoring
    Yes

CONTROL BOX

  • Power Input
    AC100 to 240V, 47-63Hz
    Power Output
    DC24V/2.1A
  • AC Power Cord
    1.5m, White
    Dimensions (WxDxH, mm)
    125 x 255 x 109.8 mm
  • Weight (kg)
    1.3kg

CABLES

  • Main Cable (DXD-Control Box), Length
    7m
    LAN Cable (Control Box-PC), Length
    10m (When Buyer requires this cable, is shipped according to BOM)
  • Sync Cable (Control Box - X-ray Generator), Length
    15m (When Buyer requires this cable, is shipped according to BOM)

BATTERY

  • Type
    Detachable
    Nominal Capacity
    30W (7.5V, 4000mAh)
  • Nominal Voltage
    7.5V
    Dimensions (WxDxH, mm)
    204.6 x 110.5 x 7.8
  • weight (g)
    229.86
    Operation Time
    Typ. 240 shots/6.0 hrs (Condition : Interval Time 90 sec)
  • Battery duration in standby status
    Typ. 13 hrs

BATTERY CHARGER

  • Input voltage
    19V
    Output voltage
    8.7V
  • Charging Time
    3 Hours
    Slot Q'ty
    3
  • Bundle battery Q'ty
    2
    Dimensions (WxDxH, mm)
    125 x 255.5 x 90.5 mm
  • Weight (kg)
    0.9kg

AC ADAPTER FOR BATTERY CHARGER

  • Dimensions (WxDxH, mm)
    134 x 59.8 x 31 mm
    DC Cable length
    1,500mm
  • AC Power Cord
    Yes
    Input
    100 ~ 240VAC
  • Output
    19V/3.42A

ENVIRONMETAL

  • Storage Temperature
    -20 to 60 ℃
    Storage Humidity
    Less than 90% RH, No condensation
  • Storage Pressure
    50 ~ 106 kPa
    Storage Attitude
    Less than 12,192 m
  • Operating Temperature
    10 to 35 ℃
    Operating Humidity
    Less than 80% RH, No condensation
  • Operating Pressure
    70 ~ 106 kPa
    Operating Attitude
    Less than 5000 m

WATERTIGHTNESS

  • Watertightness
    IP41
    Cleaning and desinfecting products
    Isopropanel 100%, Ethanol 70%, Cidex OPA, 0.9% Nacl solution
  • Anti-Bacteria
    JIS Z 2801 0.99%

WARRANTY

  • Warranty
    36 Month

ACCESSORIES

  • CD
    Manual, Calibration SW
    Cable
    Power cord, Manin Cable 1m (LAN Cable, Sync cable Option)
  • Other
    Book Manual, Outgonig Inspection sheet
