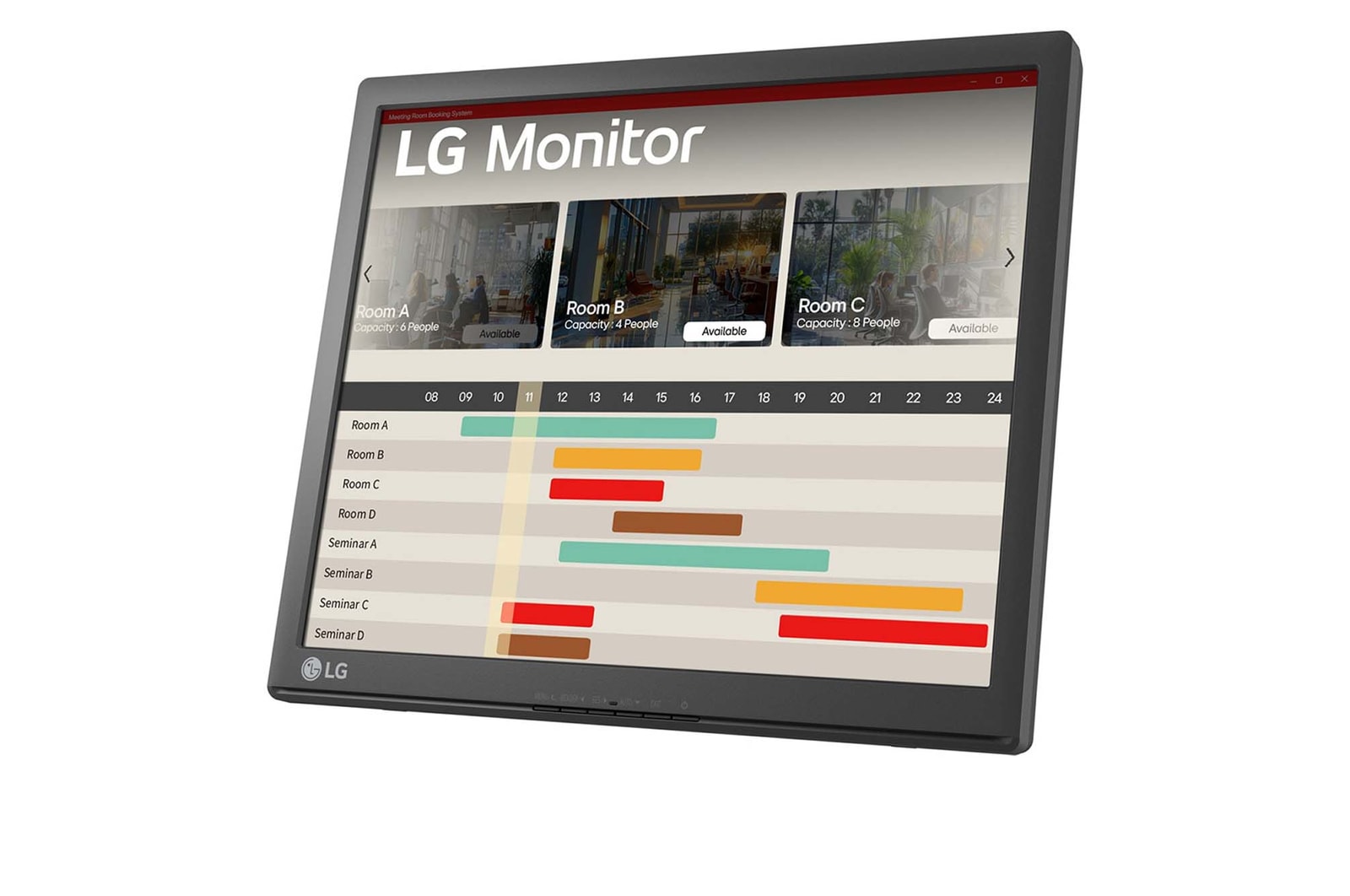

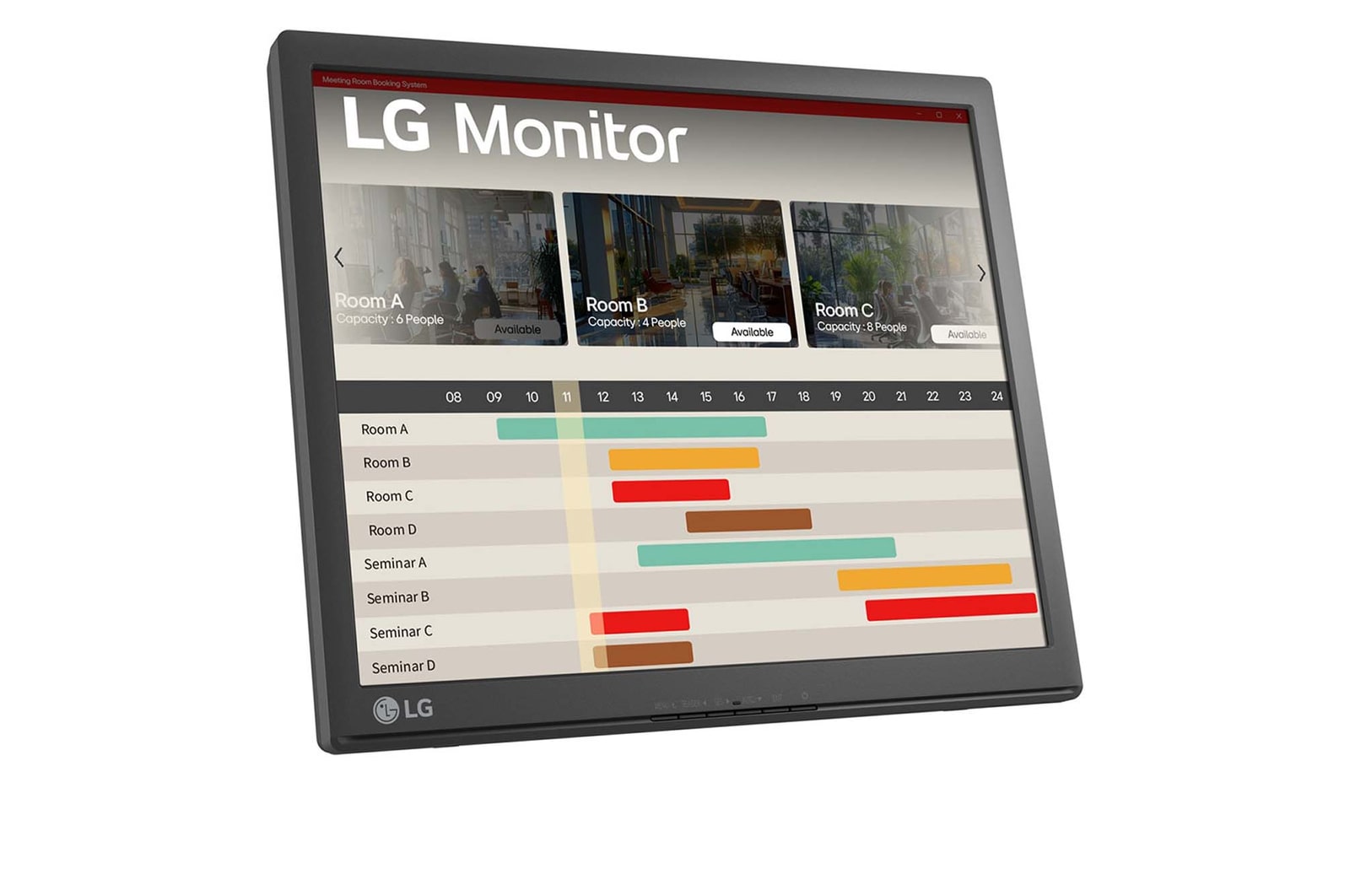

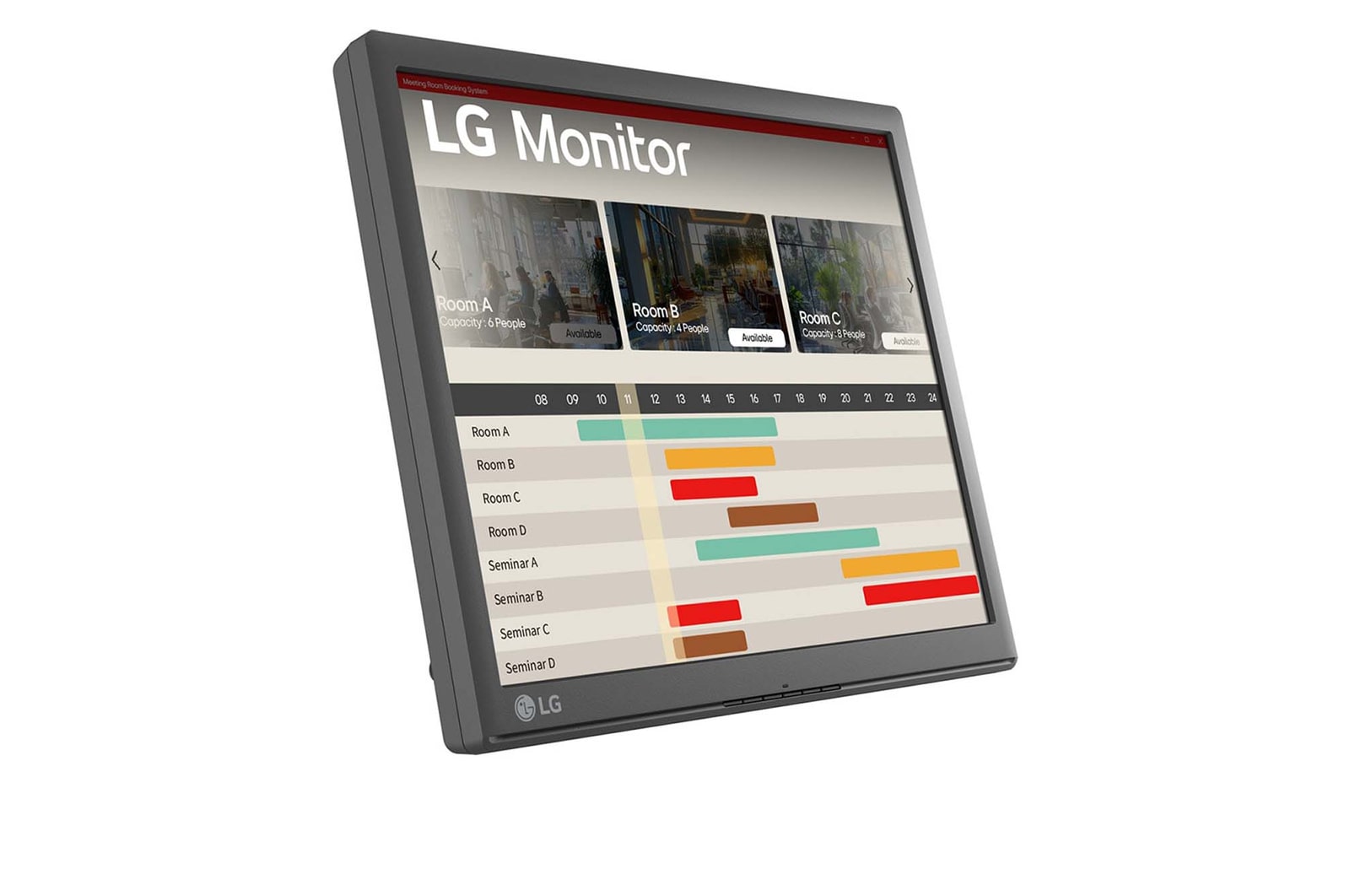

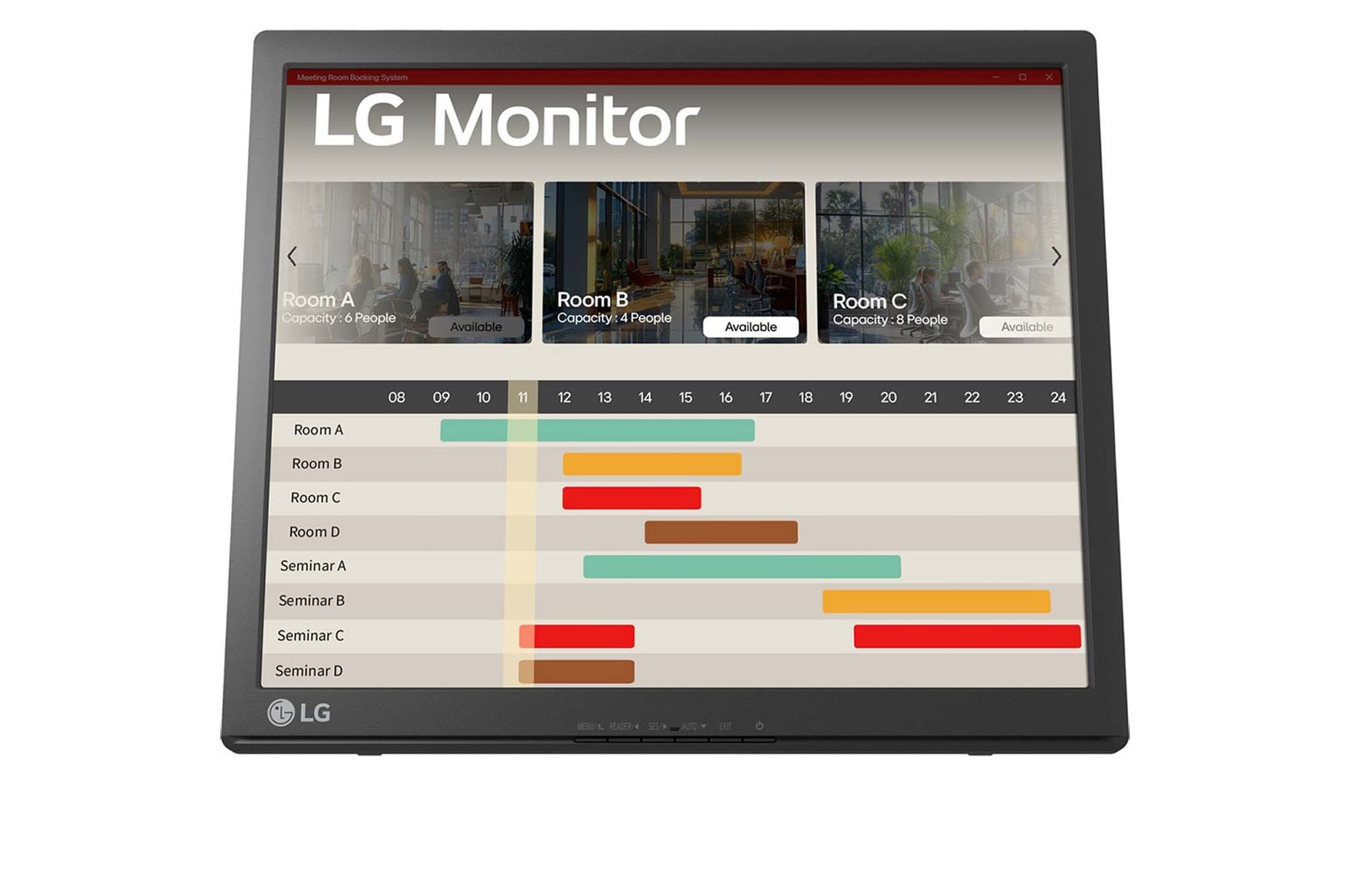

17” SXGA touch display with 5ms response time
LG SXGA (1280x1024) touchscreen monitor allows you to operate efficiently with your fingertips, enhancing work productivity and comfort. Plus, you can enjoy realistic videos with less screen stuttering, thanks to the fast 5ms response time.
A woman is touching LG SXGA touchscreen monitor.
*The images simulated to enhance feature understanding. It may differ from actual use.
*Response Time : 5ms (On/Off, Not Support OD)

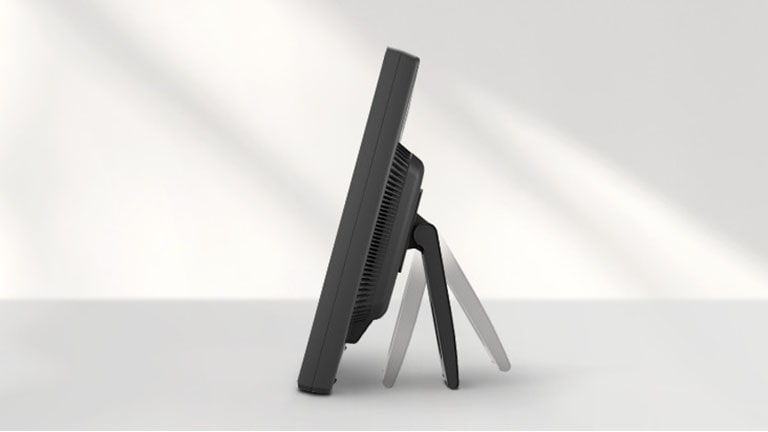

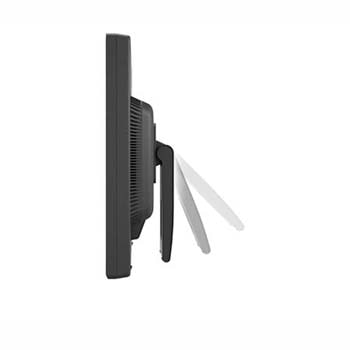

Ergonomic design

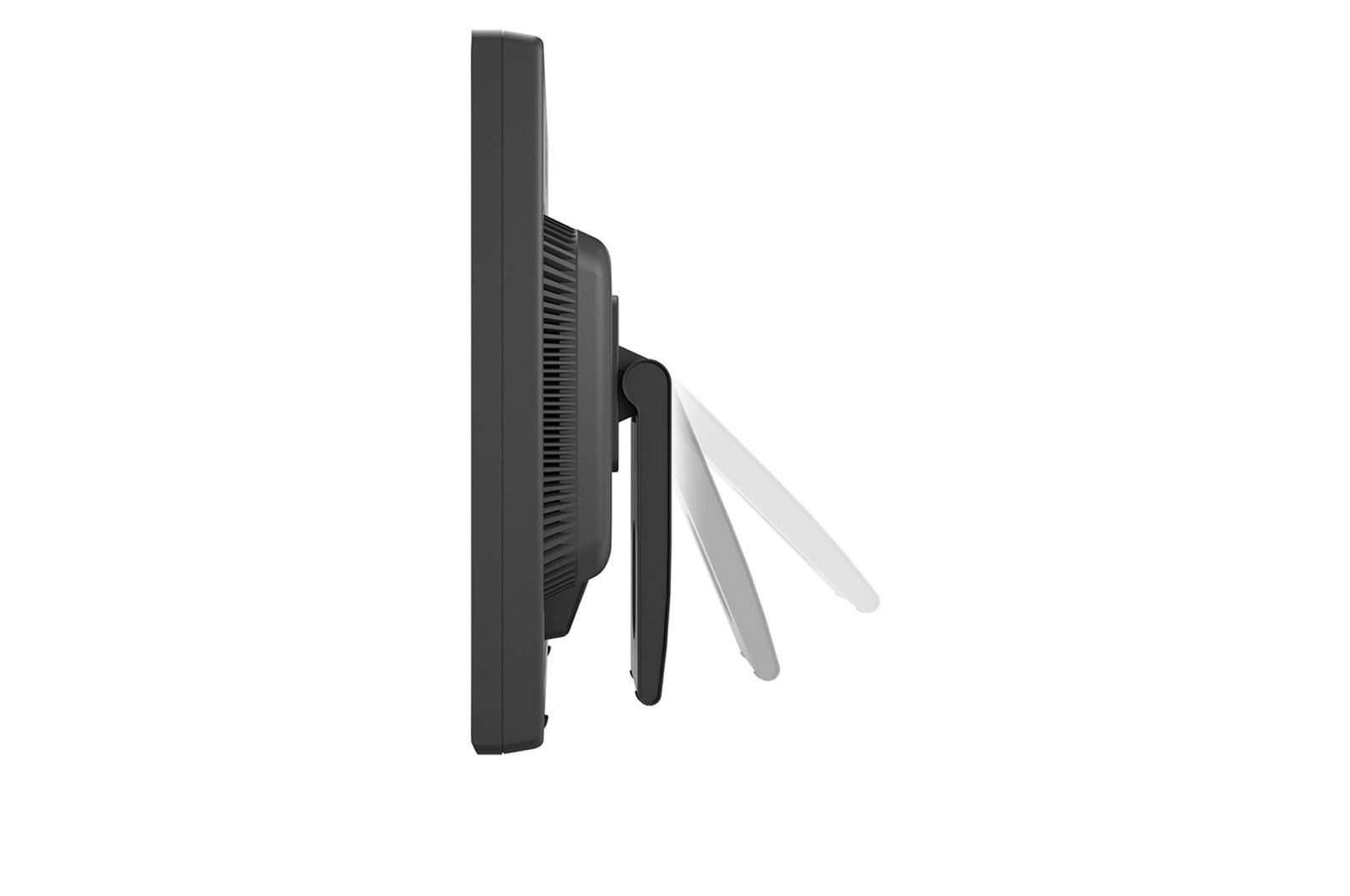

A stand with adjustable tilt enables a comfortable working environment, helping you sit comfortably for extended periods while working.
*The images simulated to enhance feature understanding. It may differ from actual use.
*Tilt range: 15 ~ 66°

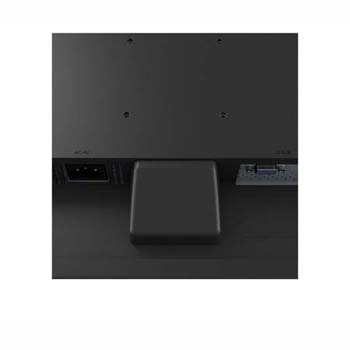

Integrated power module
By providing built-in power, workstations can be designed with a streamlined and clutter-less layout. This allows for better space utilization and organization, creating a cleaner and more efficient work environment.

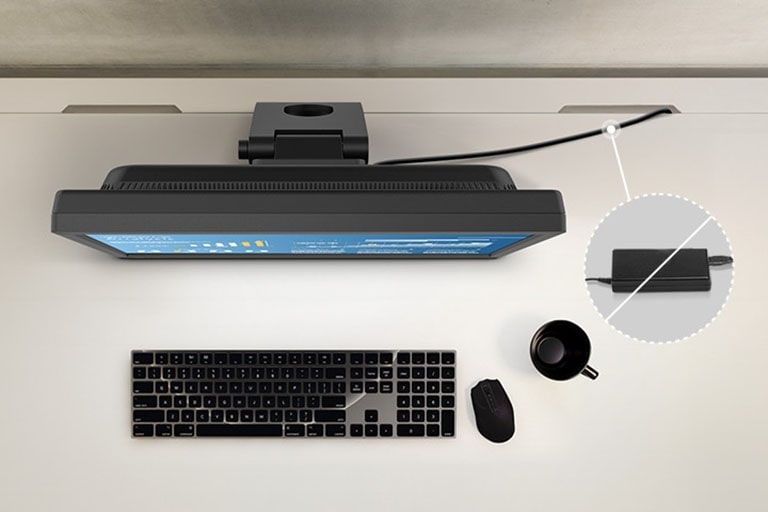

A clean and efficiently used desk because of LG SXGA touchscreen monitor with built-in power.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The keyboard and mouse are not included in the package (sold separately).
Smart Energy Saving
Our Smart Energy Saving mode reduces power consumption through a luminance compensation algorithm while keeping your monitor bright. Conserve energy without lowering the brightness of the monitor.
*The images simulated to enhance feature understanding. It may differ from actual use.
*Luminance compensation algorithm: Adjusting backlight and color pixel current automatically using Scaler IC.
Size [Inch]
17
Resolution
1280 x 1024
Panel Type
TN
Aspect Ratio
5:4
Color Gamut (Typ.)
NTSC 72%(CIE1931)
Brightness (Typ.) [cd/m²]
200 cd/m²
Response Time
5ms (On/Off, t Support OD)
Size [Inch]
17
Aspect Ratio
5:4
Panel Type
TN
Surface Treatment
AntiGlare
Response Time
5ms (On/Off, t Support OD)
Resolution
1280 x 1024
Pixel Pitch [mm]
0.264 x 0.264
Color Depth (Number of Colors)
16.7M
Viewing Angle (CR≥10)
170º(R/L), 160º(U/D)
Brightness (Typ.) [cd/m²]
200 cd/m²
Contrast Ratio (Typ.)
1000:1
Color Gamut (Typ.)
NTSC 72%(CIE1931)
Brightness (Min.) [cd/m²]
150 cd/m²
Contrast Ratio (Min.)
600:1
Color Bit
8bit
Size [cm]
43.18 cm

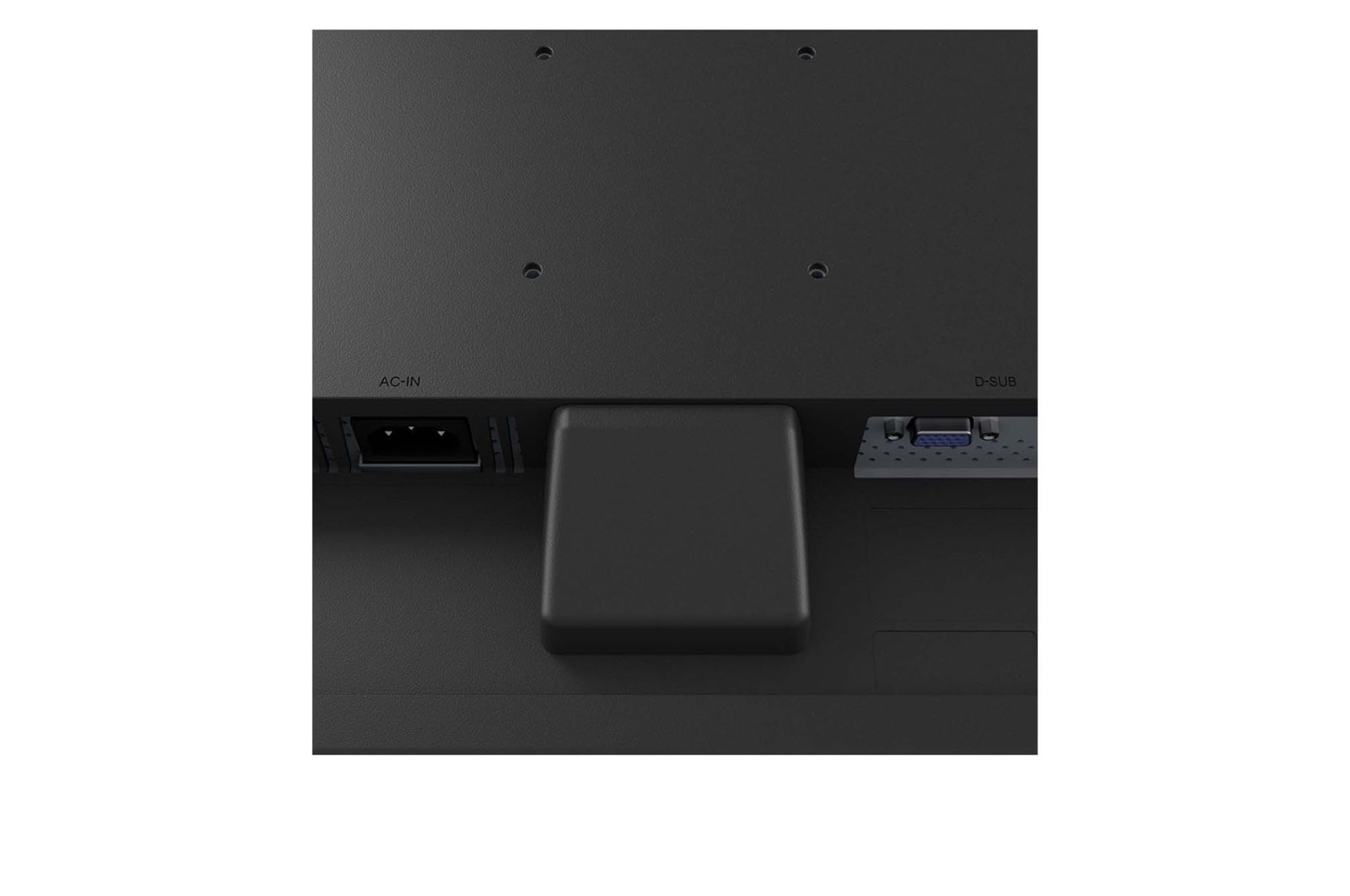

D-Sub
YES(1ea)
USB Upstream Port
1x USB2.0
D-Sub (Max. Resolution at Hz)
1280 x 1024 at 75Hz
Smart Energy Saving
YES
Others (Features)
Single Point Touch
Reader Mode
YES
Display Position Adjustments
Tilt
Borderless Design
Normal

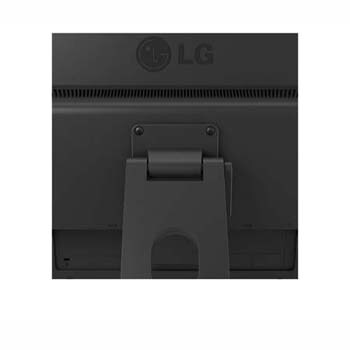

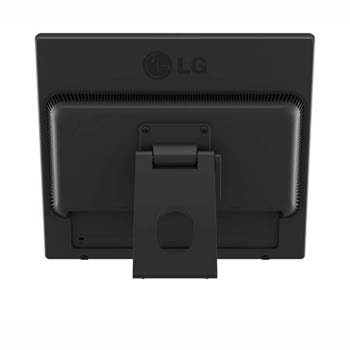

Wall Mountable [mm]
75 x 75 mm
Dimension in Shiping (W x H x D) [mm]
429×154×377
Dimension with Stand (W x H x D) [mm]
370 x 95 x 315
Dimension without Stand (W x H x D) [mm]
370 x 62 x 315
Weight with Stand [kg]
3.3
Product name
HD
Year
Y24
Power Consumption (Sleep Mode)
Less than 0.3W
Power Consumption (DC Off)
Less than 0.3W
AC Input
100~240V (50/60Hz)
Type
Builtin Power
DC Output
28W(19V,1.6A)
D-Sub
YES
Power Cord
YES
USB A to B
YES
UL (cUL)
YES
