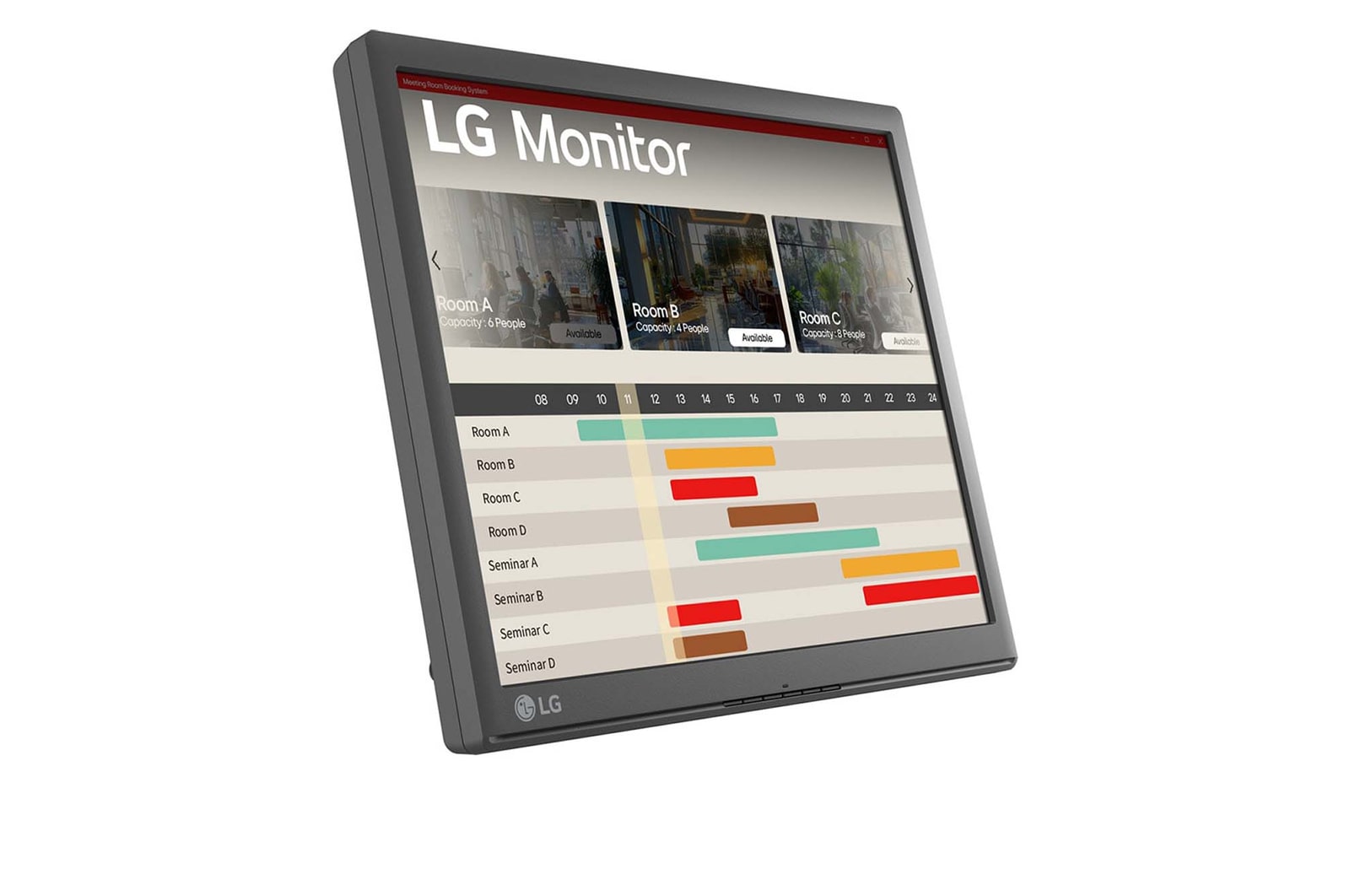

- 17" SXGA (1280x1024) TN Panel
- Single Touch
- 200 cd/m² Brightness
- Reader Mode
- 1x D-Sub/VGA ; 1x USB 2.0
- Tilt Functionality
All Spec
DISPLAY
Size [Inch]
17
Aspect Ratio
5:4
Panel Type
TN
Surface Treatment
AntiGlare
Response Time
5ms (On/Off, t Support OD)
Resolution
1280 x 1024
Pixel Pitch [mm]
0.264 x 0.264
Color Depth (Number of Colors)
16.7M
Viewing Angle (CR≥10)
170º(R/L), 160º(U/D)
Brightness (Typ.) [cd/m²]
200 cd/m²
Contrast Ratio (Typ.)
1000:1
Color Gamut (Typ.)
NTSC 72%(CIE1931)
Brightness (Min.) [cd/m²]
150 cd/m²
Contrast Ratio (Min.)
600:1
Color Bit
8bit
Size [cm]
43.18 cm

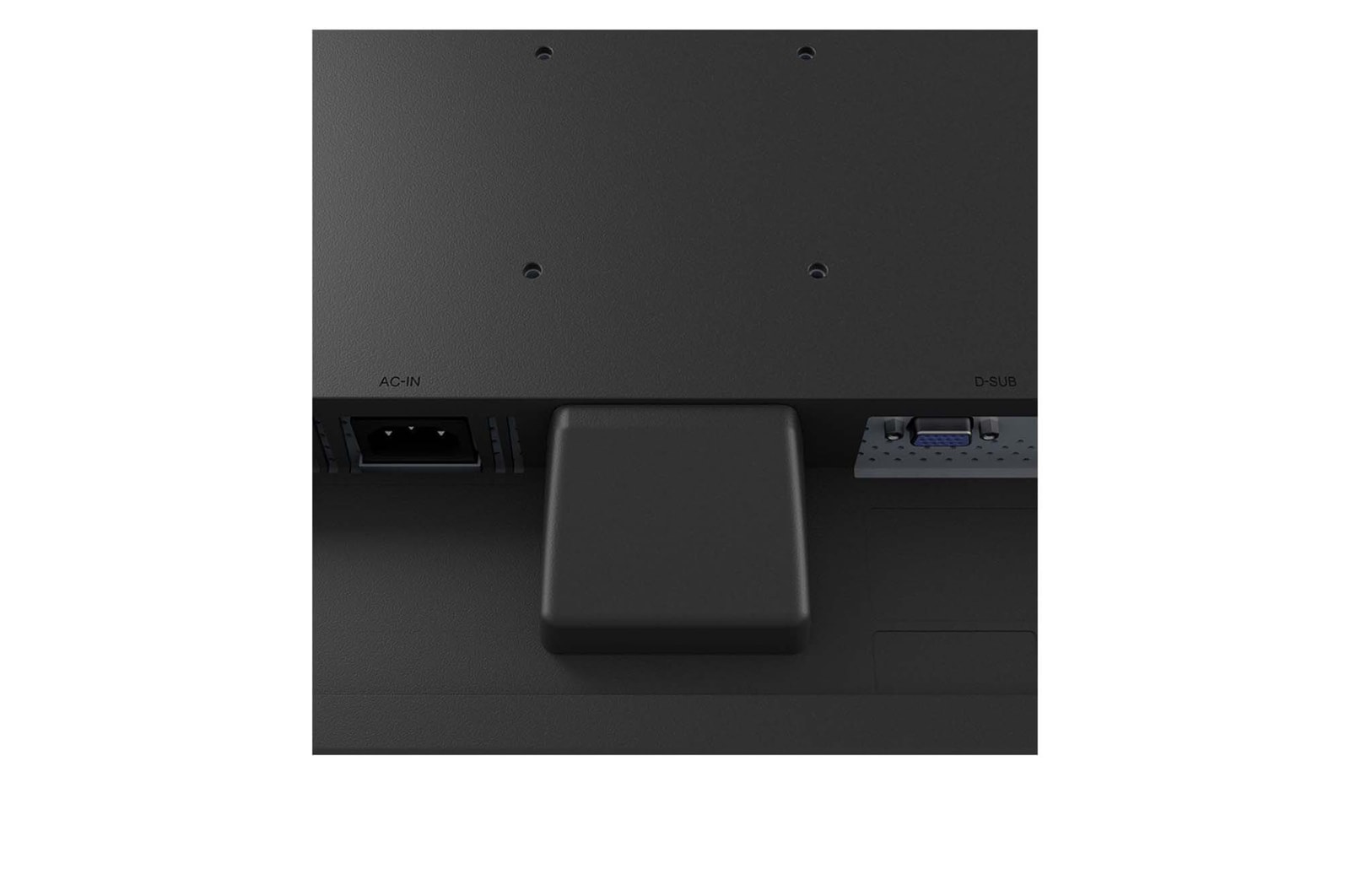

CONNECTIVITY
D-Sub
YES(1ea)
USB Upstream Port
1x USB2.0
D-Sub (Max. Resolution at Hz)
1280 x 1024 at 75Hz
FEATURES
Smart Energy Saving
YES
Others (Features)
Single Point Touch
Reader Mode
YES

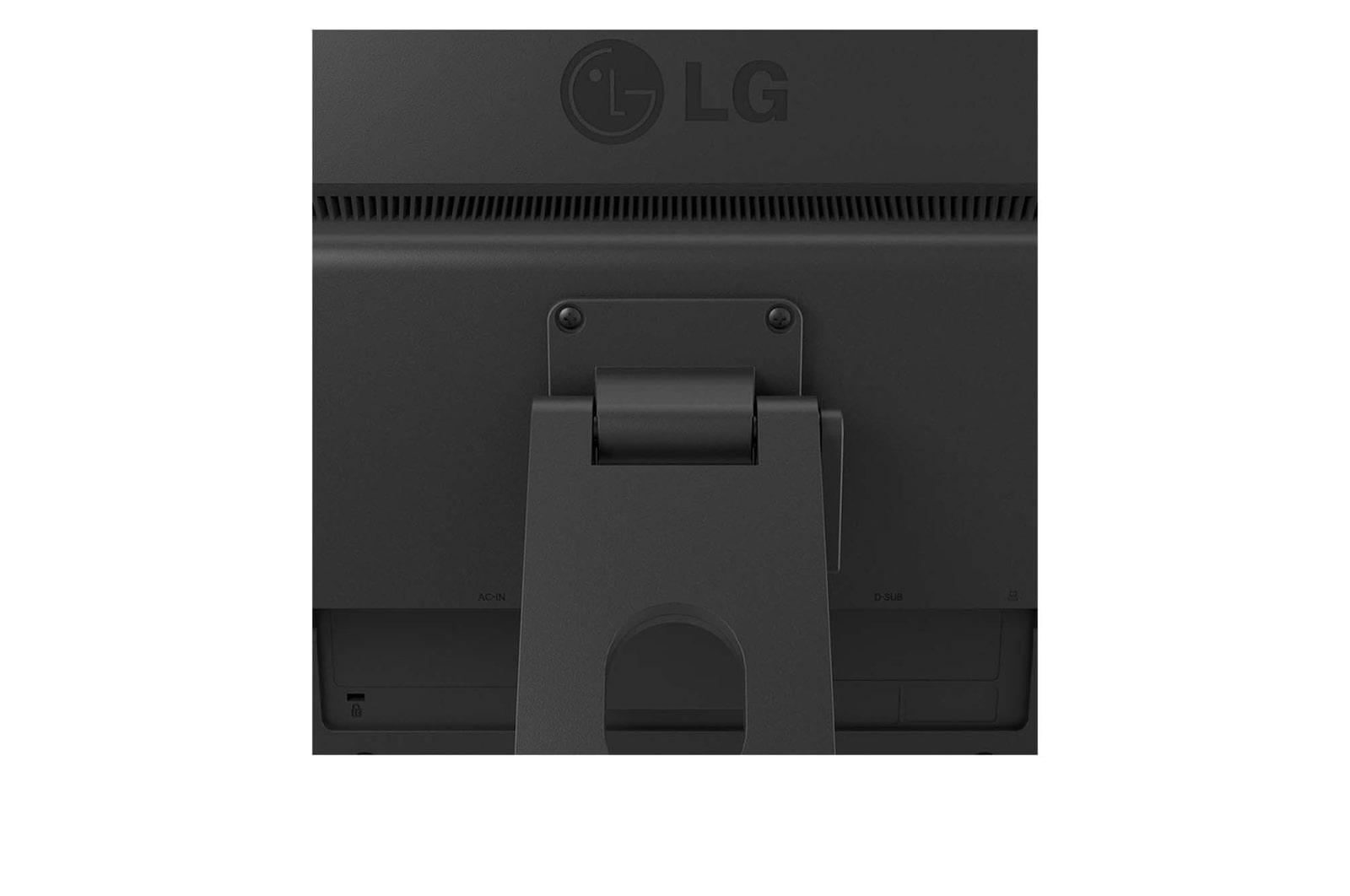

MECHANICAL

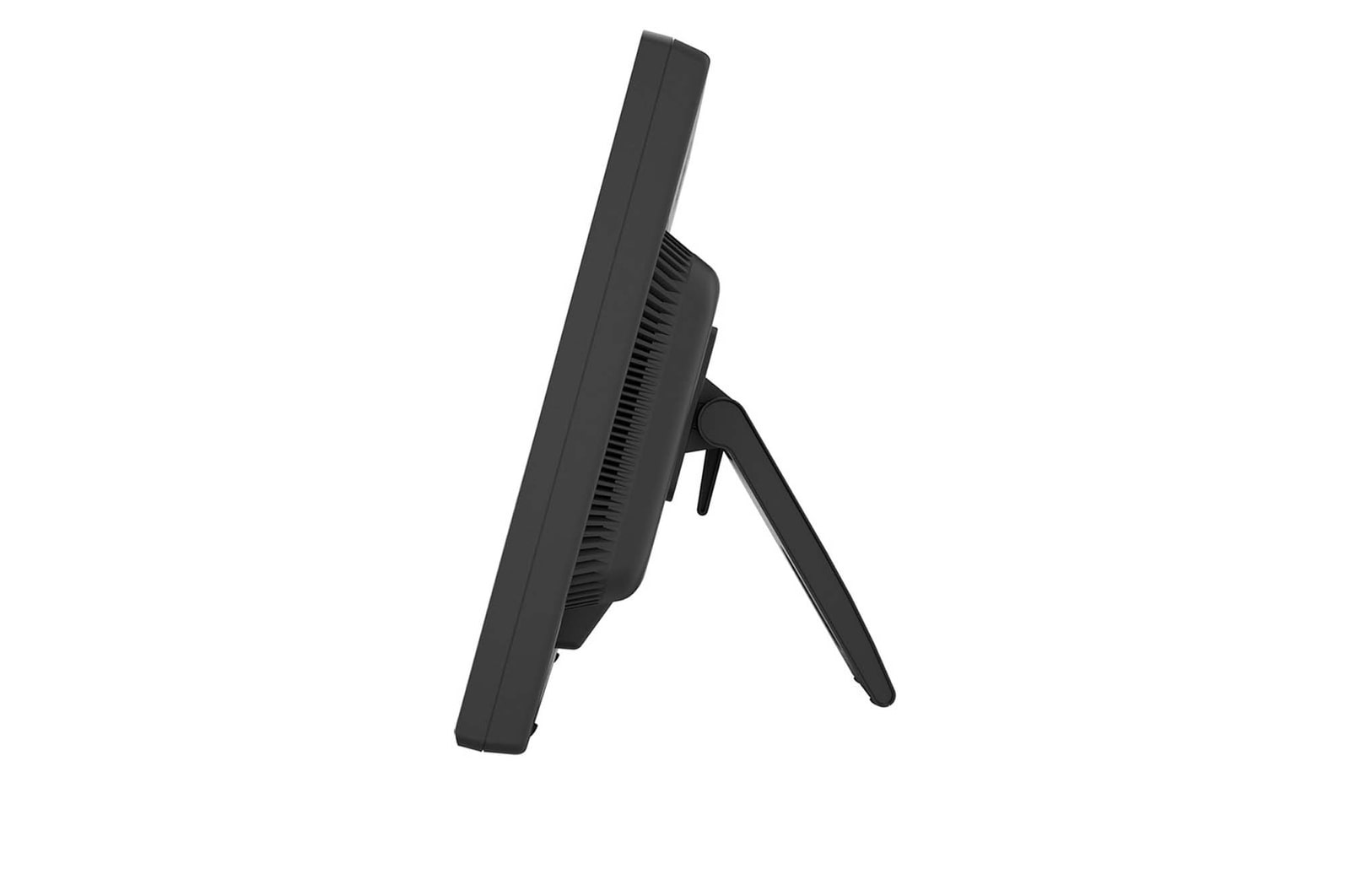

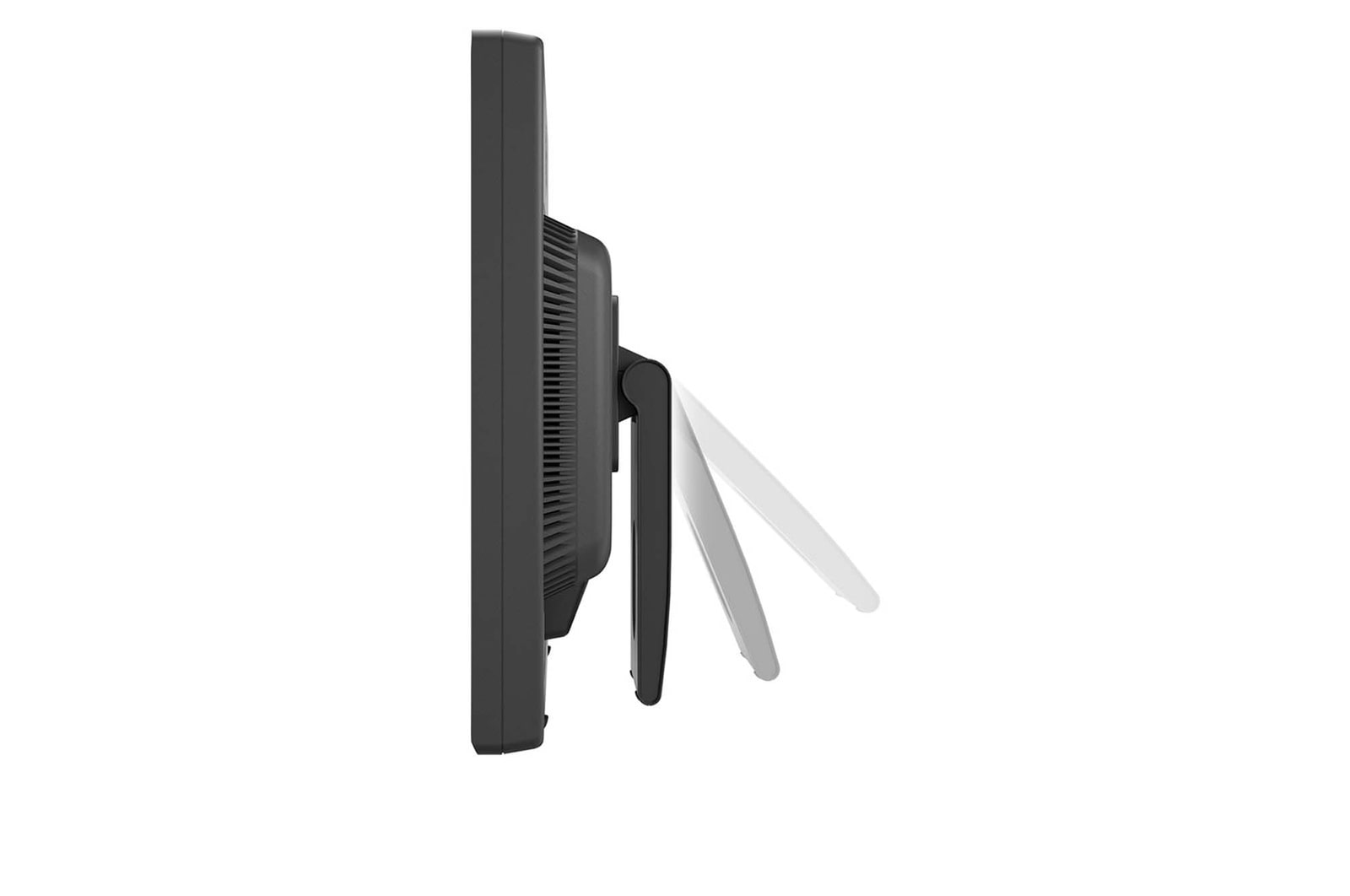

Display Position Adjustments
Tilt
Borderless Design
Normal
Wall Mountable [mm]
75 x 75 mm
DIMENSIONS/WEIGHTS
Dimension in Shiping (W x H x D) [mm]
429×154×377
Dimension with Stand (W x H x D) [mm]
370 x 95 x 315
Dimension without Stand (W x H x D) [mm]
370 x 62 x 315
Weight with Stand [kg]
3.3
INFO
Product name
HD
Year
Y24
POWER
Power Consumption (Sleep Mode)
Less than 0.3W
Power Consumption (DC Off)
Less than 0.3W
AC Input
100~240V (50/60Hz)
Type
Builtin Power
DC Output
28W(19V,1.6A)
ACCESSORY
D-Sub
YES
Power Cord
YES
USB A to B
YES
STANDARD
UL (cUL)
YES
