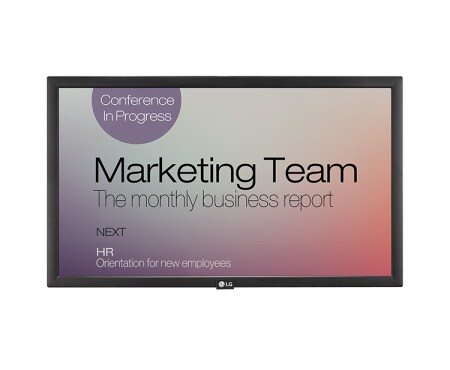

Small Signage 22SM3B

Especificaciones

Soporte

Recurso

Small Signage 22SM3B

Small Signage 22SM3B

22SM3B
Imprimir

Todas las especificaciones

CONECTIVIDAD

  • Entradas

    HDMI, RGB, Audio, USB 3.0

  • Control externo

    RS232C In, IR Receiver, RJ-45

PANTALLA

  • Tamaño de pantalla

    21.5

  • Tecnología de Panel

    IPS

  • Relación de aspecto

    16:9

  • Resolución

    1920 x 1080 (FHD)

  • Brillo

    250 nits

  • Contraste Dinámico

    4,000,000:1

  • Angulo de visión

    178/178

  • Tratamiento de superficiales

    Hard coating (3H), Anti-glare treatment of the front polarizer (Haze 1%(Typ.))

  • Orientación de pantalla

    Vertical / Horizontal

COMPATIBILIDAD DE SOFTWARE

  • Supersign

    SuperSign-c, SuperSign-w lite

ESPECIFICACIONES FÍSICAS

  • Tamaño de bisel

    16.3mm (T/R/L/B)

  • Peso

    7.9lbs

  • Color

    Negro

  • Dimensiones Monitor

    20.1" x 11.9" x 2.1"

  • Dimensiones caja

    22.2 " x 14.1" x 4.1"

  • Peso con caja

    10.4lbs

  • VESA TM Standard Mount Interface

    100 x 100

CARACTERÍSTICAS PRINCIPALES

  • Plantillas enbebidas

    SI

  • Método ISM

    SI

  • WIFI

    802.11n combo built-in

  • Clonación por USB

    SI

  • Contenidos programables programación

    SI

  • MODO FM

    SI

  • Ajustes locales automáticos de tiempo

    SI

  • Activación LAN

    SI

  • Modo pivot

    SI

  • Memoria interna

    4GB libre

CERTIFICACIONES

  • Safety

    UL / cUL / CB / TUV

  • EMC

    FCC Class "B" / CE

ACCESORIOS

  • Opcionales

    Pixel sensor (KT-SP0)

  • Básicos

    Control remoto (incluye 2 baterias) cable de poder, QSG, cable RGB,

Para obtener acceso a más documentación y recursos técnicos, visita la LG B2B Partner Portal.
