All Spec
PRODUCT INFORMATION
-
Product Type
-

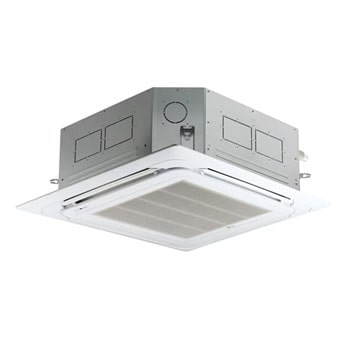

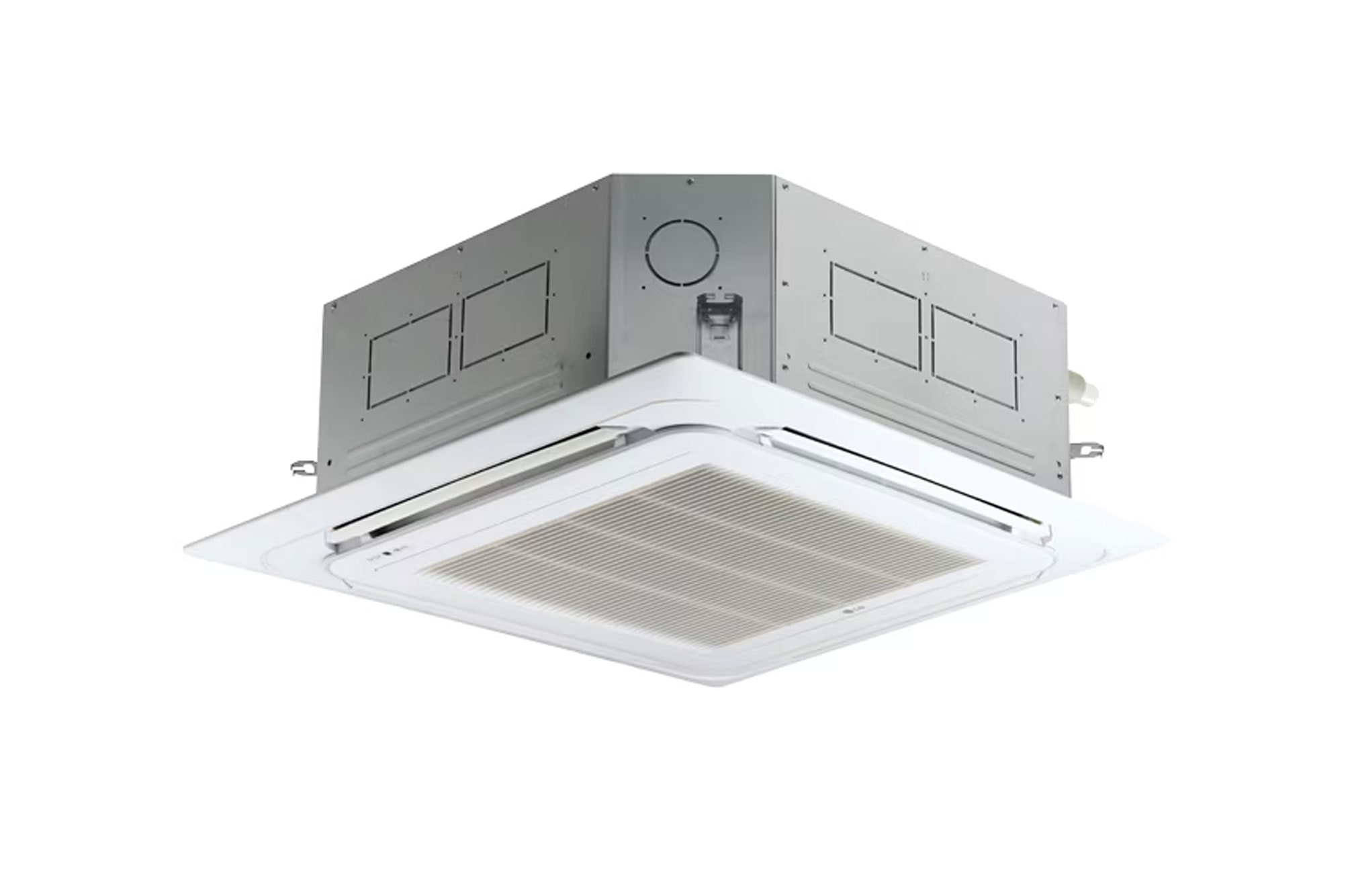

Sitting cassette canopy
-
Cooling / heating
-
Cooling and heating
-
Alanfrr Technology
-
Yes
-
Fast cooling
-
Yes
-
Super energy saving
-
Yes
-
Coolers protection of the environment
-
Yes
-
High-ceiling setting
-
Yes
-
Purification of the Clean Air
-
Yes
-
Separately run blades for guidance
-
Yes
-
Noise internal unit level (H / M / L)
-
43/41/39 dB (A)
-
Operating range
-
Up to 54 ° C
GENERAL SPECIFICATIONS
-
Power supply (ø / V / Hz)
-
1/230/60
-
Cooling capacity
-
10.0 Kw (34,100 Btu / h)
-
Energy used
-
2.9 kW
-
Energy Efficiency %
-
11.6 Btu / hr / W
-
COP
-
3.4 W / W
INTERNAL UNITY
-
AC current
-
1.0 A.
-
Air flow rate (H / M / L)
-
30.0 / 28.0 / 26.0 CMM
-
Body dimensions (width × height × depth)
-
840 × 288 × 840 mm
-
Motherboard dimensions (width × height × depth)
-
950 × 25 × 950 mm
-
Net weight
-
24.6 kg
ODU
-
AC current
-
A 12.8
-
Compressor Type
-
Rotary double
-
Sound level (H)
-
48 dB (A)
-
(Width × height × depth)
-
950 × 834 × 330 mm
-
Net weight
-
65 kg
-
Delivery pipes (liquid)
-
Ø 9.52 mm
-
Delivery pipes (gas)
-
Ø 15.88 mm
-
Exchange (external / internal)
-
Ø 32 mm / 25 mm
-
.toul Pipes maximum (the main pipeline)
-
50 m
-
Vertical height maximum. (internal external)
-
30 m
THE POSSIBILITY OF INSTALLATION
-
Houses
-
Yes
-
Shops
-
Yes
-
Restaurants
-
Yes
-
Offices
-
Yes
