Full HD Standard Signage

32SM5J-B

Key Features

Brightness(Typ.) : 400 cd/m²
Bezel : 13 mm (T/R/L), 18 mm (B)
Depth : 55.5 mm
Interface : HDMI(3) / USB 2.0 / RS232C / RJ45 / IR / Audio Out
Built-in Speaker : 10W + 10W

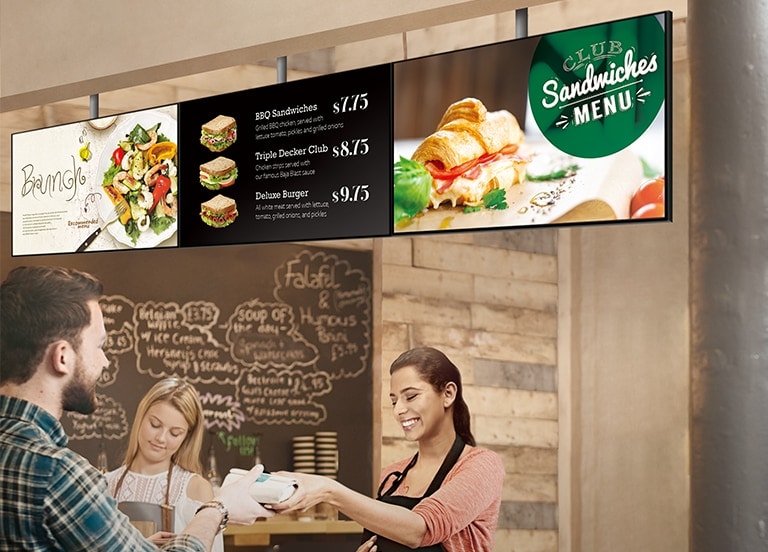

The staff in a sandwich store is handing a sandwich to a customer. The SM5J series showing a menu board is installed above them, displaying sandwich menus with brunch promotions.

* All images in this web page are for illustrative purposes only and may differ from the actual product.

This image shows that several tasks can be done at the same time with the intuitive GUI.

High-Performance with webOS 6.0

webOS 6.0, upgraded in SoC and web engine, is available on SM5J for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.

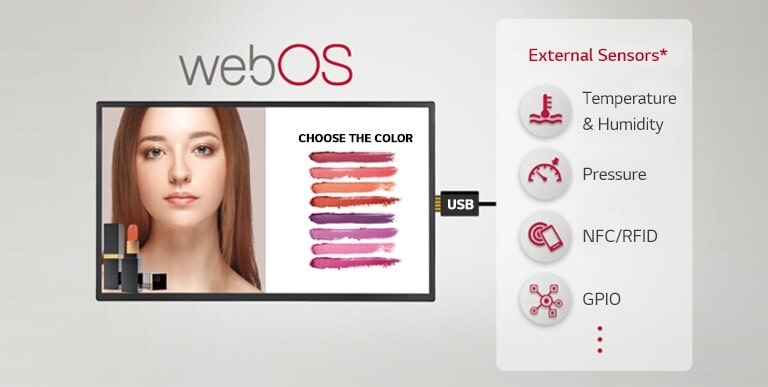

The image shows that various external sensors and signage can be connected through a USB plug-in, providing easy value-added solutions.

Various Sensor Connection

LG webOS smart signage platform helps to easily provide additional solutions by supporting simple connections with external sensors* such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.

* External sensors need to be purchased separately and tested for compatibility with webOS platform.

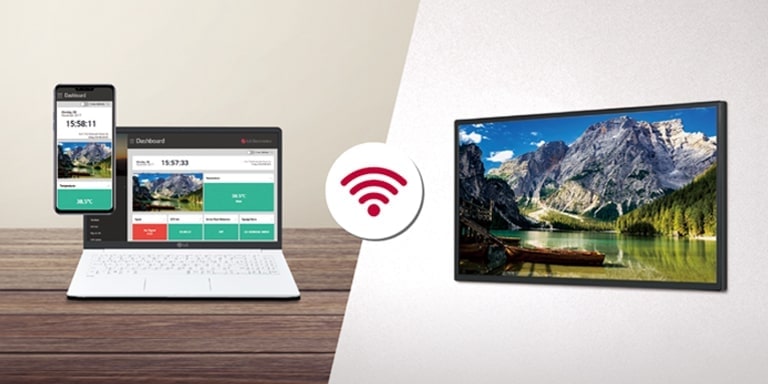

This image shows that the content set on the Control Manager page and the content displayed on the signage are the same. It indicates that the SM5J series can be remotely controlled and monitored in a different place with devices such as a mobile phone and a laptop, through the Control Manager.

Mobile & Web Monitoring

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of the SM5J series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations.

* The mobile devices need be connected with the Signage IP address and can control one Signage at a time.

** Control Manager is optimized for Google Chrome 56 version and above.

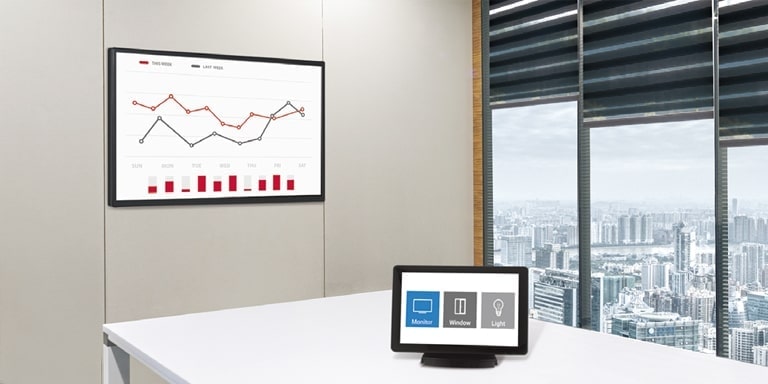

There is SM5J installed in the meeting room with one of AV control system, which helps users control AV of the SM5J series.

Compatible with AV Control System

The SM5J series supports Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network based control

Real-Time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

The LG employee is remotely monitoring the SM5J series installed in a different place.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately.

LG's Simple Advertisement Helper, Promota

Using LG's Promota* application, downloadable on a mobile device, you can easily create your own display contents. With Promota, you can add text and images to create an online profile for your business as well as deliver information such as event news, seasonal menus, promotions, and even more while recommending easy-to-use templates relevant to your industry.

The store owner is simply using a mobile phone to create menu contents on the menu board.

* Promota can be downloaded from the App Store and Google Play store. (Not available for Europe/CIS Region)

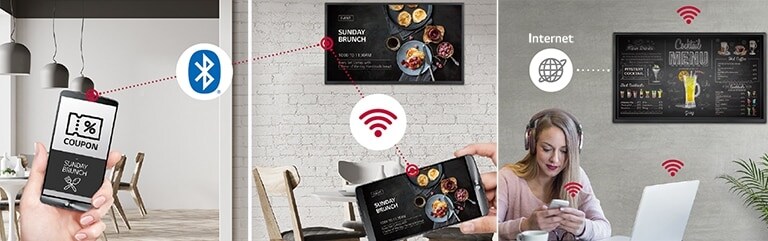

Smart Signage Platform

Real-Time Promotion

With Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time.

Content Sharing

Content Mirroring among devices is available on a Wi-Fi network.

Wireless Access Point

The SM5J series operates as a virtual router which can be an wireless access point for mobile devices.

All Spec

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, polski

ACCESSORY

Basic
Remote Controller(include battery 2ea), Power Cord, QSG, HDMI Cable, Phone to RS232C Gender
Optional
Stand(ST-322T)

POWER

Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power

SOUND

Speaker (Built-in)
YES (10W x 2)

OPS COMPATIBILITY

OPS Power Built-in
NO
OPS Type compatible
NO

CERTIFICATION

EMC
FCC Class "A" / CE
ePEAT(US only)
NO
ERP / Energy Star
NO / YES
Safety
CB / NRTL

ENVIRONMENT CONDITIONS

Operation Humidity
10 % to 80 %
Operation Temperature
0 °C to 40 °C

POWER CONSUMPTION

BTU (British Thermal Unit)
188 BTU/Hr(Typ.), 256 BTU/Hr(Max.)
DPM
0.5W
Max.
75W
Power off
0.5W
Smart Energy Saving (70%)
38.5W
Typ.
55W

MECHANICAL SPECIFICATION

Weight (Head)
5.7Kg
Bezel Color
Black
Bezel Width
T/R/L: 13mm, B: 18mm
Carton Dimensions (W x H x D)
810 x 510 x 132mm
Handle
NO
Monitor Dimensions (W x H x D)
729.4 x 428.9 x 55.5mm
Monitor Dimension with Stand (W x H x D)
729.4 x 481 x 154.2mm
Packed Weight
7.4Kg
VESA Standard Mount Interface
200 x 200 mm
Weight (Head+Stand)
6.5Kg

PANEL

Aspect Ratio
16:9
Back Light Type
Direct
Brightness
400nit (Typ.)
Color Depth (Number of Colors)
1.07 Billion colors
Color Gamut
NTSC 68%
Contrast Ratio
1,100:1
Dynamic CR
1,000,000:1
Life time
50,000Hrs (Min.)
Native Resolution
1920 x 1080 (FHD)
Operation Hours (Hours/Day)
24/7
Panel Technology
IPS
Portait / Landscape
YES / YES
QWP (Quarter Wave Plate)
N/A
Refresh Rate
60Hz
Response Time
10ms (G to G)
Screen Size (Inch)
32
Surface Treatment (Haze)
Haze 1%
Transparency
N/A
Viewing Angle (H x V)
178º x 178º

CONNECTIVITY

Audio In
NO
Audio Out
YES
Daisy Chain
NO
DP In
NO
DP Out
NO
DVI-D In
NO
External Speaker Out
NO
HDMI In
YES (3ea)
HDMI In (HDCP Ver.)
2.2
HDMI Out
NO
IR In
YES
IR Out
NO
RGB In
NO
RJ45(LAN) In
YES (1ea)
RJ45(LAN) Out
NO
RS232C In
YES
RS232C Out
YES
Touch USB
NO
USB In
USB2.0 Type A (1ea)

SPECIAL FEATURE

Conformal Coating (Power Board)
N/A
Direct Sunlight
N/A
IP Rating
N/A
Overlay Touch Compatibility
N/A
Power Protection
N/A
Smart Calibration
N/A
Tilt (Face down)
N/A
Tilt (Face up)
N/A

SOFTWARE COMPATIBILITY

Connected Care
YES
Mobile CMS
NO
Promota
YES (Not available for EU/CIS)
SuperSign Cloud
NO
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES

FEATURE - HARDWARE

Acceleration(Gyro) Sensor
NO
Auto Brightness Sensor
YES
BLU Sensor
NO
Current Sensor
NO
FAN (Built-in)
NO
Humidity Sensor
NO
Internal Memory (eMMC)
8GB
Local Key Operation
YES
Pixel Sensor
NO
Power Indicator
NO
Proximity Sensor
NO
Temperature Sensor
YES
Wi-Fi/BT (Built-in)
YES

FEATURE - SOFTWARE

Auto Set ID
YES
Backlight Sync
NO
Beacon
YES
Booting Logo Image
YES
Brightness Compensation
NO
Cisco Certification
YES
Control Manager
YES
Crestron Connected
YES
External Input Rotation
YES
Fail over
YES
Gapless Playback
YES
Group Manager
YES
HDMI-CEC
YES
ISM Method
YES
Local Contents Scheduling
YES
Local Network Sync
YES
Network Ready
YES
No Signal Image
YES
OS Ver. (webOS)
webOS 6.0
PBP
NO
PIP
NO
Play via URL
YES
PM mode
YES
Pro:Idiom
YES
RS232C Sync
YES
Scan Inversion
NO
Screen Rotation
YES
Screen Share
YES
Setting Data Cloning
YES
SI Server Setting
YES
Smart Energy Saving
YES
SNMP
YES
Status Mailing
YES
Tile Mode Setting
NO
USB Plug & Play
YES
Video Tag
YES (4 Video Tag)
Wake on LAN
YES
webRTC
YES
W/B Setting by Grey scale
NO
