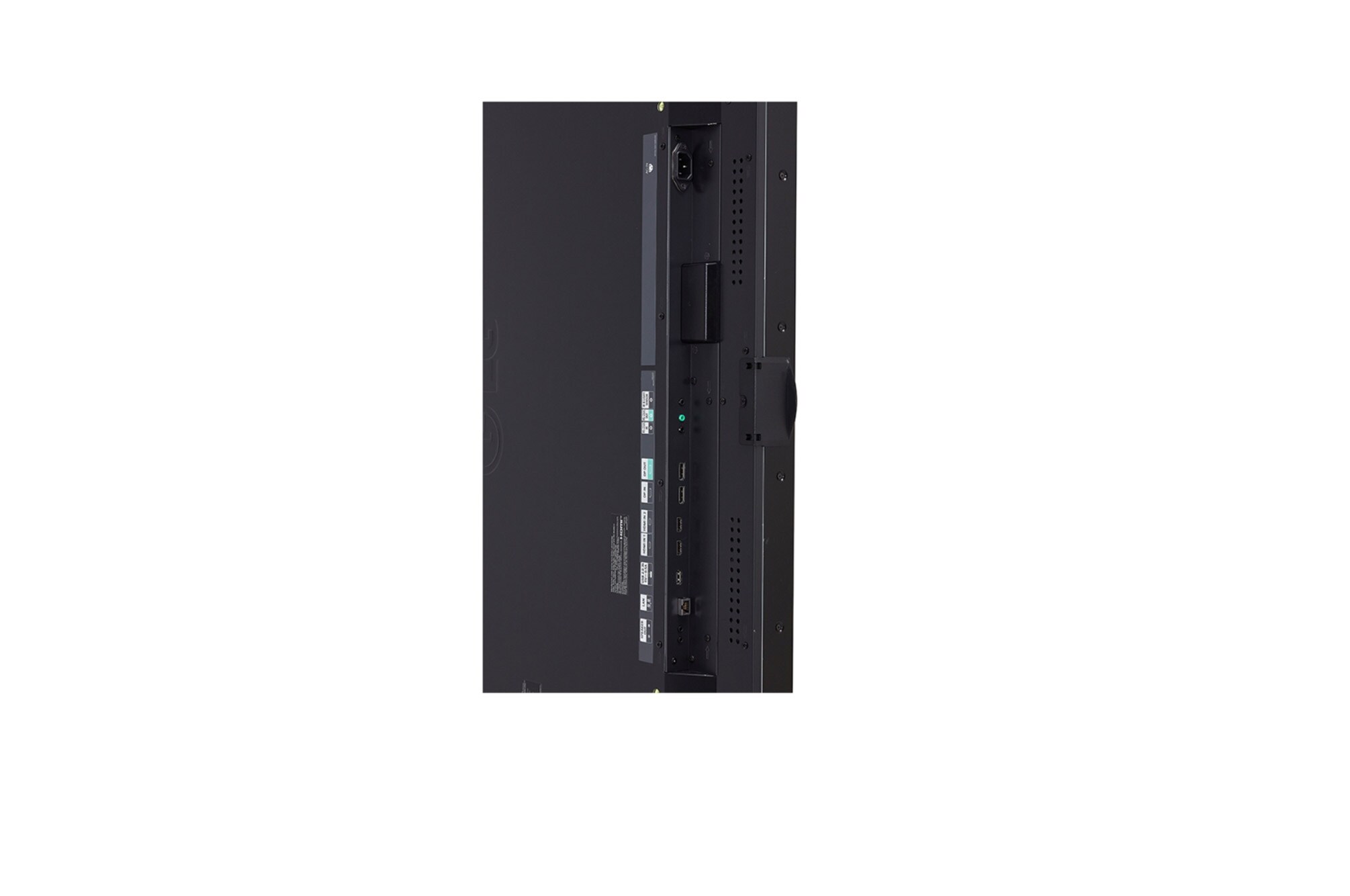

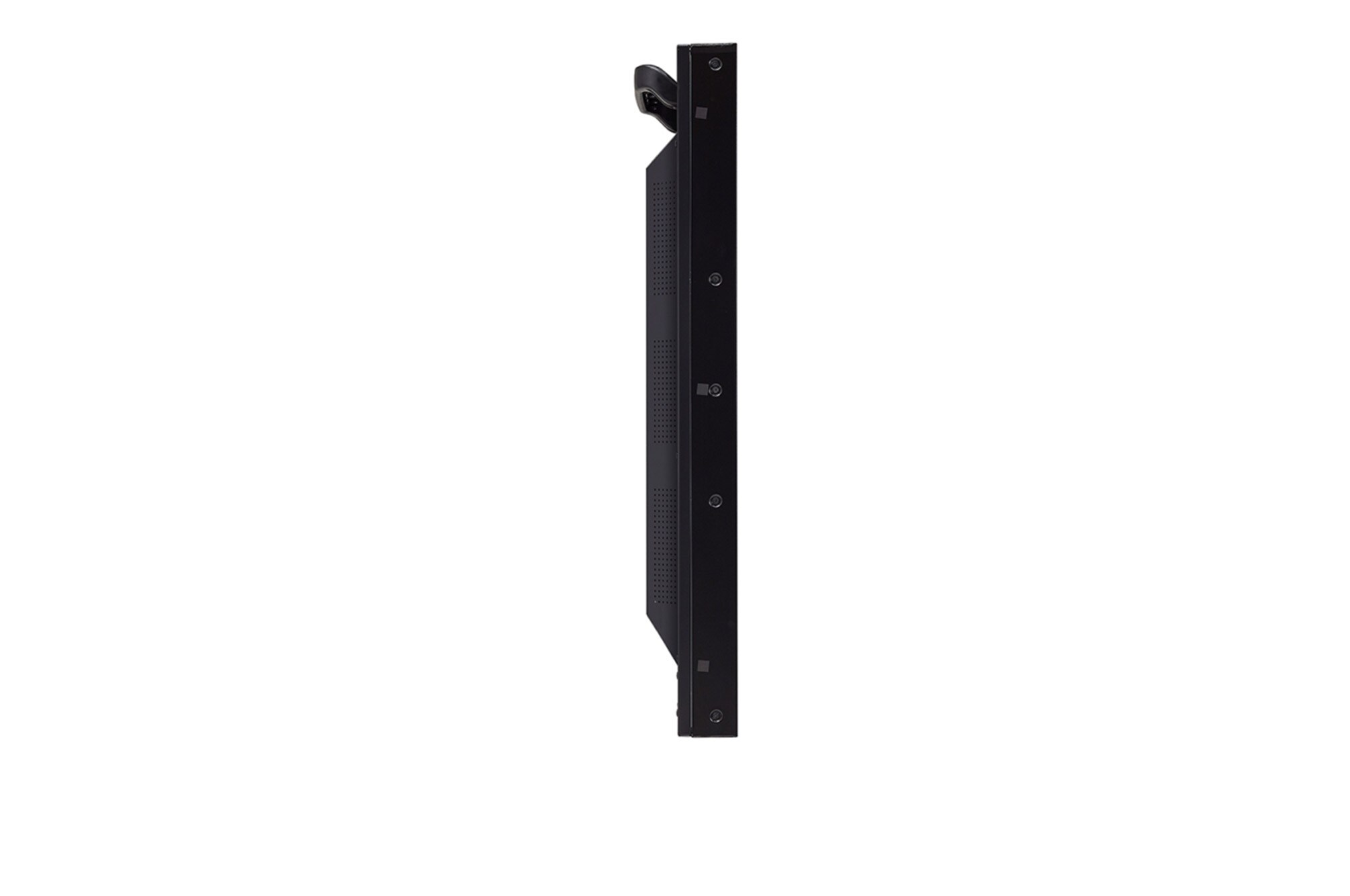

Window Facing Display

55XS4J-B

Key Features

Brightness : 4,000 nits (Typ.) / 3,200 nits (Min.)
Resolution : Full HD (1,920 x 1,080)
Bezel (T,B / R,L) : 12.0 / 9.9 mm
webOS-based High Performance
Built-in Wi-Fi
Web-based Monitoring Solution

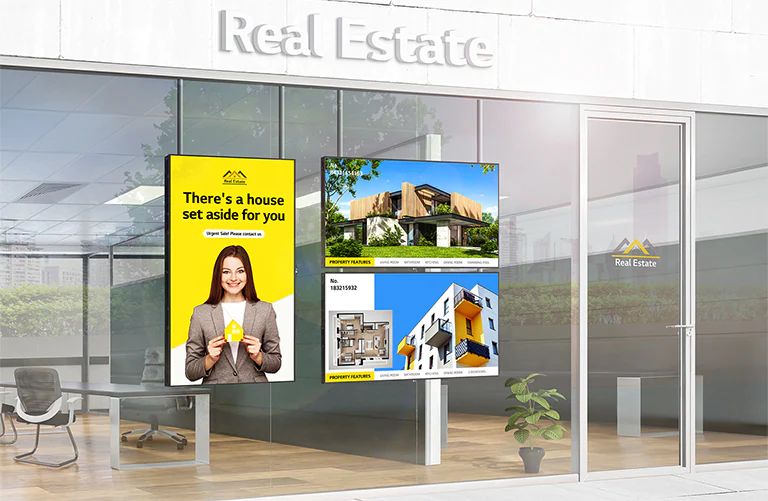

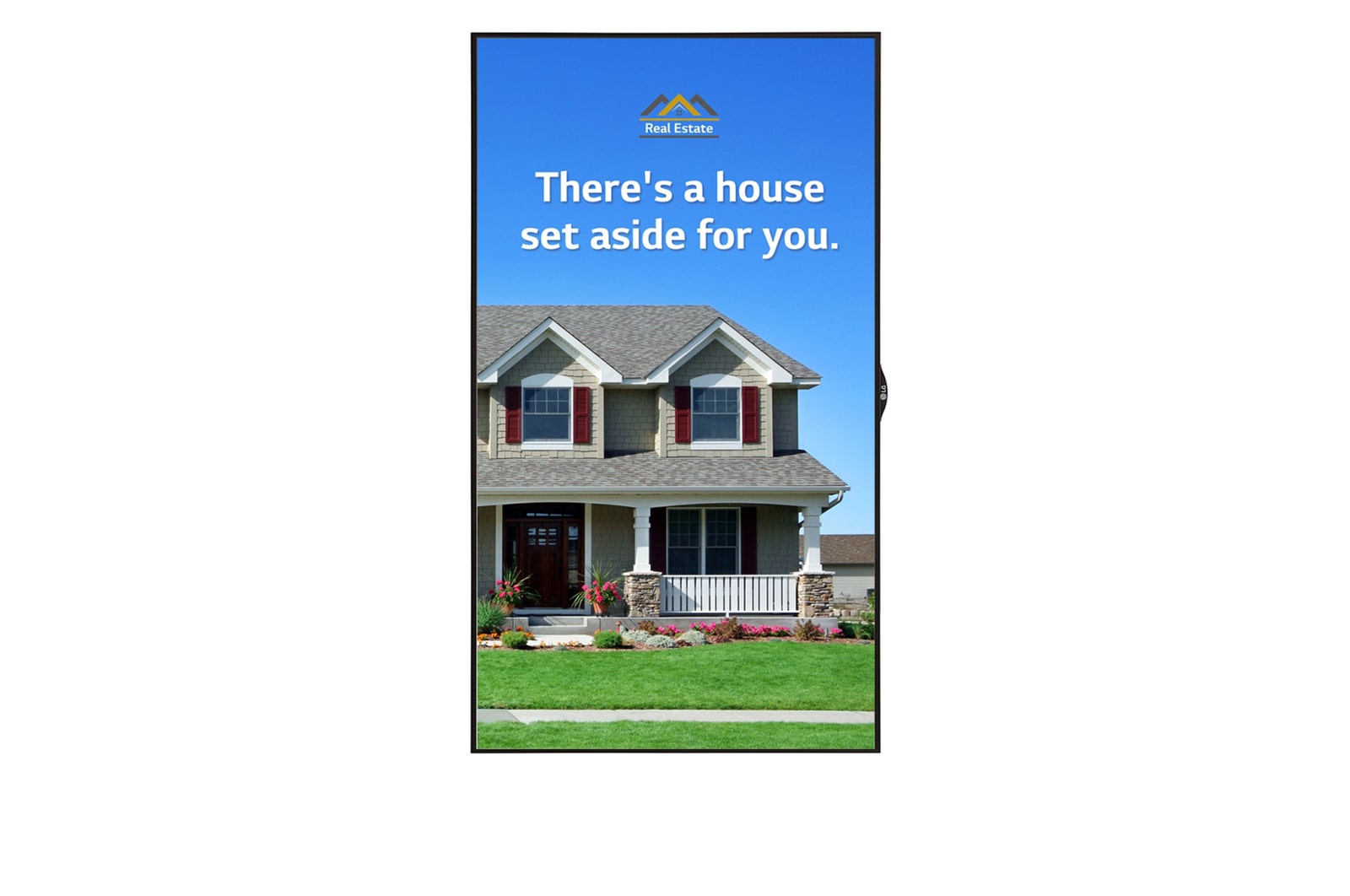

Inside the full glass of a real estate agency’s office, “High Brightness Window Facing Displays” are installed vertically and horizontally facing outward, and thanks to the high brightness of the displays, the ads on the internal display are very visible even from outside with strong sunlight.

* All images in this page are for illustrative purposes only.

High Visibility
Under The Sunlight

With a great brightness of 4,000 nits*, XS4J clearly delivers contents and attract public attention, which is the ultimate display for outdoor visibility. QWP** enables clear visibility even when the viewer is wearing polarized sunglasses.

A woman wearing sunglasses is watching ads on the display installed in a shop window, and the ads on the display are very visible even under the strong sunlight.

* Max. 4,000 nits, Typ. 3,200 nits (Based on LG internal test conducted in February, 2021).
** Quarter Wave Plate.

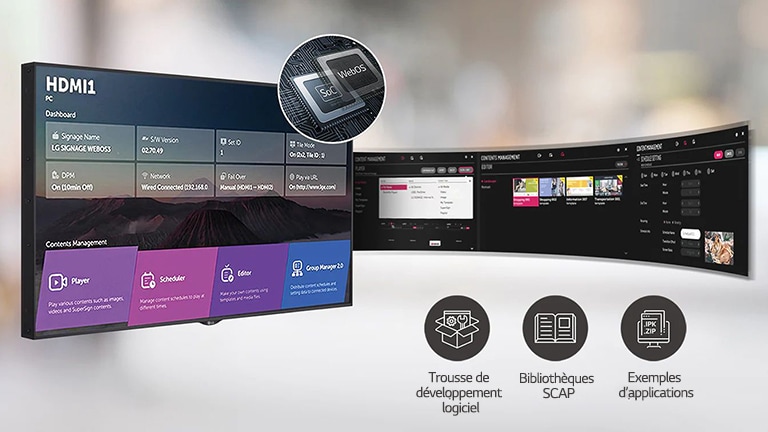

High Performance with webOS

Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, webOS 4.1 platform enhances user convenience with intuitive UI and simple app development tools.

A number of tasks that can be done simultaneously are easily arranged through the web OS platform.

* System-on-Chip.

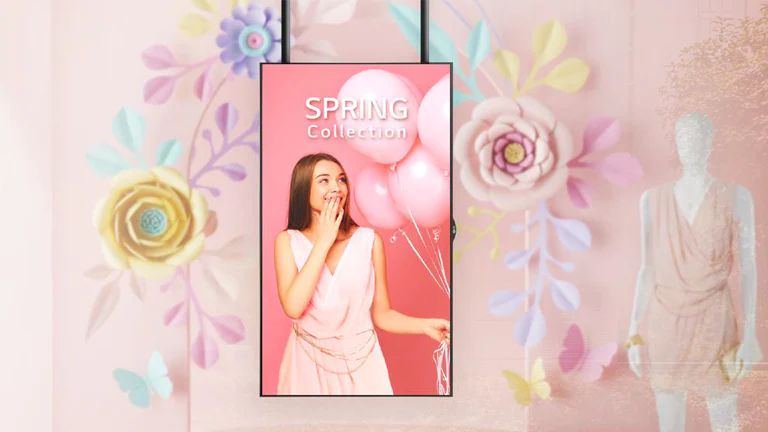

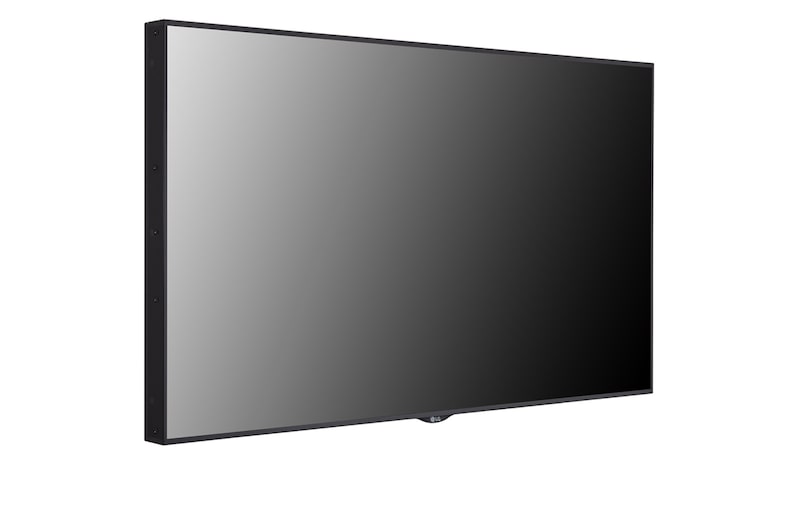

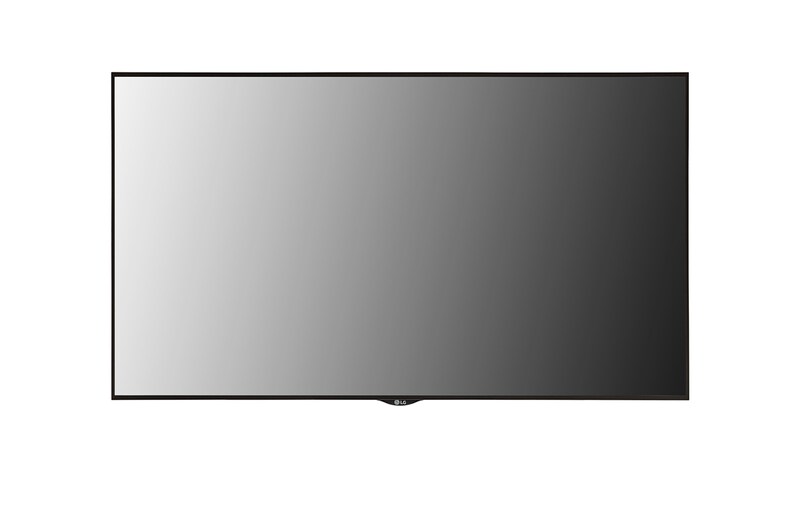

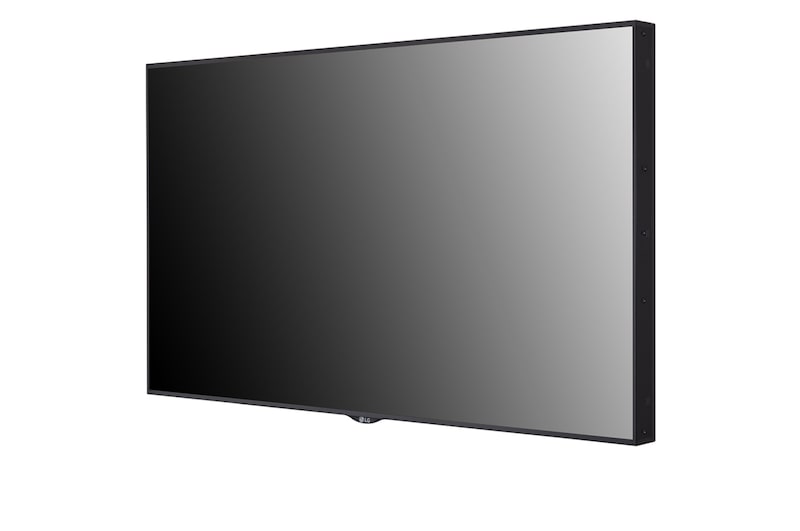

Slim Bezel Design

XS4J attracts attention with elegant design, featuring a slim bezel. These displays enhance the visual impact of the played content and the store’s overall atmosphere.

The slim bezel display installed next to a mannequin in a shop window clearly shows the promotional ads to customers.

* Bezel Width (T,B / R,L) : 12.0 / 9.9 mm (55XS4J), 9.0 / 6.5 mm (49XS4J).

Wide Operating
Temperature Range

XS4J can operate at various temperatures of 0-40°C*.

The display works well in an environment of 0℃-40℃.

* Based on LG internal test conducted in February, 2021.

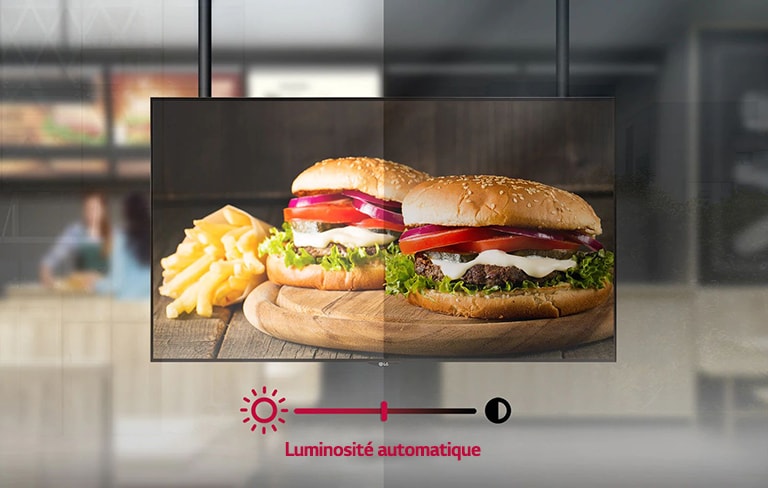

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

* This feature is based on LG internal test conducted in February, 2021.

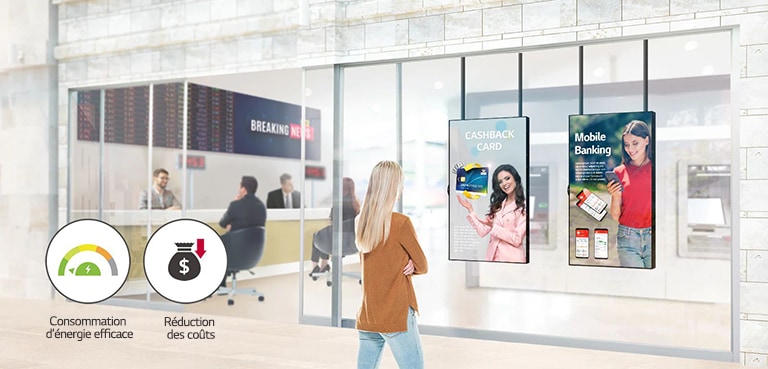

High Energy Efficiency

XS4J is energy efficient*, allowing for an efficient total cost management while showing content with 4,000 nits of high brightness.

* Typical power consumption of XS4J is 345W(49XS4J), 375W(55XS4J) at ‘On Mode’ based on LG internal test conducted in February, 2021. The figure may differ depending on the actual environment.

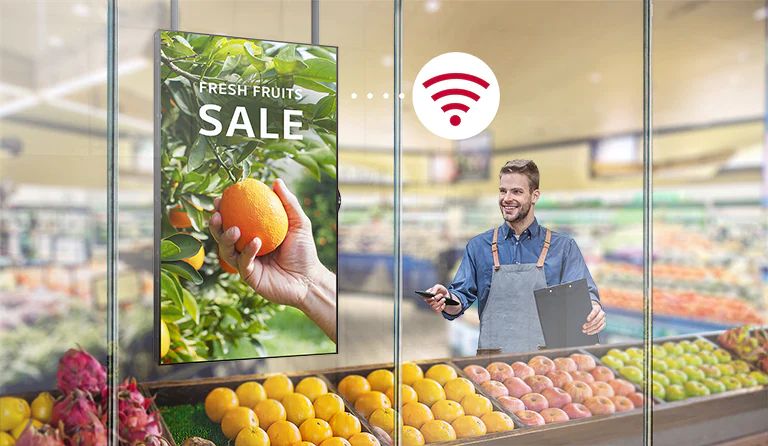

Easy Content Distribution
& SW Update

XS4J features embedded Wi-Fi making it easy to distribute content wirelessly and update Firmware.

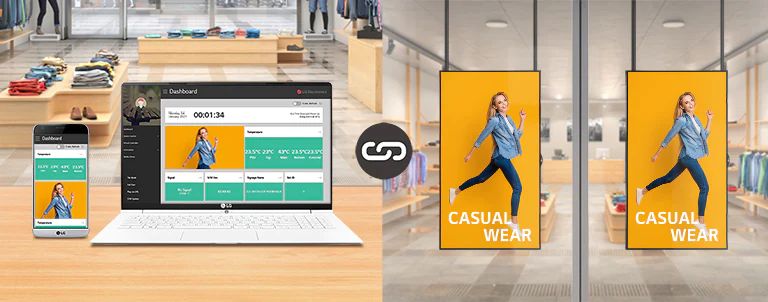

Web Monitoring
(Control Manager)

This is a web-based monitoring solution, which provides a ease of control for the user. It enables users to have full access anywhere, anytime from their mobile phone & PC as long as they’re connected to a network while having access to both current and past data. It allows users to monitor the unit, make any adjustments and control it remotely in real-time.

All Spec

MECHANICAL SPECIFICATION

Weight (Head)
26.0Kg
Bezel Width
12.0/9.9/9.9/12.0 mm
Monitor Dimensions (W x H x D)
1235.5 x 709.4 x 85.4mm
Packed Weight
31.2Kg

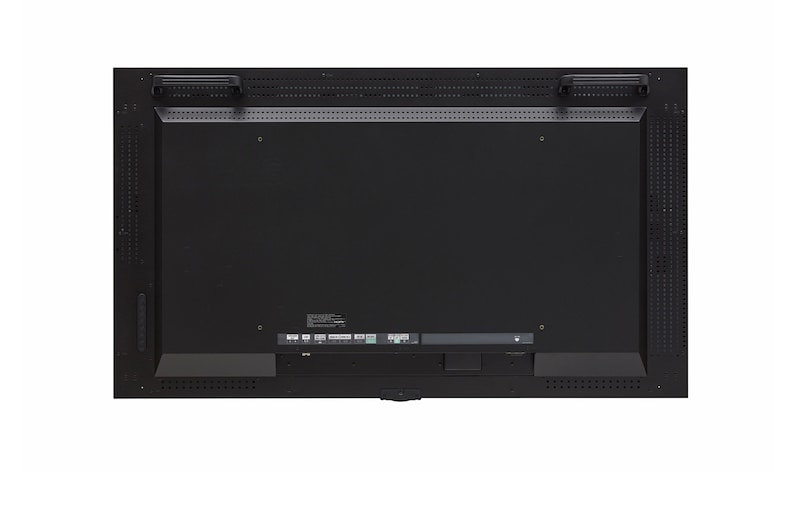

VESA Standard Mount Interface
600 x 400

ACCESSORY

Basic
Remote Controller(including battery 2ea), Power Cord, HDMI Cable,Manual (EIG, IG), IR Receiver(w/ Ambient Light Sensor), RS-232C Gender
Optional
WM-L640V(Landscape wall mount), WM-P640V(Portrait wall mount) ** Stand is not available

CERTIFICATION

EMC
FCC Class "A" / CE / KC / VCCI
ERP / Energy Star
Yes
Safety
CB / NRTL

ENVIRONMENT CONDITIONS

Operation Humidity
10 % to 80 %
Operation Temperature
0 °C to 40°C (w/o Direct Sunlight, Direct Sunlight in Cooling System) 0 °C to 30°C (Direct Sunlight)

PANEL

Brightness
4,000nit (Typ), 3,200nit(Min)
Color Depth (Number of Colors)
8bit, 16.7Million colors
Color Gamut
NTSC 72%
Contrast Ratio
1,000:1
Dynamic CR
500,000:1
Native Resolution
1920 x 1080 (FHD)
Operation Hours (Hours/Day)
24/7
Panel Technology
IPS, M+(WRGB)
Portait / Landscape
Yes / Yes
QWP (Quarter Wave Plate)
Yes
Response Time
9ms(G to G)
Screen Size (Inch)
55"
Surface Treatment (Haze)
3%
Viewing Angle (H x V)
178 x 178

POWER

Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power

POWER CONSUMPTION

BTU (British Thermal Unit)
1280 BTU/Hr(Typ.), 1365 BTU/Hr(Max)
Max.
400W
Typ.
375W (Full White) 147W (IEC 62087)

SOFTWARE COMPATIBILITY

SuperSign CMS
Yes
SuperSign Control+
Yes
