UH5F-H Series

UH5F-H Series

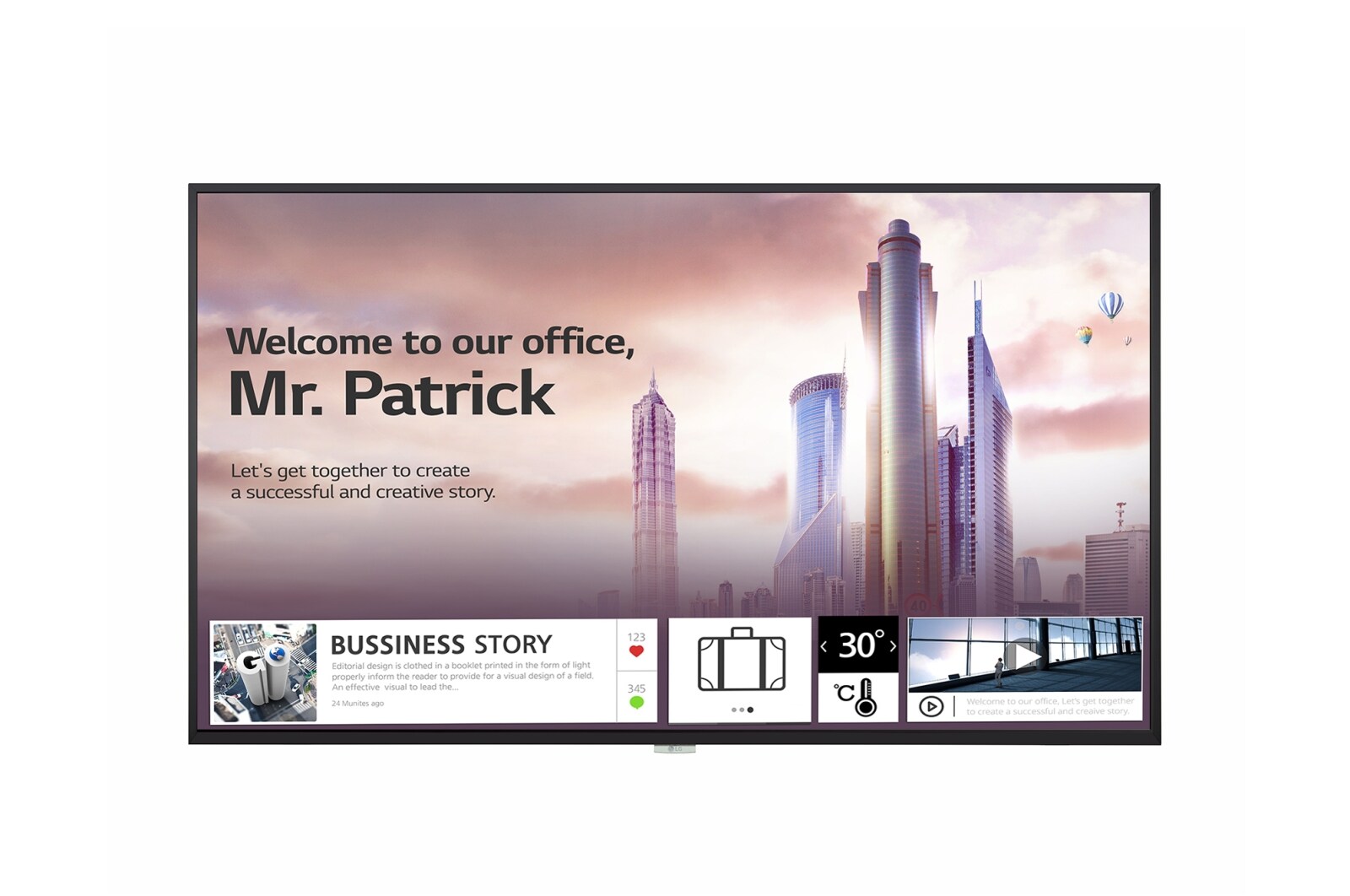

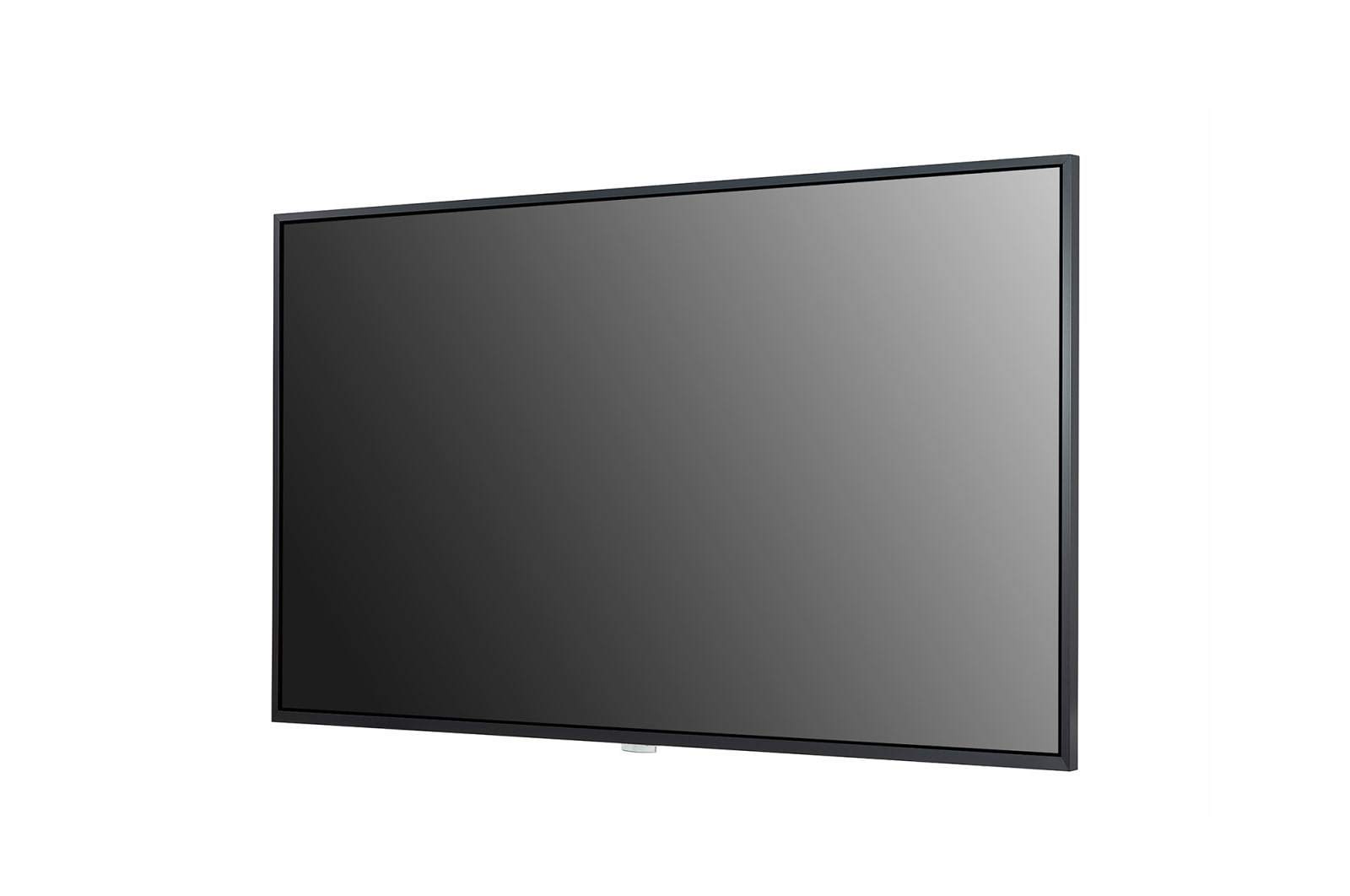

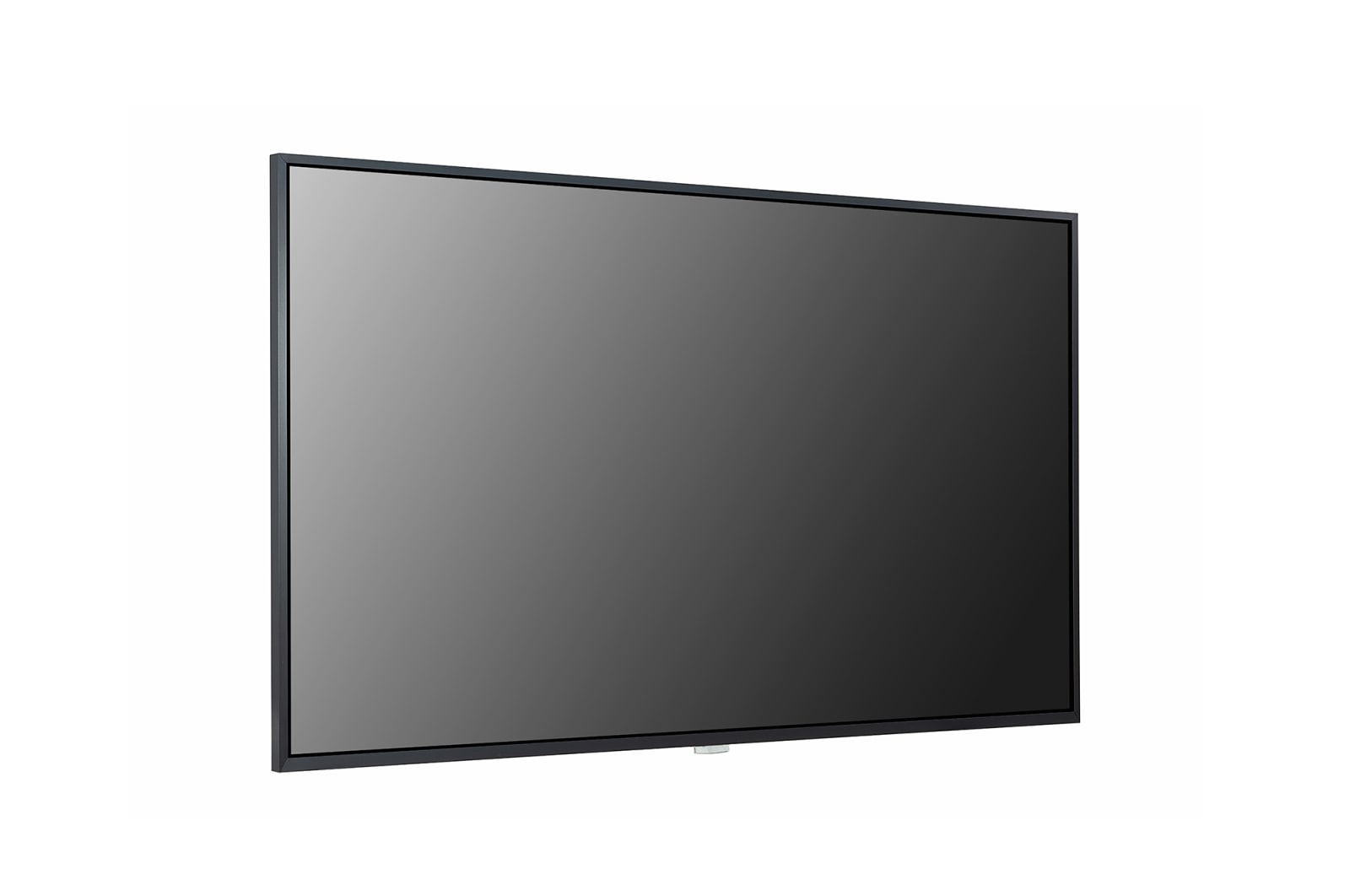

65UH5F-H

Key Features

Brightness(Typ.) : 500 cd/m²
Surface Treatment (Haze) : 28%
Bezel : 9.9 mm (T/R/L), 14.4 mm (B)
Depth : 39.9 mm
Interface : HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
30º Tilting Installation

SUPERB PICTURE QUALITY

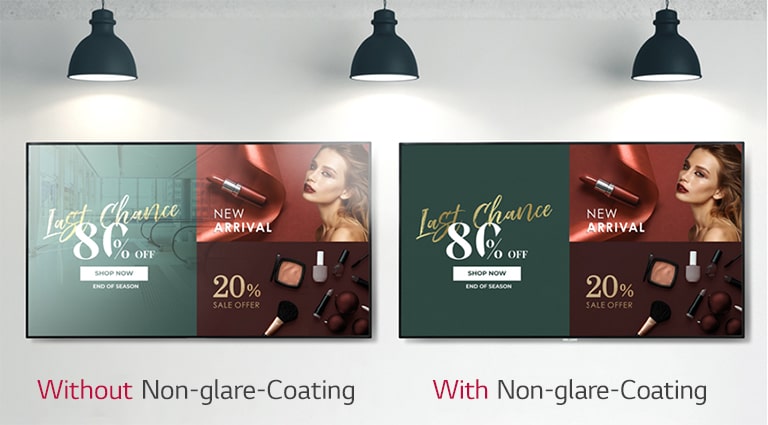

Clear View with Non-glare Coating

Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.

SUPERB PICTURE QUALITY

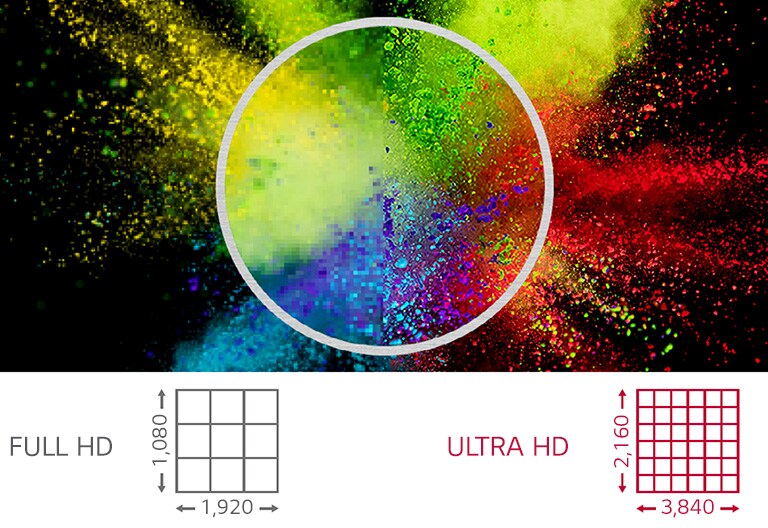

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion.

SLEEK AND PRACTICAL DESIGN

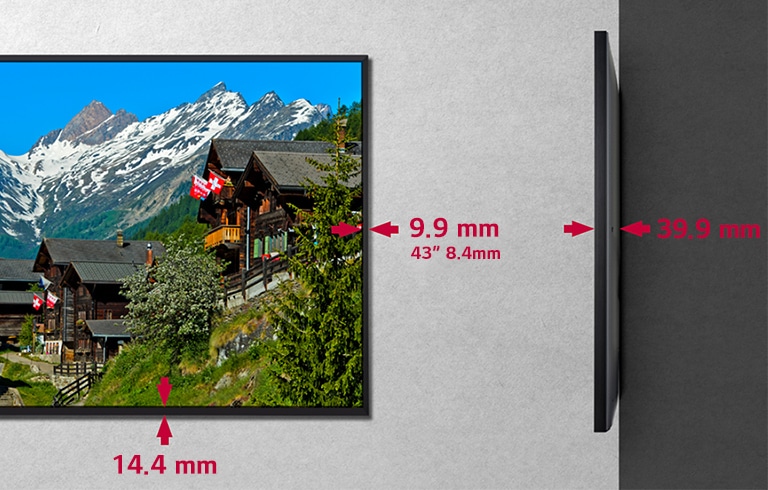

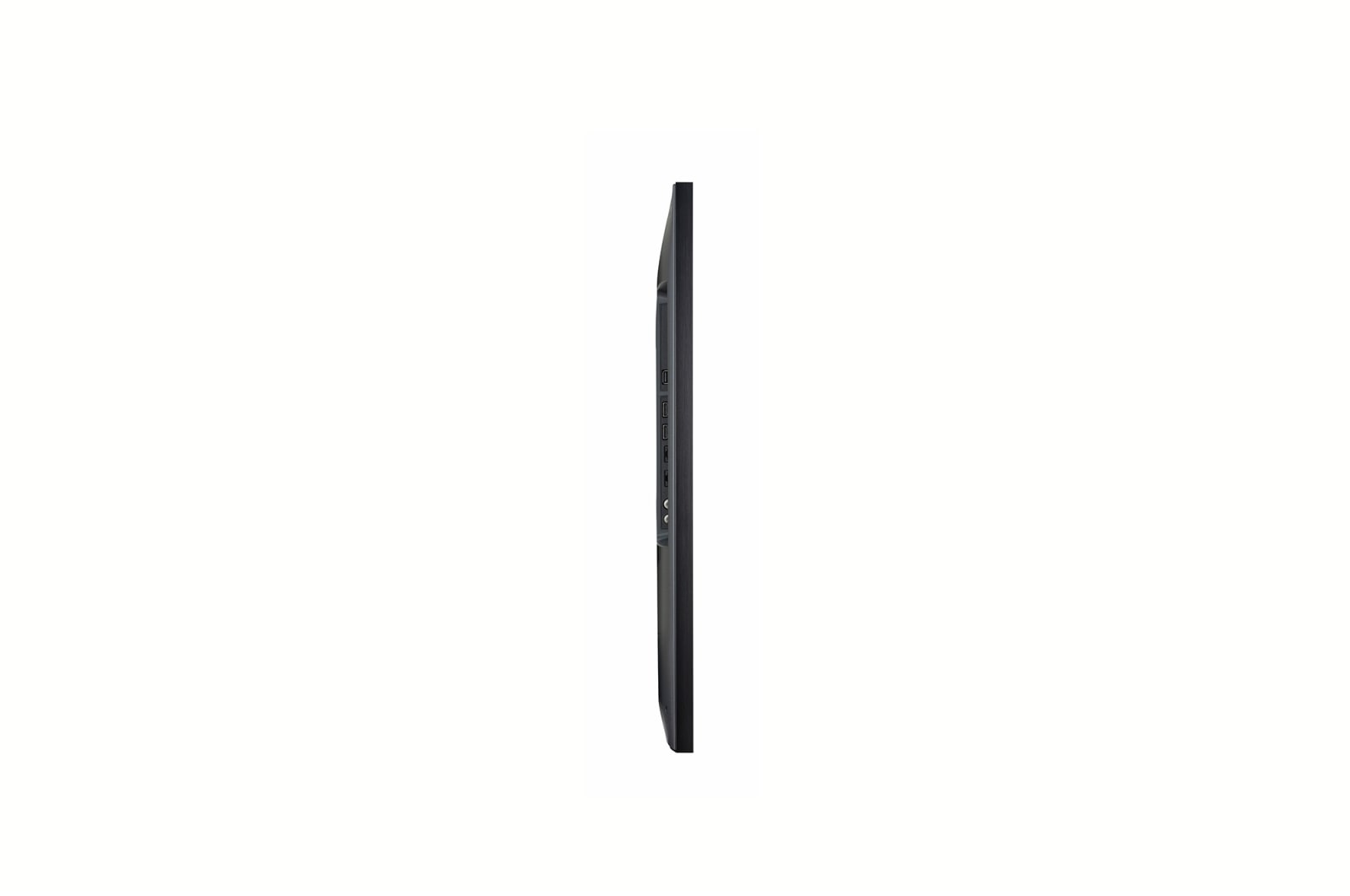

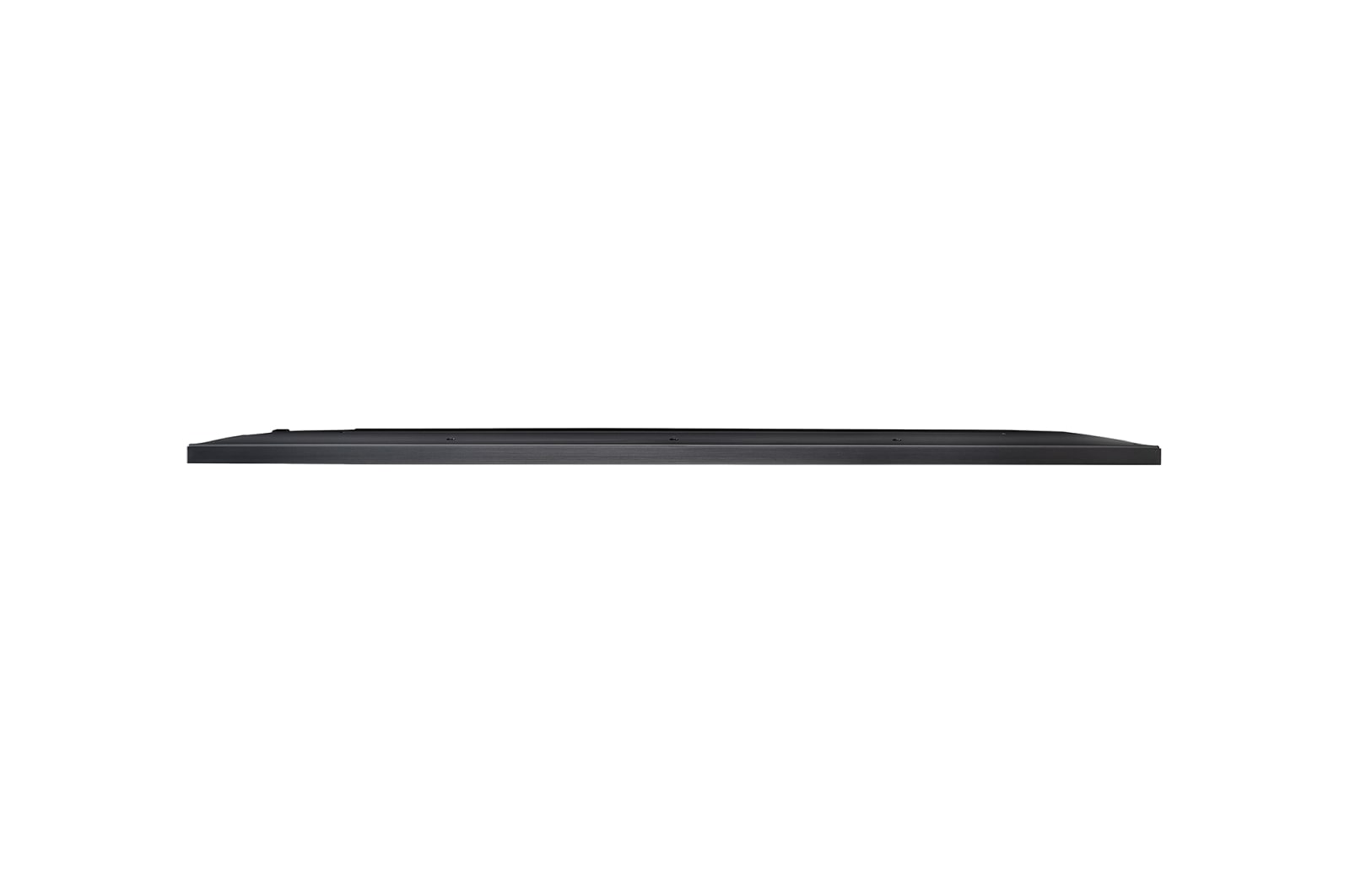

Narrow Bezel & Slim Depth

This series has a smaller bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

SLEEK AND PRACTICAL DESIGN

Detachable Logo and Built-in Speaker

This series is equipped with a new transparent logo which is well organized with surroundings. Also, its removable feature gives users flexibility for installation. Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

PRODUCT RELIABILITY

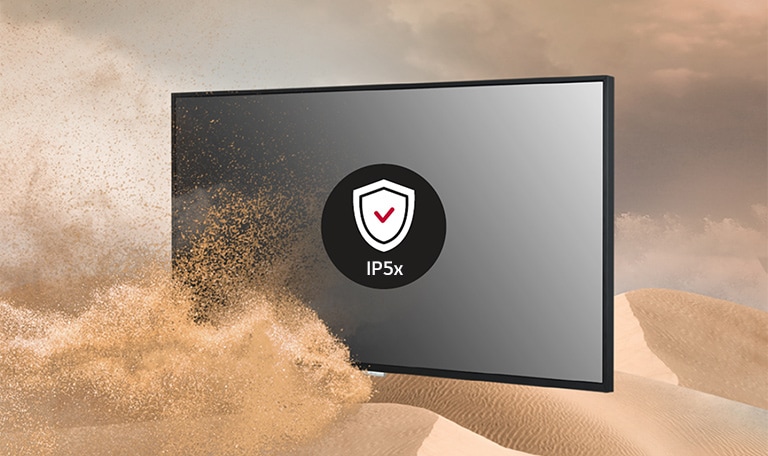

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

PRODUCT RELIABILITY

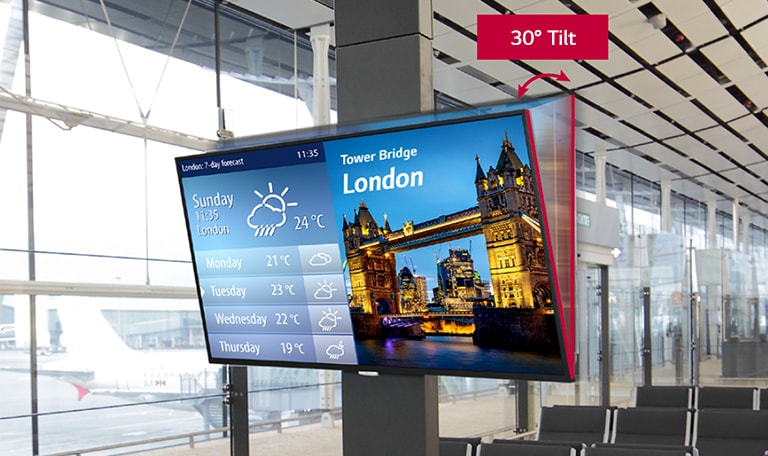

30° Tilting Installation

When a display is installed at high places, it is usually tilted for the user's comfort viewing. In consideration of this, the installation with 30 degrees of tilt* is supported.

*Tilt installation of up to 30 degrees facedown is supported. (In conditions within 30ºC temperature, 50% humidity).

EASY INSTALLATION

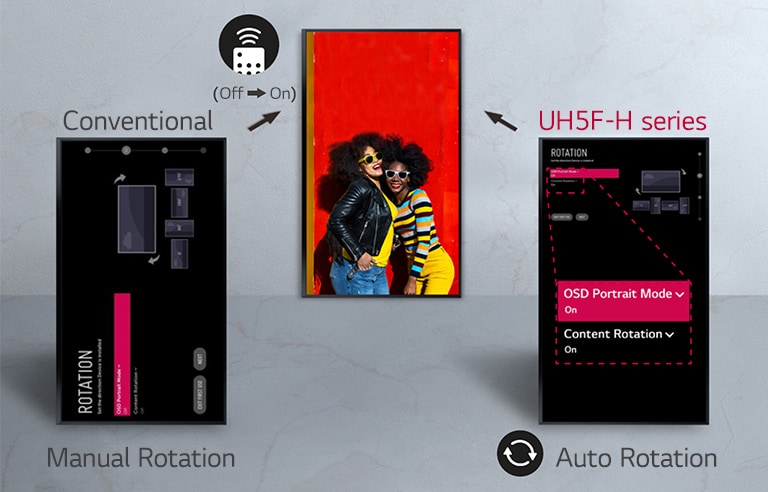

Auto Screen Rotatio

This series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so manual rotation set-up process isn't required. The direction of OSD and background contents will be already set when you turn on a display at first.

EASY INSTALLATION

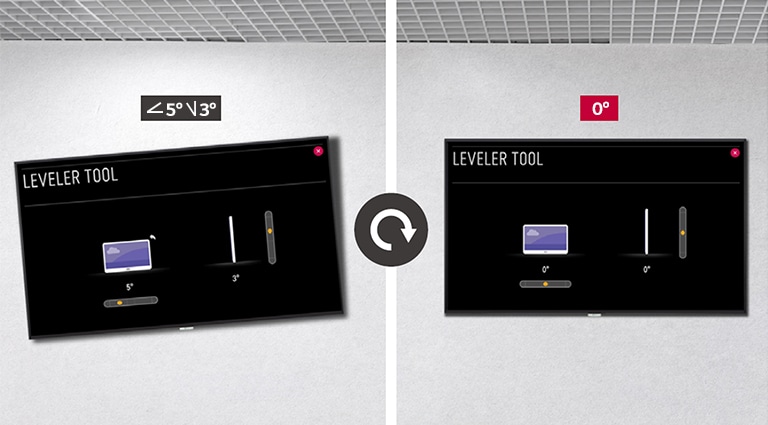

Fine Adjustment

This series is equipped with a "horizontal sensor" which shows users how the device is tilt, so that it can be precisely installed.

webOS SMART SIGNAGE PLATFORM

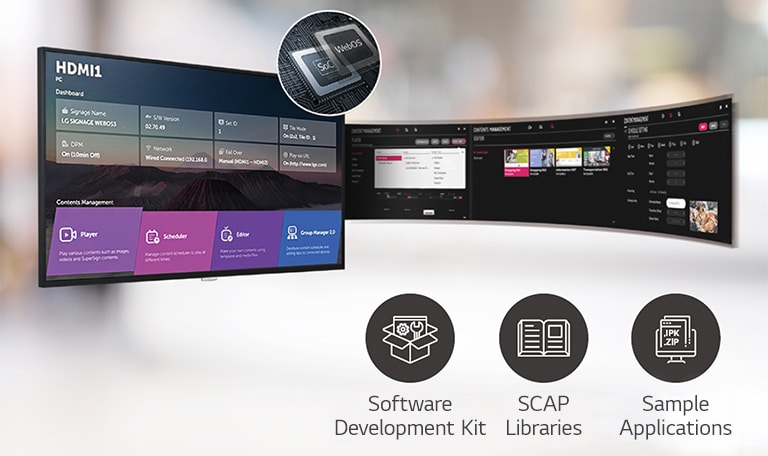

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

webOS SMART SIGNAGE PLATFORM

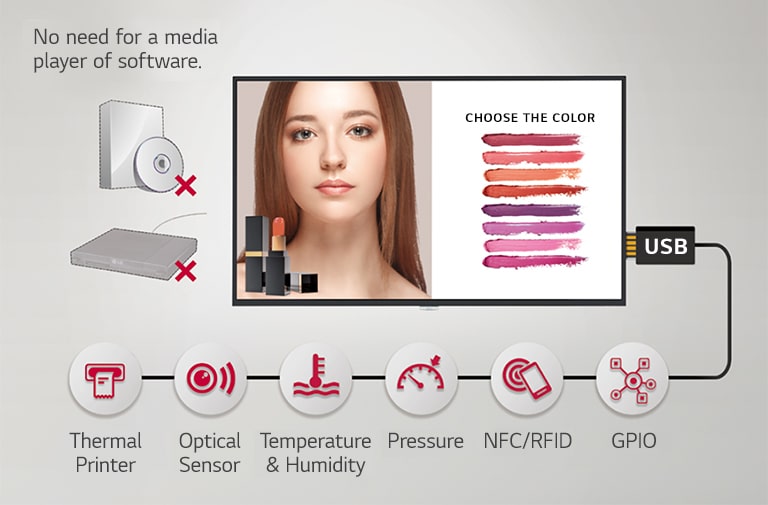

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

MEETING ROOM SOLUTION COMPATIBILITY

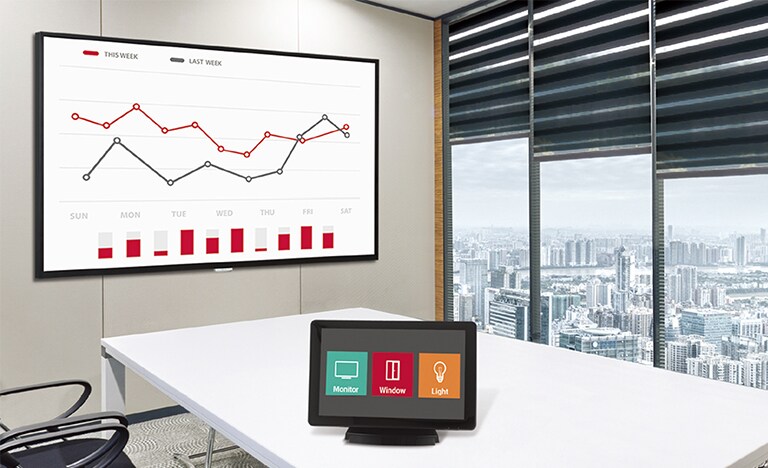

Compatible with AV Control System

The UH5F-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

*Network based control

MEETING ROOM SOLUTION COMPATIBILITY

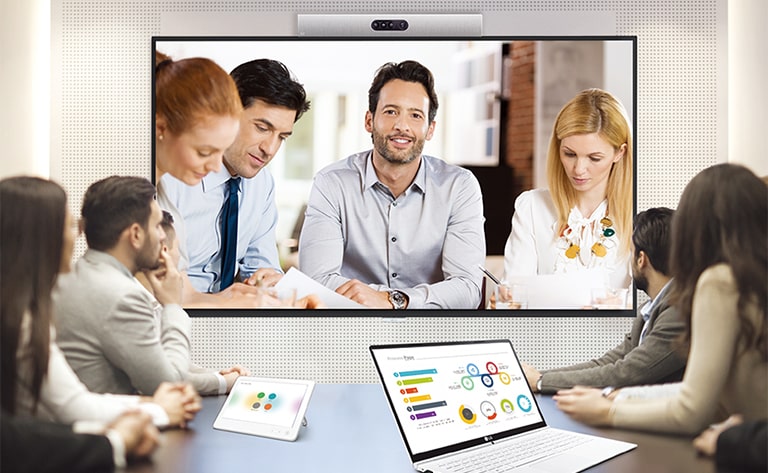

Compatible with Video Conference System

For the optimum visual meeting, the UH5F-H series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

*Using an HDMI cable connection.

All Spec

ACCESSORY

Basic
Remote Controller(include battery 2ea), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
Optional
Stand(ST-653T), Wall bracket(LSW350B), VESA Adapter(AM-B330S), OPS Kit(KT-OPSF)

CERTIFICATION

Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes / Energy Star 8.0

CONNECTIVITY

Input - Digital - HDMI
Yes(3)HDMI1/HDMI2 : HDCP 2.2/1.4HDMI3 : HDCP 1.4
Input - Digital - DP
Yes(1), HDCP2.2/1.3
Input - Digital - DVI-D
Yes(1), HDCP1.4
Input - Audio In
Yes(1)
Input - External Control - RS232C IN
Yes(1), 4pin Phone-jack
Input - External Control - RJ45(LAN)
Yes(1)
Input - External Control - IR IN
Yes(1)
Input - USB
USB2.0 Type A(1)
Output - DP Out
Yes(1), Input : HDMI1/2/3/DVI/DP/OPS
Output - Audio Out
Yes(1)
Output - External Control - RS232C OUT
Yes(1), 4pin Phone-jack

ENVIRONMENT CONDITIONS

Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %

KEY FEATURE

HW - Internal Memory
8GB
HW - Wi-Fi - Built-in
Yes
HW - Sensor - Temperature Sensor
Yes
HW - Sensor - Auto Brightness sensor
Yes
HW - Sensor - Acceleration(Gyro) Sensor
Yes
HW - Local Key Operation
O
SW - webOS ver.
webOS 4.1
SW - Embedded CMS - Local Contents Scheduling
Yes
SW - Embedded CMS - Group Manager
Yes
SW - USB Plug & Play
Yes
SW - Fail over
Yes
SW - Background Image - Booting Logo Image
Yes
SW - Background Image - No Signal Image
Yes
SW - Sync Mode - RS-232C Sync
Yes
SW - Sync Mode - Local Network Sync
Yes
SW - Multi-screen - PIP
Yes
SW - Multi-screen - PBP
Yes(4)
SW - Screen Share
Yes
SW - Video Tag
Yes(4)
SW - Play via URL
Yes
SW - Rotation - Screen Rotation
Yes
SW - Rotation - External Input Rotation
Yes
SW - Gapless Playback
Yes
SW - Tile Mode Setting
Yes(Max. 15x15)
SW - Setting Data Cloning
Yes
SW - SNMP
Yes
SW - ISM Method
Yes
SW - Auto Set ID
Yes
SW - Status Mailing
Yes
SW - Control Manager
Yes
SW - 3rd Party Compatibility - Crestron Inside
Yes *Network based control
SW - Smart Energy Saving
Yes
SW - PM mode
Yes
SW - Wake on LAN
Yes
SW - TCP/IP Power Control
Yes
SW - Beacon
Yes
SW - HDMI-CEC
Yes *Compatibility may differ by equipment.
SW - SI Server Setting
Yes
SW - webRTC
Yes
SW - Pro:Idiom
Yes

MECHANICAL SPECIFICATION

Bezel Color
Black
Bezel Width
T/R/L: 9.9mm, B: 14.4mm
Weight(Head)
28.2Kg
Weight(Head+Stand)
28.8Kg
Packed Weight
35.0 kg
Monitor Dimension(W x H x D)
1453.3 x 844.0 x 39.9mm
Monitor Dimensions with Stand(W x H x D)
1453.3 x 893.1 x 290.0mm
Carton Dimensions(W x H x D) (Box outer size)
1600.0 x 1095.0 x 175.0mm
VESA™ Standard Mount Interface
300 x 300

PANEL

Screen Size
65"
Panel Technology
IPS
Back Light Type
Edge
Aspect Ratio
16 : 9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60Hz
Brightness
500nit (Typ.)
Contrast Ratio
1,100:1
Dynamic CR
500,000:1*The luminosity ratio of Full Black / Full White color on video input condition.
Color Gamut
BT709 95%
Viewing Angle(H x V)
178 x 178
Color Depth
10bit, 1.07Billion colors
Response Time
8ms (G to G)
Surface Treatment(Haze)
28%
Life time
50,000Hrs (Min.)
Operation Hours (Hours/Day)
24/7
Portrait / Landscape
Yes / Yes

POWER

Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power

POWER CONSUMPTION

Typ.
120W
Max.
165W
BTU (British Thermal Unit)
409 BTU/Hr(Typ.), 563 BTU/Hr(Max)
Smart Enegy Saving
96W
DPM
0.5W
Power off
0.5 W

SOFTWARE COMPATIBILITY

SuperSign CMS
Yes
SuperSign Control / Control+
Yes / Yes
SuperSign WB
Yes / Yes
SuperSign Media Editor
Yes / Yes
Signage 365 Care
Yes (The availability can differ by region.)

SOUND

Speaker
Yes

SPECIAL FEATURE

Tilt (Facedown)
Yes (Max 30º degree, 30ºC temperature, humidity 50%)
IP Rating
IP5x

OPS COMPATIBILITY

OPS type compatible
Yes
