High Brigtness Open frame Display
Contact Us

High Brigtness Open frame Display

Contact Us

High Brigtness Open frame Display

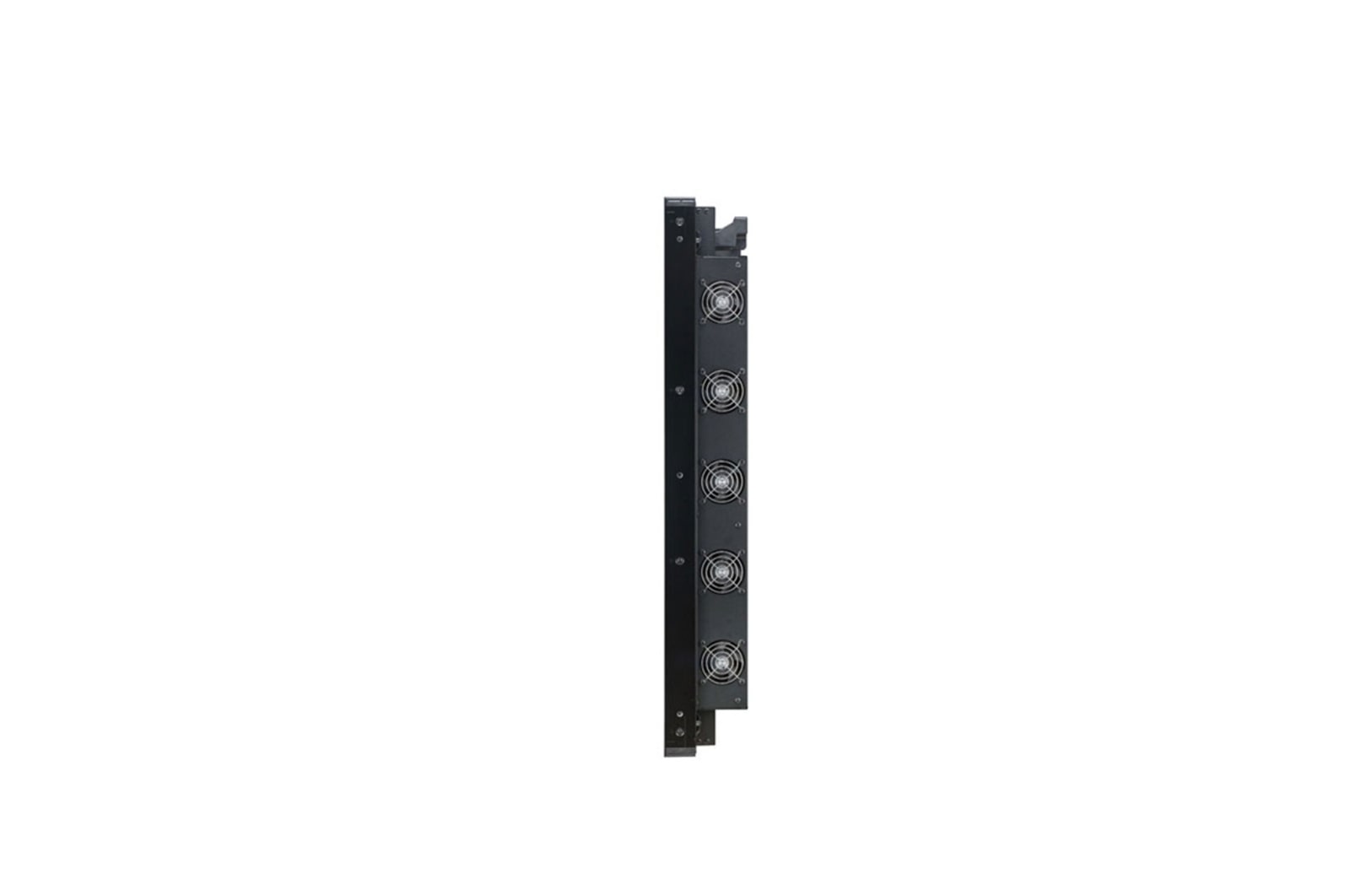

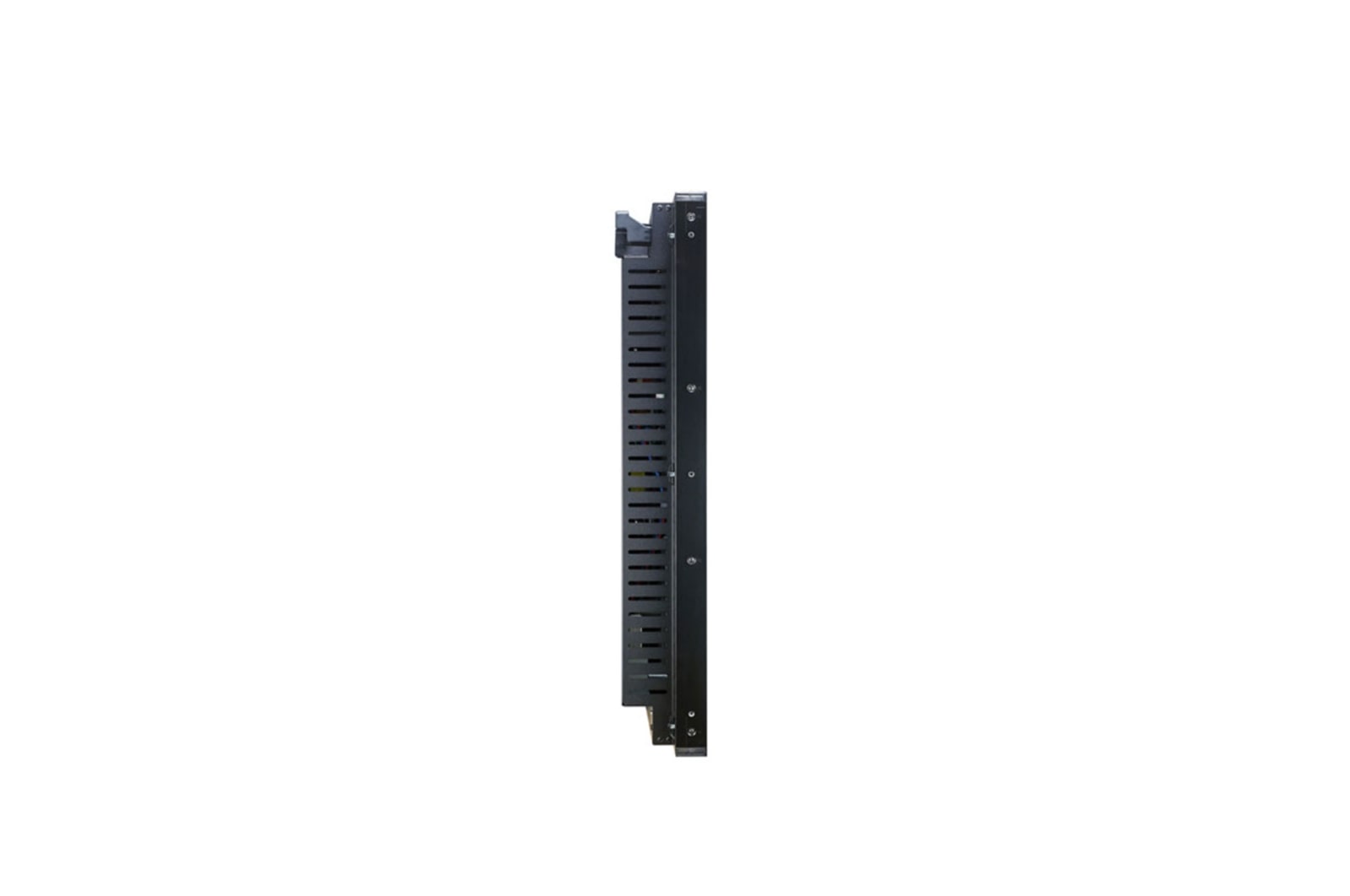

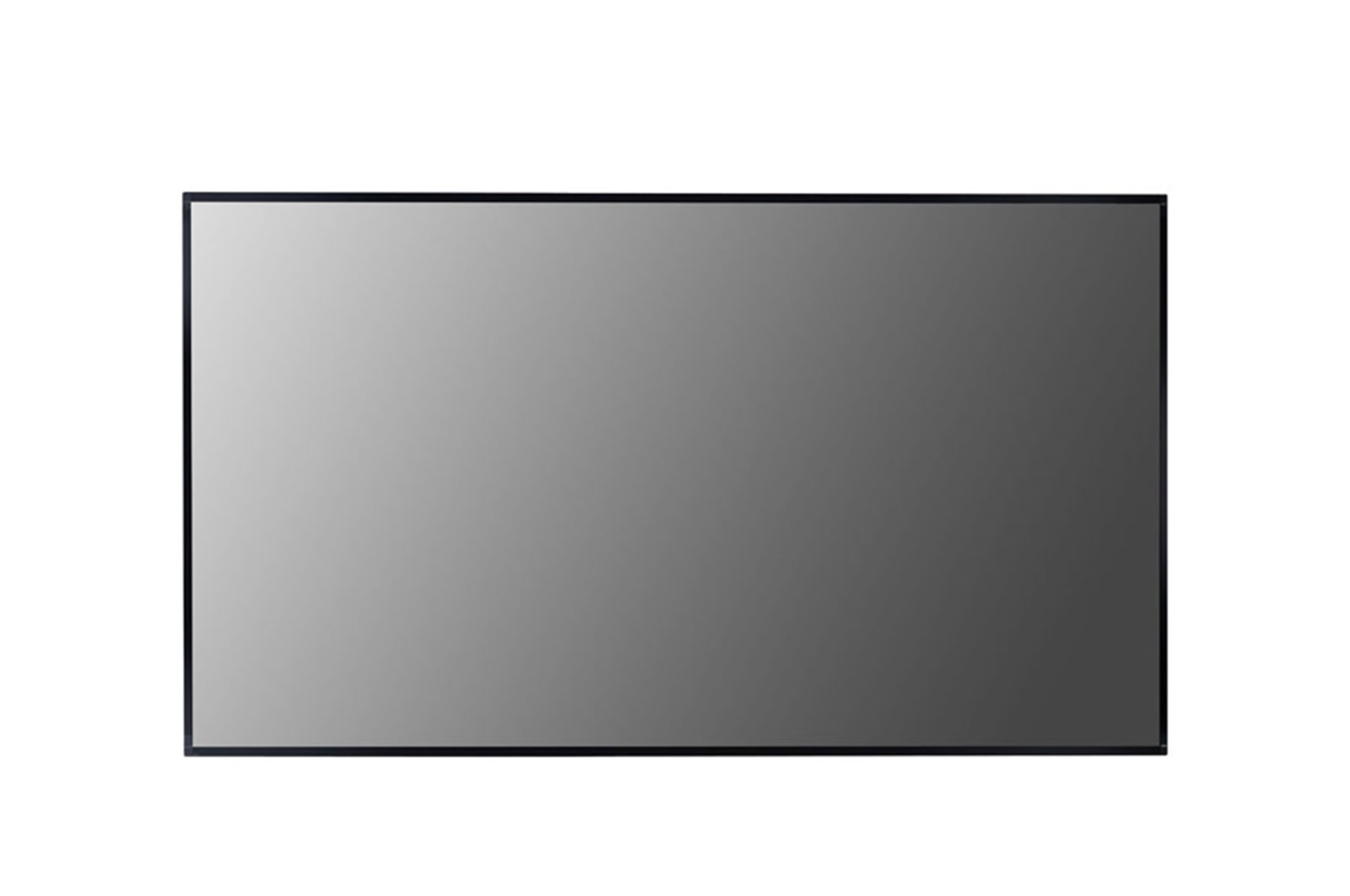

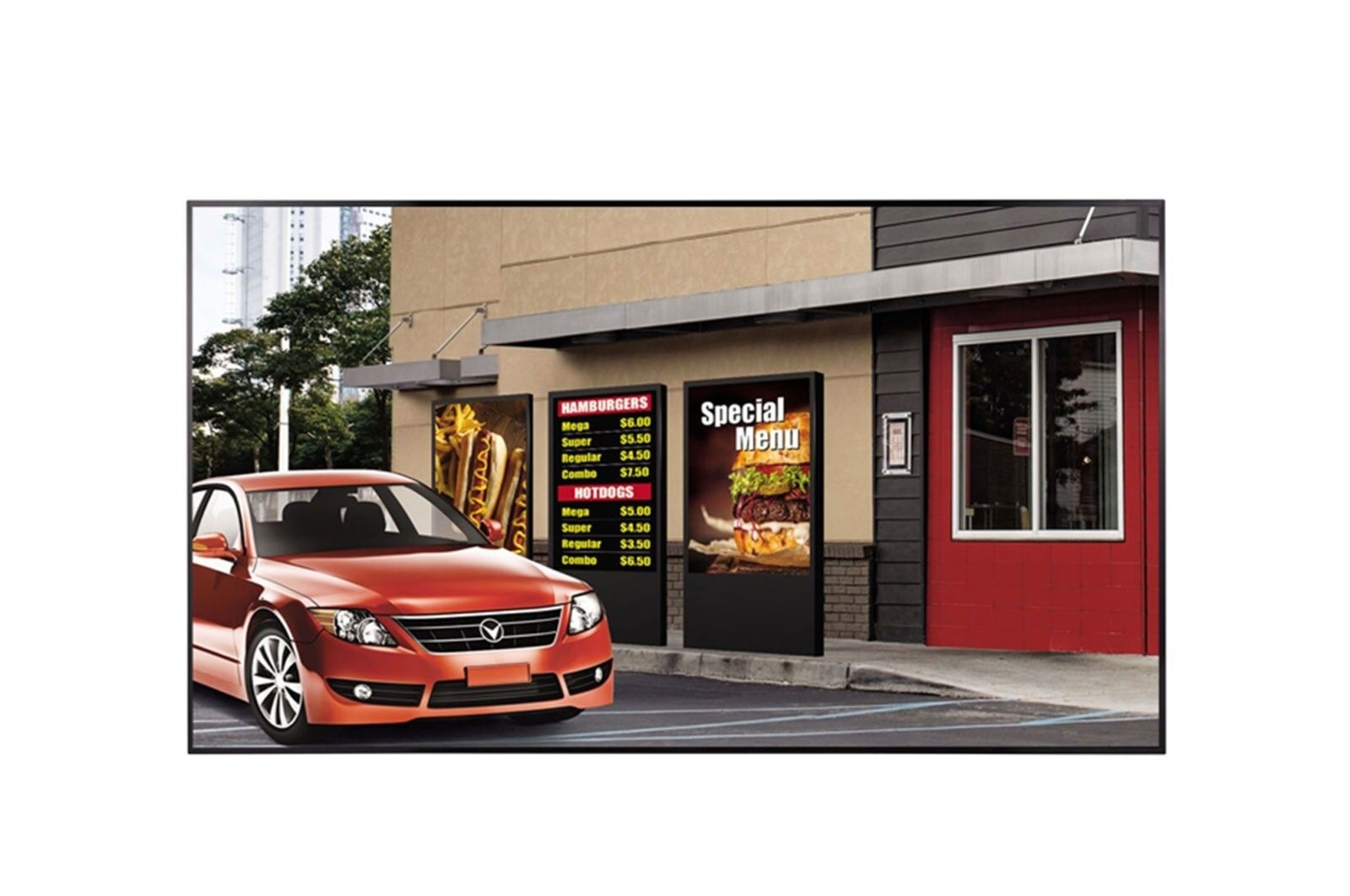

75XF3C-B

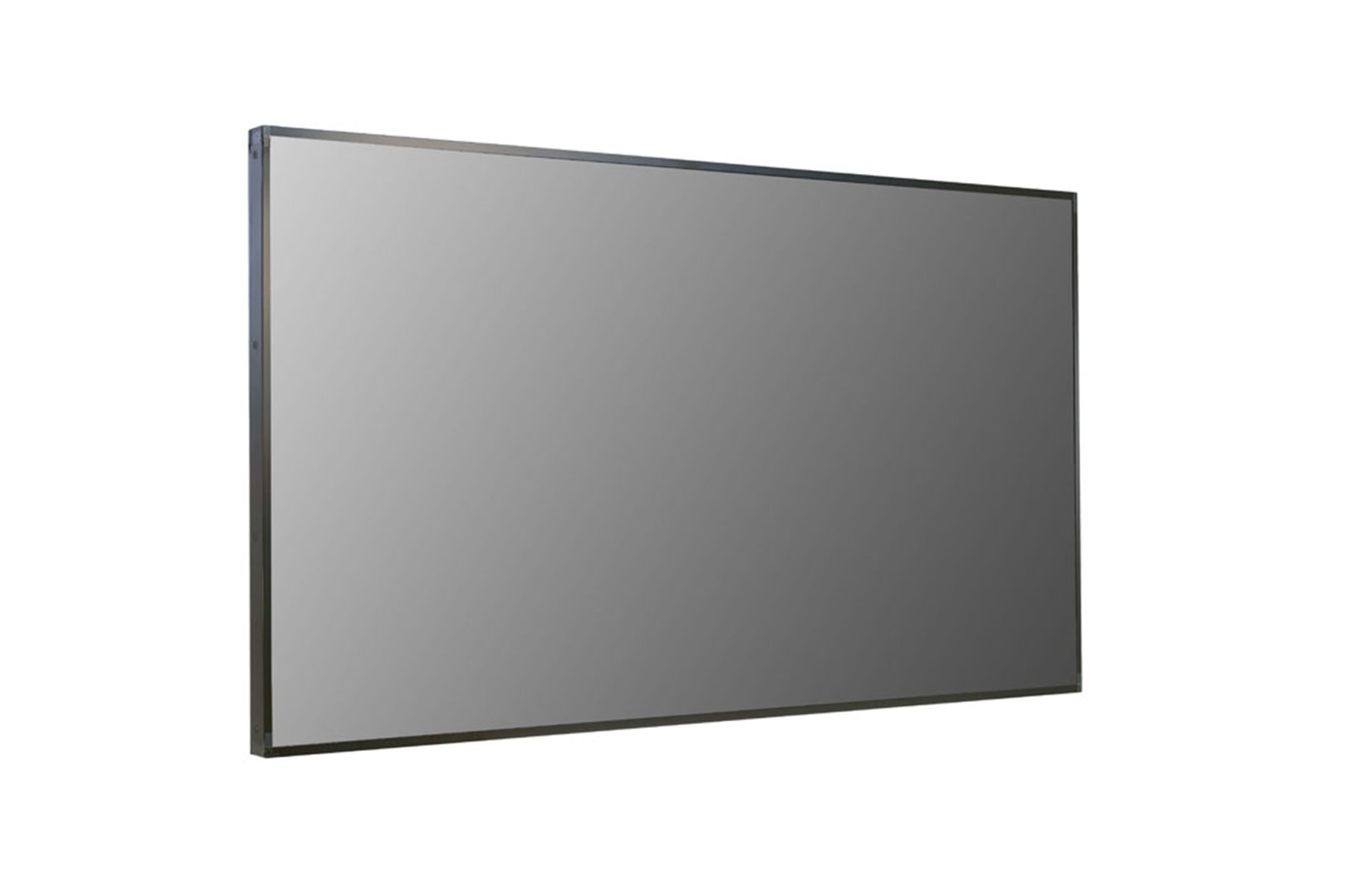

LG High Brigtness Open frame Display, 75XF3C-B
LG High Brigtness Open frame Display, 75XF3C-B
LG High Brigtness Open frame Display, 75XF3C-B
LG High Brigtness Open frame Display, 75XF3C-B
LG High Brigtness Open frame Display, 75XF3C-B
LG High Brigtness Open frame Display, 75XF3C-B
LG High Brigtness Open frame Display, 75XF3C-B
LG High Brigtness Open frame Display, 75XF3C-B
LG High Brigtness Open frame Display, 75XF3C-B
LG High Brigtness Open frame Display, 75XF3C-B
LG High Brigtness Open frame Display, 75XF3C-B
LG High Brigtness Open frame Display, 75XF3C-B
LG High Brigtness Open frame Display, 75XF3C-B
LG High Brigtness Open frame Display, 75XF3C-B

Key Features

  • Brightness : 3,000 cd/m2 (Typ.)
  • Life Time : 50,000 hours
  • Bezel : 11.8 mm
  • Depth : 123.9 mm
  • Interface : HDMI (2) / DP / DVI / RJ45 / IR / RS232C / IR / USB / External speaker out (L/R)
More
Outstanding Visibility

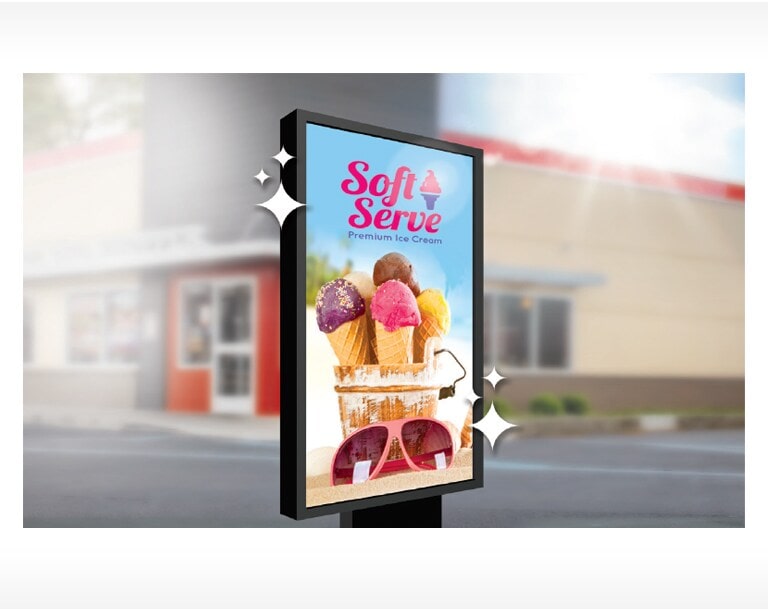

High Brightness

With a great brightness of 3,000 cd/㎡, XF series clearly deliver contents and attract public attention, which is the ultimate display for outdoor visibility.

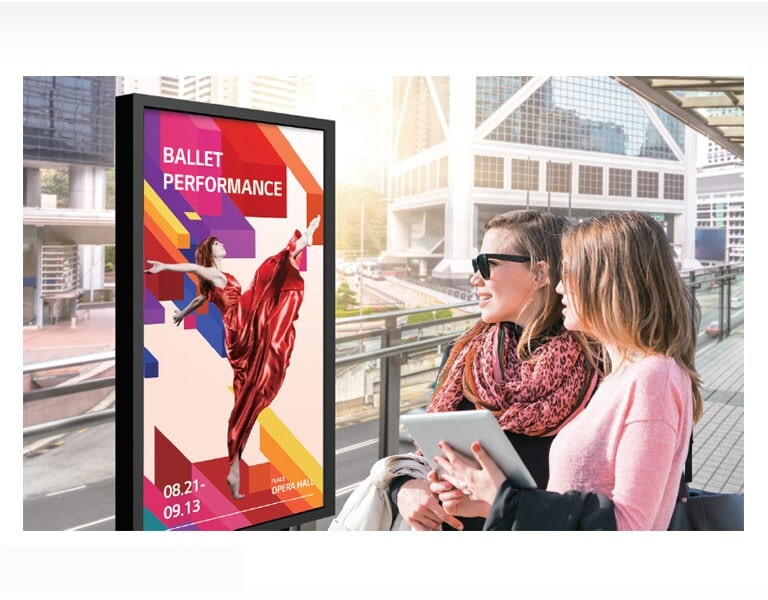

Visible with Polarized Sunglasses
Outstanding Visibility

Visible with Polarized Sunglasses

QWP* enables clear visibility even when the viewer is wearing polarized sunglasses.

*Quarter Wave Plate.

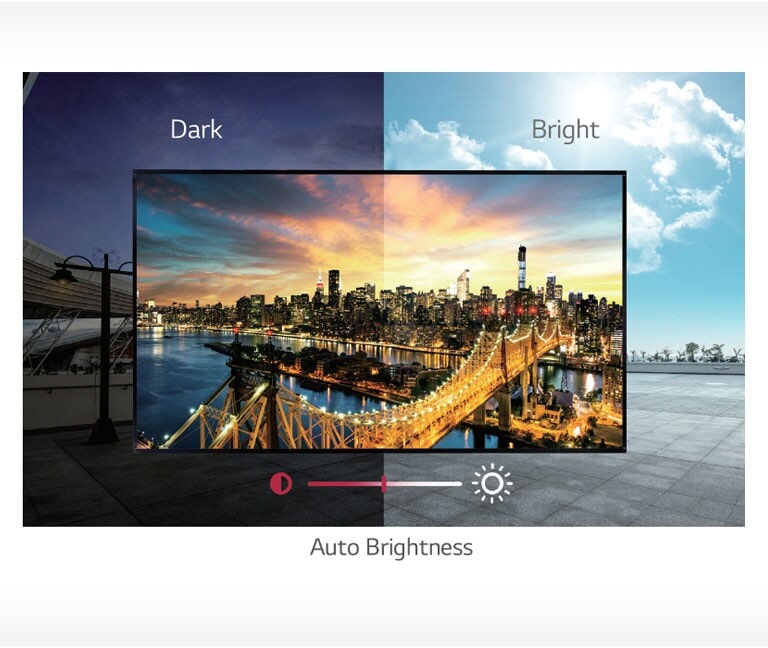

Smart Brightness Control
Outstanding Visibility

Smart Brightness Control

The screen brightness is automatically adjusted depending on
the ambient light. The brightness is increased in light for
better visibility, while it is decreased in darkness for efficient
power management.
High Operating Temperature
Product Reliability

High Operating Temperature

Its high reliability under high operating temperatures reduces additional costs for air conditioning system.

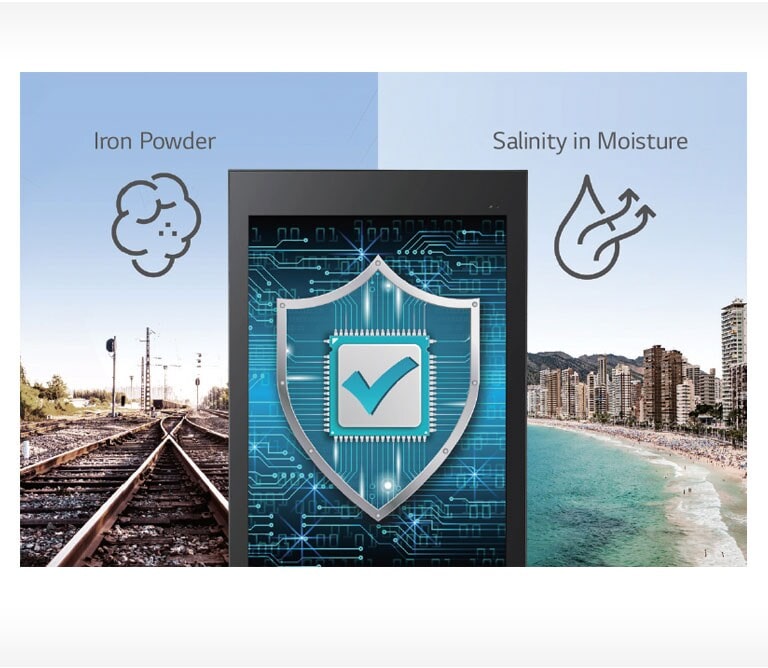

Conformal Coating
Product Reliability

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on every major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.

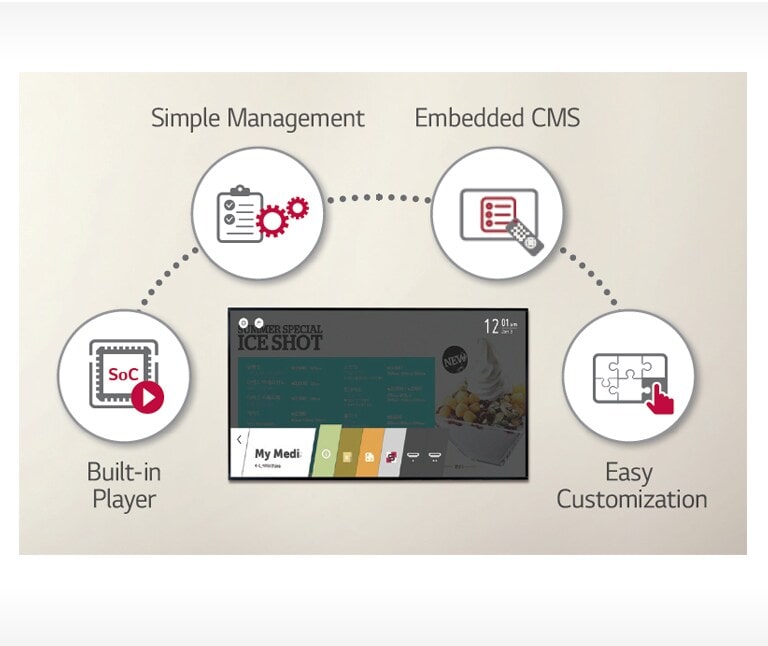

High-Performance with webOS Smart Platform
Easy Maintenance

High-Performance with webOS Smart Platform

Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.
Print

All Spec

ACCESSORY

  • Basic

    HDMI Cable, Wired IR & Brightness Sensor [5Pin]

  • Optional

    Pixel Sensor

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

SOUND

  • Speaker (Built-in)

    NO

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic

CERTIFICATION

  • EMC

    FCC Class "A" / CE / KC

  • ePEAT(US only)

    NO

  • ERP / Energy Star

    NO / NO

  • Safety

    UL Recognized / CB

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 85 %

  • Operation Temperature

    0 °C to 50 °C (w/o Direct Sunlight, Direct Sunlight in Cooling System) 0 °C to 40 °C (Direct Sunlight)

OPS COMPATIBILITY

  • OPS Power Built-in

    NO

  • OPS Type compatible

    NO

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    2252 BTU/Hr(Typ.), 2371 BTU/Hr(Max.)

  • DPM

    0.5W(DP), 1.0W(DVI-D, HDMI)

  • Max.

    695W

  • Power off

    0.5W

  • Typ.

    660W (Full White) 403W (IEC 62087)

DEDICATED FEATURE - TOUCH

  • Accuracy (Typ.)

    N/A

  • Available Object Size for Touch

    N/A

  • Interface

    N/A

  • Multi Touch Point

    N/A

  • Operating System Support

    N/A

  • Protection Glass Thickness

    N/A

  • Protection Glass Transmission

    N/A

  • Response Time ('Paint' app on Windows 10 PC)

    N/A

MECHANICAL SPECIFICATION

  • Weight (Head)

    36.7Kg

  • Bezel Color

    Black

  • Bezel Width

    Even bezel : 11.8mm

  • Carton Dimensions (W x H x D)

    1816 x 1106 x 285mm

  • Handle

    YES

  • Monitor Dimensions (W x H x D)

    1675.2 x 953.6 x 123.9mm

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Packed Weight

    46.3Kg

  • VESA Standard Mount Interface

    N/A

  • Weight (Head+Stand)

    N/A

PANEL

  • Aspect Ratio

    16:9

  • Back Light Type

    Direct

  • Brightness

    3,000nit (Typ., with Glass)

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Color Gamut

    NTSC 72%

  • Contrast Ratio

    1,200:1 (Typ.)

  • Dynamic CR

    500,000:1

  • Life time

    50,000Hrs (Typ.)

  • Native Resolution

    3840 x 2160 (UHD)

  • Operation Hours (Hours/Day)

    24/7

  • Panel Technology

    IPS / M+

  • Portait / Landscape

    YES / YES

  • QWP (Quarter Wave Plate)

    YES

  • Refresh Rate

    60Hz

  • Response Time

    8ms (G to G)

  • Screen Size (Inch)

    75

  • Surface Treatment (Haze)

    Haze 3%

  • Transparency

    N/A

  • Viewing Angle (H x V)

    178º x 178º

PROTECTION GLASS

  • Anti-Reflective

    N/A

  • Degree of Protection

    N/A

  • Infrared - Resistance (IR)

    N/A

  • Shatter-Proof

    N/A

  • Tempered / Chemical strengthening

    N/A

  • Thickness

    N/A

CONNECTIVITY

  • Audio In

    YES

  • Audio Out

    NO

  • Daisy Chain

    NO

  • DP In

    YES (HDCP 1.3)

  • DP Out

    YES

  • DVI-D In

    YES

  • External Speaker Out

    YES

  • HDMI In

    YES (2ea)

  • HDMI In (HDCP Ver.)

    2.2

  • HDMI Out

    NO

  • IR In

    YES

  • IR Out

    NO

  • RGB In

    NO

  • RJ45(LAN) In

    YES (1ea)

  • RJ45(LAN) Out

    NO

  • RS232C In

    YES

  • RS232C Out

    YES

  • Touch USB

    NO

  • USB In

    USB3.0 Type A (1ea)

SPECIAL FEATURE

  • Conformal Coating (Power Board)

    YES

  • Direct Sunlight

    YES

  • IP Rating

    N/A

  • Overlay Touch Compatibility

    N/A

  • Power Protection

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face down)

    N/A

  • Tilt (Face up)

    N/A

SOFTWARE COMPATIBILITY

  • Connected Care

    NO

  • Mobile CMS

    NO

  • Promota

    NO

  • SuperSign Cloud

    NO

  • SuperSign CMS

    YES

  • SuperSign Control+

    NO

  • SuperSign WB

    NO

FEATURE - HARDWARE

  • Acceleration(Gyro) Sensor

    NO

  • Auto Brightness Sensor

    YES

  • BLU Sensor

    NO

  • Current Sensor

    NO

  • FAN (Built-in)

    YES

  • Humidity Sensor

    YES

  • Internal Memory (eMMC)

    8GB

  • Local Key Operation

    NO

  • Pixel Sensor

    NO

  • Power Indicator

    NO

  • Proximity Sensor

    NO

  • Temperature Sensor

    YES

  • Wi-Fi/BT (Built-in)

    NO

FEATURE - SOFTWARE

  • Auto Set ID

    YES

  • Backlight Sync

    YES

  • Beacon

    NO

  • Booting Logo Image

    YES

  • Brightness Compensation

    NO

  • Cisco Certification

    NO

  • Control Manager

    YES

  • Crestron Connected

    NO

  • External Input Rotation

    YES

  • Fail over

    YES

  • Gapless Playback

    YES

  • Group Manager

    NO

  • HDMI-CEC

    YES

  • ISM Method

    YES

  • Local Contents Scheduling

    YES

  • Local Network Sync

    YES

  • Network Ready

    NO

  • No Signal Image

    NO

  • OS Ver. (webOS)

    webOS 3.0

  • PBP

    NO

  • PIP

    NO

  • Play via URL

    NO

  • PM mode

    YES

  • Pro:Idiom

    NO

  • RS232C Sync

    NO

  • Scan Inversion

    NO

  • Screen Rotation

    YES

  • Screen Share

    NO

  • Setting Data Cloning

    YES

  • SI Server Setting

    YES

  • SNMP

    YES

  • Status Mailing

    YES

  • Tile Mode Setting

    YES

  • USB Plug & Play

    YES

  • Video Tag

    YES (2 Video Tag)

  • Wake on LAN

    YES

  • webRTC

    NO

  • W/B Setting by Grey scale

    NO
