Name: 75'' UHD 4,000nits Window-facing Display
Brand: LG

75'' UHD 4,000nits Window-facing Display

Find a Dealer

75'' UHD 4,000nits Window-facing Display

75XS4G-B

Key Features

Brightness : 4,000 nits (Typ.) / 3,200 nits (Min.)
Resolution : ULTRA HD (3,840 x 2,160)
Bezel : 13.8 mm (Even Bezel)
Double-sided Usage with Dedicated Bracket
Built-in Wi-Fi & Bluetooth
Web-based Monitoring Solution

*All images of this page are for illustrative purposes only.

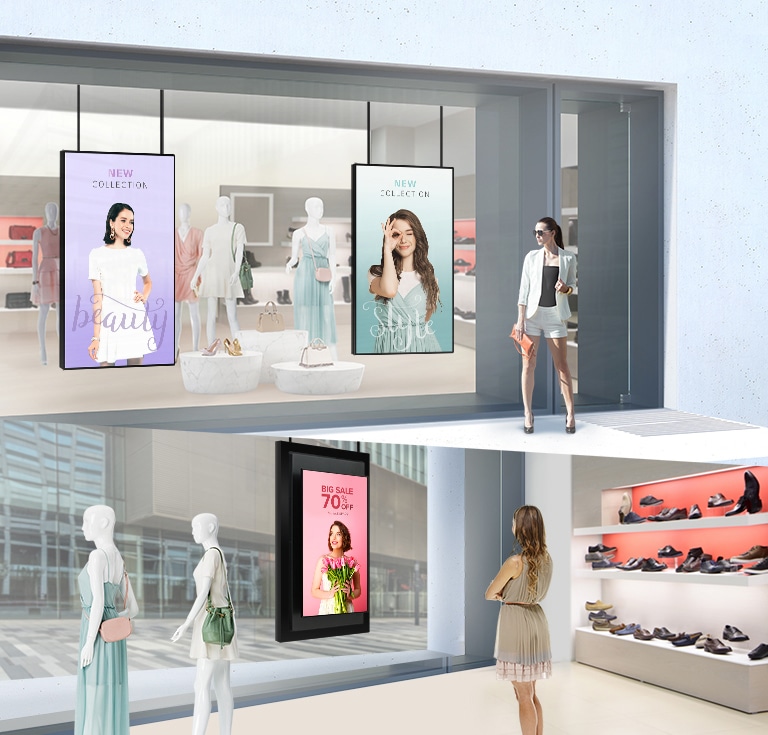

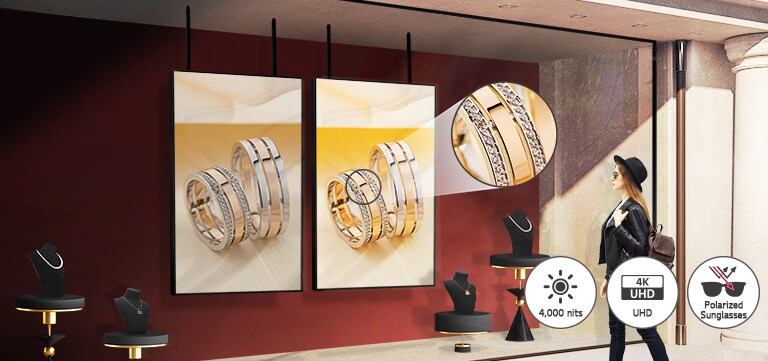

Deliver Your Message
with High Visibility
Even Under the Strong Sunlight

With a great brightness of 4,000 nits** and UHD picture quality,
75XS4G clearly deliver contents and attract public attention,
which is the ultimate display for outdoor visibility.
QWP*** enables clear visibility even when the viewer is wearing polarized sunglasses.

*‘LG Conventional’ refers to LG 75XS2E.
**Brightness of 75XS4G : Max. 4,000 nits, Typ. 3,200 nits.
***Quarter Wave Plate.

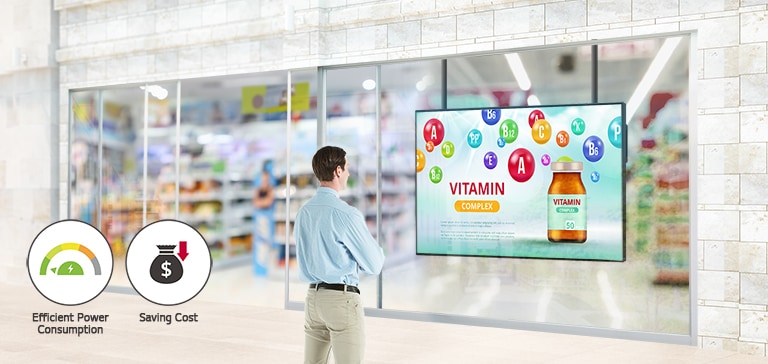

High Energy Efficiency

The 75XS4G is *energy efficient, allowing for an efficient total cost management
while showing content in UHD resolution even with 4,000 nits of high brightness.

*Maximum power consumption of 75XS4G is 790 W at ‘On Mode’. The figure may differ depending on the actual environment.

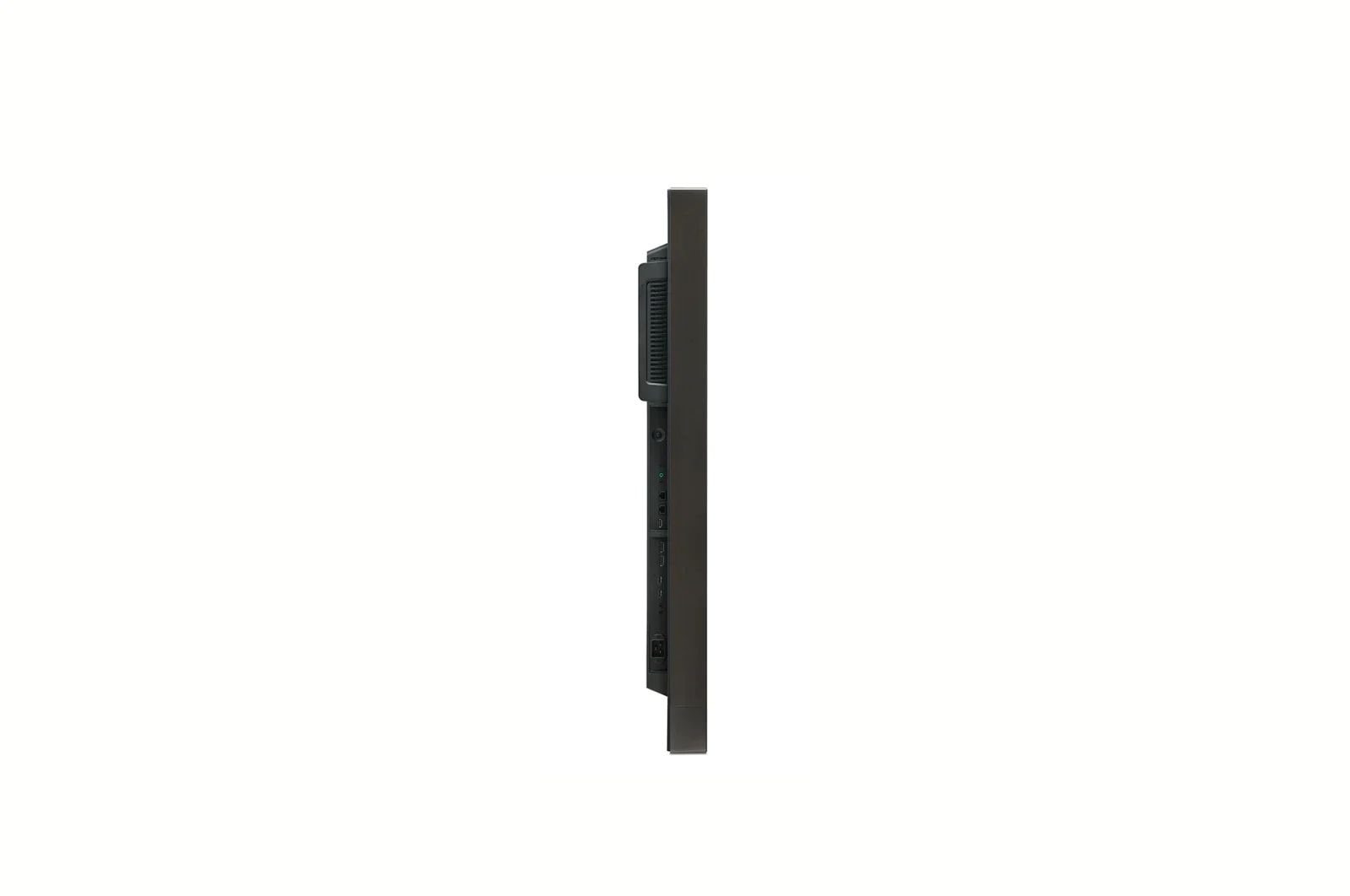

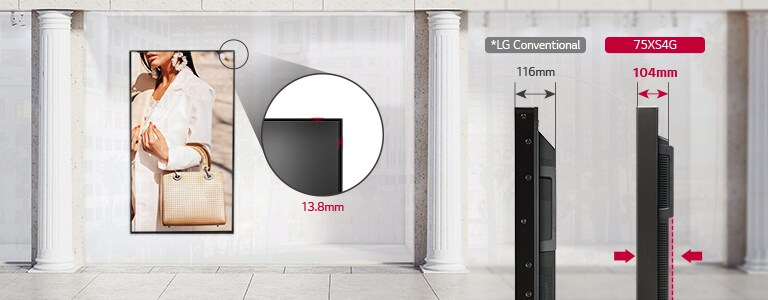

Space Blending Slim Design

Given that window-facing displays are usually installed indoors close to the window,
75XS4G's slim design is useful as it can blend naturally inside the store.

*‘LG Conventional’ refers to LG 75XS2E.

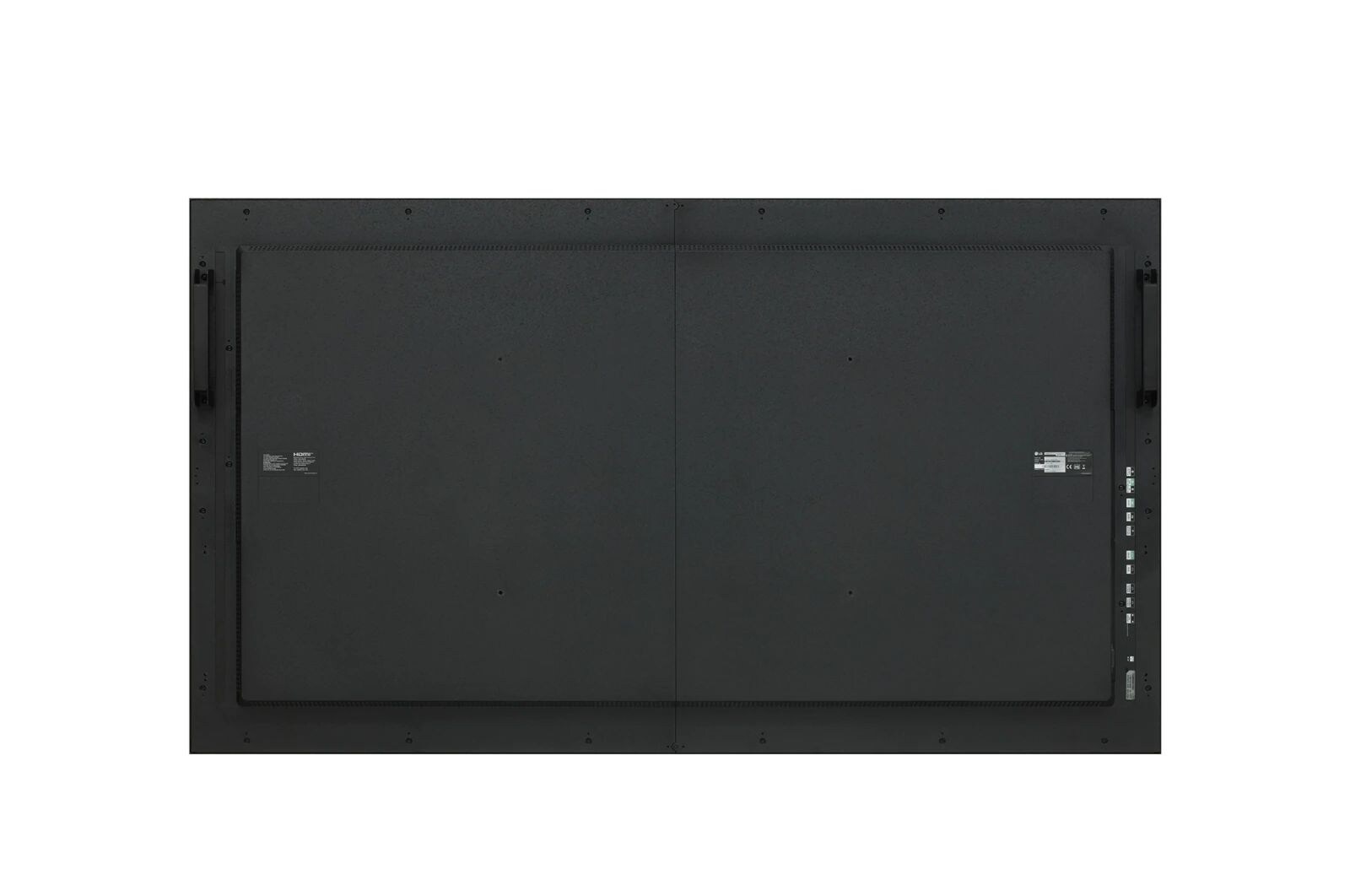

Double-sided Usage with Dedicated Bracket

Due to the 75XS4G flat-back design and dedicated bracket*,
store owner can attach LG’s UHD display** to the back for the purpose of
displaying a variety of content for both external and internal customers.

*Bracket is optional.
**Attachable Displays : LG 65/55/49 inches UH7 Series, 65/55/49 inches UH5/UM3 Series.

Wide Operating
Temperature Range

75XS4G can operate at various temperatures of 0-40°C.

Conformal Coating

*Conformal Coating improves reliability of the circuit board, power board
by protecting it against dust, iron powder, humidity, etc.

*Conformal Coating : Thin protective films/breathing membranes that filter water vapor and solid debris.

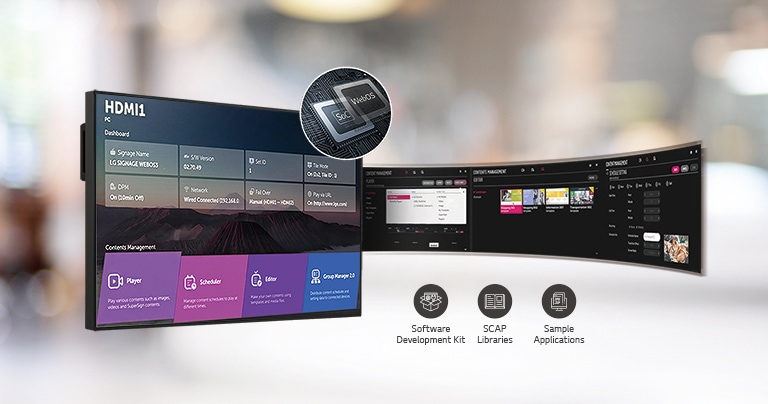

High Performance with webOS

Quad Core SoC* can execute several tasks at the same time without a separate media player.
In addition, webOS 4.1 platform enhances user convenience with intuitive UI and simple app development tools.

*System-on-Chip.

Multiple Display Control with a Remote Control

Multiple device controls are available through the RJ45 & RS-232C ports.
It means that even double-sided displays can be easily controlled simultaneously
with a remote control.

Easy Content Distribution
& SW Update

75XS4G features embedded Wi-Fi, Bluetooth, Beacon making it easy to distribute content wirelessly and update Firmware. In particular, using Beacon and BLE (Bluetooth Low Energy),
Shop manager can do various promotional activities, such as providing promotional coupons or product information to visitor in real time.

Web Monitoring
(Control Manager)

This web-based monitoring solution is user-friendly and allows the user to be at ease.
It enables the user to have full access anywhere at anytime
from their mobile phone while having access to both current and past data.
It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.

Precise Installation Using Leveler Tool

The 75XS4G is equipped with a "Leveler Tool" which shows users how the device is tilt,
so the display can be precisely installed.

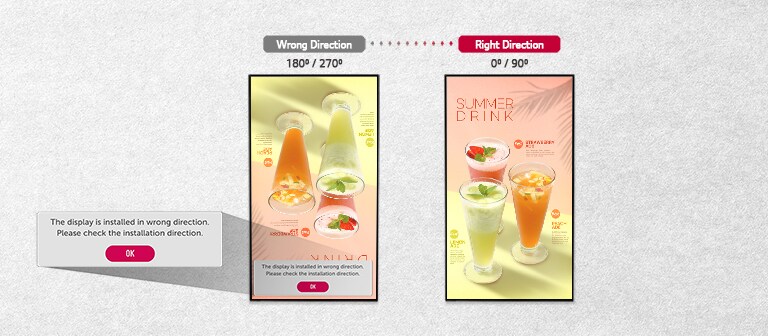

Alert for Right Direction

The 75XS4G is equipped with a "horizontal sensor", so the display can be installed accurately.

Explore more showroom at
LG Digital Connect

Explore

All Spec

LANGUAGE

OSD

English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

POWER

Power Supply

AC 100-240V~, 50/60Hz
Power Type

Built-in Power

SOUND

Speaker (Built-in)

NO

ACCESSORY

Basic

Remote Controller(including battery 2ea), Power Cord, HDMI Cable, Manual (EIG, IG), IR Receiver(w/Ambient Light Sensor), RS-232C Gender, IR Sheet
Optional

Double sided Bracket (Landscape&Portrait : WM-B640S)

ENVIRONMENT CONDITIONS

Operation Humidity

10 % to 80 %
Operation Temperature

0 °C to 40 °C (w/o Direct Sunlight, Direct Sunlight in Cooling System) 0 °C to 30 °C (Direct Sunlight)

OPS COMPATIBILITY

OPS Power Built-in

NO
OPS Type compatible

NO

CERTIFICATION

EMC

FCC Class "A" / CE / KC / VCCI
ePEAT(US only)

NO
ERP / Energy Star

YES / NO
Safety

CB / NRTL

DEDICATED FEATURE - TOUCH

Accuracy (Typ.)

N/A
Available Object Size for Touch

N/A
Interface

N/A
Multi Touch Point

N/A
Operating System Support

N/A
Protection Glass Thickness

N/A
Protection Glass Transmission

N/A
Response Time ('Paint' app on Windows 10 PC)

N/A

MECHANICAL SPECIFICATION

Weight (Head)

39.6Kg
Bezel Color

Black
Bezel Width

Even bezel : 13.8mm
Carton Dimensions (W x H x D)

1816 x 1106 x 285mm
Handle

YES
Monitor Dimensions (W x H x D)

1679.2 x 957.6 x 104mm
Monitor Dimension with Stand (W x H x D)

N/A
Packed Weight

50Kg
VESA Standard Mount Interface

600 x 400 mm
Weight (Head+Stand)

N/A

POWER CONSUMPTION

BTU (British Thermal Unit)

2559 BTU/Hr(Typ.), 2696 BTU/Hr(Max.)
DPM

0.5W
Max.

790W
Power off

0.5W
Typ.

750W (Full White) 405W (IEC 62087)

PANEL

Aspect Ratio

16:9
Back Light Type

Direct
Brightness

4,000nit (Typ.), 3,200nit (Min.)
Color Depth (Number of Colors)

1.07 Billion colors
Color Gamut

NTSC 68%
Contrast Ratio

1,200:1 (Typ.)
Dynamic CR

500,000:1
Life time

50,000Hrs (Typ.)
Native Resolution

3840 x 2160 (UHD)
Operation Hours (Hours/Day)

24/7
Panel Technology

IPS / M+
Portait / Landscape

YES / YES
QWP (Quarter Wave Plate)

YES
Refresh Rate

60Hz
Response Time

8ms (G to G)
Screen Size (Inch)

75
Surface Treatment (Haze)

Haze 3%
Transparency

N/A
Viewing Angle (H x V)

178º x 178º

PROTECTION GLASS

Anti-Reflective

N/A
Degree of Protection

N/A
Infrared - Resistance (IR)

N/A
Shatter-Proof

N/A
Tempered / Chemical strengthening

N/A
Thickness

N/A

SPECIAL FEATURE

Conformal Coating (Power Board)

YES
Direct Sunlight

N/A
IP Rating

N/A
Overlay Touch Compatibility

N/A
Power Protection

N/A
Smart Calibration

N/A
Tilt (Face down)

N/A
Tilt (Face up)

N/A

CONNECTIVITY

Audio In

NO
Audio Out

NO
Daisy Chain

NO
DP In

YES (HDCP 2.2/1.3)
DP Out

NO
DVI-D In

NO
External Speaker Out

YES
HDMI In

YES (2ea)
HDMI In (HDCP Ver.)

2.2/1.4
HDMI Out

YES
IR In

YES
IR Out

NO
RGB In

NO
RJ45(LAN) In

YES (1ea)
RJ45(LAN) Out

NO
RS232C In

YES
RS232C Out

YES
Touch USB

NO
USB In

USB2.0 Type A (1ea)

SOFTWARE COMPATIBILITY

Connected Care

YES
Mobile CMS

NO
Promota

NO
SuperSign Cloud

NO
SuperSign CMS

YES
SuperSign Control+

YES
SuperSign WB

NO

FEATURE - HARDWARE

Acceleration(Gyro) Sensor

YES
Auto Brightness Sensor

YES
BLU Sensor

NO
Current Sensor

NO
FAN (Built-in)

YES
Humidity Sensor

NO
Internal Memory (eMMC)

16GB
Local Key Operation

YES
Pixel Sensor

NO
Power Indicator

NO
Proximity Sensor

NO
Temperature Sensor

YES
Wi-Fi/BT (Built-in)

YES

FEATURE - SOFTWARE

Auto Set ID

YES
Backlight Sync

YES
Beacon

YES
Booting Logo Image

YES
Brightness Compensation

NO
Cisco Certification

NO
Control Manager

YES
Crestron Connected

NO
External Input Rotation

YES
Fail over

YES
Gapless Playback

YES
Group Manager

YES
HDMI-CEC

YES
ISM Method

YES
Local Contents Scheduling

YES
Local Network Sync

YES
Network Ready

YES
No Signal Image

YES
OS Ver. (webOS)

webOS 4.1
PBP

YES (2PBP)
PIP

YES
Play via URL

YES
PM mode

YES
Pro:Idiom

YES
RS232C Sync

YES
Scan Inversion

NO
Screen Rotation

YES
Screen Share

NO
Setting Data Cloning

YES
SI Server Setting

YES
SNMP

YES
Status Mailing

YES
Tile Mode Setting

YES
USB Plug & Play

YES
Video Tag

YES (4 Video Tag)
Wake on LAN

YES
webRTC

YES
W/B Setting by Grey scale

NO

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
