Transparent OLED Signage

Features

Gallery

Specs

Support

Resource

Find a Dealer

Transparent OLED Signage

Transparent OLED Signage

55EW5G-V
()
  • Front view of Transparent OLED Signage 55EW5G-V
  • LG Transparent OLED Signage, 55EW5G-V
  • LG Transparent OLED Signage, 55EW5G-V
  • LG Transparent OLED Signage, 55EW5G-V
  • LG Transparent OLED Signage, 55EW5G-V
  • LG Transparent OLED Signage, 55EW5G-V
  • LG Transparent OLED Signage, 55EW5G-V
  • LG Transparent OLED Signage, 55EW5G-V
Front view of Transparent OLED Signage 55EW5G-V
LG Transparent OLED Signage, 55EW5G-V
LG Transparent OLED Signage, 55EW5G-V
LG Transparent OLED Signage, 55EW5G-V
LG Transparent OLED Signage, 55EW5G-V
LG Transparent OLED Signage, 55EW5G-V
LG Transparent OLED Signage, 55EW5G-V
LG Transparent OLED Signage, 55EW5G-V

Key Features

  • Brightness(Typ.): 400nit (APL 25%, Without Glass)
  • Transparency(Typ.) : 38%
  • Bezel : 7.9 mm (T/B/L), 121.7 mm (B)
  • Interface : HDMI/DP/USB(2)/ RS232C/ RJ45/ Audio/ IR
More

See the unseen,
LG Transparent OLED

LG Transparent OLED Signage offers new ways to communicate visually and opens up a whole new level of creativity that even conventional digital signage cannot offer.

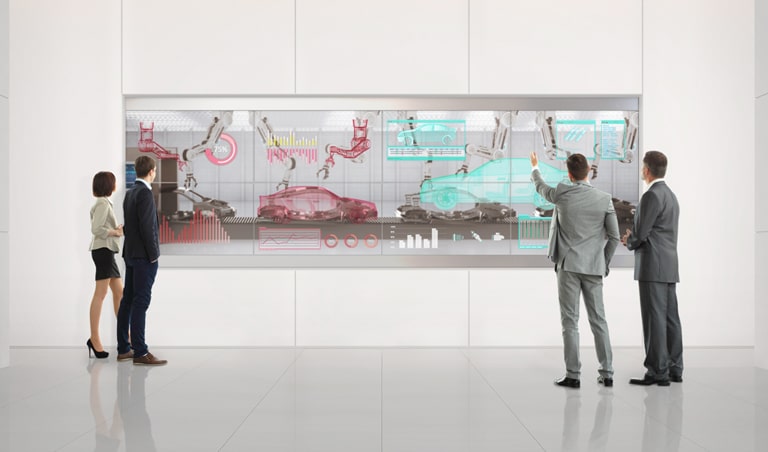

People analyze their work using the transparent OLED screens installed on the wall of the lobby.

* All images are for illustrative purposes only.

Information about structures is displayed on the transparent OLED screens which are set up in front of the miniature structures.

High Transparency

LG’s OLED technology makes the Transparent OLED Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency of 38%* much higher than conventional LCD transparent displays (10%**). While clearly showing objects behind the screen, it overlays the relevant information right before them.

* The Year of Measurement : 2018
Measurement Method : Checking Transparency Using a Hazemeter
Conducted by : LGD - internal testing

** Based on LG’s WFB series.

A man is being shown information and photos of the dessert menu on the transparent OLED screens.

Accurate
and Vivid Colors

Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.

A thin and transparent tempered glass is attached to the Transparent OLED screen.

Protective Tempered Glass

Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

* Optically Clear Adhesive

A woman reviews her work by looking at it on the transparent OLED screens installed on the office windows.

Expandable Design
(2×N Tiling)

LG Transparent OLED Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation*, it can complement any venue in which it is installed.

* Installation accessories are not supplied by LG.

Print

All Spec

PANEL

  • Screen Size (Inch)

    55"

  • Panel Technology

    OLED

  • Native Resolution

    1,920 x 1,080 (FHD)

  • Brightness

    150/400nit (APL 100%/25%, Without Glass)

  • Contrast Ratio

    150,000 : 1

  • Dynamic CR

    No

  • Color Gamut

    BT709 120 %

  • Viewing Angle (H x V)

    178 x 178

  • Color Depth (Number of Colors)

    10bit(R), 1.07Bilion colors

  • Response Time

    1ms (G to G), 8ms (MPRT)

  • Surface Treatment (Haze)

    Hard coating (2H)

  • Operation Hours (Hours/Day)

    18 / 7 (Moving Content Only)

MECHANICAL SPECIFICATION

  • Bezel Width

    T/R/L/B : 7.9/7.9/7.9/121.7mm

  • Weight (Head)

    11.6Kg (Head), 3.4Kg (Signage Box)

  • Monitor Dimensions (W x H x D)

    1225.5 x 810.1 x 4.9mm (Head)
    782.8 x 238.4 x 34.7mm (Signage Box)

  • VESA Standard Mount Interface

    No

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10% to 80%

  • Operation Temperature

    0 °C to 40 °C

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ.

    250W

  • Max.

    280W

  • BTU (British Thermal Unit)

    853.03 BTU/Hr(Typ.), 955.39 BTU/Hr(Max)

SOUND

  • Speaker (Built-in)

    No

CERTIFICATION

  • Safety

    IEC 60950-1 / EN 60950-1 / UL 60950-1

  • EMC

    FCC Class "A" / CE / KC

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3000mmx4ea/3000mmx2ea) for connection between panel and Signage Box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Screw(M4xL22,12EA / M4 Nut 12EA / M3xL5.5,8EA / M3xL3.5, 20EA), Shield Cover Assy', Rubber Damper 4EA, MCX cable Holder 4ea

  • Optional

    Stand (ACC-S-EW5F, 2 Pole)

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
