21.3” High Brightness (2048 x 1536) 3MP Color IPS Diagnostic Monitor

21.3” High Brightness (2048 x 1536) 3MP Color IPS Diagnostic Monitor

21.3” High Brightness (2048 x 1536) 3MP Color IPS Diagnostic Monitor

21HK512D-W
LG 21.3” High Brightness (2048 x 1536) 3MP Color IPS Diagnostic Monitor, 21HK512D-W
LG 21.3” High Brightness (2048 x 1536) 3MP Color IPS Diagnostic Monitor, 21HK512D-W
LG 21.3” High Brightness (2048 x 1536) 3MP Color IPS Diagnostic Monitor, 21HK512D-W
LG 21.3” High Brightness (2048 x 1536) 3MP Color IPS Diagnostic Monitor, 21HK512D-W
LG 21.3” High Brightness (2048 x 1536) 3MP Color IPS Diagnostic Monitor, 21HK512D-W
LG 21.3” High Brightness (2048 x 1536) 3MP Color IPS Diagnostic Monitor, 21HK512D-W
LG 21.3” High Brightness (2048 x 1536) 3MP Color IPS Diagnostic Monitor, 21HK512D-W
LG 21.3” High Brightness (2048 x 1536) 3MP Color IPS Diagnostic Monitor, 21HK512D-W
LG 21.3” High Brightness (2048 x 1536) 3MP Color IPS Diagnostic Monitor, 21HK512D-W
LG 21.3” High Brightness (2048 x 1536) 3MP Color IPS Diagnostic Monitor, 21HK512D-W
LG 21.3” High Brightness (2048 x 1536) 3MP Color IPS Diagnostic Monitor, 21HK512D-W
LG 21.3” High Brightness (2048 x 1536) 3MP Color IPS Diagnostic Monitor, 21HK512D-W
LG 21.3” High Brightness (2048 x 1536) 3MP Color IPS Diagnostic Monitor, 21HK512D-W
LG 21.3” High Brightness (2048 x 1536) 3MP Color IPS Diagnostic Monitor, 21HK512D-W
LG 21.3” High Brightness (2048 x 1536) 3MP Color IPS Diagnostic Monitor, 21HK512D-W
LG 21.3” High Brightness (2048 x 1536) 3MP Color IPS Diagnostic Monitor, 21HK512D-W

Key Features

  • 21.3” Color IPS 3MP
  • DICOM Part 14
  • Auto Luminance Sensor
  • Remote & Self Calibration
  • Brightness(Typ.) 1000 cd/m²
More
pc lazyloaded

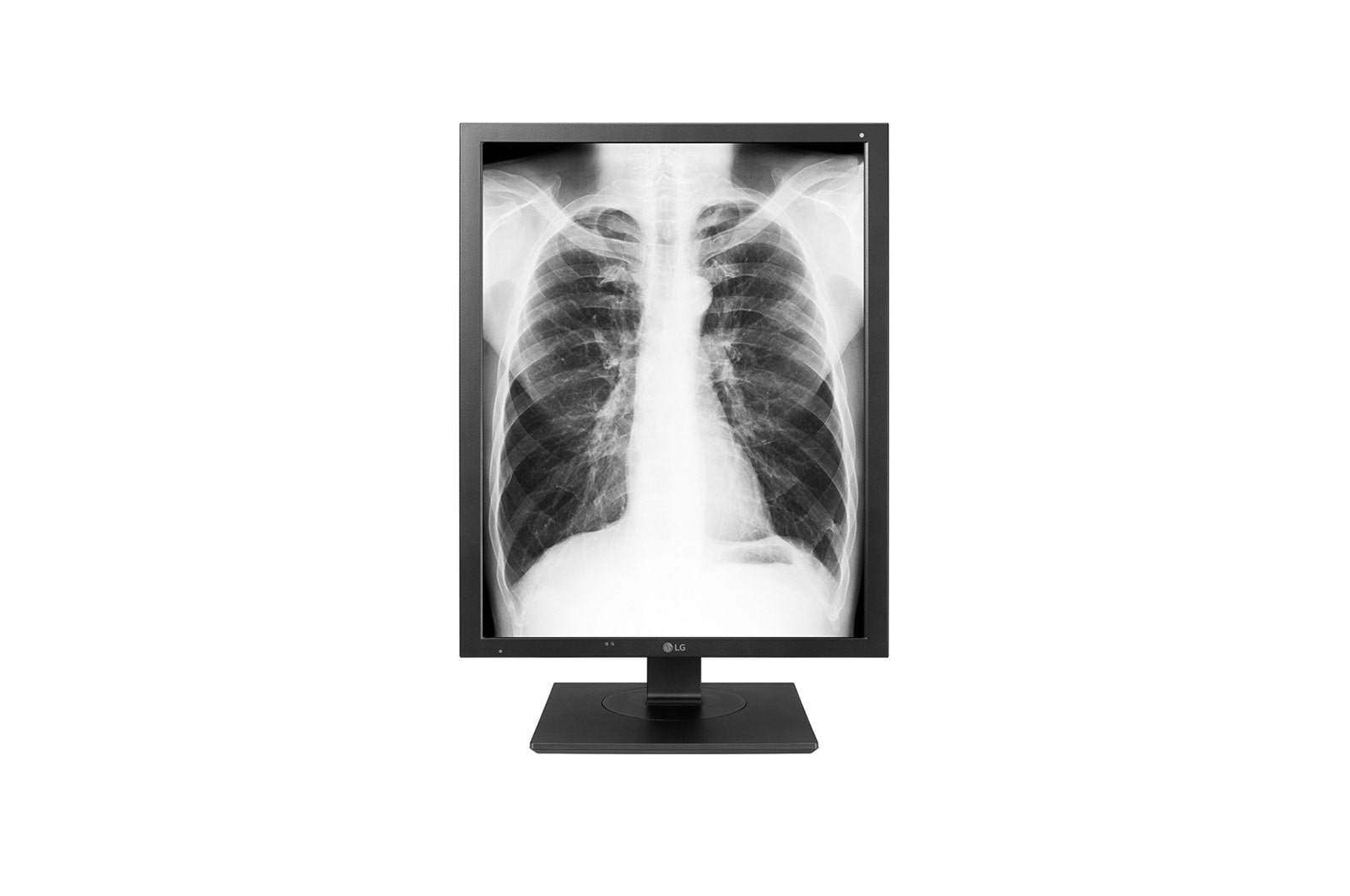

21.3” Color IPS 3MP

Accurate Image Quality

The 21.3” Color IPS 3MP display with 1000 cd/m² brightness facilitates the viewing of diagnostic images from CR and DR by presenting high quality, accurate images. The 21HK512D diagnostic monitor allows medical professionals to easily distinguish even delicate detail.

Reliable Image for Diagnosis

pc lazyloaded

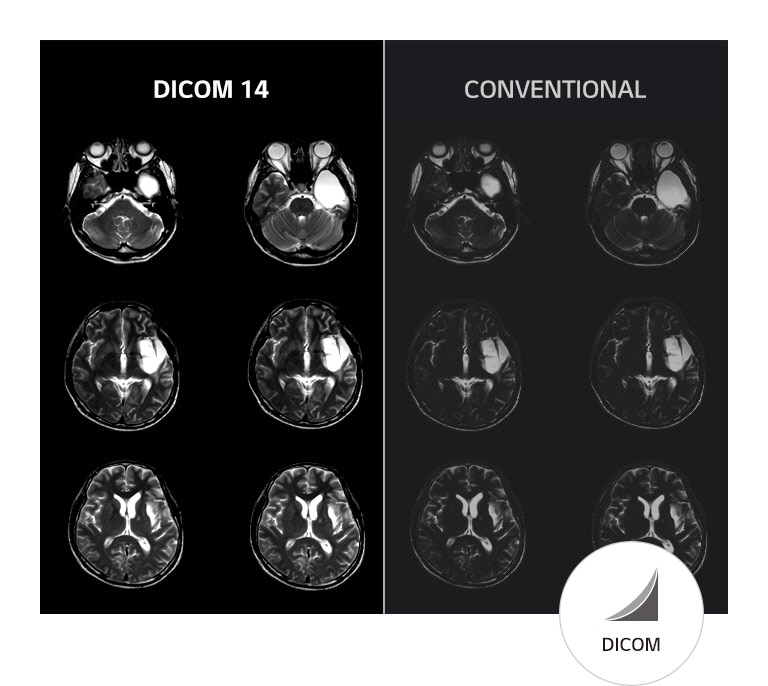

DICOM Part 14

Stable Grayscale Images

The standard DICOM Part 14 Gamma allows for accurate diagnostics as it adjusts the greyscale levels of medical images received from different types of image capturing devices. Plus, 18-bit LUT also makes enhanced, accurate grayscale image, smoothing out the transition between LUT values.

*Image for illustration purpose only.

pc lazyloaded
Auto Luminance Sensor

Automatic Brightness Stabilization

Auto Luminance sensor measures the backlight brightness stability and automatically compensates for brightness fluctuations caused by aging for a consistently stable display during the usage life.

*Image for illustration purpose only.

Productive, Efficient Work

pc lazyloaded

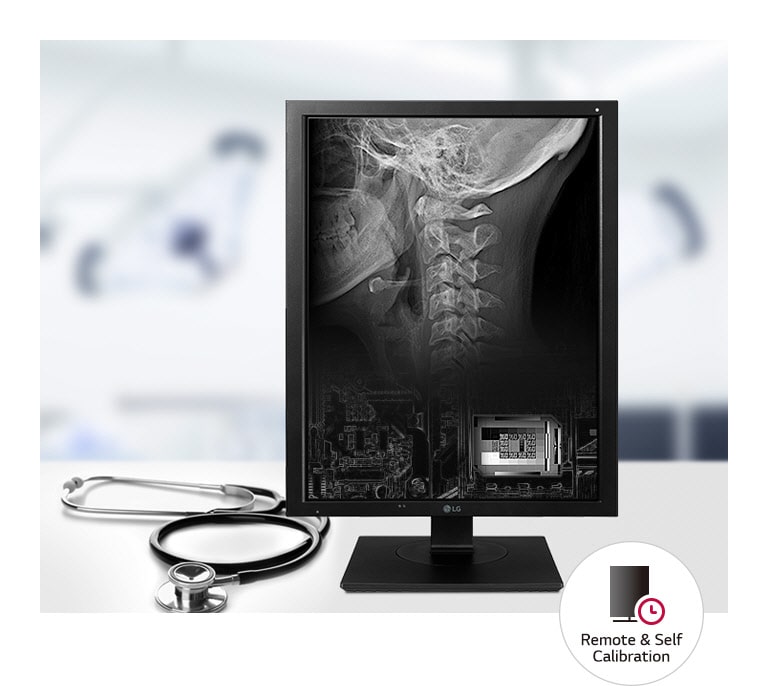

Remote & Self Calibration

Improved Productivity

The Built-in Remote and Self Calibration of the 21HK512D help to increase productivity and efficiency for medical professionals. It converts the medical images to a more suitable image to help medical staff make appropriate diagnosis.

*Image for illustration purpose only.

Print

All Spec

POWER

  • Type

    Internal Power (LIPS)

  • AC Input

    100-240Vac, 50/60Hz

  • DC Output

    24V, 4.17A

  • Power Consumption (Typ.)

    85W

  • Power Consumption (Max.)

    100W

  • Power Consumption (Sleep Mode)

    Less than 6.5W

  • Power Consumption (DC Off)

    Less than 6.5W

DISPLAY

  • Size (Inch)

    21.3 inch

  • Size (cm)

    54.102 cm

  • Resolution

    2048 x 1536

  • Panel Type

    IPS

  • Backlight Technology

    LED

  • Backlight Type

    Edge

  • Aspect Ratio

    4:3

  • Pixel Pitch

    0.2115 (H) x 0.2115 (V)

  • Brightness

    1000 cd/m² (Typ.)

  • Calibrated Brightness

    500 cd/m²

  • Color Depth (Number of Colors)

    1.07G

  • Color Bit

    10bit

  • Contrast Ratio_Min.

    1100:1

  • Contrast Ratio_Typ.

    1400:1

  • Contrast Ratio with DFC

    Mega

  • Response Time

    30ms

  • Viewing Angle (CR≥10)

    178º (R/L), 178º (U/D)

  • Surface Treatment

    Anti-Glare

CONNECTIVITY

  • DVI

    Yes

  • DVI (V Frequency)

    60

  • DVI (Max Resolution at Hz)

    2048 X 1536 @60HZ

  • DisplayPort

    Yes (1ea)

  • DP (V Frequency)

    60

  • DP (Max. Resolution at Hz)

    2048 x 1536 @60HZ

  • USB Upstream Port

    Yes (1ea)

  • USB Downstream Port

    Yes (2ea)

  • [Location]

    Bottom

MECHANICAL

  • Borderless Design

    Normal

  • Color (Front Cabinet)

    Black

  • Color (Back Cover)

    Black

  • Color (Stand Body)

    Black

  • Color (Stand Base)

    Black

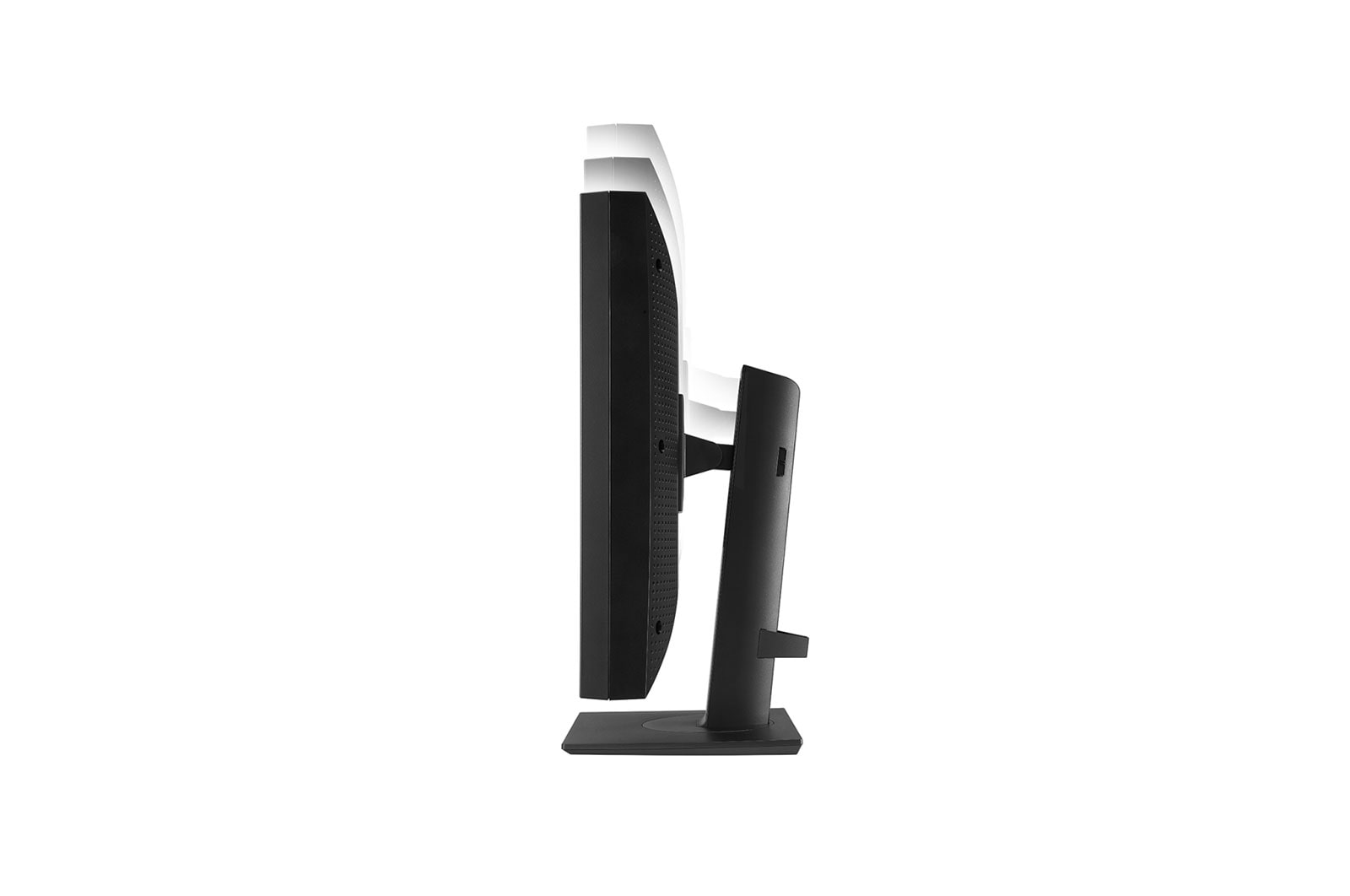

  • Display Position Adjustments

    Tilt/Height/Pivot

  • Tilt

    -5 ~ +35 º(±3)

  • Swivel

    0~355±5

  • Height Range

    0 ~ 130 mm

  • Down Height

    71.3

  • Pivot

    90º

  • Wall Mountable

    100 x 100 mm

  • Base Detchable

    Yes

  • OneClick Stand

    Yes

DIMENSIONS/WEIGHT

  • Dimension with Stand (W x H x D)

    21.8" x 20.2" x 9.4" / 553.8 x 512.9 x 240 mm

  • Dimension without Stand (W x H x D)

    21.8" x 13.1" x 2.7" / 553.8 x 333.1 x 67.6 mm

  • Dimension in Shiping (W x H x D)

    34.6" x 18.7" x 7.6" / 626 x 474 x 194 mm

  • Weight with Stand

    13.4 lbs. / 6.1kg

  • Weight without Stand

    8.8 lbs. / 4 kg

  • Weight in Shipping

    TBD

  • Pallet Stuffing (20ft/40ft/40ft HC)

    440/928/1008

STANDARD

  • UL (cUL)

    Yes

  • CB

    Yes

  • FCC-B

    Yes

  • CE

    Yes

  • CCC (for China)

    Yes

  • MFDS (for Rep. of Korea)

    Yes

  • ERP

    Yes

  • Windows

    Yes

  • ROHS, REACH

    Yes

  • PVC-Free

    Yes

  • VCCI (for Japan)

    Yes

ACCESSORY

  • Adapter (Color)

    Black

  • Power Cord (Color/Length)

    Black / 3m

  • DVI-D

    Yes

  • DVI-D (Color/Length)

    Black / 3m

  • Display Port

    Yes

  • Display Port (Color/Length)

    Black / 3m

FEATURES

  • HW Calibration

    Yes

  • Auto Brightness

    Yes

  • OSD Language

    18 countries English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian, Portuguese (brazil), Traditional Chinese, Hindi

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
