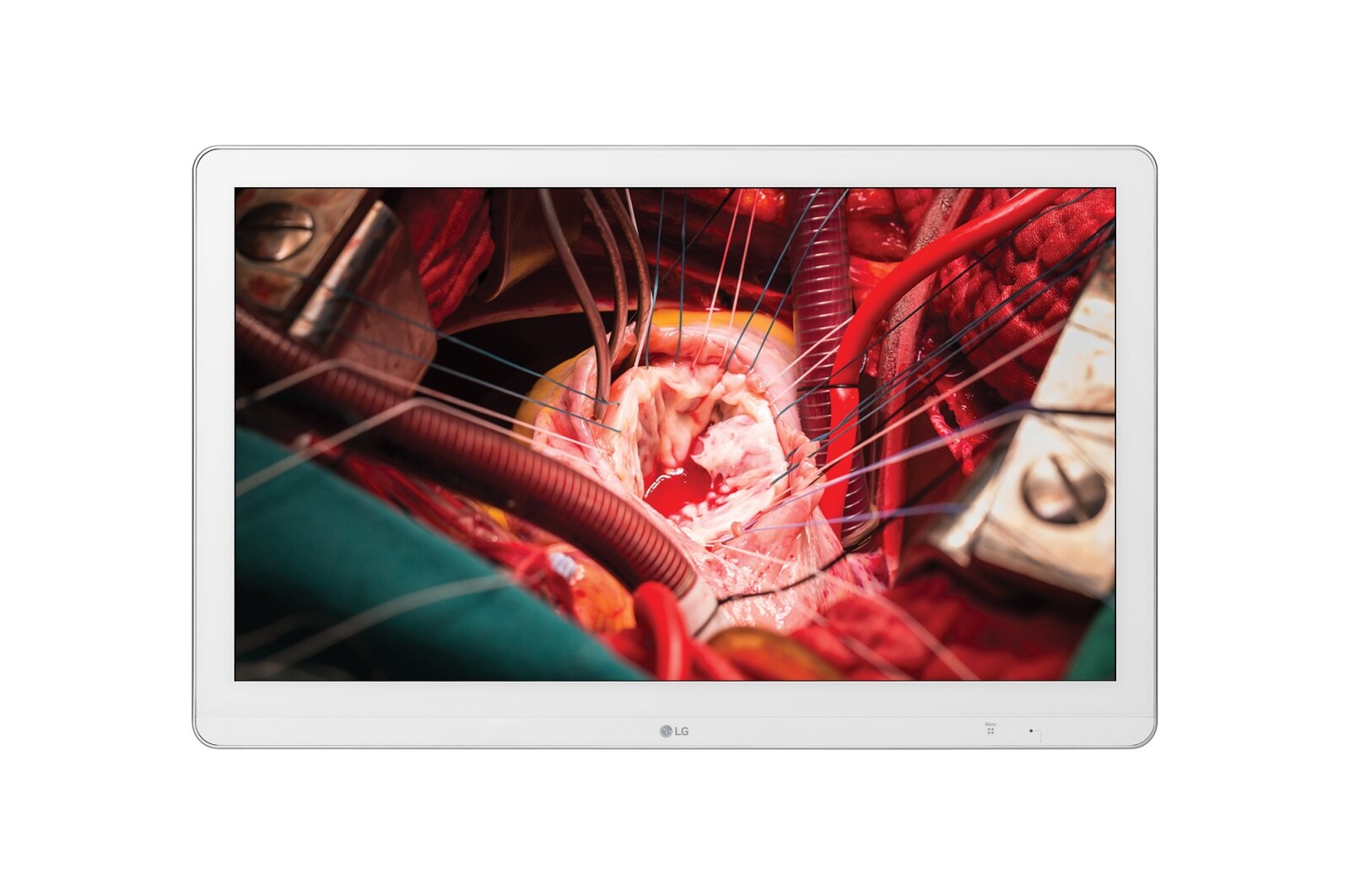

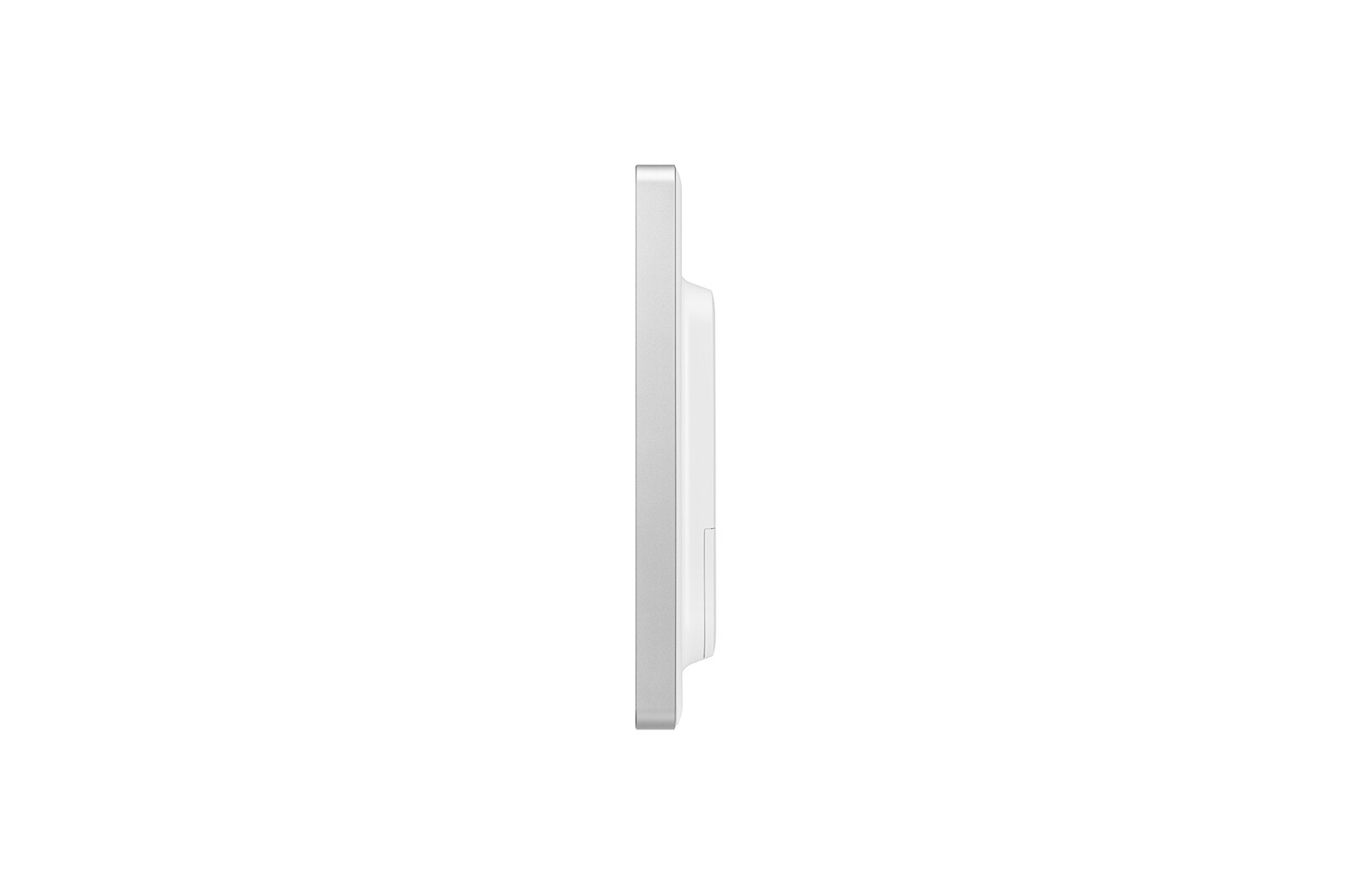

27HK510S-W

LG Full HD Surgical Monitor

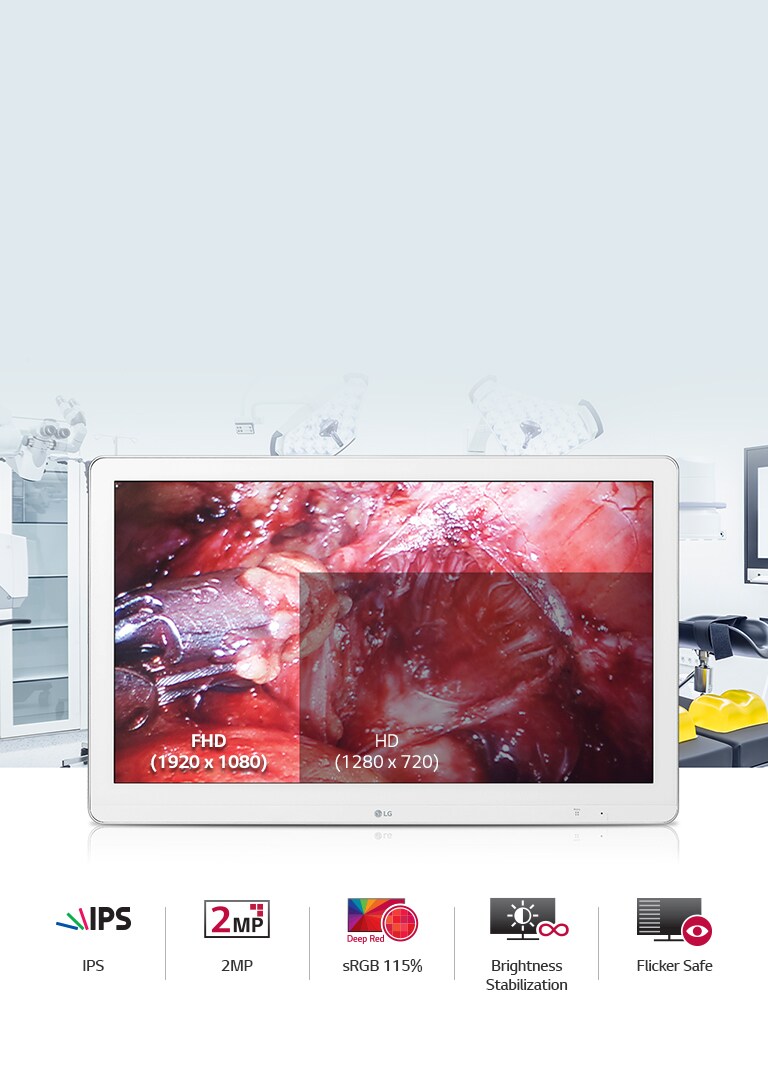

A Display Optimized for Compatibility

A Display Optimized for Compatibility


The detailed picture quality of the LG surgical monitor meets operating room requirements. With its 27-inch Full HD IPS Display, the LG surgical monitor improves work efficiency.

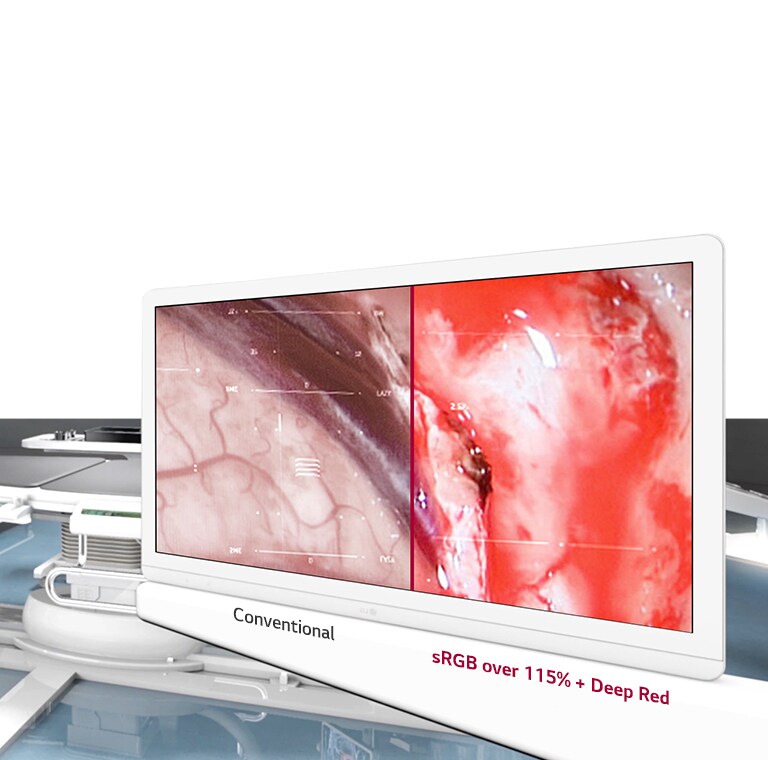

Optimal Image Quality

Full HD IPS

Optimal Image Quality

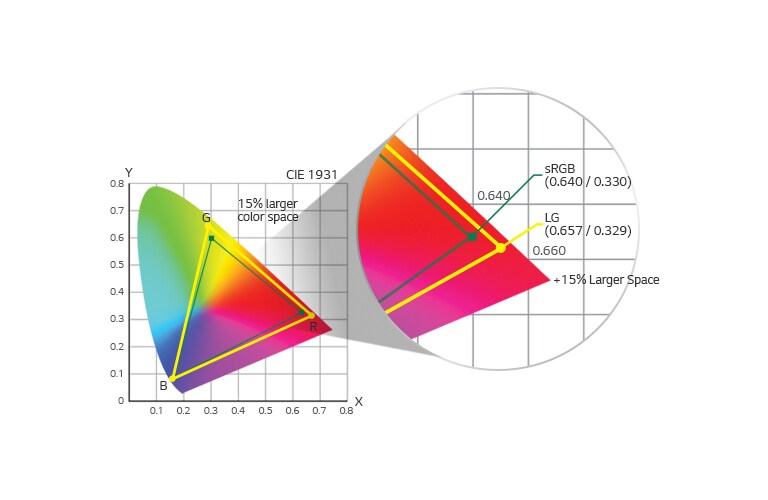

sRGB 115%(Deep Red)

sRGB 115%(Deep Red)


The Full HD IPS display with sRGB 115% (Deep Red) is designed to fit with other Full HD surgical devices. It enables surgeons to view accurate, realistic images especially in the red color spectrum.

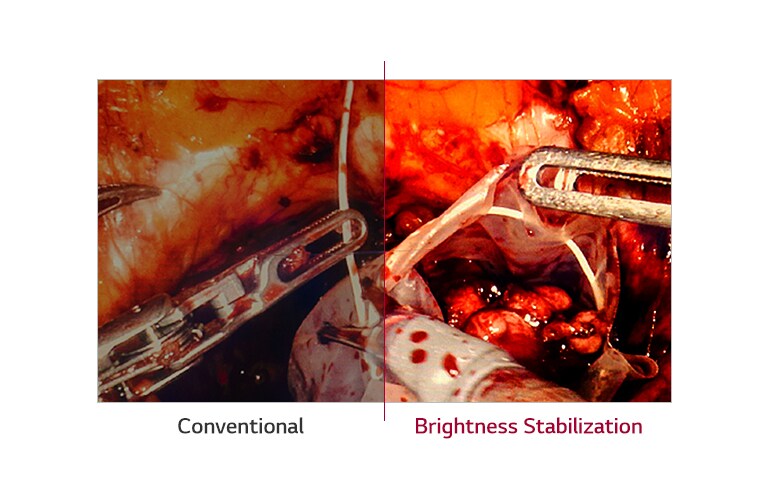

Brightness Stabilization

Brightness Stabilization


The LG surgical monitor carefully measures and sets every grayscale tone to create a monitor compliant with DICOM Part 14. Furthermore, LG’s surgical monitors offer stabilized brightness settings.

*DICOM (Digital Imaging and Communications in Medicine): Standard applied to the grayscale tone characteristics of monitors used in the medical field.

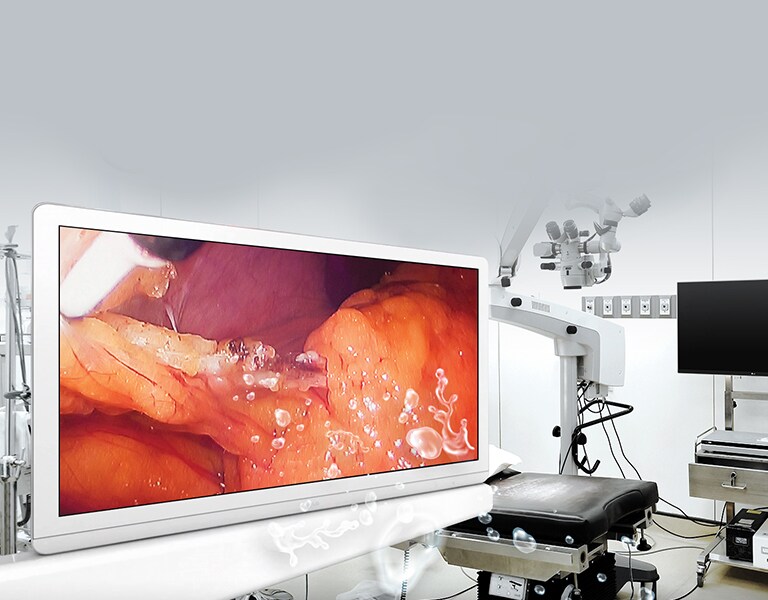

Designed for the Operating Room

Designed for the Operating Room

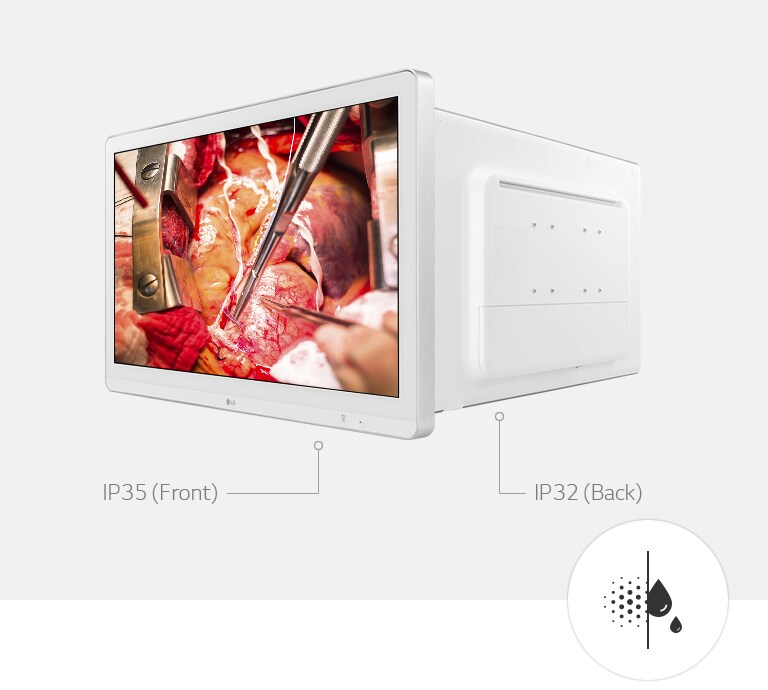

Dustproof & Waterproof

Dustproof & Waterproof


To ensure protection against contact with objects such as blood or bodily fluids, LG surgical monitors are cleanable and durable, with ratings of IP35 on the front and IP32 on the back, securing them from any direction.

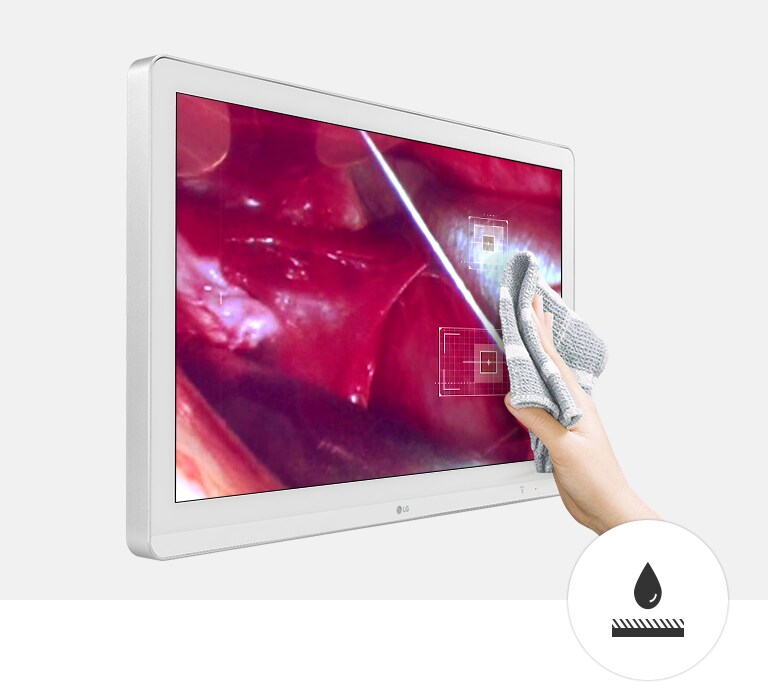

Protection Glass

Protection Glass


The LG surgical monitor with protection glass provides a more durable display by safeguarding the monitor from water and bodily fluids and making it easier to clean.

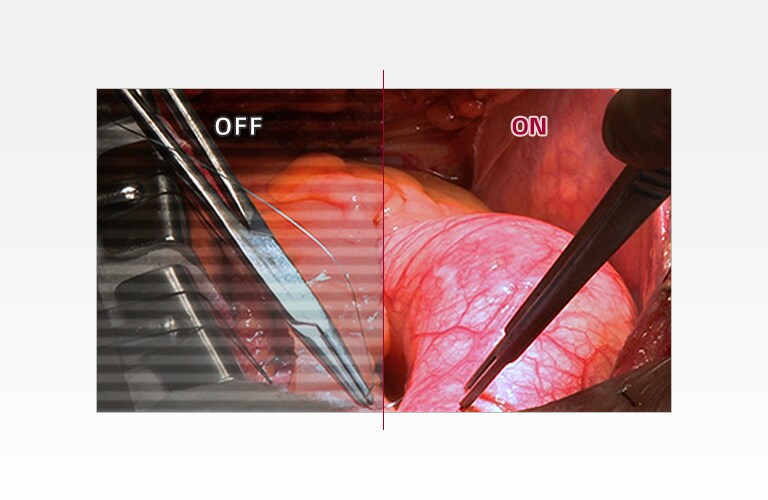

Reduces Visual Fatigue

Flicker Safe

Reduces Visual Fatigue


Flicker Safe reduces the onscreen flicker level to almost zero, which helps minimize eye strain and eye fatigue. By combining Flicker Safe with the IPS technology, users can comfortably work throughout the day.

All Spec

POWER

  • AC Input

    100~240V (50/60Hz)

  • DC Output

    19V, 6.32A

  • Power Consumption (DC Off)

    Less than 0.3W

  • Power Consumption (Max.)

    120W

  • Type

    External Power(Adapter)

SW APPLICATION

  • Dual Controller

    NO

  • LG Calibration Studio (True Color Pro)

    YES

  • Qubyx

    NO

MECHANICAL

  • Borderless Design

    Normal

  • Display Position Adjustments

    NO

  • Machanical Power Switch

    YES

  • OneClick Stand

    NO

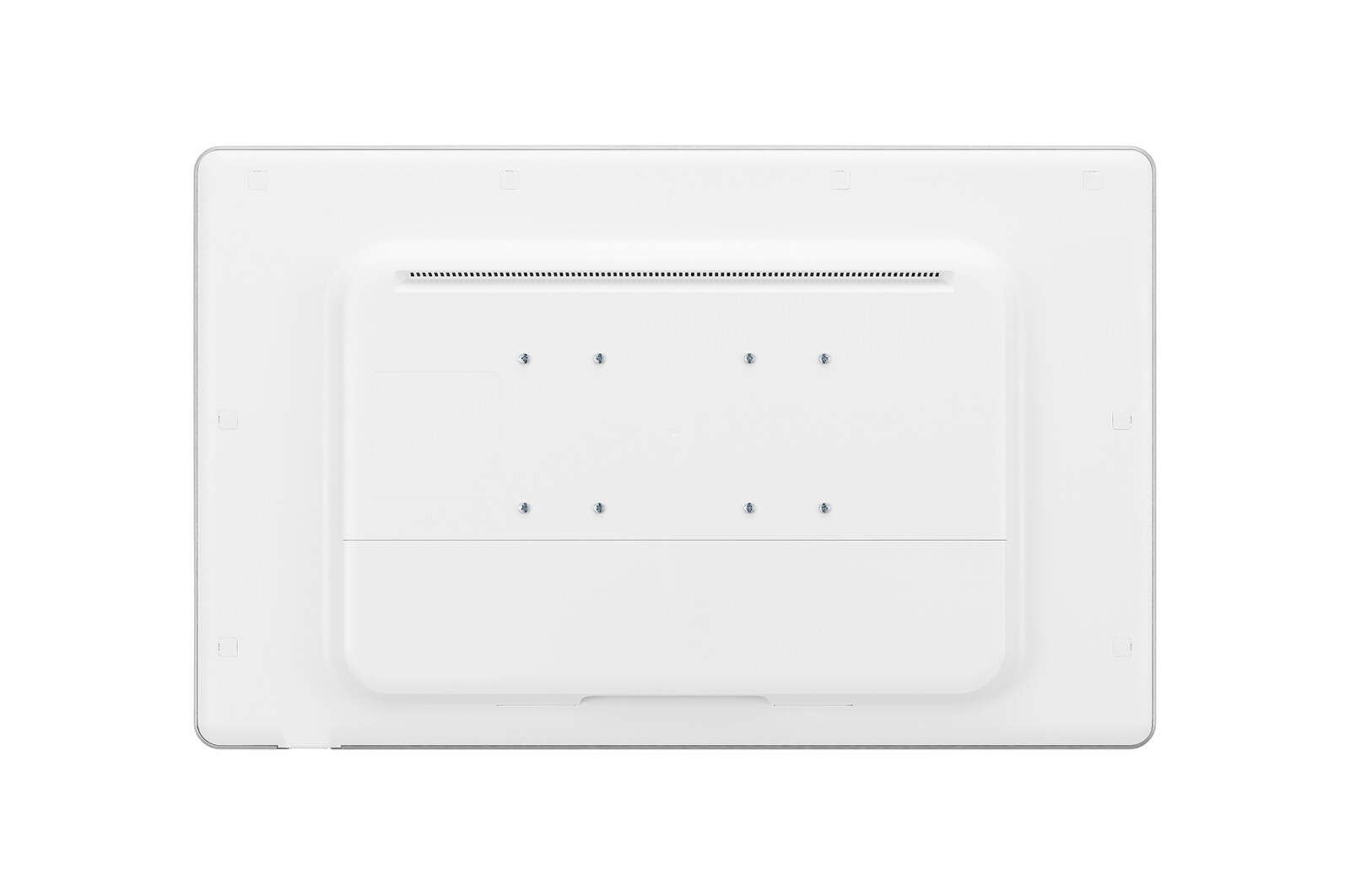

  • Wall Mountable [mm]

    200 x 100 & 100 x 100

DIMENSIONS & WEIGHTS

  • Weight in Shipping [kg]

    11.3

  • Weight without Stand [kg]

    7.7

  • Weight with Stand [kg]

    NO

DISPLAY

  • Aspect Ratio

    16:9

  • Brightness (Typ.) [cd/m²]

    1000

  • Color Bit

    10bit

  • Color Gamut (Typ.)

    sRGB 99% (CIE1931)

  • Contrast Ratio (Typ.)

    1000:1

  • Pixel Pitch [mm]

    0.3114 x 0.3114

  • Resolution

    1920 x 1080

  • Response Time

    5ms (GtG at Faster)

  • Size [Inch]

    27

  • Surface Treatment

    Protection Glass(1.6t, Anti-Reflection, Anti-fingerprint)

  • Viewing Angle (CR≥10)

    178º(R/L), 178º(U/D)

ACCESSORY

  • Adapter

    YES

  • Calibration Report (Paper)

    YES

  • Display Port

    NO

  • DVI-D (Color/Length)

    YES

  • D-Sub

    YES

  • HDMI (Color/Length)

    YES

  • Power Cord

    YES

  • USB3.0 Upstream Cable

    NO

STANDARD

  • CE

    YES

  • KGMP

    YES

  • MFDS

    YES

  • REACH

    YES

  • RoHS

    YES

  • UL (cUL)

    YES

  • Vandal-proof

    IK06

  • WEEE

    YES

  • EN (EN 60601-1 / EN 60601-1-2)

    YES

  • EN (EN 60950-1 / EN 55032, 55024)

    YES

  • FDA

    Class I

  • GMP

    YES

  • IEC (IEC 60601-1 / IEC 60601-1-2)

    YES

  • IEC (IEC 60950-1 / IEC 55032, 55024)

    YES

  • IP(Front/Except for front)

    IP35/IP32

  • ISO13485

    YES

  • KC (for Rep. of Korea)

    NO

CONNECTIVITY

  • 12G-SDI

    NO

  • 3G-SDI

    YES

  • Component (Resolution)

    YES

  • Composite (Resolution)

    NO

  • Daisy Chain

    NO

  • DisplayPort

    NO

  • DVI-D

    YES(In 1ea / Out 1ea)

  • D-Sub

    YES

  • HDMI

    YES(1ea)

  • Headphone out

    NO

  • RS-232

    YES

  • S-Video

    NO

  • Thunderbolt

    NO

  • USB Downstream Port

    YES(1ea/ver3.0)

  • USB Upstream Port

    YES(1ea/ver3.0)

FEATURES

  • Auto Luminance Sensor

    NO

  • Black Stabilizer

    YES

  • Brightness stabilization

    YES

  • Color Temperature

    6500K/7500K/9300K/Manual(5000K~10000K)

  • DICOM Compliant

    YES

  • Failover Input Switch

    YES

  • Flicker Safe

    YES

  • Focus View

    NO

  • Front Sensor

    NO

  • HDR 10

    NO

  • HDR Effect

    NO

  • Hot Key

    YES(2keys)

  • HW Calibration

    HW Calibration Ready

  • Lighting

    NO

  • Light Box Mode

    NO

  • Pathology Mode

    NO

  • PBP

    2PBP

  • PIP

    YES

  • Presence Sensor

    NO

  • Reader Mode

    NO

  • Rotation & Mirror Mode

    NO

  • Smart Energy Saving

    YES

  • Super Resolution+

    YES
