Transparent OLED Signage
Contact Us

Transparent OLED Signage

Contact Us

Transparent OLED Signage

55EW5PG-S

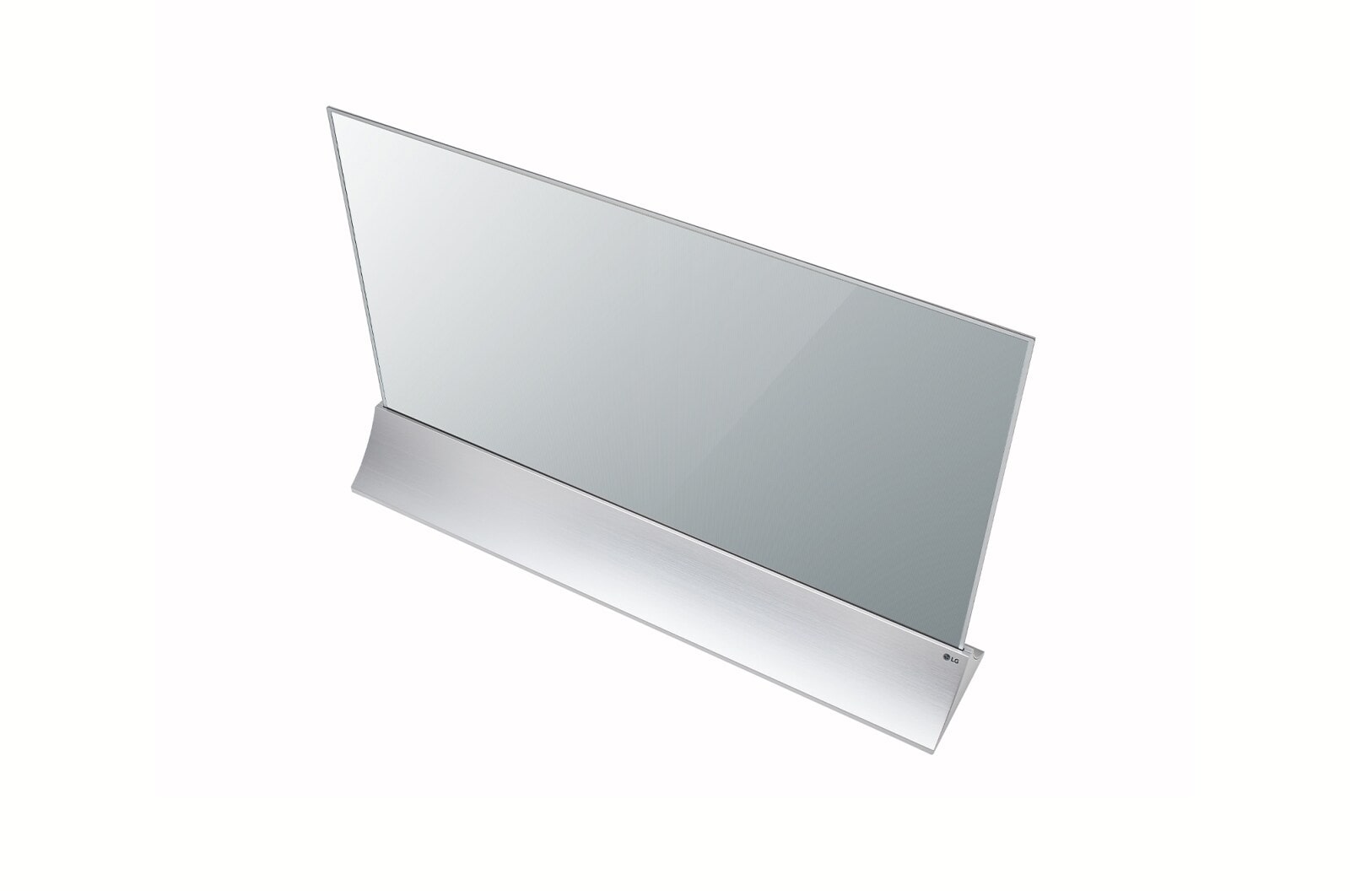

LG Transparent OLED Signage, 55EW5PG-S

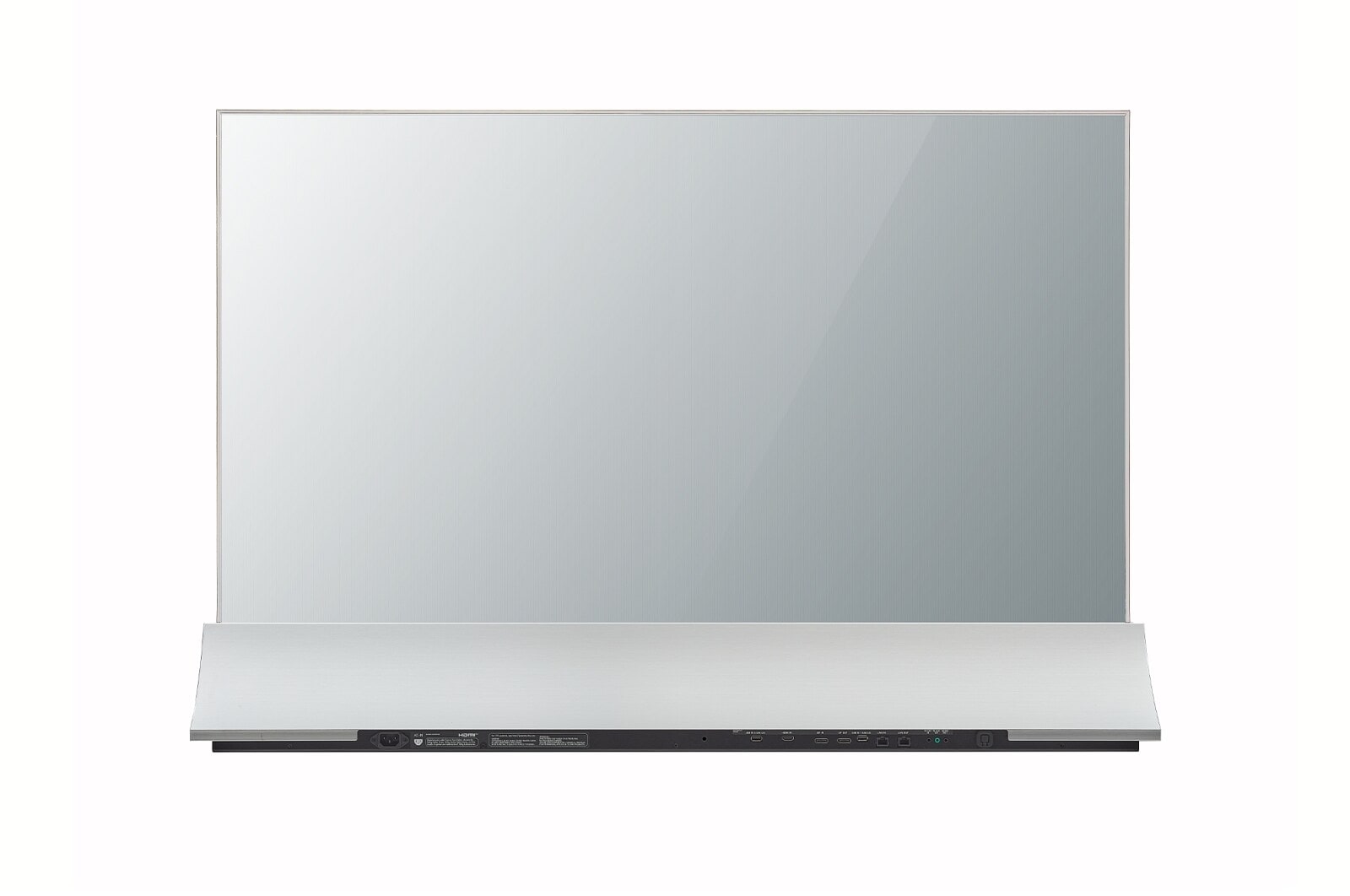

LG Transparent OLED Signage, 55EW5PG-S

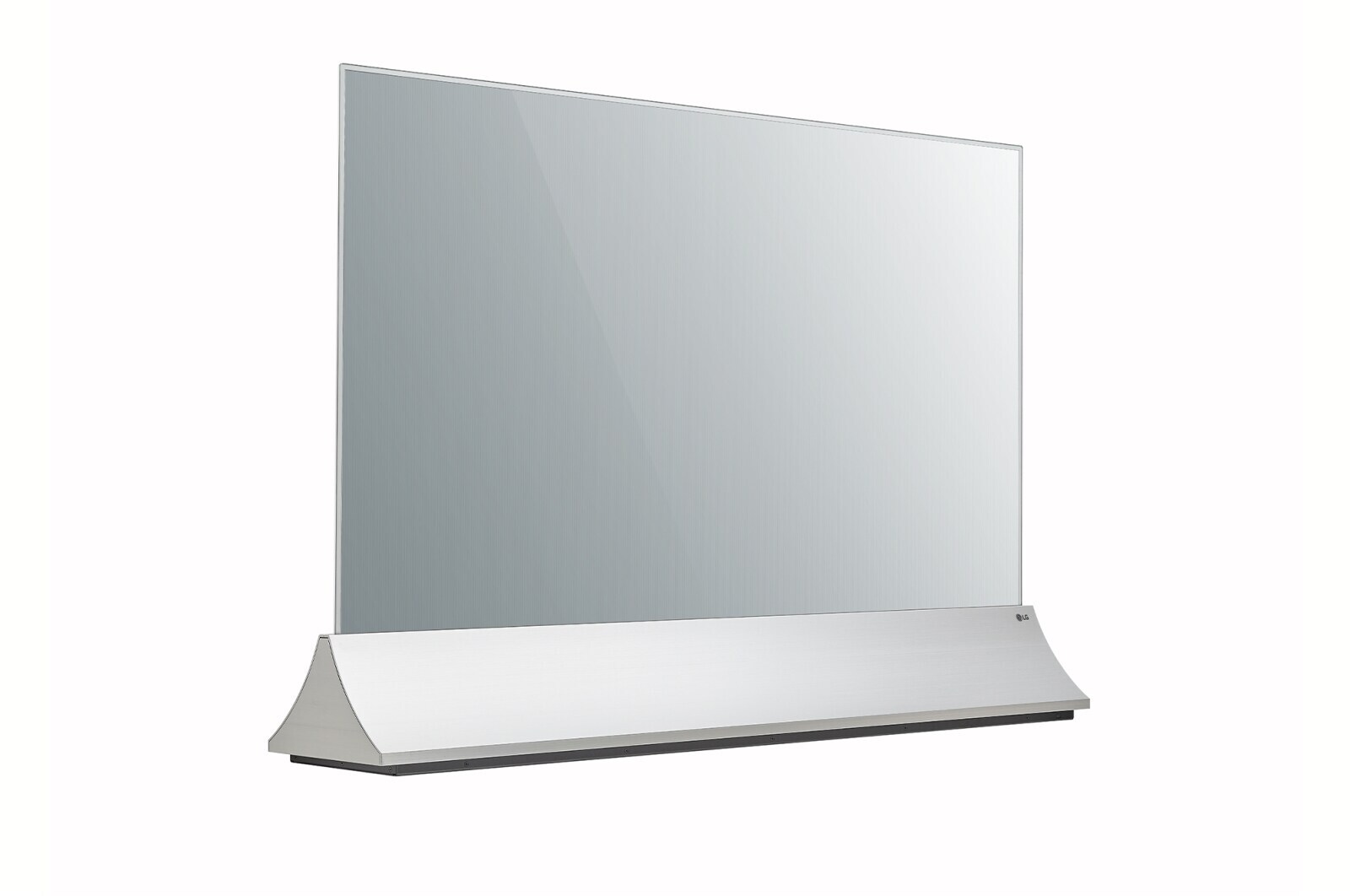

LG Transparent OLED Signage, 55EW5PG-S
LG Transparent OLED Signage, 55EW5PG-S
LG Transparent OLED Signage, 55EW5PG-S
LG Transparent OLED Signage, 55EW5PG-S
LG Transparent OLED Signage, 55EW5PG-S
LG Transparent OLED Signage, 55EW5PG-S
LG Transparent OLED Signage, 55EW5PG-S
LG Transparent OLED Signage, 55EW5PG-S
LG Transparent OLED Signage, 55EW5PG-S
LG Transparent OLED Signage, 55EW5PG-S
LG Transparent OLED Signage, 55EW5PG-S
LG Transparent OLED Signage, 55EW5PG-S
LG Transparent OLED Signage, 55EW5PG-S
LG Transparent OLED Signage, 55EW5PG-S
LG Transparent OLED Signage, 55EW5PG-S
LG Transparent OLED Signage, 55EW5PG-S

Key Features

  • Brightness(Typ.) : 400nit (APL 25%, Without Glass)
  • Transparency(Typ.) : 38%
  • Standalone Design

See the Unseen,
LG Transparent OLED

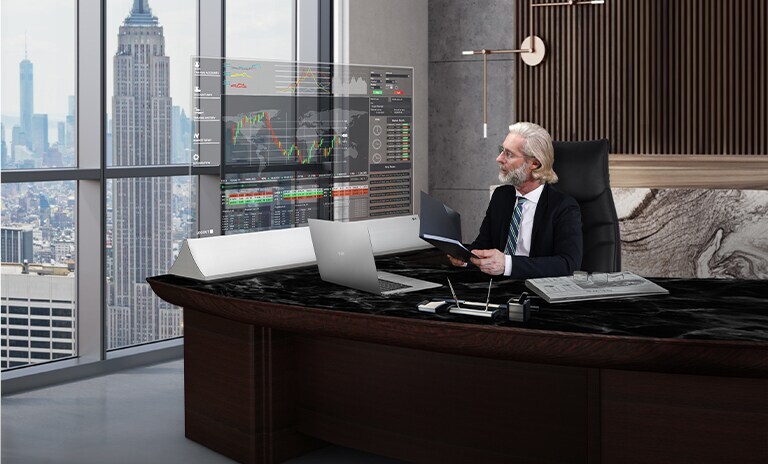

A man is doing his job by looking at the data displayed on the Transparent OLED screen.

* All images in this web page are for illustrative purposes only.

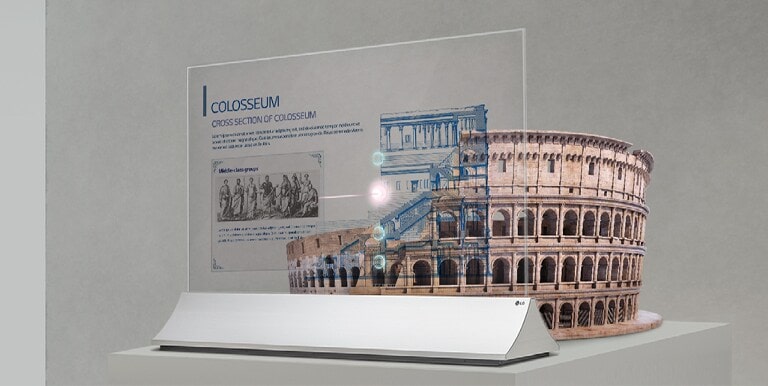

Information about the Colosseum is shown on the Transparent OLED screen set up in front of the Colosseum model.

High Transparency

LG’s OLED technology gives the Transparent OLED Signage a slimmer structure without a backlight unit nor a liquid crystal layer, achieving a high transparency of 38%, much higher than conventional LCD transparent displays (10%*). While clearly showing objects behind the screen, it overlays the relevant information right before them.

* Based on LG’s WFB series

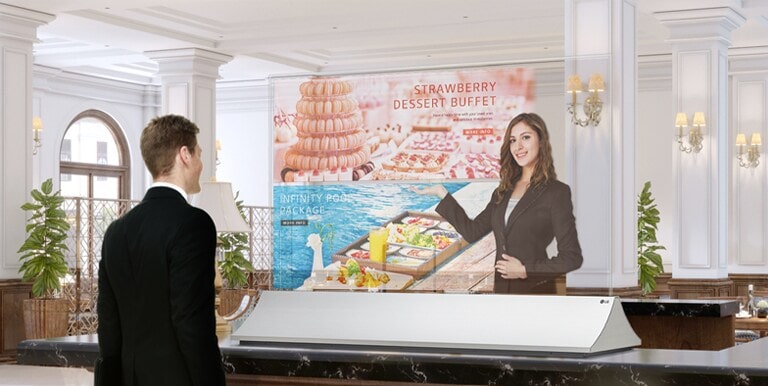

A man is getting information through the Transparent OLED screen showing photos of the dessert menu.

Accurate and Vivid Colors

Featuring self-lighting pixels, the display maintains vivid colors and a high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.
Attach thin and transparent tempered glass to the screen to maximize product protection and user safety.

Protective Tempered Glass

Touching a display directly can cause damage or scratches. The tempered glass in front protects the product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

* Optically Clear Adhesive

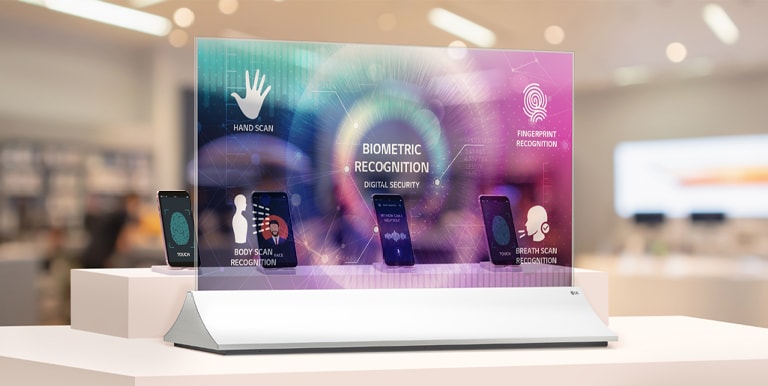

In a mobile store, a smartphone's functions are described on the transparent OLED screen in front of the smartphone.

Alluring Design with a Stand

LG's alluring display concept takes a step forward. The transparent OLED with an alluring stand maintains the tone and manner of the design in harmony with its surroundings rather than dominating your space.
Print

All Spec

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

SOUND

  • Speaker (Built-in)

    NO

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, HDMI Cable(3M), Cable Holder 2ea

  • Optional

    NO

OPS COMPATIBILITY

  • OPS Power Built-in

    N/A

  • OPS Type compatible

    N/A

CERTIFICATION

  • EMC

    FCC Class "A" / CE / KC

  • ePEAT(US only)

    NO

  • ERP / Energy Star

    YES / NO

  • Safety

    CB / NRTL

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0 °C to 40 °C

MECHANICAL SPECIFICATION

  • Weight (Head)

    28.3Kg

  • Bezel Color

    Transparent

  • Bezel Width

    T/R/L/B : 7.9/7.9/7.9/168.6mm

  • Carton Dimensions (W x H x D)

    1344 x 965 x 334mm (with Pallet : 1370 x 1100 x 360mm)

  • Handle

    NO

  • Monitor Dimensions (W x H x D)

    1256.2 x 856.9 x 242mm

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Packed Weight

    36.8Kg (with Pallet : 44.1Kg)

  • VESA Standard Mount Interface

    N/A

  • Weight (Head+Stand)

    N/A

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    853.03 BTU/Hr(Typ.), 955.39 BTU/Hr(Max.)

  • DPM

    0.5W

  • Max.

    280W

  • Power off

    0.5W

  • Smart Energy Saving (70%)

    N/A

  • Typ.

    84W (IEC 62087)

DEDICATED FEATURE - TOUCH

  • Accuracy (Typ.)

    N/A

  • Available Object Size for Touch

    N/A

  • Interface

    N/A

  • Multi Touch Point

    N/A

  • Operating System Support

    N/A

  • Protection Glass Thickness

    N/A

  • Protection Glass Transmission

    N/A

  • Response Time ('Paint' app on Windows 10 PC)

    N/A

PANEL

  • Aspect Ratio

    16:9

  • Back Light Type

    OLED

  • Brightness

    150/400nit (APL 100%/25%, without Glass)

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Color Gamut

    BT709 120%

  • Contrast Ratio

    150,000:1

  • Dynamic CR

    NO

  • Life time

    30,000Hrs (Typ.)

  • Native Resolution

    1920 x 1080 (FHD)

  • Operation Hours (Hours/Day)

    18/7 (Moving Content Only)

  • Panel Technology

    OLED

  • Portait / Landscape

    YES / YES

  • QWP (Quarter Wave Plate)

    N/A

  • Refresh Rate

    120Hz

  • Response Time

    1ms (G to G), 8ms (MPRT)

  • Screen Size (Inch)

    55

  • Surface Treatment (Haze)

    Haze 3% (SET)

  • Transparency

    38% (SET)

  • Viewing Angle (H x V)

    178º x 178º

PROTECTION GLASS

  • Anti-Reflective

    YES

  • Degree of Protection

    N/A

  • Infrared - Resistance (IR)

    N/A

  • Shatter-Proof

    YES

  • Tempered / Chemical strengthening

    Chemical strengthening

  • Thickness

    3mm

CONNECTIVITY

  • Audio In

    NO

  • Audio Out

    YES

  • Daisy Chain

    NO

  • DP In

    YES (HDCP 1.3)

  • DP Out

    YES

  • DVI-D In

    NO

  • External Speaker Out

    NO

  • HDMI In

    YES (1ea)

  • HDMI In (HDCP Ver.)

    1.4

  • HDMI Out

    NO

  • IR In

    NO

  • IR Out

    YES (Sharing RS232C Out)

  • RGB In

    NO

  • RJ45(LAN) In

    YES (1ea)

  • RJ45(LAN) Out

    YES

  • RS232C In

    YES

  • RS232C Out

    YES

  • Touch USB

    NO

  • USB In

    USB2.0 Type A (2ea)

SPECIAL FEATURE

  • Conformal Coating (Power Board)

    N/A

  • Direct Sunlight

    N/A

  • IP Rating

    N/A

  • Overlay Touch Compatibility

    N/A

  • Power Protection

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face down)

    N/A

  • Tilt (Face up)

    N/A

SOFTWARE COMPATIBILITY

  • Connected Care

    YES

  • Mobile CMS

    YES

  • Promota

    NO

  • SuperSign Cloud

    NO

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    YES

FEATURE - HARDWARE

  • Acceleration(Gyro) Sensor

    NO

  • Auto Brightness Sensor

    NO

  • BLU Sensor

    NO

  • Current Sensor

    NO

  • FAN (Built-in)

    NO

  • Humidity Sensor

    NO

  • Internal Memory (eMMC)

    16GB

  • Local Key Operation

    YES

  • Pixel Sensor

    NO

  • Power Indicator

    NO

  • Proximity Sensor

    NO

  • Temperature Sensor

    YES

  • Wi-Fi/BT (Built-in)

    NO

FEATURE - SOFTWARE

  • Auto Set ID

    YES

  • Backlight Sync

    NO

  • Beacon

    NO

  • Booting Logo Image

    NO

  • Brightness Compensation

    NO

  • Cisco Certification

    NO

  • Control Manager

    YES

  • Crestron Connected

    YES

  • External Input Rotation

    NO

  • Fail over

    YES

  • Gapless Playback

    YES

  • Group Manager

    YES

  • HDMI-CEC

    YES

  • ISM Method

    YES

  • Local Contents Scheduling

    YES

  • Local Network Sync

    YES

  • Network Ready

    NO

  • No Signal Image

    NO

  • OS Ver. (webOS)

    webOS 4.0

  • PBP

    NO

  • PIP

    NO

  • Play via URL

    NO

  • PM mode

    YES

  • Pro:Idiom

    YES

  • RS232C Sync

    YES

  • Scan Inversion

    NO

  • Screen Rotation

    NO

  • Screen Share

    NO

  • Setting Data Cloning

    YES

  • SI Server Setting

    YES

  • Smart Energy Saving

    NO

  • SNMP

    YES

  • Status Mailing

    YES

  • Tile Mode Setting

    NO

  • USB Plug & Play

    YES

  • Video Tag

    YES (4 Video Tag)

  • Wake on LAN

    YES

  • webRTC

    NO

  • W/B Setting by Grey scale

    NO

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
