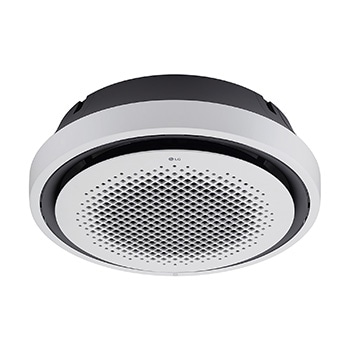

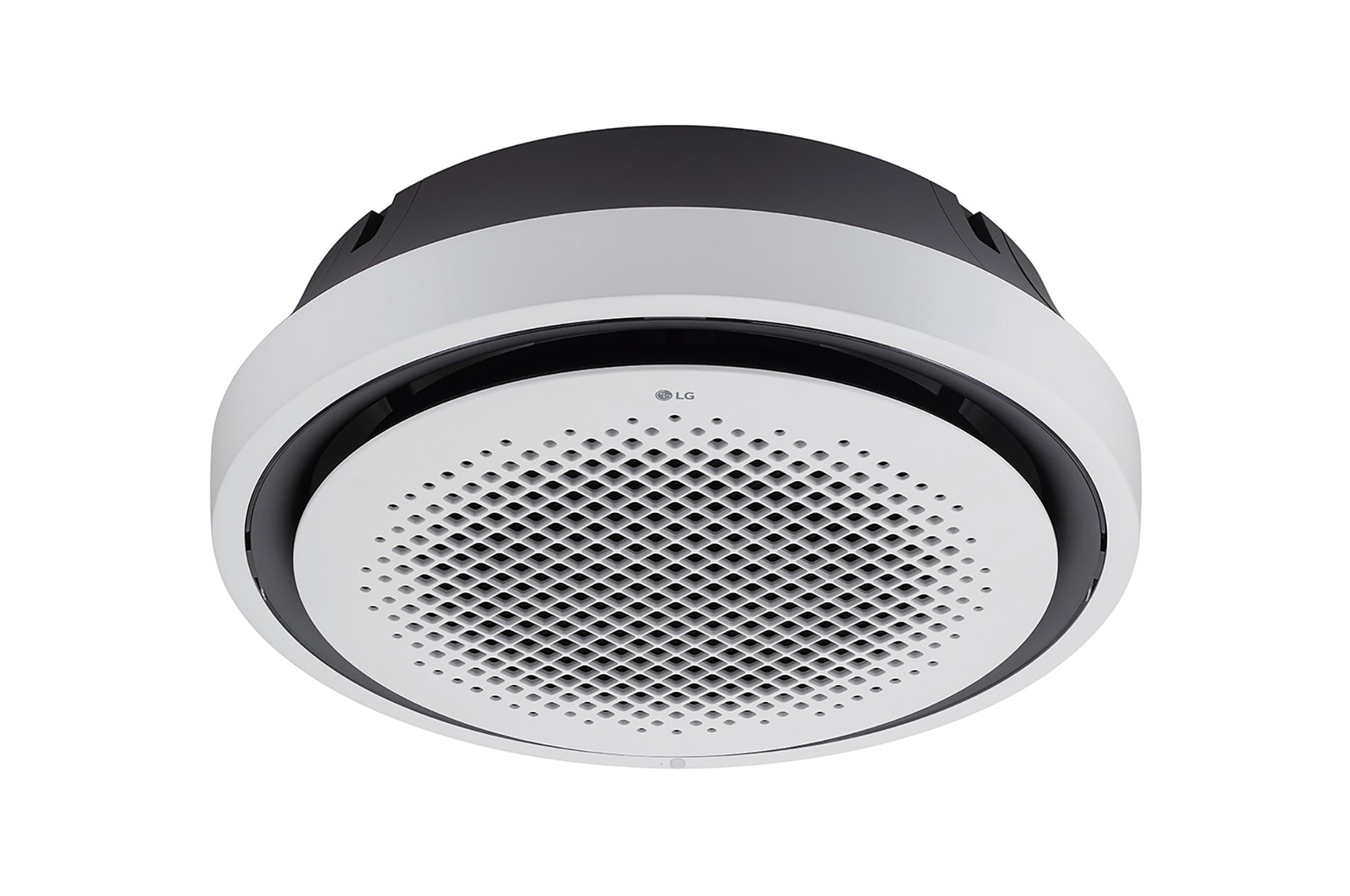

The aesthetic LG Round Cassette presents a more luxurious and inviting space. With a body height reduced by about 10%1), it makes the room feel taller and more spacious.
LG Round Cassette covers a large area with its perfect circular shape. Moreover, powerful airflow and detailed air direction spread the wind evenly and extensively. It is much easier to reach the desired temperature due to 30%2) faster cooling up. 3), 4)
With its Full 3D Fan, the airflow rate rises by 5% compared to the conventional LG 4-way cassette. Along with this, the operation noise level is reduced to 39dB(A)5), creating a comfortable and quieter atmosphere.
The drain and refrigerant pipes are attached in the same direction and position, enabling quick and easy installation. By placing the control box on the product's exterior, installers are able to provide services more easily.Ā
1. The body height of LG Round Cassette(330mm) is lower than that of the competitor's comparable model(365mm).
2. Experimental environment: Height 3.2m, 14.5kW, cooling mode, high flow rate, horizontal airflow direction.
3. Based on test results from LG chamber.
4. The actual performance of the product may vary depending on the usage environment.
5. Noise level is measured at 14.5kW low flow rate.Ā
CoolingĀ¹ (Min. ~ Rated ~ Max.) (kW)
2.88~ 8.25 ~ 10.55
CoolingĀ¹ (Min. ~ Rated ~ Max.) (Btu/h)
9,800~ 28,200 ~ 36,000
CoolingĀ² (Min. ~ Rated ~ Max.) (kW)
2.88~7.20~10.55
CoolingĀ² (Min. ~ Rated ~ Max.) (Btu/h)
9,800~ 24,600 ~ 36,000
Heating (Min. ~ Rated ~ Max.) (kW)
4.19~8.80~10.55
Heating (Min. ~ Rated ~ Max.) (Btu/h)
14,300~30,000~36,000
CoolingĀ¹ (Rated) (kW)
2.27
CoolingĀ² (Rated) (kW)
2.83
Heating (Rated) (kW)
2.30
CoolingĀ¹ / Heating (W / W)
12.40 / 3.85
Power Supply (V , Ć , Hz)
220-230-240, 1, 50/60
Dimensions (W x H x D) (mm)
950 x 834 x 330
Net Weight (kg (lbs))
56.6
Compressor Type
Twin Rotary
Refrigerant Type
R410A
Fan Motor Type
BLDC
Sound Pressure Level Cooling (Rated) (dB(A))
51.00
Sound Pressure Level Heating (Rated) (dB(A))
53.00
Piping Connections Liquid (Outer Dia.) (mm (inch))
Ī¦9.52 (3/8)
Piping Connections Gas (Outer Dia.) (mm (inch))
Ī¦15.88 (5/8)
Piping Length (Max.) (m (ft))
50
Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) (m (ft))
30
Power Supply (V , Ć , Hz)
220-230-240, 1, 50/60
Dimensions Body (W x H x D) (mm)
1,050 x 330 x 1,050
Net Weight (kg (lbs))
30
Air Flow Rate (H / M / L) (m3/min)
25.0 / 21.0 / 19.0
Fan Motor Type
BLDC
Sound Pressure Level Cooling (H / M / L) (dB(A))
44.0 / 40.0 / 38.0
Sound Pressure Level Heating (H / M / L) (dB(A))
47.0 / 43.0 / 40.0
