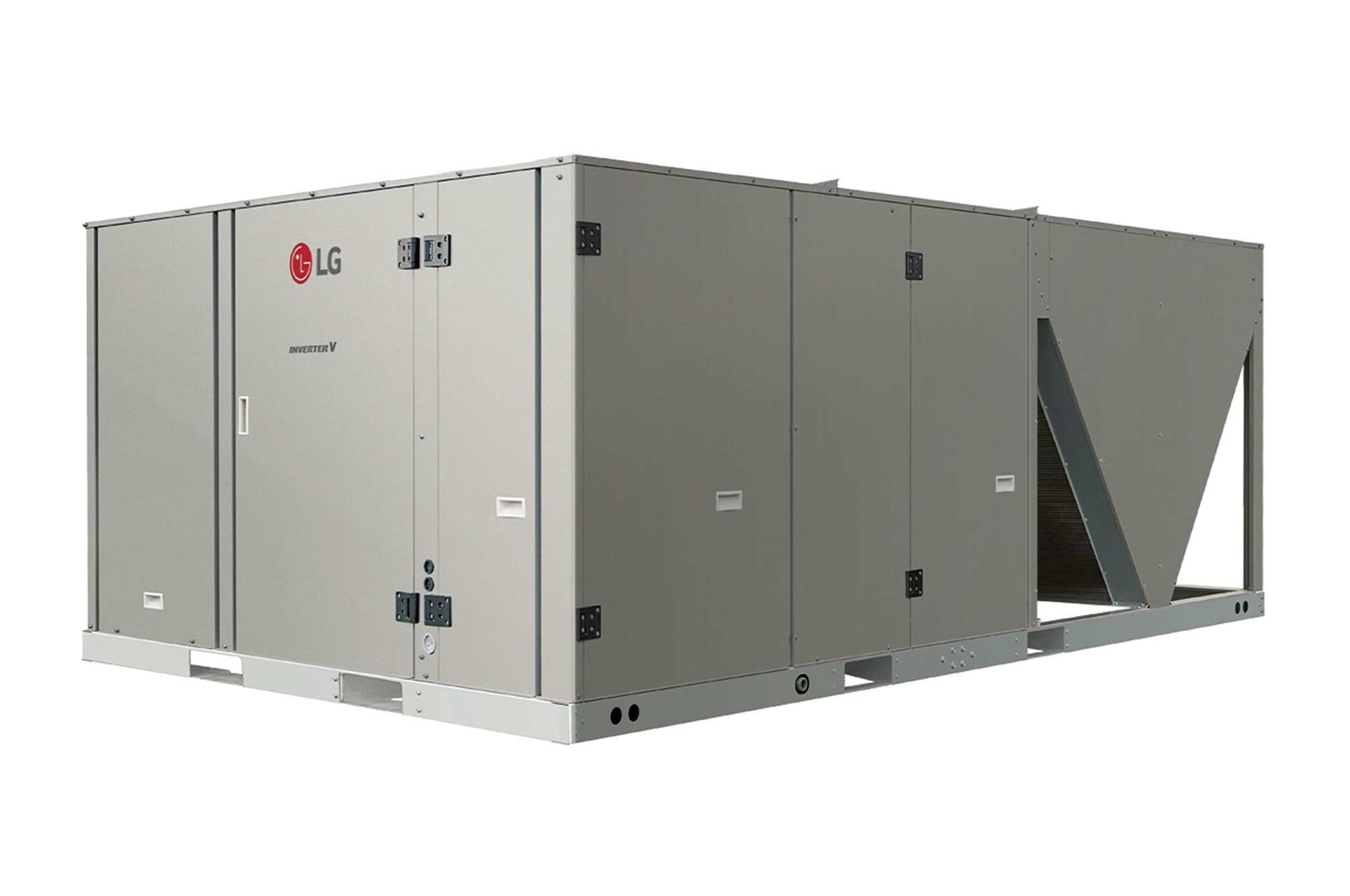

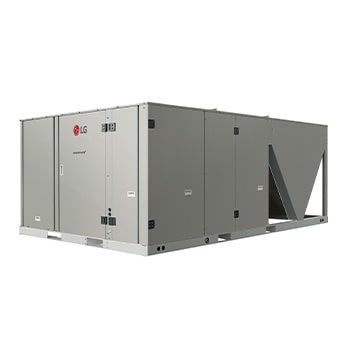

The LG Inverter Single Package does not require additional installation to provide both heating and cooling. The compressor adjusts its output according to the surroundings, reducing the energy costs1) and maximizing energy efficiency.
The Direct Drive Fan Motor has high static pressure, offering a wide range of E.S.P. coverage. It is convenient to manage as it does not require regular greasing, and the RPM is adjustable via remote control.
The LG Single Package is designed for easy installation and maintenance, featuring convenient hinged doors for easy access and a Black Fin heat exchanger, optimized for performance in corrosive environments.
The LG Inverter Single Package controller features an intuitive GUI and supports managing up to 16 units with Group Control.2) It is also compatible with gateways supporting various protocols.
1. The cost may vary depending on the environment and region.
2. The maximum capacity may vary depending on regional specifications.
Drain Connection Size (inch)
19.05(3/4)
EER (Btu / Wh)
12.05
EER(T1) (Btu / Wh)
12.05
EER(T3) (Btu / Wh)
9.1
Rows x Columns x FPI
(3 x 46 x 17) x 1
Fin Type
Wide Louver Plus
Tube size(Outer Dia.) (mm(inch))
7.0 (9/32)
Face Area (㎡)
0.53 (5.71)
Drive
Direct
Output (HP x No.)
0.5 x 1
Power Input(Nominal) (W)
430
Nominal Capacity (RT)
4
Rows x Columns x FPI
(2 x 44 x 17) x 1
Fin Type
Wide Louver Plus (Gold)
Tube size(Outer Dia.) (mm(inch))
7.0 (9/32)
Face Area (㎡)
1.33 (14.28)
Case 1
60 Hz 230 V~
Case 2
60 Hz 230 V~
Running Current by Voltage (A)
16.85
Type
Inverter Twin Rotary
Motor Output (W x No.)
4,000 x 1
Oil Type
FVC68D
Oil Charging amount (cc x No.)
1,300 × 1
Model x No.
GPT442MBB x 1
Motor Type
BLDC
Net(Min ~ Rated ~ Max) (kW)
13.50
Net(Min ~ Rated ~ Max) (kcal/h)
11,718
Net(Min ~ Rated ~ Max) (Btu/h)
46,500
Gross(Min ~ Rated ~ Max) (kW)
14.07
Gross(Min ~ Rated ~ Max) (kcal/h)
12,096
Gross(Min ~ Rated ~ Max) (Btu/h)
48,000
Rated(T1) (Btu/h)
46,500
Rated(T1) (W)
13,500
Rated(T3) (Btu/h)
42,000
Rated(T3) (W)
12,300
Dehumidification Rate (ℓ/h)
3.47
Type
Centrifugal Blower Fan
Diameter (mm(inch))
285 (11.2)
Air Flow Rate(Nominal) (㎥/min)
45.3
Net(W x H x D) (mm)
1280 x 1065 x 1110
Net(D) (mm)
1110
Net(H) (mm)
1065
Net(W x D x H) (mm)
1280 x 1110 x 1065
Net(W) (mm)
1280
Type
Propeller Fan
Diameter (mm(inch))
460 (18.11)
Discharge direction
Top
Drive
BLDC Inverter
Output (W x No.)
124.2 x 2
Net (kg)
174
Type
R410A
Precharged Amount(A-Circuit) (kg)
3.6
Control Type
EEV
Precharged Amount(Total) (kg)
3.6
Cooling / Heating (dB(A))
75 / -
High / Low (Mpa)
4.2 / 2.4
Maximum Fuse Amperes (MFA) (A)
32
Comp_Rated Load Amperes (A)
23.0
Outdoor Fan Motor_Full Load Amperes (FLA) (A)
0.5
Indoor Fan Motor_Full Load Amperes (FLA) (A)
2.0
Minimum Circuit Amperes (MCA) (A)
23.9
Buyer model
AK-C04820
Buyer suffix
AWGBIBR
Factory model
AK-C04820
Factory suffix
AWGBIBR
Cooling(°C(DB))
-5 ~ 54
Cooling(Min ~ Rated ~ Max) (kW)
3.86
Cooling(Rated, T1) (W)
3,860
Cooling(Rated, T3) (W)
4,650
Cooling(Rated, T1) (A)
16.85
Cooling(Rated, T3) (A)
20.5
Max (A)
26.7
Chassis
KB
Cooling(°C(DB))
-5 ~ 54
To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
