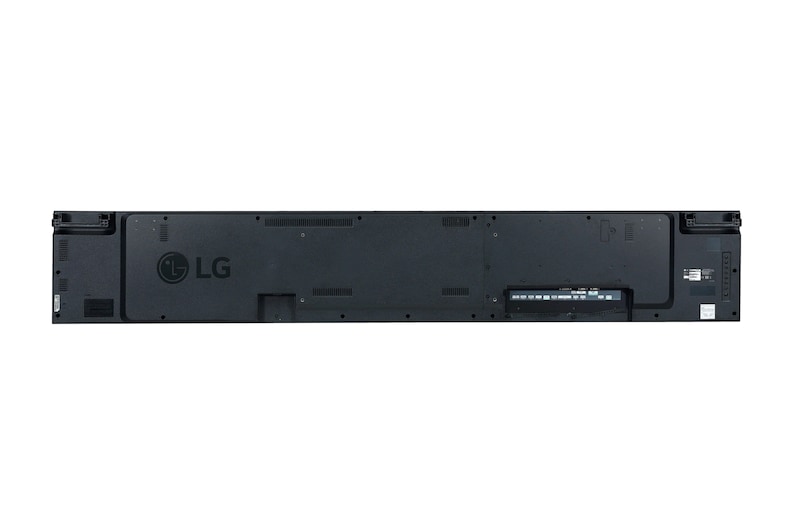

86BH5F-B
Ultra Stretch Signage
  • Brightness(Typ.) : 500 cd/m²
  • Aspect Ratio: 58:9
  • Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
  • Depth: 81.7mm
  • Interface: HDMI (3), DP, USB(2), Audio, DVI-D, RS232C, RJ45, IR
Ultra Stretch Signage

Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen

The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.
Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen
* All images in this page are for illustrative purposes only.
* Video content only. (Images not supported)
*OSD : On Screen Display
* ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

PANEL

  • Screen Size
    86"
    Panel Technology
    IPS
  • Aspect Ratio
    58:9
    Native Resolution
    3,840 x 600
  • Brightness(Typ.,cd/m²)
    500
    Contrast Ratio
    1,100:1
  • Viewing Angle (H x V)
    178 x 178
    Response Time
    8ms (G to G)
  • Surface Treatment (Haze)
    10%
    Lifetime
    50,000 Hrs (Typ.)
  • Operation Hours
    24Hrs / 7Days
    Orientation
    Landscape & Portrait

CONNECTIVITY

  • Input
    HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)
    Output
    DP, Audio
  • External Control
    RS232C In/out, RJ45 (LAN) In/out, IR In

MECHANICAL SPECIFICATION

  • Bezel Color
    Black
    Bezel Width
    4.4 mm (L/R), 5.9 mm (T/B)
  • Monitor Dimension (W × H × D)
    2,158.3 x 348.5 × 81.7 mm
    Weight (Head)
    20.5 kg
  • Carton Dimensions (W × H × D)
    2,290 x 599 x 228 mm
    Packed Weight
    38.2 kg
  • Handle
    Yes
    VESA™ Standard Mount Interface
    600 x 200 mm

ENVIRONMENT CONDITIONS

  • Operation Temperature Range
    0 °C to 40 °C
    Operation Humidity Range
    10 % to 80 %

POWER

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-in Power

POWER CONSUMPTION

  • Typ. / Max.
    220 W / 240 W
    Smart Energy Saving
    100 W

STANDARD(CERTIFICATION)

  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes(EU Only) / No

MEDIA PLAYER COMPATIBILITY

  • OPS type compatible
    Yes (Piggyback)

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS (The SuperSign Editor function is not supported.)
    Control and Monitoring Software
    SuperSign Control/ Control+
  • Signage365Care
    Yes

ACCESSORY

  • Basic
    Remote Controller, Power Cord, DP Cable, RS-232C Cable, IR/Light Sensor Receiver, Manual
    Optional
    OPS Kit (KT-OPSF)
