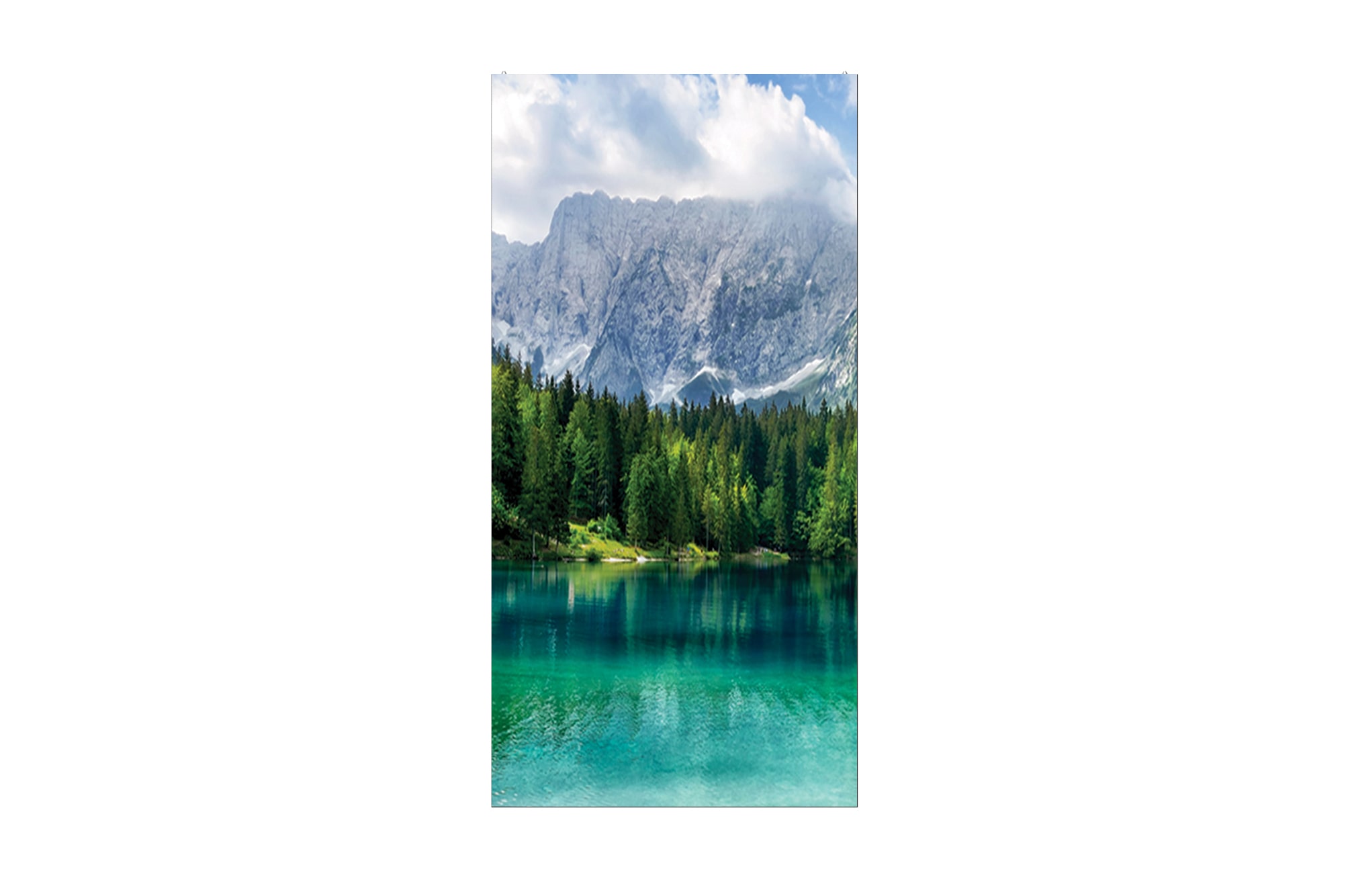

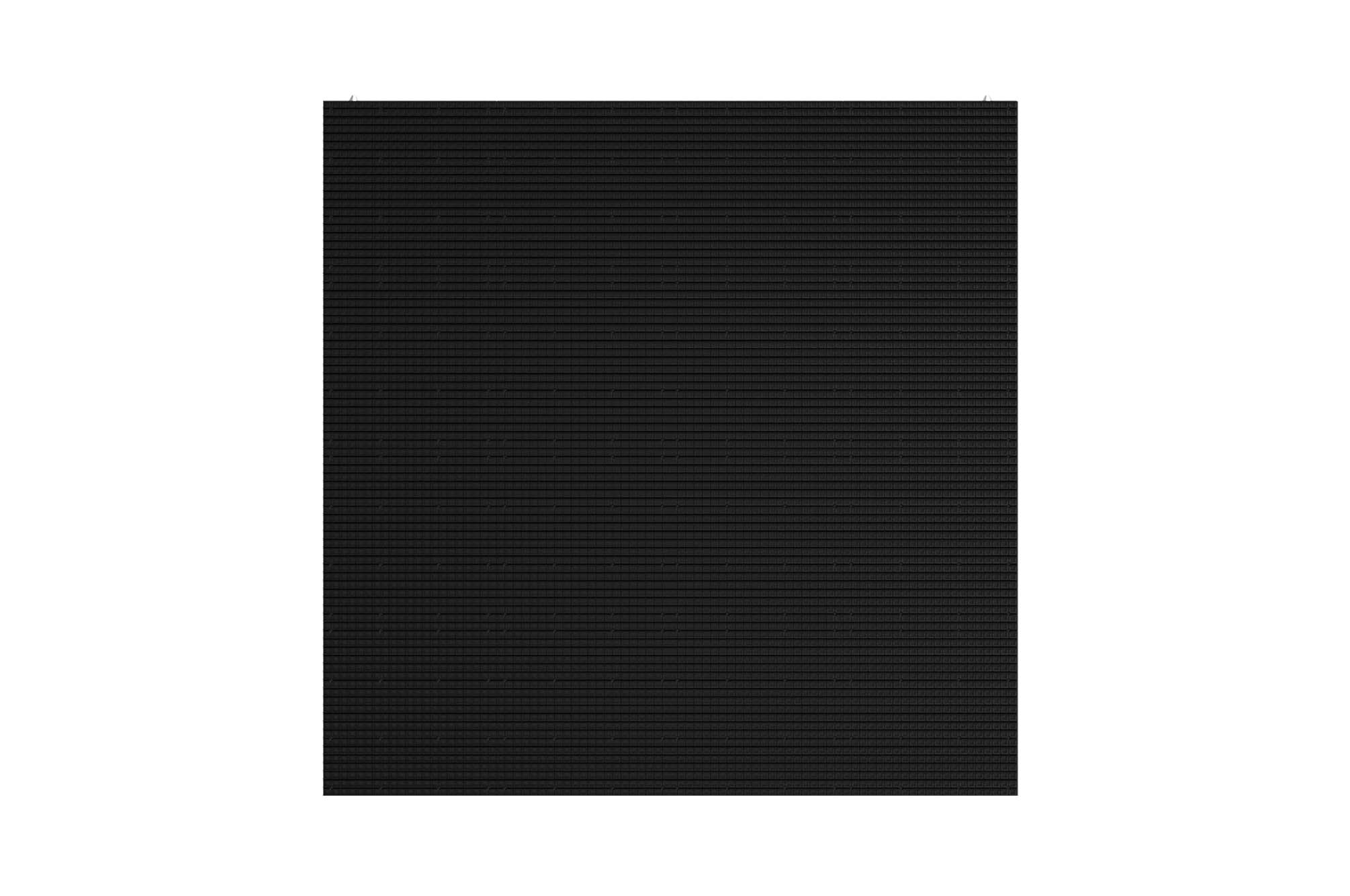

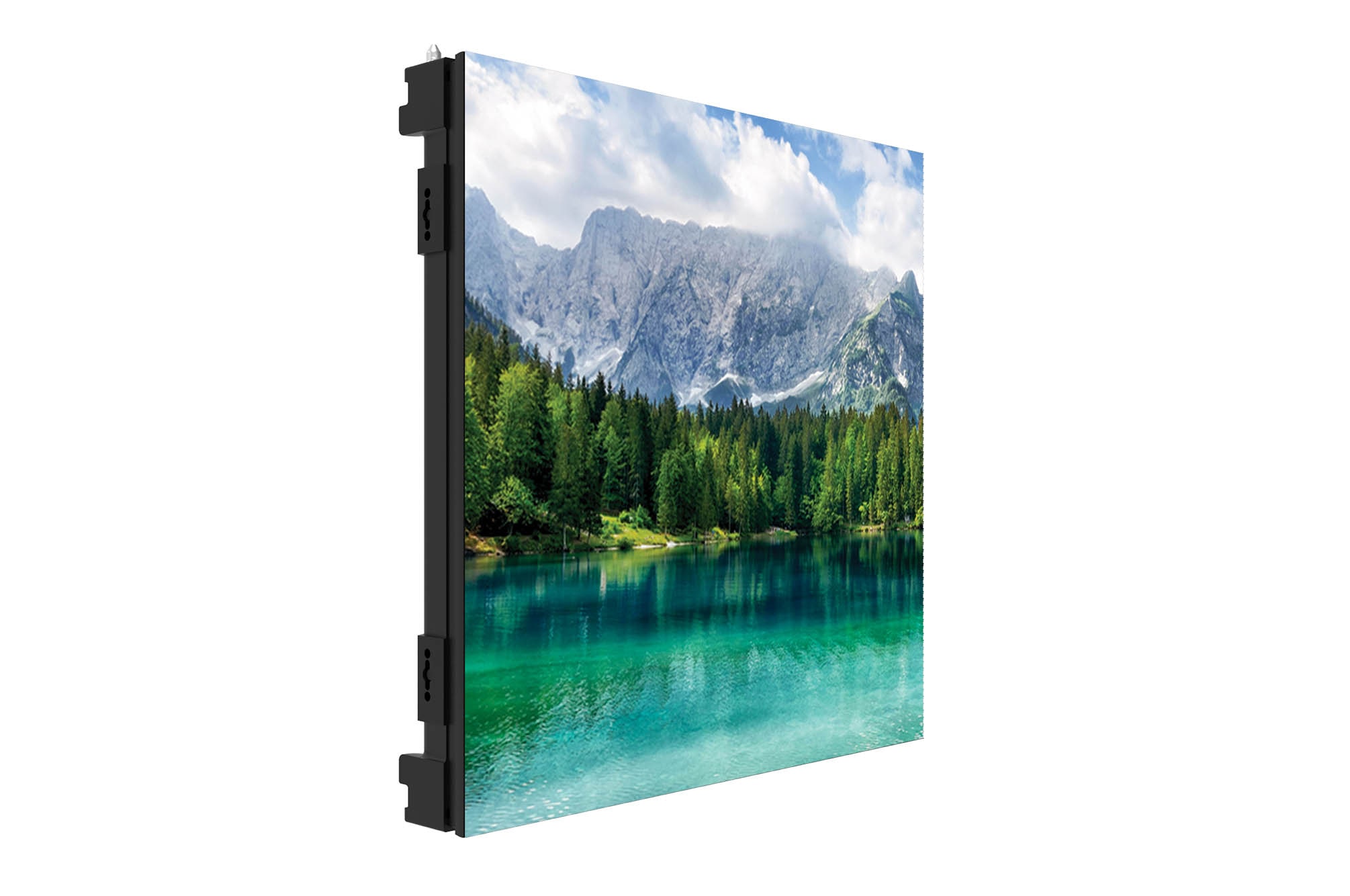

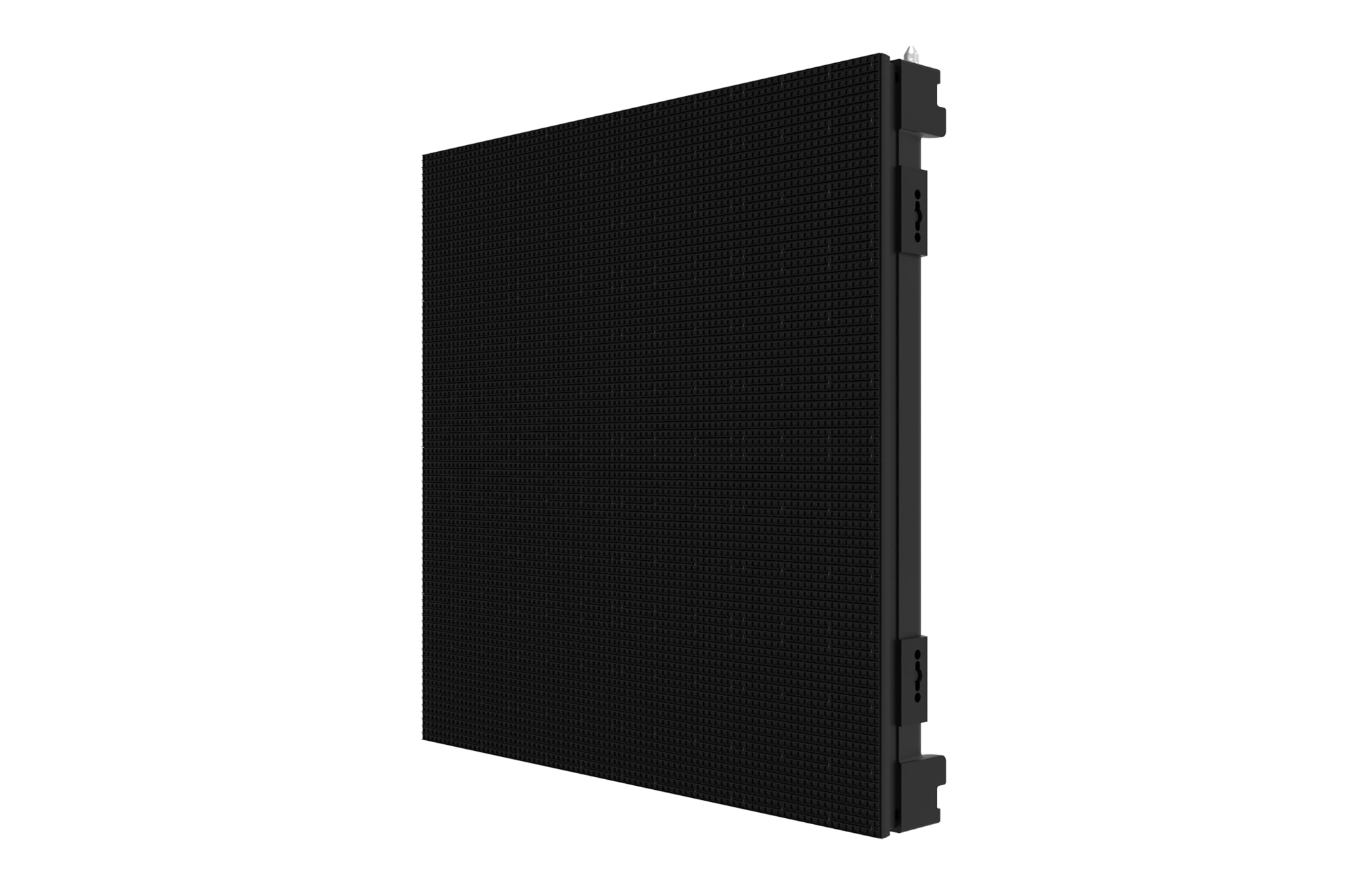

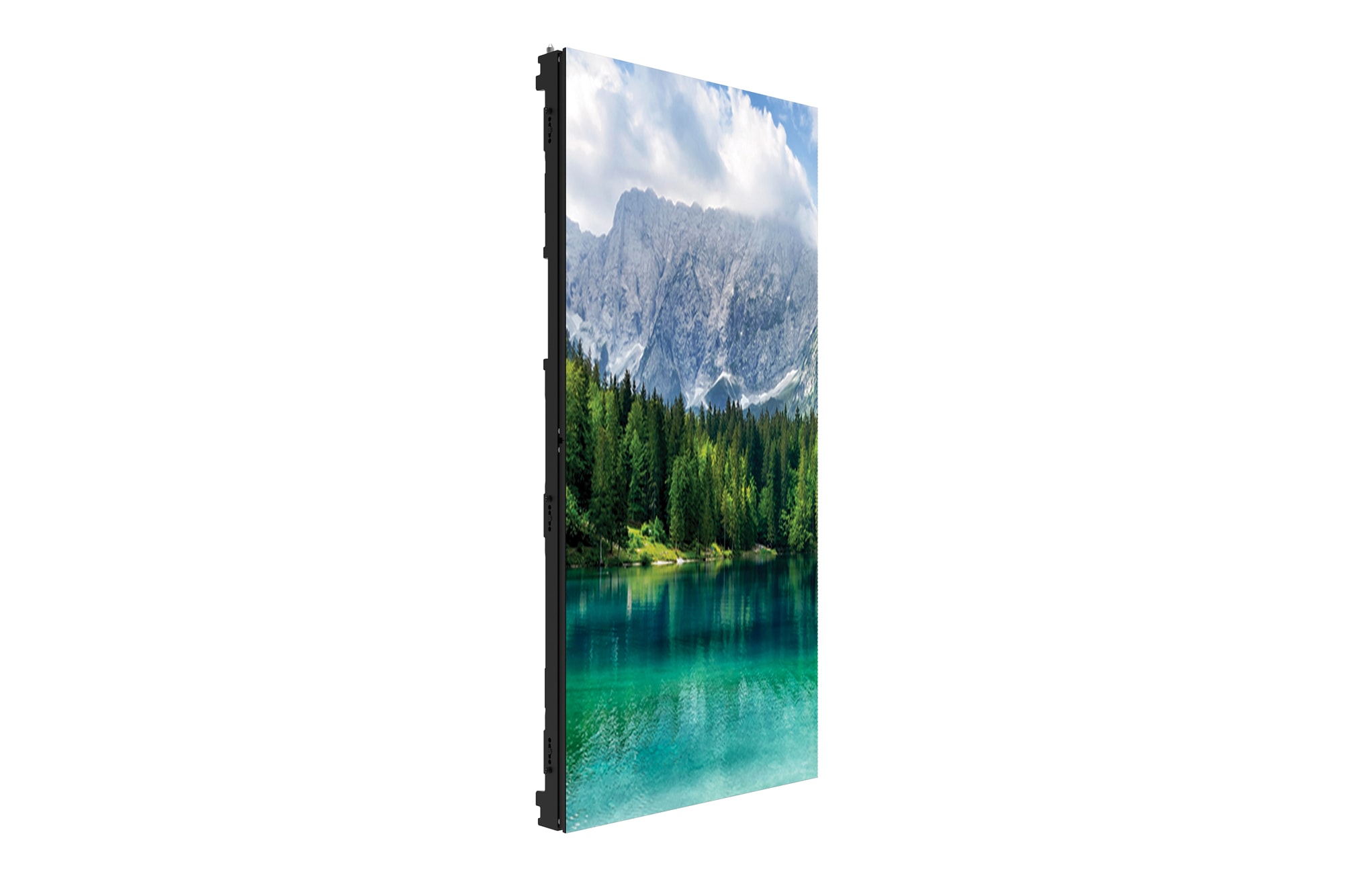

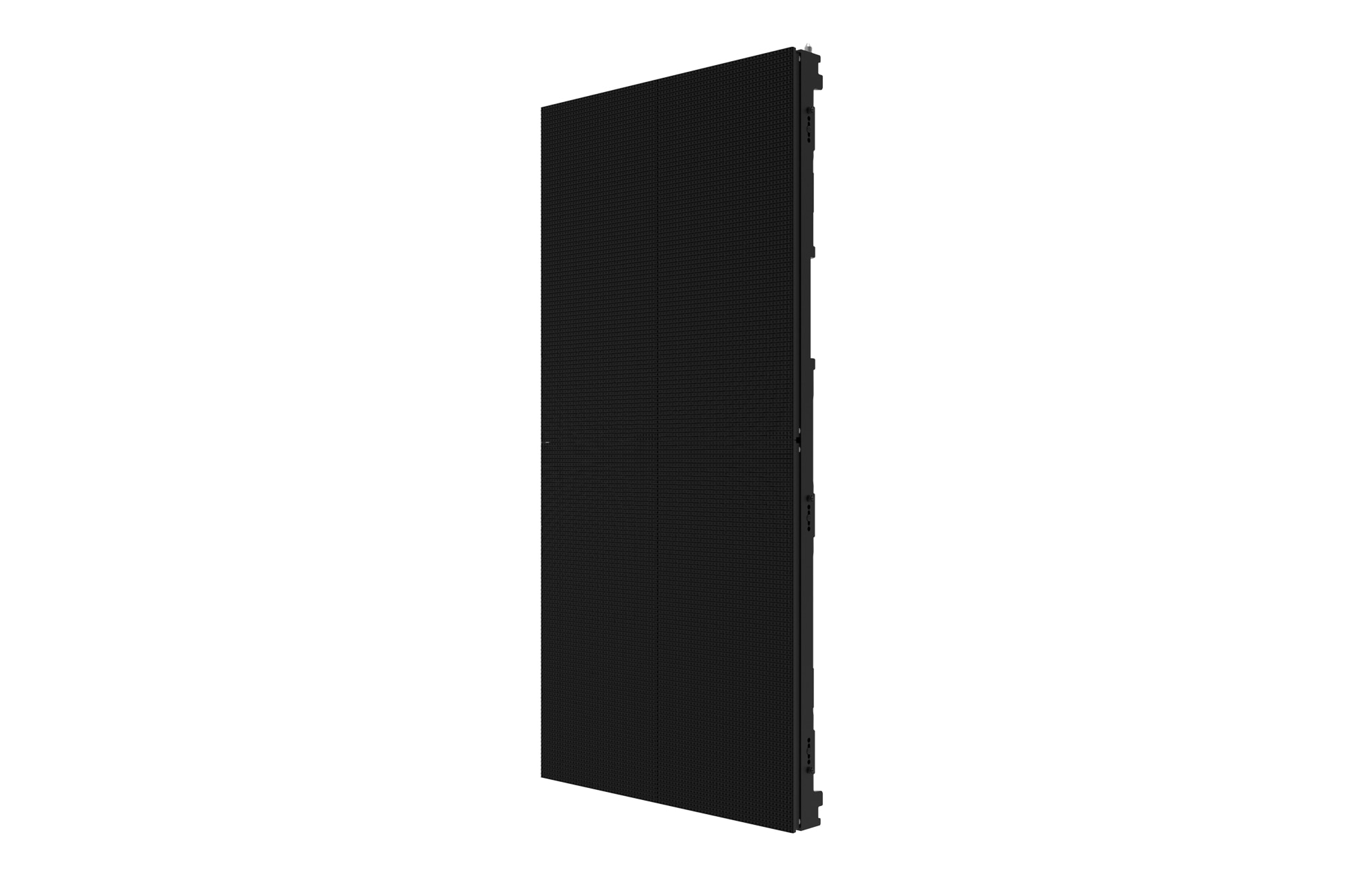

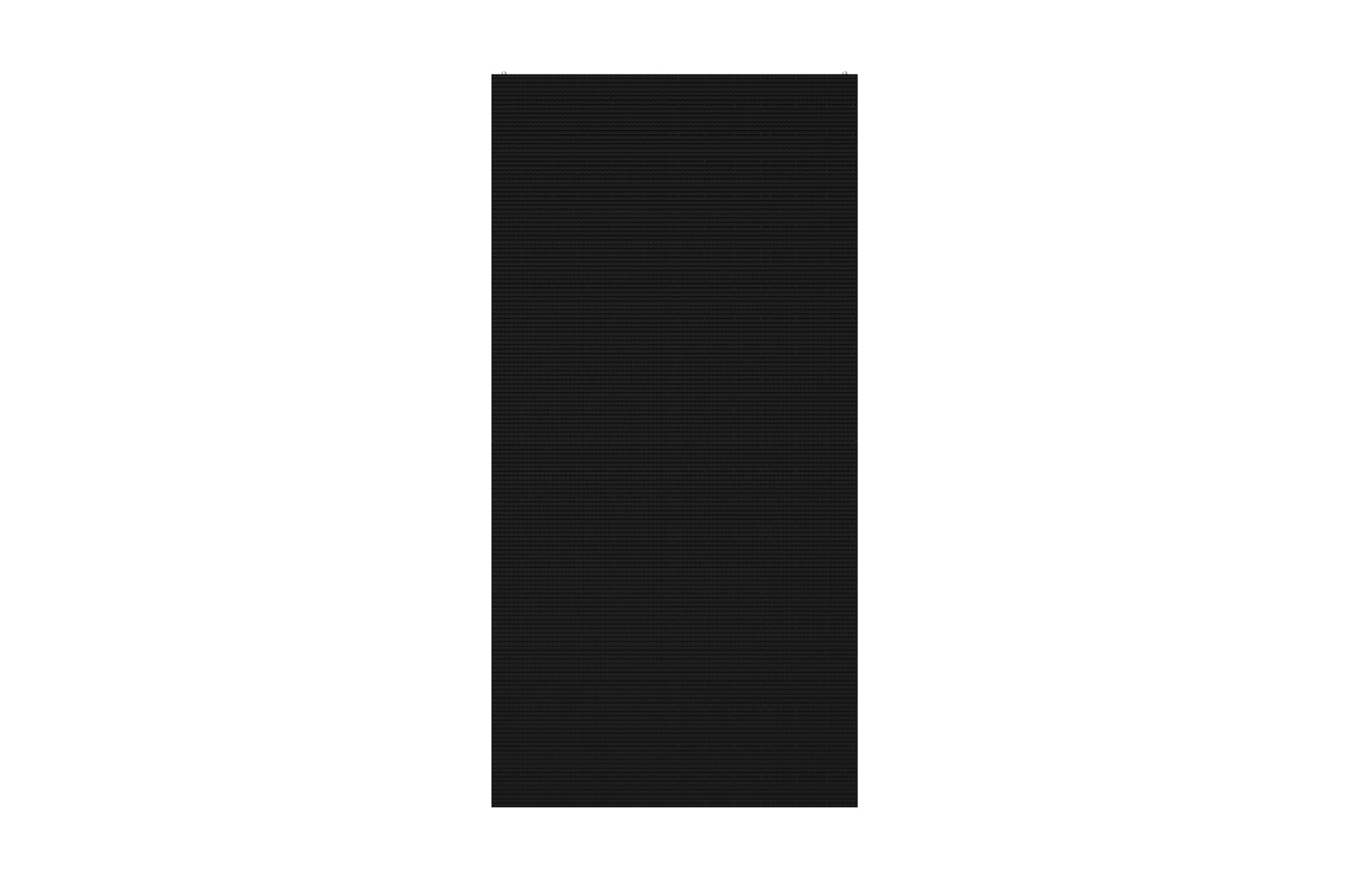

LAE Standard

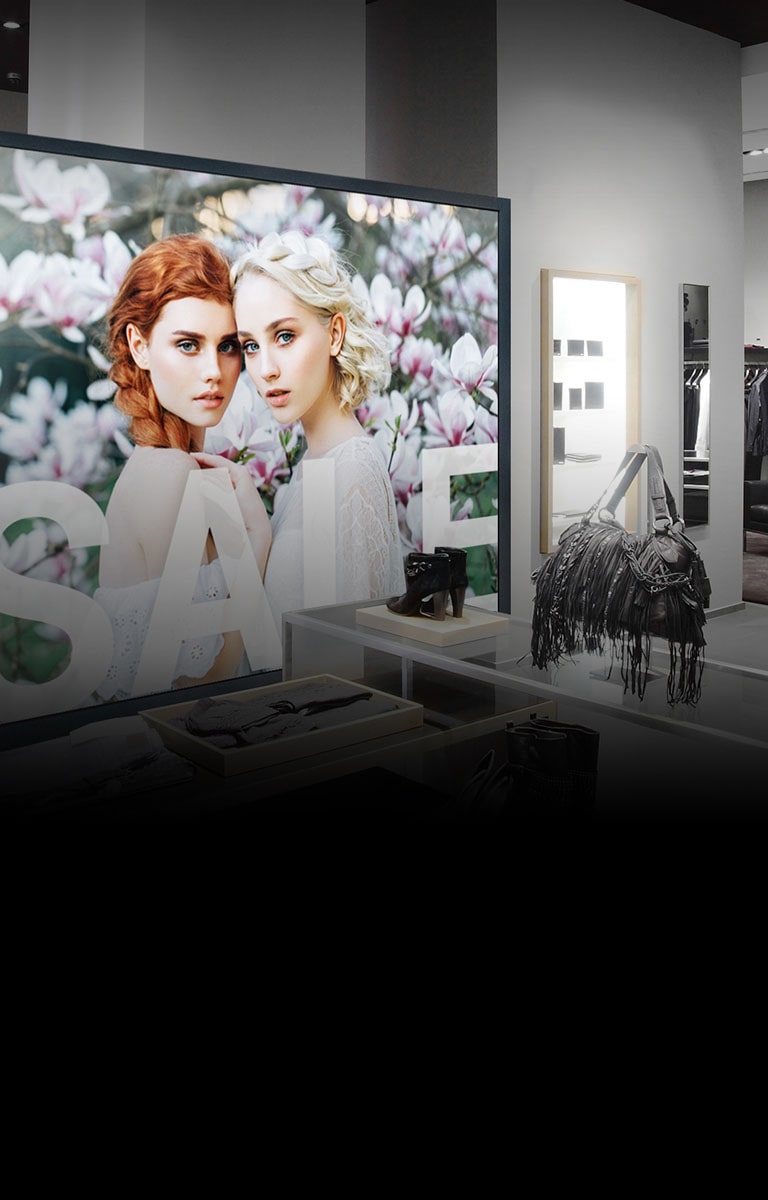

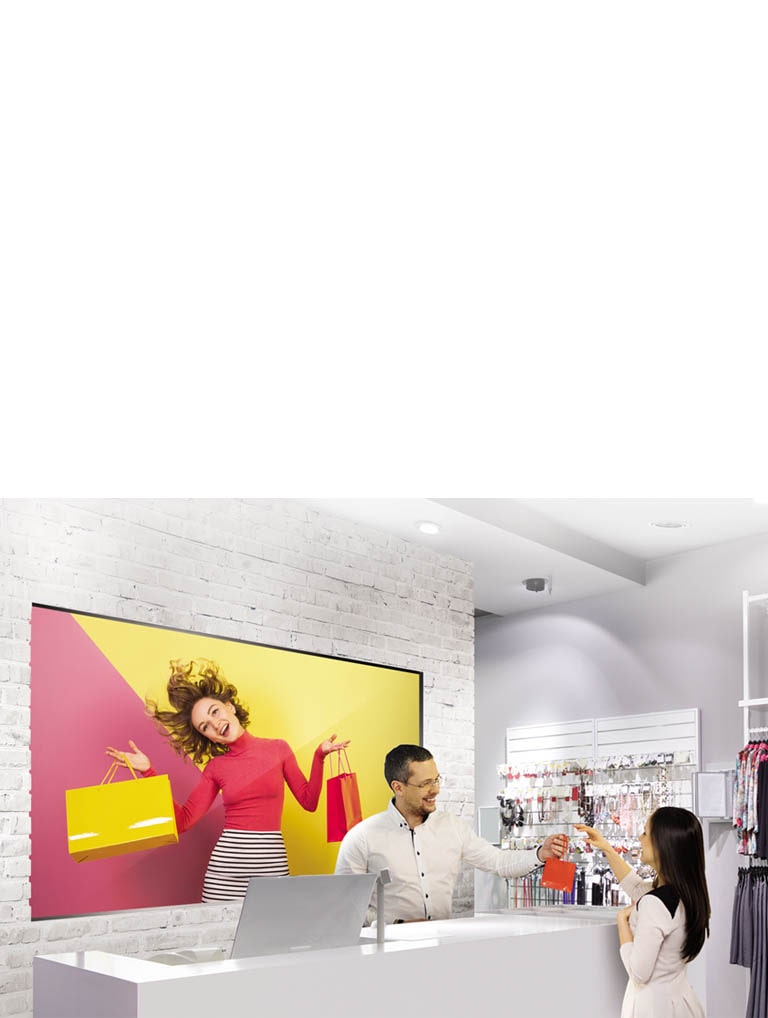

The LAE Standard is versatile indoors with its compact design. It delivers an eye catching display that fills the room with its presence. Find out more below.
Vertical Table
Model Name LAE029DD8E LAE029DD8DE LAE039DD8 LAE039DD8D
Pixel Configuration 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD 3 in 1 SMD
Pixel Pitch(mm) 2.97 2.97 3.91 3.91
Unit Case Resolution (WxH) 168x336 168x336 128x256 128x256

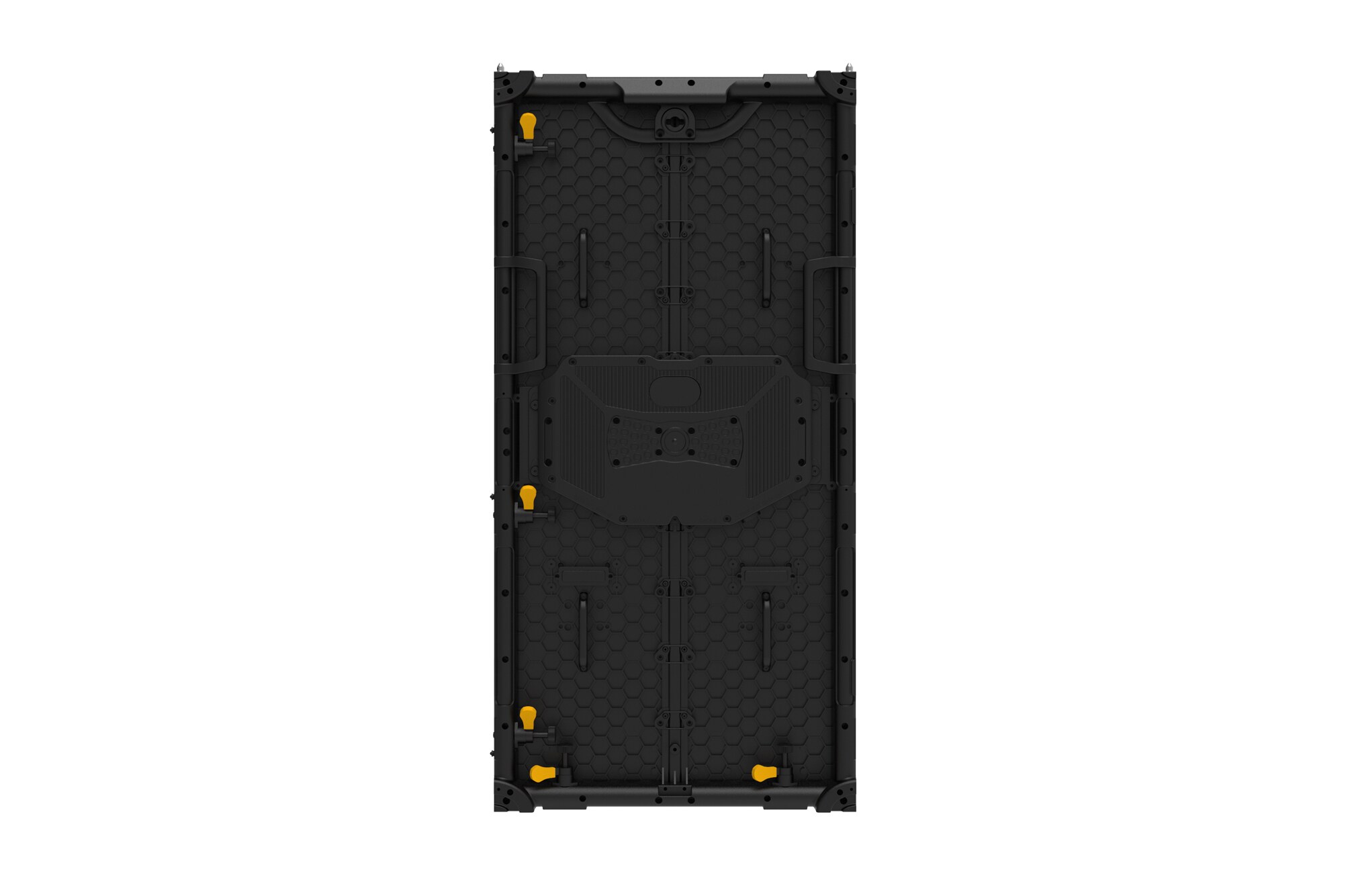

Unit Case Dimensions (W x H x D, mm) 500x1,000x68 500x500x68 500x1,000x68 500x500x68
Weight per Unit Case / Square Meter (kg) 15.5 / 31.0 10.0 / 40.0 12.5 / 25.0 8.2 / 32.8

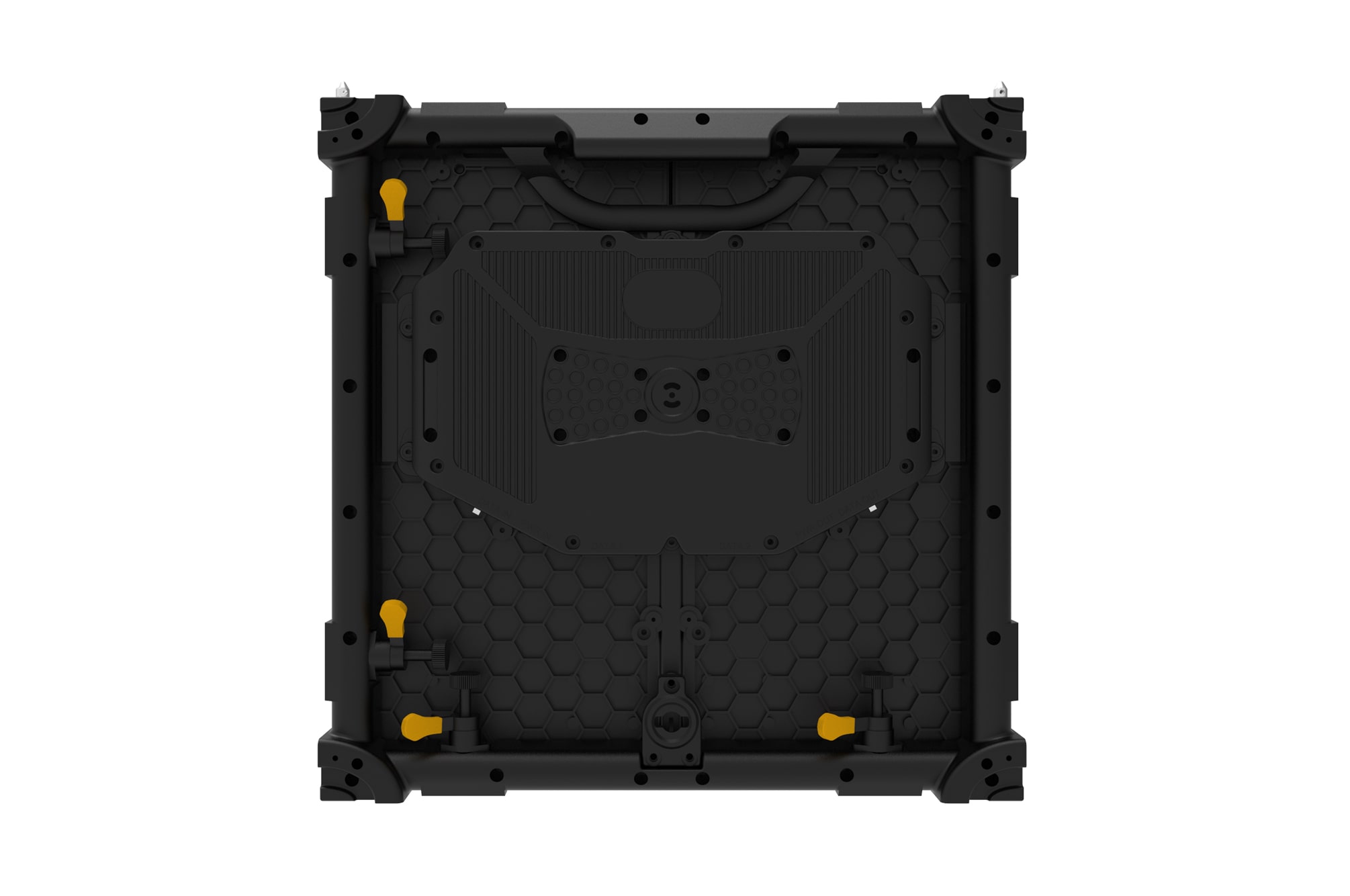

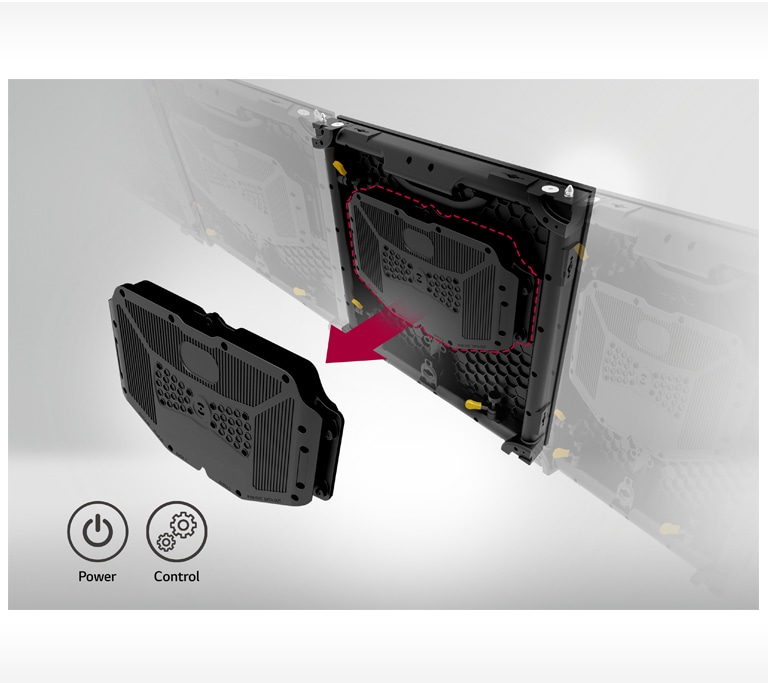

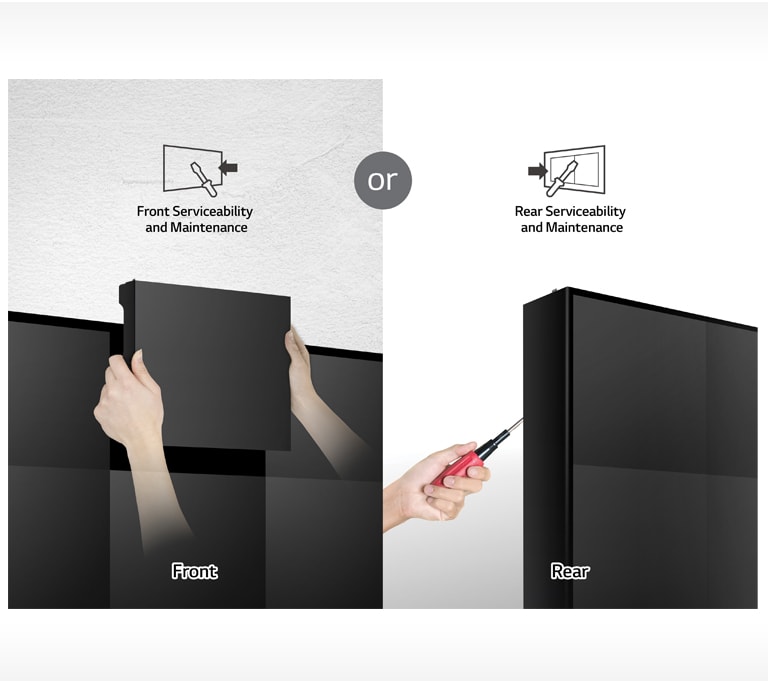

Service Access Front or Rear (One Option Only) Front or Rear (One Option Only) Front or Rear (One Option Only) Front or Rear (One Option Only)
Min. Brightness (After Calibration, cd/㎡) 1,000 1,000 1,000 1,000
Color Temperature 6,500 6,500 6,500 6,500
Visual Viewing Angle (Horizaontal / Vertical) 160 / 160 160 / 160 160 / 160 160 / 160
Brightness Uniformity 97% 97% 97% 97%
Color Uniformity ±0.003CxCy ±0.003CxCy ±0.003CxCy ±0.003CxCy
Contrast Ratio 5,000 5,000 5,000 5,000
Processing Depth (bit) 13 13 14 14
Power Consumption (W/Unit, Avg./Max.) 330 / 110 160 / 53 330 / 110 160 / 53
Power Consumption (W/㎡, Max.) 660 640 660 640
Power Supply (V) 100 to 240 100 to 240 100 to 240 100 to 240
Refresh Rate (Hz) 1,920 1,920 3,840 3,840
Lifetime (Duration of Half Brightness in Hrs) 100,000 100,000 100,000 100,000
Operating Temperature(℃)/ Humidity -10 to 45 / 0~80% RH -10 to 45 / 0~80% RH -10 to 45 / 0~80% RH -10 to 45 / 0~80% RH
* Models may vary by region. Check with local salesteam.
