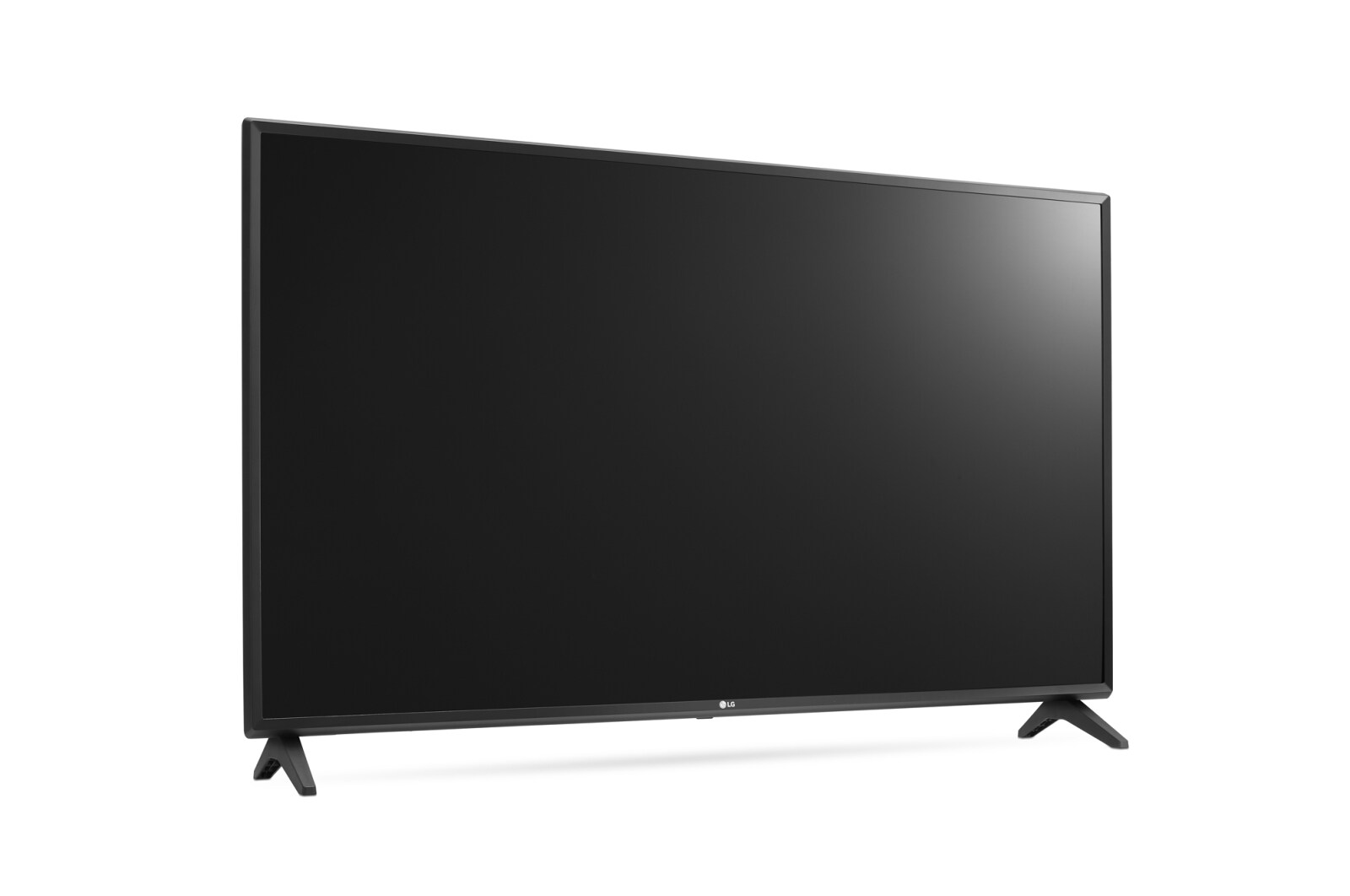

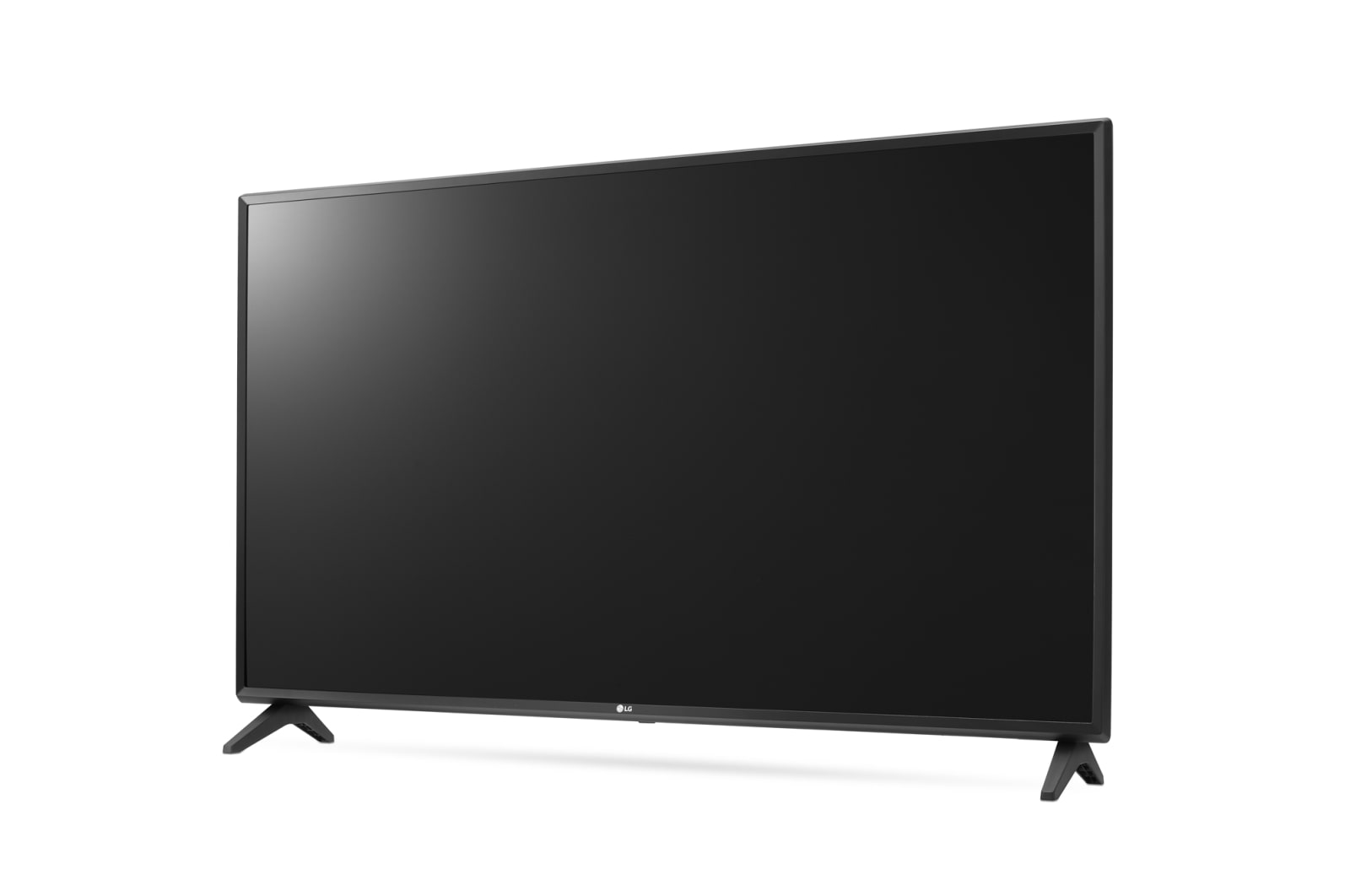

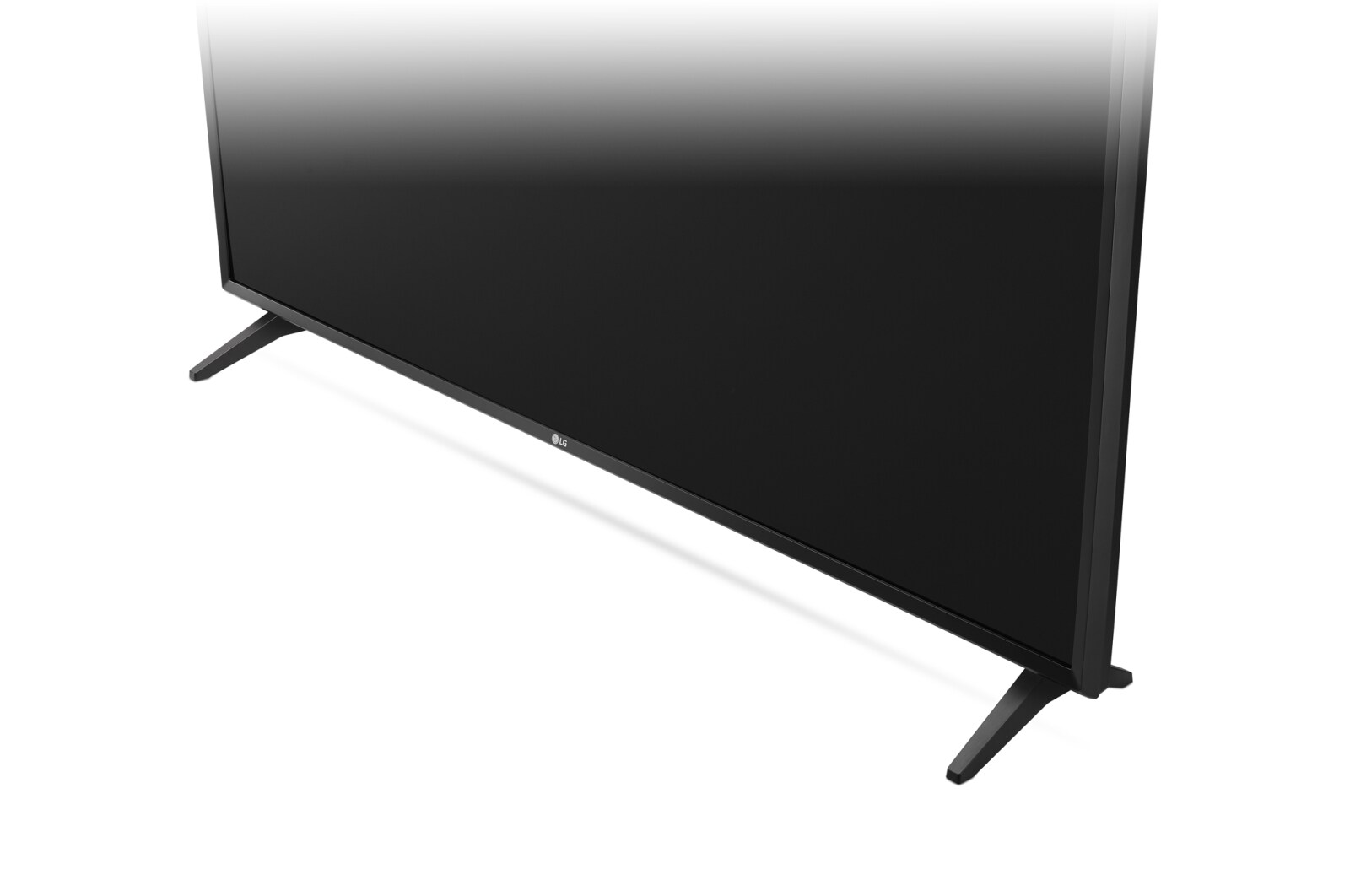

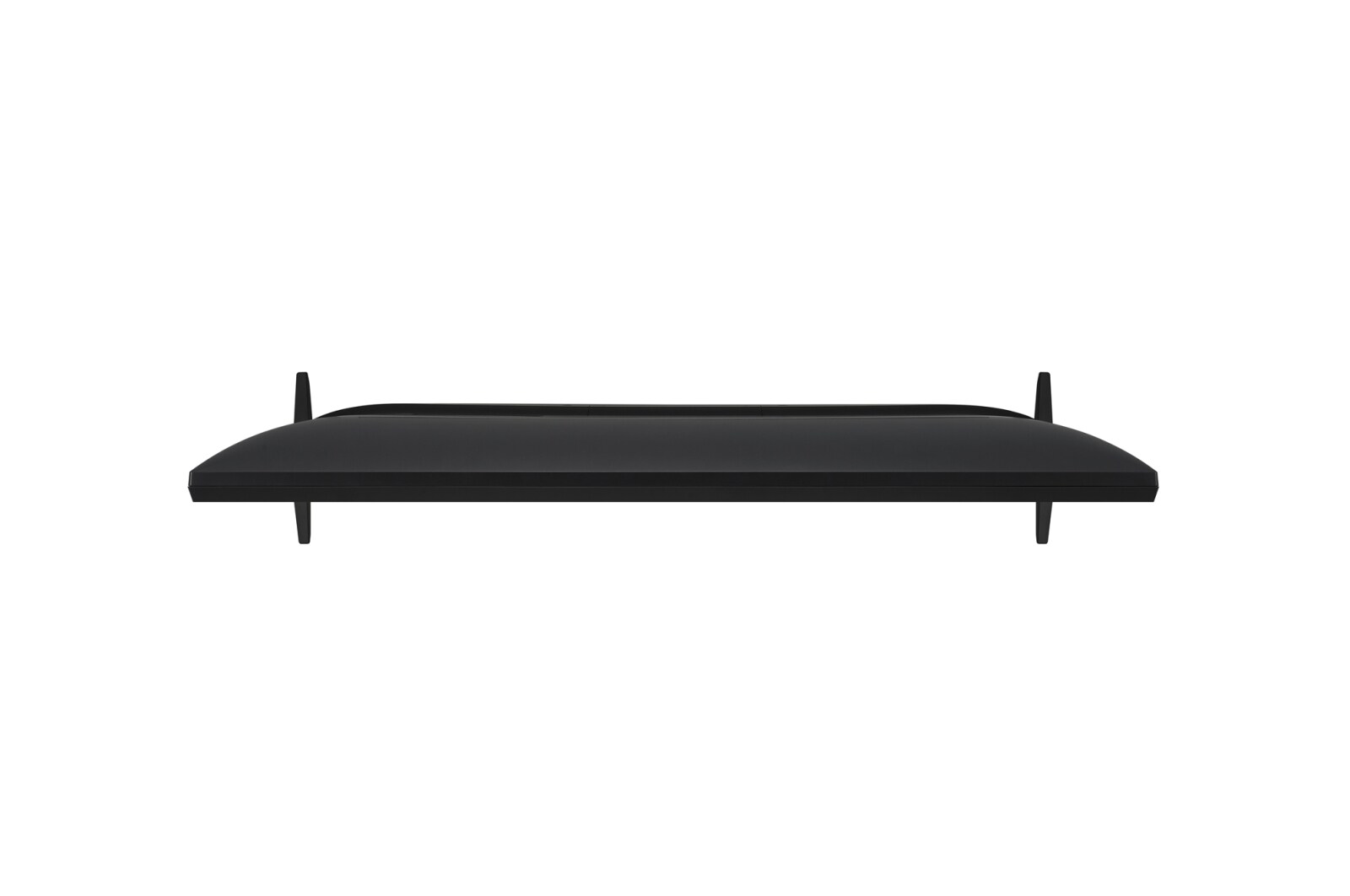

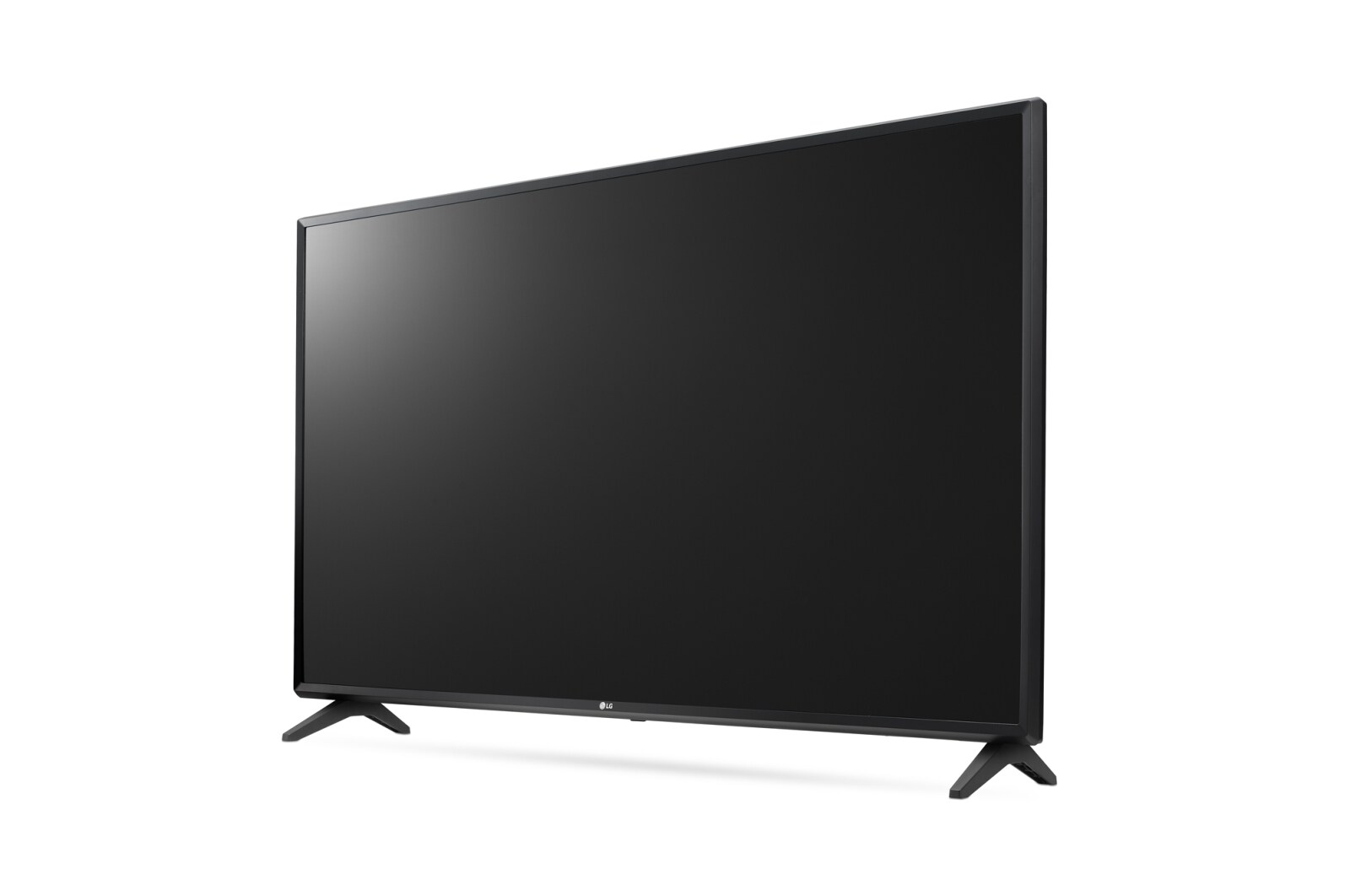

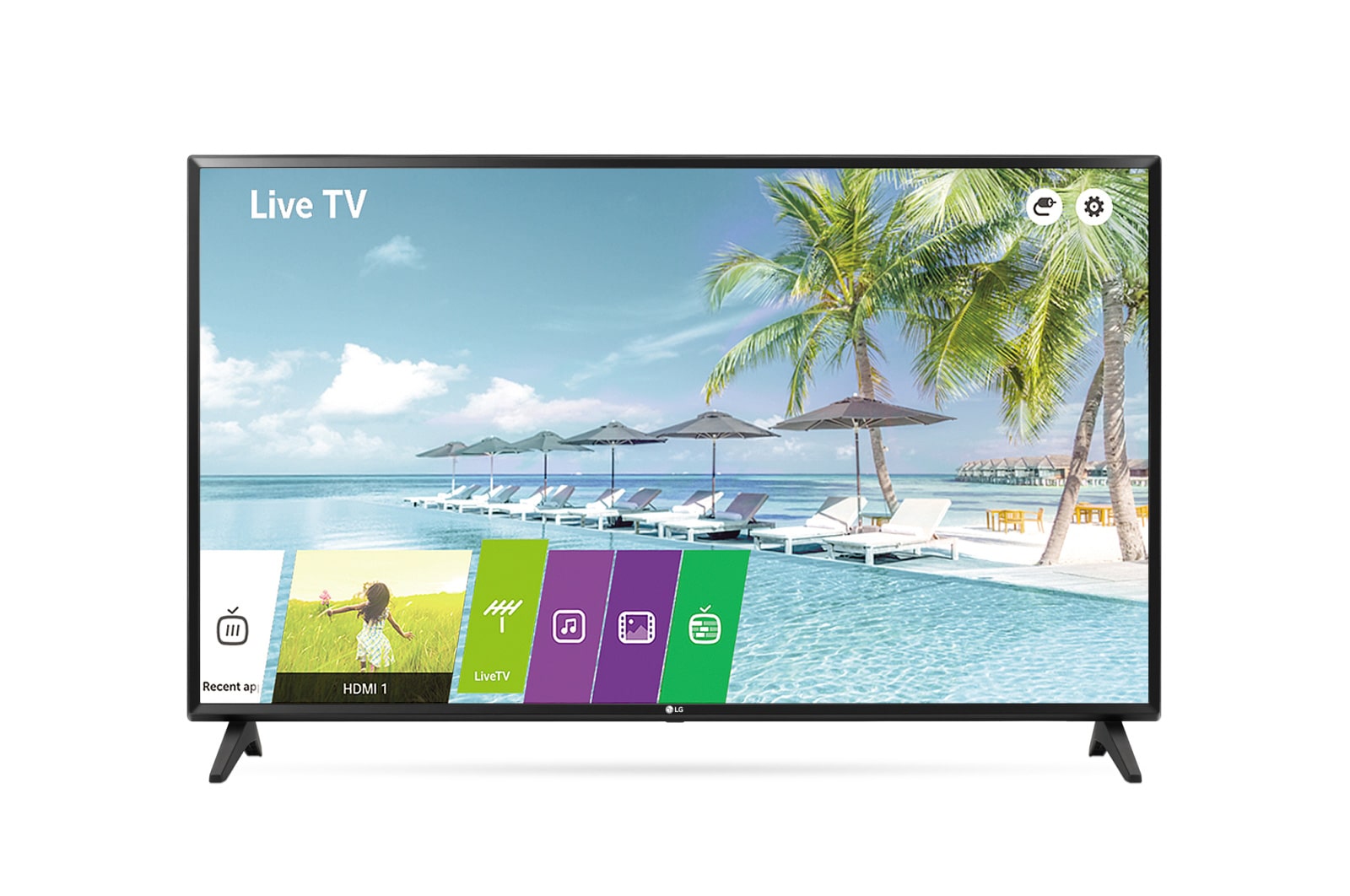

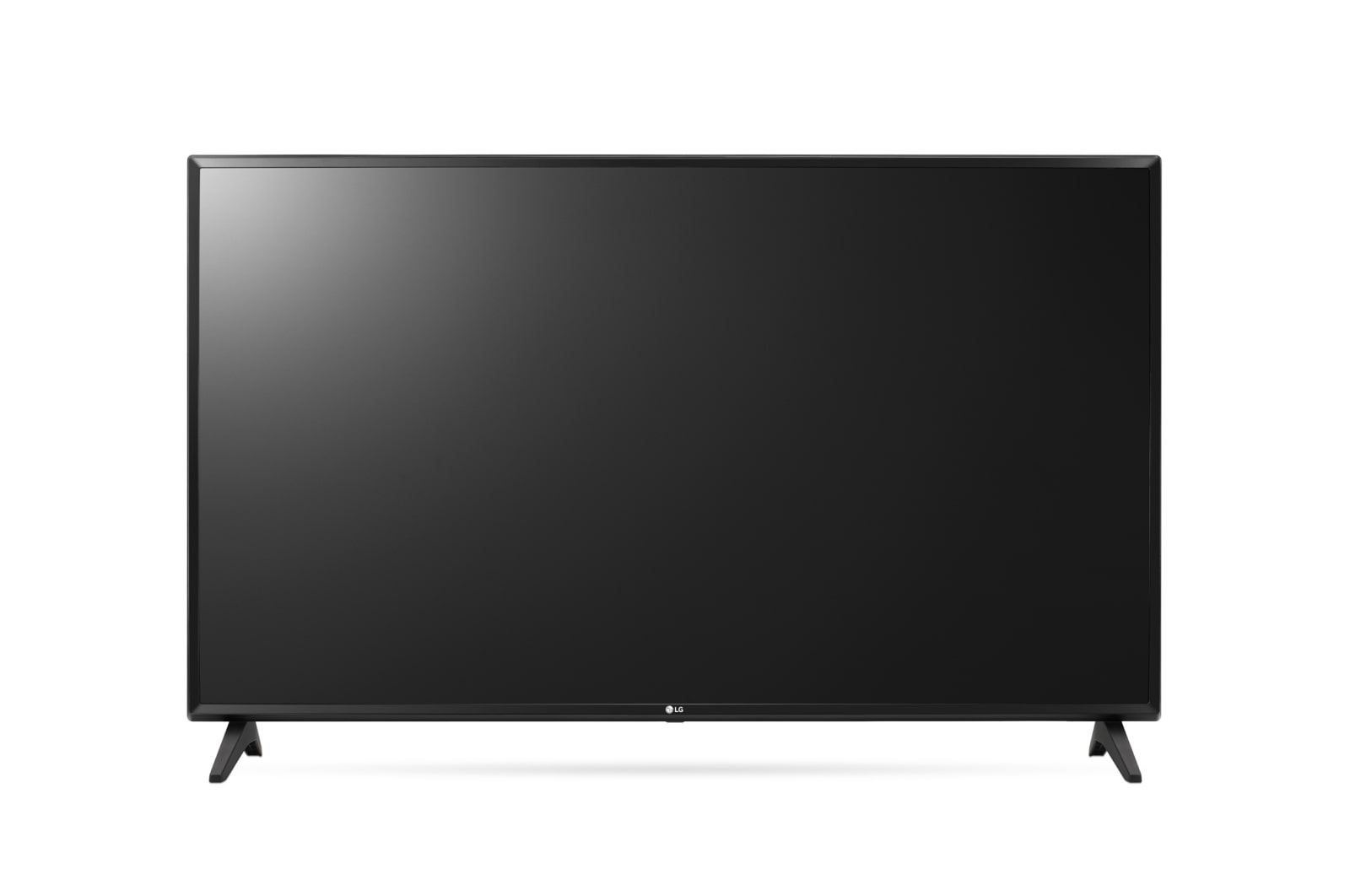

LU340C Series

LU340C Series

All specs

DISPLAY

  • Backlight Type

    LED (Direct)

  • Resolution

    1,920 x 1,080 (FHD)

  • Brightness (cd/m²)

    400

BROADCASTING SYSTEM

  • Analog

    Yes (PAL/SECAM)

  • Digital

    DVB-T2/C (Varied by countries)

VIDEO

  • XD Engine

    Yes

  • Aspect Ratio

    Yes 6 modes (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom, Just Scan)

AUDIO

  • Audio Output

    10W + 10W

  • Speaker System

    2.0 ch

  • Sound mode

    Yes 6 modes (Standard, Cinema, Clear Voice, Soccer, Music, Game)
    Yes 6 modes (India only) (Standard, Cinema, Clear Voice, Cricket, Billywood, Game)

  • Clear Voice

    Yes (Clear Voice)

FEATURE

  • Hospitality

    Hotel Mode, Lock mode (Limited), Welcome Video / Screen, Insert Image, One Channel Map, External Speaker Out, RJP Compatibility, USB Auto Playback / USB Auto playback+, Compatibility with AV Control system (Crestron Certi. Compatibility), Auto Off / Sleep Timer, Smart Energy Saving

JACK INTERFACE

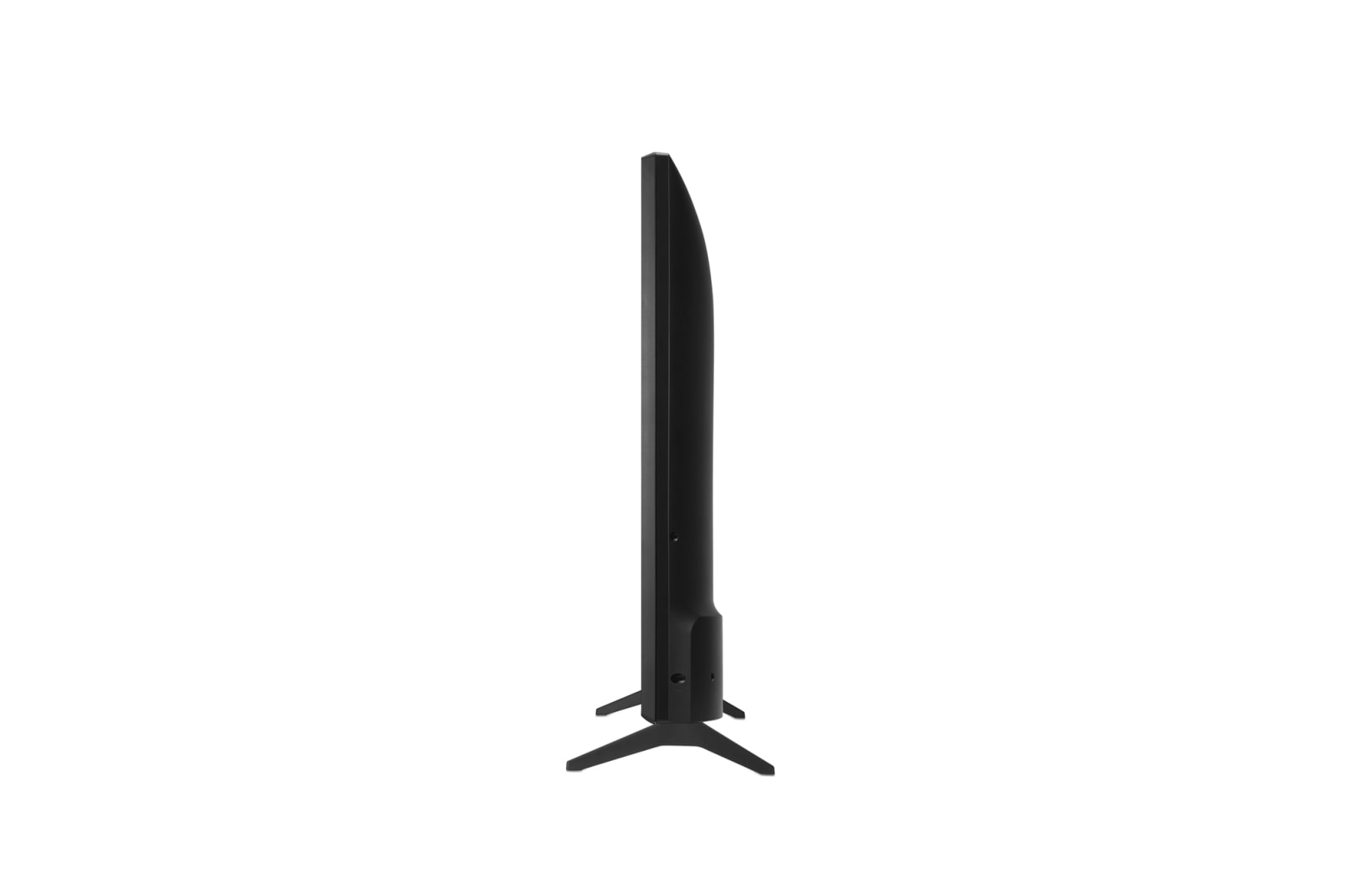

  • Set Side

    HDMI In, USB 2.0, CI Slot

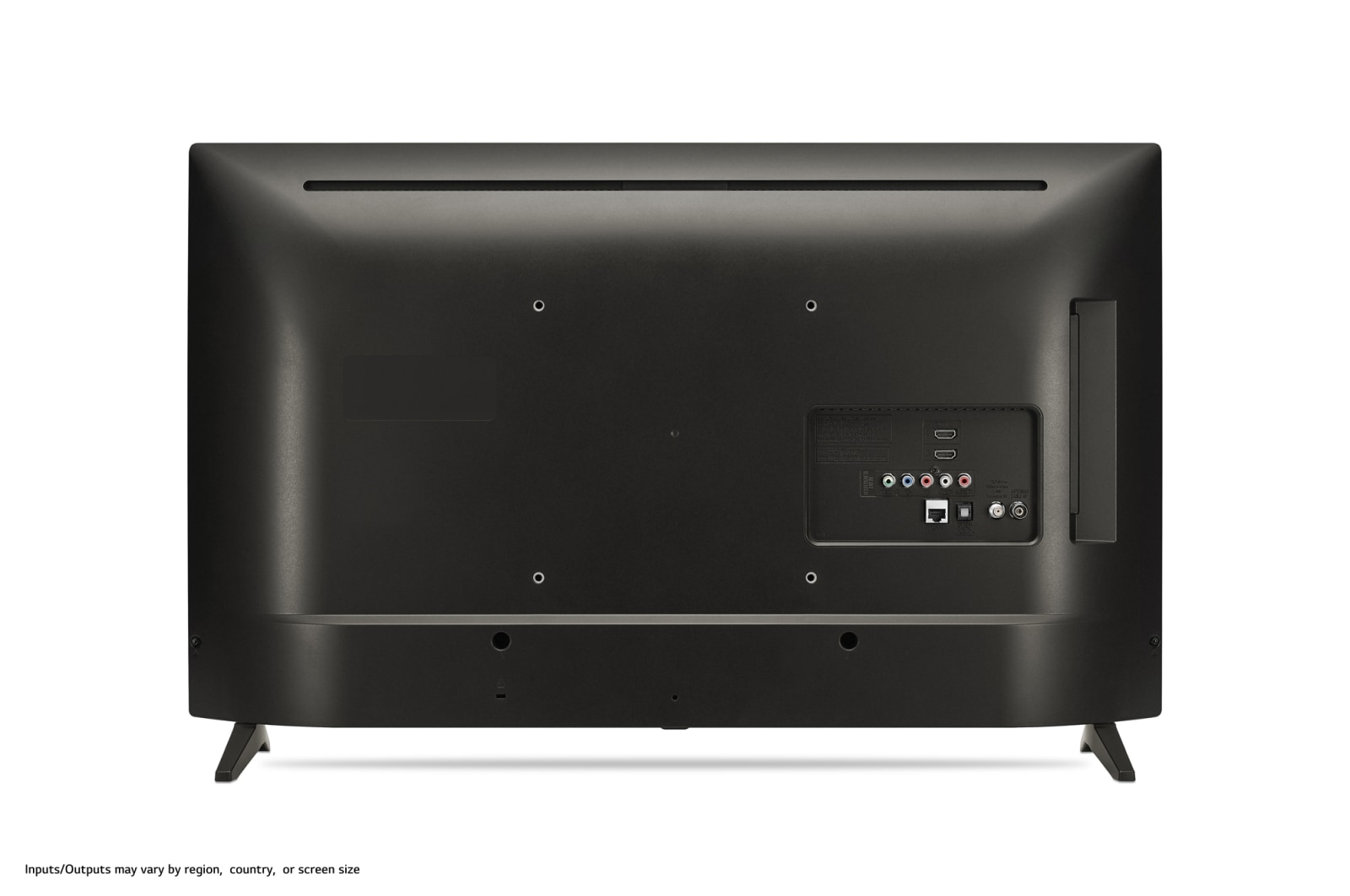

  • Set Rear

    RF In, AV In, Component In (RCA5 Type), Digital Audio Out, HDMI In, RGB In (D-sub 15pin) - PC, PC Audio Input, RS-232C (D-Sub 9pin), RJ45, External Speaker Out

DIMENSION

  • Vesa

    200 x 200

  • WxHxD / weight (with Stand)

    977 x 615 x 187 / 8.1 kg

  • WxHxD / Weight (without stand)

    977 x 575 x 71.7 / 8.0 kg

  • WxHxD / weight (Packing)

    1,060 x 660 x 152 / 10.5 kg

POWER

  • Voltage, Hz

    100 ~ 240V, 50/60Hz

  • Max

    97

  • Typical

    59

  • Energy saving (Min/Med/Max)

    44.8 / 32.1 / 17.9

  • Stand-by

    0.5W↓

GENERAL

  • Region

    ASIA
