Flexible Curved Open Frame OLED Signage

Flexible Curved Open Frame OLED Signage

Flexible Curved Open Frame OLED Signage

55EF5K-L
Front view of Flexible Curved Open Frame OLED Signage 55EF5K-L

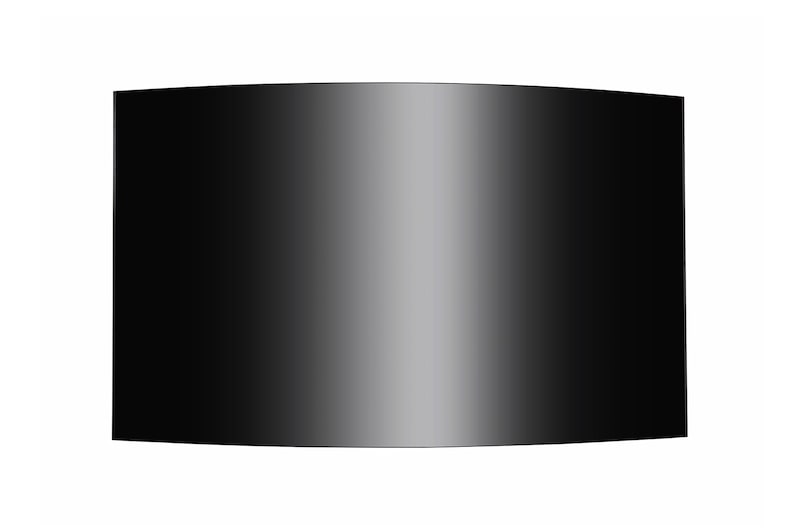

-15 degree side view
+15 degree side view
perspective view
side view
rear view
rear perspective view
close-up view of ports
Front view of Flexible Curved Open Frame OLED Signage 55EF5K-L
-15 degree side view
+15 degree side view
perspective view
side view
rear view
rear perspective view
close-up view of ports

Key Features

  • Brightness: 150/400nit (APL 100%/25%)
  • Depth: 12.4 mm (Head Only)
  • Curvature: ~1,000R(Concave/Convex)
  • Interface: HDMI, DP, USB(2), Audio, RS232C, RJ45, IR
More
Print

All specs

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG,
    IR receiver, Regulation Book, Phone to RS232C Gender, FFC Cables(220mmx4ea for connection between panel and Sinage box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Tape(4EA for Cabling), Screw(M3xL4.5,30EA / M3xL5.5,50EA / M3x3.5, 10EA), Shield Cover Assy', Tiling Set Fixer 6EA, Flex Bar 2EA

CERTIFICATION

  • EMC

    FCC Class "A" / CE / KC

  • ERP / Energy Star

    Yes / No

  • Safety

    IEC 60950-1 / EN 60950-1 / UL 60950-1

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0 °C to 40 °C

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    T/R/L/B : 0.6/6.7/6.7/0.6mm (LandScape, Off Bezel)
    T/R/L/B : 0.6/6.7/6.7/0.6mm (Portrait, Off Bezel)

    T/R/L/B : 5.0/7.6/7.6/10.6mm (LandScape, On Bezel)
    T/R/L/B : 5.0/13.2/7.8/5.0mm (Portrait, On Bezel)

  • Carton Dimensions (W x H x D)

    1360 x 842 x 252mm

  • Monitor Dimensions (W x H x D)

    1224.9 x 696.2 x 38.0mm (LandScape, Head, w/Pemnut)
    701.4 x 1219.7 x 38.0mm (Portrait, Head, w/Pemnut)

    1224.9 x 696.2 x 12.4mm (Landscape, Head, w/o Pemnut)
    701.4 x 1219.7 x 12.4mm (Portrait, Head, w/o Pemnut)

    413 x 353 x 57.3mm (Signage Box)

  • Packed Weight

    17.0Kg (LandScape)
    17.6Kg (Portrait)

  • Weight (Head)

    5.8Kg (LandScape, Head)
    7.0Kg (Portrait, Head)
    3.5Kg (Signage Box)

PANEL

  • Aspect Ratio

    16:9

  • Back Light Type

    OLED

  • Brightness

    150/400nit (APL 100%/25%)

  • Color Depth (Number of Colors)

    10bit(R), 1.07Bilion colors

  • Color Gamut

    BT709 120%

  • Contrast Ratio

    150,000 : 1

  • Life time

    30,000 Hrs (Typ.)

  • Native Resolution

    1920x1080 (FHD)

  • Operation Hours (Hours/Day)

    18/7 (Moving Content Only)

  • Panel Technology

    OLED

  • Portait / Landscape

    Yes

  • Refresh Rate

    120Hz

  • Response Time

    1ms (G to G), 8ms (MPRT)

  • Screen Size (Inch)

    55"

  • Surface Treatment (Haze)

    Hard coating (2H)
    Reflectance Typ. 1.2%

  • Viewing Angle (H x V)

    178 X 178

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    1054 BTU/Hr(Typ.), 1085 BTU/Hr(Max)

  • DPM

    0.5W

  • Max.

    318W

  • Power off

    0.5W

  • Typ.

    116W (IEC 62087)

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes (v3.0)

  • SuperSign Control+

    Yes (v1.7 / v1.9)

  • SuperSign WB

    Yes (v3.7.15)

SPECIAL FEATURE

  • Tilt (Face down)

    Yes
