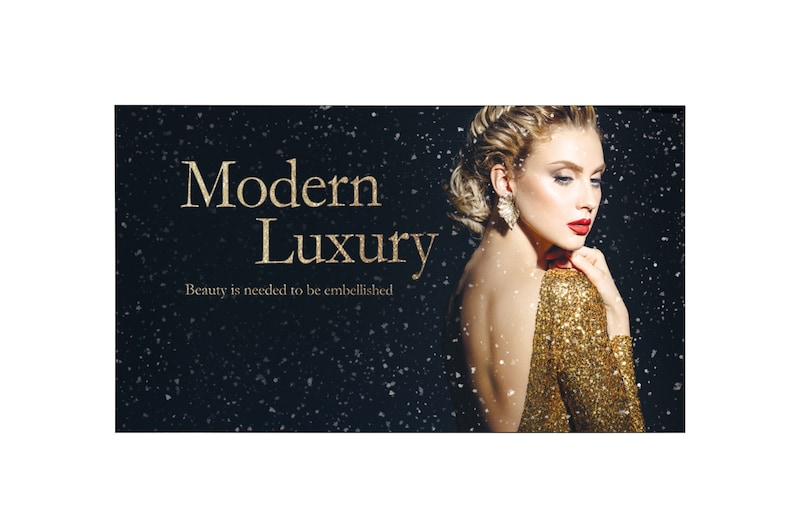

55" 150/400 nits FHD Wallpaper OLED
All specs
ACCESSORY
Basic
Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (for Connection Between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable), Wall Fixers, Wall Fixer Install Guide, Install Guide Sheets, Tapes (for Cabling and Dust Proof), Screws
CONNECTIVITY
External Control
RS232C In/out, RJ45 (LAN) In/out, IR In
Input
HDMI, DP, USB 2.0 (2)
Output
DP, Audio
ENVIRONMENT CONDITIONS
Operation Humidity
10% ~ 80%
Operation Temperature
0°C ~40°C
MEDIA PLAYER COMPATIBILITY
External Media player Attatchable
Yes
OPS Type Compatible
No
PANEL
Brightness
150/400 cd/m2 (APL 100% / 25%) * Average picture level
Resolution
1,920 x 1,080 (FHD)
Screen Size
55"
PHYSICAL SPECIFICATION
Bezel Width (T/B/L/R)
0.9 mm (Even) * Off-Bezel5.3 mm (T/L/R),11.0 mm (B) * On-Bezel
Carton Dimensions (W x H x D)
1,350 x 837 x 250 mm
Dimension (W x H x D)
(Head) 1220.3 x 696.8 x 4.9 mm(Signage Box) 782.8 x 238.4 x 34.7 mm
Packed Weight
22.9 kg
Weight
10 kg (Set)
POWER
Power Consumption (Typ. / Max.)
309 W / 318 W * 8 Color Bar Based
Power Supply
100-240V~, 50/60Hz
Power Type
Built-In Power
SOFTWARE COMPATIBILITY
Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control+ / Control
STANDARD(CERTIFICATION)
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes / No
Safety
IEC 60950-1 / EN 60950-1 / UL 60950-1
