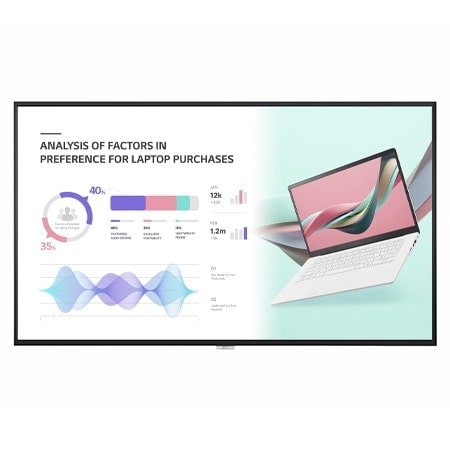

New High Haze UHD Standard Signage
All specs
ACCESSORY
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
Optional
Stand(ST-653T), Wall bracket(LSW240B), OPS Kit(KT-OPSF)
CERTIFICATION
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes (NewErP) / Yes

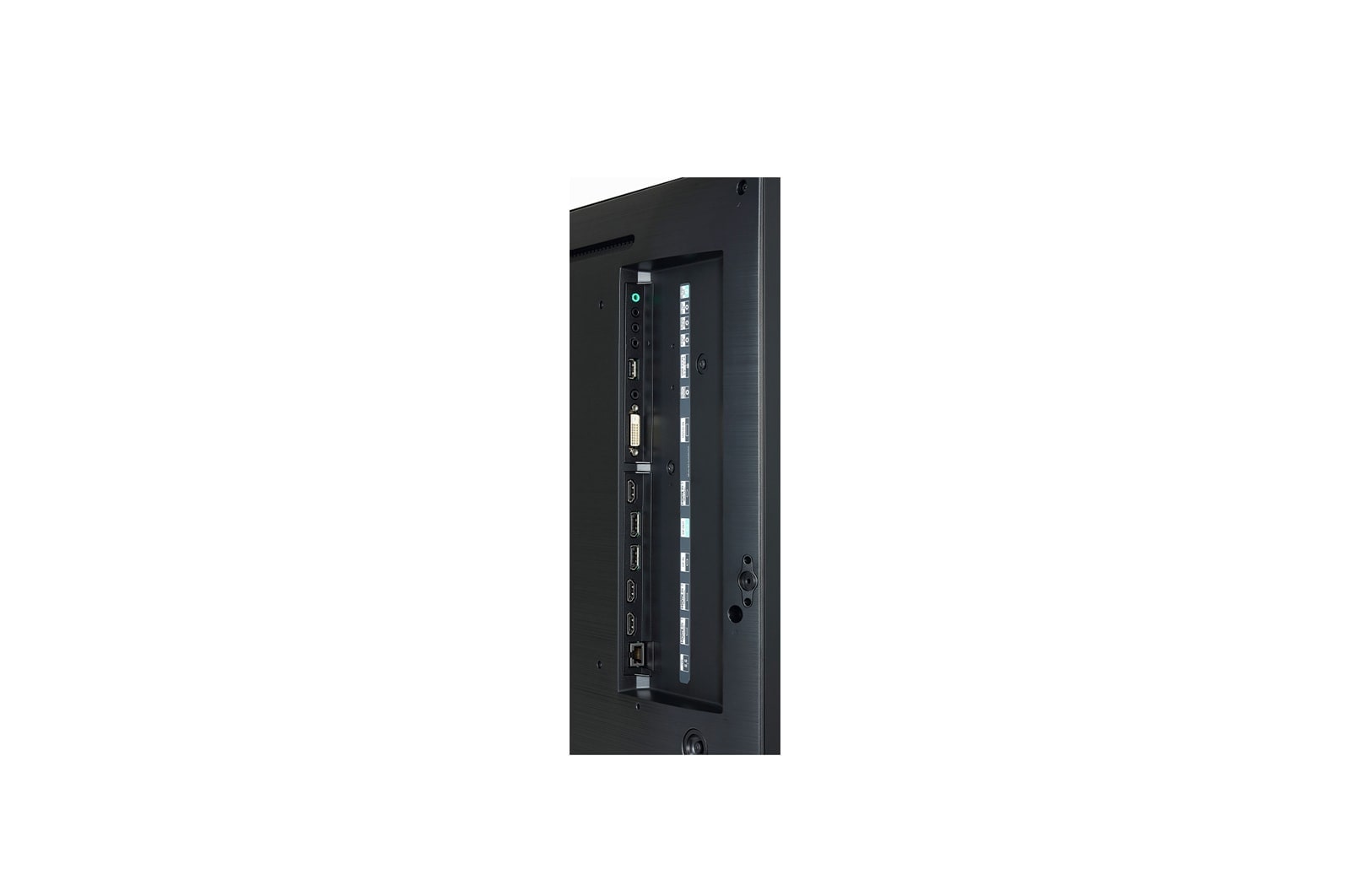

CONNECTIVITY
Input
HDMI (3, HDMI1/HDMI2 : HDCP 2.2/1.4, HDMI3 : HDCP 1.4), DP (1, HDCP2.2/1.3), DVI-D (HDCP1.4), Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1)
Output
HDMI Out, Audio Out, RS232C OUT (1, 4pin Phone-jack)
ENVIRONMENT CONDITIONS
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
KEY FEATURE
Key features
Internal Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Acceleration(Gyro) Sensor, Local Key Operation, webOS6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom

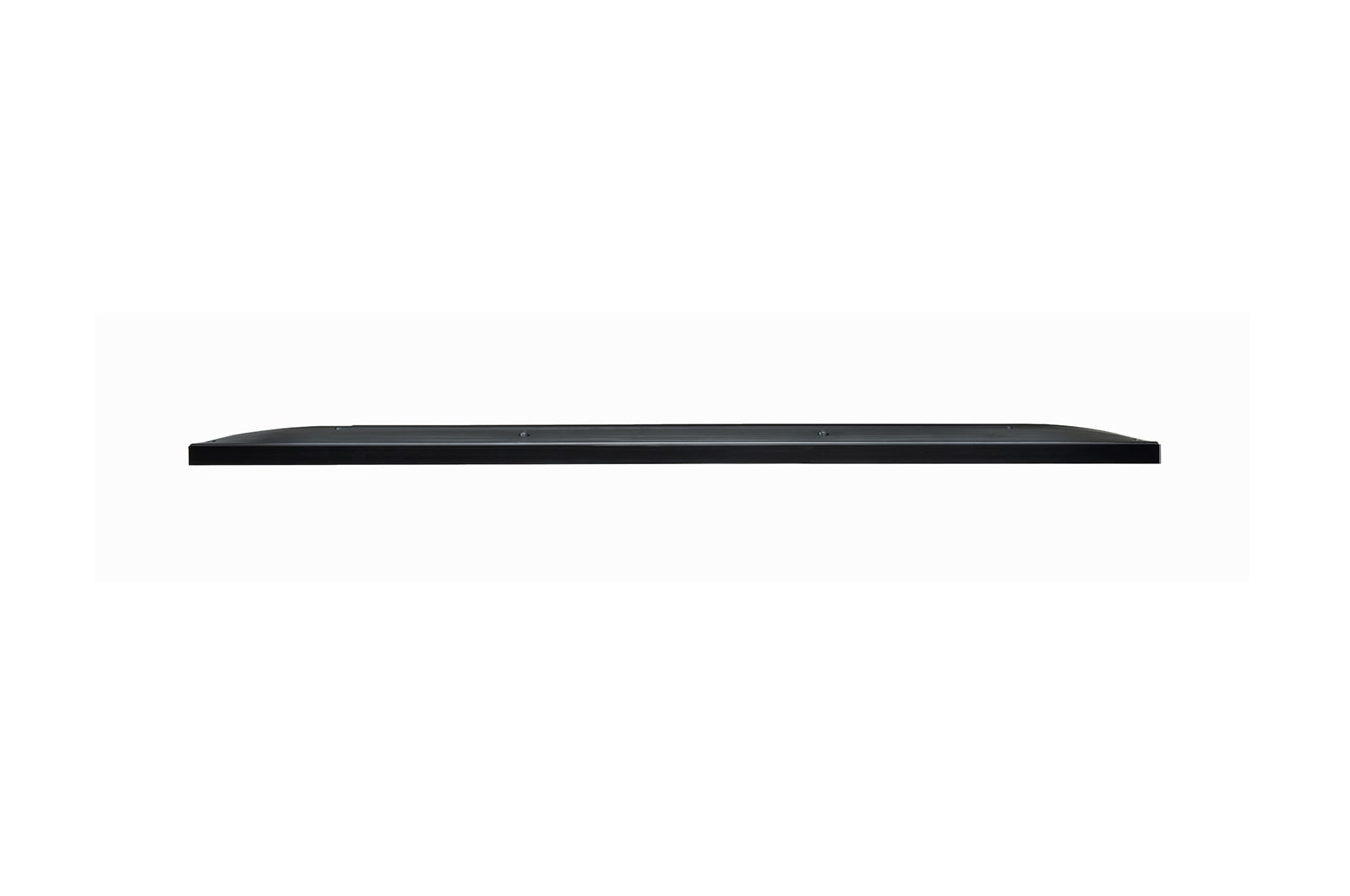

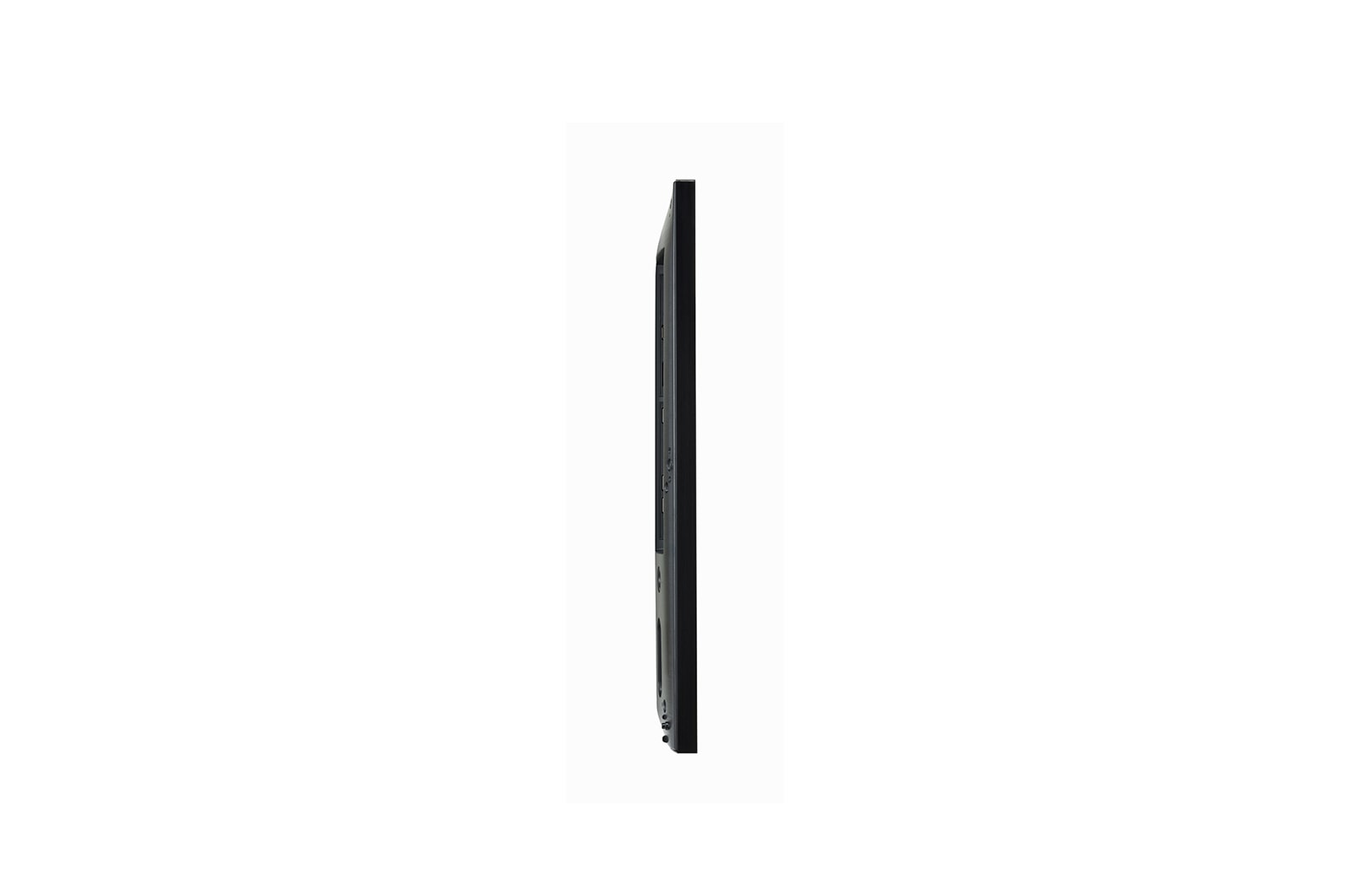

MECHANICAL SPECIFICATION
Bezel Color
Black
Bezel Width
T/R/L: 8.4mm, B: 14.4mm
Weight(Head)
11.2Kg
Weight(Head+Stand)
11.8Kg
Packed Weight
13.7Kg
Monitor Dimension(W x H x D)
962.5 x 568.0 x 39.9mm(with LG Logo)
Monitor Dimensions with Stand(W x H x D)
962.5 x 613.1 x 290.0mm
Carton Dimensions(W x H x D) (Box outer size)
1060.0 x 660.0 x 152.0mm

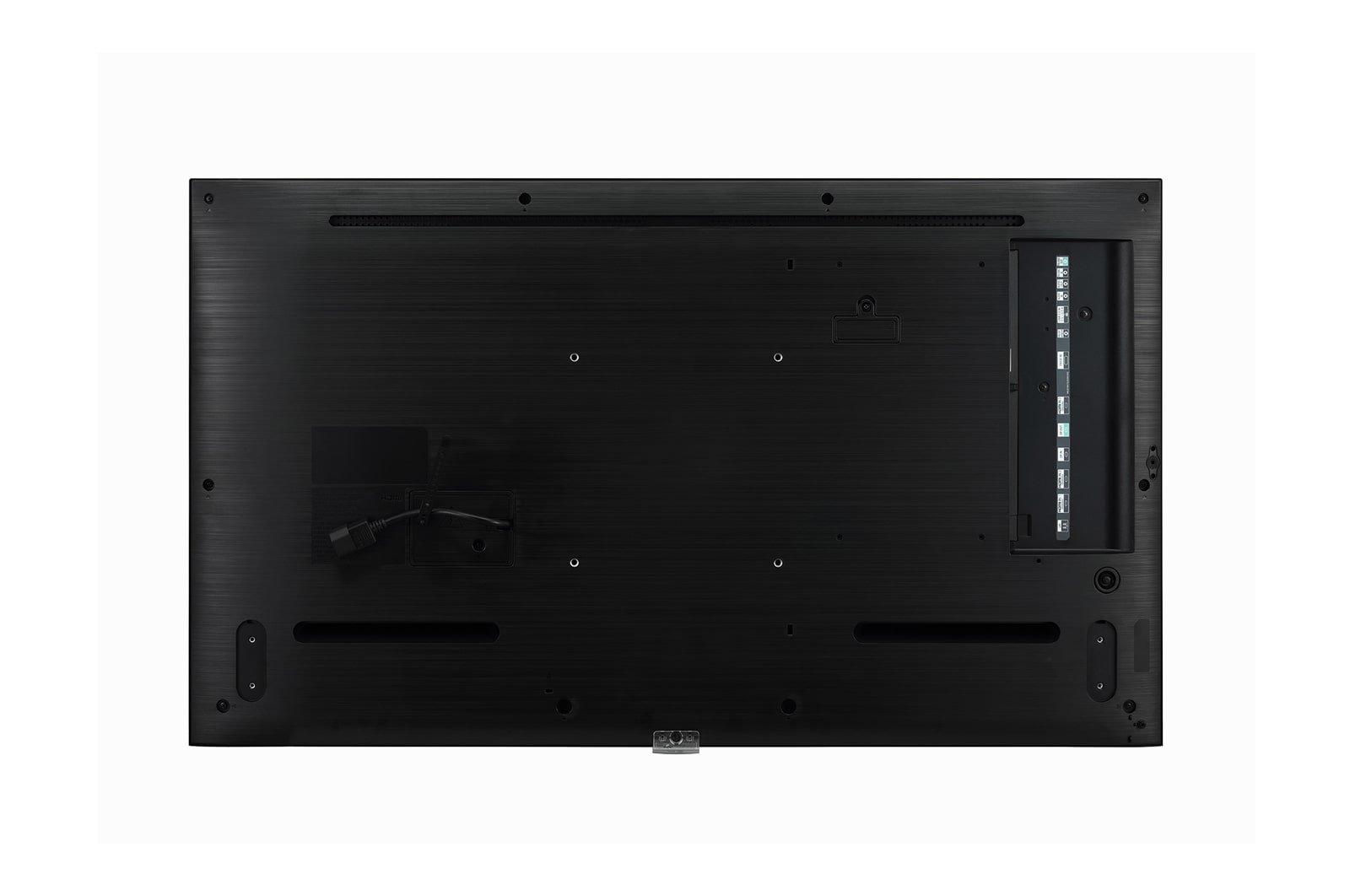

VESA™ Standard Mount Interface
200 x 200
OPS COMPATIBILITY
OPS Type Compatible
Yes

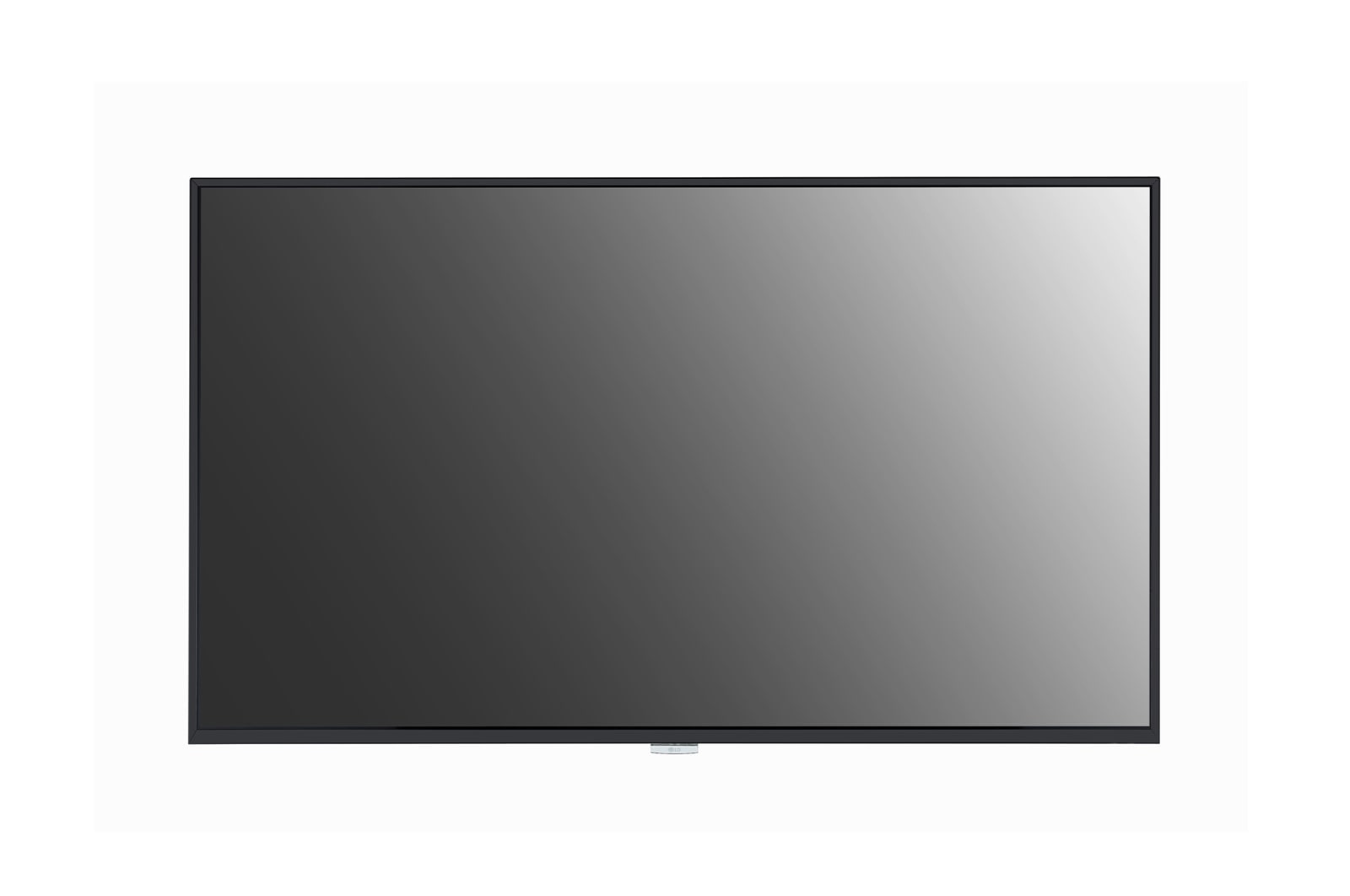

PANEL
Screen Size
43"
Panel Technology
IPS
Back Light Type
Edge
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60 Hz
Brightness
500nit (Typ.)
Contrast Ratio
1,200:1
Dynamic CR
1,000,000 : 1
Color gamut
BT709 95%
Viewing Angle(H x V)
178 x 178
Color Depth
8bits + FRC, 1.07Billion colors
Response Time
8ms (G to G)
Surface Treatment(Haze)
25%
Life time
50,000Hrs (Min.)
Operation Hours (Hours/Day)
24/7
Portrait / Landscape
Yes / Yes
POWER
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
POWER CONSUMPTION
Typ.
80W
Max.
120W
BTU (British Thermal Unit)
273 BTU/Hr(Typ.), 410 BTU/Hr(Max.)
Smart Enegy Saving(~70%)
56W
DPM
0.5W
Power off
0.5W
SOFTWARE COMPATIBILITY
SuperSign CMS
Yes
SuperSign Control / Control+
Yes / Yes
SuperSign WB
Yes
SuperSign Media Editor
Yes
Promota
Yes (Not available for EU/CIS)
Mobile CMS
Yes
Signage 365 Care
Yes
SOUND
Speaker
Yes
SPECIAL FEATURE
Tilt(Facedown)
Yes (Max 15º degree, 30ºC temperature, humidity 50%)
IP Rating
IP5x
LANGUAGE
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic
