UHD Signage Display-65UH7N-E

Specs

UHD Signage Display-65UH7N-E

UHD Signage Display-65UH7N-E

65UH7N-E
  • Front view with infill image
  • Front view
  • -45 degree side view
  • -90 degree side view
  • +45 degree side view
  • +90 degree side view
  • Rear view
  • Top view

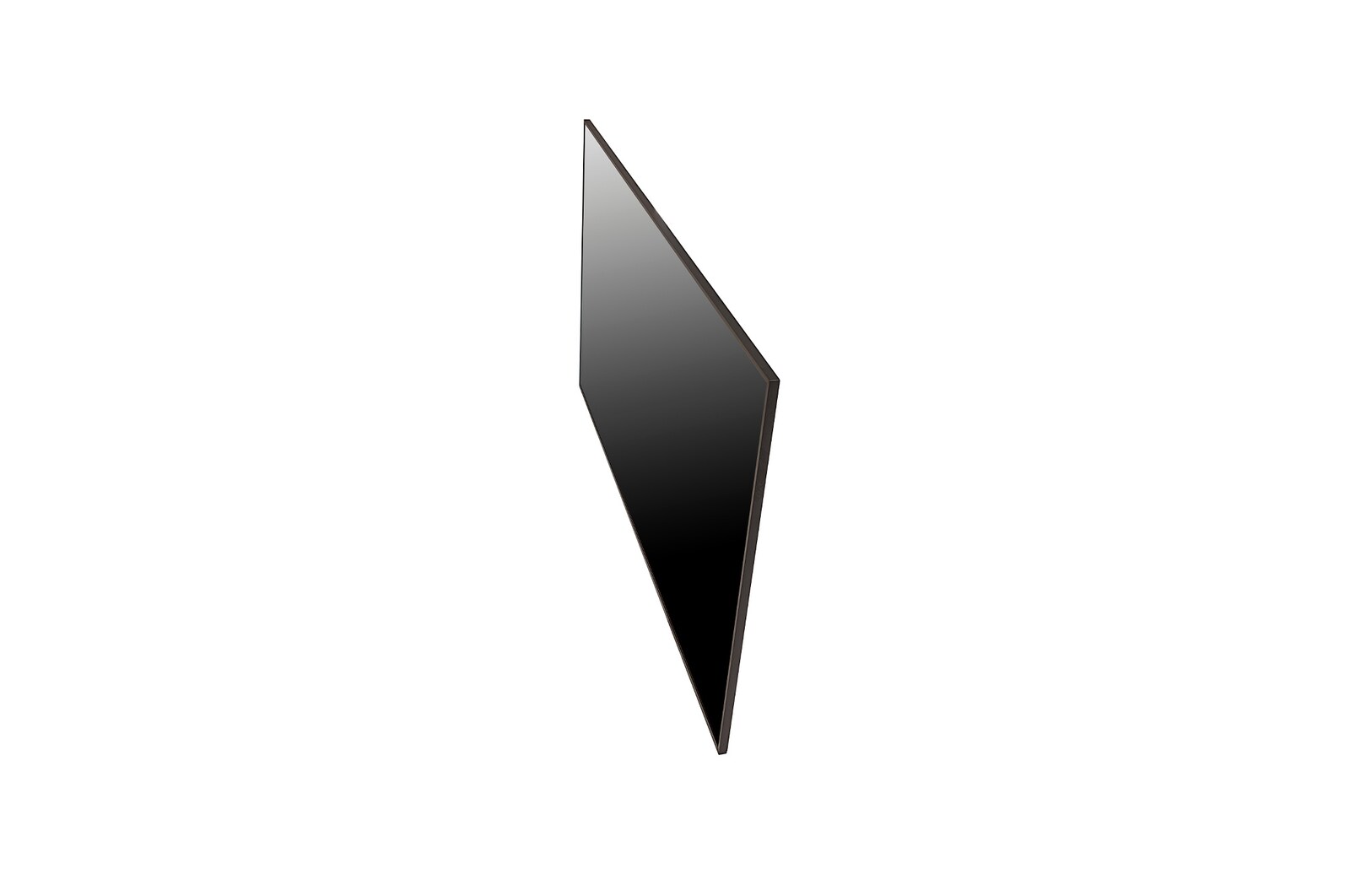

  • Image taken from the top right

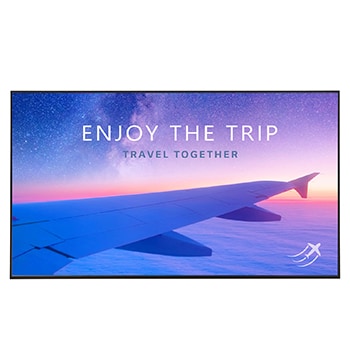

Front view with infill image

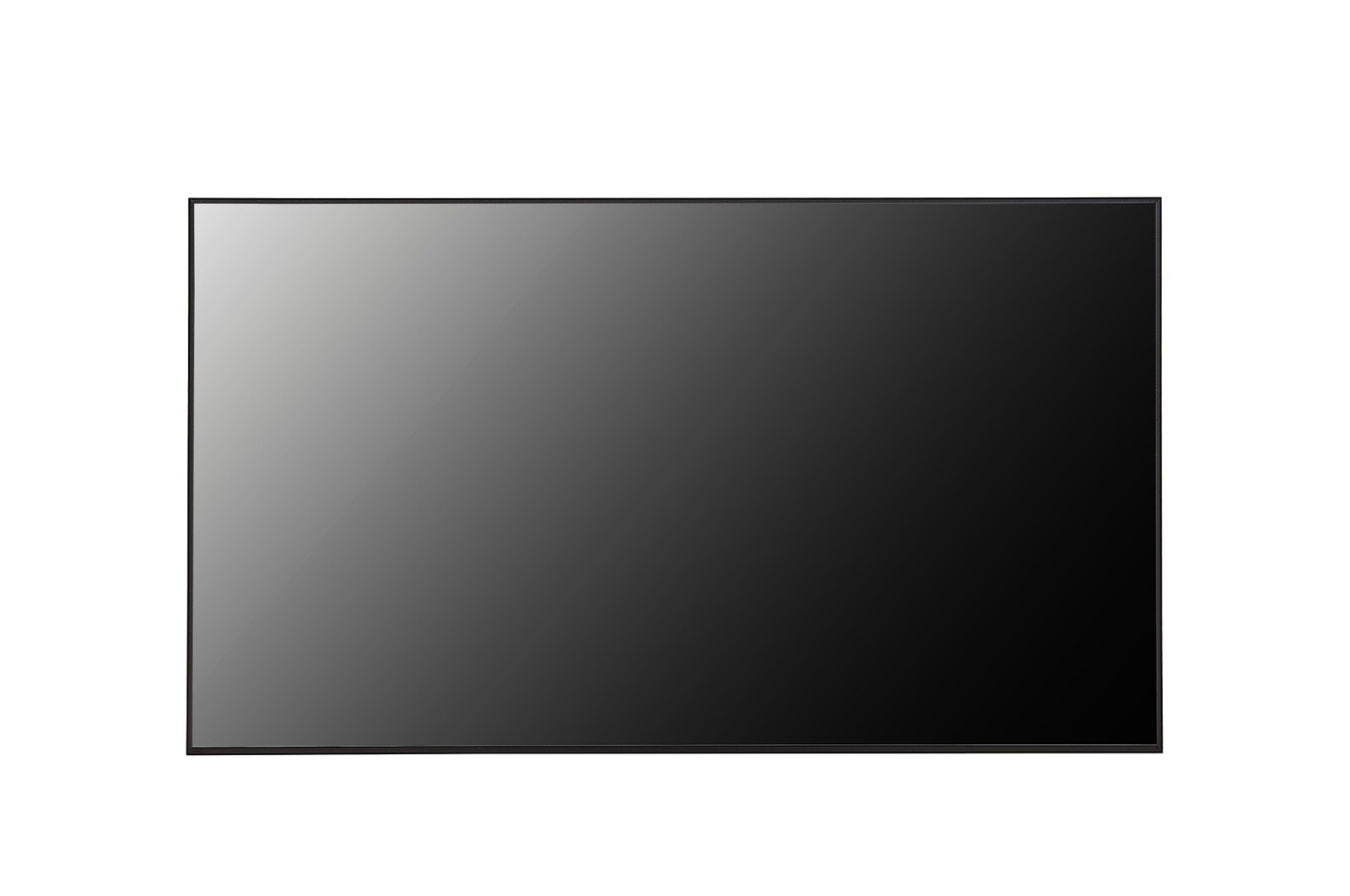

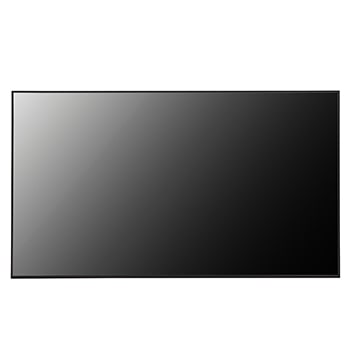

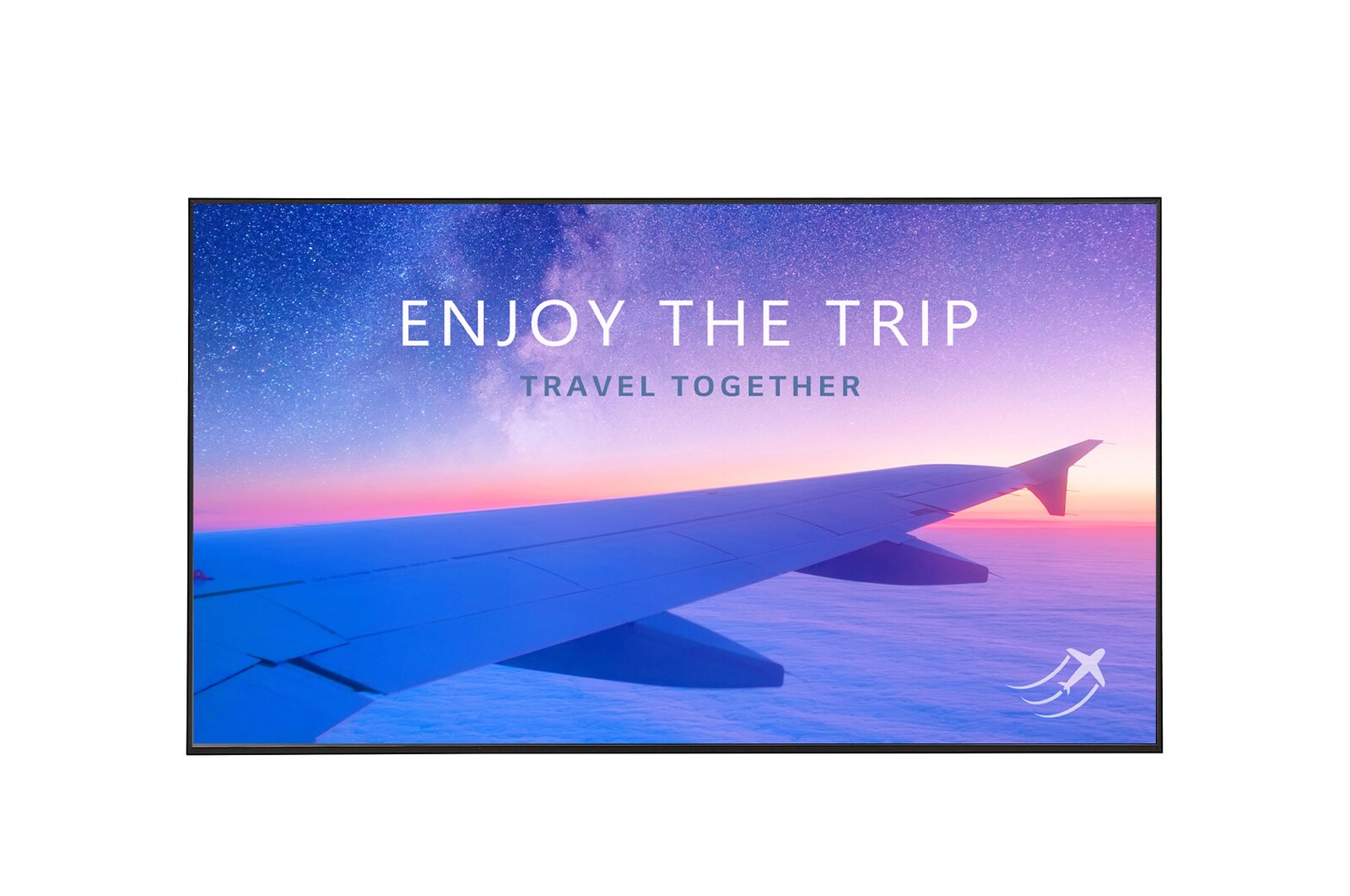

Front view

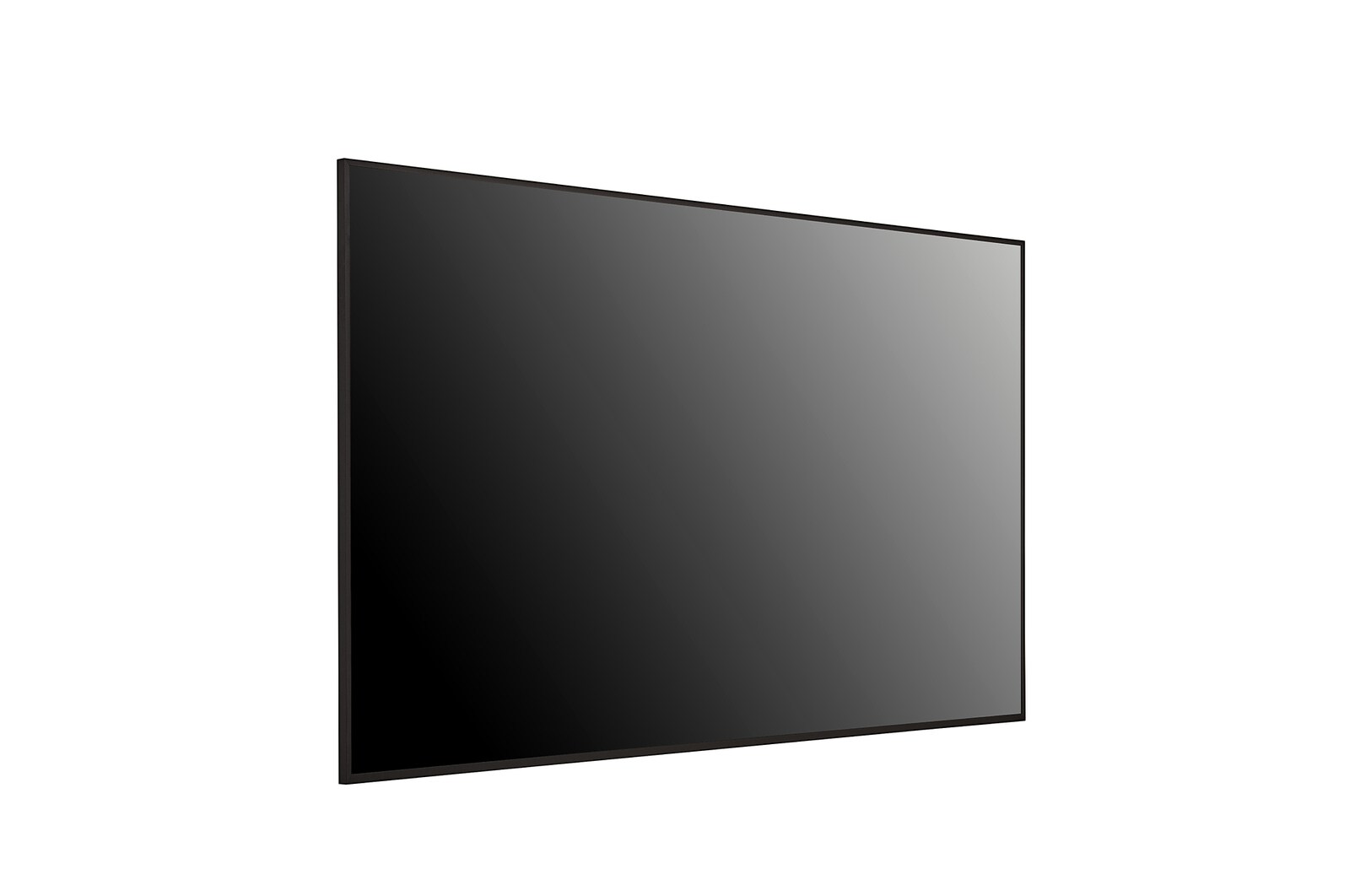

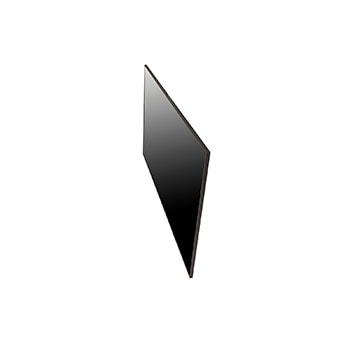

-45 degree side view

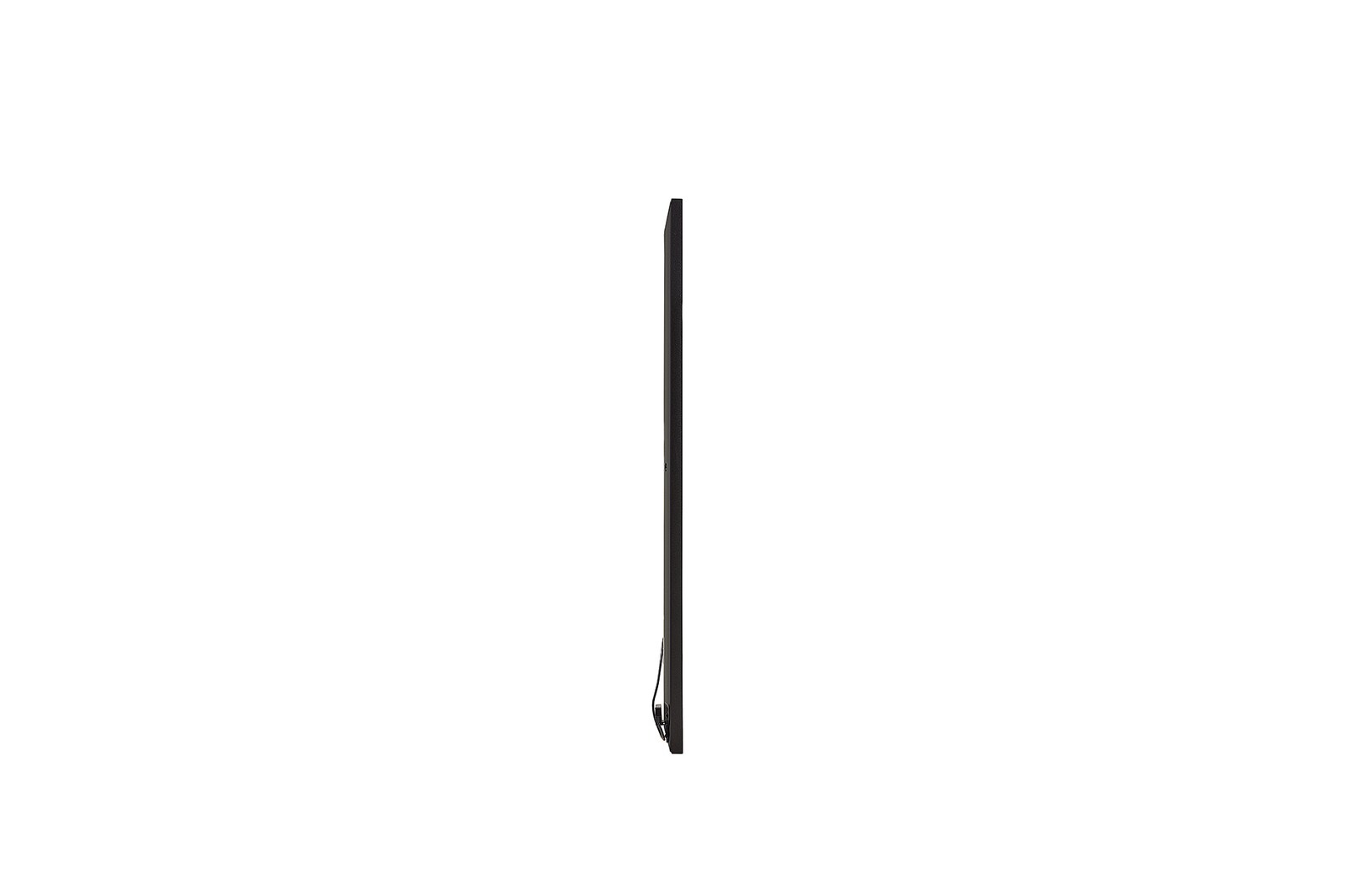

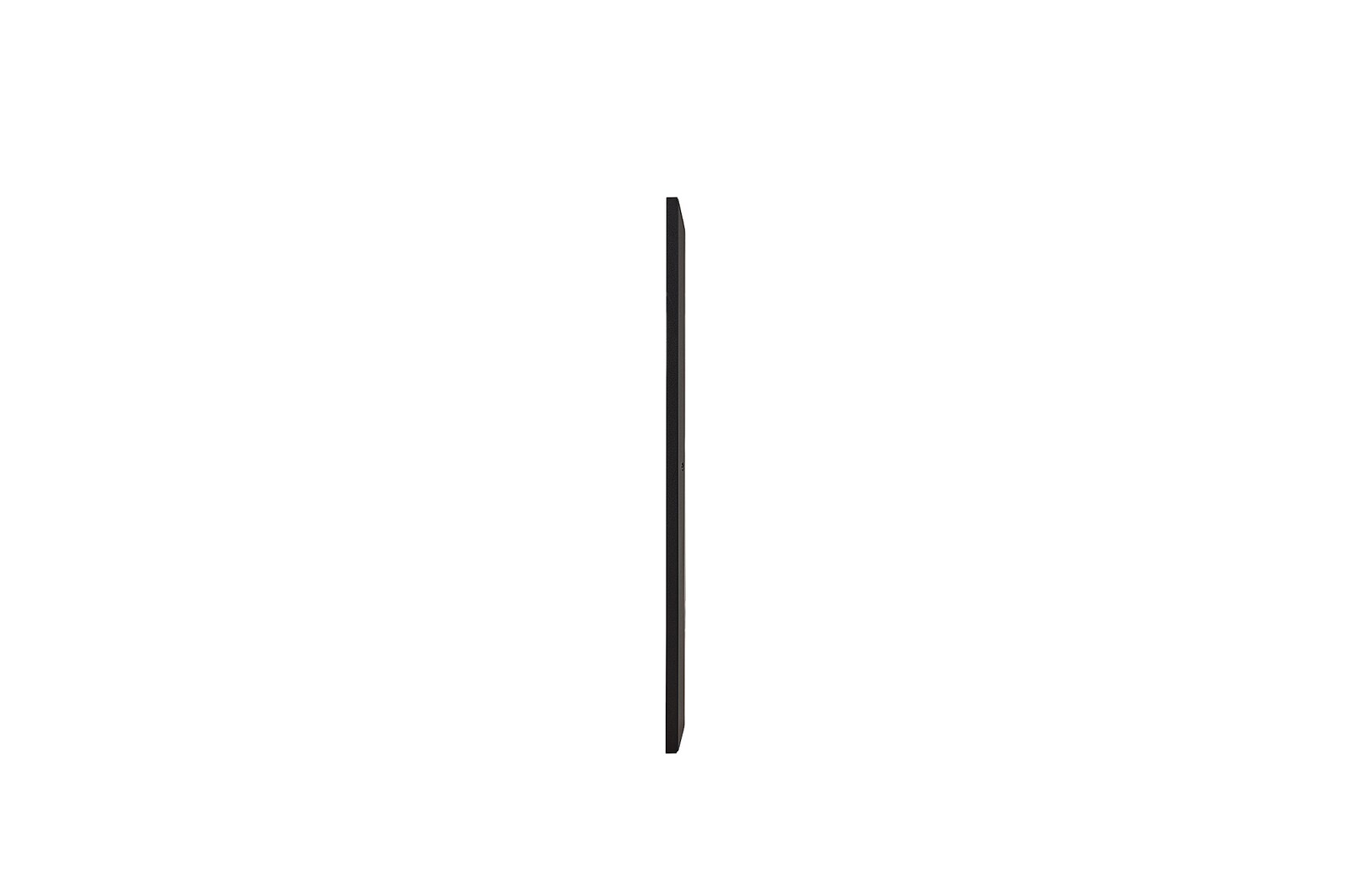

-90 degree side view
+45 degree side view

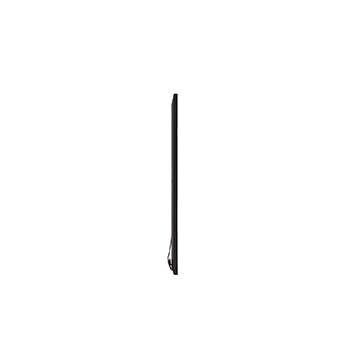

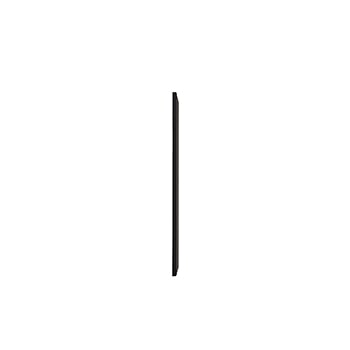

+90 degree side view

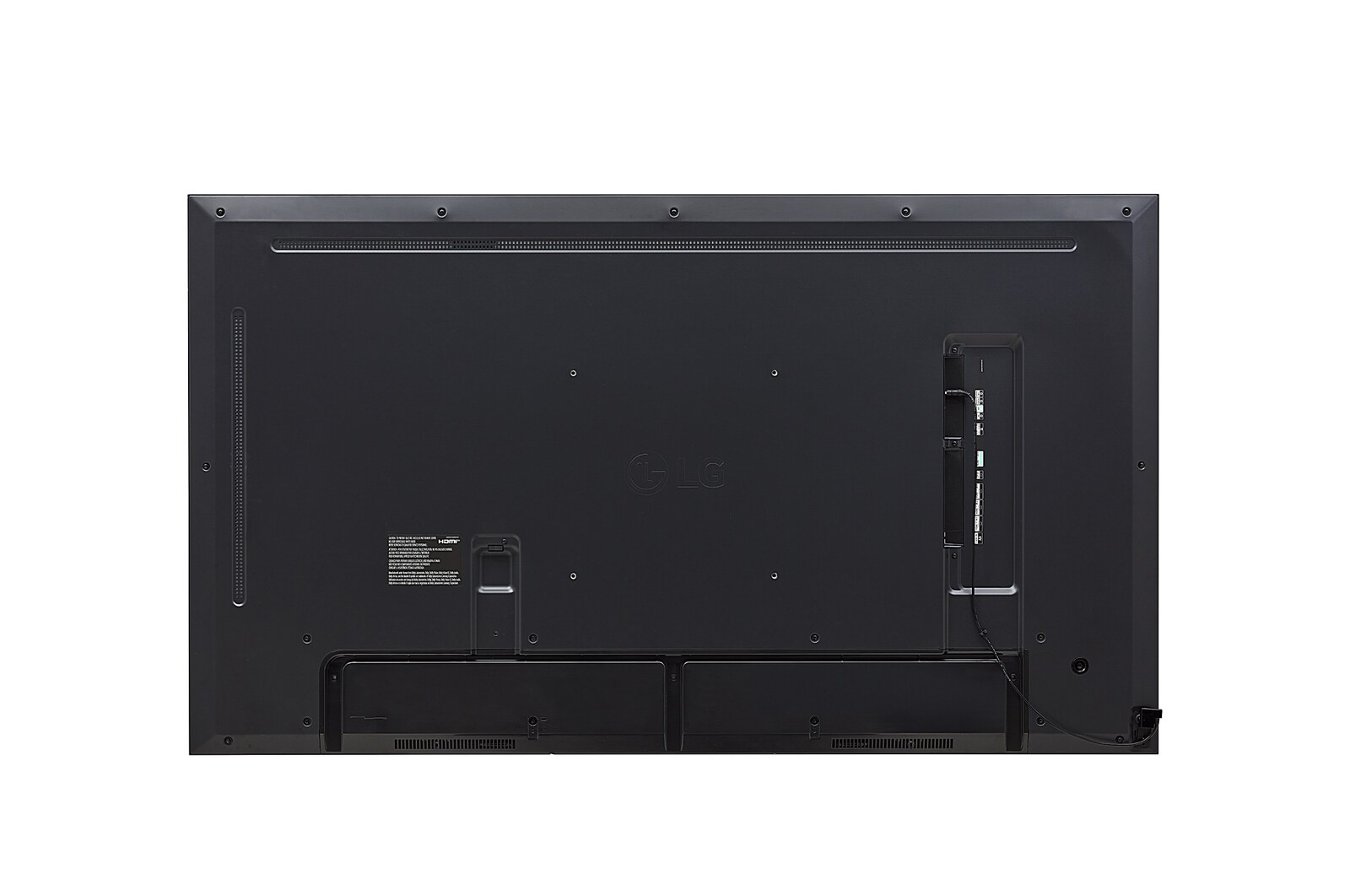

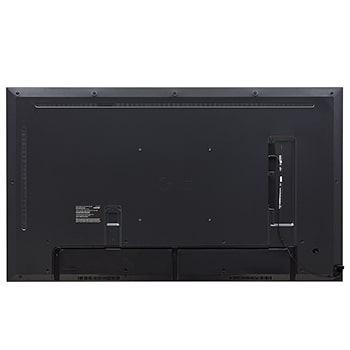

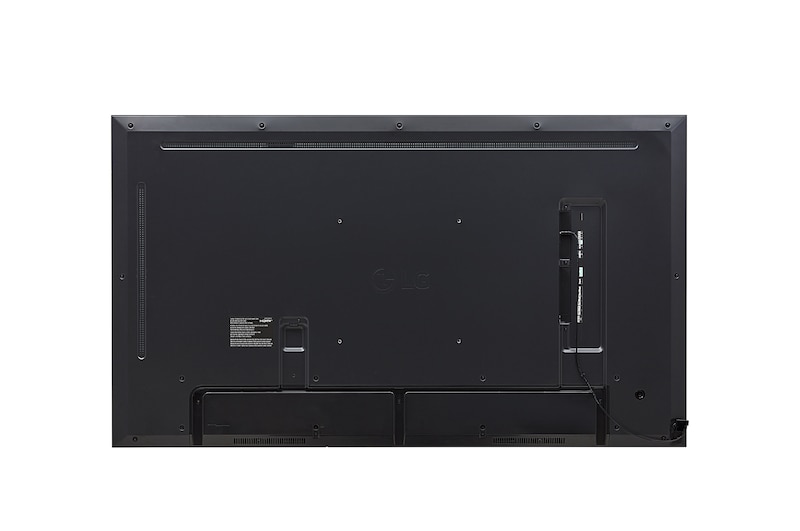

Rear view

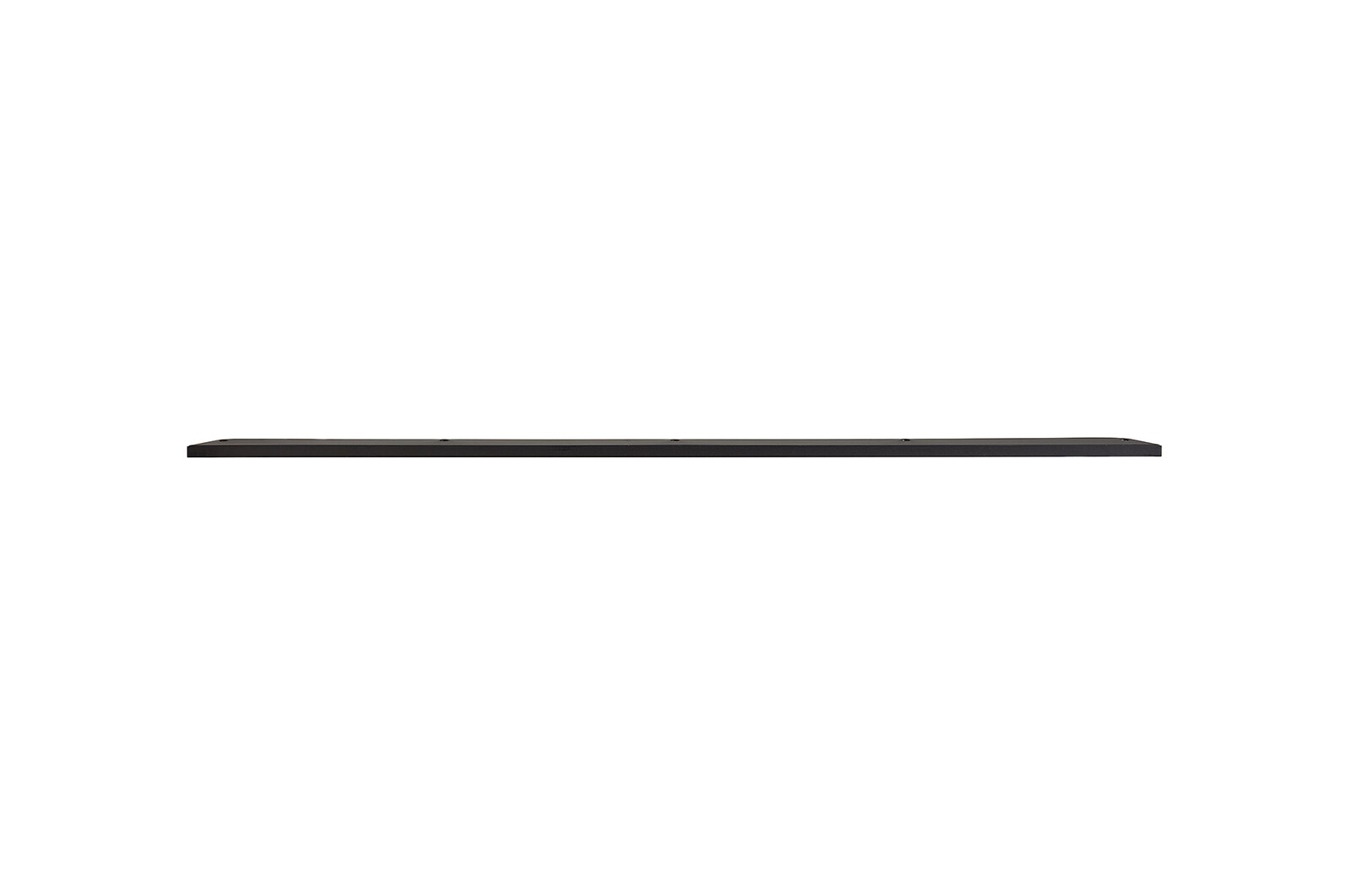

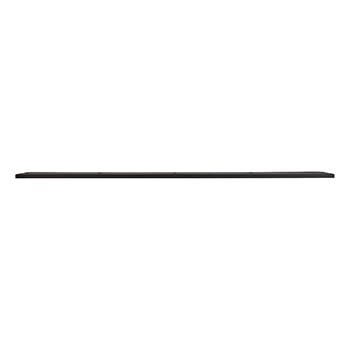

Top view
Image taken from the top right

Key Features

  • Resolution : 3,840 x 2,160 (UHD)
  • Brightness (Typ.) : 700 nit
  • Surface Treatement (Haze) : 28 %
  • Bezel : 8.9 mm (T/R/L), 12.9 mm (B)
  • Interface : HDMI(2) / DP / USB 2.0 / RS232C / RJ45 / Audio / IR
  • webOS Smart Platform
More
Print

All specs

PANEL

  • Screen Size (Inch)

    65"

  • Panel Technology

    IPS

  • Back Light Type

    Edge

  • Aspect Ratio

    16 : 9

  • Native Resolution

    3840 x 2160 (UHD)

  • Refresh Rate

    60Hz

  • Brightness

    700nit (Typ.)

  • Contrast Ratio

    1,100:1

  • Dynamic CR

    1,000,000:1

  • Color Gamut

    BT709 95%

  • Viewing Angle (H x V)

    178 X 178

  • Color Depth (Number of Colors)

    10bit(D), 1.07Billion colors

  • Response Time

    8ms (G to G)

  • Surface Treatment (Haze)

    0.28

  • Life time

    50,000Hrs (Min.)

  • Operation Hours (Hours/Day)

    24/7

  • Portait / Landscape

    Yes / Yes

CONNECTIVITY

  • HDMI In

    Yes(2), 3840x2160@60Hz, HDCP 2.2/1.4

  • DP In

    Yes(1), 3840x2160@60Hz, HDCP2.2/1.3

  • RS232C In

    Yes (1), 4pin Phone-jack

  • RJ45(LAN) In

    Yes (1)

  • IR In

    Yes (1)

  • USB In

    USB2.0 Type A(1), USB2.0 Type C ((1), without PD funtion)

  • DP Out

    Yes(1), 3840x2160@60Hz, Input : HDMI1/2/DP/USB-C

  • Audio Out

    Yes (1)

  • RS232C Out

    Yes (1), 4pin Phone-jack

  • IR Out

    No (Support IR daisy chain via RS232C IN/OUT)

  • Daisy Chain

    Yes(Input HDMI, DP, USB C / Output DP)

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    T/R/L: 8.9mm, B: 12.9mm

  • Weight (Head)

    24.2 kg

  • Packed Weight

    30.4 kg

  • Monitor Dimensions (W x H x D)

    1450.3 x 830.3 x 29.7mm (Without IR)

  • Carton Dimensions (W x H x D)

    1600.0 x 970.0 x 172.0mm

  • VESA Standard Mount Interface

    300 x 300

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    16GB

  • Wi-Fi/BT (Built-in)

    Yes

  • Temperature Sensor

    Yes

  • Auto Brightness Sensor

    Yes(IR)

  • Acceleration(Gyro) Sensor

    Yes

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    Yes

  • Local Contents Scheduling

    Yes

  • Group Manager

    Yes

  • USB Plug & Play

    Yes

  • Fail over

    Yes

  • Booting Logo Image

    Yes

  • No Signal Image

    Yes

  • RS232C Sync

    Yes

  • Local Network Sync

    Yes

  • PIP

    Yes

  • PBP

    Yes (4)

  • Screen Share

    Yes

  • Video Tag

    Yes (4)

  • Play via URL

    Yes

  • Screen Rotation

    Yes

  • External Input Rotation

    Yes

  • Gapless Playback

    Yes

  • Tile Mode Setting

    Yes (Max. 15x15)

  • Setting Data Cloning

    Yes

  • SNMP

    Yes

  • ISM Method

    Yes

  • Auto Set ID

    Yes

  • Status Mailing

    Yes

  • Control Manager

    Yes

  • Cisco Certification

    (TBD)

  • Crestron Connected

    Yes

  • Smart Energy Saving

    Yes

  • PM mode

    Yes

  • Wake on LAN

    Yes

  • Network Ready

    Yes

  • Beacon

    Yes

  • HDMI-CEC

    Yes

  • SI Server Setting

    Yes

  • webRTC

    Yes

  • Pro:Idiom

    Yes

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ.

    145W

  • Max.

    200W

  • BTU (British Thermal Unit)

    0 BTU/Hr(Typ.), 0 BTU/Hr(Max)

  • Smart Energy Saving (70%)

    101.5

  • DPM

    0.5W

  • Power off

    0.5W

SOUND

  • Speaker (Built-in)

    Yes (10W X 2)

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "B" / CE / KC

  • ERP / Energy Star

    Yes (NewErP) / Yes

  • ePEAT(US only)

    Yes

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes

  • SuperSign Control+

    Yes / Yes

  • SuperSign WB

    Yes

  • SuperSign Cloud

    Yes

  • Mobile CMS

    Yes

  • Connected Care

    Yes

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish→Türkiye, Arabic

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, USB-C Cable, Cable Holder(2EA), AC Cord Holder (1EA)

  • Optional

    Slim Wall Mount (WB21LMA/B),
    Wall Mount (OLW480A/B)
    Wall Mount Adapter (AM-B330S)

SPECIAL FEATURE

  • Tilt (Face down)

    Yes(Max 30˚ degree, 40℃ temperature)

  • IP Rating

    IP5X

  • Conformal Coating (Power Board)

    Yes
