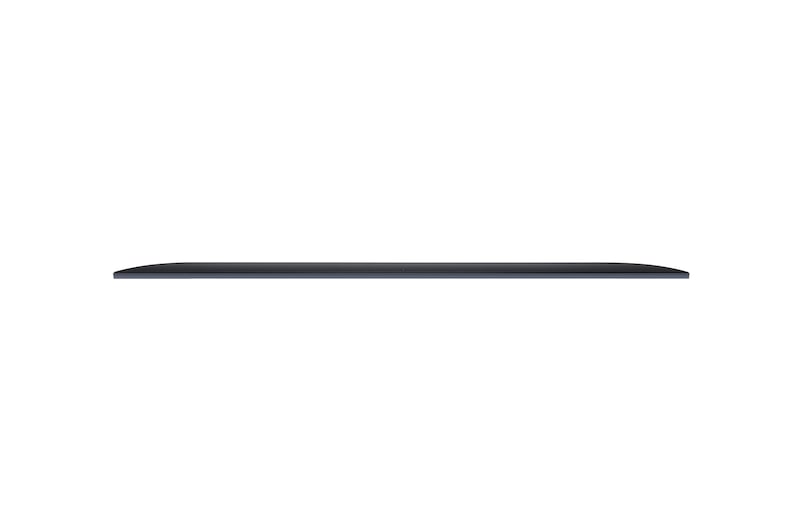

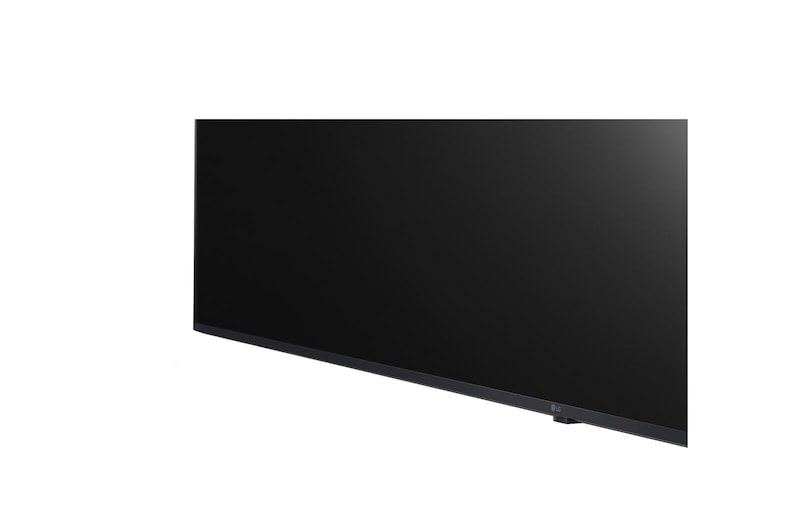

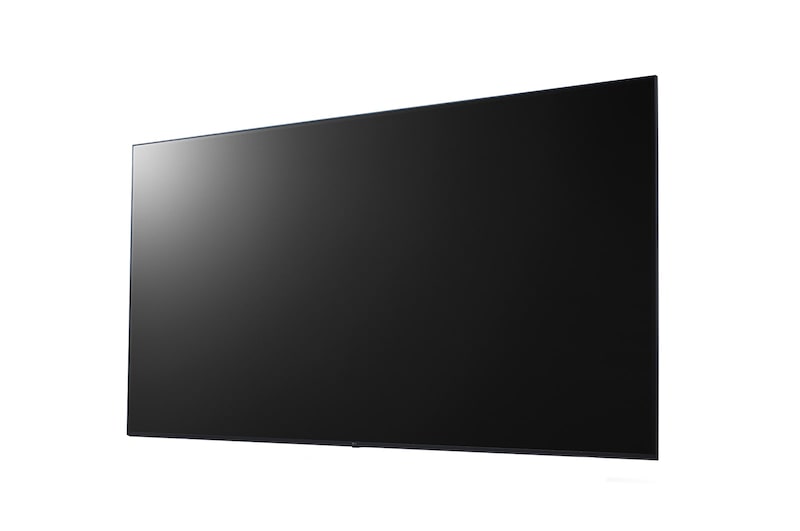

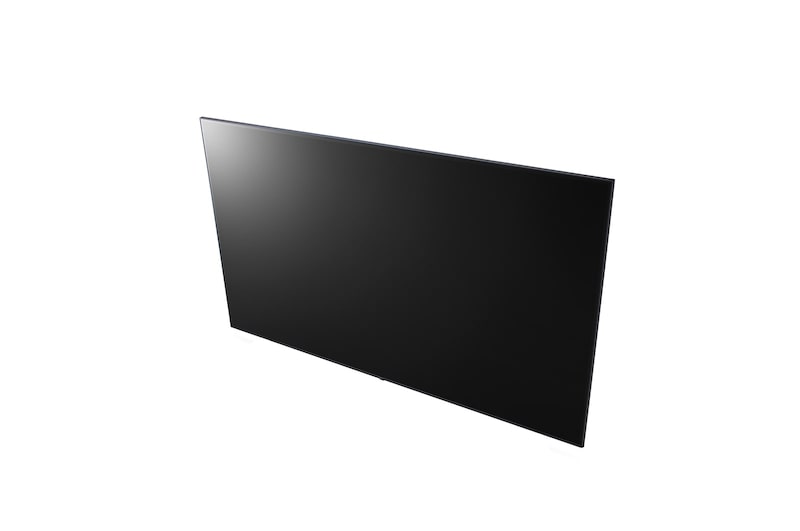

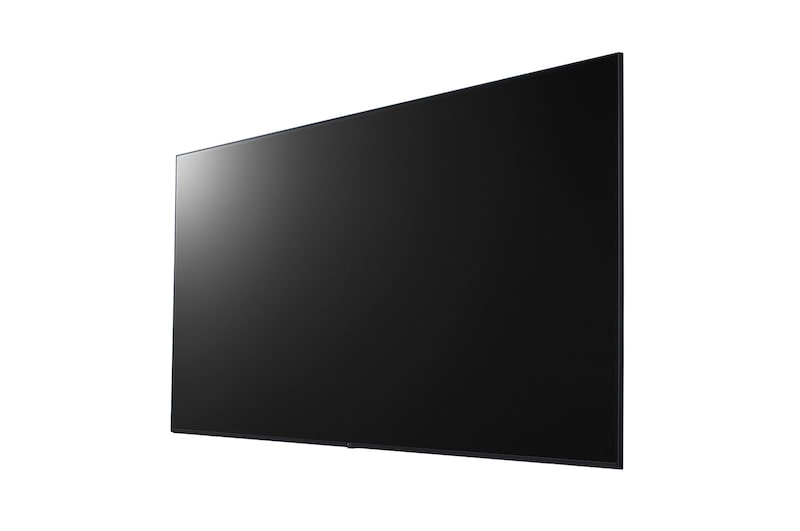

webOS UHD Signage

webOS UHD Signage

All specs

PANEL

  • Screen Size

    75"

  • Panel Technology

    IPS

  • Back Light Type

    Direct

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Refresh Rate

    60 Hz

  • Brightness

    330nit (Typ.)

  • Contrast Ratio

    1,200:1

  • Dynamic CR

    1,000,000 : 1

  • Color gamut

    DCI 80 %

  • Viewing Angle(H x V)

    178x178

  • Color Depth

    1.07Billon colors(8bit + FRC)

  • Response Time

    8ms (G to G)

  • Surface Treatment(Haze)

    1%

  • Life time

    30,000Hrs (Min)

  • Operation Hours (Hours/Day)

    16/7

  • Portrait / Landscape

    Yes / Yes

CONNECTIVITY

  • Input

    HDMI (3, HDCP2.2/1.4), RS232C IN (1, 4pin Phone-jack), RJ45 (LAN), USB2.0 Type A (2)

  • Output

    Audio Out, RS232C OUT (1, 4pin Phone-jack)

MECHANICAL SPECIFICATION

  • Bezel Color

    Ashed Blue

  • Bezel Width

    Off : 7.9/7.9/7.9/18.4 mm
    On : 13.9/13.9/13.9/19.9 mm

  • Weight(Head)

    31.4 kg

  • Packed Weight

    40.3 kg

  • Monitor Dimension(W x H x D)

    1678 x 964 x 59.9 mm

  • Carton Dimensions(W x H x D) (Box outer size)

    1820 x 1115 x 200 mm

  • VESA™ Standard Mount Interface

    400 x 400 mm

KEY FEATURE

  • HW

    Internal Memory 8GB, Wi-Fi Built-in, Temperature Sensor, Auto Brightness sensor, Local Key Operation (Power On/Off only)

  • SW

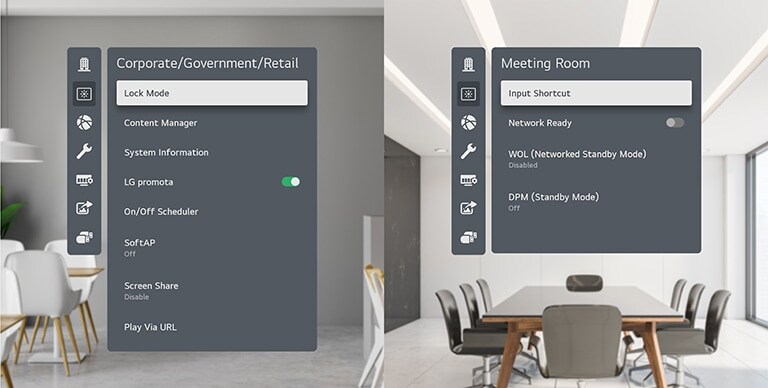

    webOS ver. (webOS6.0), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Screen Share, Video Tag (4, Max One HDMI input), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Cisco certi (TBD (Jun~)), Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ.

    155 W

  • Max.

    220 W

  • BTU (British Thermal Unit)

    529 BTU/Hr(Typ.), 751 BTU/Hr(Max.)

  • Smart Enegy Saving(70%)

    108.5 W

  • DPM

    0.5W

  • Power off

    0.5 W

SOUND

  • Speaker

    Yes

CERTIFICATION

  • Safety

    CB

  • EMC

    FCC Class “A” / CE

  • ErP / Energy Star

    Yes (OldErP for Jordan) / Yes

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes

  • SuperSign Control / Control+

    Yes / Yes

  • SuperSign WB

    Yes

  • SuperSign Media Editor

    Yes

  • Promota

    Yes (Not available for EU/CIS)

  • LG ConnectedCare

    Yes

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic, polski

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder
