UM5K Series - 98'' UHD Large Screen Signage

UM5K Series - 98'' UHD Large Screen Signage

UM5K Series - 98'' UHD Large Screen Signage

98UM5K-B

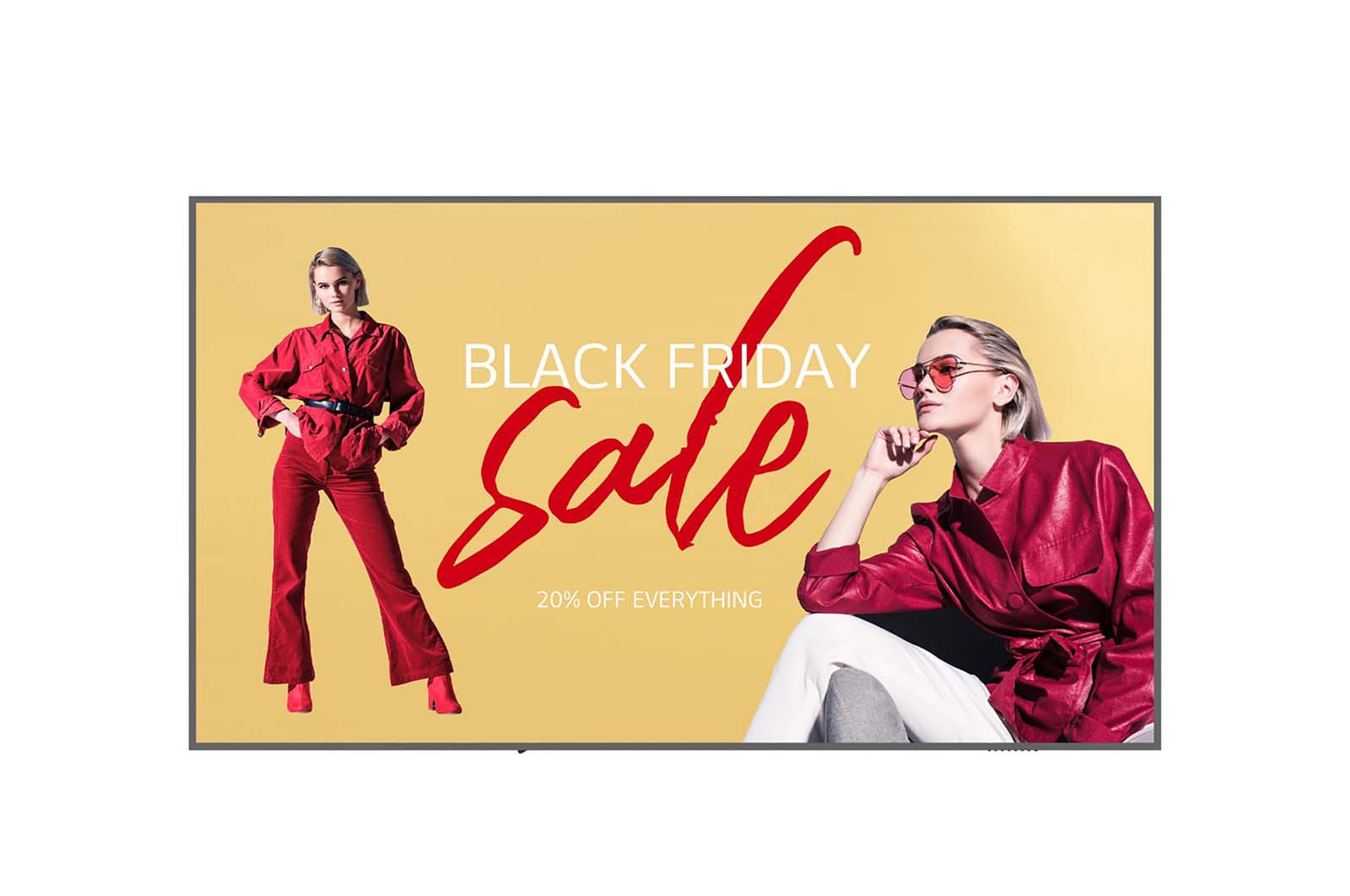

Front view of UM5K Series - 98'' UHD Large Screen Signage 98UM5K-B
-45 degree side view with infill image
-90 degree side view
+45 degree side view with infill image
+90 degree side view

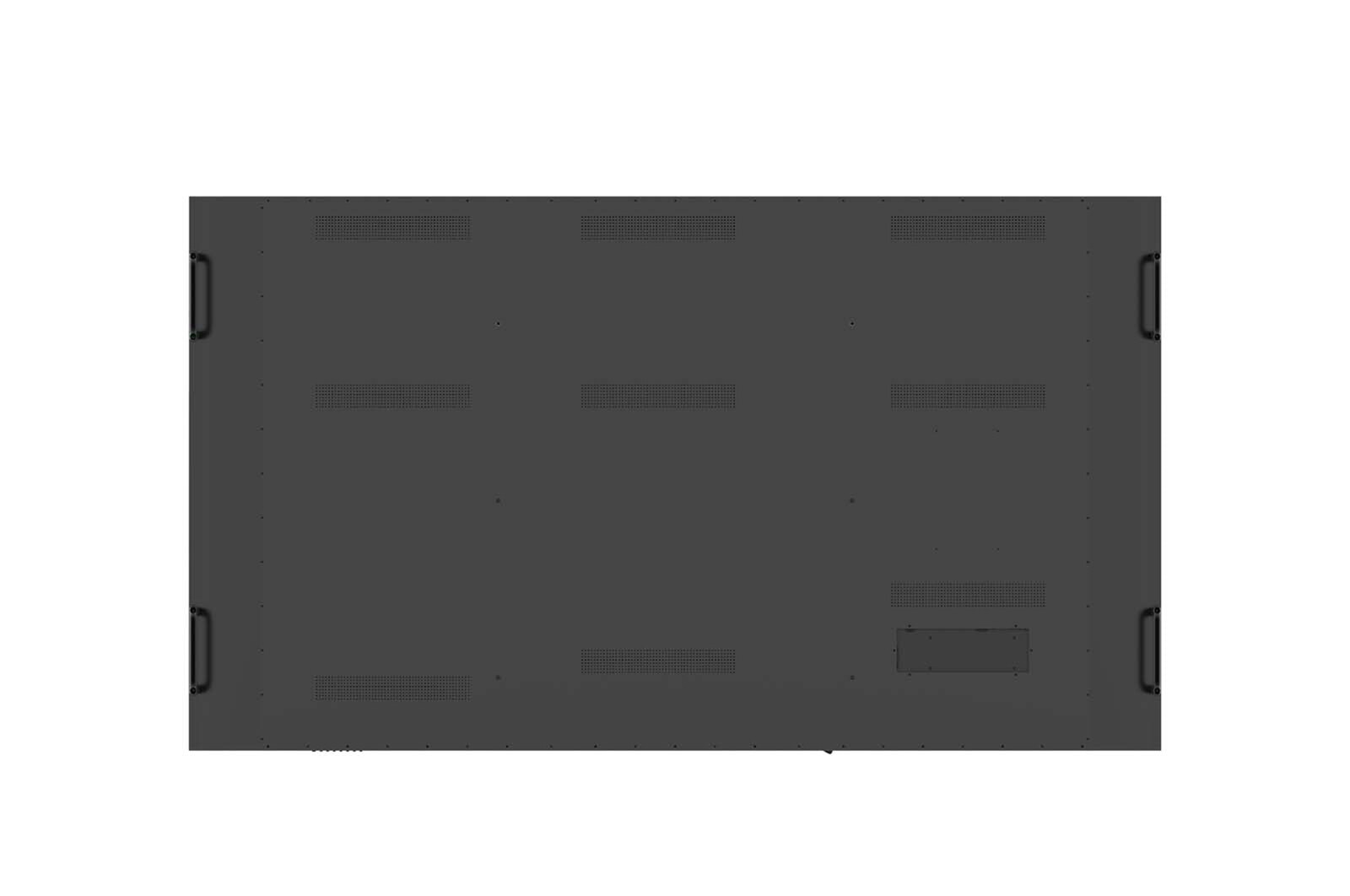

Rear view

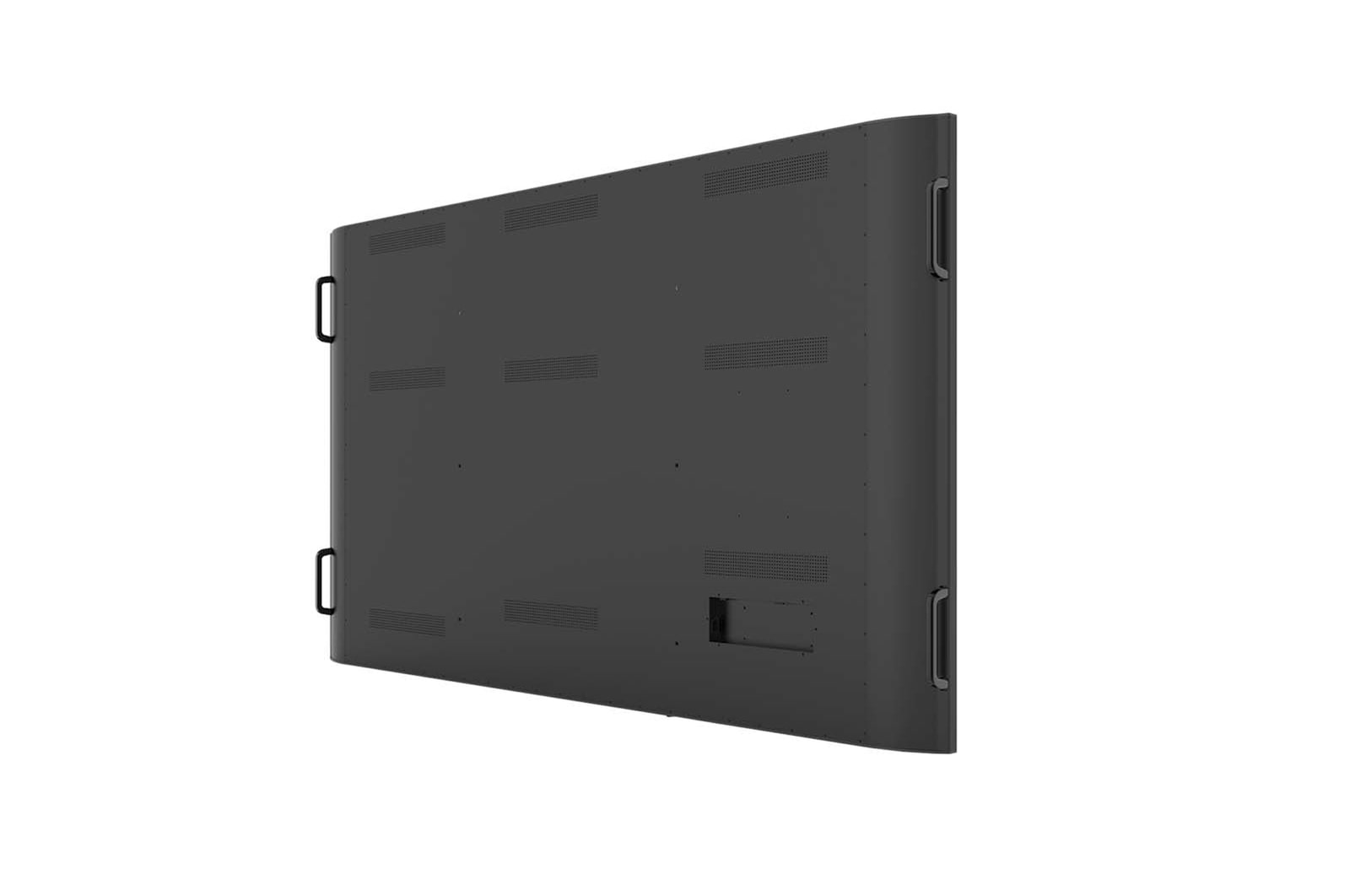

-45 degree rear view

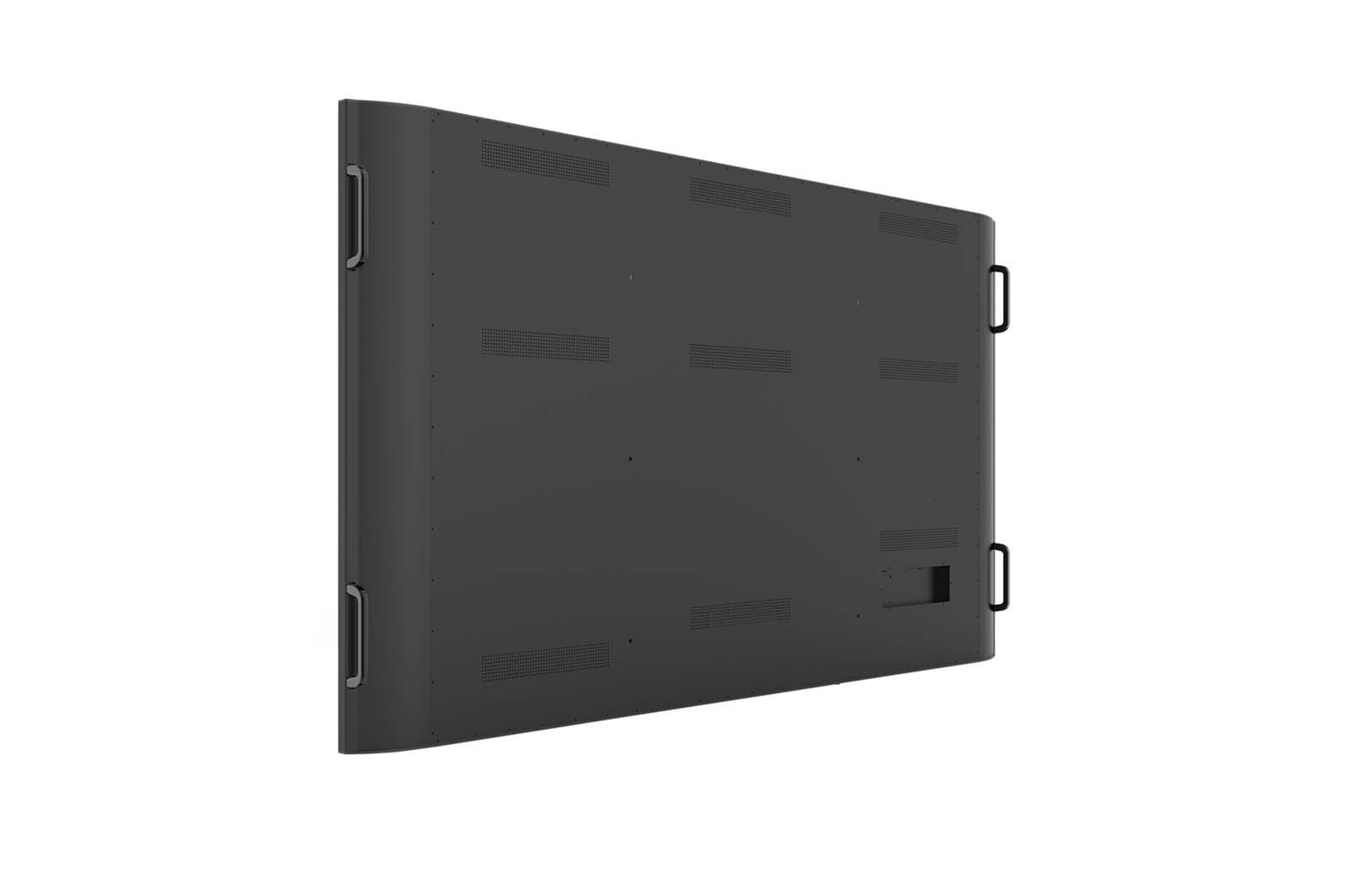

+45 degree rear view
Top view
Bottom view
Front view of UM5K Series - 98'' UHD Large Screen Signage 98UM5K-B
-45 degree side view with infill image
-90 degree side view
+45 degree side view with infill image
+90 degree side view
Rear view
-45 degree rear view
+45 degree rear view
Top view
Bottom view

Key Features

  • Brightness : 500 nit (Typ.)
  • Resolution : ULTRA HD (3,840 x 2,160)
  • Bezel : 17 mm (Even bezel)
  • Built-in Speaker (10 W + 10 W)
  • Interface : HDMI(3) / DP / DVI-D / USB 2.0 / RS232C / RJ45 / Audio / IR & Light Sensor
More
Print

All specs

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ERP / Energy Star

    Yes(NewErP) / No

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkiye, Arabic, Polski

MECHANICAL SPECIFICATION

  • Bezel Width

    Even bezel : 17mm

  • Bezel Color

    Black

  • Weight (Head)

    78Kg

  • Packed Weight

    105Kg

  • Monitor Dimensions (W x H x D)

    2198 x 1253 x 79.5mm

  • Carton Dimensions (W x H x D)

    2455 x 1458 x 288mm

  • Handle

    Yes

  • VESA Standard Mount Interface

    800 x 400

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0 °C to 40 °C

POWER

  • Power Type

    Built-In Power

  • Power Supply

    AC 100-240V~, 50/60Hz

SOFTWARE COMPATIBILITY

  • Connected Care

    Yes

  • SuperSign CMS

    Yes

  • SuperSign Control+

    Yes

  • SuperSign WB

    Yes

  • SuperSign Cloud

    Yes

  • Mobile CMS

    Yes

PANEL

  • Contrast Ratio

    1,200:1

  • Screen Size (Inch)

    98"

  • Panel Technology

    ADS

  • Back Light Type

    Direct

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Refresh Rate

    60Hz

  • Dynamic CR

    200,000:1

  • Color Gamut

    DCI-P3 88%↑

  • Viewing Angle (H x V)

    178 X 178

  • Response Time

    8ms (G to G)

  • Surface Treatment (Haze)

    25%

  • Life time

    30,000Hrs (Min)

  • Operation Hours (Hours/Day)

    16/7

FEATURE - HARDWARE

  • Local Key Operation

    Yes

  • Temperature Sensor

    Yes

  • Auto Brightness Sensor

    Yes

  • Acceleration(Gyro) Sensor

    Yes

  • Power Indicator

    Yes

CONNECTIVITY

  • Daisy Chain

    Yes(Input HDMI, DP, DVI / Output HDMI)

  • HDMI In

    Yes(3), HDMI1/HDMI2 : HDCP 2.2/1.4 HDMI3 : HDCP 1.4

  • DP In

    Yes(1), HDCP2.2/1.3

  • DVI-D In

    Yes(1), HDCP1.4

  • Audio In

    Yes(1)

  • RS232C In

    Yes(1), 4pin Phone-jack

  • RJ45(LAN) In

    Yes(1)

  • IR In

    Yes(1)

  • USB In

    USB2.0 Type A(1)

  • HDMI Out

    Yes(1)

  • Audio Out

    Yes(1)

  • RS232C Out

    Yes(1), 4pin Phone-jack

FEATURE - SOFTWARE

  • Pro:Idiom

    Yes

  • Local Contents Scheduling

    Yes

  • Group Manager

    Yes

  • USB Plug & Play

    Yes

  • Fail over

    Yes

  • Booting Logo Image

    Yes

  • No Signal Image

    Yes

  • RS232C Sync

    Yes

  • Local Network Sync

    Yes

  • PIP

    Yes

  • PBP

    Yes (4)

  • Screen Share

    Yes

  • Video Tag

    Yes (4)

  • Play via URL

    Yes

  • Screen Rotation

    Yes

  • External Input Rotation

    Yes

  • Gapless Playback

    Yes

  • Tile Mode Setting

    Yes (Max. 15x15)

  • Setting Data Cloning

    Yes

  • SNMP

    Yes

  • ISM Method

    Yes

  • Auto Set ID

    Yes

  • Status Mailing

    Yes

  • Control Manager

    Yes

  • Smart Energy Saving

    Yes

  • PM mode

    Yes

  • Wake on LAN

    Yes

  • Network Ready

    Yes

  • Beacon

    Yes

  • HDMI-CEC

    Yes

  • SI Server Setting

    Yes

  • webRTC

    Yes

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    1467 BTU/Hr(Typ.), 1911 BTU/Hr(Max)

  • Smart Energy Saving (70%)

    301W

  • DPM

    0.5W

  • Power off

    0.5W

  • Max.

    560W

  • Typ.

    430W

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, IR/Light sensor receiver, Regulation Book, Phone to RS233C Gender
