Touch Open Frame

Touch Open Frame

Touch Open Frame

32TNF5J-B

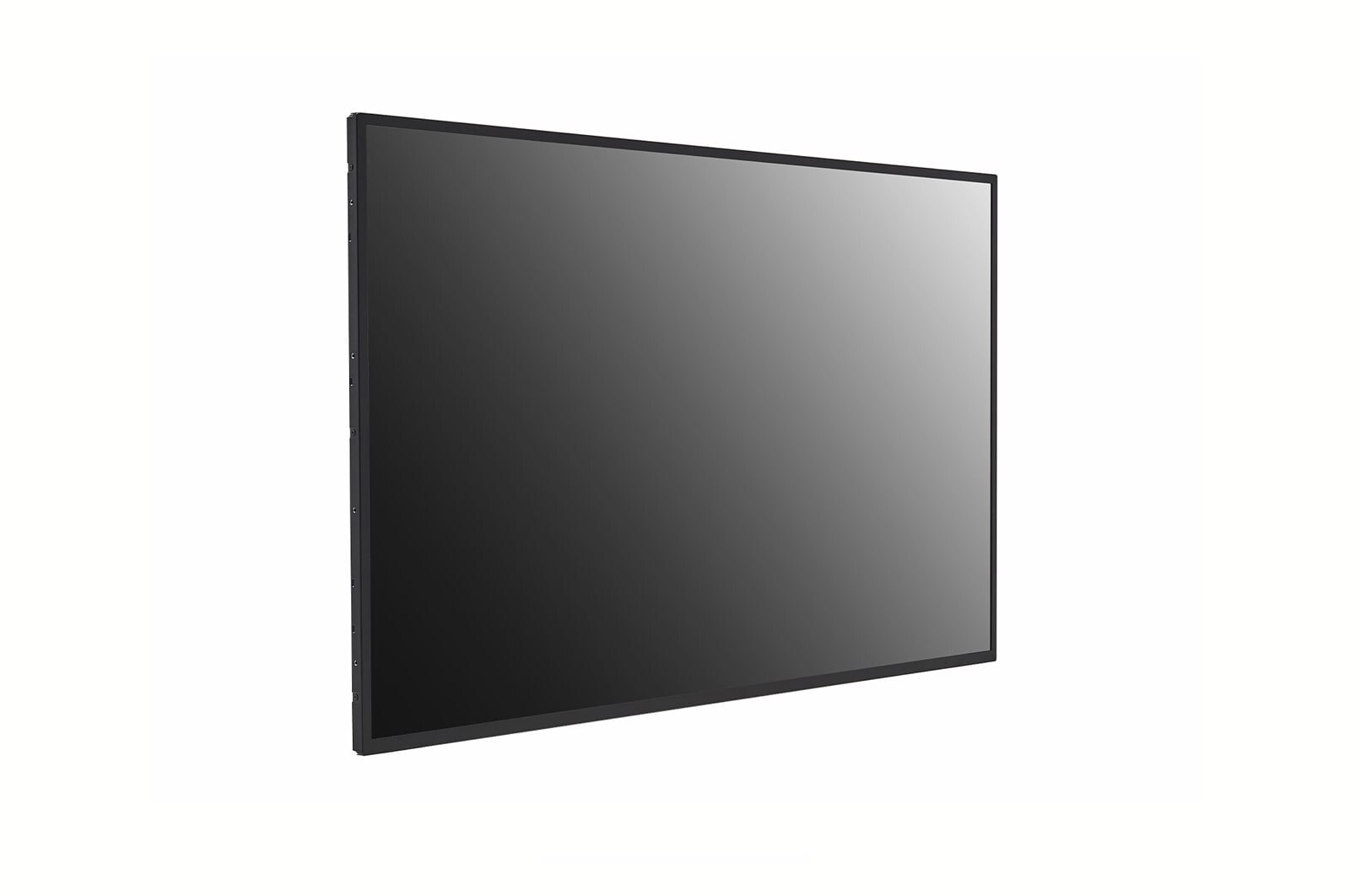

LG Touch Open Frame, 32TNF5J-B
LG Touch Open Frame, 32TNF5J-B
LG Touch Open Frame, 32TNF5J-B
LG Touch Open Frame, 32TNF5J-B
LG Touch Open Frame, 32TNF5J-B
LG Touch Open Frame, 32TNF5J-B
LG Touch Open Frame, 32TNF5J-B
LG Touch Open Frame, 32TNF5J-B
LG Touch Open Frame, 32TNF5J-B
LG Touch Open Frame, 32TNF5J-B
LG Touch Open Frame, 32TNF5J-B
LG Touch Open Frame, 32TNF5J-B
LG Touch Open Frame, 32TNF5J-B
LG Touch Open Frame, 32TNF5J-B
LG Touch Open Frame, 32TNF5J-B
LG Touch Open Frame, 32TNF5J-B
LG Touch Open Frame, 32TNF5J-B
LG Touch Open Frame, 32TNF5J-B

Key Features

  • Brightness : 500 nit
  • Multi Touch Point : 10 Points (Max.)
  • Interface : HDMI (2, HDCP 2.2/1.4), RS-232C In, RJ45(LAN), IR In, USB2.0 Type A, Audio Out, Touch USB (USB 2.0 Type B)
Print

All specs

ACCESSORY

  • Basic

    Power Cord 1.55m, USB Cable (Type A-Type B) 1.8m, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver

CERTIFICATION

  • Safety

    CB/NTRL

  • EMC

    FCC Class "A"/ CE / KC

  • ErP

    Yes

CONNECTIVITY

  • Input

    Digital (HDMI(2), HDCP 1.4), RS232C IN, RJ45(LAN), IR IN, USB2.0 Type A(1)

  • Output

    Audio Out, USB2.0 Type B(1)

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% to 80%

KEY FEATURE(HARDWARE)

  • Internal Memory

    8GB (System 5GB + Available 2.48GB)

  • Temperature Sensor

    Yes

KEY FEATURE(SOFTWARE)

  • webOS ver.

    webOS 6.0

  • Embedded CMS

    Local Contents Scheduling, Group Manager

  • USB Plug & Play

    Yes

  • Fail over

    Yes

  • Background Image

    Booting Logo Image, No Signal Image

  • Video Tag

    Yes

  • Play via URL

    Yes

  • Screen Rotation

    Yes

  • Gapless Playback

    Yes

  • Setting Data Cloning

    Yes

  • SNMP

    Yes

  • ISM Method

    Yes

  • Status Mailing

    Yes

  • Control Manager

    Yes

  • 3rd Party Compatibility

    Crestron Inside

  • Power

    Smart Energy Saving, PM mode, Wake on LAN, Network Ready

  • HDMI-CEC

    Yes

  • SI Server Setting

    Yes

  • webRTC

    Yes

  • Pro:Idiom

    Yes

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    11.3/11.3/11.3/13.2 mm

  • Weight(Head)

    5.6Kg

  • Monitor Dimension(W x H x D)

    723.0 x 419.4 x 39.1 mm

  • VESA™ Standard Mount Interface

    200 x 200

PANEL

  • Screen Size

    32"

  • Panel Technology

    IPS

  • Native Resolution

    1,920 x 1,080 (FHD)

  • Brightness (nit)

    500

  • Contrast Ratio

    1,000:1

  • Color gamut

    NTSC 72%

  • Viewing Angle(H x V)

    178 x 178

  • Color Depth

    8bit, 16.7Million colors

  • Response Time

    9ms (G to G)

  • Surface Treatment(Haze)

    Low Haze (3%)

  • Operation Hours (Hours/Day)

    24/7

  • Portrait / Landscape

    Yes / Yes

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ.

    55 W

  • Max.

    65 W

  • BTU (British Thermal Unit)

    188 BTU/Hr(Typ.), 222 BTU/Hr(Max.)

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes

  • SuperSign Control / Control+

    Yes

  • Signage 365 Care

    Yes

TOUCH

  • Available Object Size for Touch

    Ø6mm ↑

  • Response Time (Based on 'Paint' app on Windows 10 PC)

    90ms ↓

  • Accuracy

    3.5mm±0.5mm

  • Interface

    USB 2.0

  • Operating System Support

    Windows 10

  • Multi Touch Point

    Max. 10 Points
