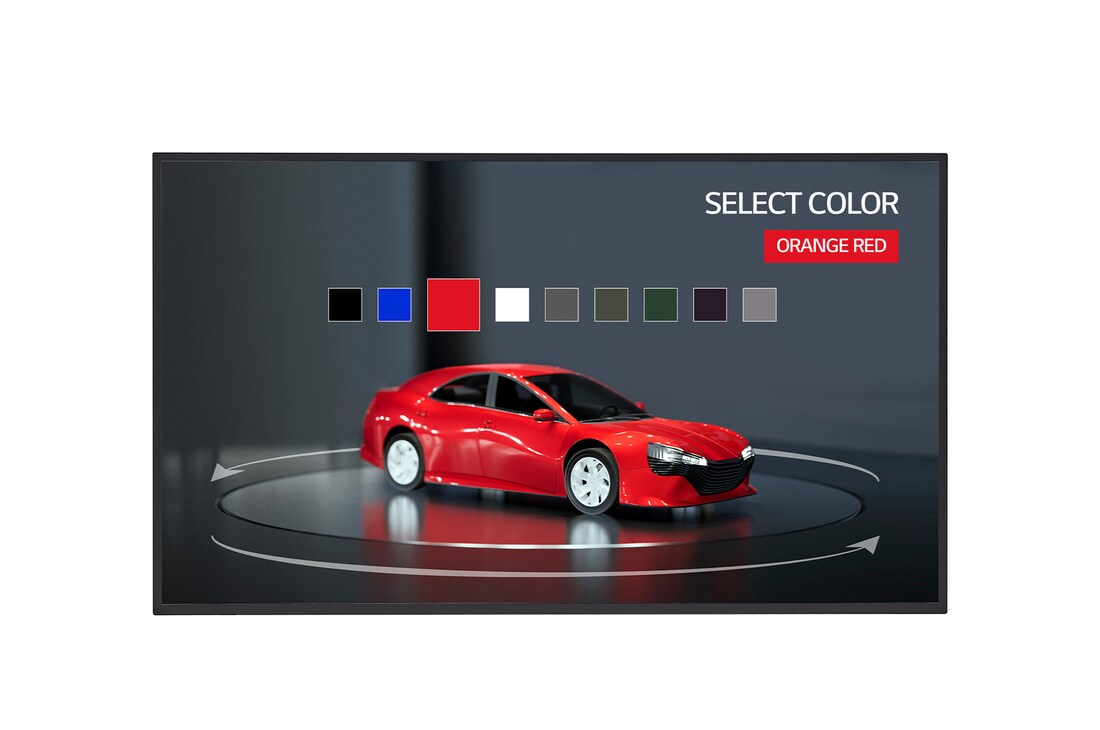

32" In-Cell Touch Open Frame Signage

32TNF5P-B

Key Features

Brightness : 500 nit
Multi Touch Point : 10 Points (Max.)
Interface : HDMI (2, HDCP 2.2/1.4), RS-232C In, RJ45(LAN), IR In, USB2.0 Type A, Audio Out, Touch USB (USB 2.0 Type B)

All specs

PANEL

Screen Size (Inch): 32"

Panel Technology: IPS

Back Light Type: Edge

Aspect Ratio: 16:9

Native Resolution: 1920x1080 (FHD)

Refresh Rate: 60Hz

Brightness: 500nit

Contrast Ratio: 1,000:1

Color Gamut: NTSC 72%

Viewing Angle (H x V): 178 X 178

Color Depth (Number of Colors): 8bit, 16.7 Million colors

Response Time: 9ms (G to G)

Surface Treatment (Haze): Haze 25%

Life time: 50,000 Hrs (min)

Operation Hours (Hours/Day): 24/7

Portait / Landscape: Yes / Yes

CONNECTIVITY

HDMI In: Yes(2), HDCP1.4

RS232C In: Yes(1)

RJ45(LAN) In: Yes(1)

IR In: Yes(1)

USB In: USB2.0 Type A(1)

Audio Out: Yes(1)

Touch USB: USB2.0 Type B(1)

MECHANICAL SPECIFICATION

Bezel Color: Black

Bezel Width: 11.3/11.3/11.3/13.2 mm

Weight (Head): 5.8Kg

Packed Weight: 6.9Kg

Monitor Dimensions (W x H x D): 723.0 x 419.4 x 39.1 mm

VESA Standard Mount Interface: 200x200

Carton Dimensions (W x H x D): 812 x 510 x 142 mm

FEATURE - HARDWARE

Internal Memory (eMMC): 8GB(System 5GB + Available 2.48GB)

Temperature Sensor: Yes

Acceleration(Gyro) Sensor: Yes

FEATURE - SOFTWARE

OS Ver. (webOS): webOS6.0

Local Contents Scheduling: Yes

Group Manager: Yes

USB Plug & Play: Yes

Fail over: Yes

Booting Logo Image: Yes

No Signal Image: Yes

Video Tag: Yes(4)

Play via URL: Yes

Screen Rotation: Yes

Gapless Playback: Yes

Setting Data Cloning: Yes

SNMP: Yes

ISM Method: Yes

Status Mailing: Yes

Control Manager: Yes

Cisco Certification: Yes

Crestron Connected: Yes

Smart Energy Saving: Yes

PM mode: Yes

Wake on LAN: Yes

Network Ready: Yes

HDMI-CEC: Yes

SI Server Setting: Yes

webRTC: Yes

Pro:Idiom: Yes

ENVIRONMENT CONDITIONS

Operation Temperature: 0 °C to 40 °C

Operation Humidity: 10% to 80%

POWER

Power Supply: AC 100-240V~, 50/60Hz

Power Type: Built-In Power

POWER CONSUMPTION

BTU (British Thermal Unit): 164 BTU/Hr(Typ.), 222BTU/Hr(Max.)

Smart Energy Saving (70%): 34W

DPM: 0.5W↓

Power off: 0.5W↓

Max.: 65W

Typ.: 48 W

CERTIFICATION

Safety: CB/NRTL

EMC: FCC Class "A"/ CE / KC

ERP / Energy Star: N/A / Yes

SOFTWARE COMPATIBILITY

SuperSign CMS: Yes

SuperSign Control+: Yes

SuperSign Cloud: Yes

Mobile CMS: Yes

Connected Care: Yes

LANGUAGE

OSD: English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic, Türkçe, Polski

ACCESSORY

Basic: Power Cord 1.55 M*1, USB Cable (Type A-Type B) 1.8 M*1, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver

SPECIAL FEATURE

Tilt (Face up): Yes (Max 45º)

Conformal Coating (Power Board): Yes

DEDICATED FEATURE - TOUCH

Available Object Size for Touch: Ø6 mm ↑

Response Time ('Paint' app on Windows 10 PC): 90ms ↓

Accuracy (Typ.): 3.5mm

Interface: USB2.0

Operating System Support: Win 10/ 11, Android

Multi Touch Point: Max 10 Points
