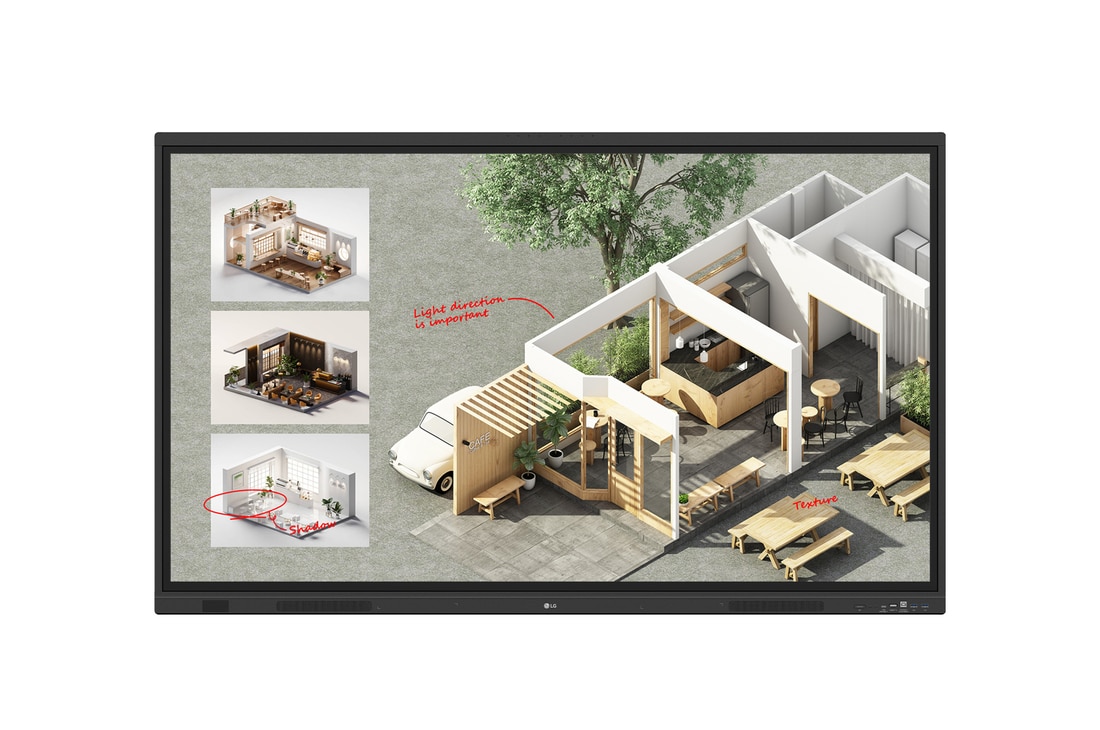

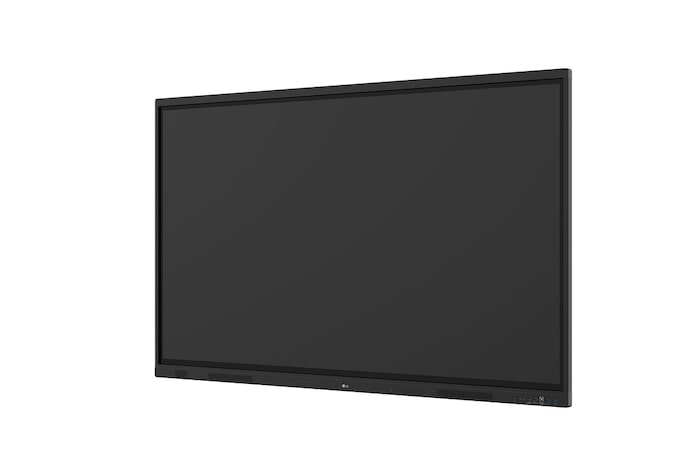

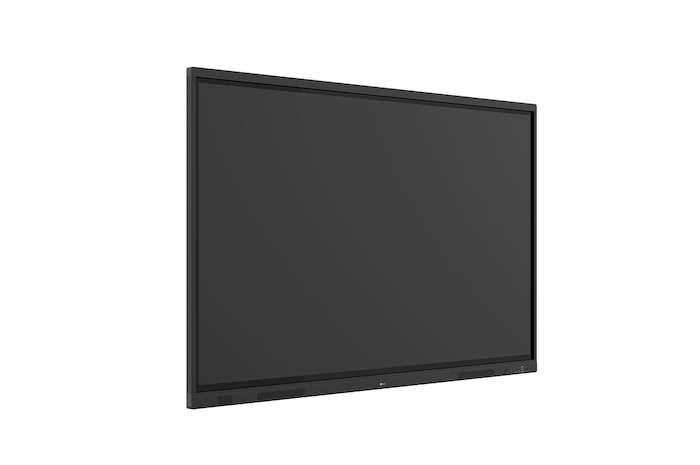

LG CreateBoard Standard

65TR3DQ-B

Key Features

Resolution : 3,840 × 2,160 (UHD)
Brightness : 400 nit (Typ.)
Multi-Touch Point : Max. 50 Points
OS Ver. : Andorid 14 (EDLA)
Interface (Input) : HDMI (3), DP, RGB (VGA), Audio, RS-232C, RJ45 (LAN), USB Type-C (2), USB 3.0 Type-A (5), USB 2.0 Type-A
Interface (Output) : HDMI Out, Audio Out, Touch USB (3), RJ45 (LAN)

All specs

PANEL

Screen Size (Inch): 65"

Panel Technology: VA

Back Light Type: Direct

Aspect Ratio: 16:9

Native Resolution: 3840x2160 (UHD)

Refresh Rate: 60Hz

Brightness: 400nit (typ.)

Contrast Ratio: 5000:1

Dynamic CR: 5000:1

Color Gamut: NTSC 72%

Viewing Angle (H x V): 178 X 178

Color Depth (Number of Colors): 8bit+FRC, 1.07G

Response Time: 6.5ms

Surface Treatment (Haze): 25%

Life time: 50,000 Hrs(L50, Min.)

Operation Hours (Hours/Day): 16/7

Portait / Landscape: No / Yes

CONNECTIVITY

HDMI In: Yes(3, Front1/Back2)

DP In: Yes(1)

RGB In: Yes(1, VGA)

Audio In: Yes(1)

RS232C In: Yes(1)

RJ45(LAN) In: Yes(1)

USB In: USB3.0 Type A(5) - Front2/Back2/Top1
USB2.0 Type A(1),
USB Type-C(2, For the front 1, PD 65W without OPS/
DP-Alt ) - Front1/Back1

HDMI Out: Yes(1)

Audio Out: Yes(1), Optical Yes(1, SPDIF)

Touch USB: Yes(3, Front1/Back2)

RJ45(LAN) Out: Yes(1)

MECHANICAL SPECIFICATION

Bezel Color: Black

Bezel Width: T/R/L/B：25.6/15/15/43.5mm

Weight (Head): 34.75Kg

Packed Weight: 41.55Kg

Monitor Dimensions (W x H x D): 1488.4×907.5×99.7mm

Carton Dimensions (W x H x D): 1628×1014×185mm

VESA Standard Mount Interface: 600x400mm

FEATURE - HARDWARE

Internal Memory (eMMC): 64GB

Wi-Fi/BT (Built-in): Yes (Slot type)

Auto Brightness Sensor: Yes

Power Indicator: Yes

Local Key Operation: Yes

FEATURE - SOFTWARE

OS Ver. (webOS): Android14(EDLA)

Booting Logo Image: Yes

RS232C Sync: Yes (LG RS232C Command)

PIP: Yes(1) external source

PBP: Yes(4)

Screen Share: Yes (CreateBoard Share)

Setting Data Cloning: Yes

Crestron Connected: Yes

Smart Energy Saving: Yes (Energy Saving)

Wake on LAN: Yes

Network Ready: Yes (Fast Power On)

HDMI-CEC: Yes

webRTC: Yes(CreateBoard Share website mirr used WebRTC)

ENVIRONMENT CONDITIONS

Operation Temperature: 0℃ to 40℃

Operation Humidity: 10% to 90%

POWER

Power Supply: AC 100-240V~, 50/60Hz

Power Type: Built-In Power

POWER CONSUMPTION

Typ.: 140W(measured:130W)

Max.: 295W(measured:270W)

BTU (British Thermal Unit): TBD

Smart Energy Saving (70%): Yes

DPM: Yes

Power off: ＜0.5W

SOUND

Speaker (Built-in): speaker：Yes (20Wx2 + 20W)
output：Yes (18Wx2 + 18W)

CERTIFICATION

Safety: IEC 62368-1:2018;
UL 62368-1:2019

EMC: FCC Class "A" / CE / KC

ERP / Energy Star: Yes / Yes

ePEAT(US only): Yes(Bronze)

OPS COMPATIBILITY

OPS Type compatible: Yes(Slot)

OPS Power Built-in: Yes

SOFTWARE COMPATIBILITY

Connected Care: Yes

LANGUAGE

OSD: English, Simplified Chinese, Czech, Denmark, Arabic(Egypt), Finnish, French, German, Greek, Italian, Korean, Netherlands(Dutch), Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Russian, Spanish, Swedish, Türkçe, Ukrainian, Traditional Chinese, Hungarian, Thai, Indonesian, Kazakh, Catalan, Basque, Japanese,Estonian, Lithunian

ACCESSORY

Basic: Power Cord 3 M*1, USB Cable(Type A-Type B) 5 M*1, USB Type-C Cable(C to C) 1.8 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module

Optional: WIB6540B

SPECIAL FEATURE

Overlay Touch Compatibility: Yes

Conformal Coating (Power Board): Yes

Power Protection: Yes

DEDICATED FEATURE - TOUCH

Available Object Size for Touch: Ø2 mm ↑

Response Time ('Paint' app on Windows 10 PC): 5ms ↓

Accuracy (Typ.): ±1mm

Interface: USB2.0

Protection Glass Thickness: 3.2mm (Anti-Glare)

Protection Glass Transmission: 88% (Typ.)

Operating System Support: Windows 10/ Windows 8/ Windows 7/ Android/ Linux/ macOS
(Linux/ macOS 1 Point )

Multi Touch Point: Max 50 Point

DEDICATED FEATURE - CREATE BOARD

CPU: Octa core A73x4 +A53x4 (A311D2)

GPU: Mali-G52 MP8

Memory(RAM): 8GB

Storage: 64GB

Wi-Fi: WiFi 6E

LAN: Gigabit LAN

Bluetooth: Bluetooth 5.3

OS ver. (Android): Android 14(EDLA)
