Key Features

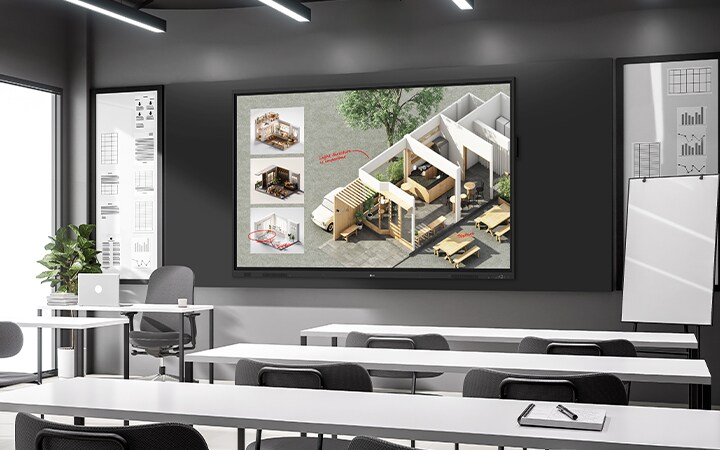

In the lecture room, there's a large interactive digital board installed on the wall, vividly displaying lecture materials on the screen.
* All images are for illustrative purposes only.
LG CreateBoard offers a lifelike touch experience, allowing users to interact with content directly on the board. You can write, draw, zoom, and rotate using just your fingers, making it an effective tool for creative projects or presentations. Additionally, LG CreateBoard enables screen and content sharing, making it an excellent tool for seamless collaboration even with remote team members.
In the ideation space of the lecture room, there are two smart boards—one mounted on the wall and the other a stand-alone unit. Students freely share their opinions by writing on them.
LG CreateBoard offers a variety of educational templates and tools such as a ruler, table, and sticky note, fostering active student participation and facilitating intuitive lessons.
During class, one student is writing on the digital whiteboard screen, while another is using a ruler tool from the toolbar menu.
LG CreateBoard incorporates straightforward import and export features. Resources can be saved and directly imported to and from Google Drive or OneDrive. After meetings, you can directly send emails to share materials, or scan a QR code to transfer them to your personal device.
Materials for the meeting can be easily imported, saved, and exported thanks to the digital whiteboard's various functions.
LG’s proprietary whiteboarding software

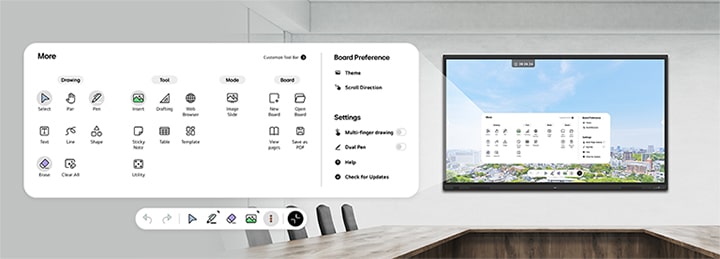

An interactive smart board is mounted on the wall of the conference room, with the intuitive menu bar displayed on the screen.
A variety of tools such as a calculator, clock, and sticky note are available to facilitate smooth discussions and ensure seamless idea sharing and communication. Also, users can personalize the menu bar with their most frequently used tools, thereby improving their work efficiency.
LG CreateBoard Share offers a wireless screen sharing feature, providing users with a flexible discussion environment. Users can share their screen from their own PC, tablet, or smartphone, simplifying the process of sharing and collaborating on team projects or presentation materials.
The materials displayed on the interactive digital board are wirelessly shared and shown identically on laptops, tablets, and smartphones simultaneously.
* LG CreateBoard also supports app-less sharing for PC, tablet, or smartphone (via website) within the same network.
* For a more stable connection, we recommend the installation of a dedicated app (LG CreateBoard Share).
* LG CreateBoard Share app is compatible with Android 5.1 and higher, iOS 12.0 and higher, and MacOS 11.0 and higher.
LG CreateBoard Share establishes a seamless and stable meeting room without the need for extra cables or connections. Presenters can now share their screens without the need to inconveniently move around and unplug and plug cables each time the presenter changes. With the capability to share up to 9 screens in real-time, it’s possible to display multiple people’s materials simultaneously when needed, thereby enhancing the efficiency of collaboration.

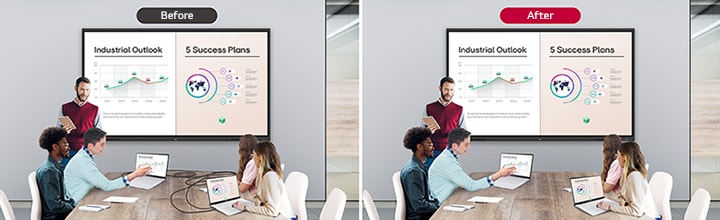

Two images are shown side by side for a before-and-after comparison. One image displays multiple cables connected to different devices used for screen sharing during the meeting. The other image shows a tidy table with screen sharing facilitated wirelessly through the wireless screenshare feature, eliminating the need for multiple cables.
Wireless screen sharing empowers presenters to navigate freely within a meeting room, unencumbered by cables. This feature enables them to seamlessly control their presentations directly from their own devices. In addition, they can conveniently send photos and videos stored on their personal devices, enhancing the fluidity and richness of their presentations.
A presentation is underway in the meeting room equipped with an interactive smart board, with the presenter seamlessly controlling his materials via wireless screen sharing on his tablet.
In the classroom, the lecturer or presenter doesn’t need to conduct the lesson near the LG CreateBoard, but can flexibly conduct the lesson from anywhere in the classroom. This promotes a more flexible classroom environment and can help keep students more focused.

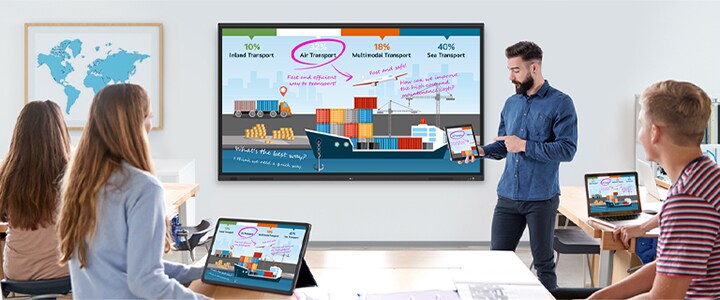

In the classroom equipped with an digital whiteboard, a presenter conducts a session, managing presentation materials on his tablet via wireless screen sharing.
LG ConnectedCare is a cloud solution for remotely monitoring, controlling, and managing the status of LG CreateBoard and LG signage displays. This feature enables IT managers to operate and manage important resources on operating devices without physically visiting sites.
LG ConnectedCare enables the remote management of the LG CreateBoard and digital signage for scheduling, broadcasting videos, images, and audio, as well as live streaming.
* ‘LG ConnectedCare’ needs to be purchased separately.
* The availability of the ‘LG ConnectedCare’ service differs by region, so please contact the LG sales representative in your region for more details.
The LG ConnectedCare dashboard allows you to view and monitor multiple devices at the same time, thereby saving time and boosting efficiency.
Dashboards available on LG ConnectedCare are currently being displayed.
The LG ConnectedCare enables centralized and simple control of digital signage connected to the system. Frequently used functions such as power on/off, scheduling and screen brightness adjustment can be applied remotely
The IT manager can remotely control devices in the classroom such as power on/off, scheduling and screen brightness adjustment functions.
Messages and a range of other content can be sent from the main system to individual devices connected to LG ConnectedCare. Company events or announcements can be broadcasted remotely from the cental system at once.
Company notices are remotely broadcast on multiple screens installed in the office, lobby, and break area.
In case of urgent occasions such as a fire or a natural disaster, alert messages can be distributed manually across the system, which help teachers and students to swiftly perceive the situation and promptly take safety action.
LG ConnectedCare allows for remote broadcasting, enabling the ability to send a message to multiple selected devices at once.
The Screen Lock function allows users to lock and unlock the screen.
Users can lock the screen using the Screen Lock function, and unlock it by entering a password. This protective measure can be set up in the Settings menu, safeguarding the device from unauthorized access.
In the meeting room, individuals are actively exchanging ideas by writing on the LG's interactive digital board screen at the same time.
LG CreateBoard boasts a multi-touch functionality that can concurrently detect up to 50 touch points. This feature facilitates simultaneous touch and gesture inputs from multiple users, fostering easy collaboration and idea sharing among team members. This enables efficient interaction in group activities or meetings.
USB-C connectivity simplifies connections, easily transmits data, and can charge devices with up to 65W.
USB-C connectivity simplifies connections which enables charging and sending data simultaneously over just one single cable.
Bluetooth Connectivity
The LG's smart board can wirelessly connect to devices such as keyboards, mice, and speakers via Bluetooth.
LG CreateBoard supports wireless Bluetooth connections to various devices such as a speaker, mouse, keyboard, etc. This is optimal for building a hybrid environment so that online and offline classes can proceed smoothly.
Thanks to the LG digital board's flicker-free function, even if users look at the screen for a long time, they can use the device with more comfort.
LG CreateBoard has introduced a flicker-free function. With the reduced flickering of the monitor’s backlight, users can use the device with more comfort even when using it for a long time.
* All sizes of TR3DQ models received official Flicker Free certification from TUV Rheinland. (January 2025 ~ January 2028). In the flicker-free test, it is confirmed that there is no visible flicker and no invisible flicker defined by the test standards in the range of 0 to 3,000 Hz at various brightness settings.
Screen Size (Inch)
75"
Panel Technology
VA
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
3840x2160 (UHD)
Refresh Rate
60Hz
Brightness
400nit (typ.)
Contrast Ratio
5500:1
Dynamic CR
5000:1
Color Gamut
NTSC 72%
Viewing Angle (H x V)
178 X 178
Color Depth (Number of Colors)
8bit+FRC, 1.07G
Response Time
6.5ms
Surface Treatment (Haze)
25%
Life time
50,000 Hrs(L50, Min.)
Operation Hours (Hours/Day)
16/7
Portait / Landscape
No / Yes
HDMI In
Yes(3, Front1/Back2)
DP In
Yes(1)
RGB In
Yes(1, VGA)
Audio In
Yes(1)
RS232C In
Yes(1)
RJ45(LAN) In
Yes(1)
USB In
USB3.0 Type A(5) - Front2/Back2/Top1
USB2.0 Type A(1),
USB Type-C(2, For the front 1, PD 65W without OPS/
DP-Alt ) - Front1/Back1
HDMI Out
Yes(1)
Audio Out
Yes(1), Optical Yes(1, SPDIF)
Touch USB
Yes(3, Front1/Back2)
RJ45(LAN) Out
Yes(1)
Bezel Color
Black
Bezel Width
T/R/L/B：25.6/15/15/43.5mm
Weight (Head)
43.85Kg
Packed Weight
57.3Kg
Monitor Dimensions (W x H x D)
1709.4×1031.1×99.7mm
Carton Dimensions (W x H x D)
1863×1155×225mm
Handle
Yes
VESA Standard Mount Interface
800x400mm
Thickness
Thickness
Tempered / Chemical strengthening
Yes
Anti-Reflective
Yes
Shatter-Proof
Yes
Internal Memory (eMMC)
64GB
Wi-Fi/BT (Built-in)
Yes (Slot type)
Auto Brightness Sensor
Yes
Power Indicator
Yes
Local Key Operation
Yes
OS Ver. (webOS)
Android14(EDLA)
Booting Logo Image
Yes
RS232C Sync
Yes (LG RS232C Command)
PIP
Yes(1) external source
PBP
Yes(4)
Screen Share
Yes (CreateBoard Share)
Setting Data Cloning
Yes
Crestron Connected
Yes
Smart Energy Saving
Yes (Energy Saving)
Wake on LAN
Yes
Network Ready
Yes (Fast Power On)
HDMI-CEC
Yes
webRTC
Yes(CreateBoard Share website mirr used WebRTC)
Operation Temperature
0℃ to 40℃
Operation Humidity
10% to 90%
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
Typ.
175W(measured:160W)
Max.
365W(measured:335W)
BTU (British Thermal Unit)
TBD
Smart Energy Saving (70%)
Yes
DPM
Yes
Power off
＜0.5W
Speaker (Built-in)
speaker：Yes (20Wx2 + 20W)
output：Yes (18Wx2 + 18W)
Safety
IEC 62368-1:2018;
UL 62368-1:2019
EMC
FCC Class "A" / CE / KC
ERP / Energy Star
Yes / Yes
ePEAT(US only)
Yes(Bronze)
OPS Power Built-in
Yes
OPS Type compatible
Yes(Slot)
Connected Care
Yes
OSD
"English, Simplified Chinese, Czech, Denmark, Arabic(Egypt), Finnish, French, German, Greek, Italian, Korean, Netherlands(Dutch), Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Russian, Spanish, Swedish, Türkçe, Ukrainian, Traditional Chinese, Hungarian, Thai, Indonesian, Kazakh, Catalan, Basque, Japanese,Estonian, Lithunian"
Basic
Power Cord 3 M*1, USB Cable(Type A-Type B) 5 M*1, USB Type-C Cable(C to C) 1.8 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module
Optional
WIB9060H
Overlay Touch Compatibility
Yes
Conformal Coating (Power Board)
Yes
Power Protection
Yes
Available Object Size for Touch
Ø2 mm ↑
Response Time ('Paint' app on Windows 10 PC)
5ms ↓
Accuracy (Typ.)
±1mm
Interface
USB2.0
Protection Glass Thickness
3.2mm (Anti-Glare)
Protection Glass Transmission
88% (Typ.)
Operating System Support
Windows 10/ Windows 8/ Windows 7/ Android/ Linux/ macOS
(Linux/ macOS 1 Point)
Multi Touch Point
Max 50 Point
CPU
Octa core A73x4 +A53x4 (A311D2)
GPU
Mali-G52 MP8
Memory(RAM)
8GB
Storage
64GB
Wi-Fi
WiFi 6E
LAN
Gigabit LAN
Bluetooth
Bluetooth 5.3
OS ver. (Android)
Android 14(EDLA)
